SPECIFICATIONS

Battery Included: no

Brand Name: spotpear

Choice: yes

High-concerned chemical: none

Model Number: XIAO-RP2350

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

【XIAO Recommend】

【Product Introduction】

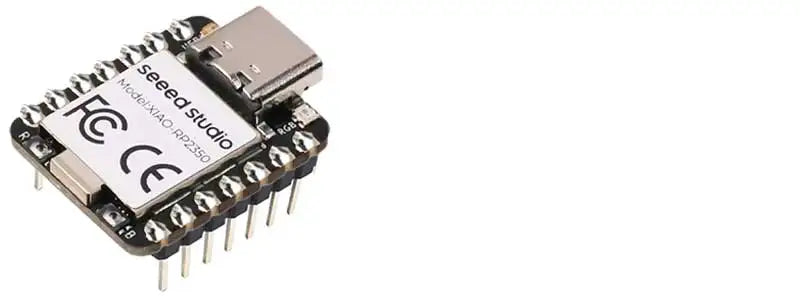

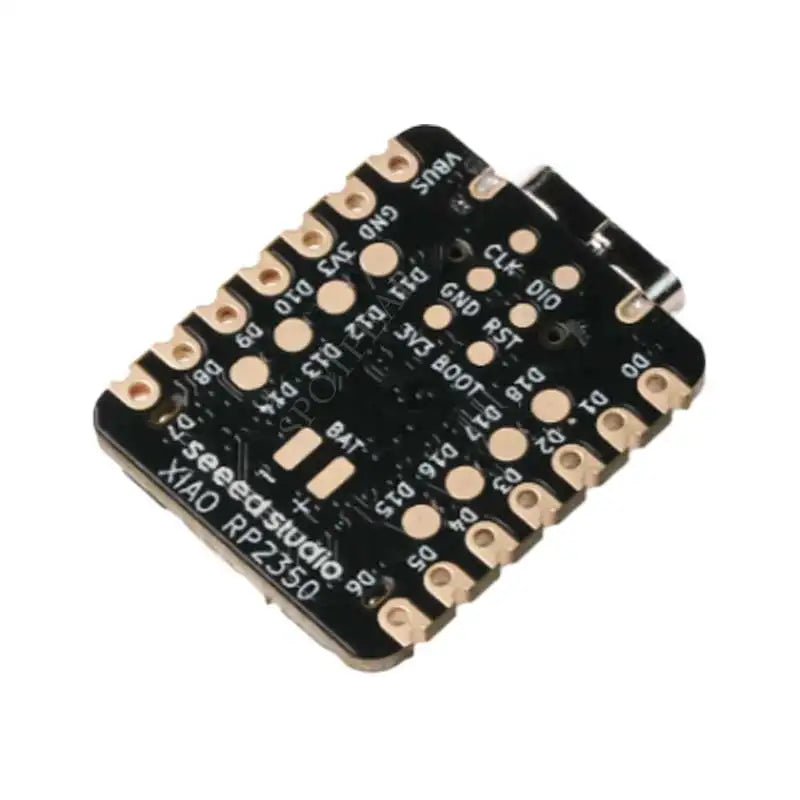

[] XIAO-RP2350 just 21x17.5mm, it features 19 multifunction GPIOs, an RGB LED, and a Battery Management System with ultra-low power consumption of 27μA, battery power supply, and direct battery voltage measurement. Thanks to the XIAO ecosystem, the XIAO RP2350 is compatible with a wide range of add-ons, including displays, LED matrix, Grove modules, CAN Bus, Vision AI sensors, and mmWave sensors.

【Product Details】

【Features】

[] Powerful MCU Board: Equipped with a Raspberry Pi RP2350 chip featuring dual-core, dual-architecture capability, allowing developers to switch between the dual industry-standard Arm Cortex-M33 cores @ 150MHz with FPU, and a pair of open-hardware Hazard3 RISC‑V cores

[] Enhanced Security Features: Built-in secure boot and encrypted bootloader ensure application security.

[] Software Support: Compatible with C/C++ and MicroPython, ensuring easy project development and prototyping.

[] Rich Onboard Resources: Integrates an RGB LED, 2MB Flash, 520kB SRAM, and 19 multifunction GPIOs(Analog, Digital, I²C, UART, SPI, PWM).

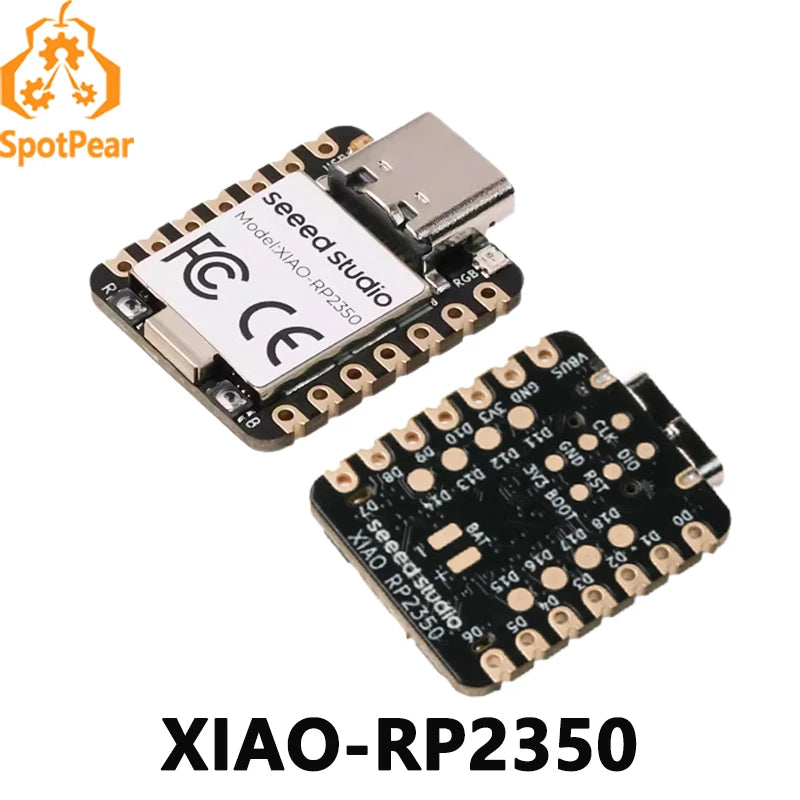

[] Expanded 8 New IOs: Compared to previous XIAO MCUs, the addition of 8 IO pins on the back supports more complex applications.

[] Efficient Power Design: Ultra-low power consumption of just 27μA in sleep mode, enabling battery power supply. Direct battery voltage measurement via internal IO enhances the battery management system (BMS).

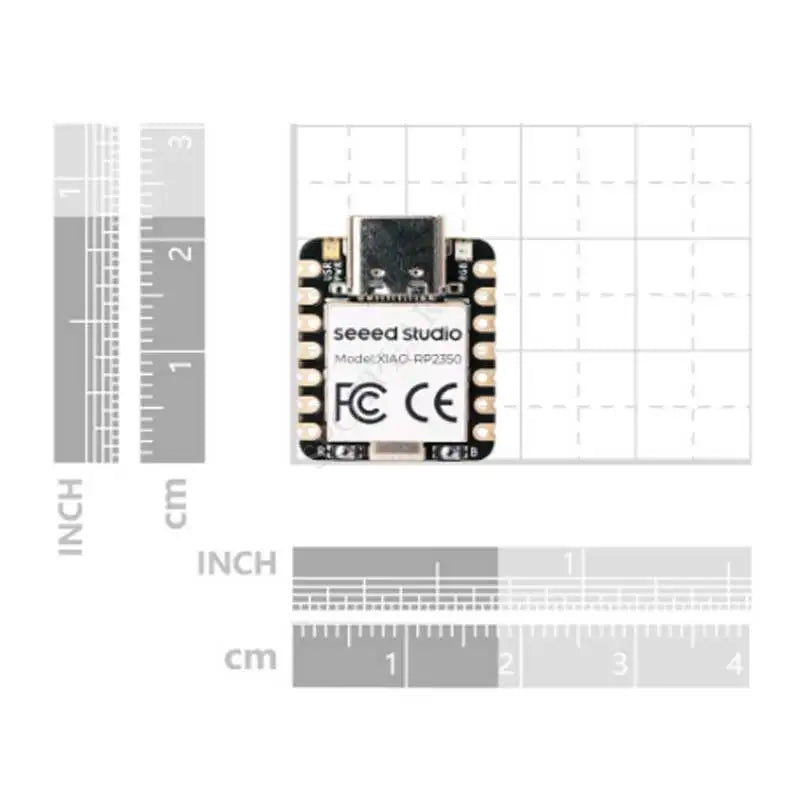

[] Compact Thumb-Sized Design: Measuring 21 x 17.5mm, adopting Seeed Studio's classic XIAO form factor, ideal for space-conscious applications.

[] Production-friendly: Surface Mount Device (SMD) design with all components on the front and stamp holes on both sides, facilitating efficient mass production.

【Product Comparison】

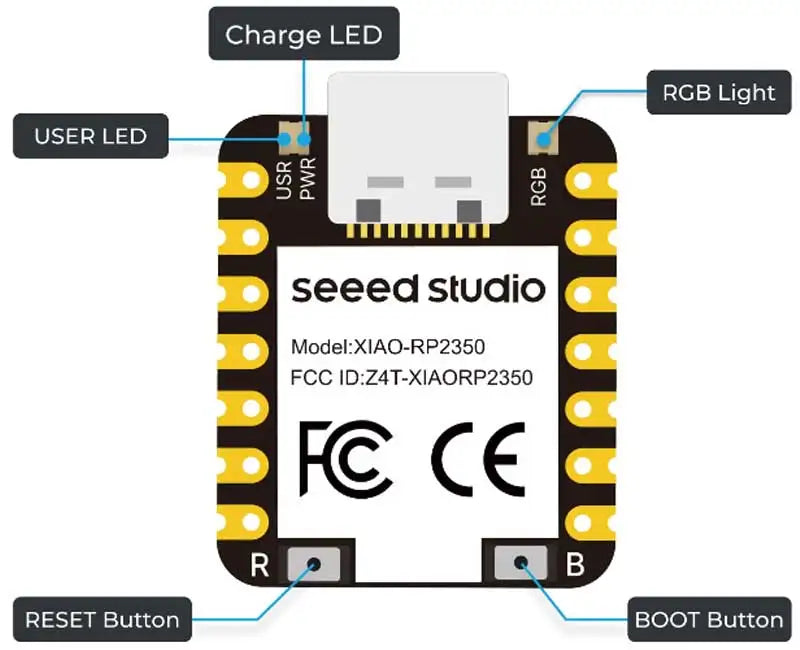

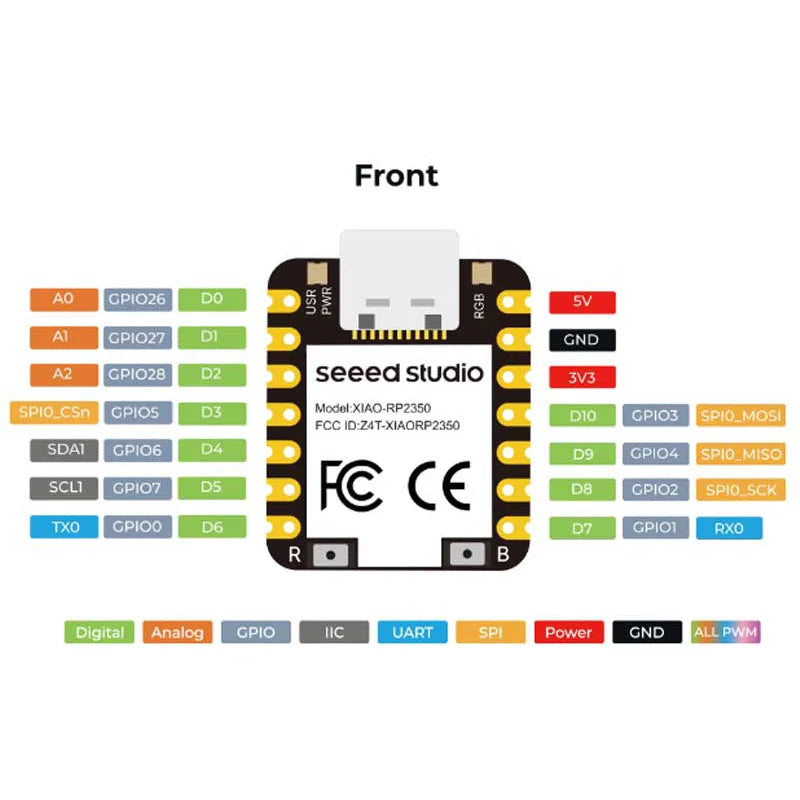

【Hardware Overview】

【Application】

[] Smart Control

[] Human Interface Devices (HID, such as mouse, DIY Mechanical Keyboard,joystick, console)

[] Education

[] Robotics

[] Wearables

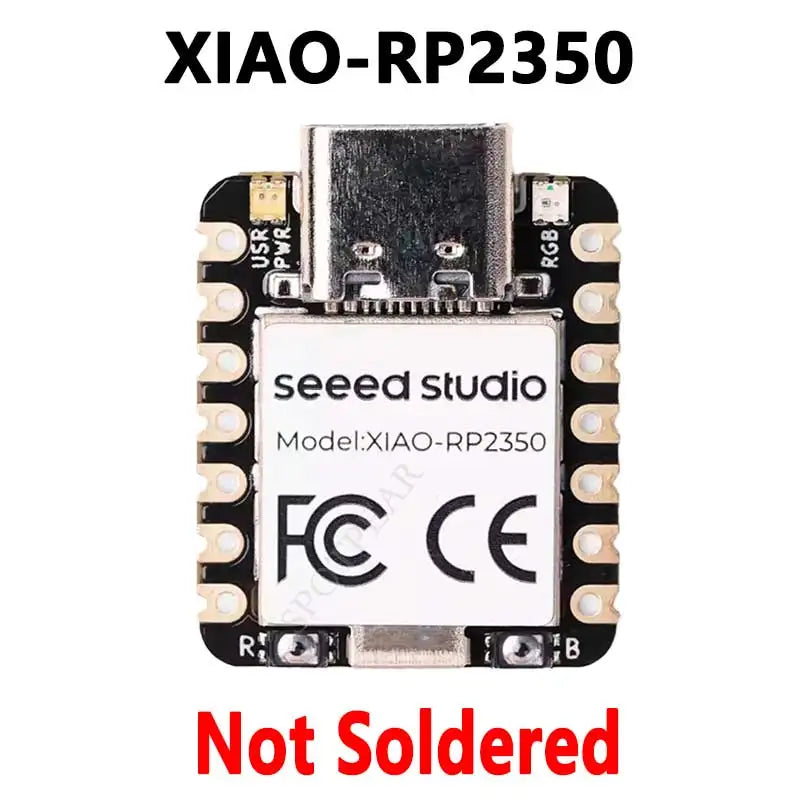

[] XIAO-RP2350×1

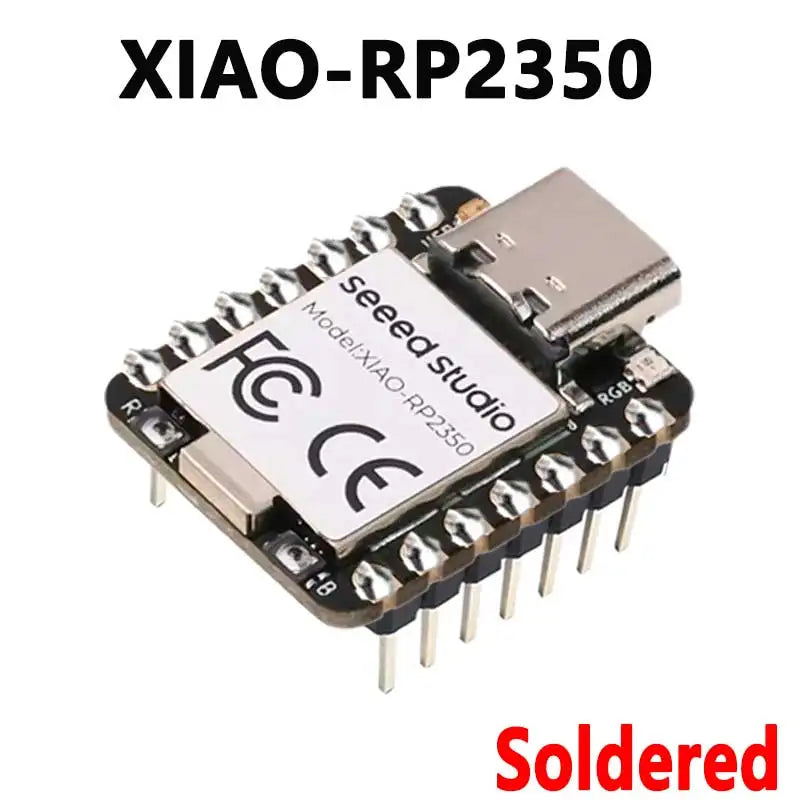

[] XIAO-RP2350-Soldered ×1
