SPECIFICATIONS

【Overview】

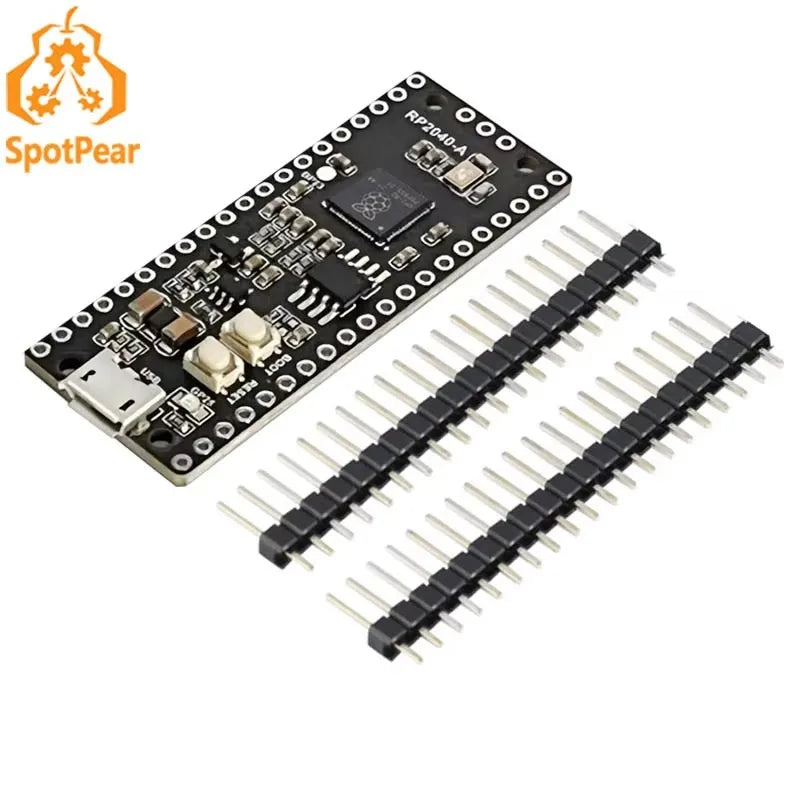

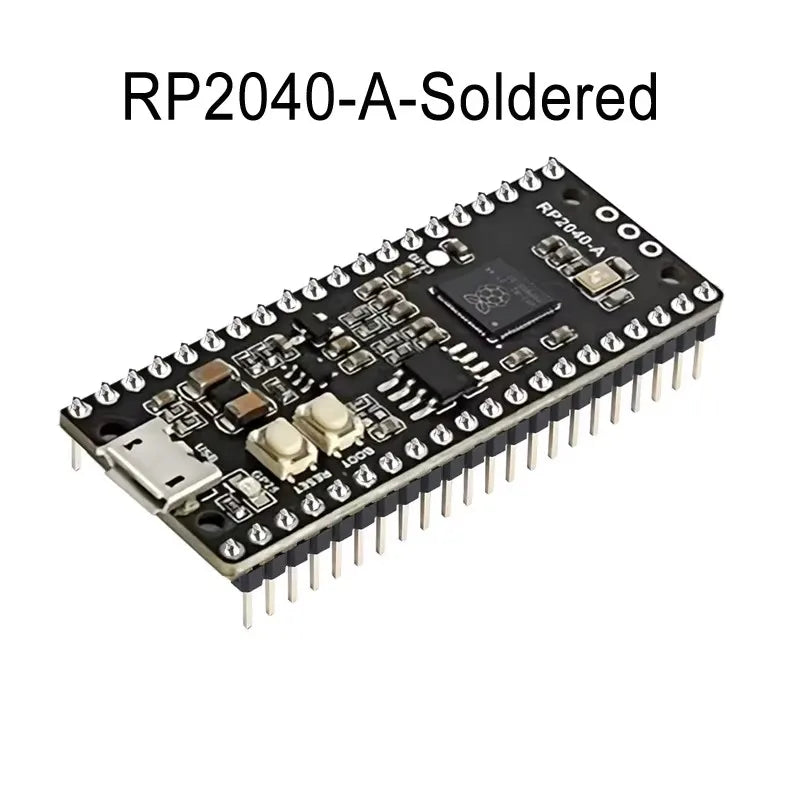

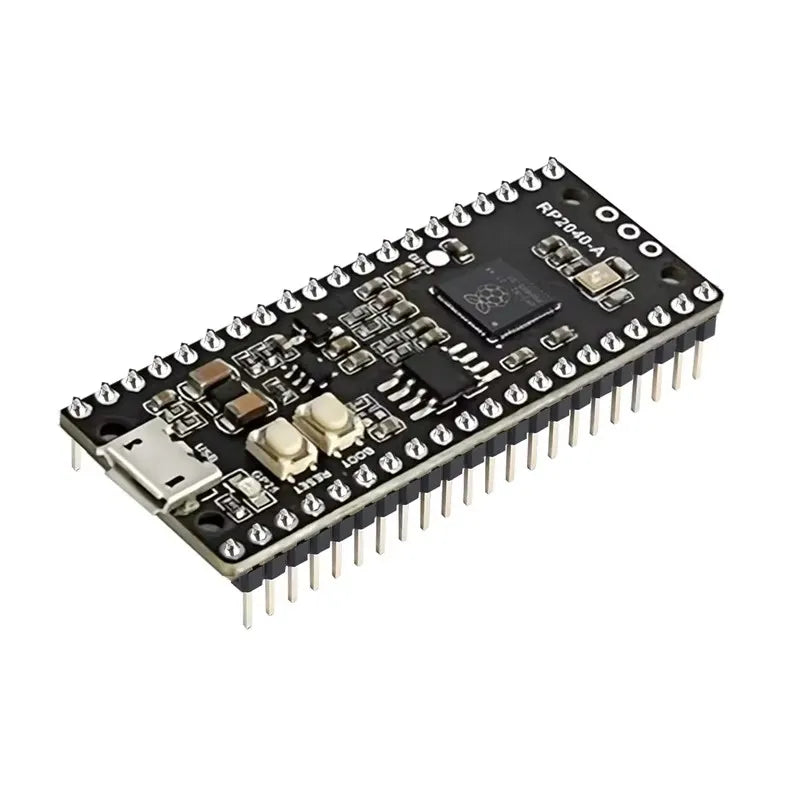

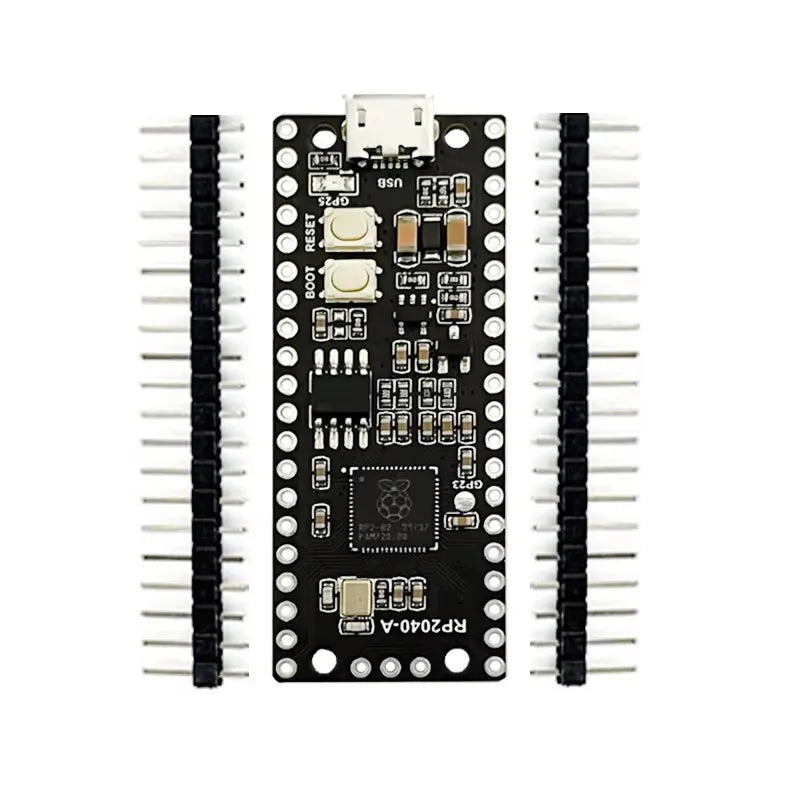

[] Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. It incorporates Raspberry Pi's own RP2040 microcontroller chip, with dual-core Arm Cortex M0+ processor running up to 133 MHz, embedded 264KB of SRAM and 1MB of on-board Flash memory, as well as 26x multi-function GPIO pins.

[] For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available. There're also complete development resources and tutorials to help you get started easily, and integrate it into end products quickly.

【Features】

[] RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

[] Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

[] 264KB of SRAM, and 1MB of on-board Flash memory

[] USB 1.1 with device and host support

[] Low-power sleep and dormant modes

[] Drag-and-drop programming using mass storage over USB

[] 26 × multi-function GPIO pins

[] 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

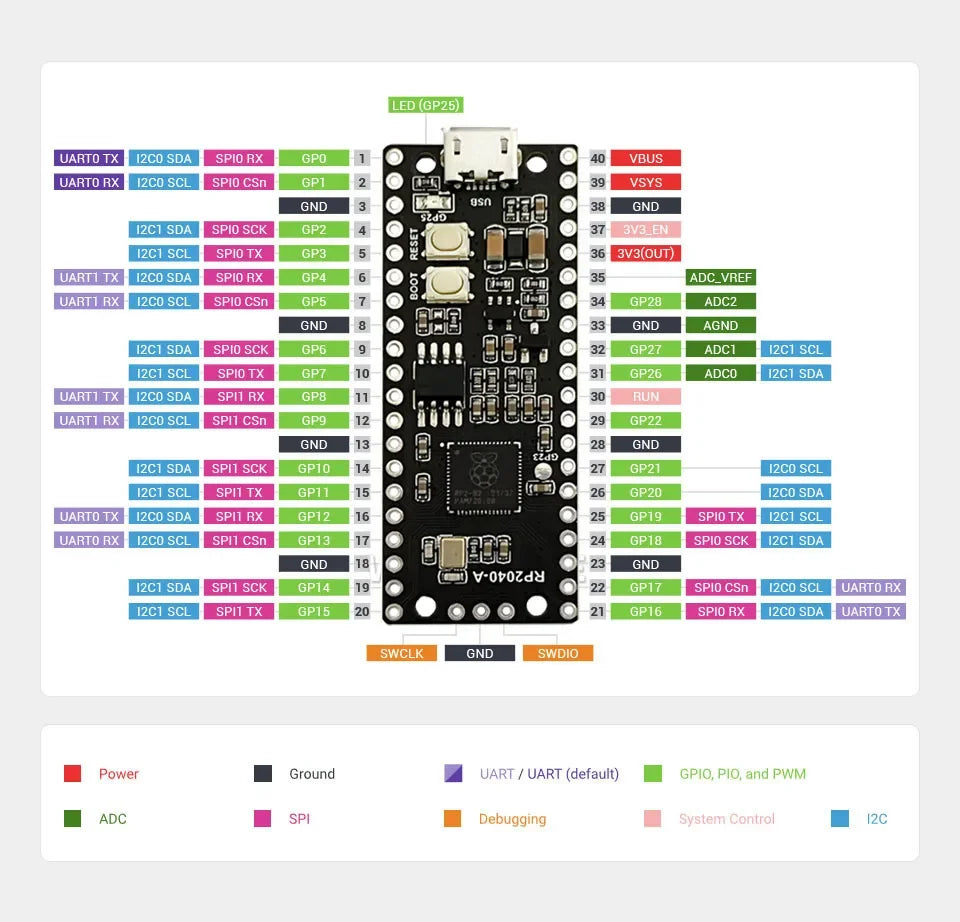

【Pin Definition】

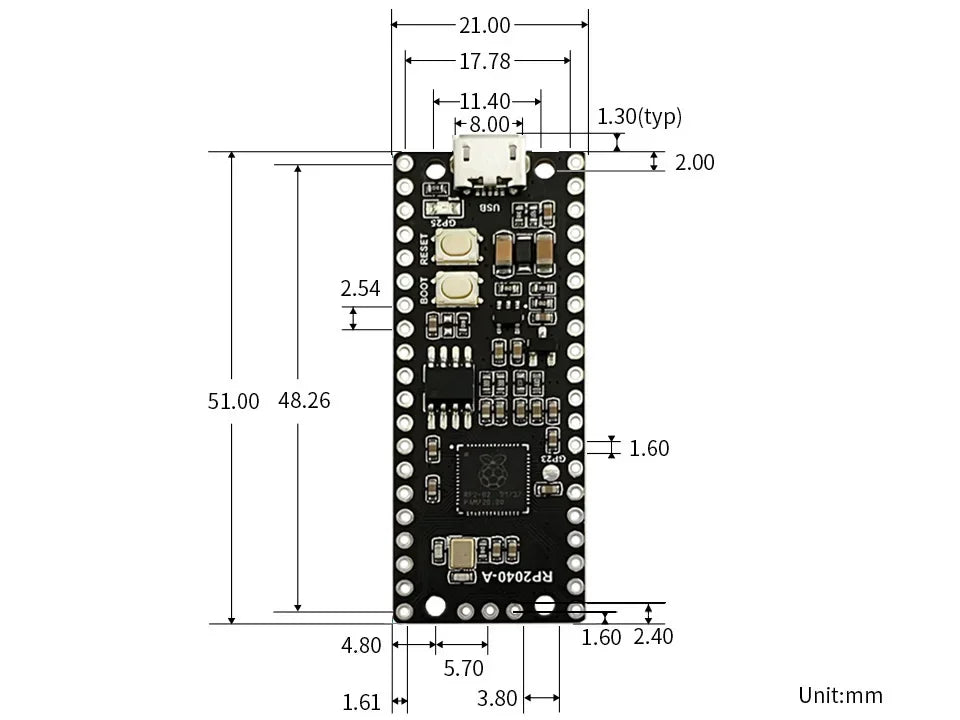

【Outline Dimensions】
