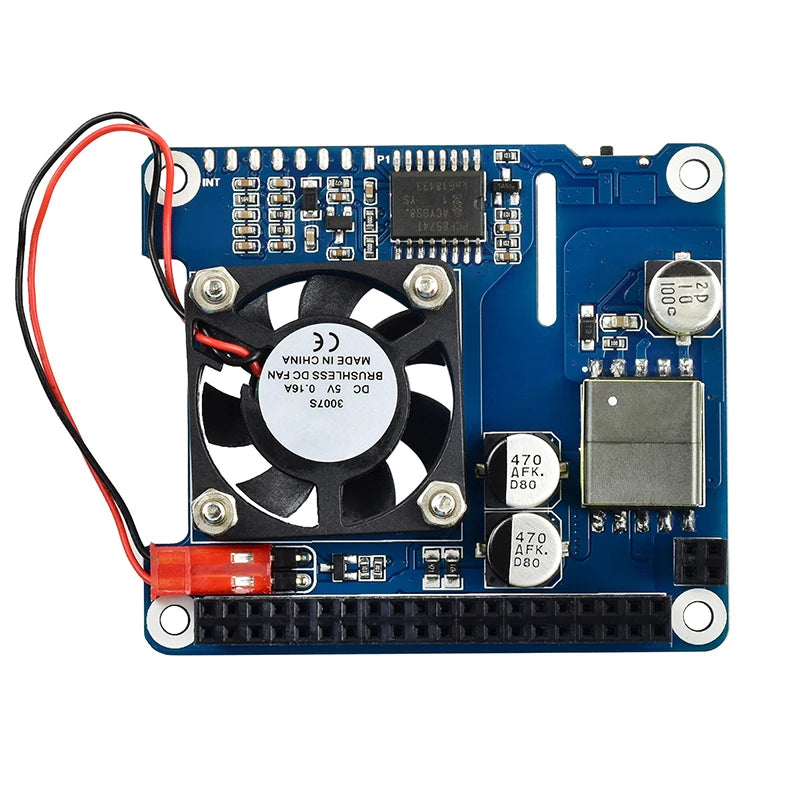

Raspberry Pi PoE HAT 802.3af Power Over Ethernet GPIO Expansion Board with Cooling Fan Optional CPU OLED for Pi 3B+ 4B

Raspberry Pi PoE HAT 802.3af Power Over Ethernet GPIO Expansion Board with Cooling Fan Optional CPU OLED for Pi 3B+ 4B

$126.48

$126.48 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: SHCHV

Choice: yes

Compatible With: Raspberry Pi 4B/3B+

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

B:

POE HAT FOR RASPBERRY PI

Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)

OLED for real-time monitoring temperature, IP, and fan status

The PoE HAT (B) is a 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features At A Glance

Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
PoE (Power Over Ethernet) capability，802.3af-compliant
Fully isolated switched-mode power supply (SMPS)
0.91" OLED, for monitoring processor temperature, IP address, and fan status in real-time
Onboard cooling fan, allows auto running on powerup OR programmable control, configured by switch
Integrates PCF8574 IO expander for I2C bus, providing pin P0 for directly fan control, and more spare IO pins

Specifications

POE POWER INPUT	37V ~ 57V DC in	OLED SIZE	0.91"
POE POWER OUTPUT	5V 2.5A DC out	OLED PIXELS	128×32
NETWORK STANDARD	802.3af PoE	OLED DRIVER	SSD1306
DIMENSIONS	56.5 × 65mm	OLED DISPLAY COLOR	white

For Use With Raspberry Pi 3B+/4B

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

* proper 802.3af-compliant power sourcing equipment is required

0.91" OLED Display

128 × 32 Pixels, I2C-Bus Controlled

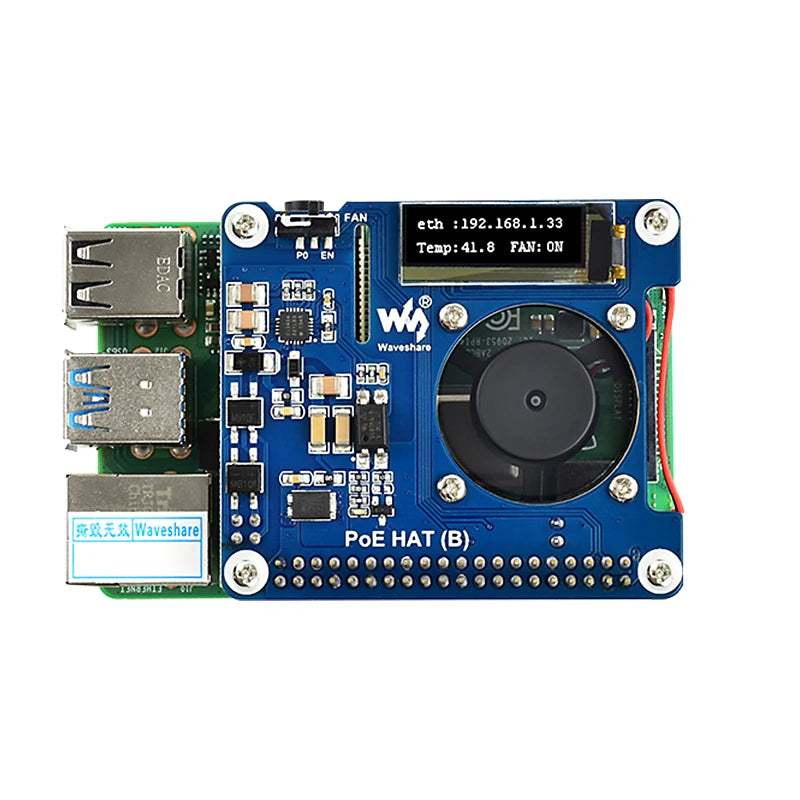

Monitoring Processor Temperature, IP Address, Fan Status In Real-Time

Cooling Fan

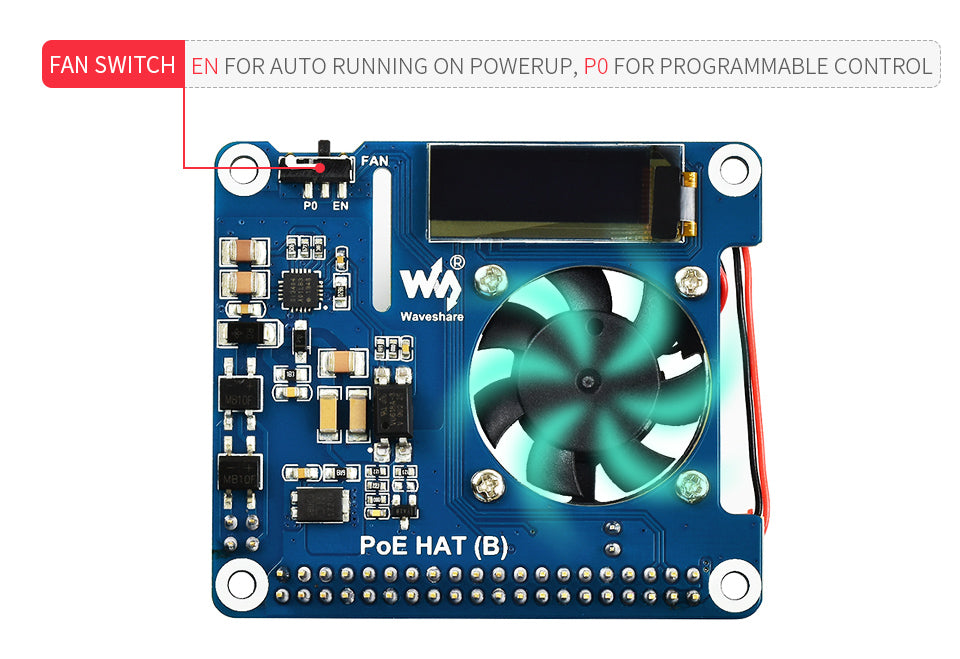

Allows Auto Running On Powerup OR Programmable Control, Configured By Switch
Automatically Turn On/Off Depending On The Raspberry Pi Processor Temperature

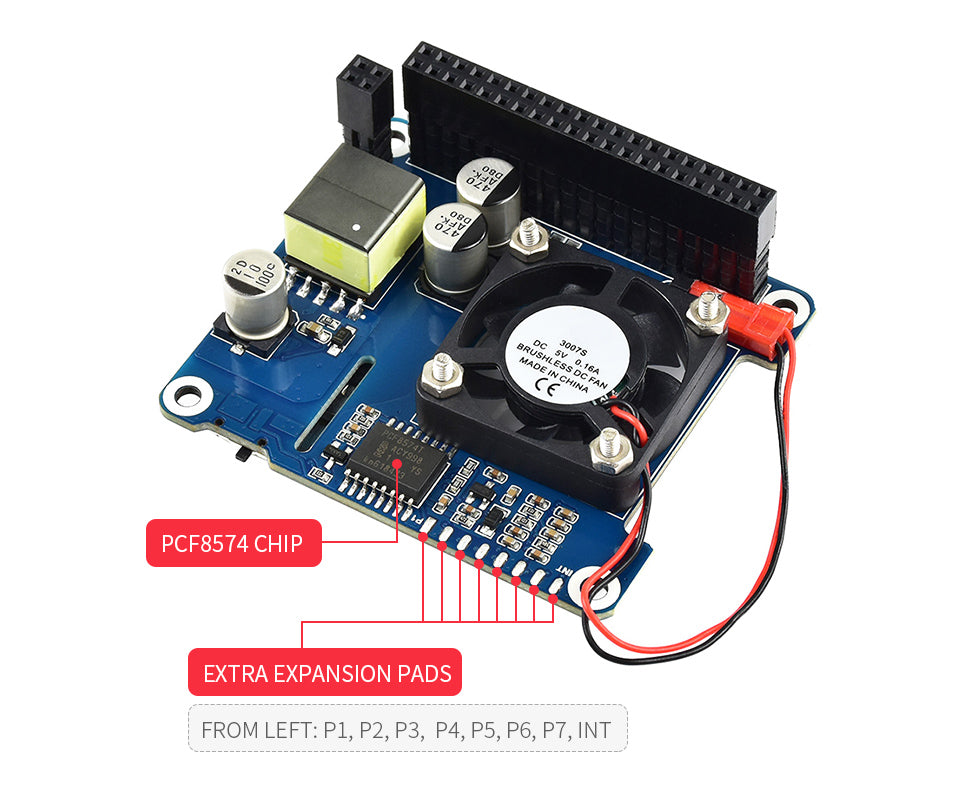

Onboard PCF8574 Chip

PCF8574 IO Expander For I2C Bus, Providing 8 IO Pins, Of Which P0 For Fan Control
And Extra Spare Pins On Solder Pads (P1-P7, INT)

Pinout Definition

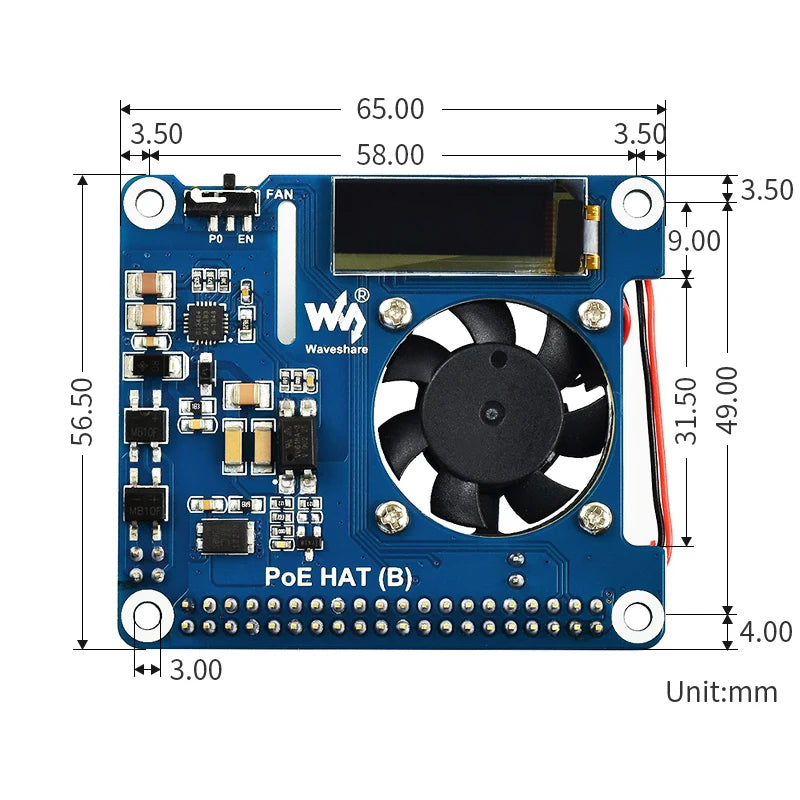

Outline Dimensions

Packing List :

1 x PoE HAT (B)

1 x Standoffs pack

(not include Raspberry Pi)

How to use

https://www.waveshare.com/wiki/PoE_HAT_(B)

D:

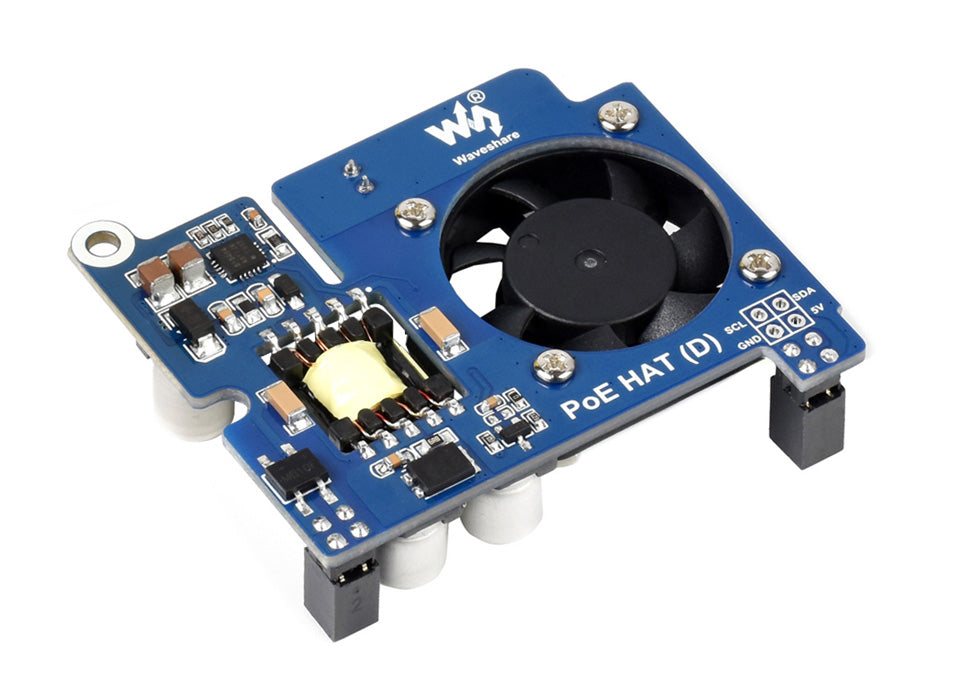

Power Over Ethernet HAT (Type D) For Raspberry Pi 3B+/4B, 802.3af-Compliant, Tailored For Raspberry Pi Official Case

POE HAT FOR RASPBERRY PI

Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af-Compliant

Tailored for Raspberry Pi official case

Features At A Glance

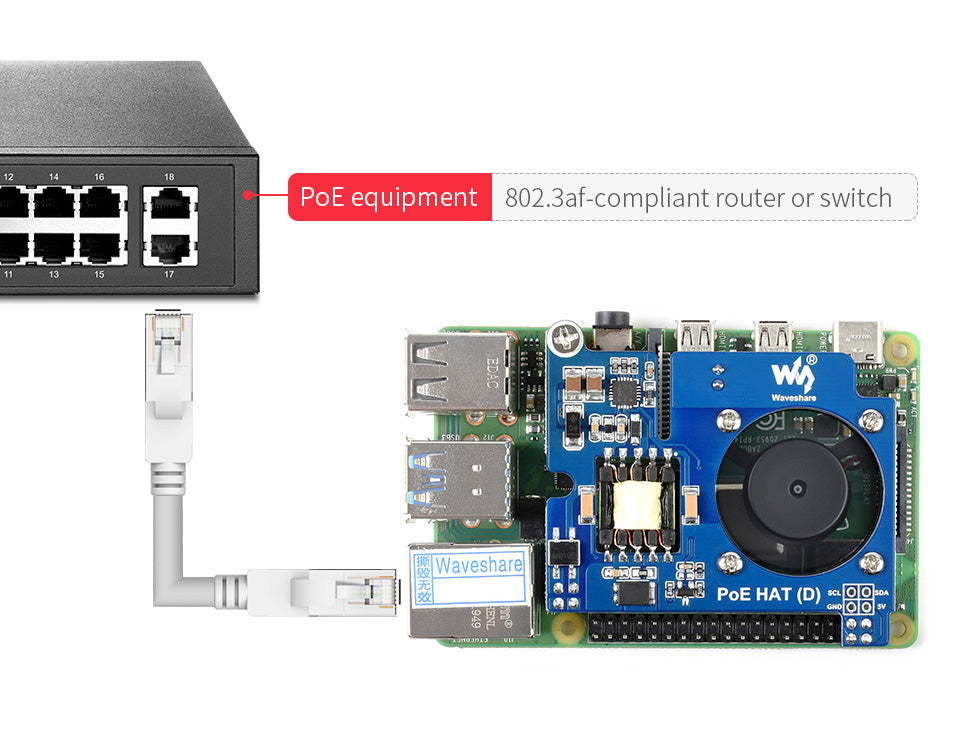

The PoE HAT (D) is an 802.3af-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
