SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

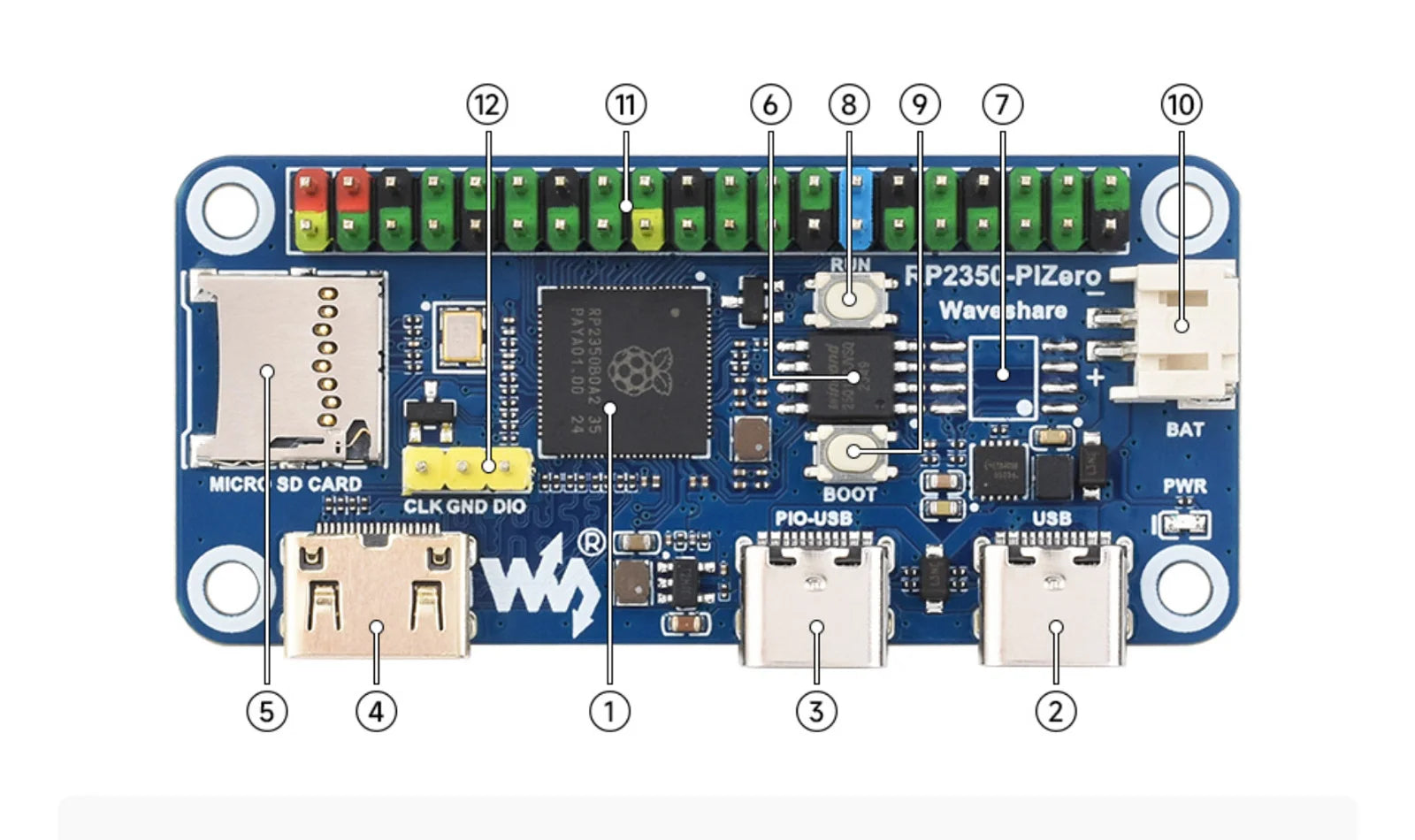

Product Characteristics

Key Functional Features:

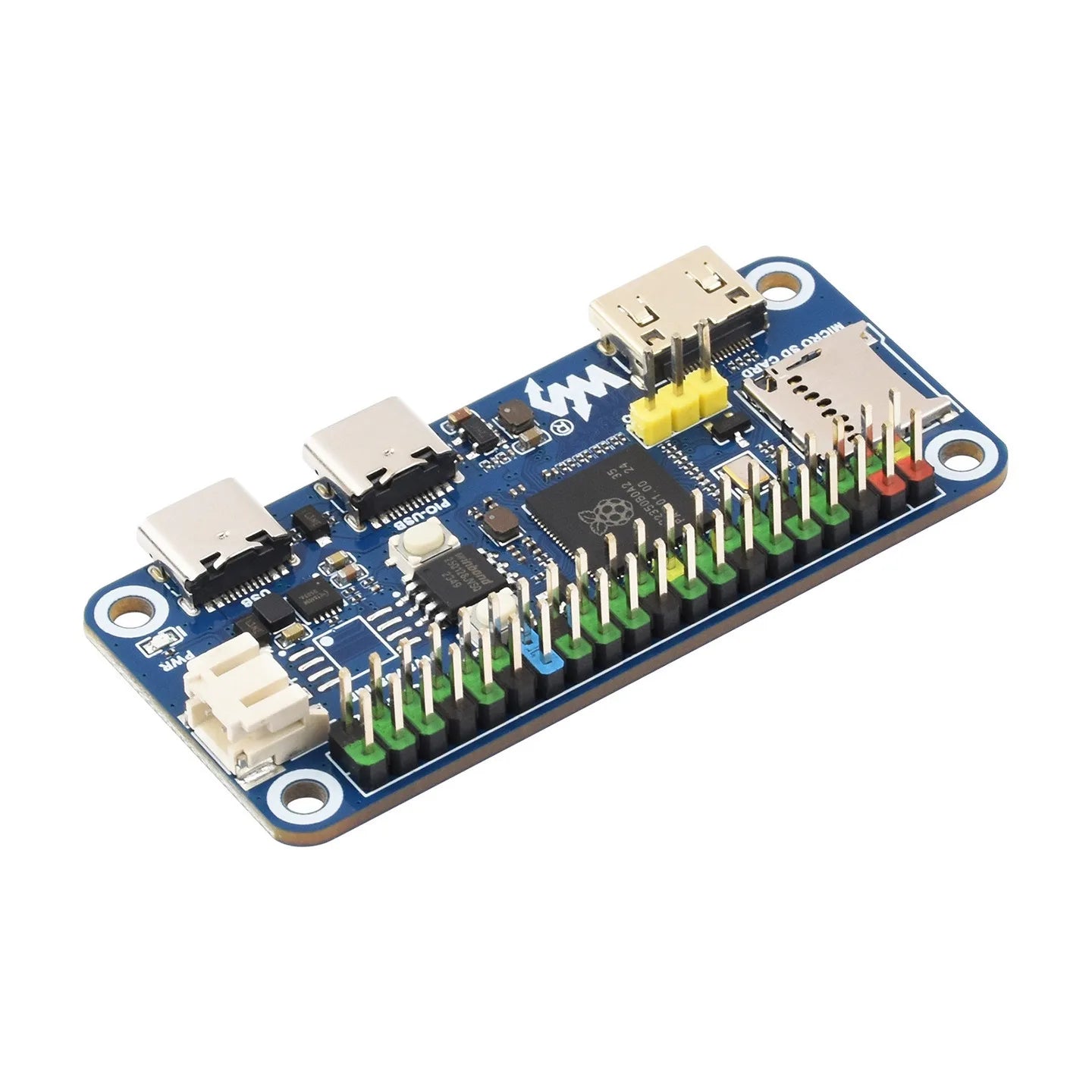

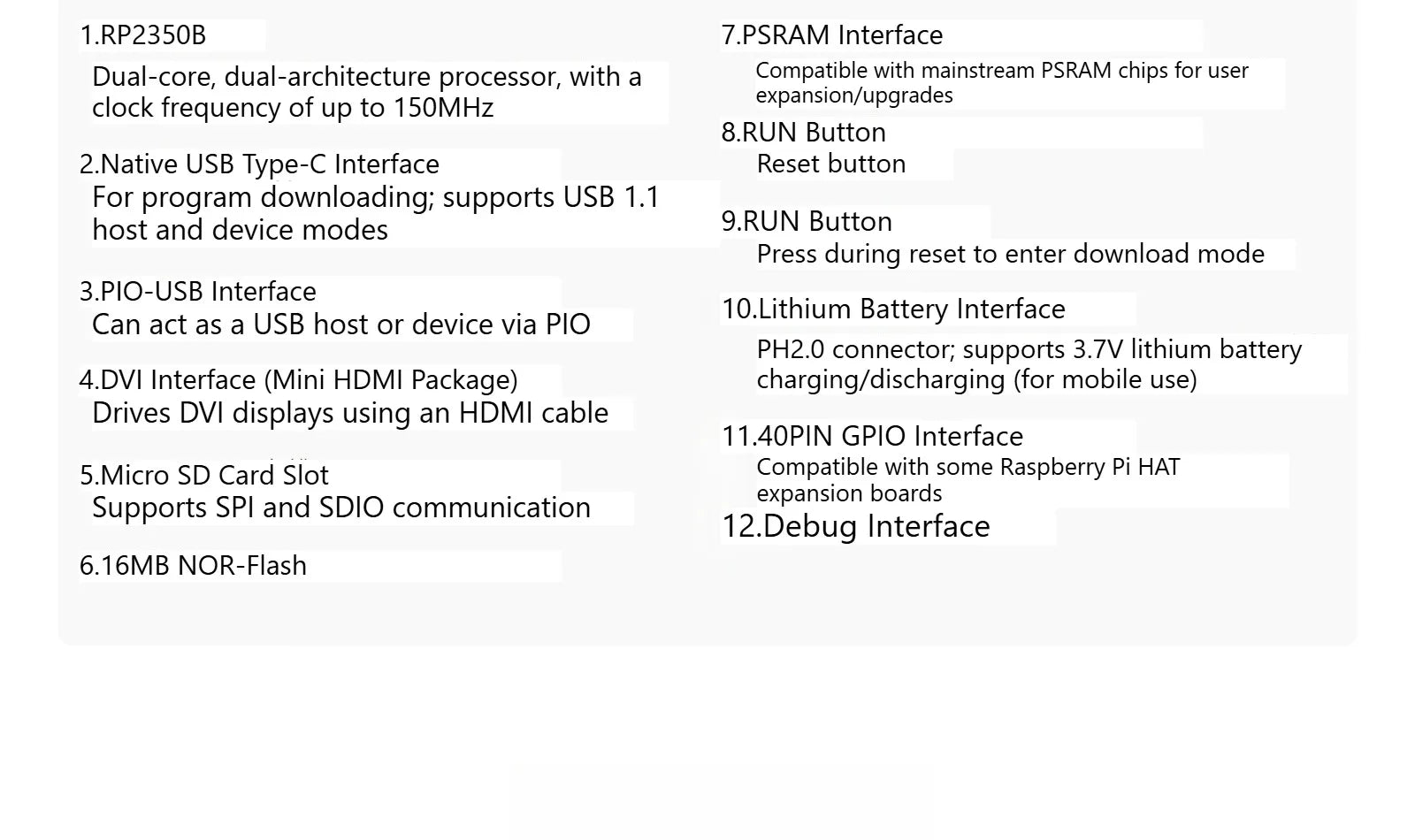

• Adopts the Raspberry Pi-designed RP2350B microcontroller chip

• Unique dual-core, dual-architecture: Equipped with a dual-core ARM Cortex-M33 processor and a dual-core Hazard3 RISC-V processor, both running at up to 150MHz, supporting flexible switching between the two architectures

• Built-in 520KB SRAM and 16MB on-chip Flash, with a reserved PSRAM interface for expansion

• Type-C interface design: No need to worry about plug orientation (reverse-compatible)

• Onboard DVI interface (Mini HDMI package): Compatible with most HDMI displays (requires DVI support)

• Onboard PIO-USB interface: Functions as both USB host and device

• Onboard MicroSD card slot: Supports reading and writing of MicroSD cards (compatible with SPI/SDIO communication)

• Onboard lithium battery charge/discharge interface (PH2.0 connector): Ideal for mobile scenarios (supports 3.7V lithium batteries)

• Supports USB 1.1 host and device modes

• Low-power sleep and hibernation modes supported

• USB mass storage device recognition: Enables drag-and-drop program downloading

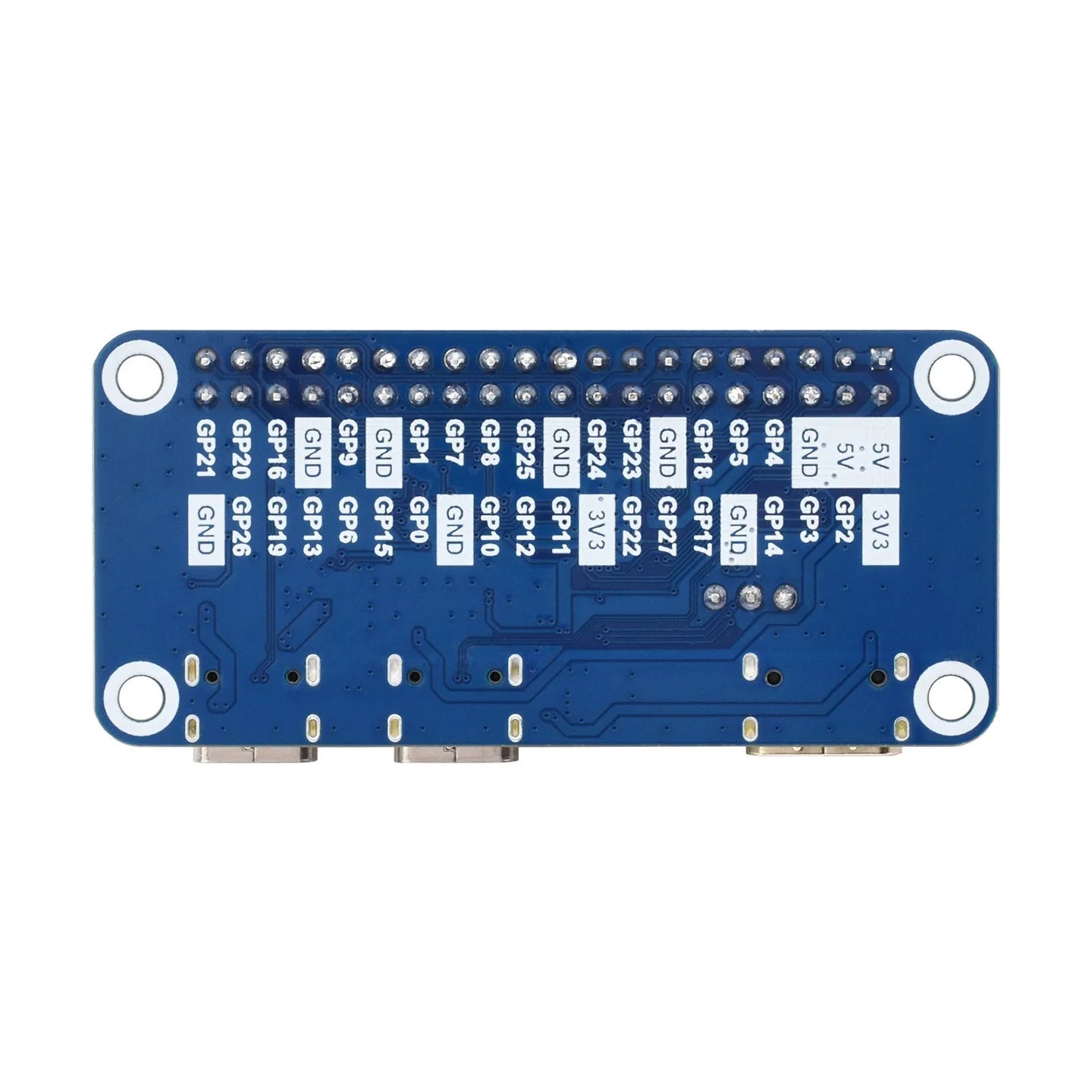

• Exposes 5 multi-functional GPIO pins

• Equipped with 2 SPI, 2 I2C, 2 UART, 2 12-bit ADCs, and 16 controllable PWM channels

• On-chip precise clock and timers

• Built-in temperature sensor

• On-chip accelerated floating-point library for efficient data processing

• 12 programmable I/O (PIO) state machines: Supports custom peripheral development

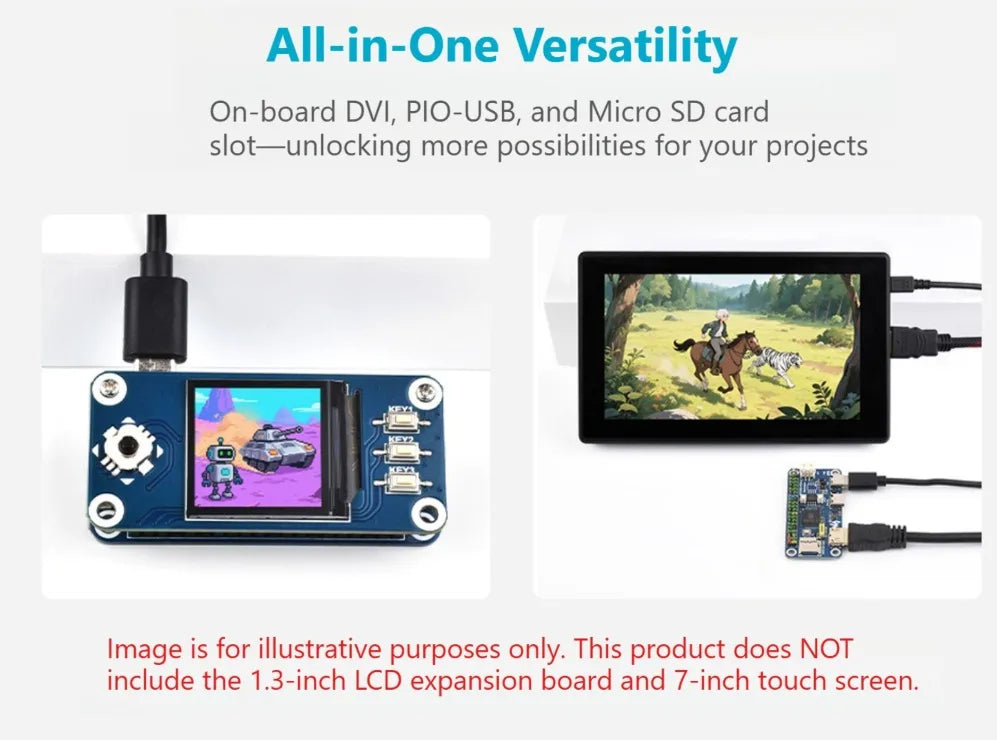

All-in-One Versatility

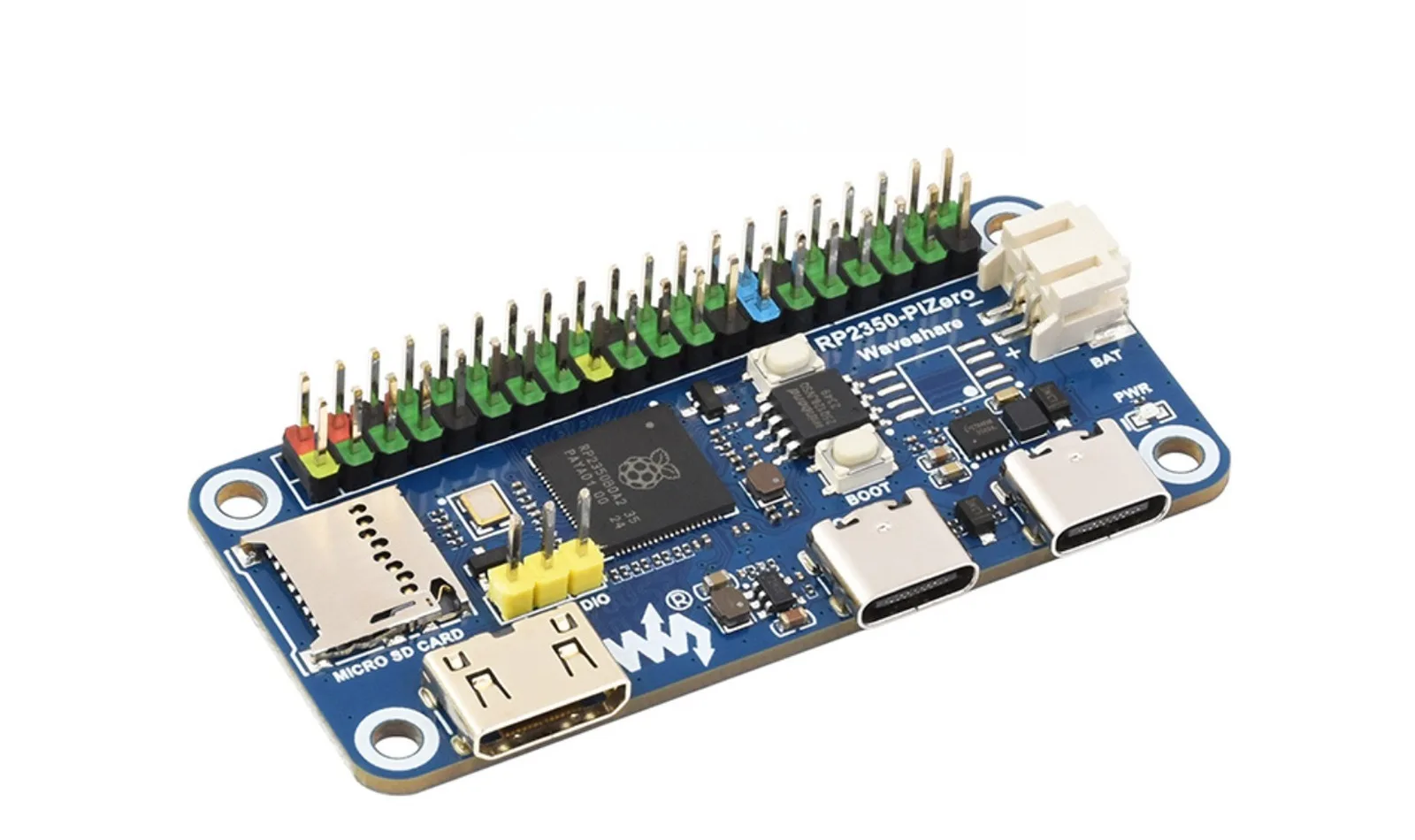

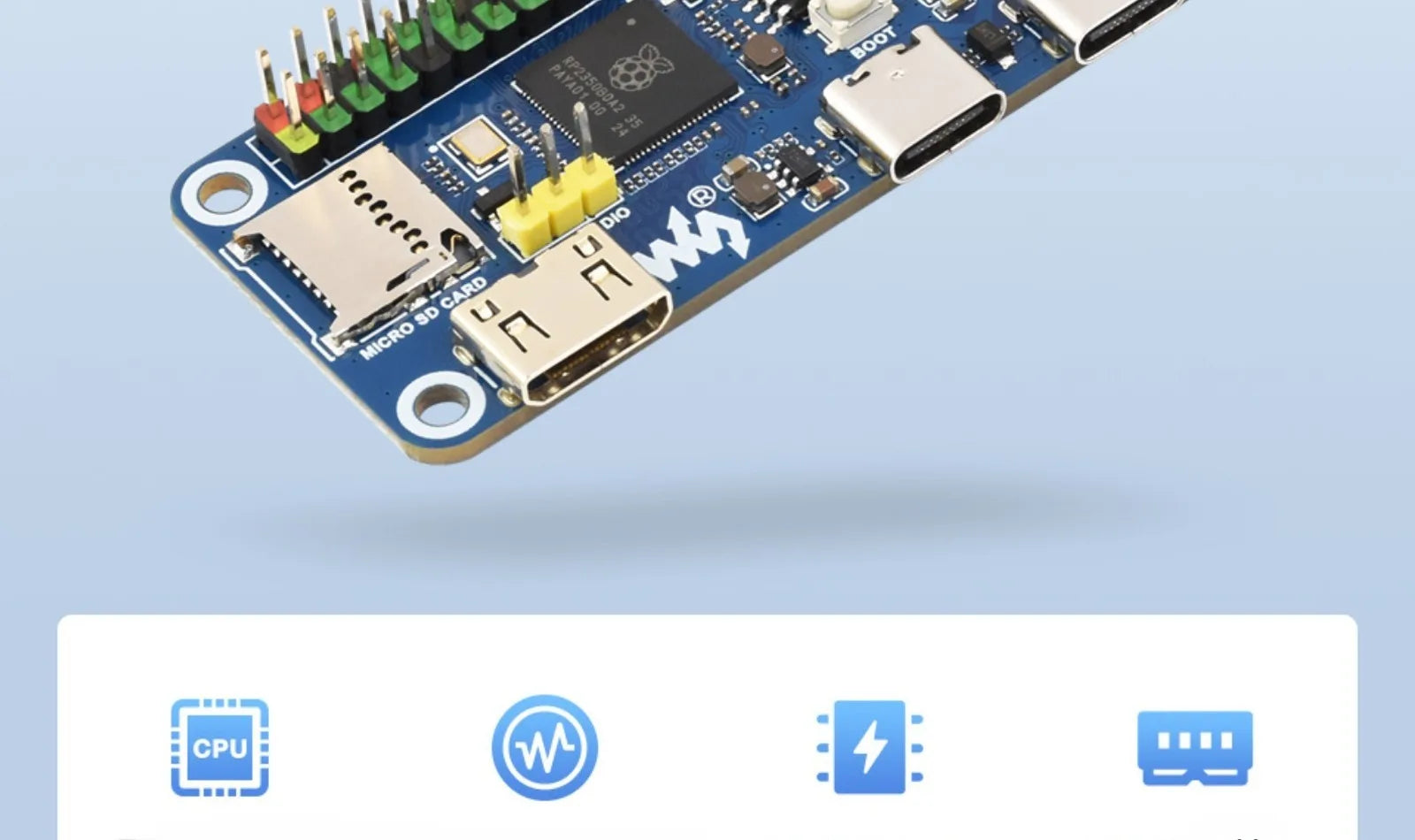

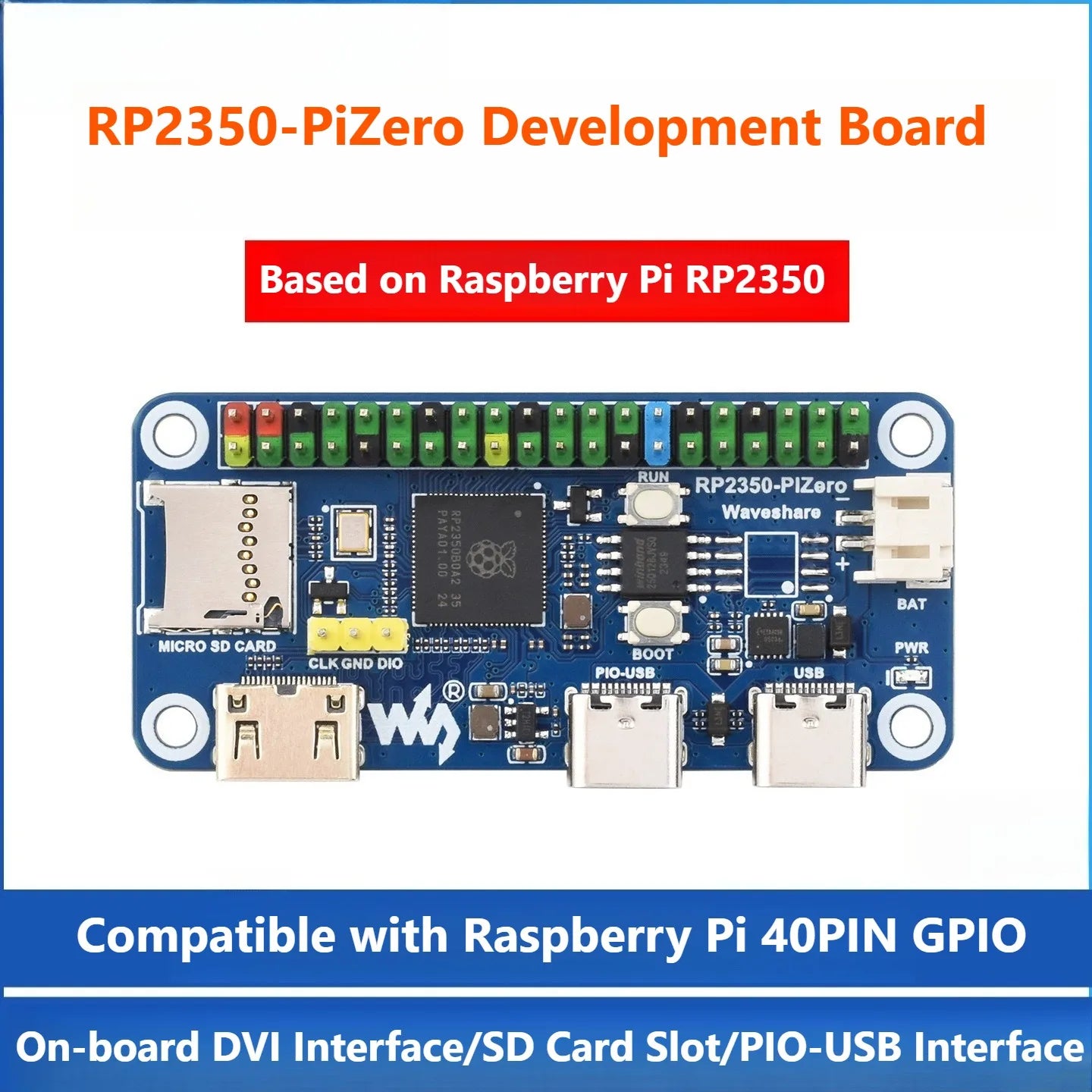

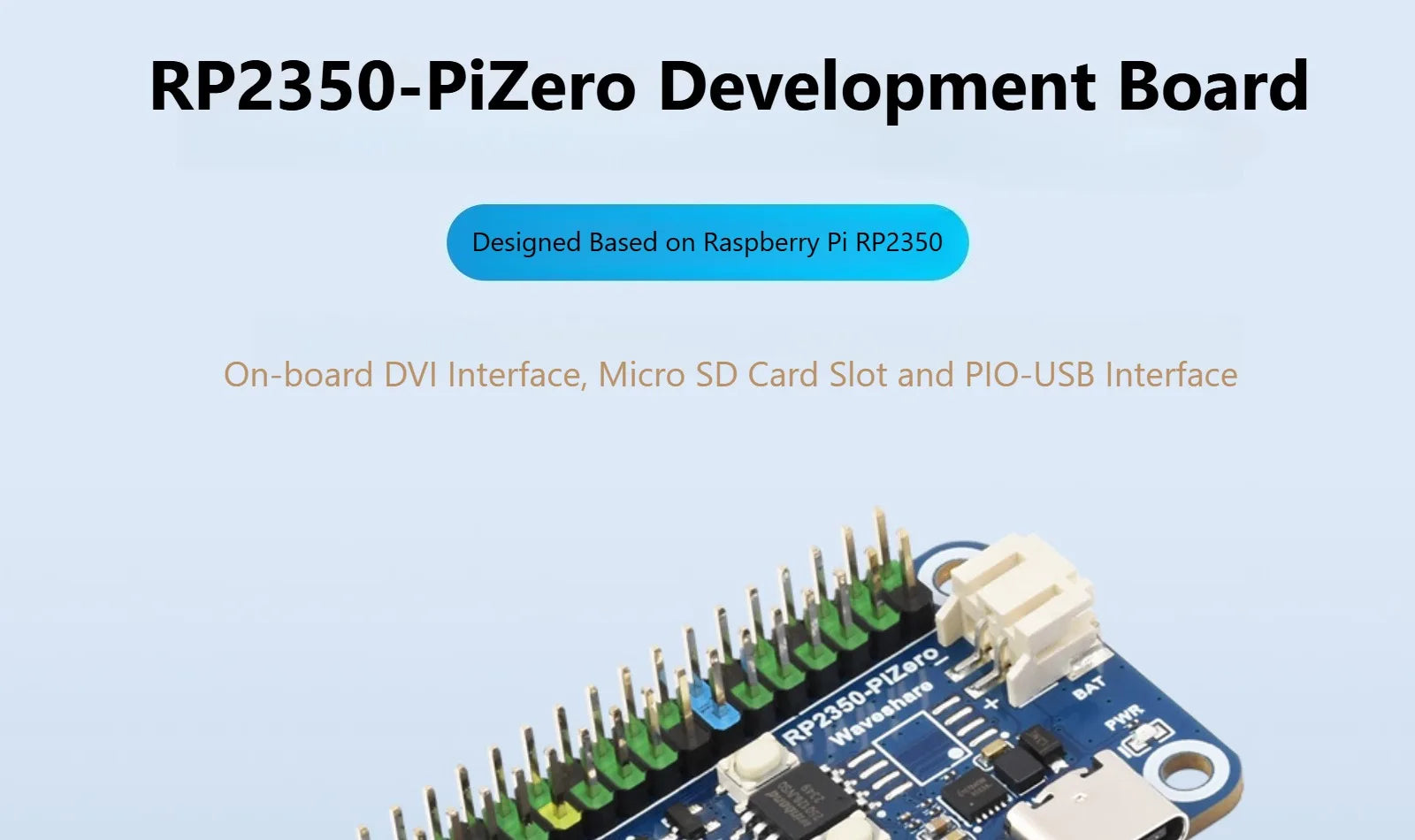

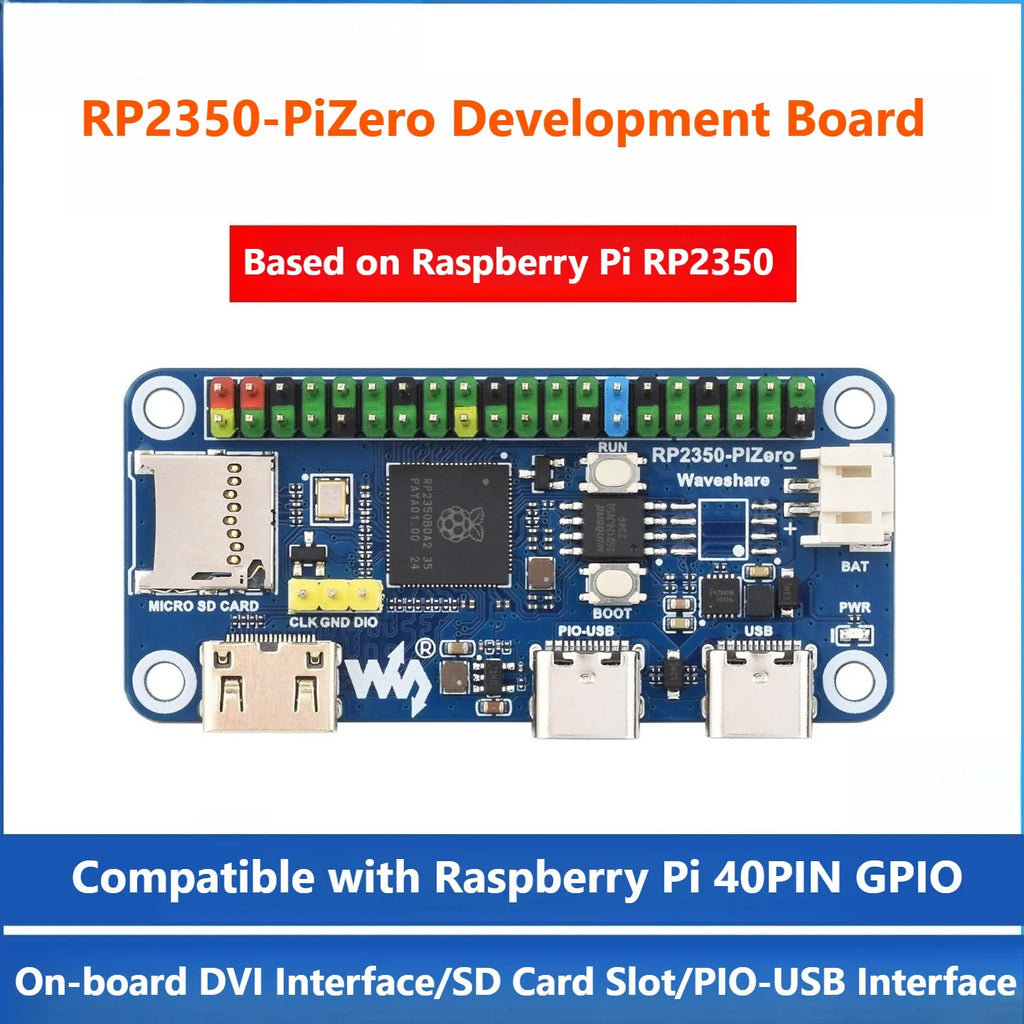

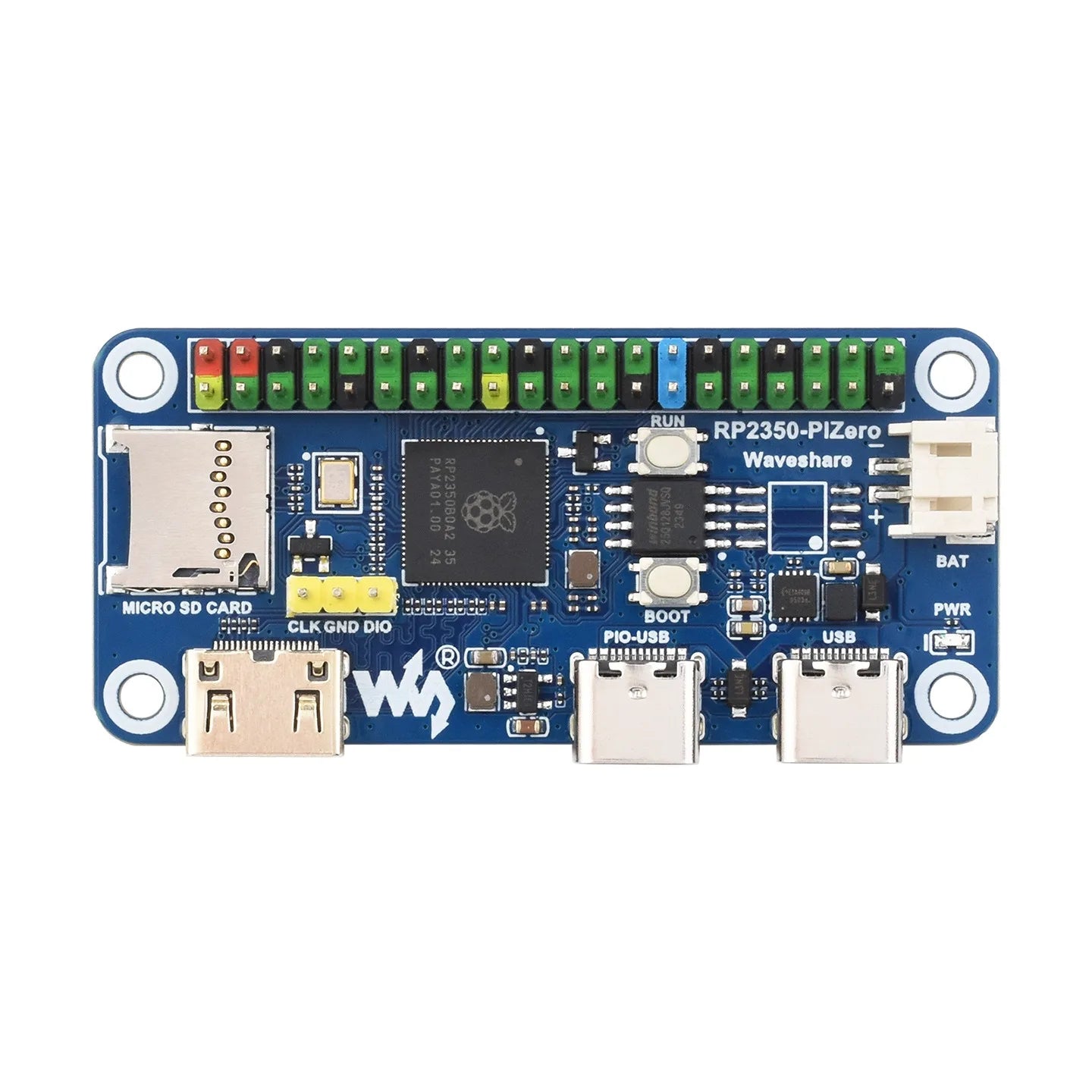

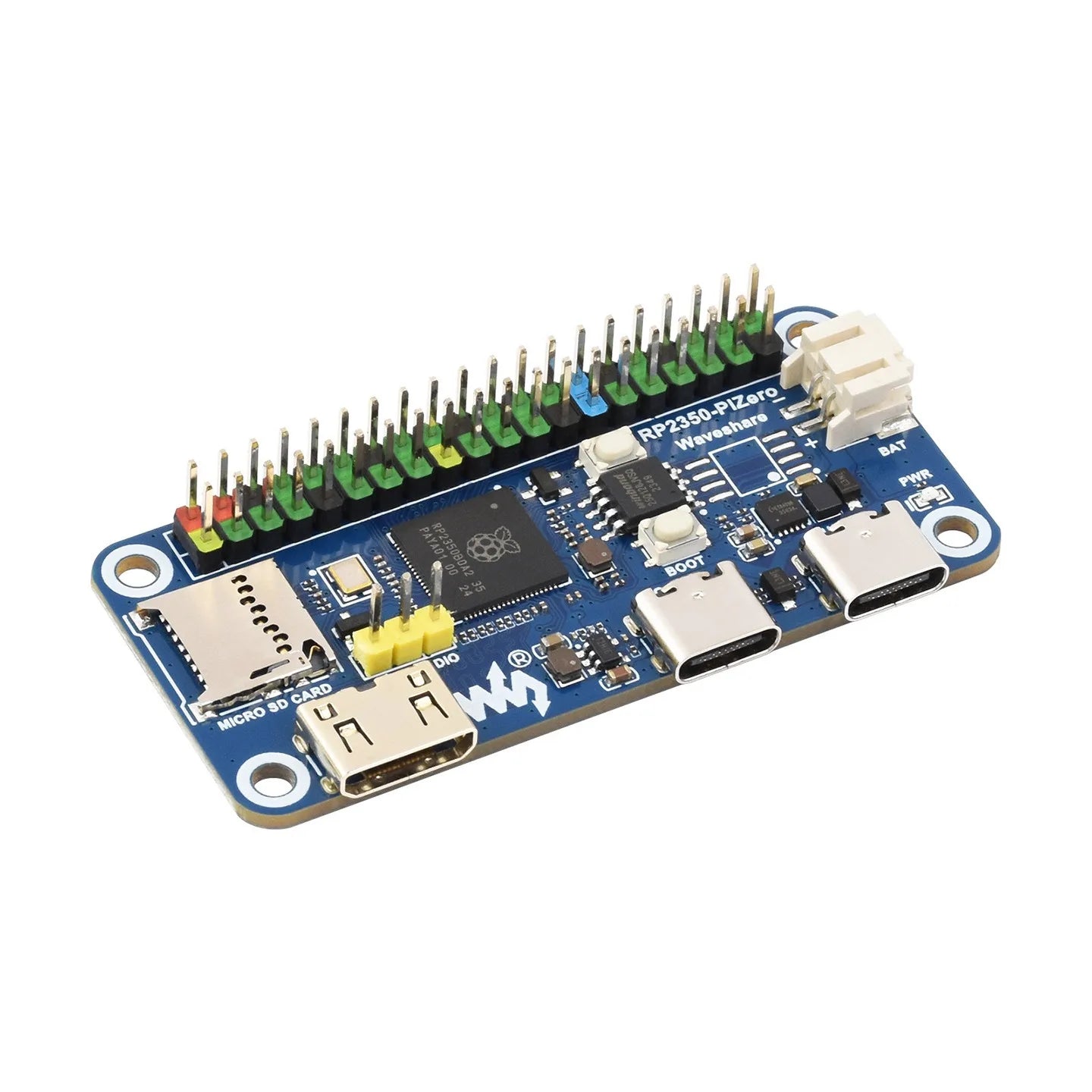

Sending list: RP2350 PiZero Development Board * 1pc (Screen not included)
