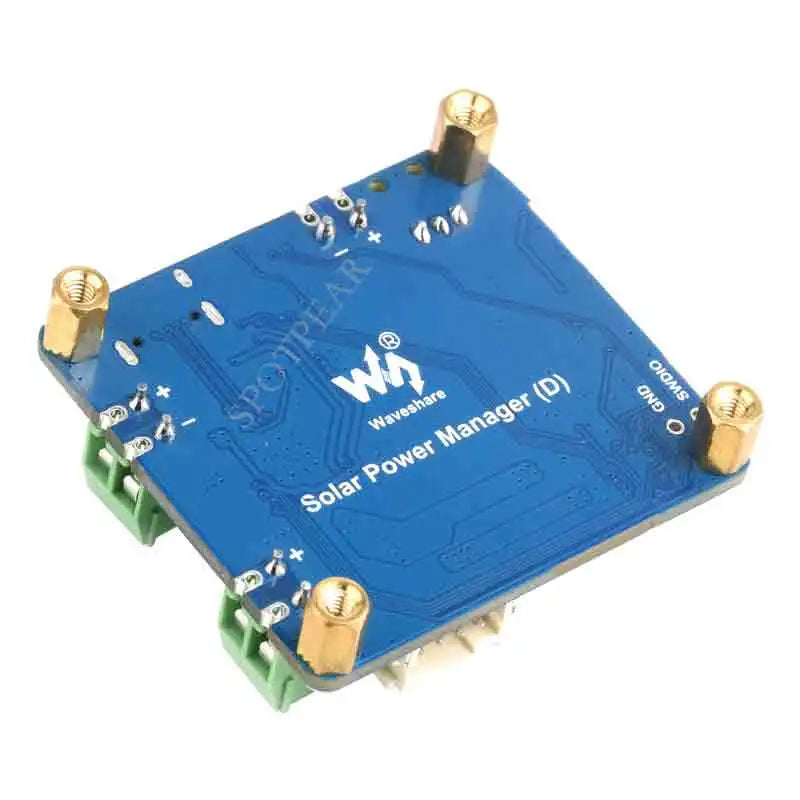

Raspberry Pi Solar Power Manager Module D For Arduino/Jetson For Charging Li-Battery With 5V3A Output For 6~24V Solar Panel

Raspberry Pi Solar Power Manager Module D For Arduino/Jetson For Charging Li-Battery With 5V3A Output For 6~24V Solar Panel

$87.76

$87.76 $0.00

Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

semi_Choice: yes

【Note】

Not include 18650 Battery

Solar Power Management Module (D)

Recharged From 6V~24V Solar Panel, Or Type-C Power Adapter
5V/3A Regulated Output

Features at a glance

The Solar Power Management Module (D) is designed for 6V~24V solar panel, it can charge the 3.7V rechargeable Li battery through solar panel or Type-C connector, and provides 5V/3A regulated output (supports multiple protocols such as PD/QC/FCP/PE/SFCP). The module features MPPT (Maximum Power Point Tracking) function and multi protection circuits, therefore, it is able to keep working with high-efficiency, stability, and safety. It is suited for solar-powered, low-power IoT, and other environmental protection projects.

Supports MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel
Supports solar panel / Type-C power adapter for battery charging
For 6V~24V solar panel, supports self-adaptive input voltage via DC-002 jack or screw terminal, with input anti-reverse protection
Multi LED indicators, for monitoring the status of solar panel and batteries
Multi protection circuits: over-charge / over-discharge / overheat / over-current, stable and safe to use

Version Selection

Application Examples

Suitable for Solar-Powered Control System For MCUs / Development Boards Like Raspberry Pi / Jetson Nano / Arduino...

for reference only, the Raspberry Pi 4B and solar panel are not included

What's on Board

Solar panel charging input:
charged by solar panel via DC-002 jack or screw terminal, self-adaptive input voltage
Type-C charging input:
charged by 5V power adapter via Type C connector, or outputs 5V for external device
Power output:
screw terminal: 5V/3A output
Battery interfaces:
for connecting 3.7V rechargeable Li battery via screw terminal or PH2.0 4P connector
SW6106:
USB power management chip, for USB charging and 5V/3A boost output

CN3791:
solar power management chip, for solar panel charging and buck input
XB8886A
Li battery over-charge / over-discharge protection
Battery capacity indicators
lights up when charging or under load connection, and will turn off after 30s when there is no load connected
Solar panel charging indicators:
Charge: on when solar panel charging
Done: on when the battery is full charged by solar panel
Anti-reverse MOS tube
prevents reverse Batt connection
