Raspberry Pi Zero 2W USB to RJ45 Ethernet Adapter with USB 2.0 Hub Expansion Board
USB HUB HAT
$47.16
Sale price
$47.16
Regular price
$0.00
Skip to product information
Raspberry Pi Zero 2W USB to RJ45 Ethernet Adapter with USB 2.0 Hub Expansion Board
$47.16
Sale price
$47.16
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Switch

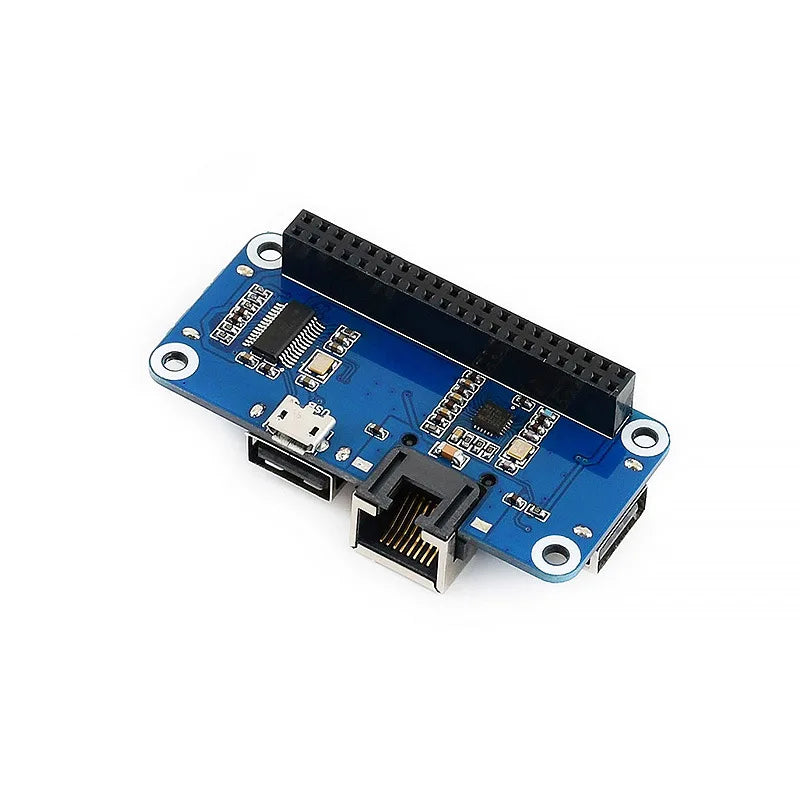

Ethernet / USB HUB HAT for Raspberry Pi, 1x RJ45 Ethernet Port, 3x USB Ports
Overview
This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero 2W / Zero W / Zero WH.
Features
3x USB ports, compatible with USB2.0/1.1
1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port
Raspberry Pi GPIO interface:for connecting Raspberry Pi
USB extended ports:USB1~USB3
RJ45 port:10/100M Ethernet interface
-
USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port
Raspberry Pi Zero / Zero 2W / Zero W / Zero WH: connected viaMicro USB connector
Raspberry Pi B+ / 2B / 3B / 3B+ /4B: connected viaMicro USB cable
TS8121A:Ethernet wave filter
RTL8152B:10/100M Ethernet chip
FE1.1S:USB HUB chip
-
LED indicators:
PWR: power indicator
ACT: Ethernet indicator
D1~D3: dedicated indicator for USB1~USB3 respectively
Specifications
Operating voltage: 5V
Dimension: 65mm × 30mm
Mounting hole size: 3.0mm
Dimensions
Development Resources
