SPECIFICATIONS

【Product Features】

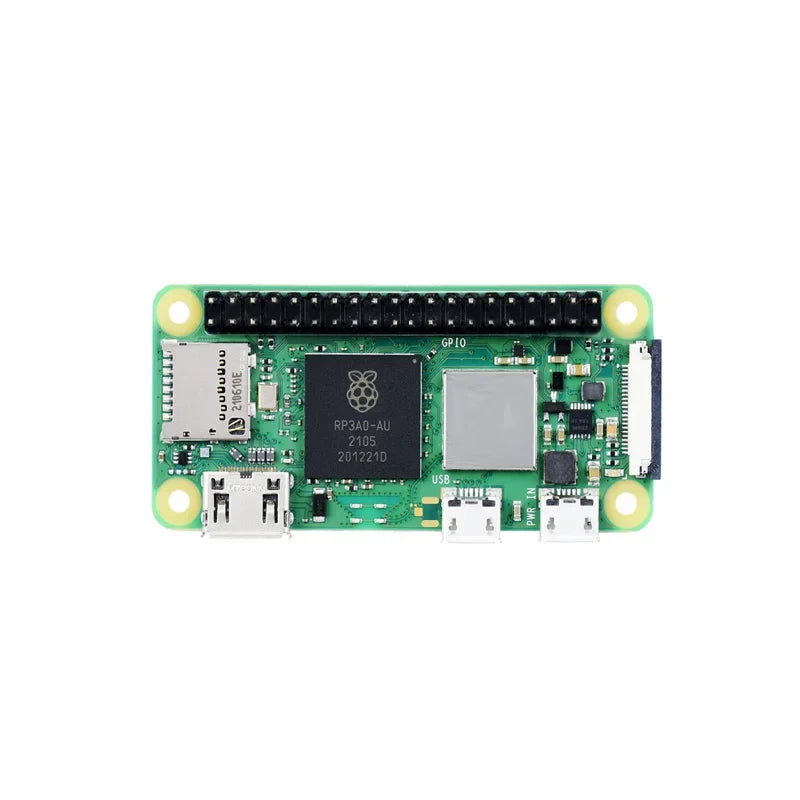

[] At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concern, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining [] higher performance without higher temperature.

[] Key features include:

[] Broadcom BCM2710A1, 1GHz quad-core 64-bit Arm Cortex-A53 CPU

[] 512MB LPDDR2 SDRAM

[] 2.4GHz 802.11 b/g/n wireless LAN

[] Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna

[] Mini HDMI port and micro USB On-The-Go (OTG) port

[] microSD card slot

[] CSI-2 camera connector

[] HAT-compatible 40-pin header footprint (unpopulated)

[] Micro USB power

[] Composite video and reset pins via solder test points

[] H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)

[] OpenGL ES 1.1, 2.0 graphics

[] Raspberry Pi Zero 2W Solder x1
