Raspberry Pi Zero PoE Power Over Ethernet/USB HUB HAT 3 X USB 2.0 Ports 802.3af-Compliant For Raspberry Zero W / Zero WH
Board With Case / China Mainland
$158.12
Sale price
$158.12
Regular price
$0.00
Skip to product information
Raspberry Pi Zero PoE Power Over Ethernet/USB HUB HAT 3 X USB 2.0 Ports 802.3af-Compliant For Raspberry Zero W / Zero WH
$158.12
Sale price
$158.12
Regular price
$0.00
Description
SPECIFICATIONS
Accessory Type: Extension Board
Battery Included: no
Brand Name: Caturda
Choice: yes
Compatible With: Raspberry Pi Zero
High-concerned chemical: none
Origin: Mainland China
Typical Application Fields: Other Fields
semi_Choice: yes

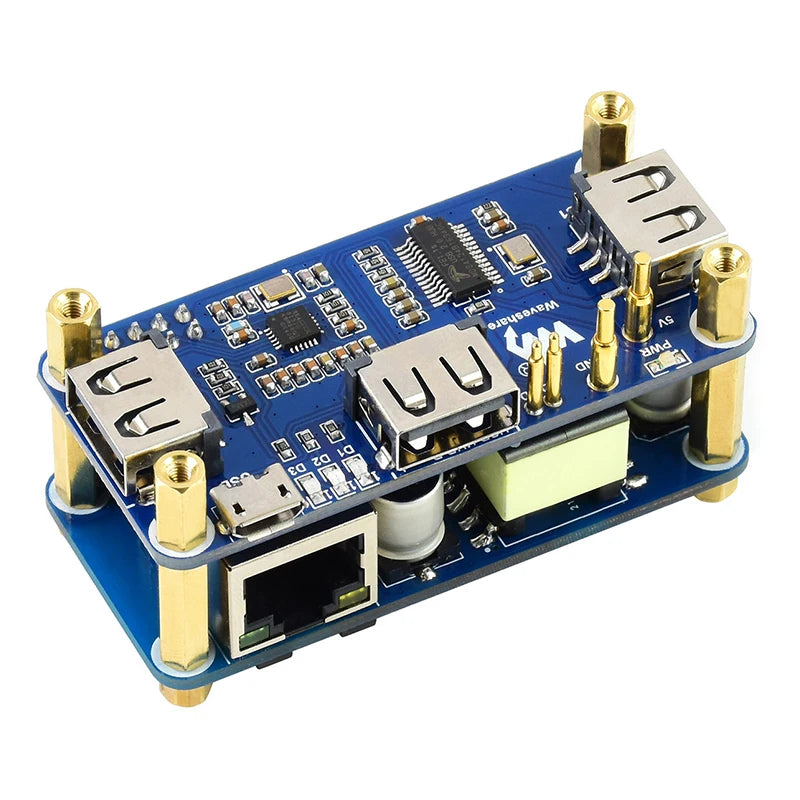

Raspberry Pi Zero PoE Power Over Ethernet/USB HUB HAT 3 X USB 2.0 Ports 802.3af-Compliant For Raspberry Zero W / Zero WH
PoE Ethernet / USB HUB HAT
Suitable For Raspberry Pi Zero / Zero W / Zero WH, 802.3af-Compliant
Features At A Glance
The PoE/ETH/USB HUB HATis a PoE (Power over Ethernet) USB HUB HAT designed forRaspberry Pi Zero. By using this small HAT and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable, along with3x extended USB ports.
. Designed for Raspberry Pi Zero, compatible with Zero series boards

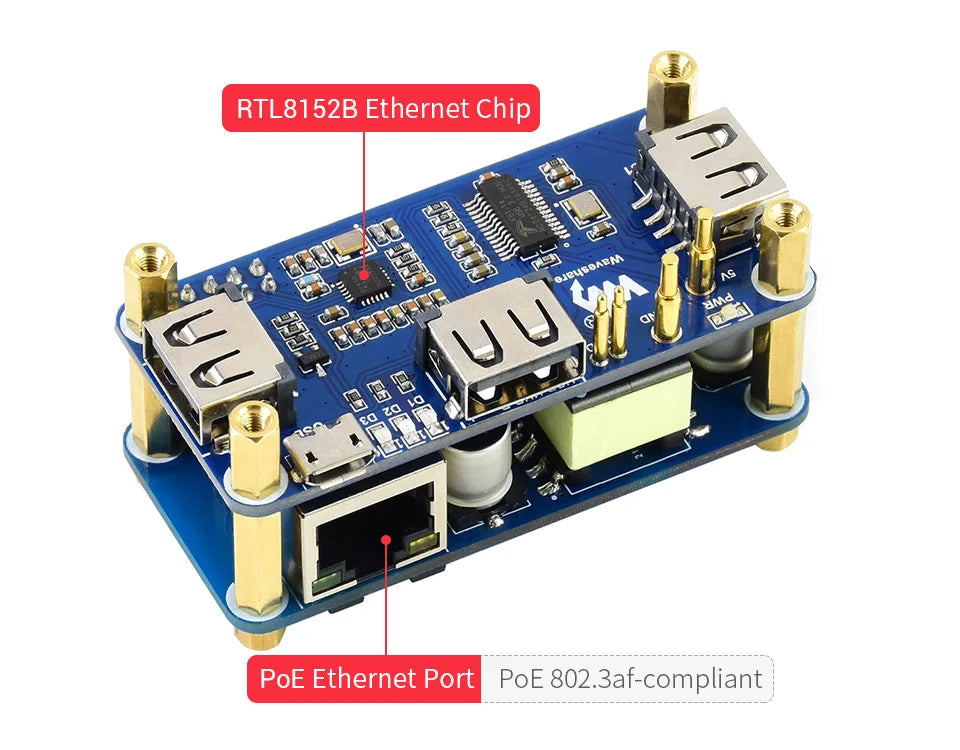

. Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port
. PoE (Power over Ethernet) feature, 802.3af-compliant
. Fully isolated SMPS (Switch Mode Power Supply)
. 3x extended USB ports, compatible with USB 2.0 / 1.1
Specifications
POE POWER INPUT: 37V ~ 57V DC in
POWER OUTPUT: 5V 2.5A DC out
NETWORK STANDARD: IEEE 802.3af-compliant PoE
DIMENSIONS: 23.10 × 65.00 mm
Compatible With Raspberry Pi Zero Series
Designed For Raspberry Pi Zero, Compatible With Zero / Zero W / Zero WH

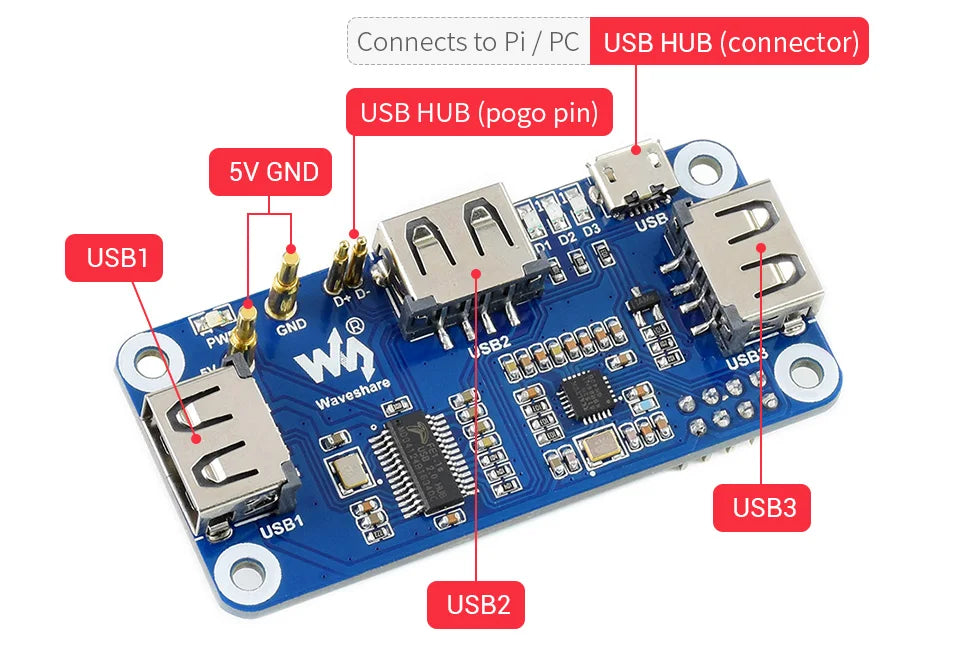

3x Extended USB 2.0 Ports
USB1 ~ USB3, Compatible With USB 2.0 / 1.1
Extended Ethernet Port
USB To Ethernet Conversion By The RTL8152B Chip, 10M / 100M Auto-Negotiation

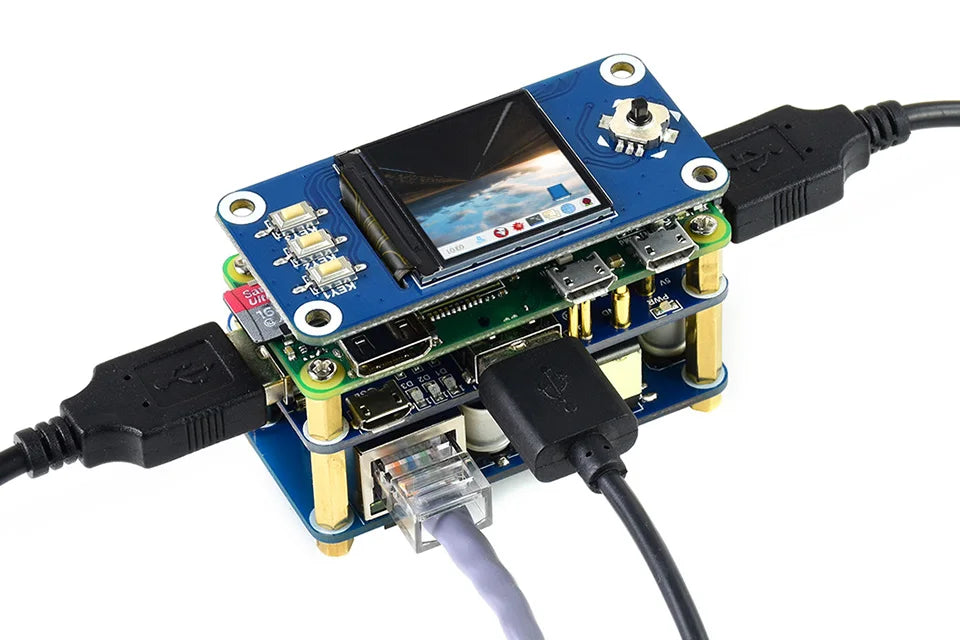

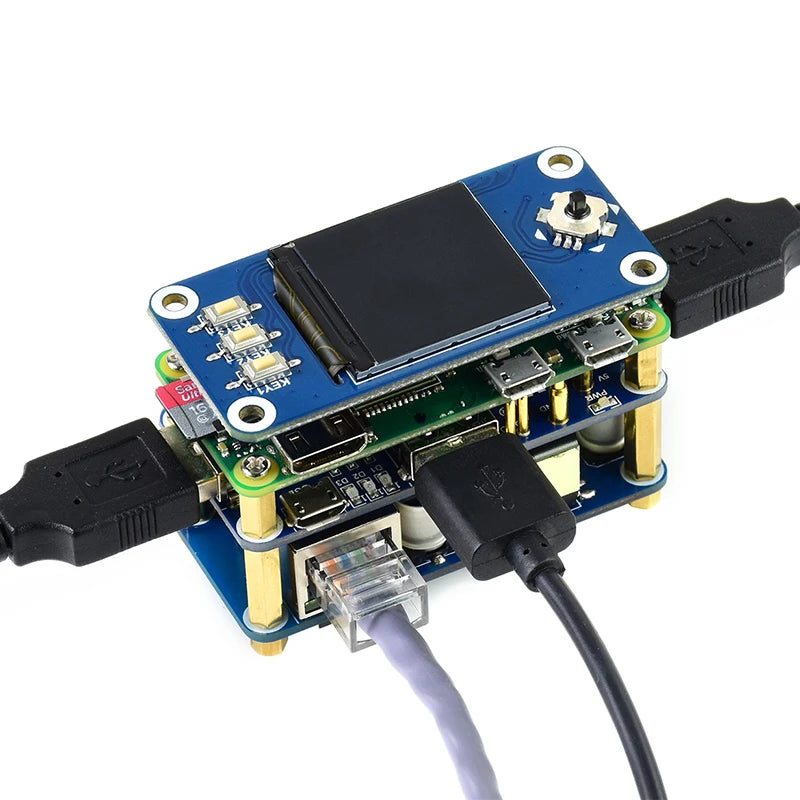

Application Example
For reference ONLY, the Raspberry Pi Zero, LCD display, and MicroSD card are NOT included.
null
Outline Dimensions

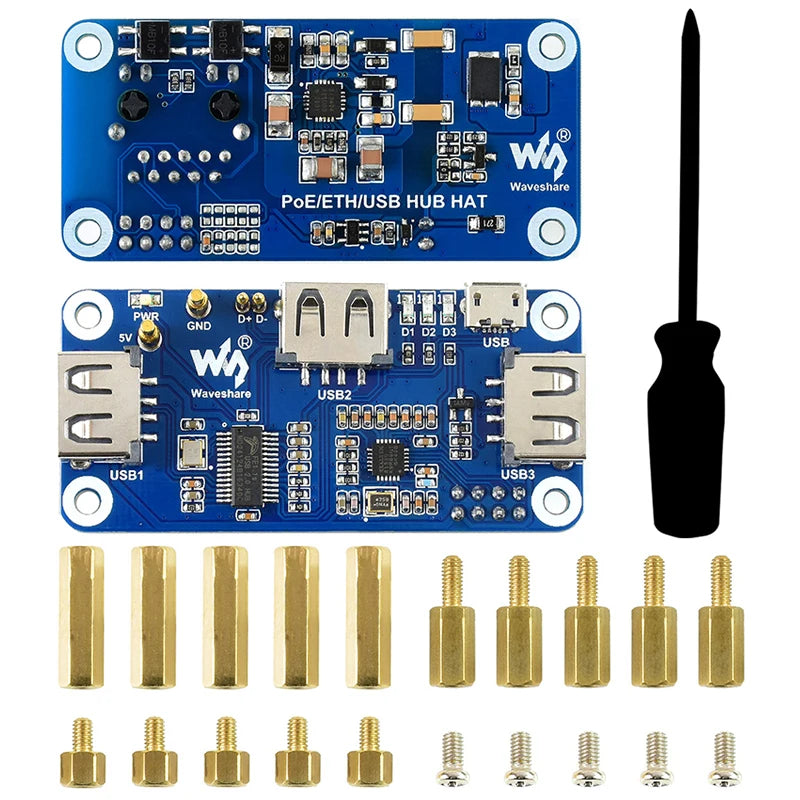

PACKAGE LIST:
PoE/ETH/USB HUB HAT x1
USB HUB Board x1
Screws pack x1
Screwdriver x1
