Raspberry Pi Zero UPS Power HAT Board With Battery Stable 5V Power Output I2C monitoring Uninterruptible Power For zero Series

Raspberry Pi Zero UPS Power HAT Board With Battery Stable 5V Power Output I2C monitoring Uninterruptible Power For zero Series

$136.00

$136.00 $0.00

Description

SPECIFICATIONS

Accessory Type: Power Adapter

Battery Included: Yes

Brand Name: spotpear

Choice: yes

Compatible With: Raspberry Pi Zero/Zero W/2 W

High-concerned chemical: none

Origin: Mainland China

Quantity: 1，2，3，5，10，20

Typical Application Fields: Internet of Things (IoT)

semi_Choice: yes

【Note】

Battery-powered version, limited to two. If you order more, only two will be sent

[]Some countries do not support sending batteries,Please buy one without battery

[]Countries where batteries cannot be shipped：Morocco, Chile, Bangladesh

[]I put the tutorial at the bottom

[]Detailed tutorials can be found on our website above, I put the information at the bottom

[]Select version without battery Note:

Note 1: When assembling, make sure to switch the power to the OFF position first. Disconnect the power before assembling; otherwise, it may cause a short circuit and damage the components.
Note 2: When connecting the battery for the first time, you need to charge it through the USB port to activate the battery protection chip; only then will there be power output.

UPS-Lite is a UPS power supply specially designed for the Raspberry Pi Zero. It uses a 1000mAh polymer lithium battery for power supply, supports external power supply insertion detection, supports charging and discharging while supporting battery power detection. Support battery level detection.

【Overview】

[] UPS-LiteIt is specially designed for Raspberry PizeroDesign ofUPSPower supply, the board integrates Voltameter chip (MAX17040G) And a piece1000mAhPolymer lithium battery, The installation method of thimble is adopted.

(PS: Standby time test boardCPUThe actual computation, Influence of environmental temperature and other factors, The results of standby time test here are for reference only)

UPS-Lite is a UPS power supply specially designed for Raspberry Pi Zero.

The board integrates fuel gauge chip (MAX17040G),a piece1000mAh

The use of thimble installation method, simple and generous.

The actual test standby time is up to 6 hours (test condition: zero wTurn on the network and print out the power parameters every 2 seconds).

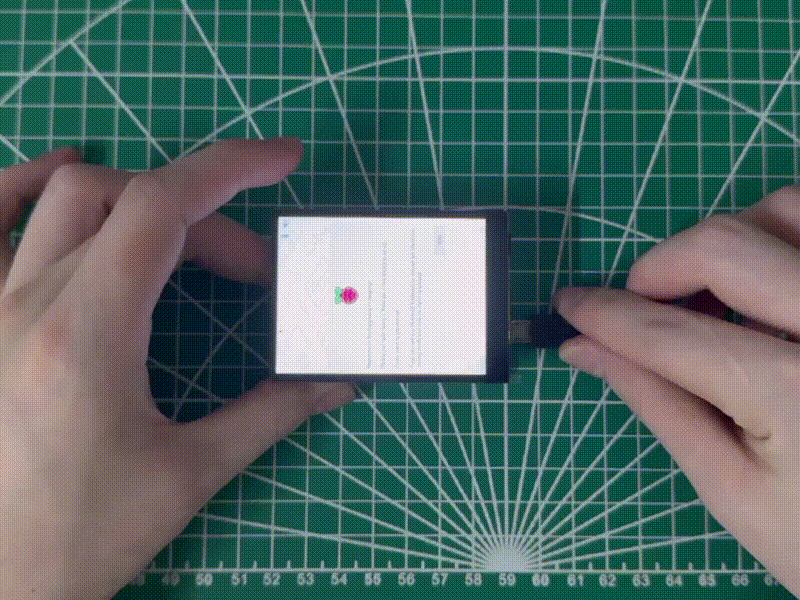

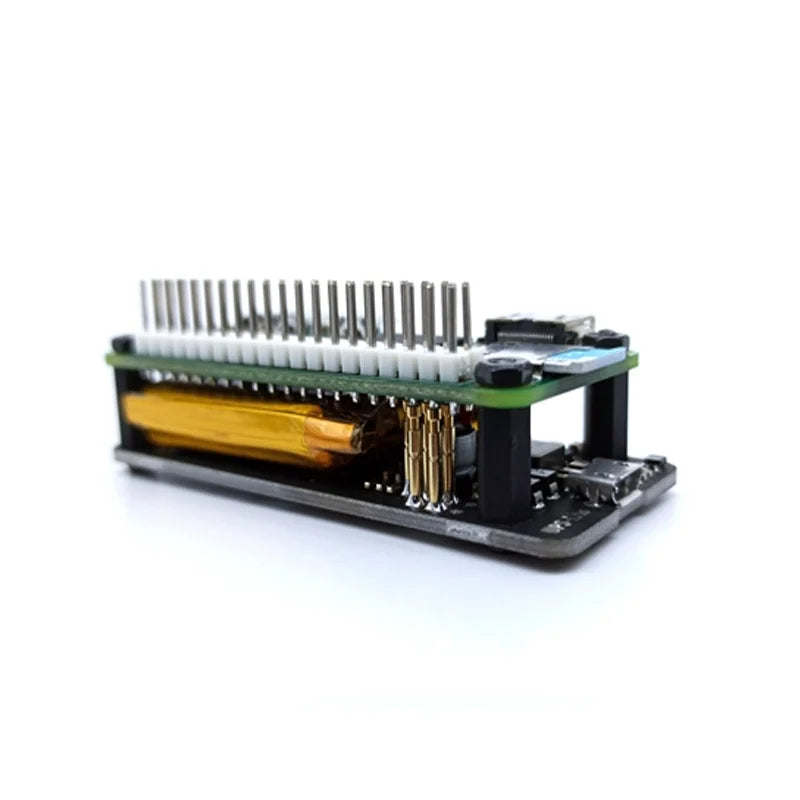

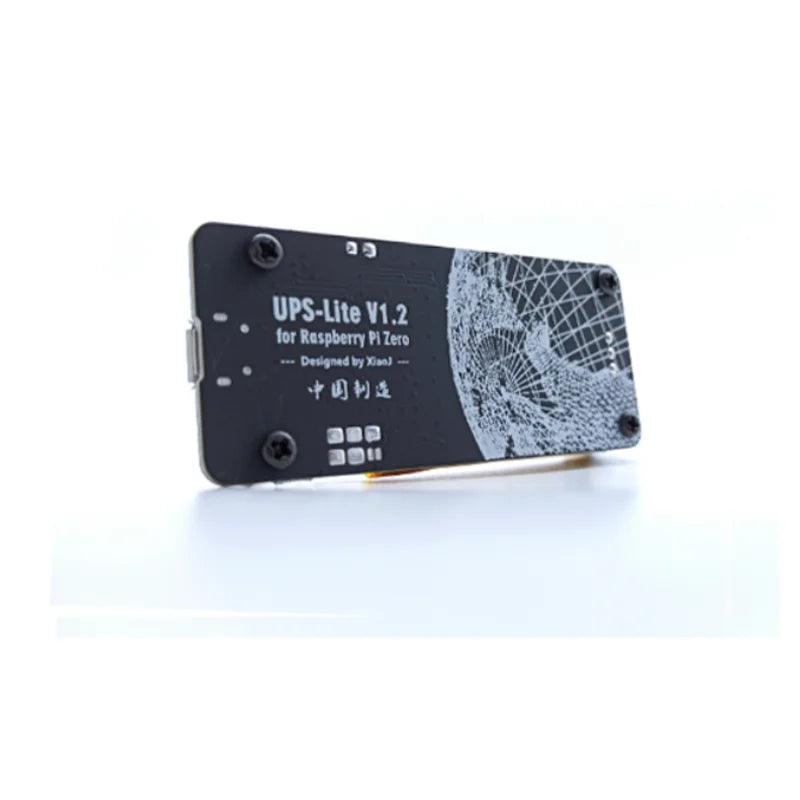

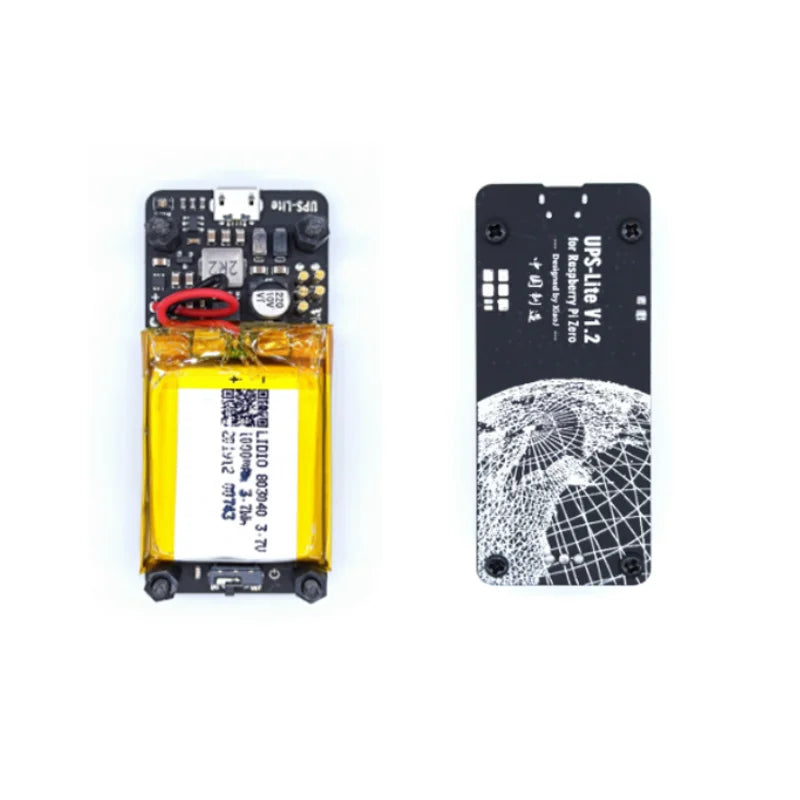

【Product display】

For display only. Please see the configuration list for detailed configuration.

【Features】

[] The charging current: 400mA

[] Output voltage: 5.1V ±0.1V

[] Output Current: 1.3A@5V (Unplugged the external adapter, Under the condition of only using battery power)

[] 2A@5V (When an external adapter is inserted)

[] The electrical quantity measurement accuracy: Error±2%

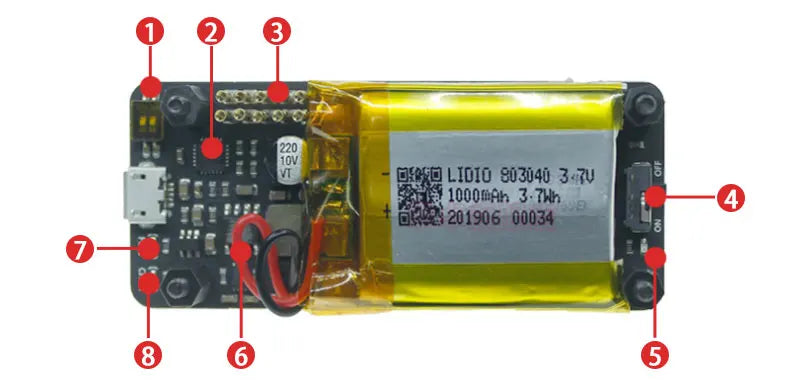

【Resource Overview】

1. Serial port selection dip switch	5. 5V output indicator LED
2. CP2104 serial port chip	6. MAX17040G
3. Power supply pin	7. Fully charged indicator LED
4. Power switch	8. Charging indicator LED
