SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: seeed studio

Compatible With: Raspberry Pi Zero

High-concerned chemical: none

Origin: GB(Origin)

Typical Application Fields: Education and Learning

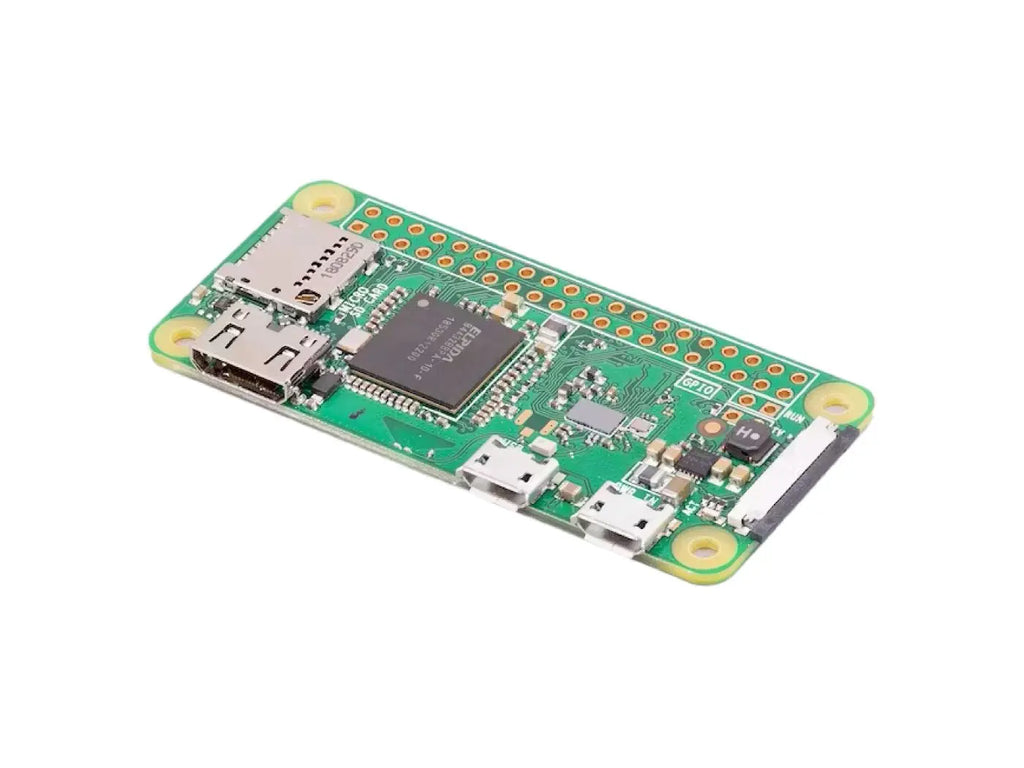

The Raspberry Pi Zero W is a compact single-board computer (65mm x 30mm) with built-in 802.11n Wi-Fi and Bluetooth 4.0. It features 40 GPIO pins, a 1GHz ARM Cortex-A7 processor, 512MB RAM, and uses a microSD card for storage, ideal for IoT and automation projects.

Feature

Compact Linux Development Board: Equipped with a 1GHz ARM Cortex-A7 processor supporting Raspberry Pi OS, with a size of only 65mm x 30mm x 5mm
Ready-to-use: Mounted with headers and ready for use
Wireless Connection: Built-in 802.11n Wi-Fi and Bluetooth 4.1
40-pins compatible Raspberry Pi: Compatible with connecting sensors, actuators, and other electronic components
Extended Memory: Utilize 512MB of LPDDR2 SDRAM and a microSD card as the primary storage medium

Specification

Specification		Details
Platform	Processor	Broadcom BCM2835
Platform	Frequency	1GHz, Single-core CPU
Memory	Capacity	512MB
Memory	Technology	LPDDR2 SDRAM
Wireless	Wi-Fi	2.4GHz IEEE 802.11b/g/n
Wireless	Bluetooth	Bluetooth 4.1, BLE
Video	HDMI	Mini HDMI
Video	CSI	CSI camera connector(v1.3 only)
USB	Port	Micro USB On-The-Go (OTG) port
GPIO	Header	HAT-compatible 40-pin header
GPIO	Additional Header	Composite video and reset headers
Power	port	Micro USB power port
	Voltage	5V DC
	Current	2.5A
Temperature	Operating Temperature	-20°C to +70°C
Mechanical	Dimensions	65mm × 30mm × 5mm
Mechanical	Weight	9g
