SPECIFICATIONS

Brand Name: Skyquist

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Plastic

Model Number: GPS

Origin: Mainland China

Plastic Type: PC

RC Parts & Accs: RECEIVERS

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Size: mm

Technical parameters: value 2

Tool Supplies: Assembled class

Upgrade Parts/Accessories: Adapter

Use: Vehicles & Remote Control Toys

Wheelbase: Upper Shell

NEO-6M \ GPS Module for MWC/APM/PIX

These are Pre-configured, Flashed with the correct settings, and tested. To make them Plug and Play. Super Bright LED
BlackPlane with Standard Mk style mounting holes 45mm X 45mm
Blox Neo 6M Chipset
38400 bps (Default)  Changed to 115200bps !
Output GGA, GSA and RMC frames
1Hz (Default) Changed to 5Hz!
Permanent Configuration Retention
Cable included
Moved LED to the Top
Bigger battery
compass on board

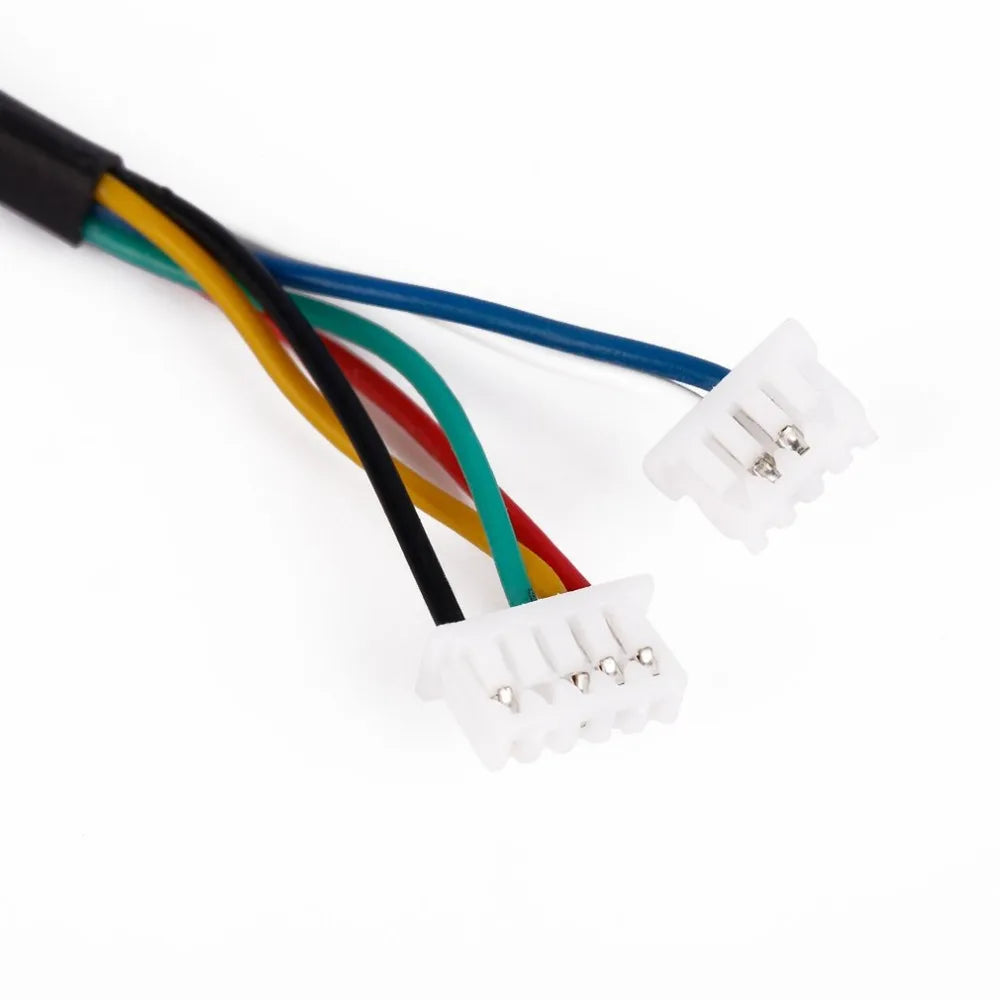

6 pin connector for EZ connect to MEGA BLACK
4 pin connector for onlyGPS use
4 pin connecton for compass only use
GPS "PCB HOOD" for More EMI/RFI Shielding
can use both 4 pin at once
The GPS unit is per-configured for multiwii !! Unlike other shops send it out default settings, and yet you figure it out.
pre tested = PLUG AND PLUG for MW or APM/ardupilot
MultiWii GPS assited Position Hold and RTH functions

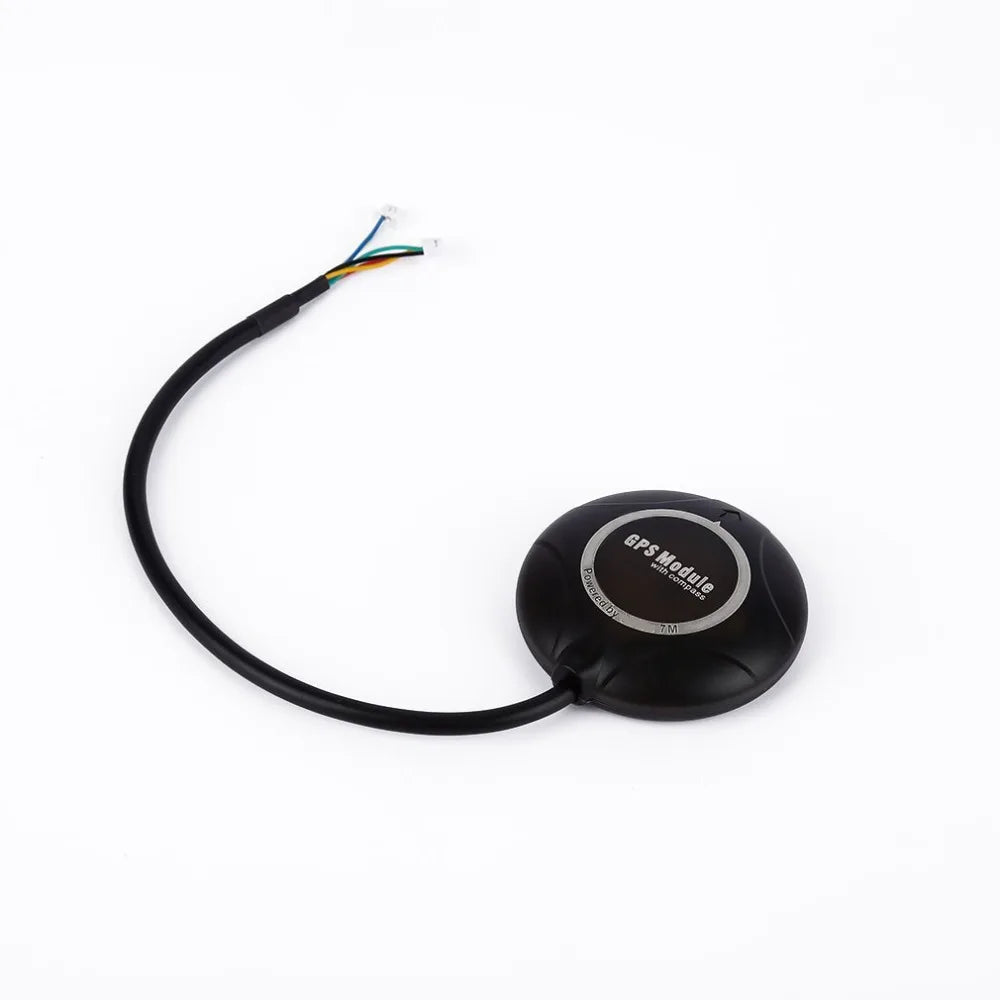

NEO-6M  GPS Module with on-board compass HMC5883l (compass) (mag)


NEO- 7M GPS Module for APM/MWC/PIX.



These are Pre-configured, Flashed with the correct settings, and tested.
To make them plug and play.
BlackPlane with standard Mk style mounting holes 45mm X 45mm.
Output GGA, GSA and RMC frames.

Description:
Tracking sensitivity:-161dBm
Capture sensitivity:-148dBm
Cold start time:38s average
Warm start time:35s average
Hot start time:1s average
Capture time:0.1s Average
Temperature:40 to +80
Wide power supply voltage:+3.5V~+5.5V
Main chip:U-BLOX NEO-7M
C/A code,1.023MHz
Receiver Frequency:L1 [1575.42MHz]
2D:3m(Average)
2D:2m(average),with WAAS
Drifting<0.02m/s
Accuracy:1us
Coordinate system:WGS-84
Max attitude height:18000
Max speed:515m/s

Specifications:
Brand: no
Model: no
Color: black
Material: ABS
Item size: approx.5.3*5.3*1.4CM/ 2.09*2.09*0.55 inch



M8N 8M GPS Module for APM/MWC/PIX.

Specifications:
Receiver type 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking & Nav: –167 dBm
Cold starts: –148 dBm
Hot starts: –156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL & 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
Crystal (NEO-M8M)
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. –40 °c to 85 °c
Storage temp. –40°c to 85°c (NEO-M8N/Q)
-40°c to 105°c (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
NEO-M8N- M8 Concurrent GNSS LCC Module,
TCXO, flash, SAW, LNA,
Timepulse Configurable 0.25 Hz to 10 MHz

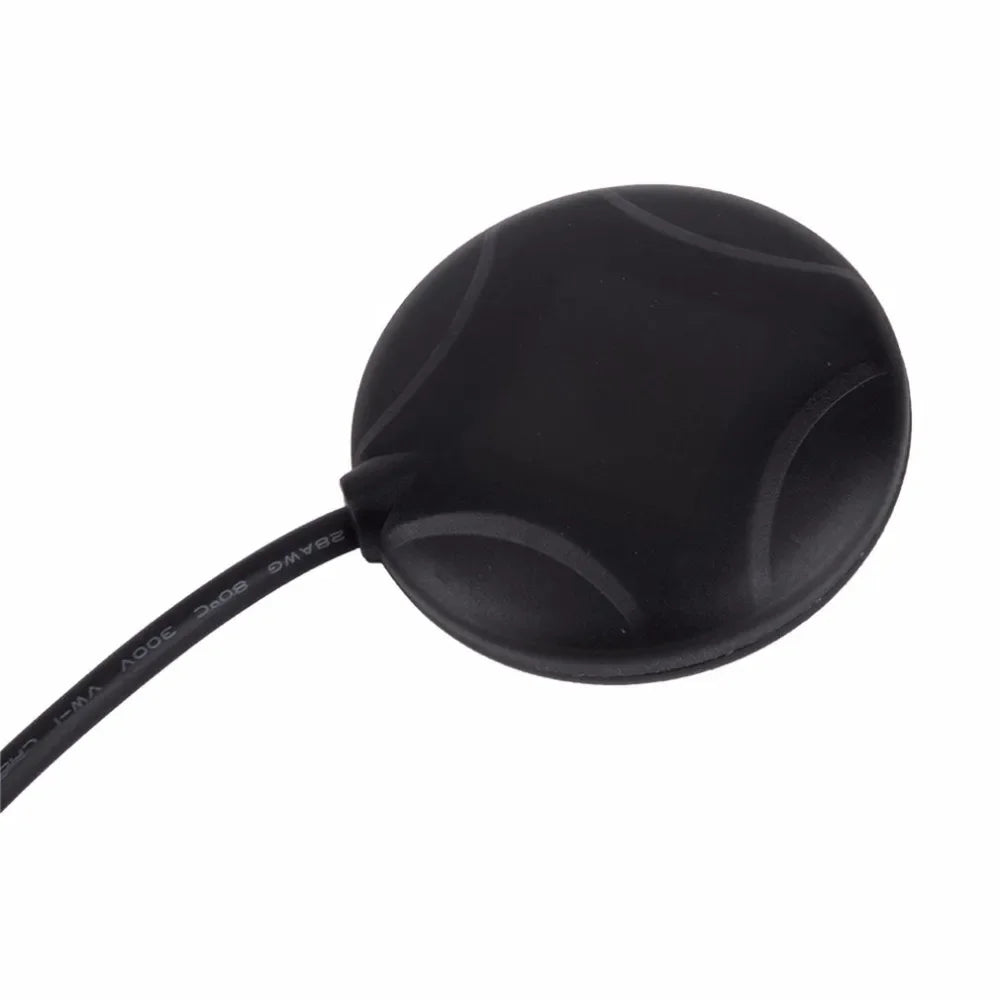

Color: black
Size: 53*12mm(D x H)
Net weight: 33g

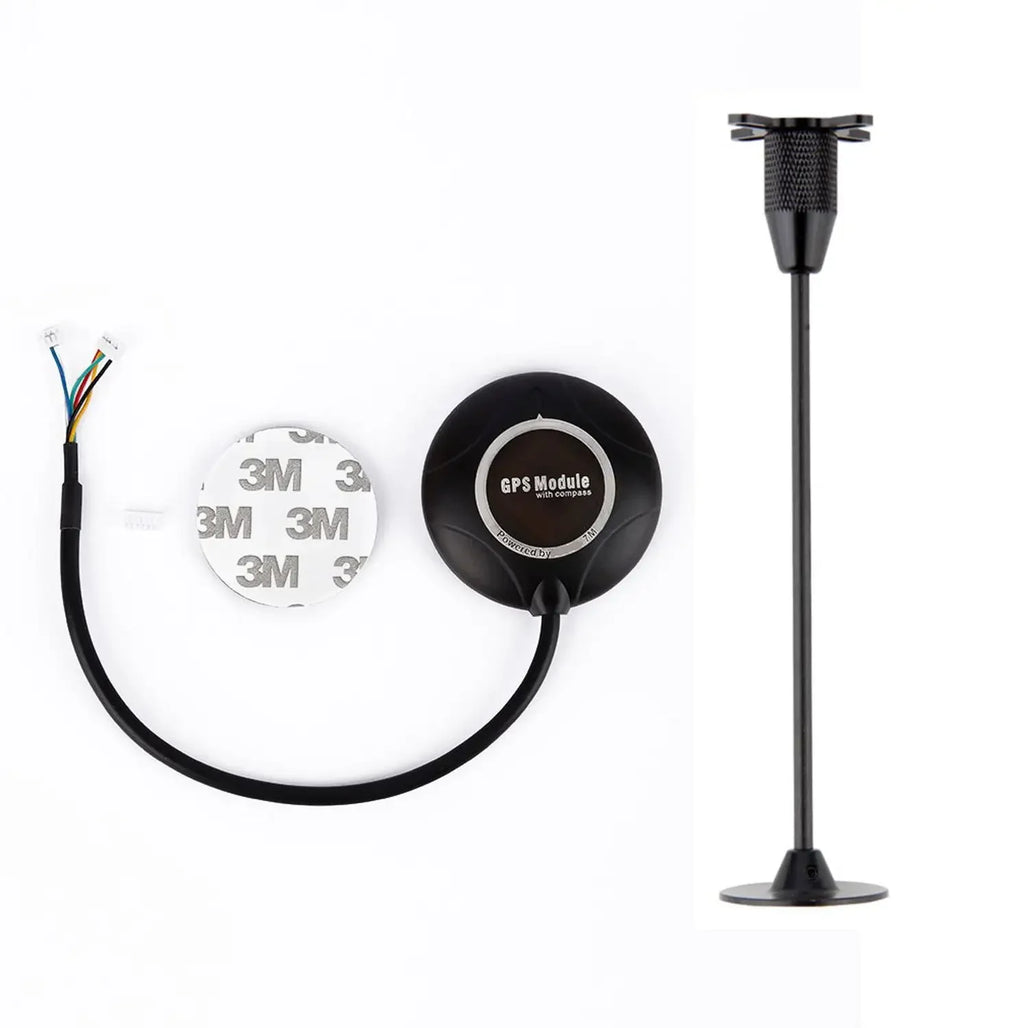

Package including:

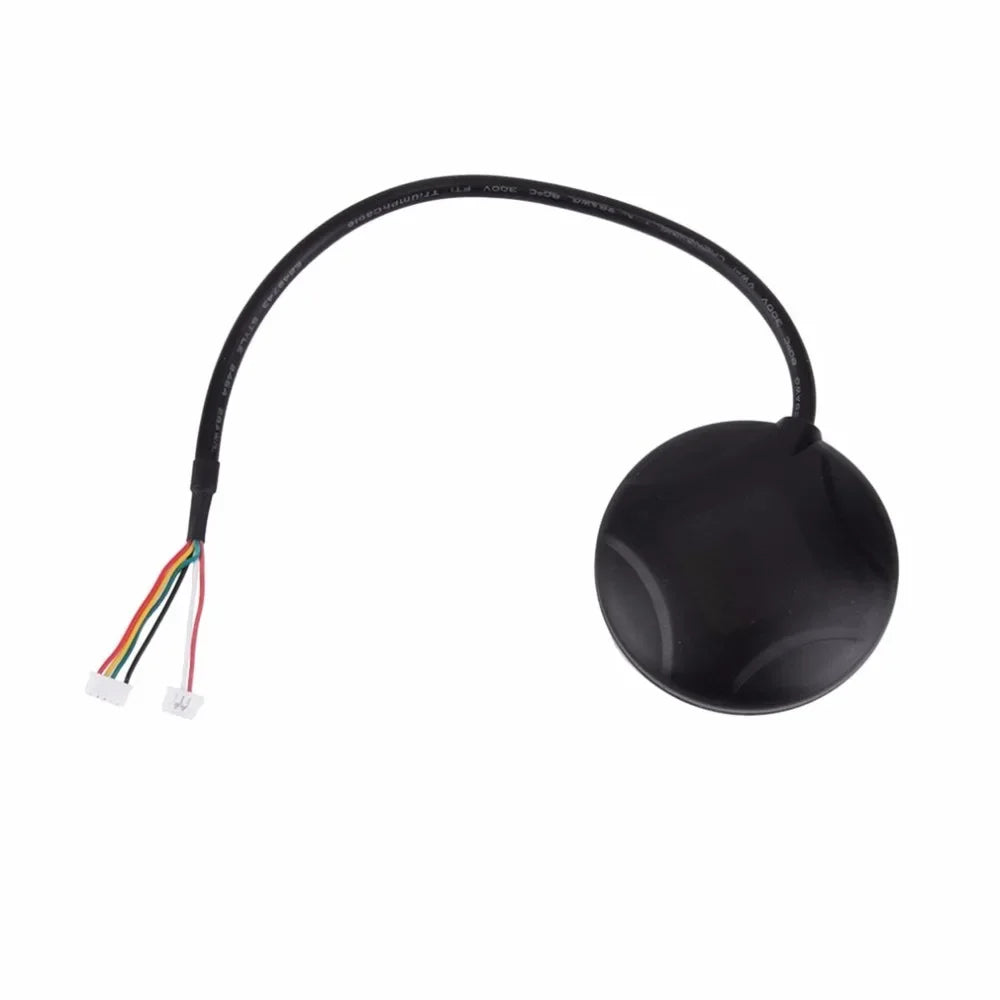

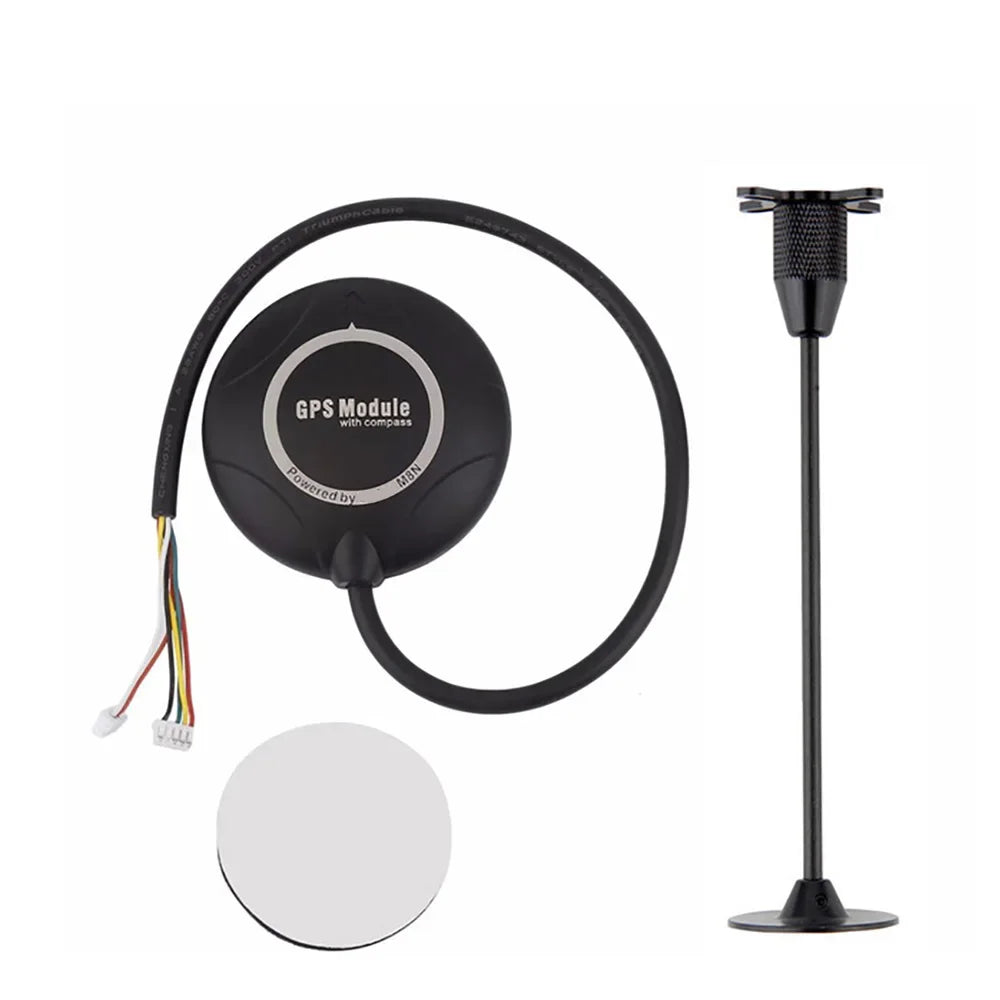

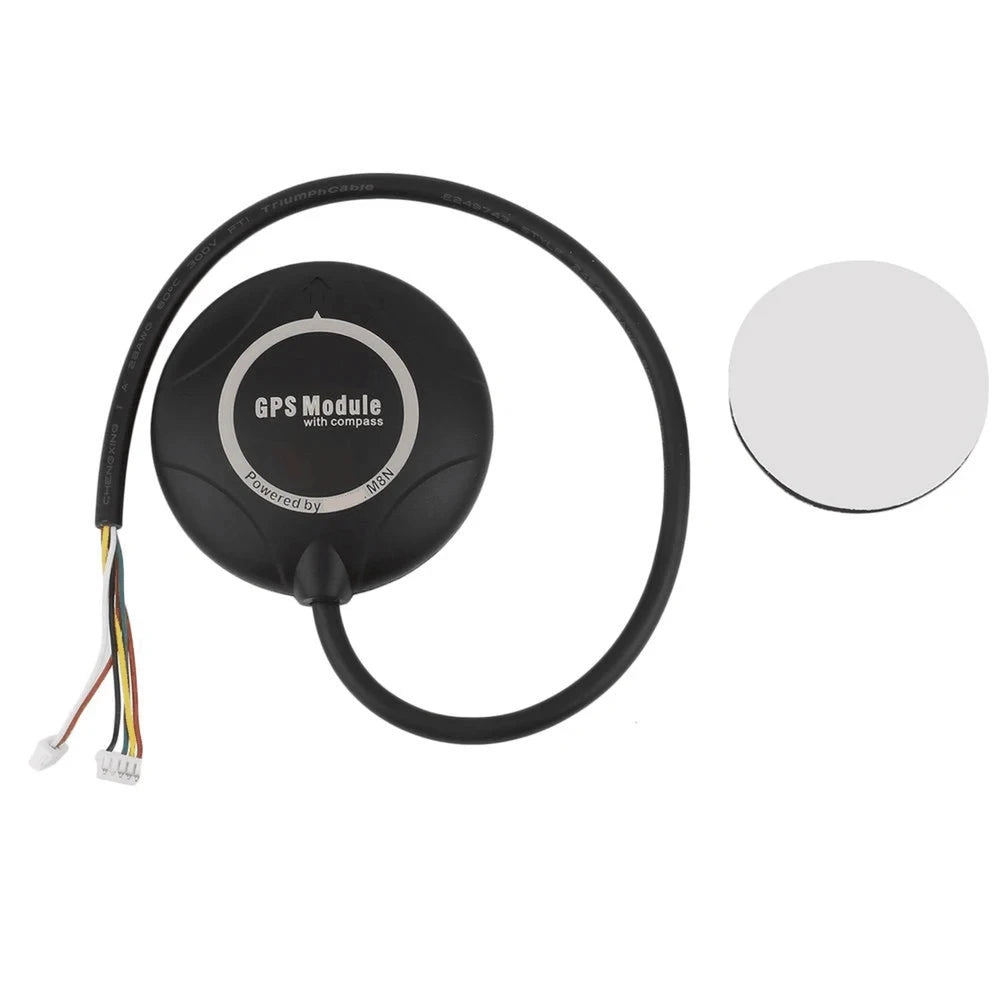

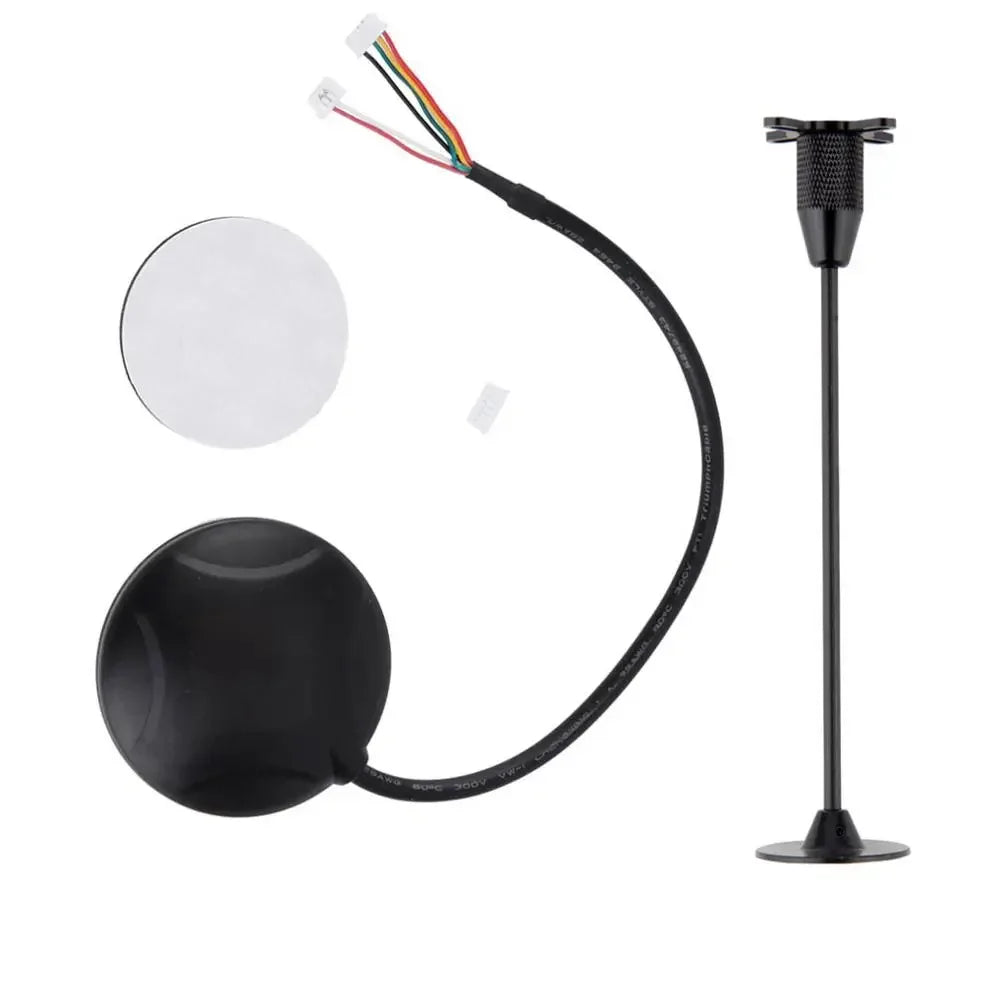

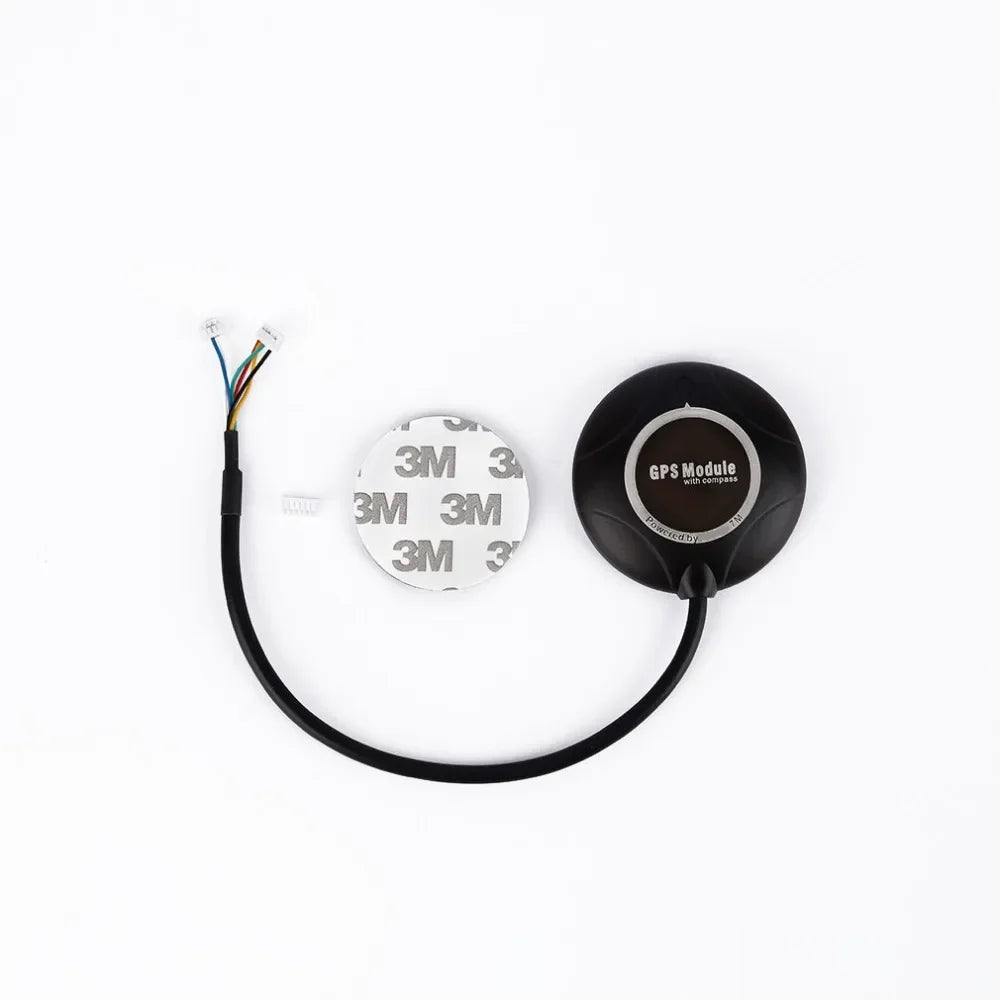

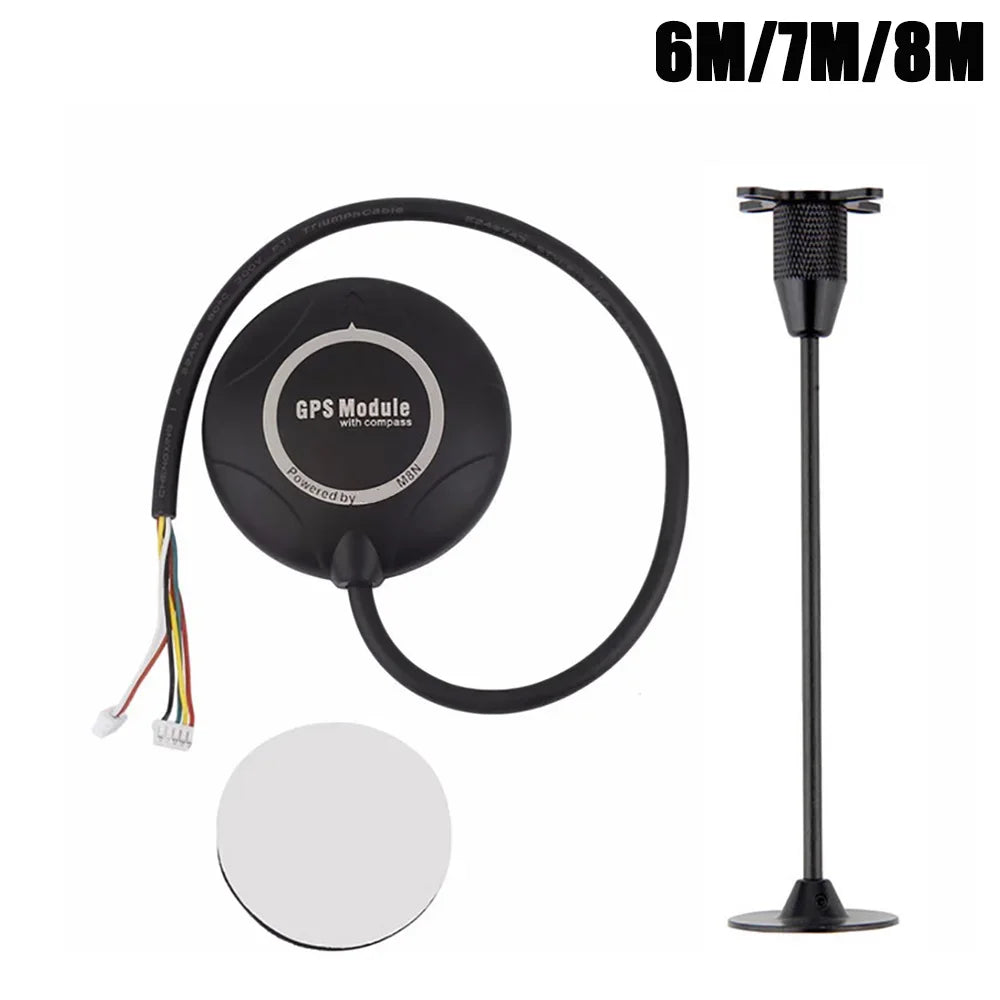

1 x  GPS Module with translucent Shell for APM2.6 2.8  PIX
