Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Item Type: SWITCHES

Material: Iron

Model Number: LAY37

Origin: Mainland China

Switch Type: Push Button Switch

Warranty: -

Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A Switch Equipment Lift Elevator Latching Self Lock
Product Name : Push Button Switch;
Action Type : Lacthing;
Contact Type : 1 NO + 1 NC;
Poles : DPST
Ui : 660V;Ith : 10A;Terminals Quanlity : 4 Pins

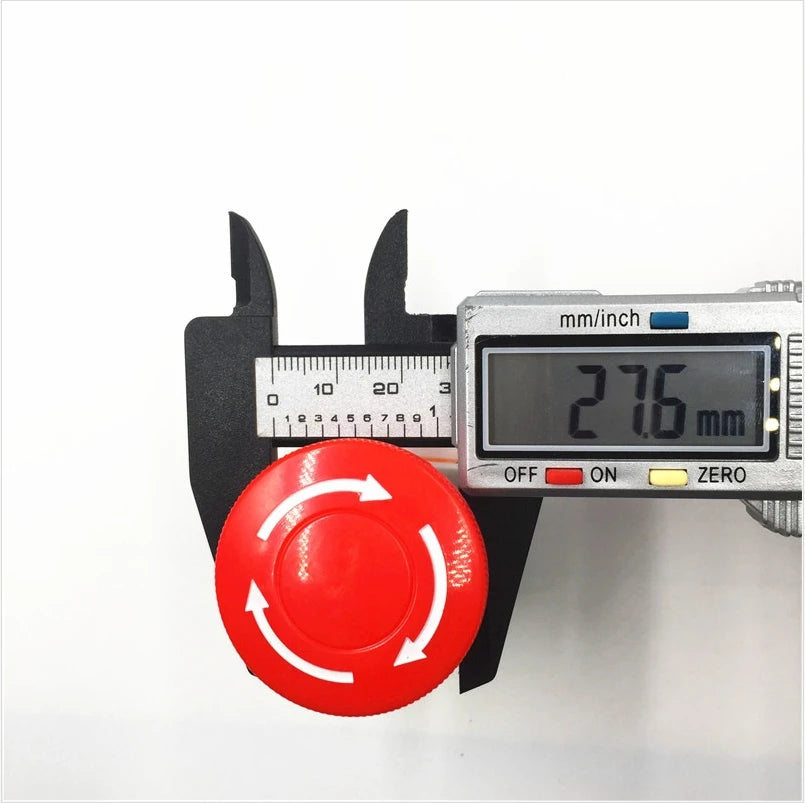

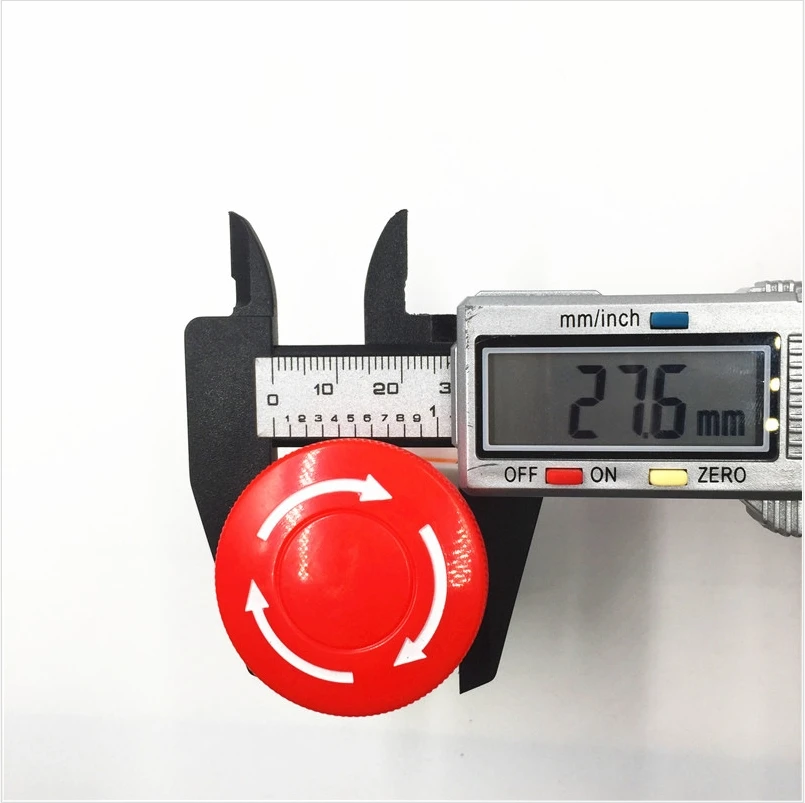

Button Diameter : 40mm/ 1.6";
Mount Hole Diameter : 22mm / 7/8";
Fit Panel Thickness(adjustable) : 6mm / 15/64"(max.)

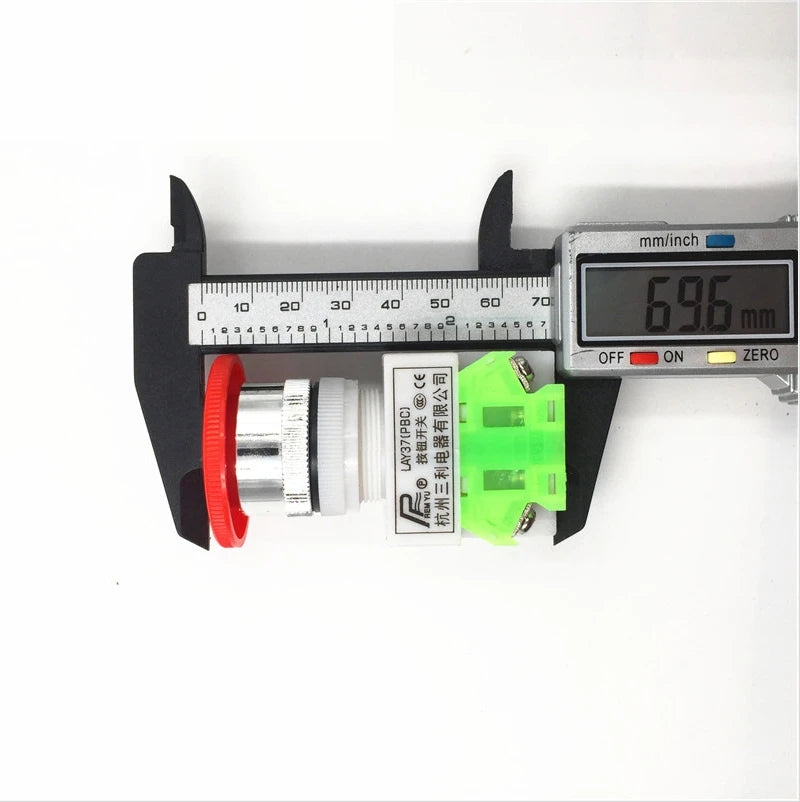

Size : 60 x 70mm/ 2.4" x 2.8" (Max.D*H);
Cap Lamp : Red;
Material : Plastic,Metal
Color : As Picture Shown;Weight : 46g;Package Content : 1 x Push Button Switch Red Mushroom Cap 1NO 1NC DPST Emergency Stop Push Button Switch AC 660V 10A

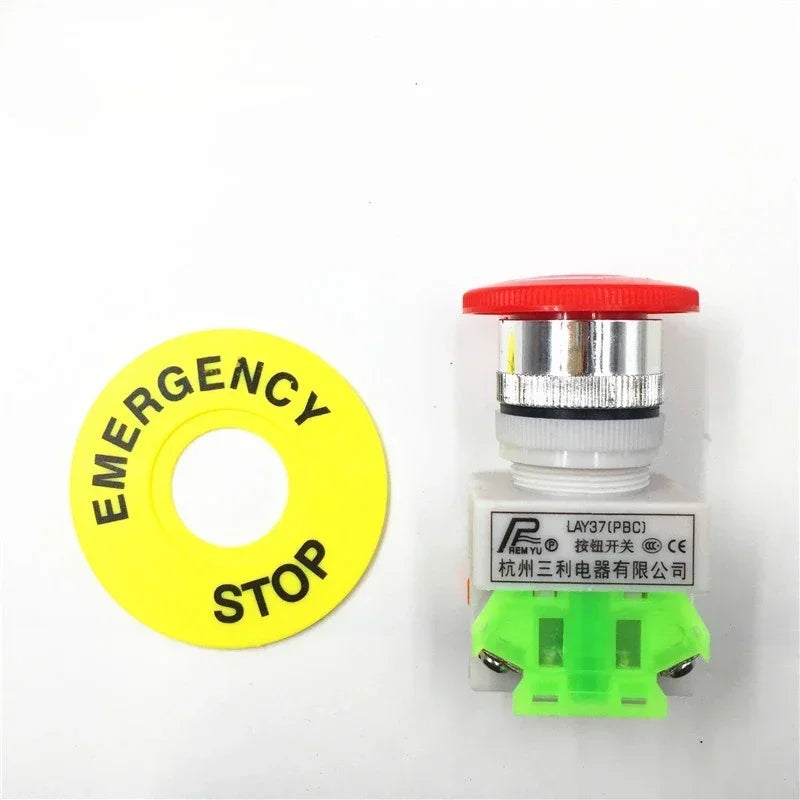

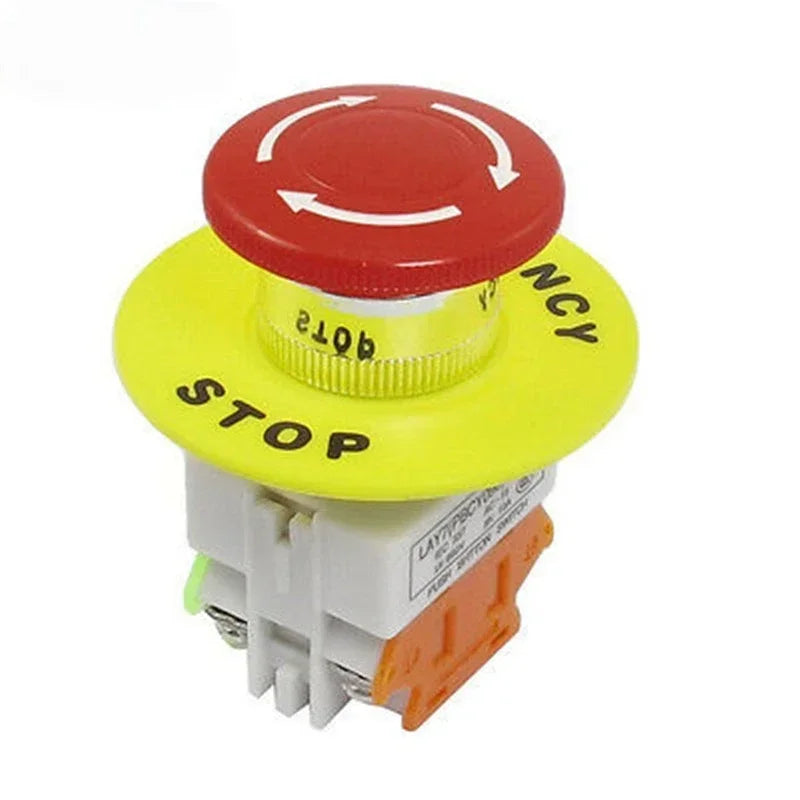

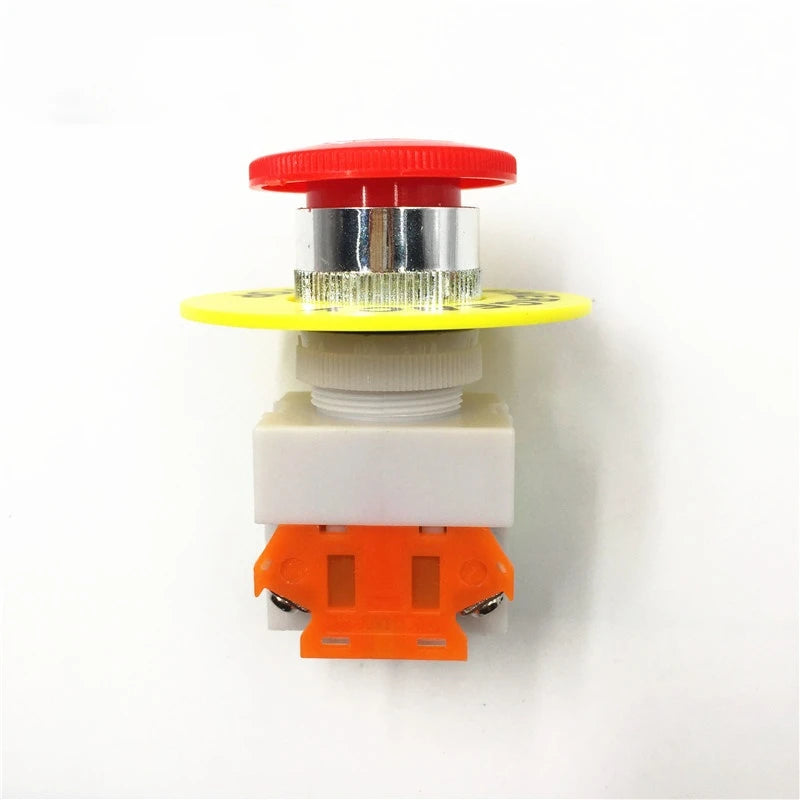

* Features: 4 terminals, 22mm mounting hole, 1NO+1NC contact type, red mushroom emergency stop latching push button switch with yellow cap.
* Used widely to control the electromagnetic starter, contactor, relay and other automatic control electric circuits.
