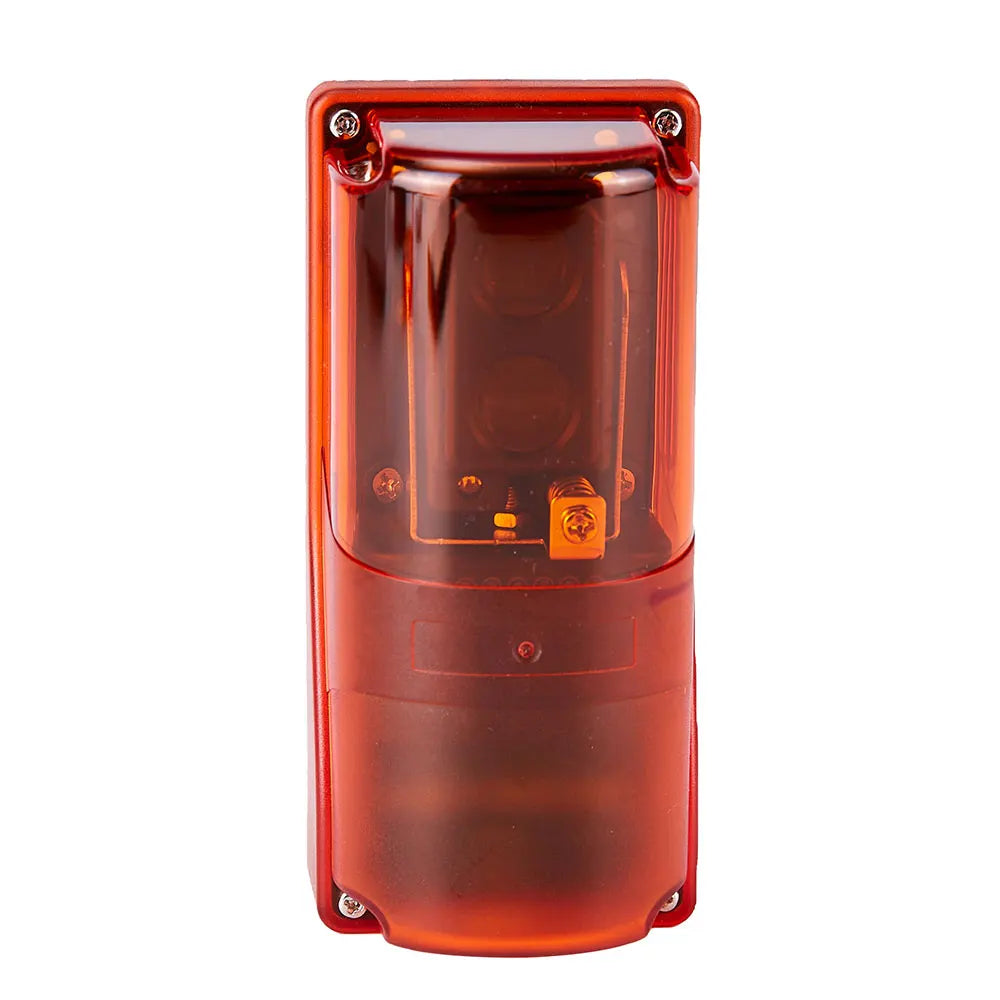

Reflective Photocell Barrier Sensor 10M DC12V 24V Reflective Photoelectric Sensor Detector for Gate Garage Door Home Security

Reflective Photocell Barrier Sensor 10M DC12V 24V Reflective Photoelectric Sensor Detector for Gate Garage Door Home Security

$157.86

$157.86 $0.00

Description

SPECIFICATIONS

Ambient light intensity: Max.5000lux

Applicable: Garage Door

Brand Name: NONE

Certification: CE

Choice: yes

Color: Red

High-concerned chemical: none

Induction distance: <10m

Model Number: 100

Origin: Mainland China

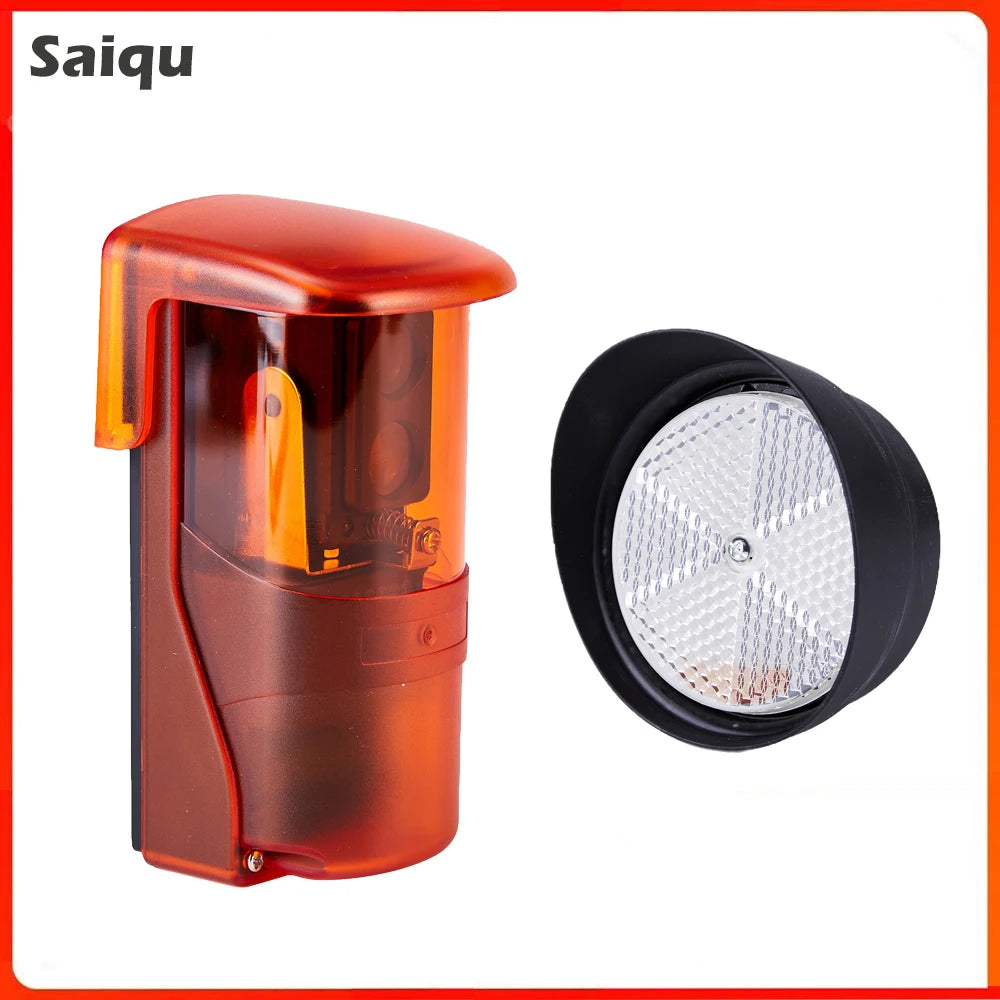

Product Name: Reflector Photocell Sensor

Reaction time: about 30mS

semi_Choice: yes

Reflective Photocell Barrier Sensor 10M DC12V 24V Reflective Photoelectric Sensor Detector for Gate Garage Door Home Security

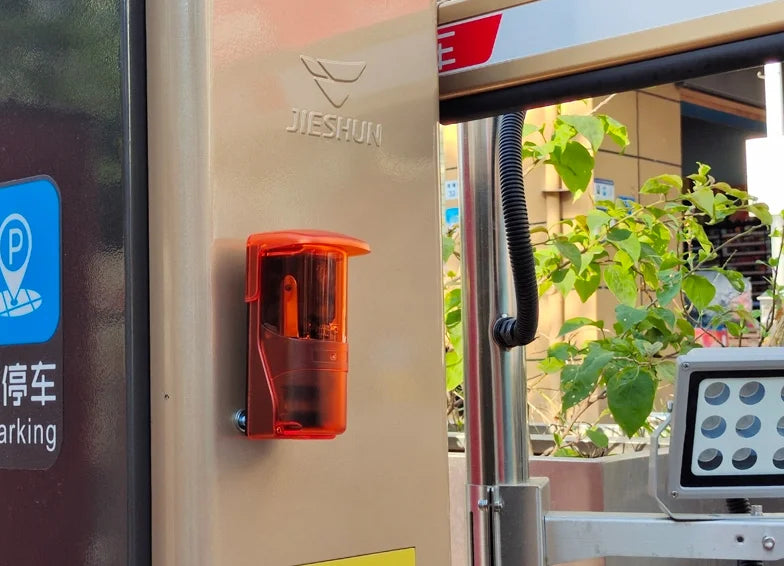

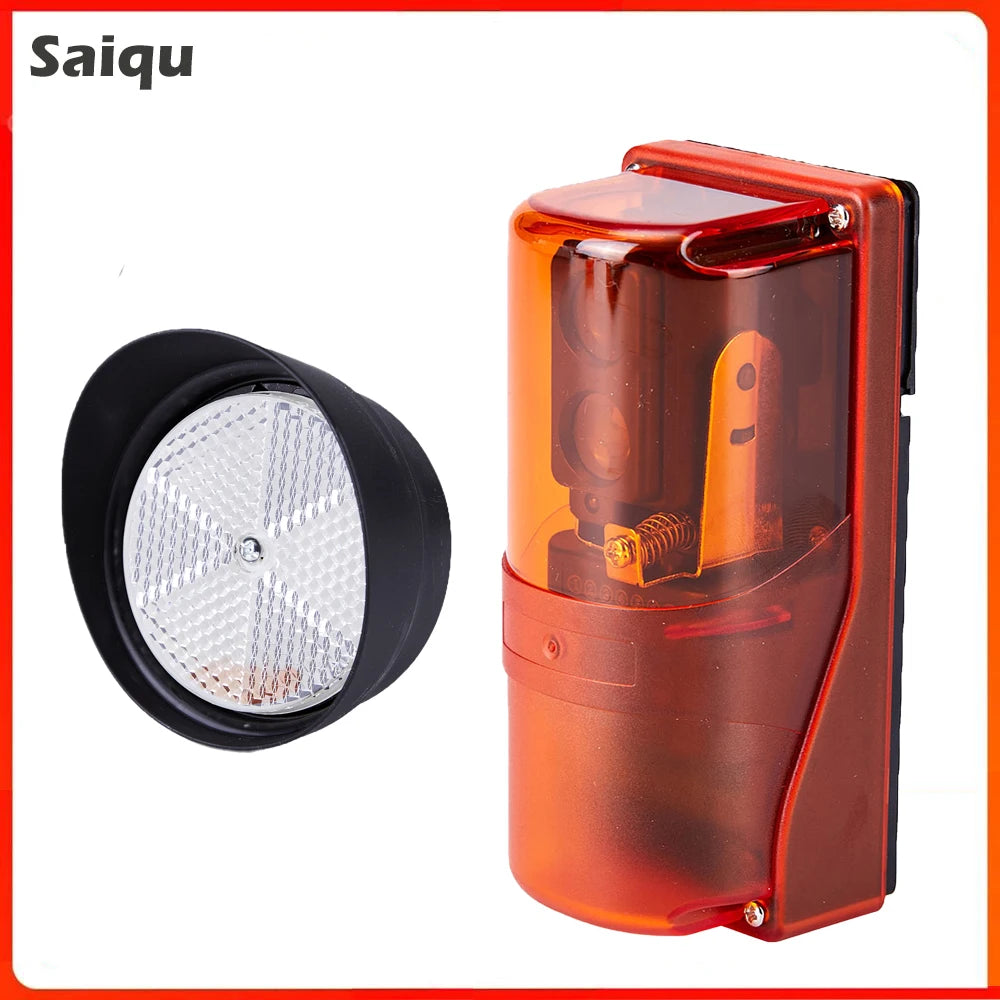

Reflector Photocell is a photoelectric sensor that loads the transmitter and the receiver into the same device, fits a reflector in front of it, and completes the photoelectric control effect using the reflection principle. It can be used to detect changes in light and color on the ground, or to detect close objects. Commonly used application scenarios are: lifting door, revolving door, sliding door, wall security protection, window and balcony security, warehouse security, parking lot and other outdoor security places.

Technical parameters:

1). Operating Voltage: AC9V~24V (AC Frequency: 45~60HZ,Imax=15mA);
DC12V~24V(Imax=38mA)
2). Working current: <38mA@12VDC (Relay on)
<20mA@12VDC(Relay off)
3). Induction distance: <10m
4). Sensitivity: Fixed
5). Reaction time: about 30mS
6). Ambient light intensity: Max.5000lux
7). Emission tube parameters: wavelength: 740nm; luminous type: visible red light
8). Relay:Load parameter: AC 3A/125VAC; DC 3A/30VDC
Coil parameters: DC9VDC (Imax=20mA)
9). LED indicator light: Green LED lamp: 1). Power switch; 2). Light flash indicates weak signal
Red LED lamp: working status signal (on / off: working signal valid / invalid)
10). Operating temperature: -20℃~ + 70℃
11). Storage temperature: -30℃~+ 80℃

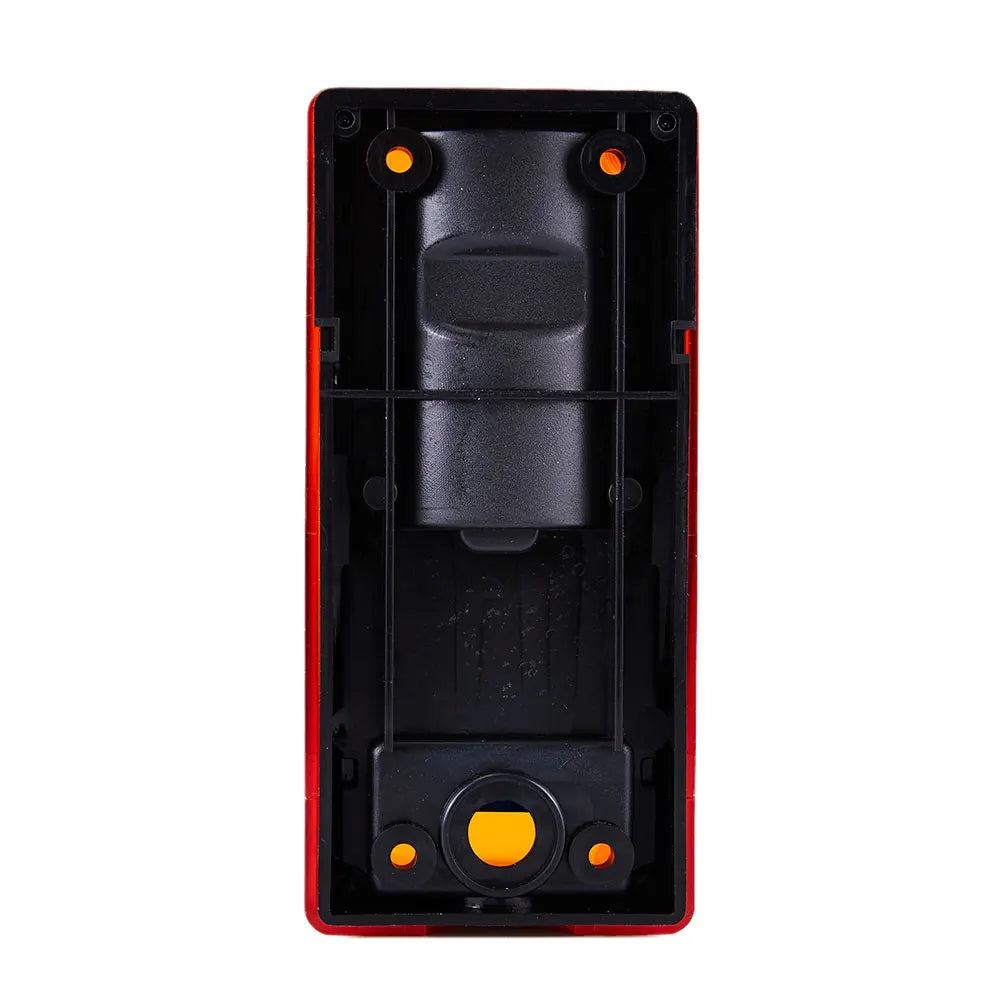

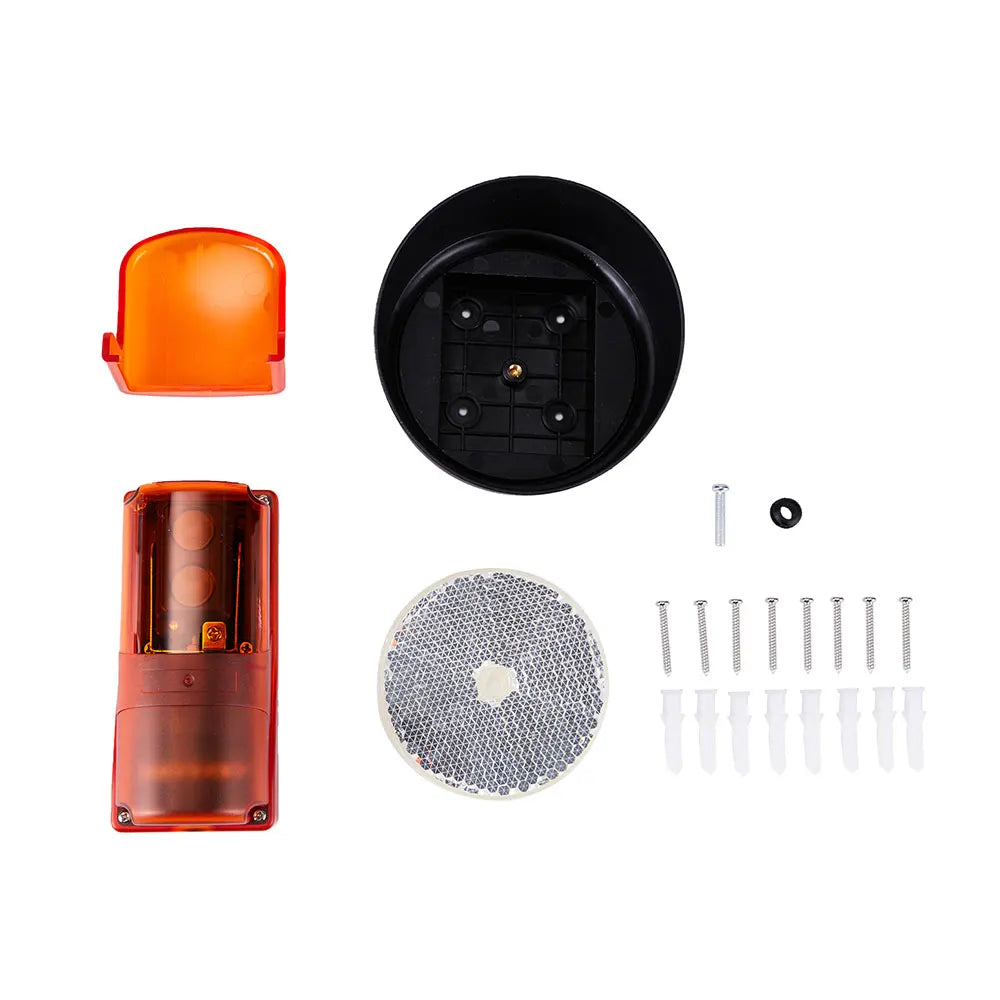

12). Product Size (LxWxH): 115 * 54 * 50mm

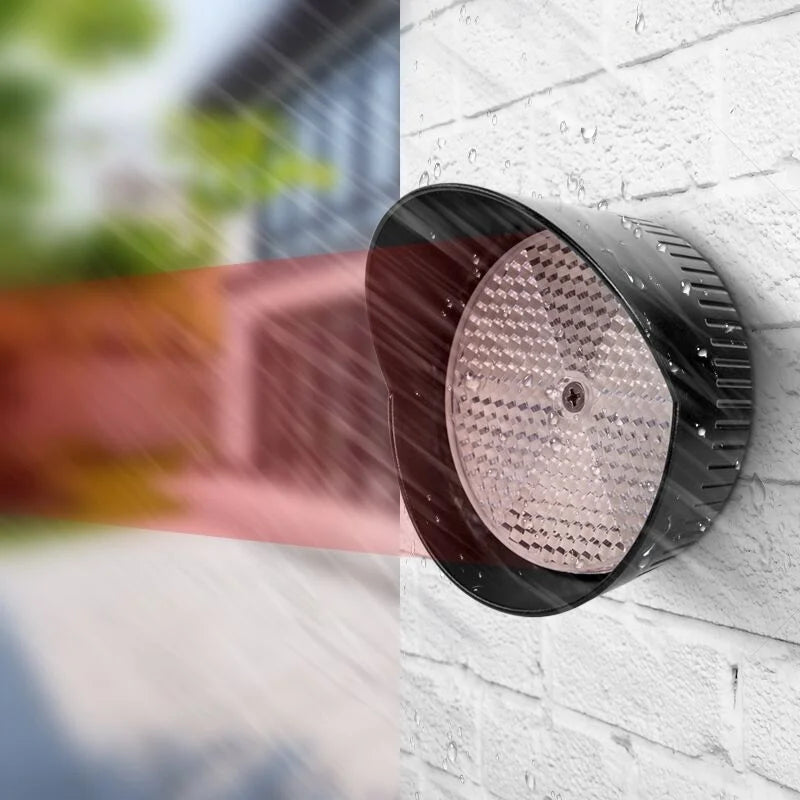

Reflective plate (LxWxH): 120 * 80 * 6.5mm

Product installation:

1)Ensure that the maximum induction distance can not be exceeded;

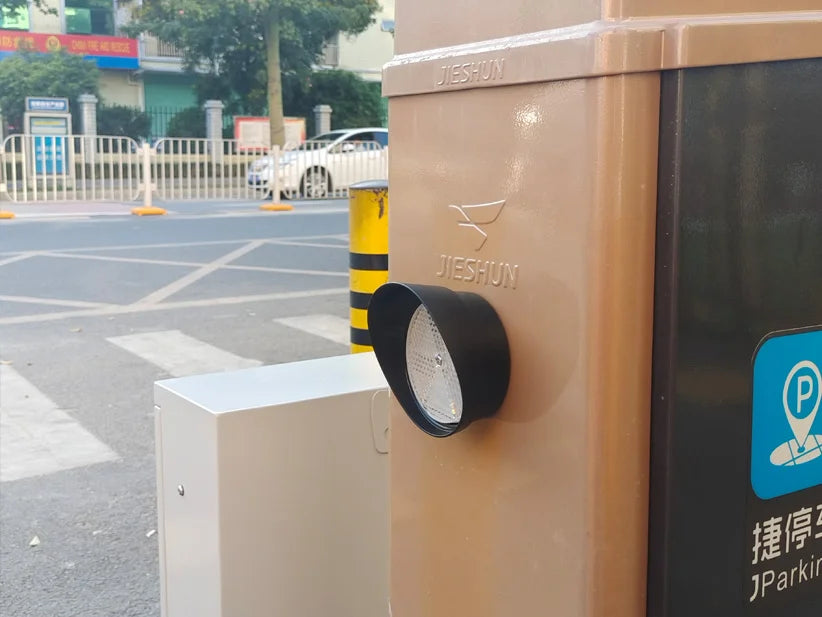

2) places the reflector in the appropriate position to the sensor;
3) adjusts the position of the sensor horizontal and the vertical direction according to the reflector and points the sensor
to the center of the reflector [During the first installation and commissioning, fix the sensor first, align the reflector at the
sensor, and then move the reflector from a near to far direction to the desired location];
4) Do not power the sensor before completing all electrical wiring
