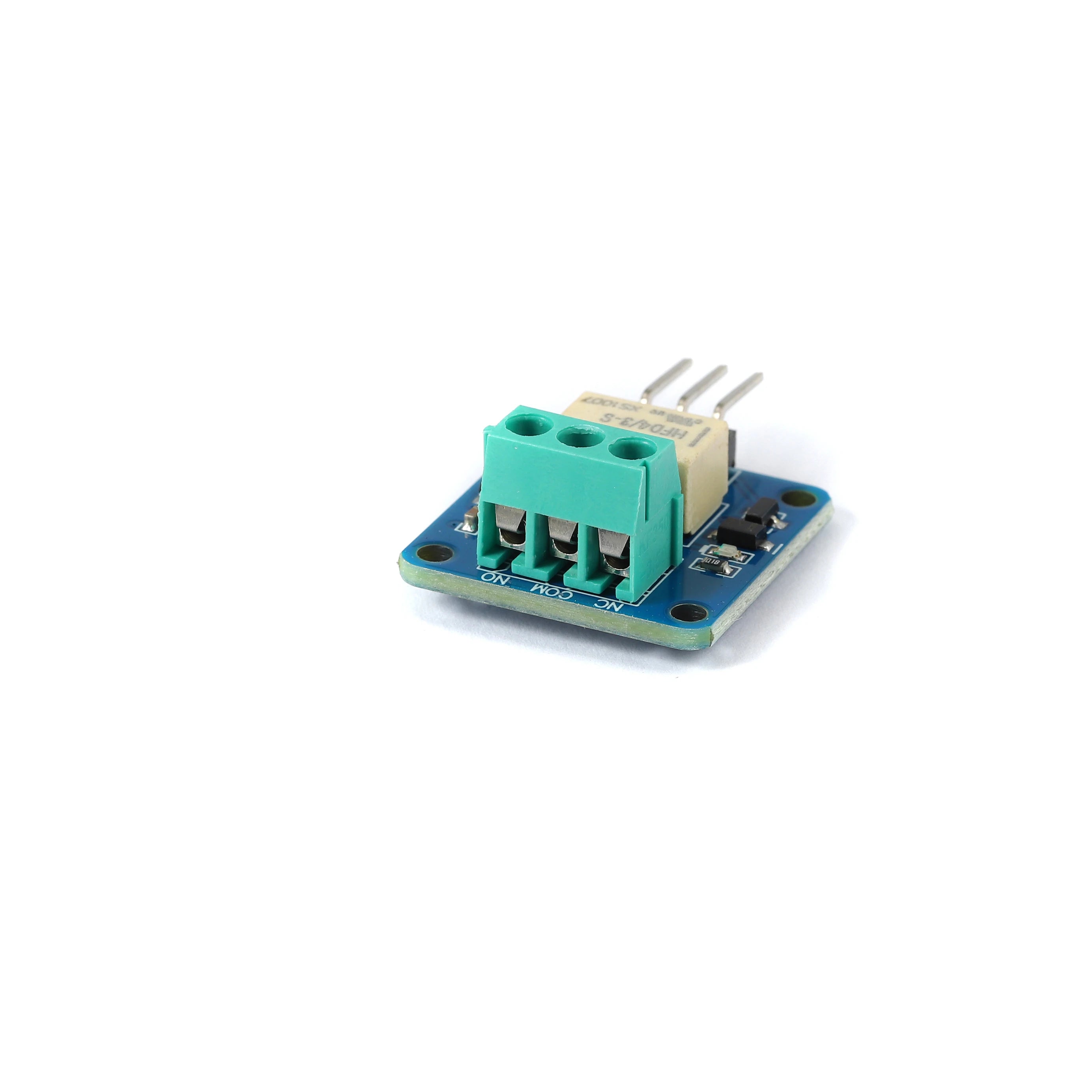

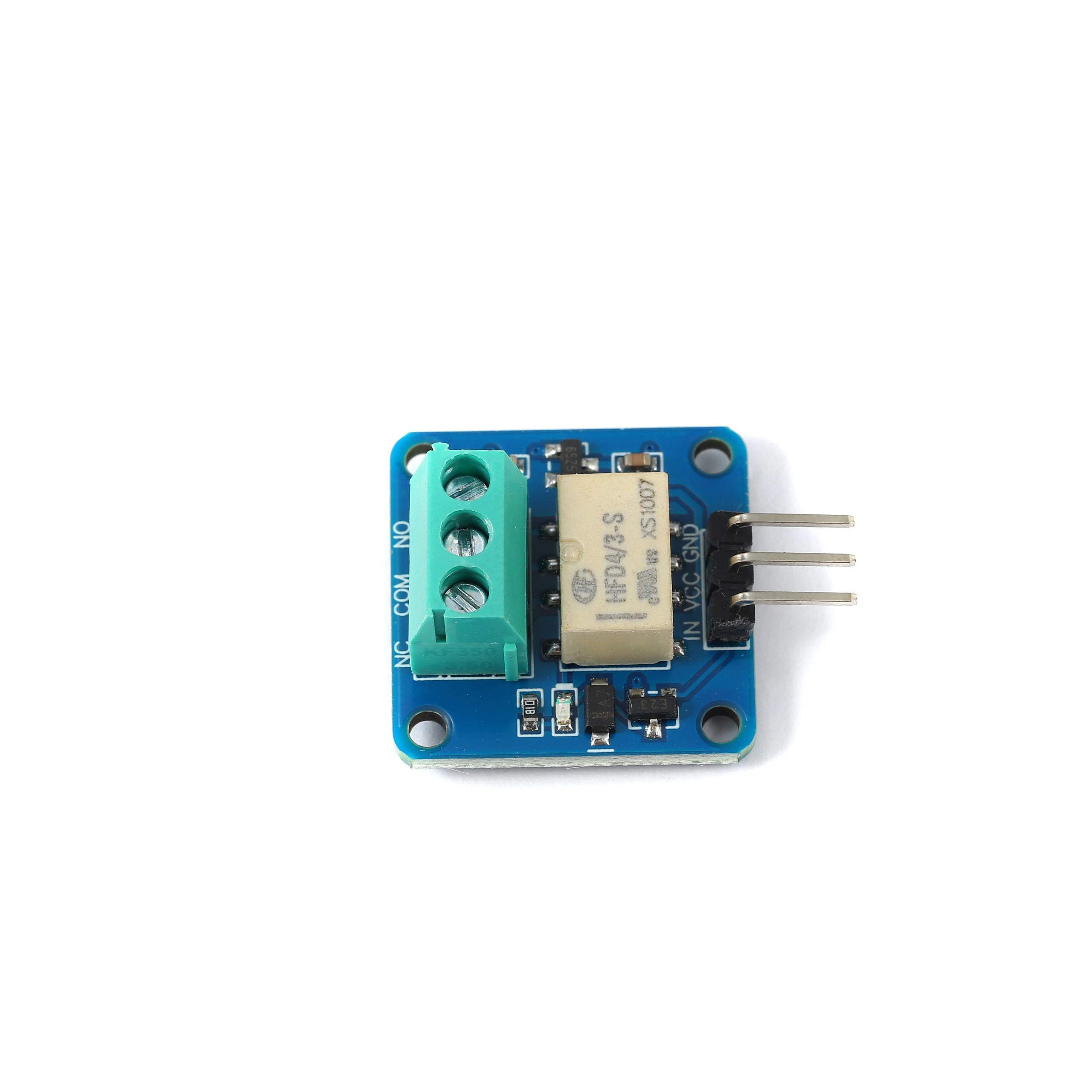

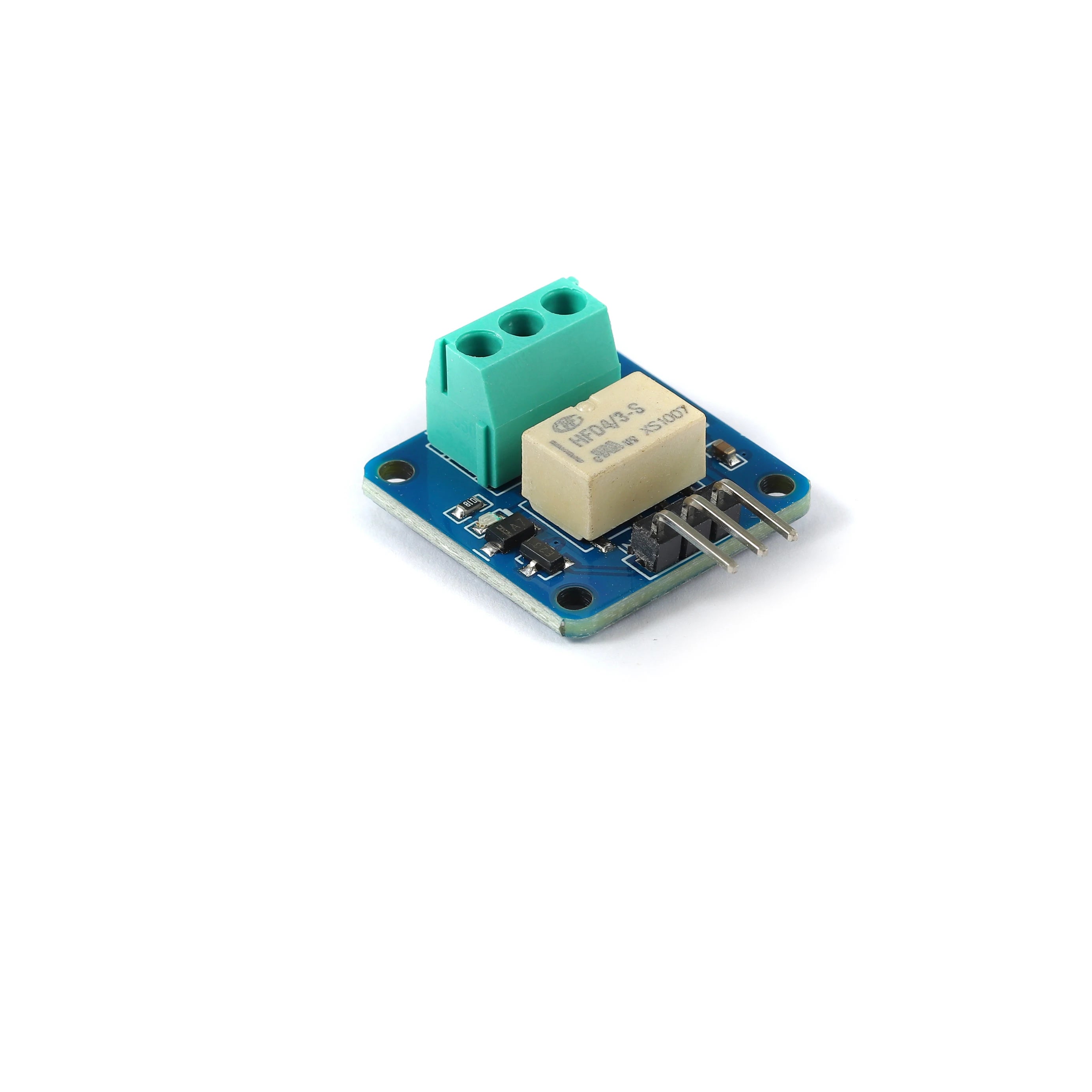

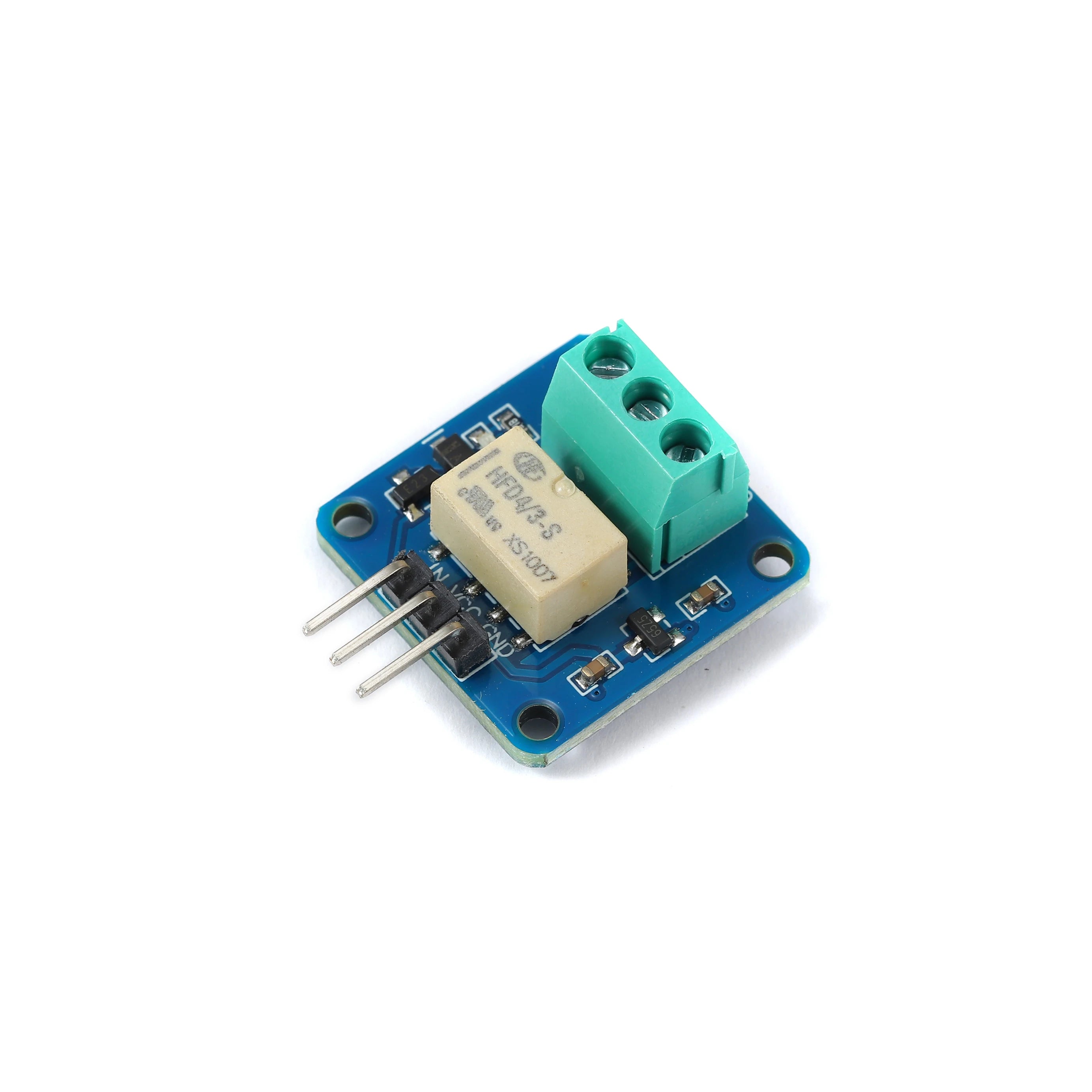

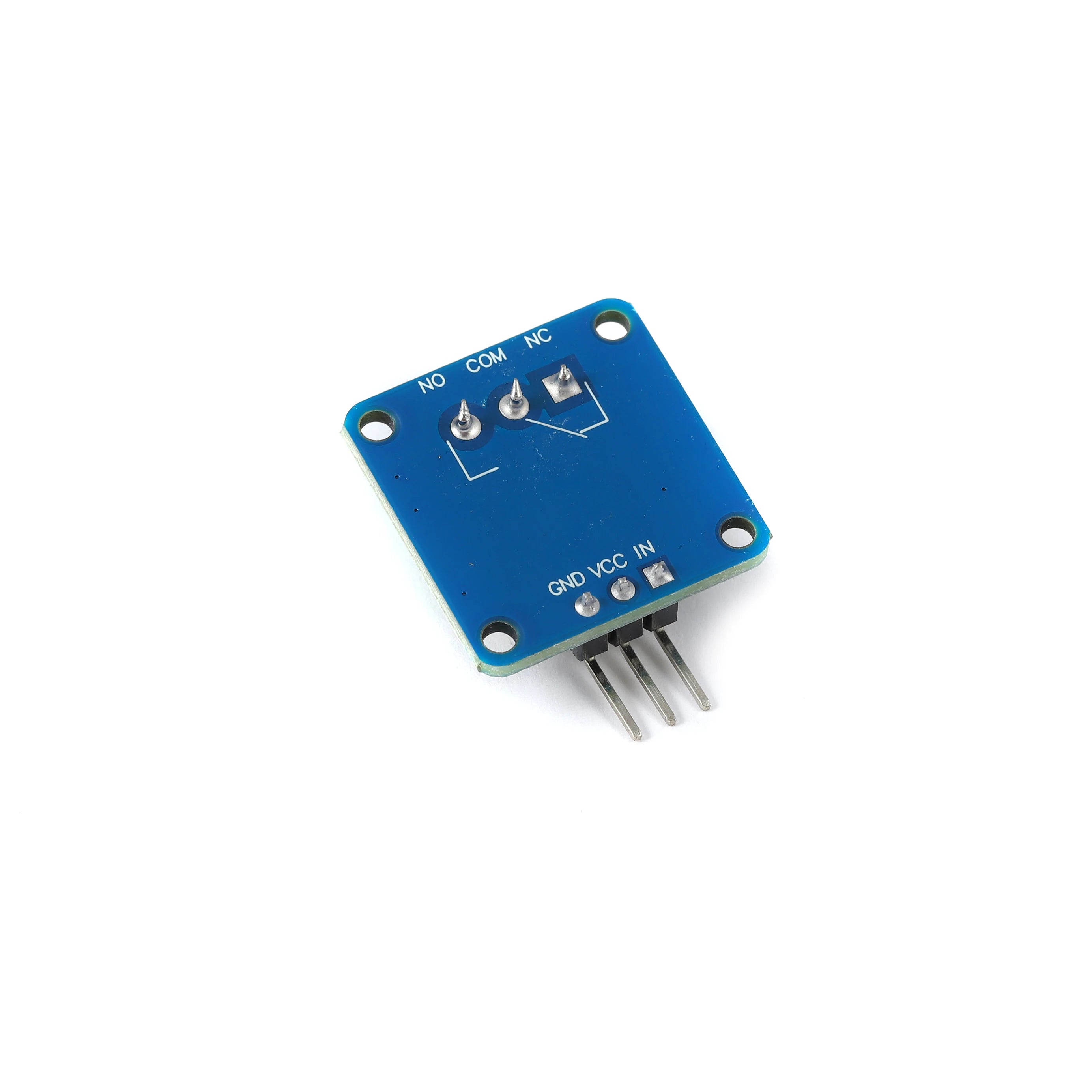

Relay Module HFD4/3-S Thin 3.3 5V STM32 51 Microcontroller
Default Title
$12.24
Sale price
$12.24
Regular price
$0.00
Skip to product information
Relay Module HFD4/3-S Thin 3.3 5V STM32 51 Microcontroller
$12.24
Sale price
$12.24
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Voltage Regulator
1. The relay supports wide voltage supply, the range is 3.3V-6V.
2.The maximum load current of the controlled terminal of the relay is 2A@30V, 0.5A@220V (more than 60V, it is recommended to add an insulation protection box to prevent electric shock).
3. Small size, adapted to signal switching or on-off control, signal insertion loss <0.3dB@1KMHZ, also adapted to small power load switching or on-off control.
Operating current (VCC): quiescent current: 5uA action current: 40mA
Trigger mode (IO): high level trigger
Trigger level (IO): high level: greater than 1.3V less than VCC low level: less than 0.5V
Trigger current (IO): 1.8mA
Maximum load: 2A@30VDC, 0.5A@220VAC
