SPECIFICATIONS

Features:

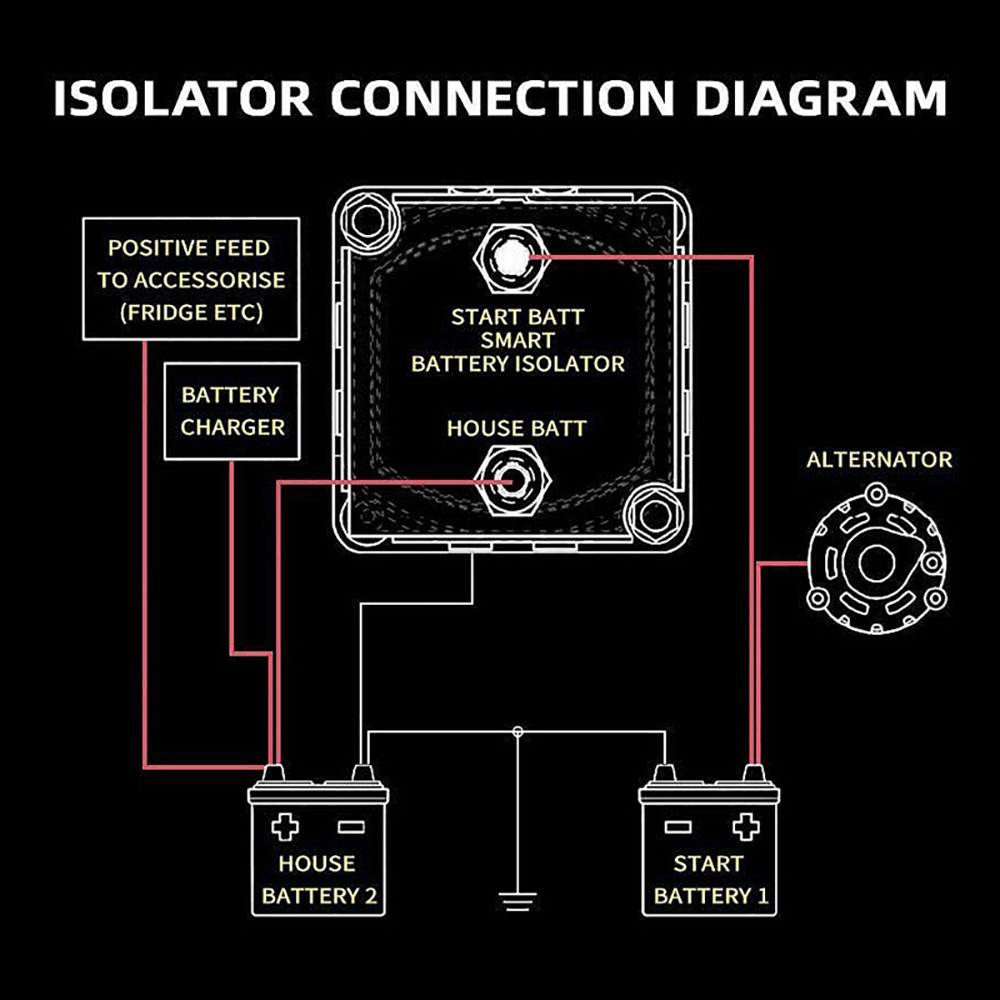

• Automatically combines two batteries when charging and isolates the two batteries when not charging.

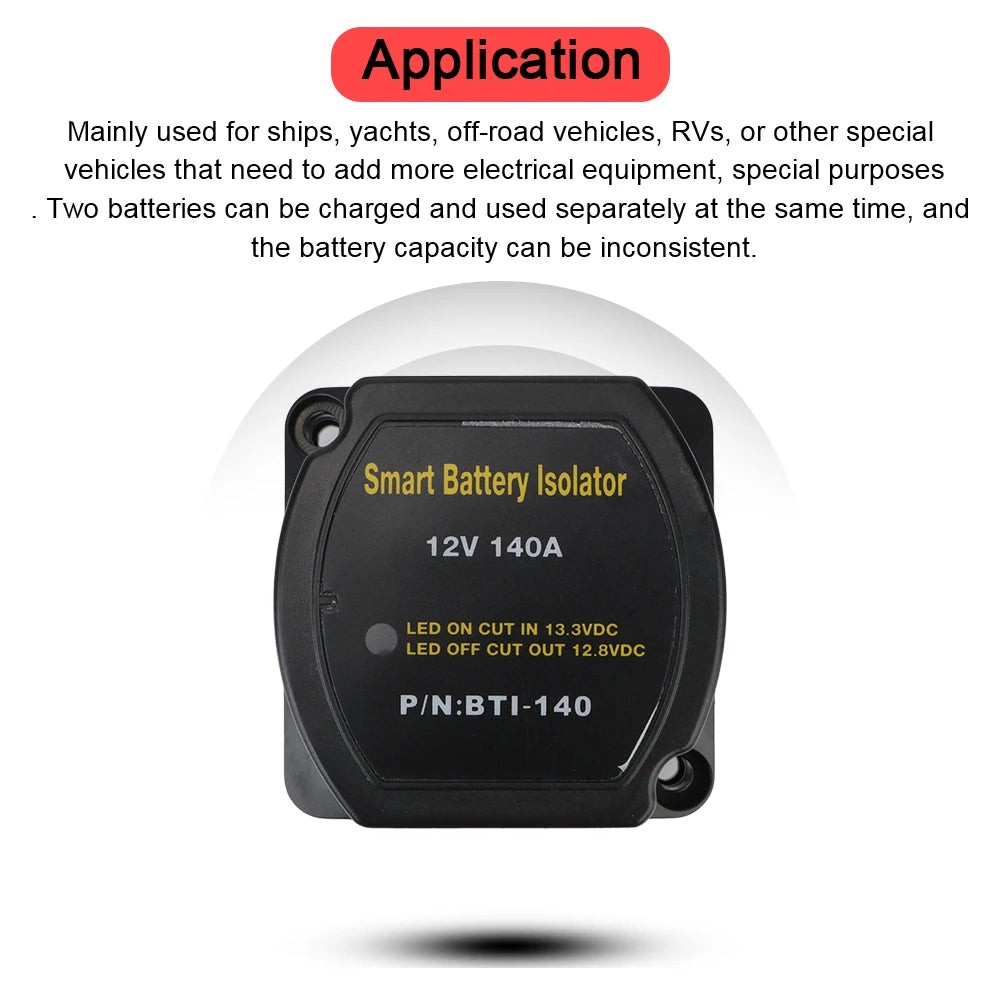

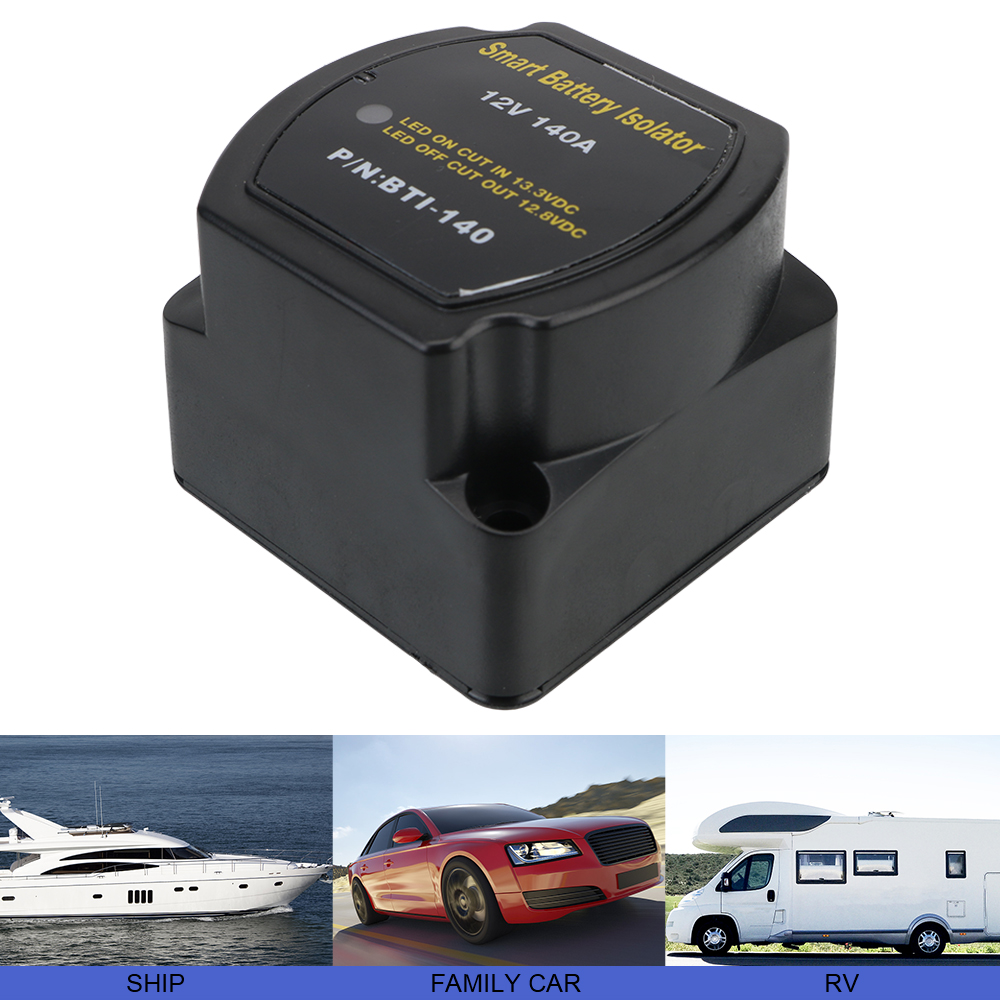

• Suitable To Install into Camper Vans, 4x4, Leisure Vehicles & Marine Applications.

• Not 70 Amp Cable As Per Some Other Similar Priced Kits.

• No voltage drops comparing to battery isolator diodes (0.6V).

• Meets ISO8846 Ignition Protection, suitable for use in engine room.

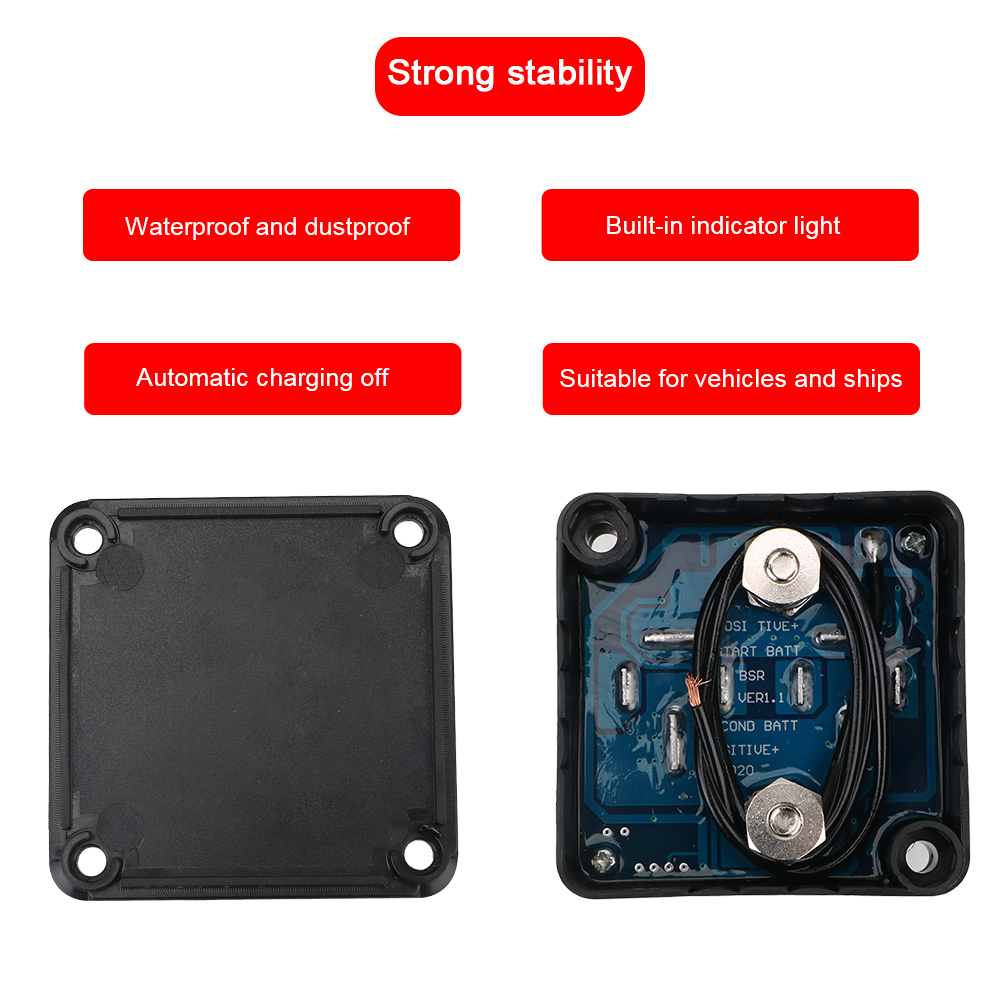

• Robust Glass Fiber reinforced Nylon enclosure.

• Built-in LED indication (ON when VSR engages).

• Surface or panel mount options provides flexibility when installing.

• Optional Storage Mode allows zero power consumption when engine is off.

Specification:

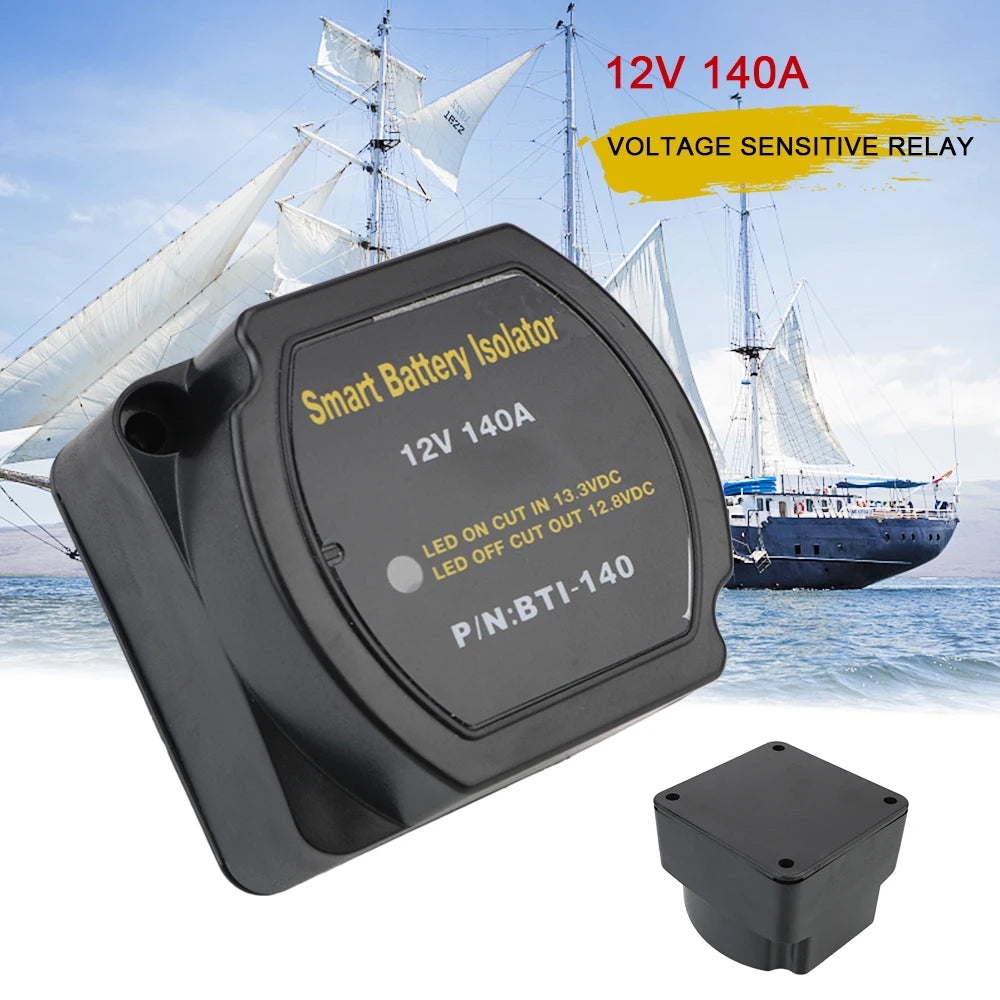

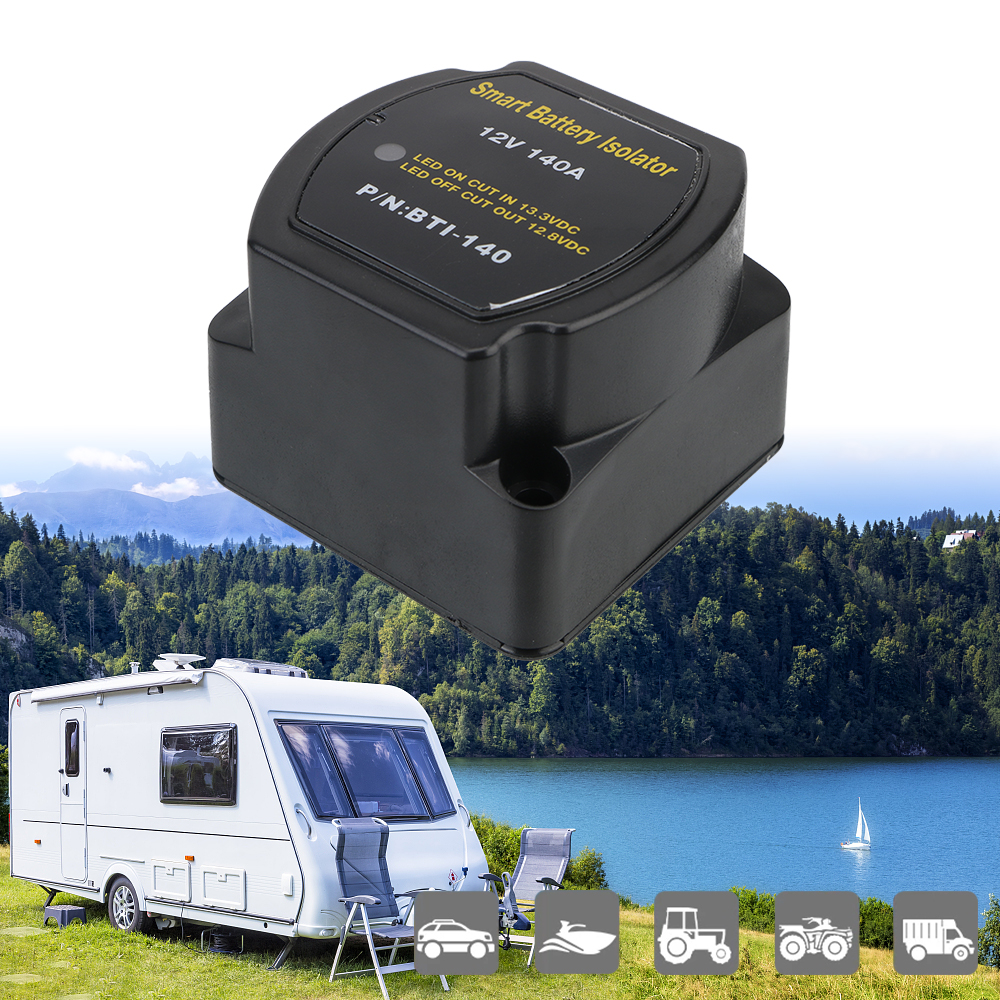

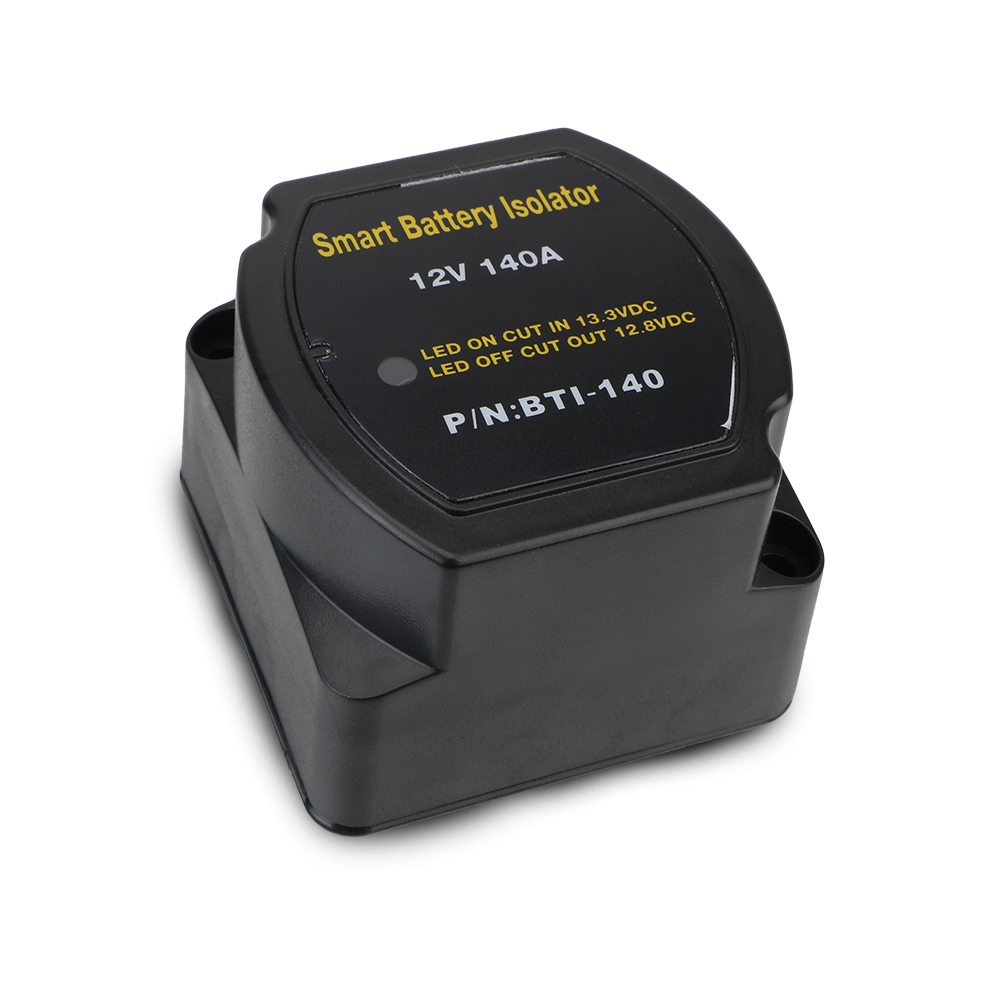

• Automotive Dual Battery Isolator Relay Protection Voltage Split Charge 12V 140A

• Material: Nylon

• Color: Black

• Nominal Voltage: DC 12V

• Combine Voltage: DC 13.3V

• Open Voltage: DC 12.8V

• Continuous Rating: DC 125A

• Intermittent Rating: DC 140A

• Power Consumption: 10mA (Standby)/ 330mA(Engage) / 0mA (Storage)

• Terminal Studs|: M6(1/4”)

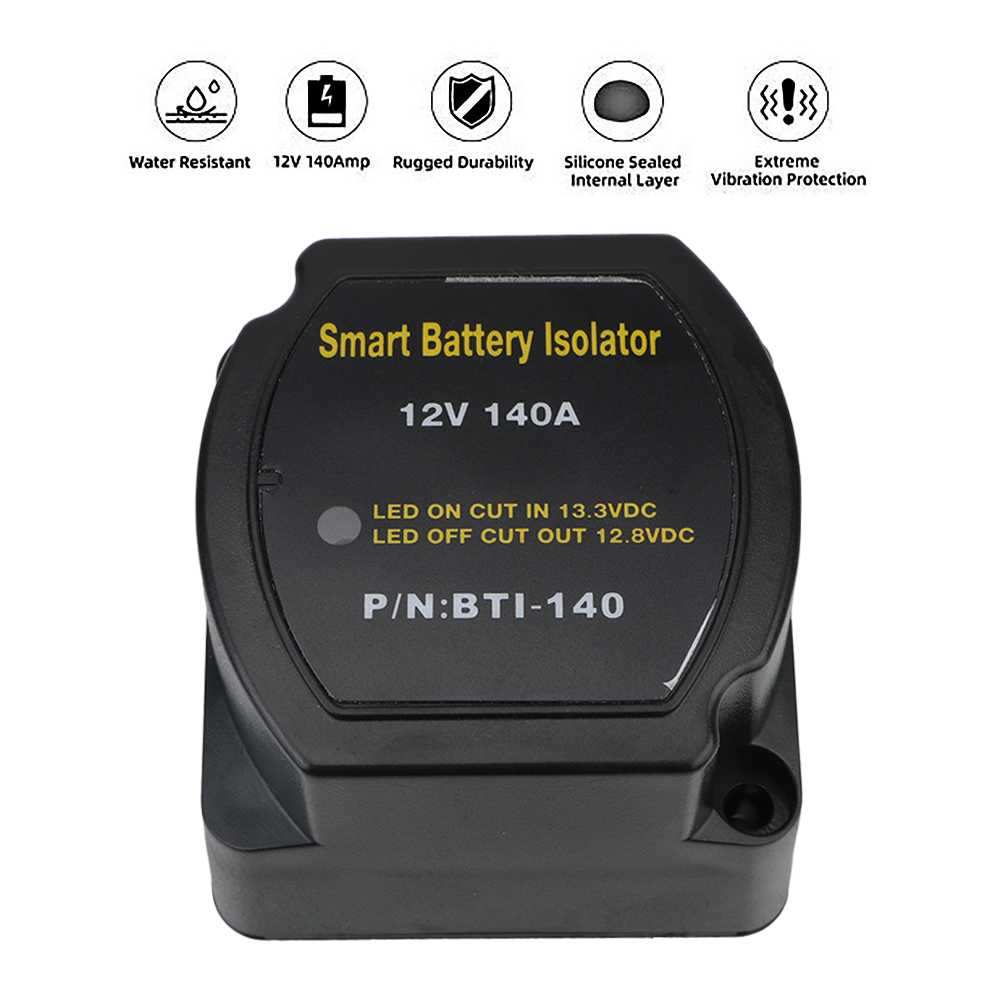

• Waterproof Level: IP67

Package Included:

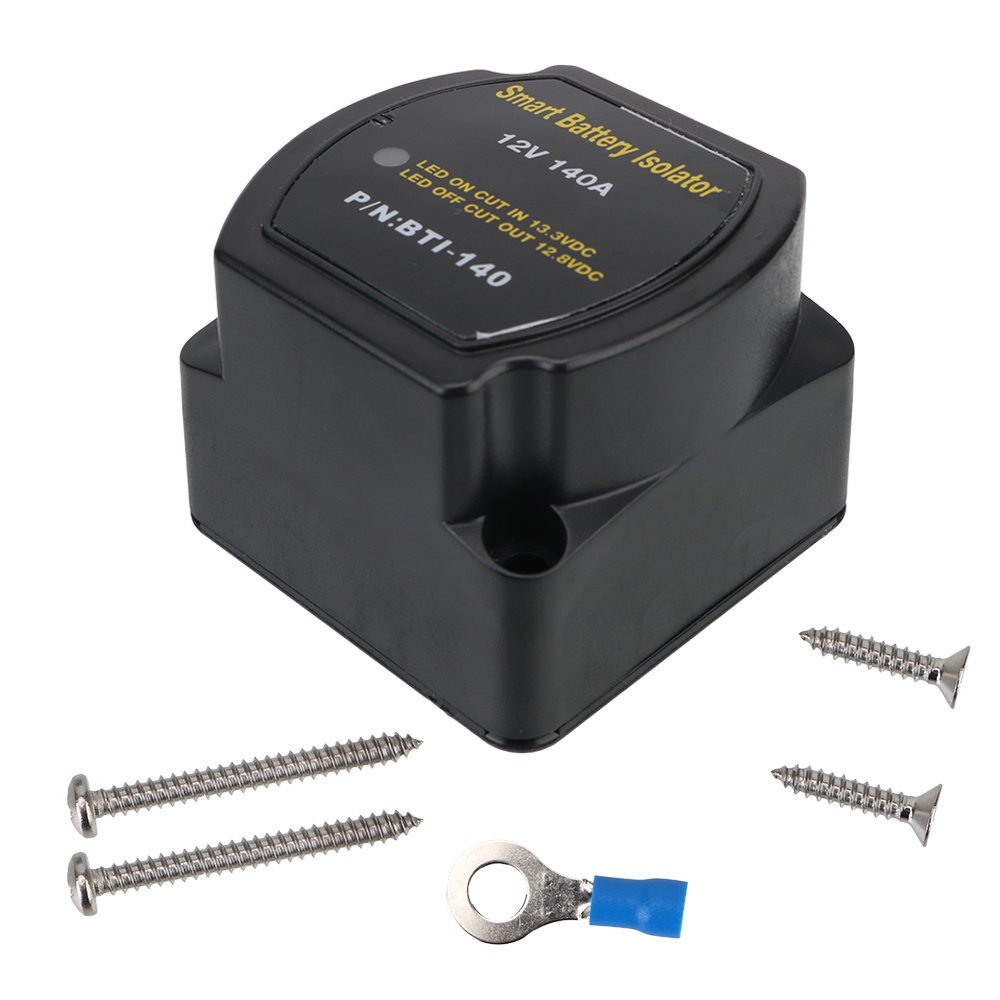

• 1 x Car Smart Battery Isolator
