Description

SPECIFICATIONS

Brand: MRO

Brand Name: CLVC

Breaking Capacity: High

Certification: CE

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Material: CERAMICS

Model: RGS4

Model Number: RGS4

Origin: Mainland China,China

Safety Standards: IEC

is_customized: Yes

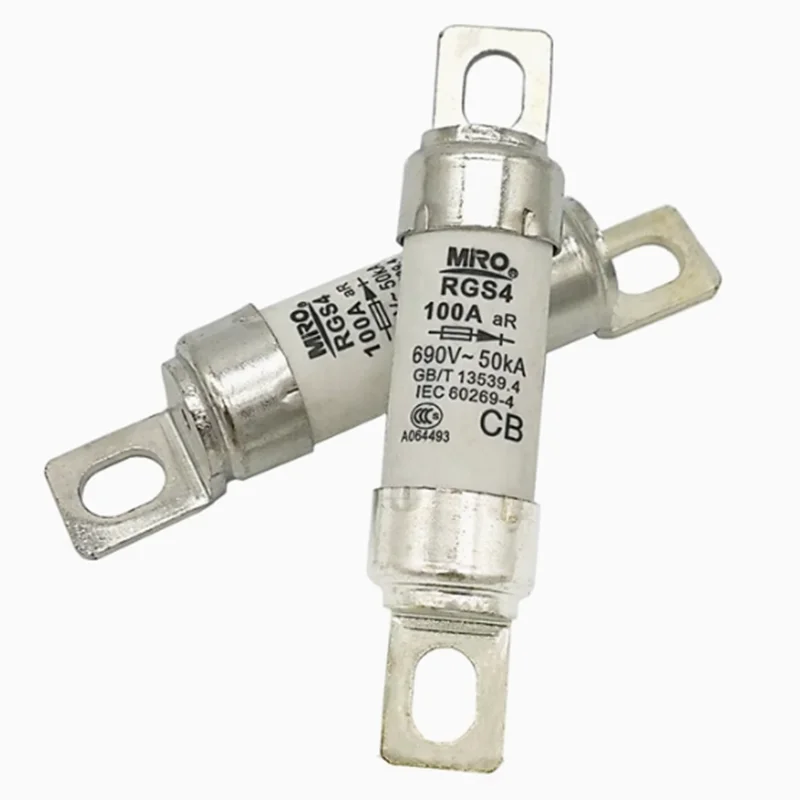

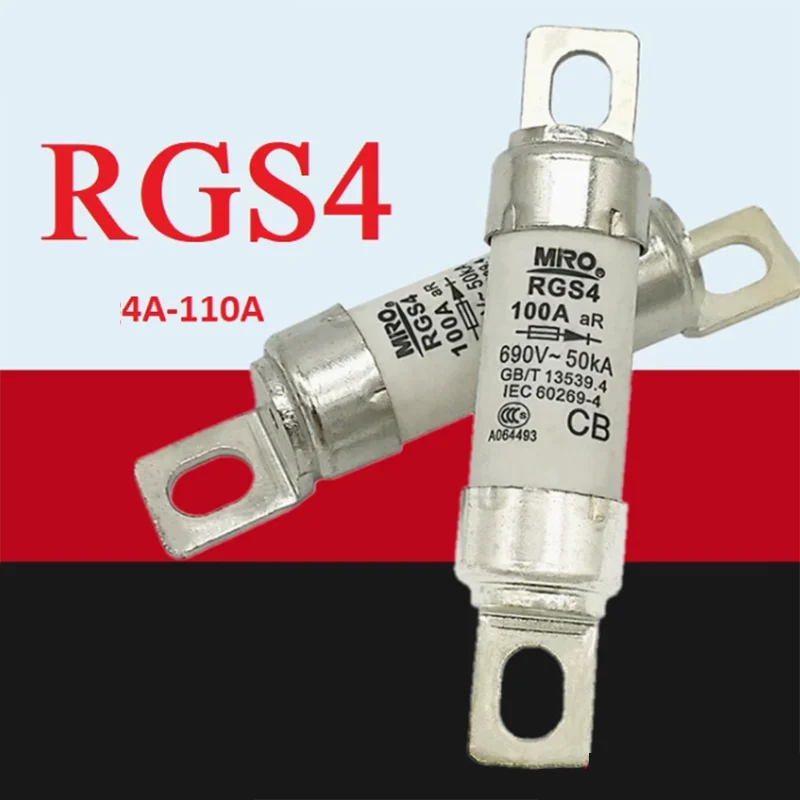

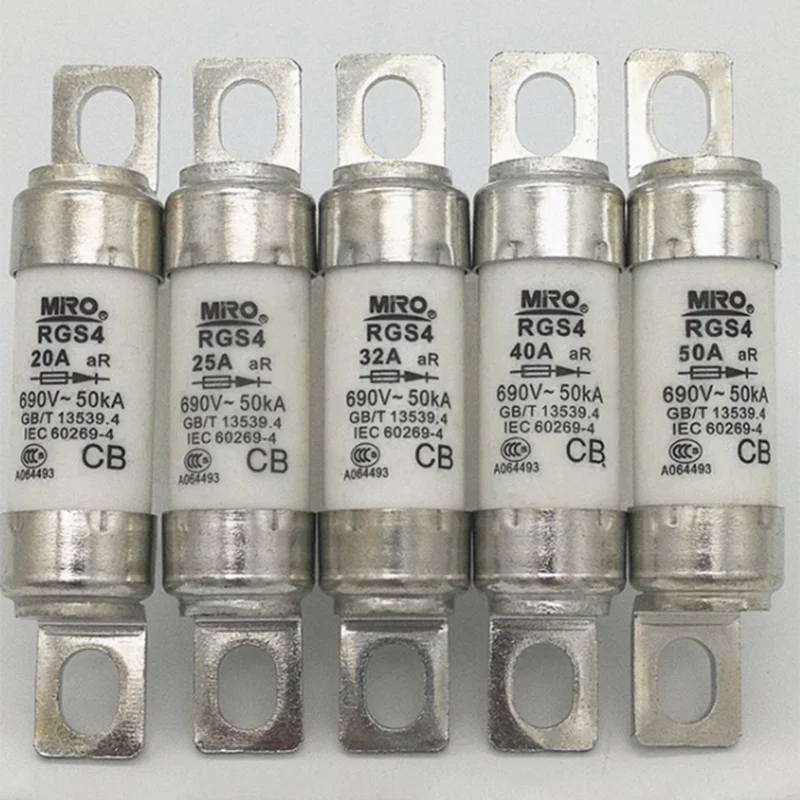

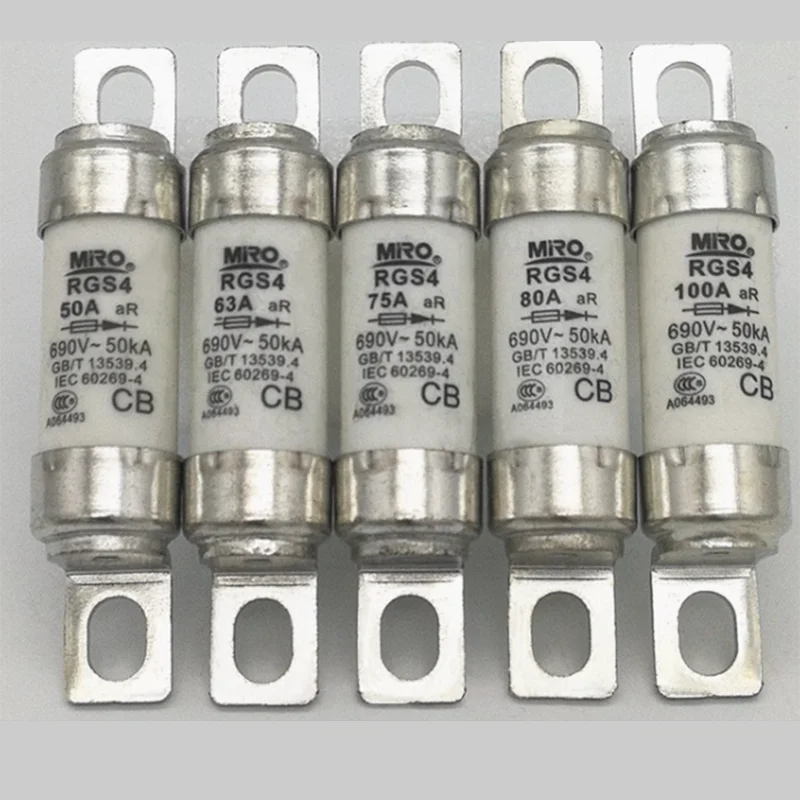

RGS4 RGS4-690V/110A 100A 85A 80A 75A 63A 55A 50A 40A 32A Fast acting Fuse

purpose

This series of fuse links is suitable for electrical devices with AC 50Hz, rated voltage up to 1200V, and rated current up to 630A. There are three different structures of fuses, one as overload and short circuit protection for electrical circuits (gG), the other as short circuit protection for semiconductor equipment (aR), and can also be derived as motor short circuit protection (aM)

The rated breaking capacity of this series of fuse links is up to 80kA.

This series of fuse links complies with the national standard GB13539 and the International Electrotechnical Commission standard IEC60269

Structural characteristics

The variable cross-section melt made of pure copper/silver (or wire) is encapsulated in a melt tube made of high-strength ceramic or epoxy glass cloth tube: the melt tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium. The two ends of the melt are firmly electrically connected by spot welding and end caps (or contact blade connection plates). The fuse link can be equipped with an impactor. When the fuse link is blown, the impactor immediately activates, pushing the micro switch, emitting various signals, and automatically switching circuits,
