SPECIFICATIONS

Band Width: 70MHz/100MHz

Battery Included: no

Brand Name: RIGOL

Certification: CE

DIY Supplies: Electrical

Digital Channels: 2/4

Display Resolution: 1024*600 Pixels

Display Size: 7 Inches & Above

High-concerned chemical: none

IS Battery Demountable: No

Max Waveform Capture Rate: 1,000,000wfm/s

Model Number: DHO800 Series

Origin: Mainland China

Real Time Sampling Rate: 1GSa/S

Record Length: 25Mpts

Semi-finishedproduct: No

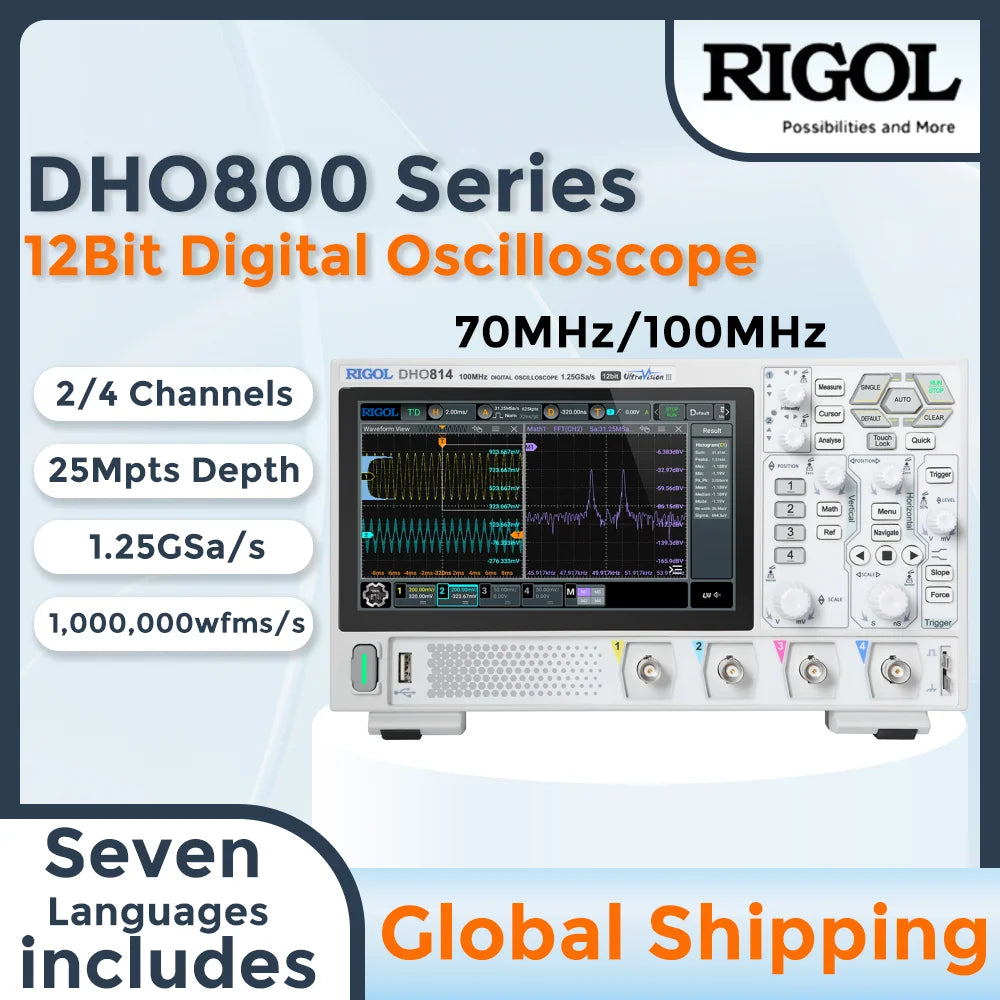

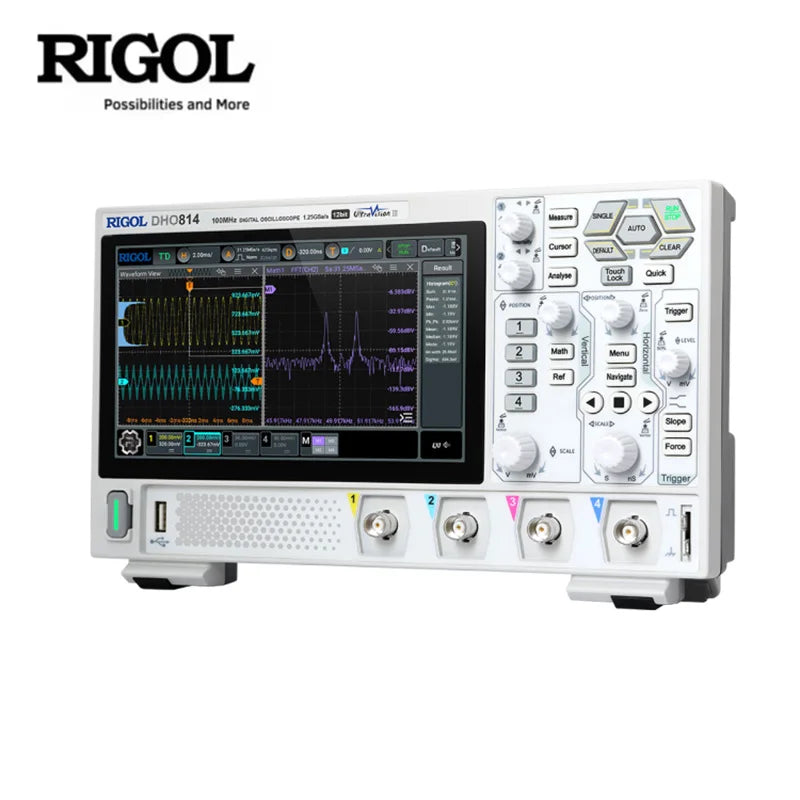

DHO800 Series | HIGH RESOLUTION DIGITAL OSCILLOSCOPES

The DHO800 series is RIGOL's newly launched high-performance economical digital oscilloscope, designed for the vast mainstream market to meet design, debugging, and test demands. Despite its compact design, it delivers superior performance with a capture rate of up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12-bit resolution, and low noise.

Product Features

• Ultra-low noise floor, purer signal, never miss the small signals

• Up to 12 bits resolution for all the models of this series

• Max. analog bandwidth of 100 MHz, 4 analog channels, external trigger output (std.) available for the dual-channel model

• Max. real-time sample rate of 1.25 GSa/s

• Max. memory depth of 25 Mpts

• Vertical sensitivity range: 500 μV/div to 10 V/div

• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)

• Digital phosphor display with real-time 256-level intensity grading

• Waveform search and navigation function allows you to debug the signal anomalies faster

• 7" (1024x600) capacitive multi-touch screen

• Brand new Flex Knob brings user-friendly experience

• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series

• Novel and delicate industrial design, easy to operate

• Unique online upgrade

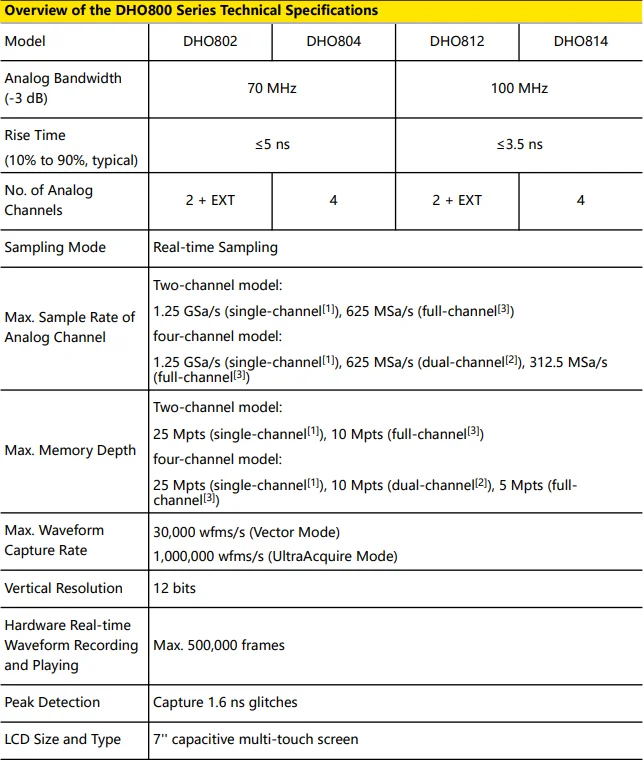

Overview of the DHO800 Series Technical Specifications

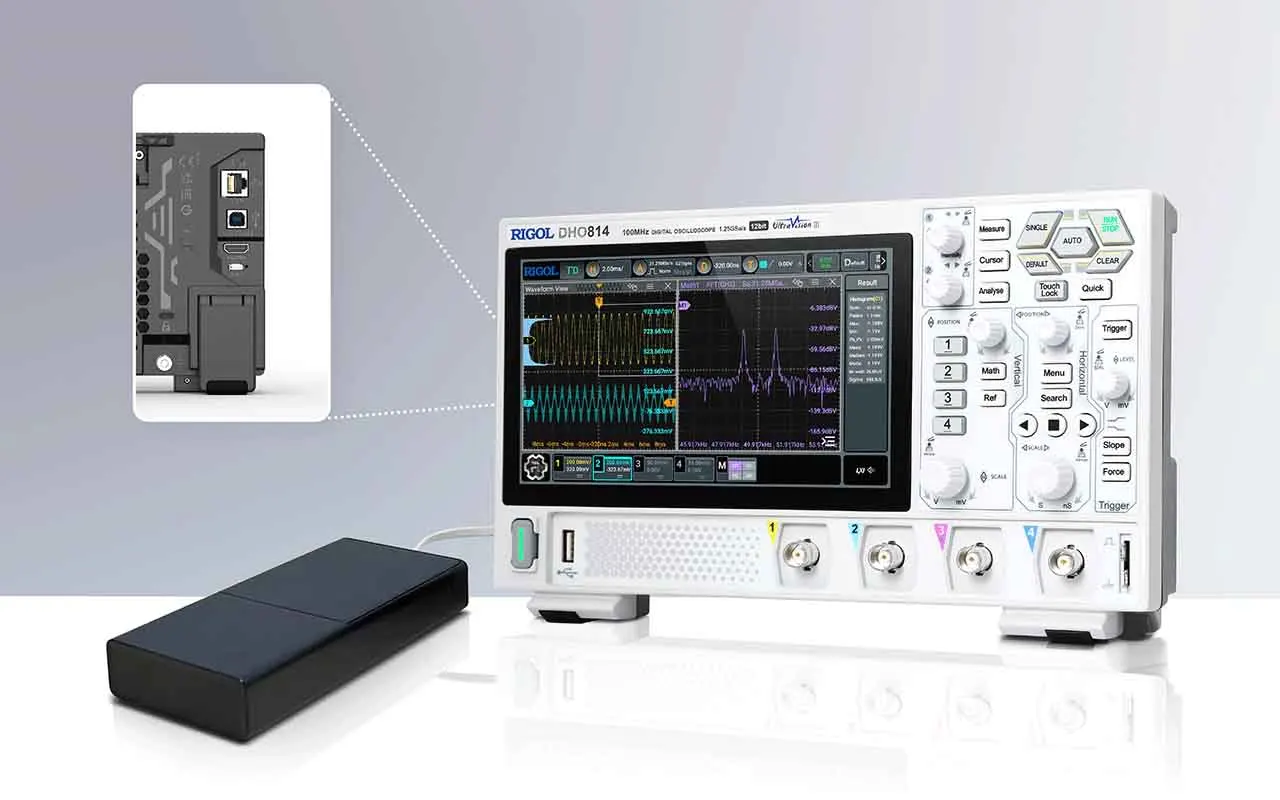

Supports Power Bank Charging via Type-C

The DHO800 series features a Type-C power interface, enabling operation via a portable power bank. This design makes it ideal for on-site chip testing and outdoor circuit maintenance.

Note:the power bank must support the PD protocol and need to meet the output of 15V 3A and the power requirement should be greater than 45W.

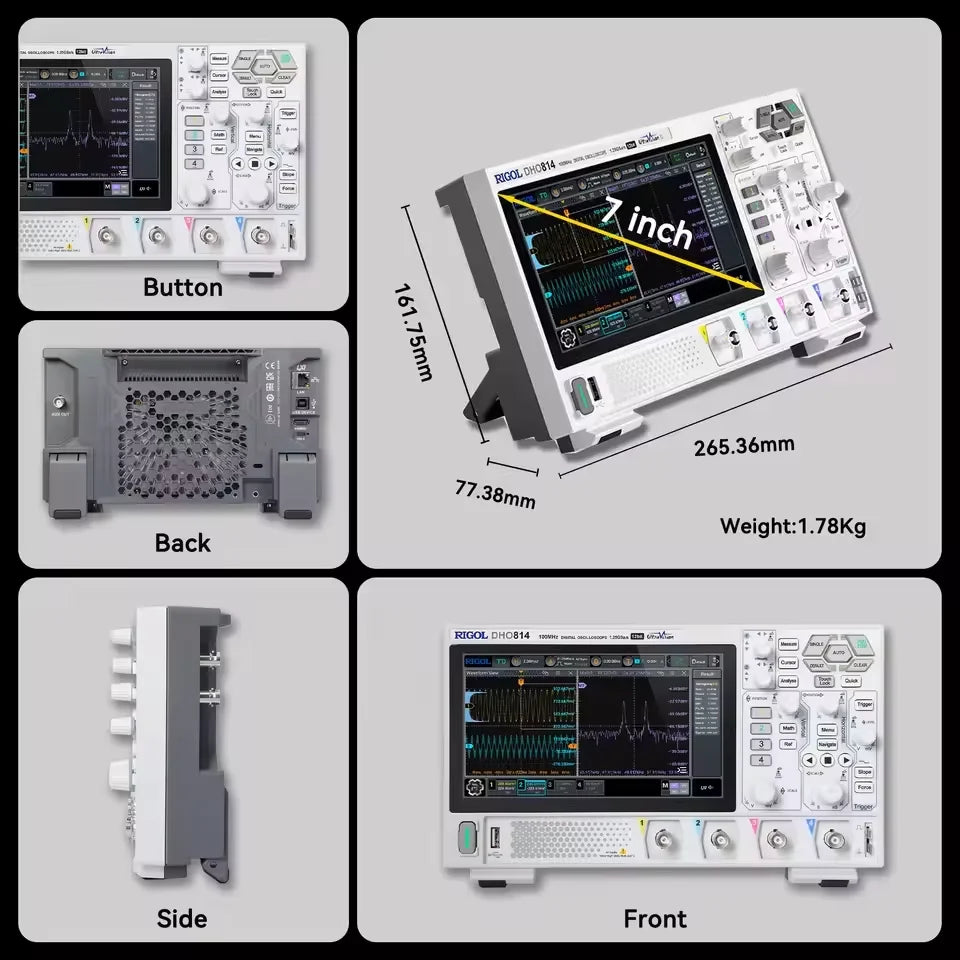

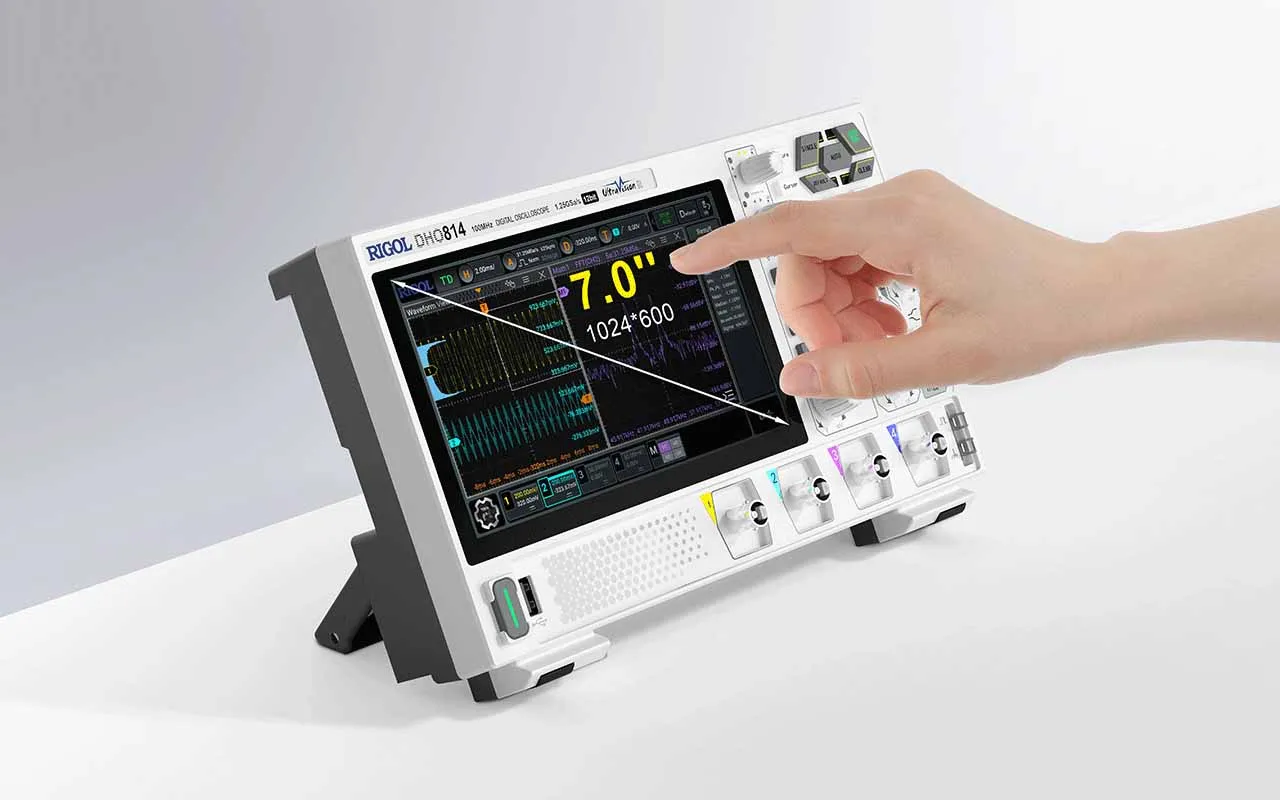

Sleek Design

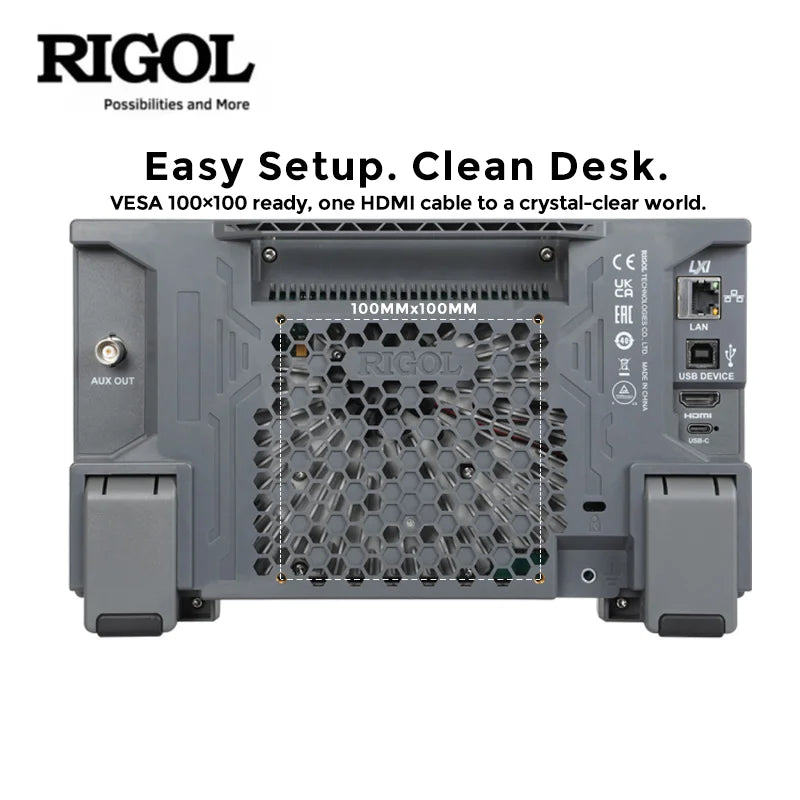

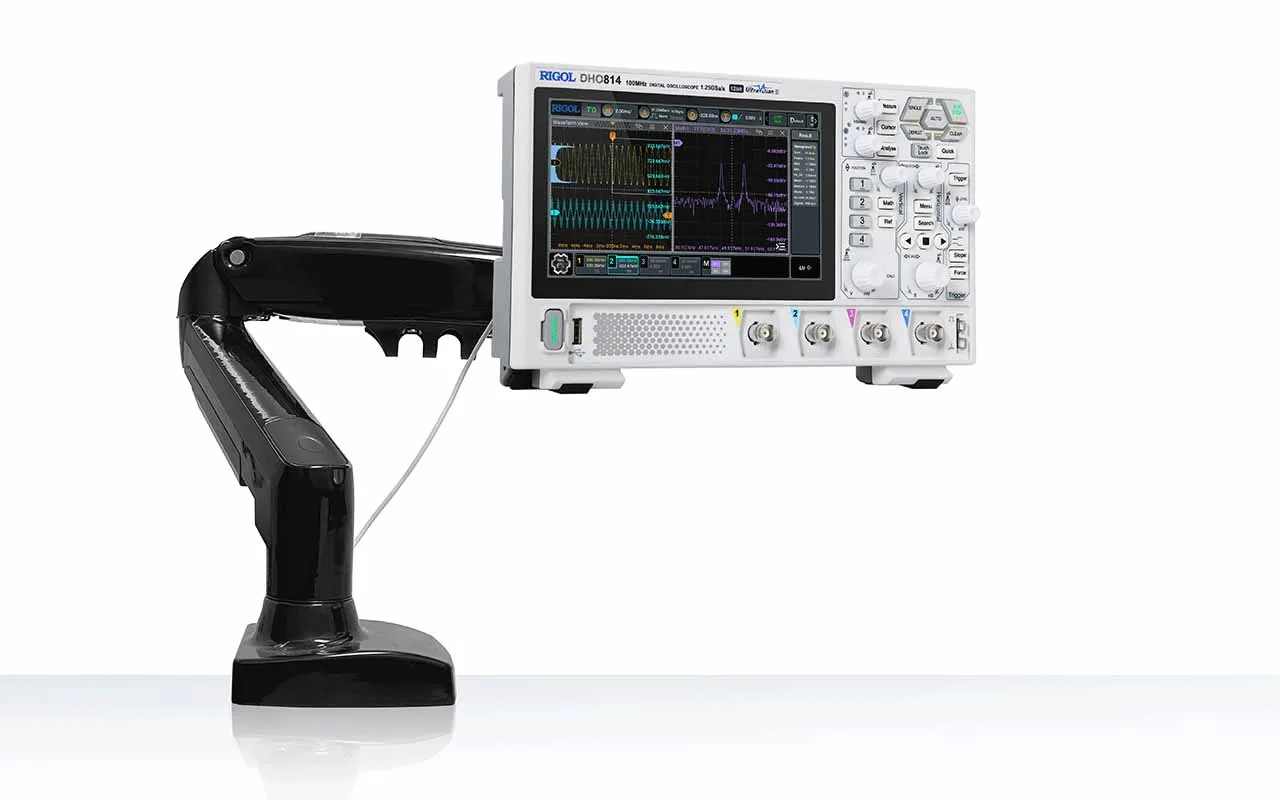

The DHO800 series combines a compact and portable design with a 7-inch 1024×600 high-definition touchscreen, supporting gesture-based zooming, pinching, and dragging of waveforms, allowing you to perform waveform measurements with a tablet-like experience. To provide users with a comfortable and convenient experience, this series is also compatible with VESA-standard monitor mounts, helping you keep your workspace tidy and organized.

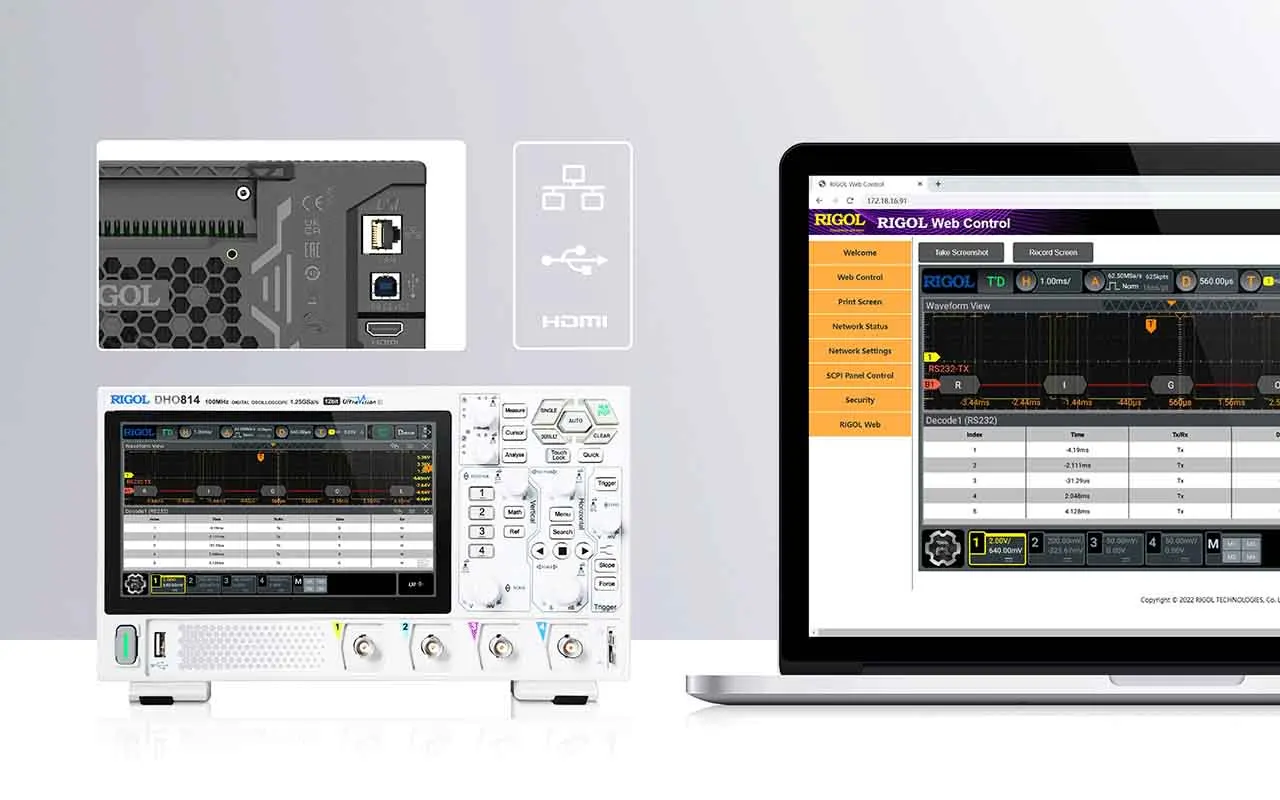

Versatile Interfaces

The DHO800 series comes standard with USB, LAN, and HDMI ports, meeting the needs of remote control, conference presentations, teaching, and other applications. This allows for greater display space during collaborative work or teaching, enhancing collaborative efficiency.

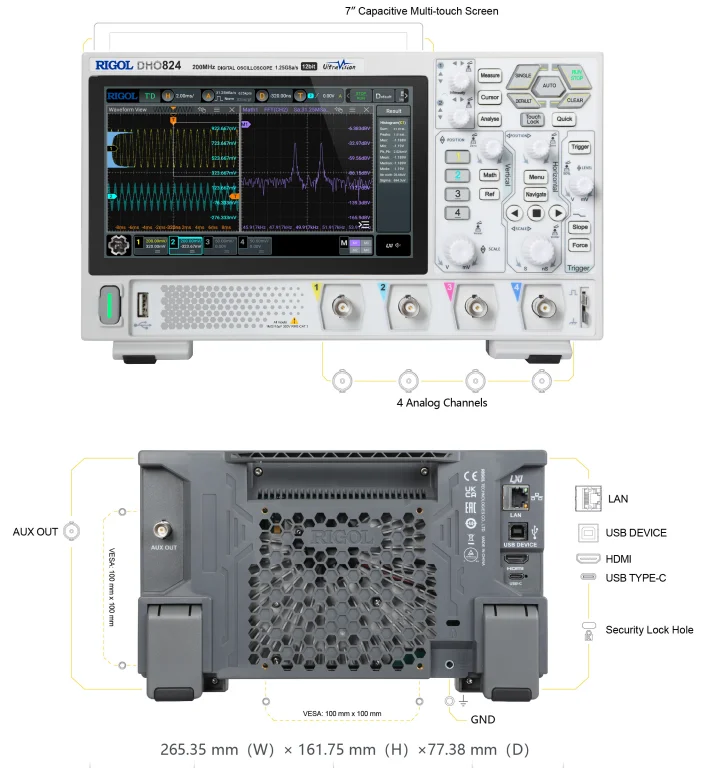

Product Overview
