SPECIFICATIONS

Brand Name: NJouka

Certification: CE

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: none

Model Number: DSA815 DSA815-TG

Origin: Mainland China

Semi-finishedproduct: No

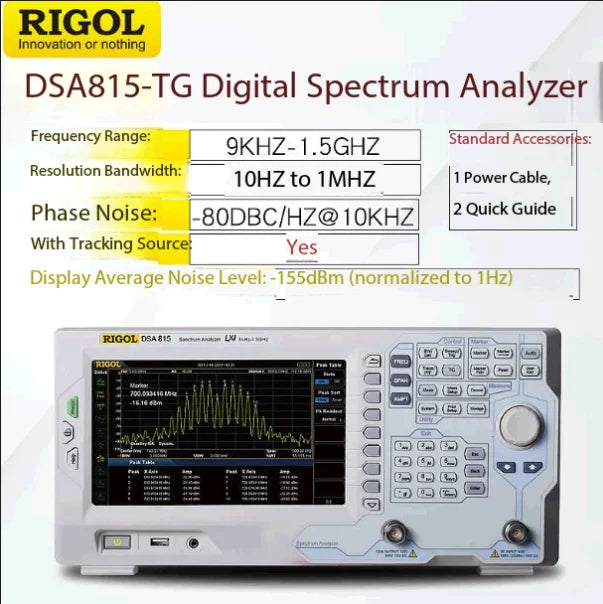

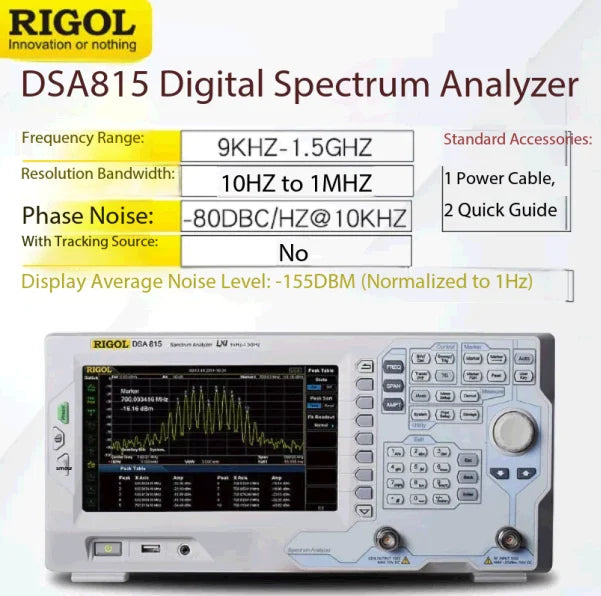

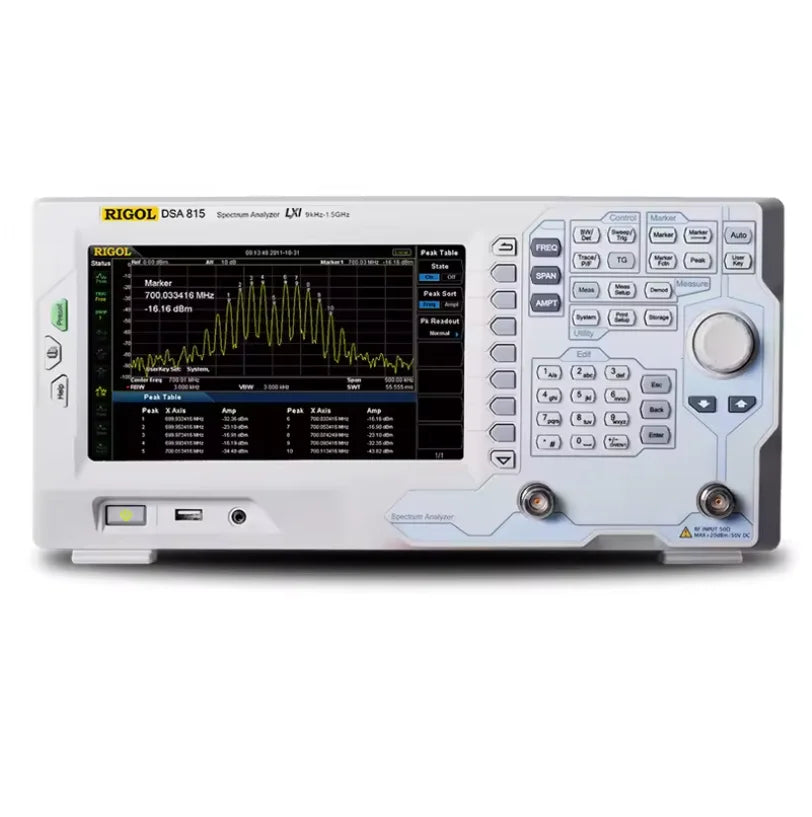

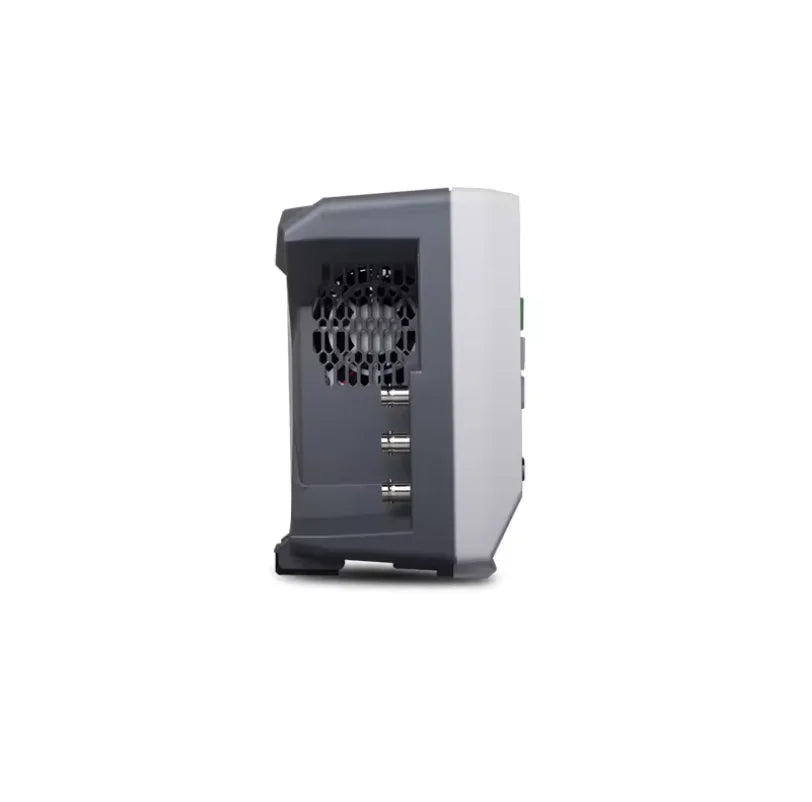

RIGOL DSA815 DSA815-TG Sweep Type Spectrum Analyzer 9kHz to 1.5GHz 10Hz to 1MHz Resolution Bandwidth for Electronic Components

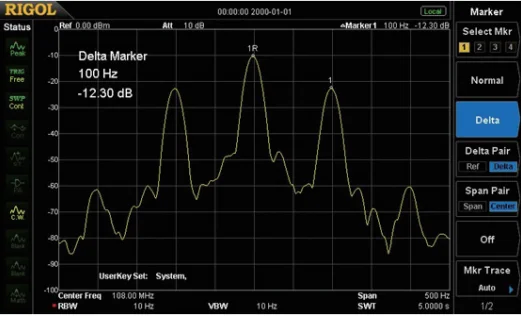

10Hz Resolution Bandwidth

The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.

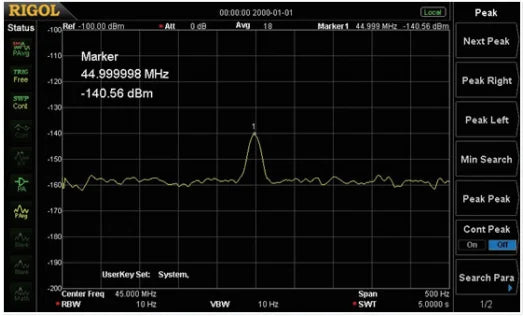

DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

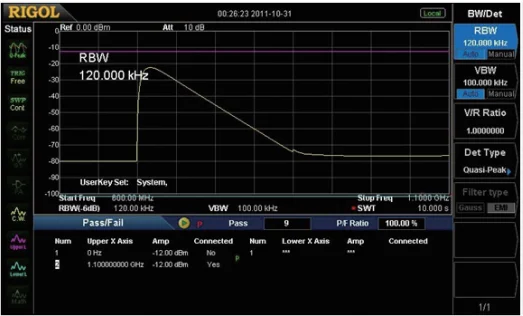

EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.

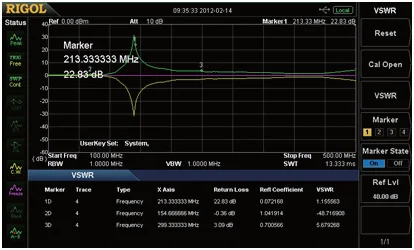

Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.

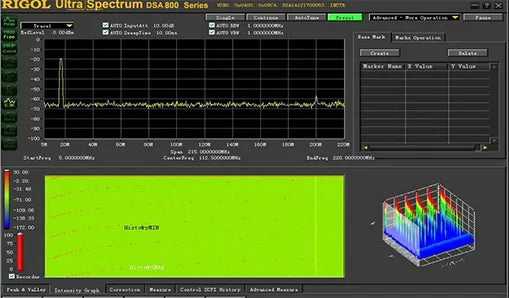

UnltraSpectrum Software

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

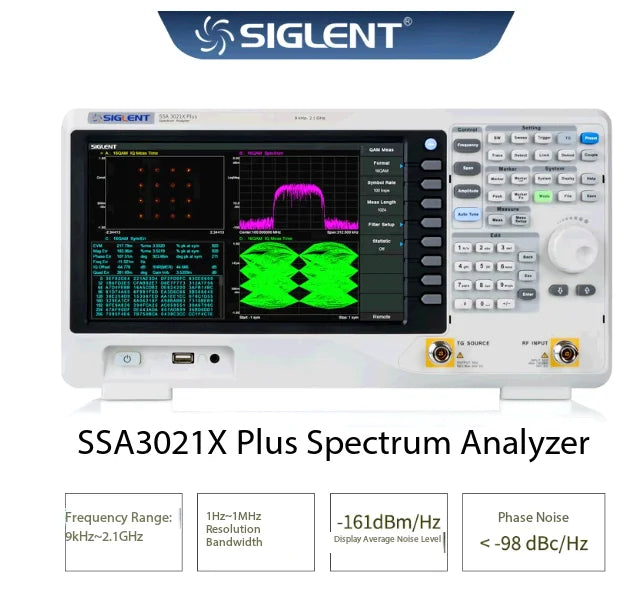

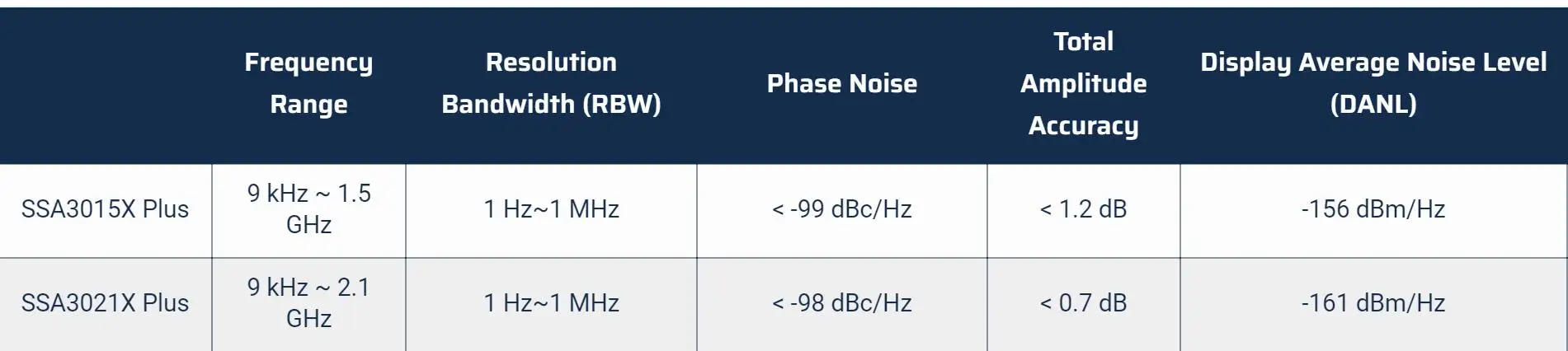

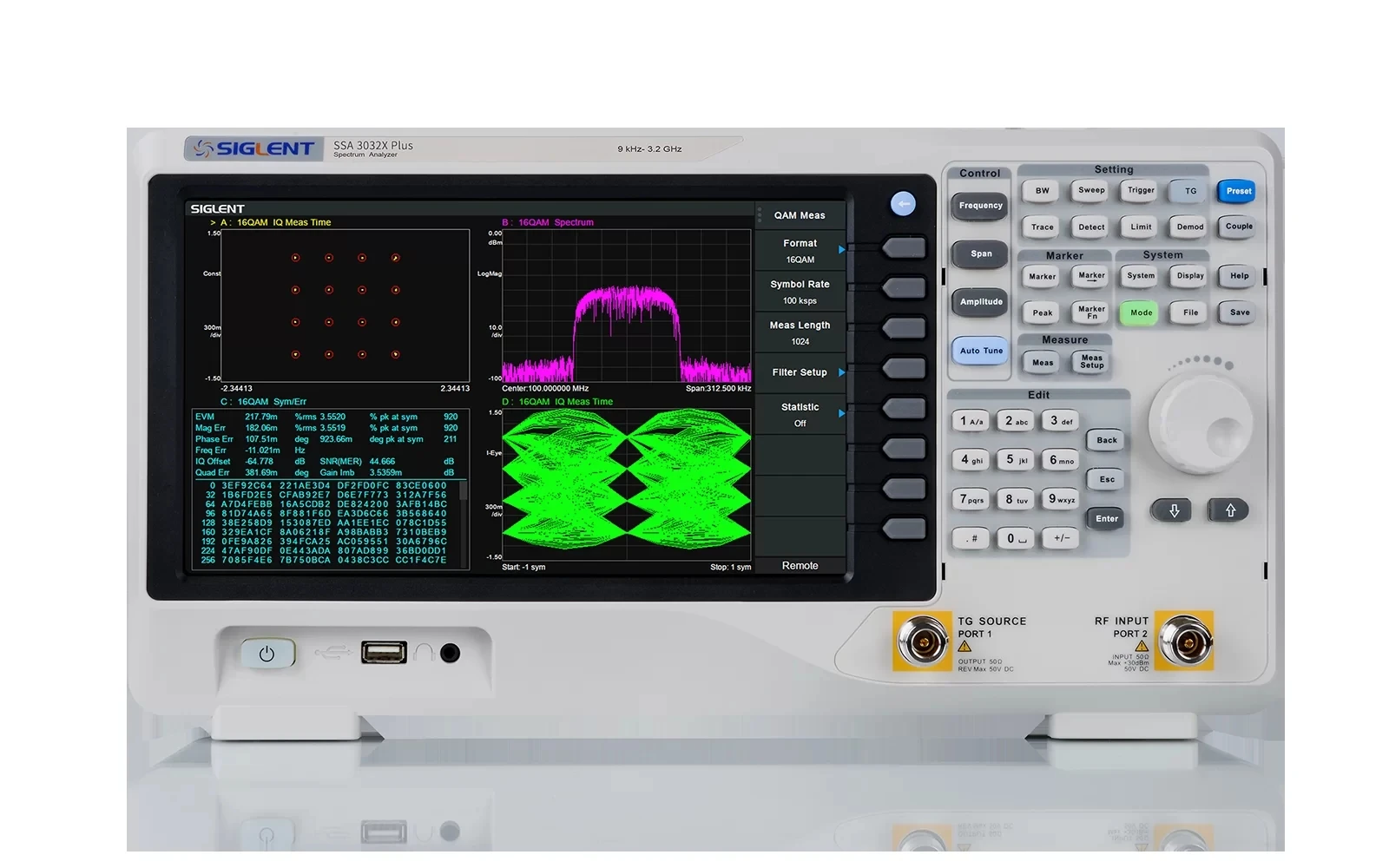

SSA3021X Plus Spectrum Analyzers 9 kHz ~ 2.1 GHz

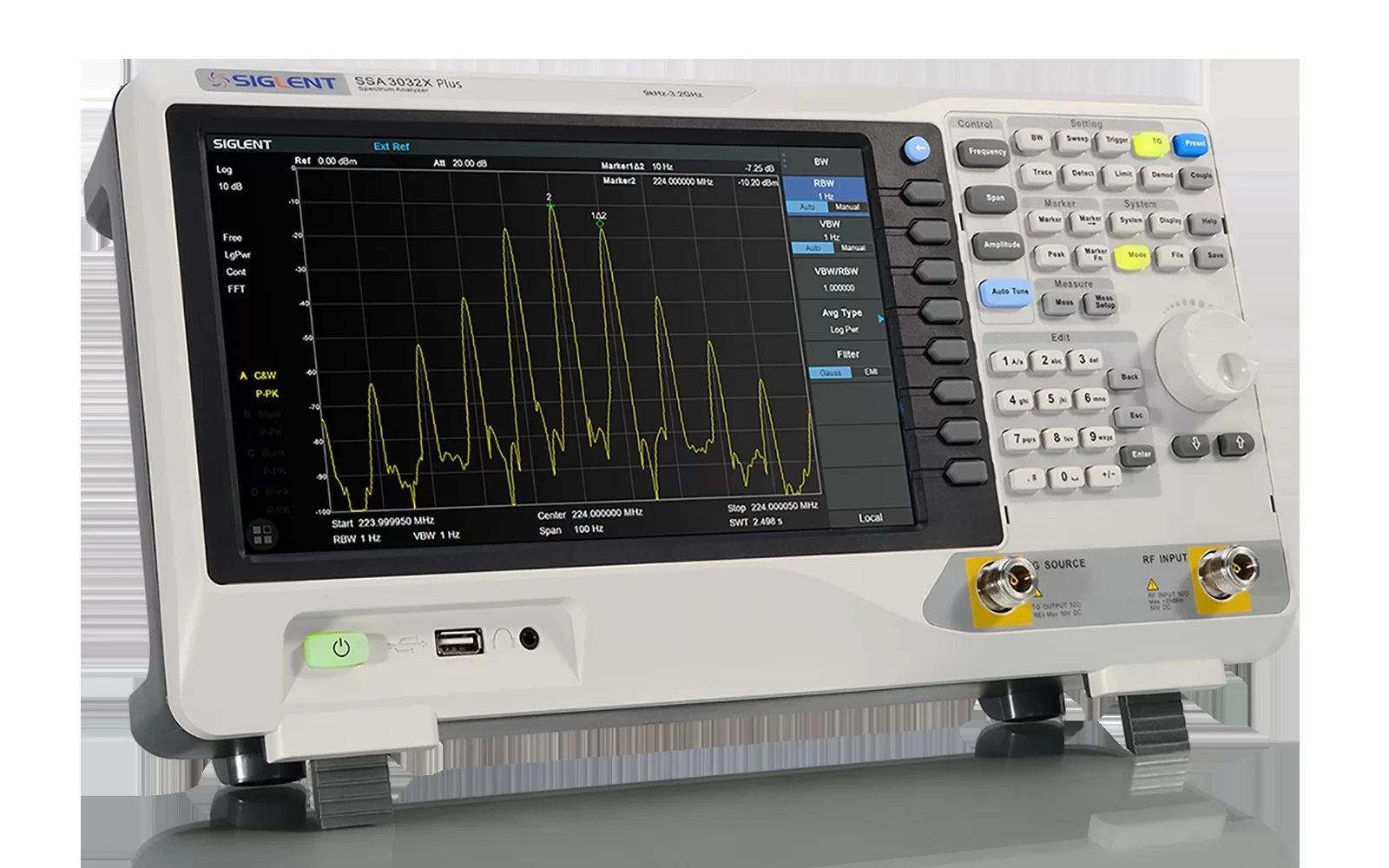

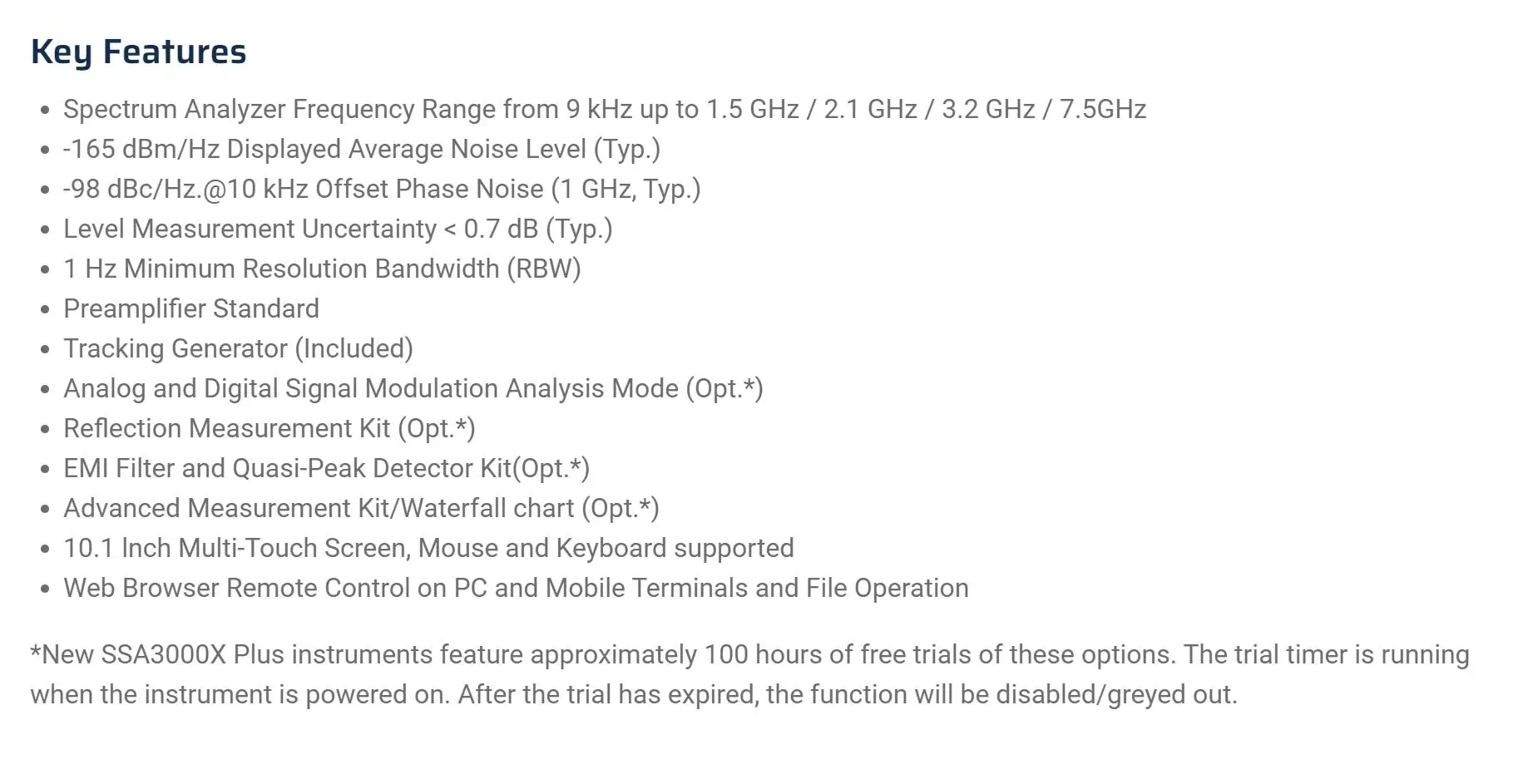

SIGLENT SSA3000X Plus Spectrum Analyzers are powerful and flexible tools for RF signals and network analysis. With a frequency range up to 7.5 GHz, the SSA3000X analyzers deliver reliable automatic measurements and multiple modes of operation: spectrum analyzer the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.

SSA3000X Plus Spectrum Analyzers’ applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.
