SPECIFICATIONS
Application: Power, Wire Connector
Brand Name: NONE
Conform standard: Cat5e ,Cat6a
Contact material: Phosphorus Copper gold-plated
Coupling: Threaded
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Insert material: PA66+30%GF
Mating cycle: ≥750
Model Number: E10,RJ45
Origin: Mainland China
Shell Material: PA66+30%GF
Temperature range: -30°C--+105°C
Voltage: 自定义编辑
cable OD: 5.5mm~7mm

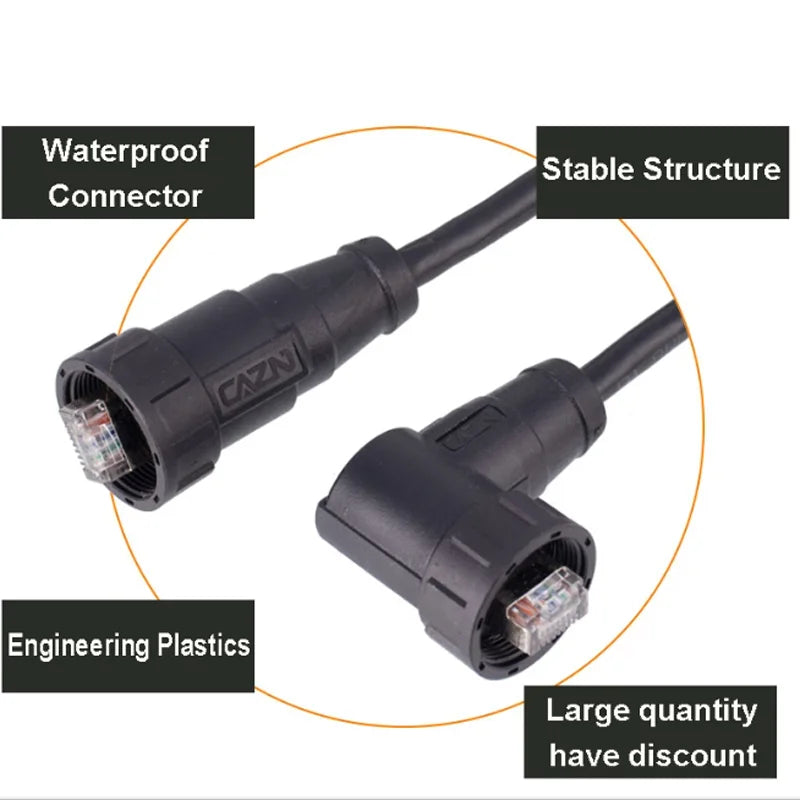

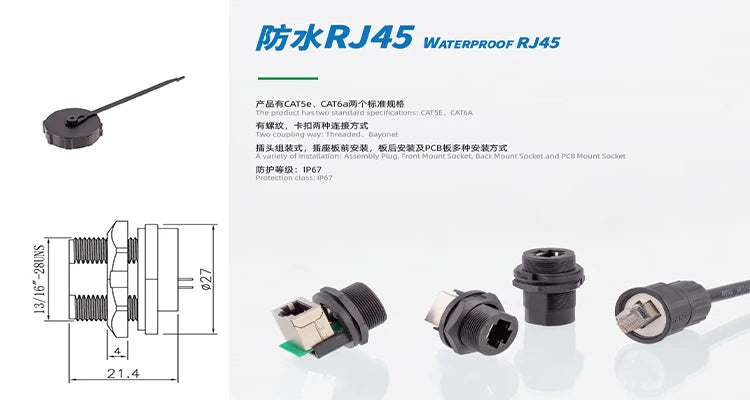

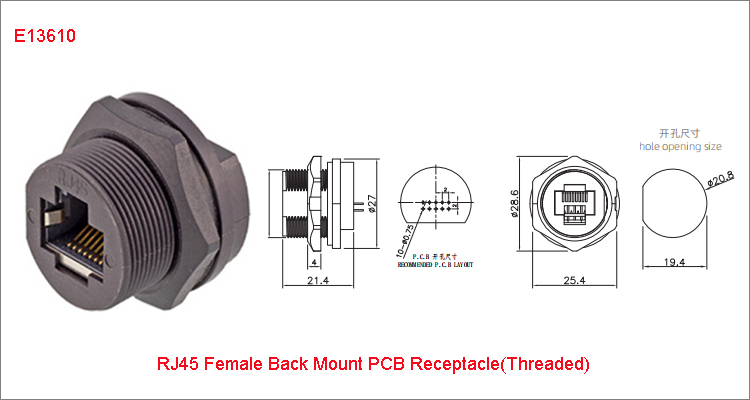

Modular Connectors / Ethernet Connectors Cat6 RJ45 IP67
Harsh Environment Solutions
Reliability and functionality are a necessity when the need for Ethernet begins to move outside the typical office environment and under the Internet of Things umbrella. Moisture and other environmental factors limit the capabilities of electronics in these environments thus requiring a sealed yet reliable cable assembly and jack combination that protects against such factors. Based on the reliability of Stewart Connector’s RJ45 modular plugs and jack coupled with a sealed

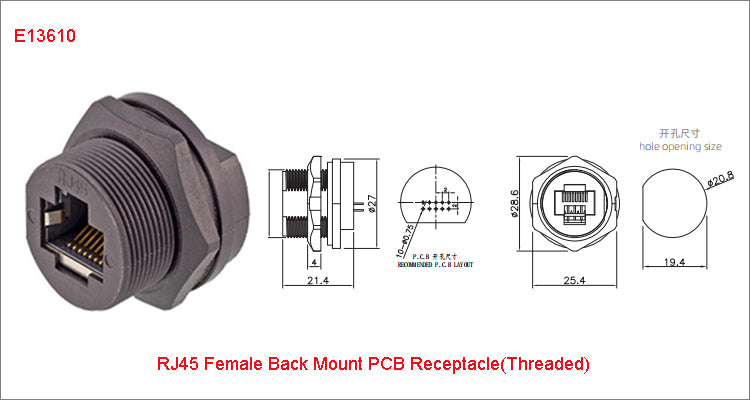

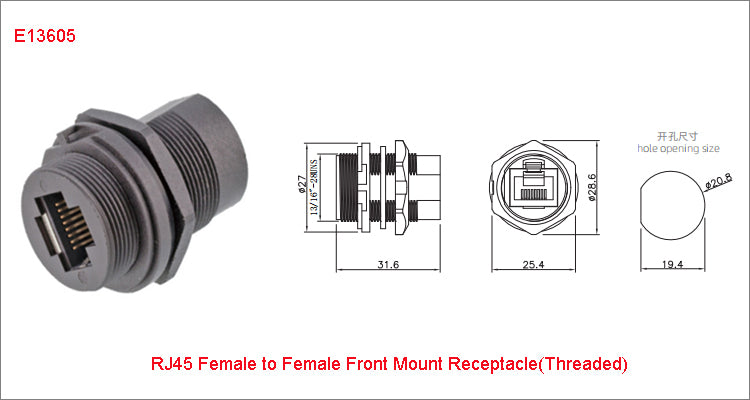

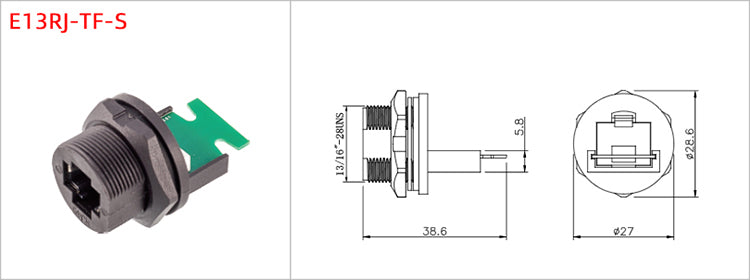

• Panel mount RJ45 to IDC punch down jacks, cable assemblies and field termination plug kits are available in shielded and unshielded configurations

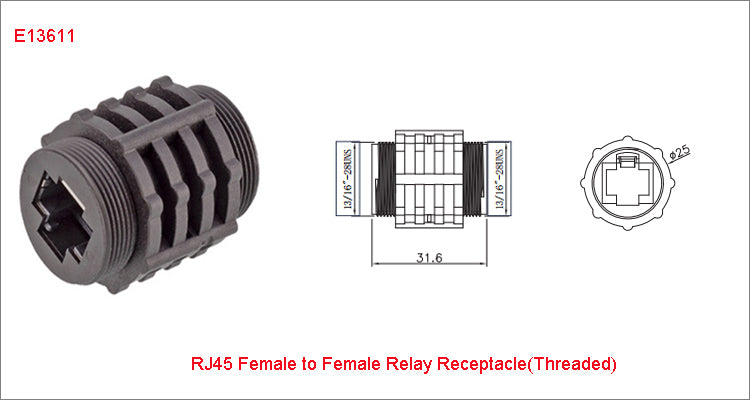

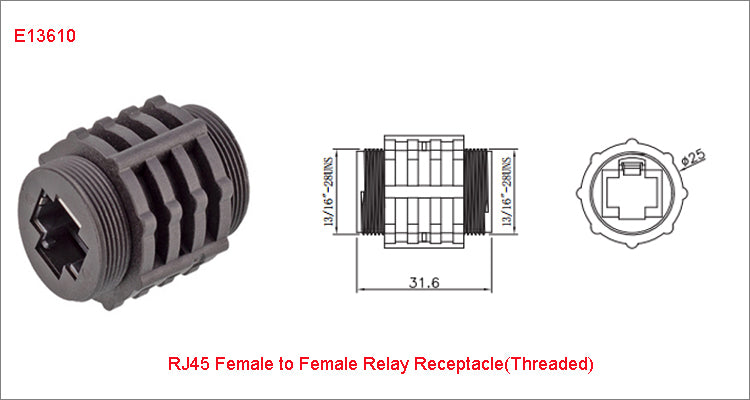

• Panel mount RJ45 to RJ45 couplers are available in unshielded configurations

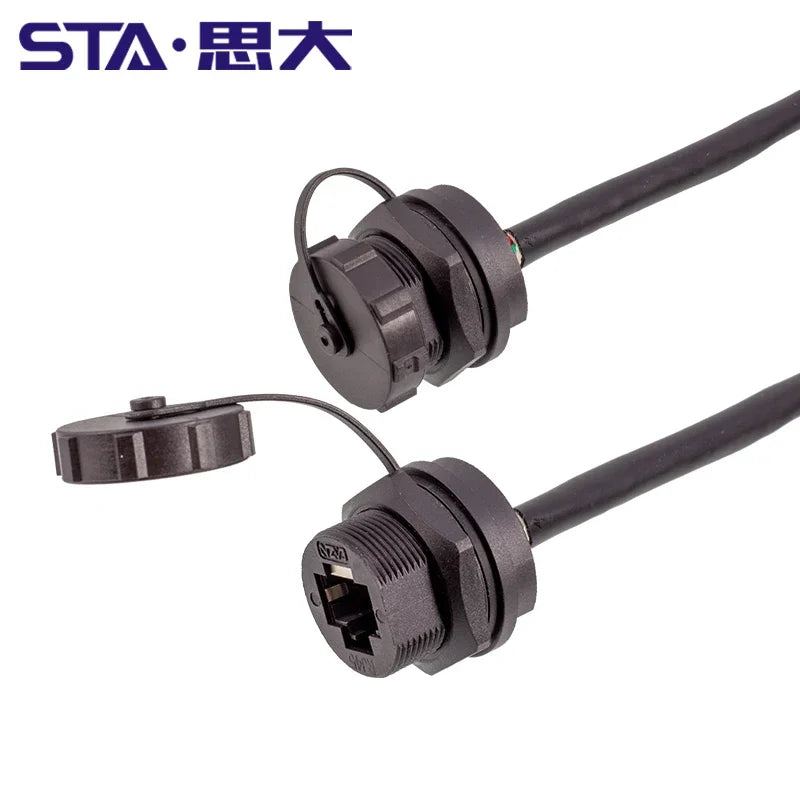

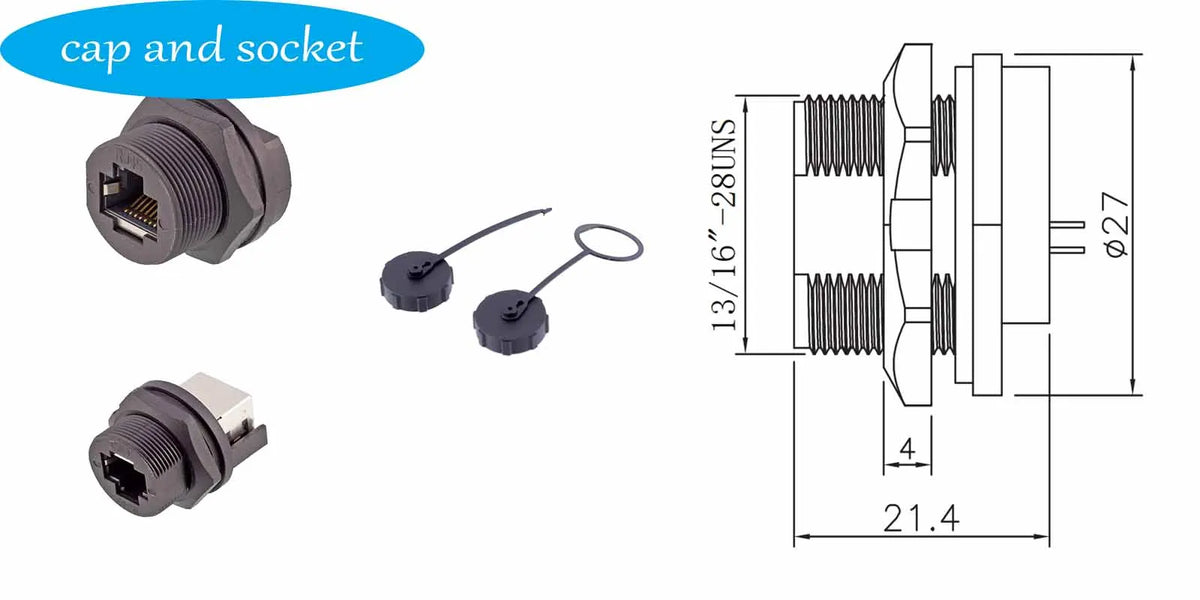

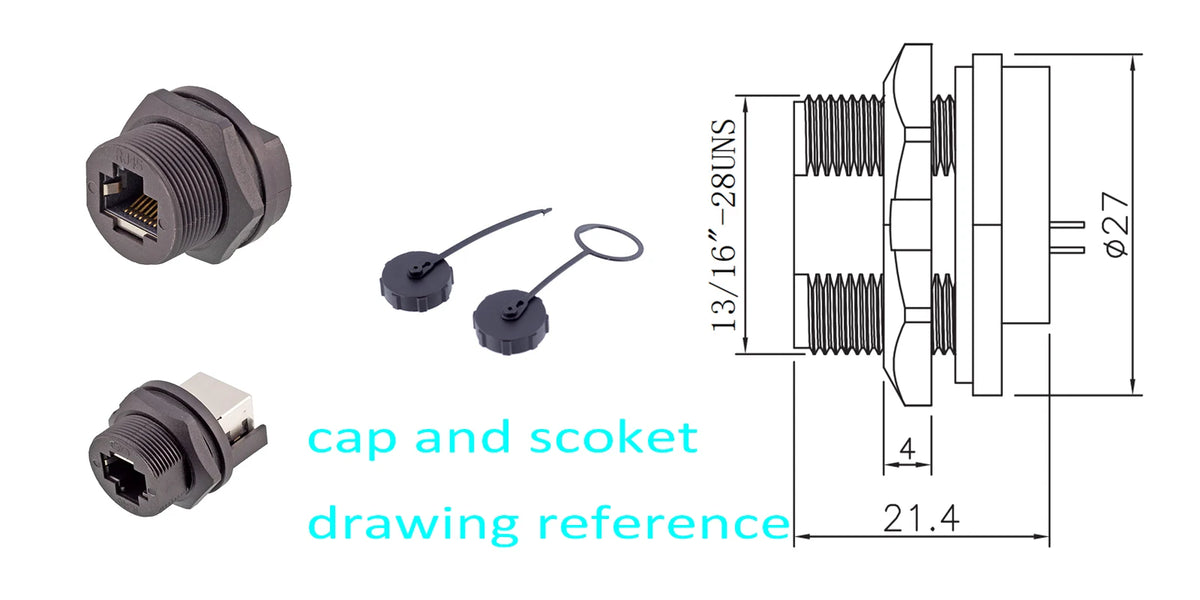

• Comes with a sealable cap to ensure protection from outside elements for IP67 applications per IEC 60529 specifications when not in use.
• Circular bayonet style coupling for ease of use and consistent sealing

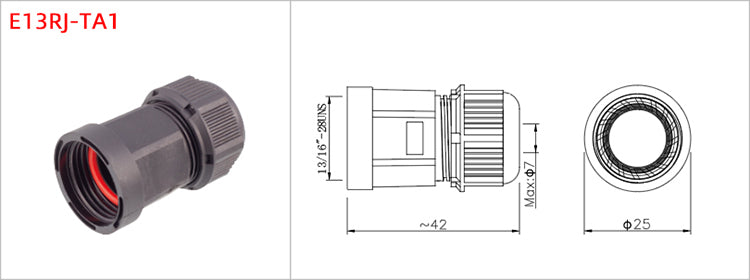

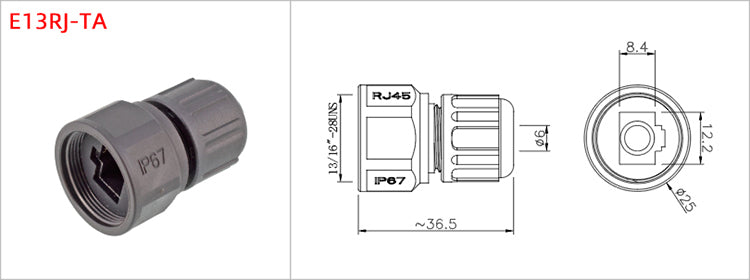

• Field termination plug kits include IP67 rated shell, modular RJ45 plug

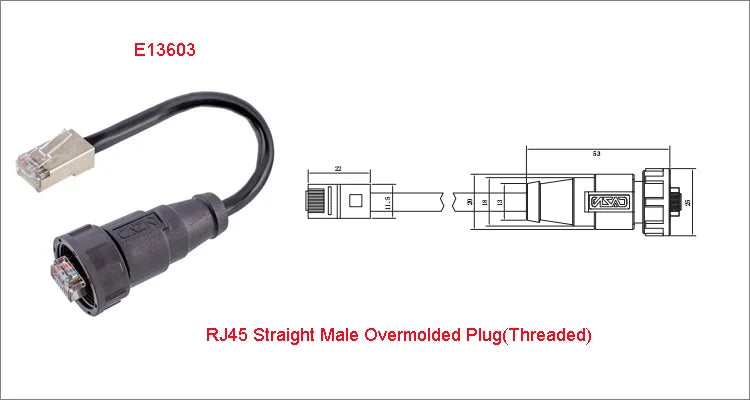

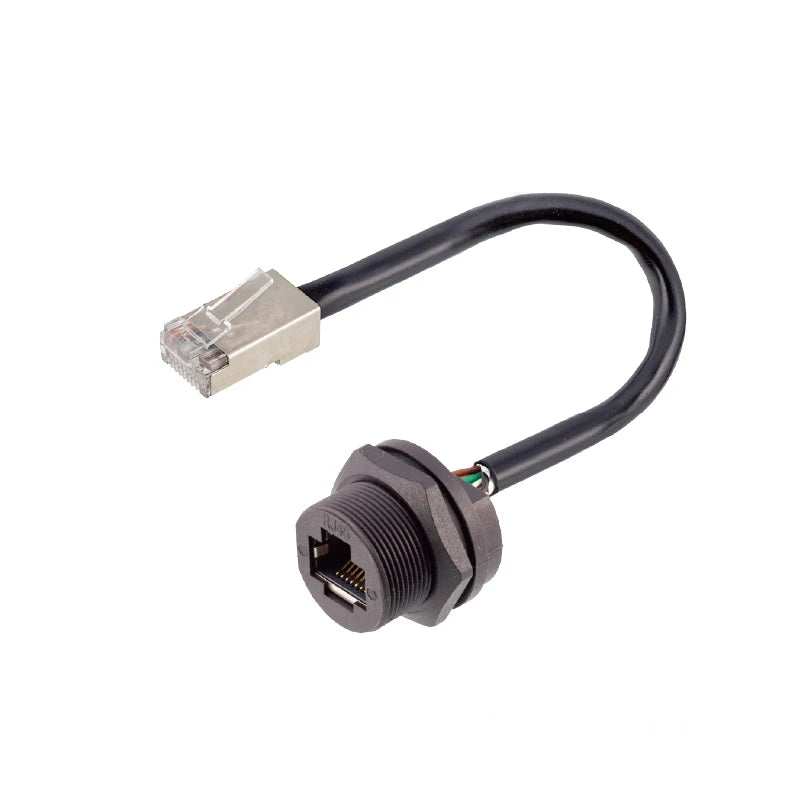

• The cable assemblies can be provided with dual or single IP67 rated plug terminations
• Supports PoE+ and ROHS compliant
Data Transmission
• Supports Cat 5e, Cat 6, Cat 6a applications
• Supports 10/100 BASE-T, 1G BASE-T, 2.5G BASE-T and 5G BASE-T Ethernet
Applications
• Industrial environments• Military communication
• Marine equipment• Medical devices
• Test equipment • Renewable energy industry
• Security and monitoring systems
• Harsh out-of-office environments
