RJ45 To RS232 RS485 Industrial Male Converter TCP/UDP Serial RS232 RS485 RS424 To Ethernet Device Server Support Window System
RJ45 To RS232 RS485 Industrial Male Converter TCP/UDP Serial RS232 RS485 RS424 To Ethernet Device Server Support Window System
$85.96
$85.96 $0.00
Color
Description

SPECIFICATIONS

Assembly Required: no

Brand Name: NONE

Certification: NONE

Chipset: TXIC/TX210 T

DC power: 9V 0.9A

Dimension: 86*84*25mm

High-concerned chemical: none

Model Number: TXB038

Origin: Mainland China

Package: Yes

Product: RS232 Serial Device Server

Type: Cable Adapter


Model number

TXB038

Chipset

IP210

Port number

1 port 10/100M Auto MDI-MDIX RJ45,1port RS232,1port RS485/422

Standard

IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az

Network media

10Base-T,cat3 or above UTP,10Base-Tx,cat5 UTP

Data rate

10/100M

Forwarding rate

10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator

Link/Act, Power, System, TX/RX

Baud rate

110bps~256000bps

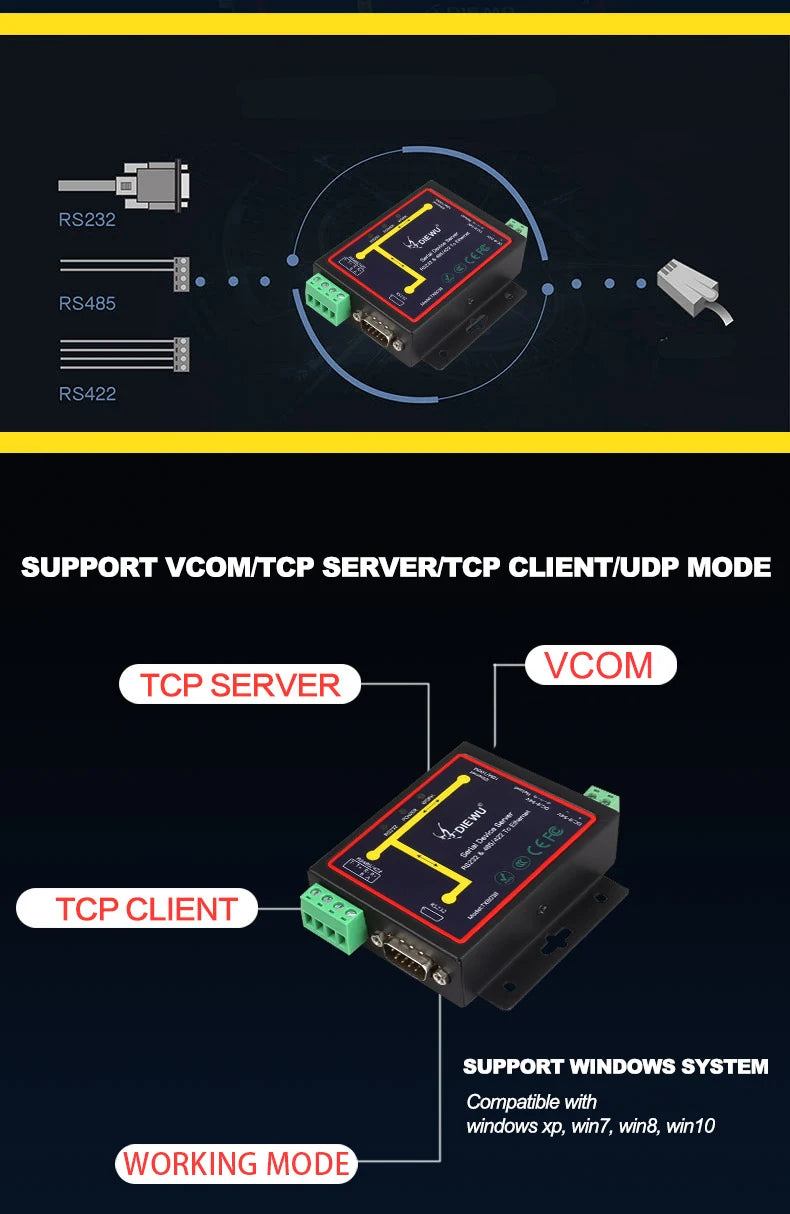

Operation modes

TCP Server, TCP Client, UDP

Dimension

86*84*25mm

Power Input

DC9V-54V

Power Consumption

Max1.8W

Environment

Operating Temperature: -10℃-55℃

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40℃-85℃

Relative Humidity: 5%-90%(non-condensing)

Other function

RS485 support full duplex and half duplex

Build load default key
