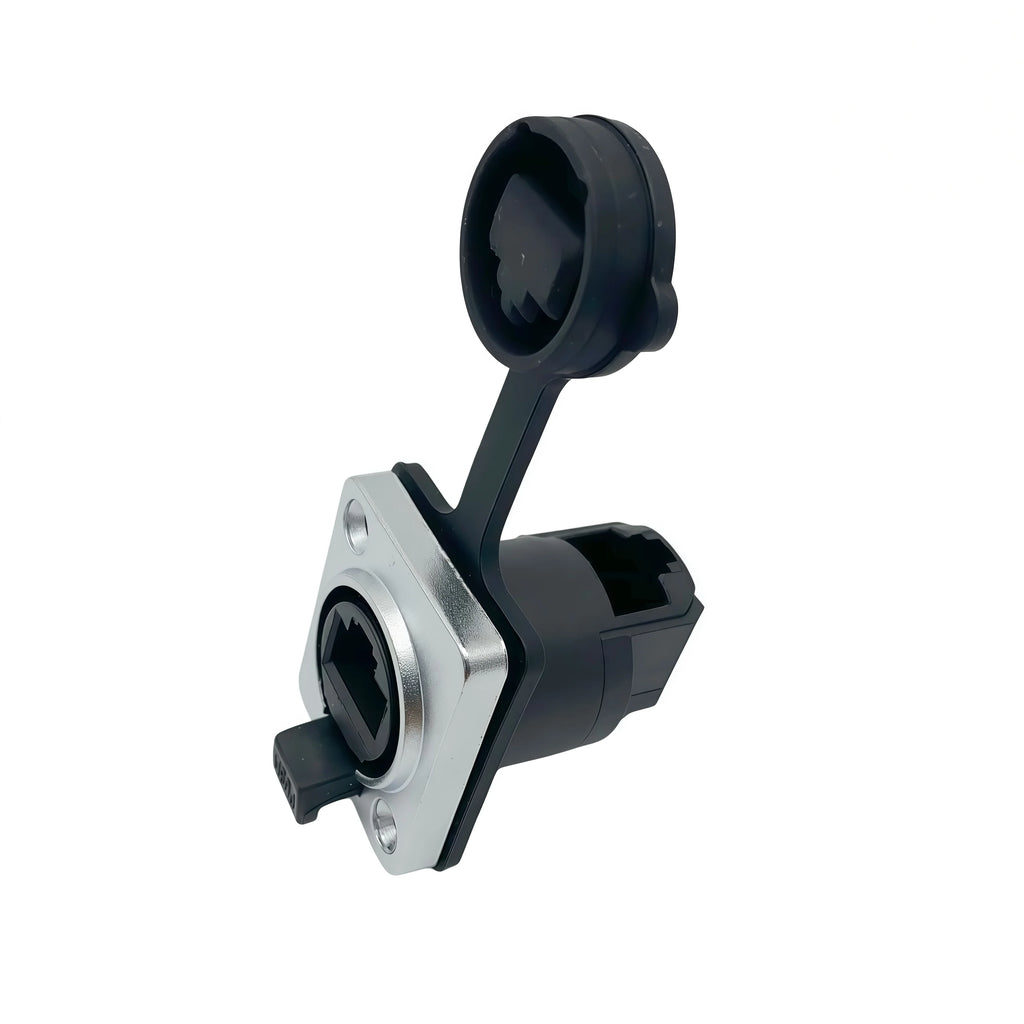

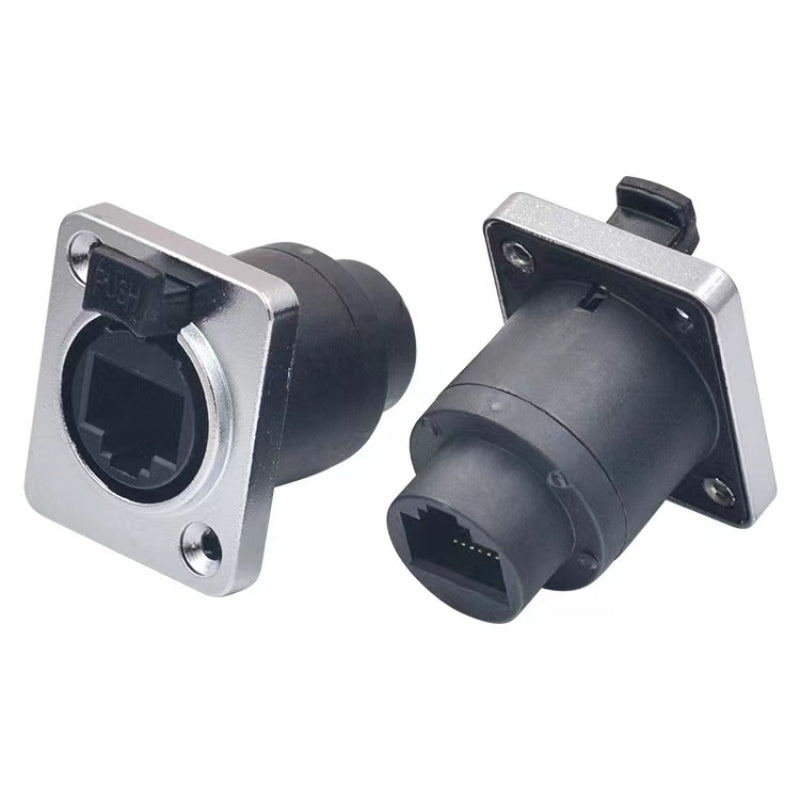

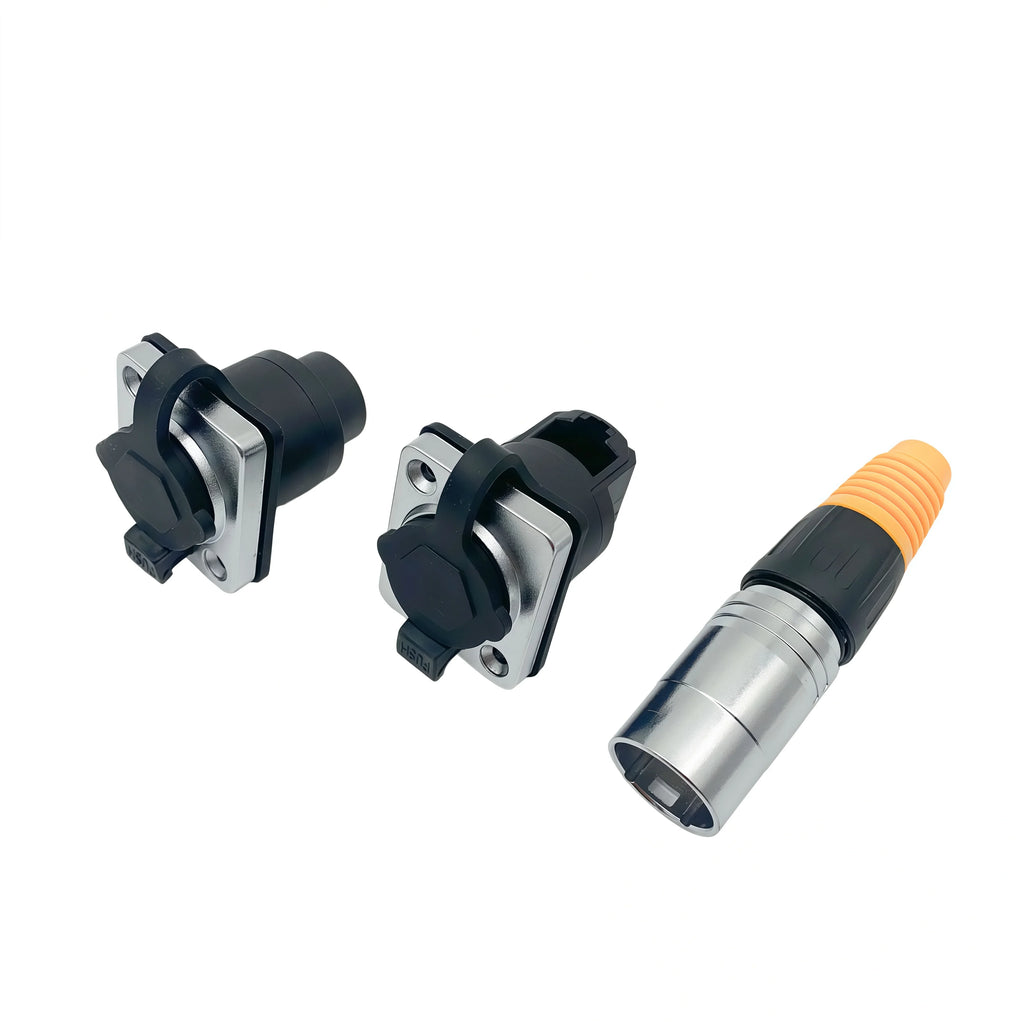

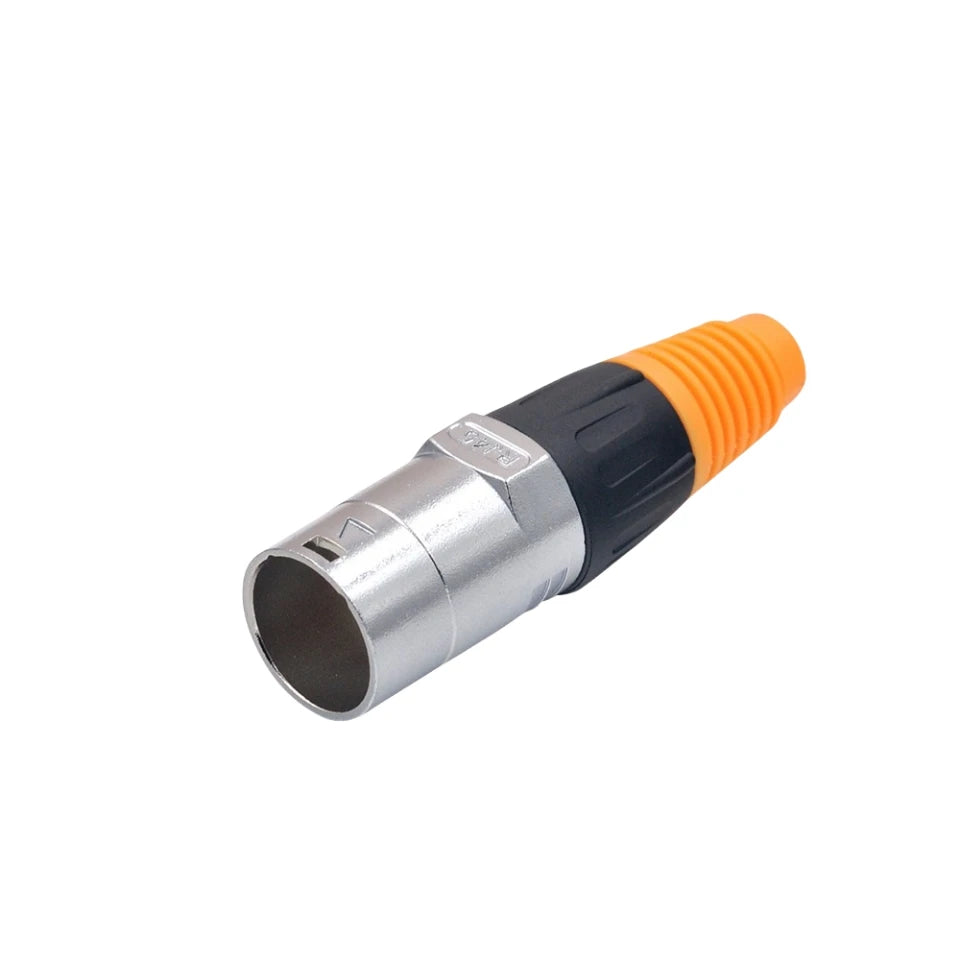

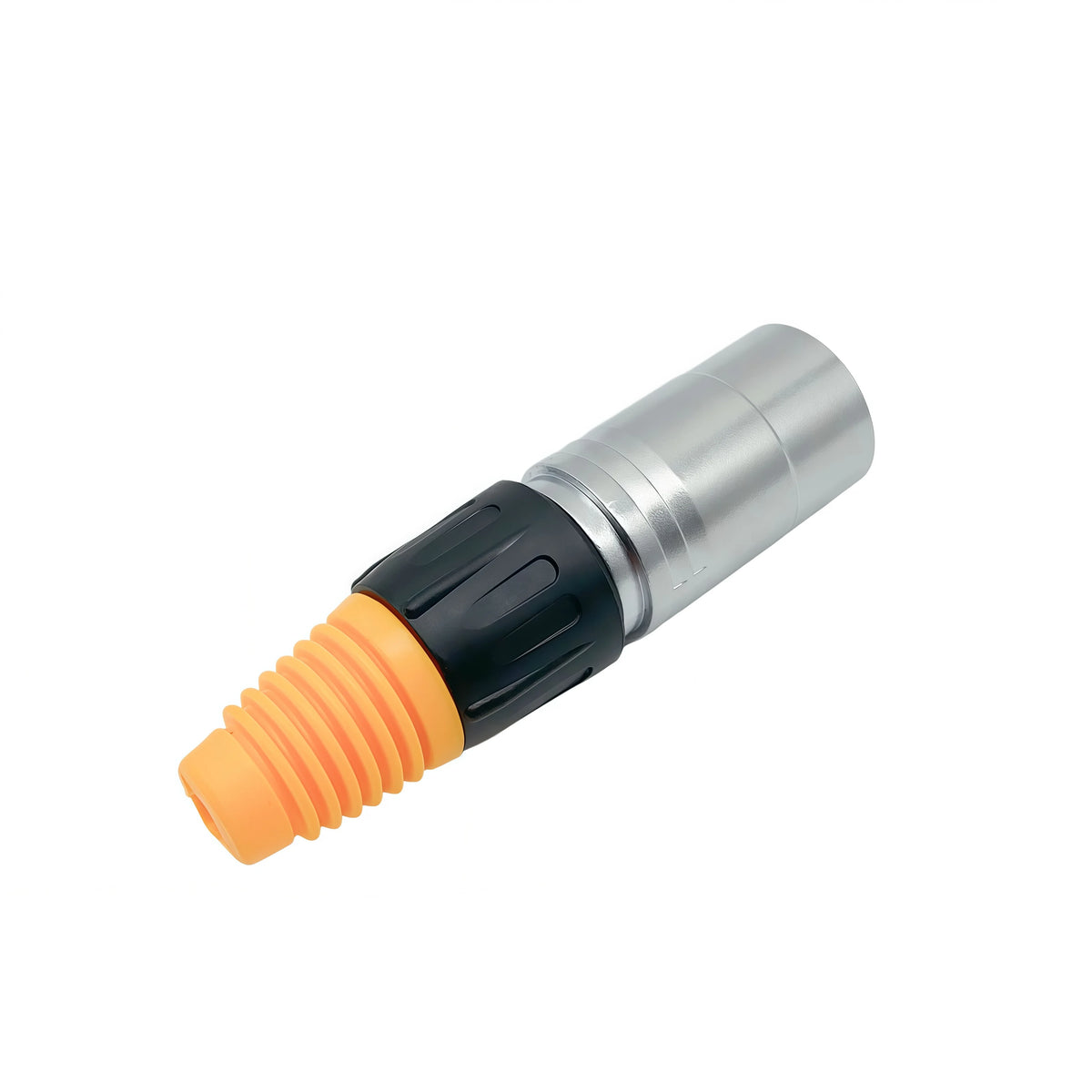

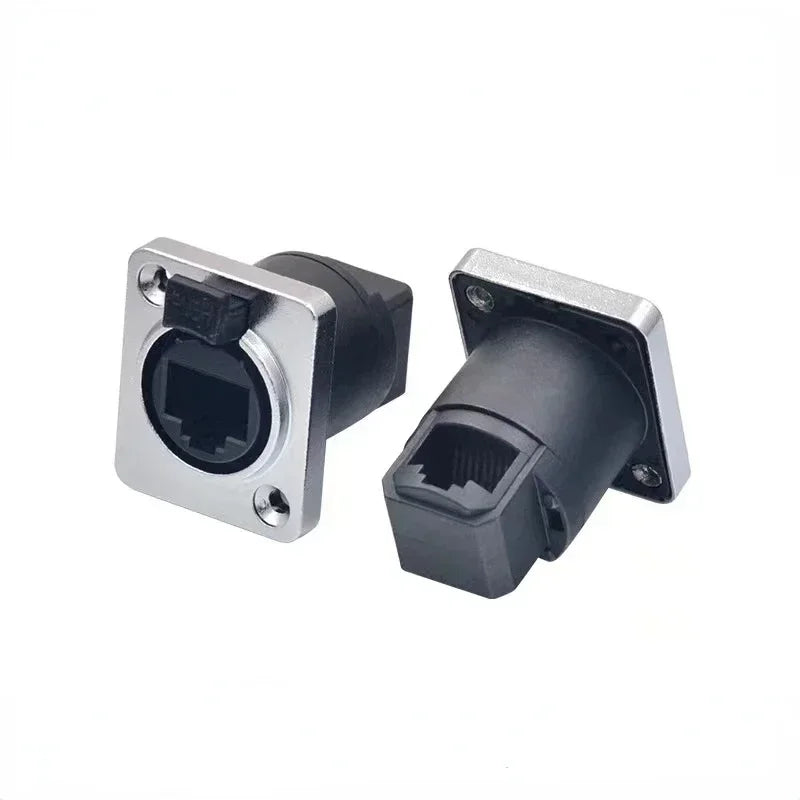

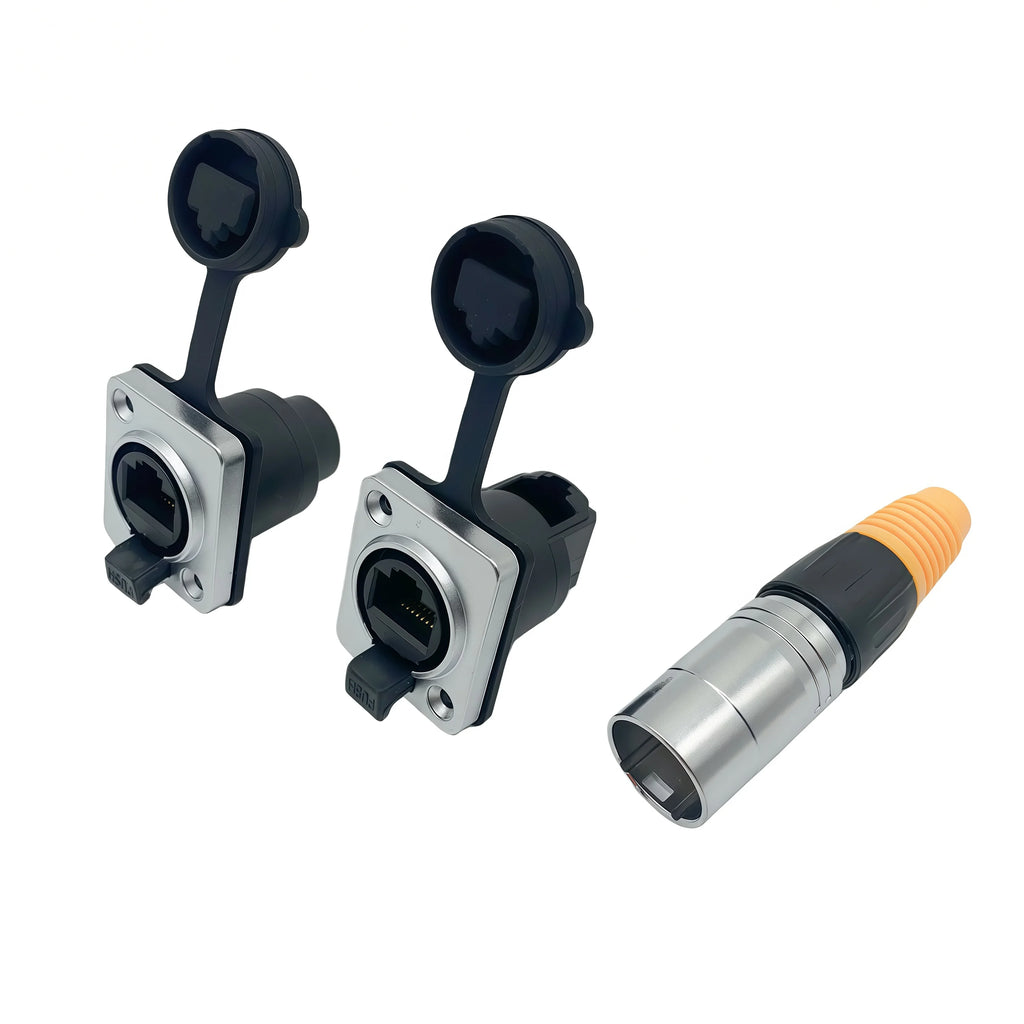

RJ45 Waterproof Connector Plug, D Type Panel Mount Socket IP65 Ethernet Connectors

RJ45 Waterproof Connector Plug, D Type Panel Mount Socket IP65 Ethernet Connectors

$16.60

$16.60 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: RJ45 Socket

Origin: Mainland China

Voltage: 220 V

material: zinc ally

semi_Choice: yes

waterproof: IP65

Specifications:
Connecting mode:       Plug/unplug,
Protection level:       IP65
Cable specification:       0.15 mm2 ~ 0.2 mm2 /26~24 AWG
Diameter range:       Φ5.5mm ~Φ7mm
Contact diameter×Qty:       8
Current rating(A):       1.5A
Operating voltage(AC.V.rms):       500V
Withstand voltage(AC.V)1min:       2500V
Contact resistance:       <1mΩ
Insulation resistance:       >500MΩ
Durability:       ≥500 mating&unmating cycles
Temperature rating:       -40°C~80°C
Method of connecting cable:       Solder
Prevent the combustion level:       UL94-V0
Temperature rise:       20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.

Material:
Shell&insulated parts:       High performance engineering plastics
Hardware metal:       Zinc alloy(pearl hard chromium)
Contact pin:       Copper alloy(gold-plated)
Spring:       Stainless steel
Sealing:       Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment       - The smart grid
- Medical equipment       - Server
- Solar energy equipment       - Ship equipment
- Electric power equipment       - Vehicle equipment
- Communications equipment

- Heavy machinery
