SPECIFICATIONS

Brand Name: linkfreely

Contact Load: Low Power

High-concerned chemical: none

Model Number: RM1A40A25

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Theory: Solid State Relay

Use: General Purpose

Voltage: 250V

is_customized: Yes

Solid State Relays

Industrial,1-Phase ZS(IO) w.LED and Built-in Varistor

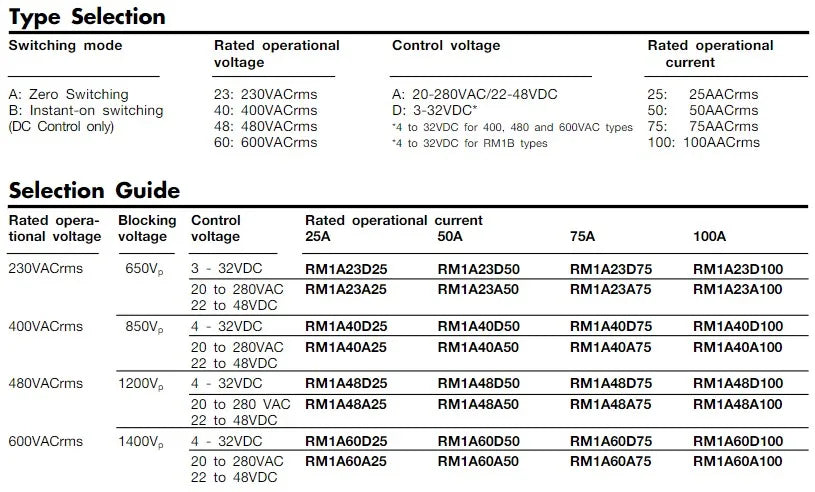

Type RM 23,RM 40,RM 48,RM 60

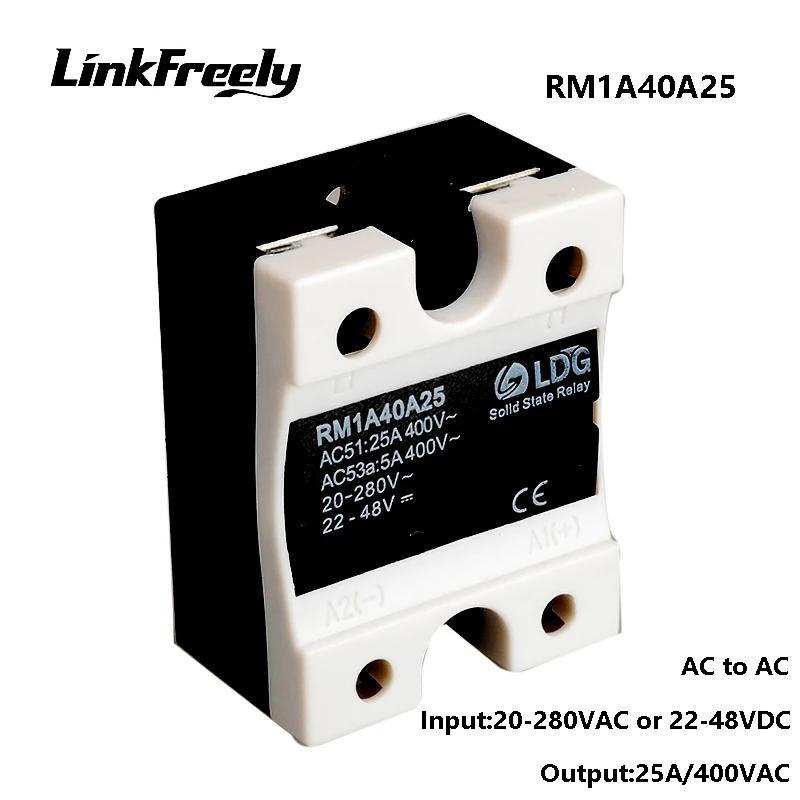

Model No. : RM1A40A25

Product Specification

Product Features

1. Zero switching (RM1A) or Instant-on switching (RM1B) AC Solid State Relay

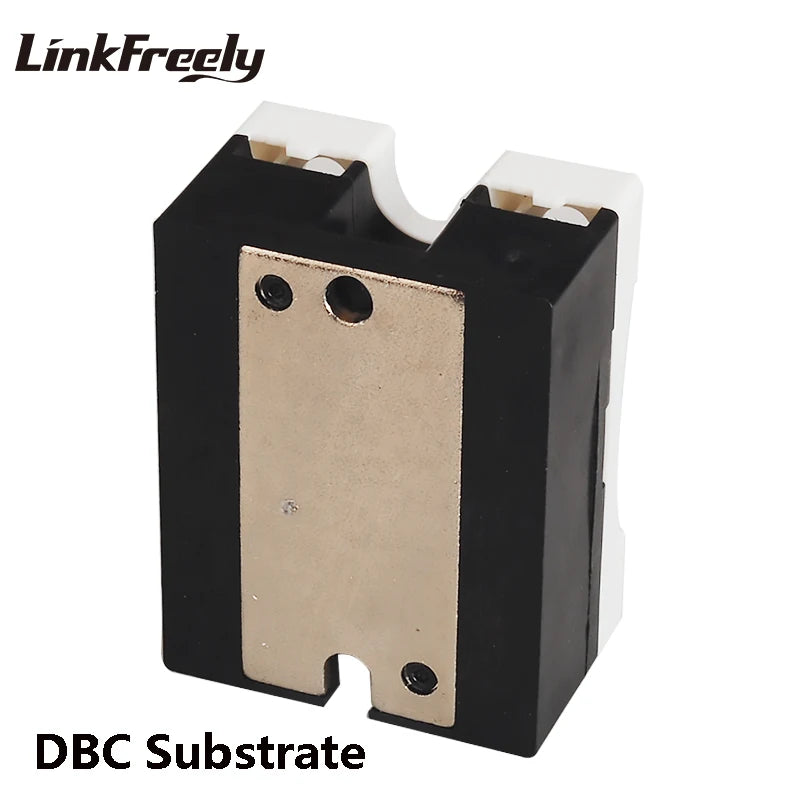

2. Direct copper bonding (DCB) ceramic technology.

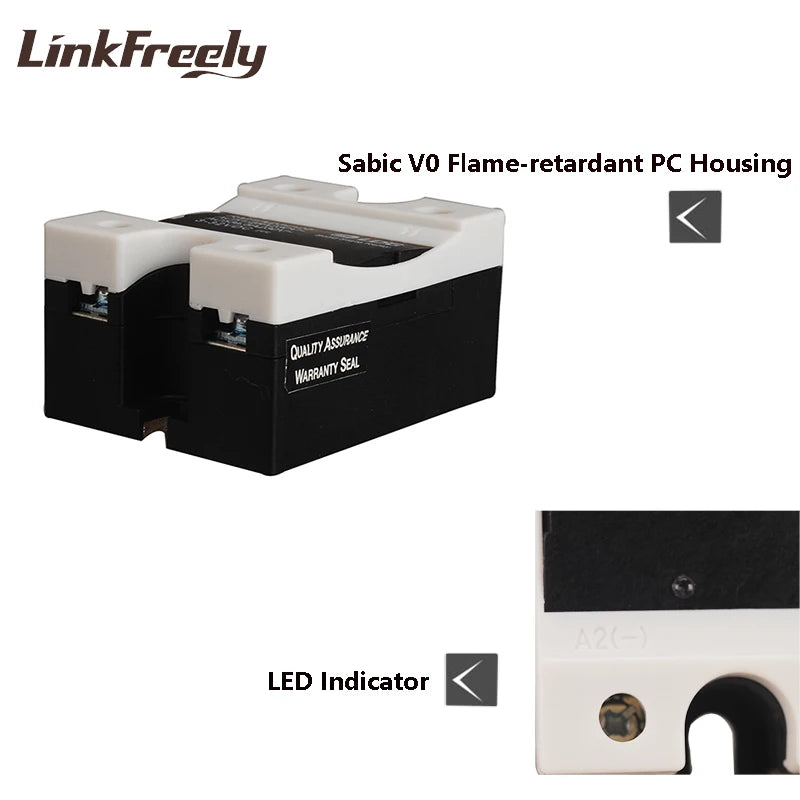

3. LED indication

4. Built-in varistor 230,400,480,600V

5. Clip-on IP 20 protection cover

6. Self-lifting terminals

7. House free of moulding mass

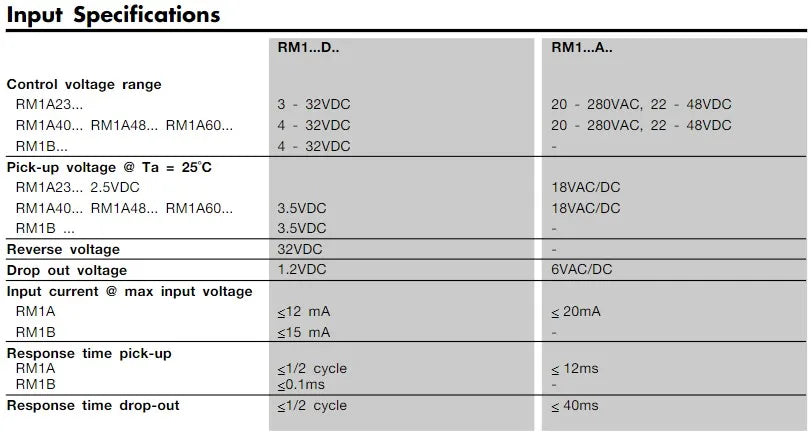

8. 2 input ranges: 3-32VDC and 20-280VAC/22-48VDC

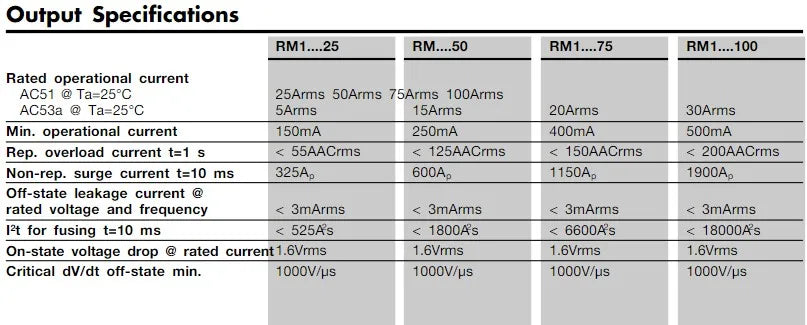

9. Operational ratings: up to 100AACrms and 600VACrms

10. Blocking voltage : up to 1400Vp

11. Opto-isolation: >4000VACrms

12. Dimension:58.2X44.8x28.8(mm)

Product Description

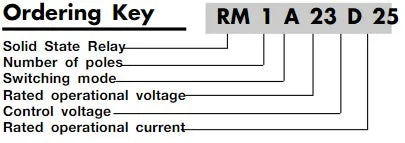

Model No. instruction:

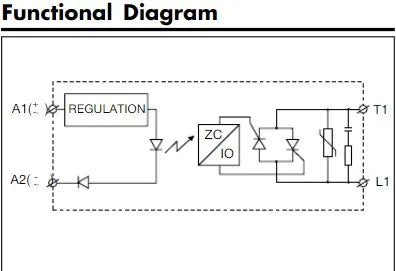

The industrial,1-phase relay with antiparallel thyristor output is the most widely used SSR due to its multiple application possibilities.The relay can be used for resistive,inductive and capacitive loads.The zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero.The instant-on relay with DC control input can be used for phase control.The built-in varistor secures transient protection for the industrial application,and the LED indicates the status of the control input.The clip-on cover is securing touch protection to IP20.Protected output terminals can handle cables up to 16mm^2.

Technical Data

• Product Name:   RM Single Phase Solid State Relay

• Model Number:   RM1A40A25

• Switch Mode:      Zero Switching

• Max. Load Current:    25A

• Rated Operation Voltage(47-63Hz):   42-440VAC

• Input Current:        ≤20mA

• Control Voltage：  20-280VAC or 22-48VDC

• Transient Peak Voltage: 850Vp

• Zero voltage turn-on : ≤10V

• Power Factor:        >0.5@ 400VACrms

• Turn-On off time:    ≤10mS

• Dielectric Voltage Strength:    ≥2500VAC/Mni

Isolation

Rated isolation range :   input to output    ≥ 4000VACrms

Rated isolation range ： output to case      ≥ 4000VACrms

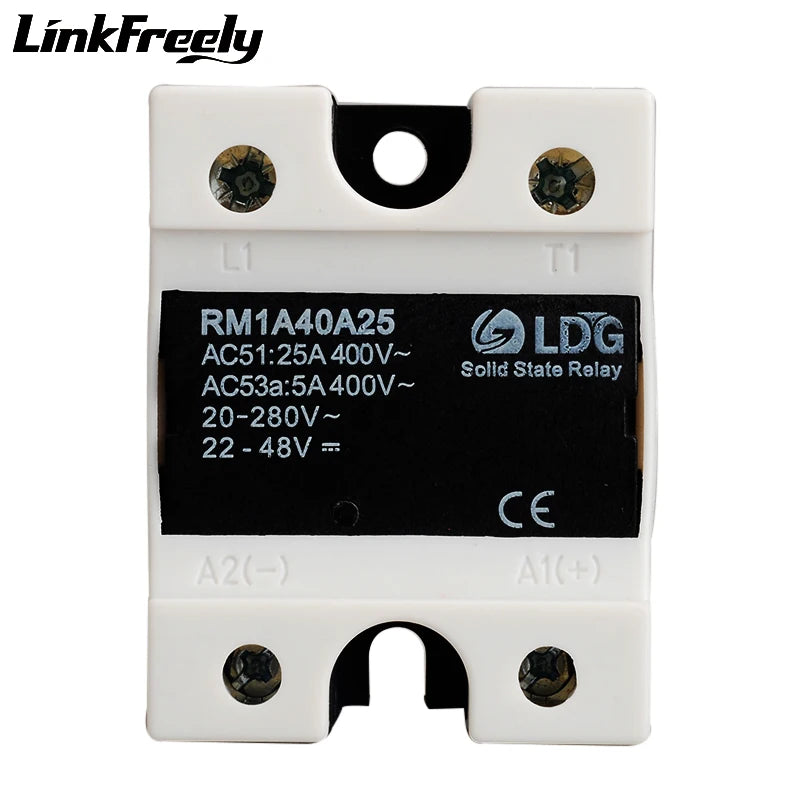

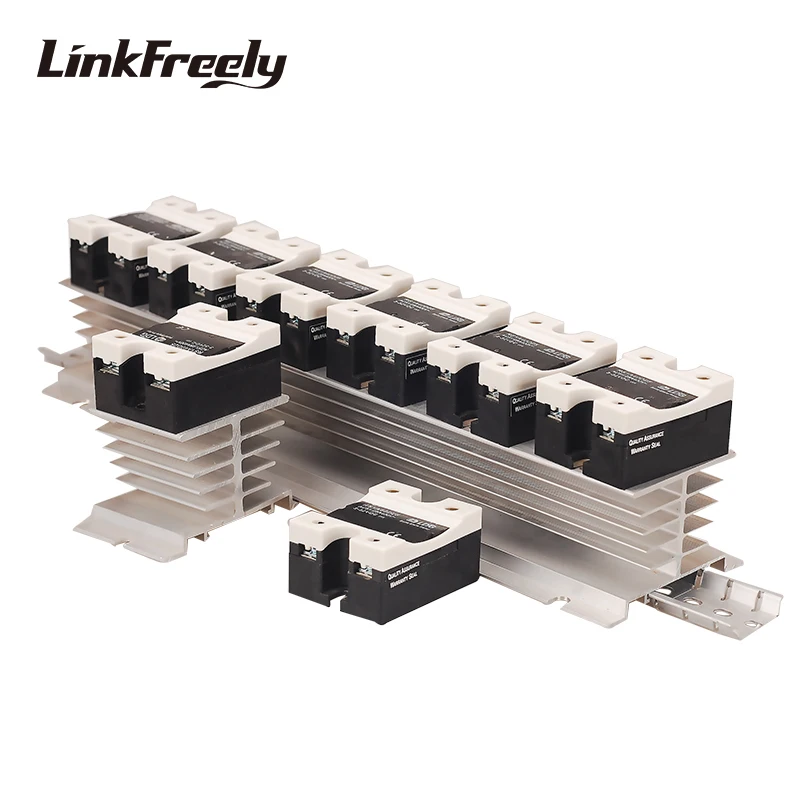

RM Single Phase AC Solid State Relay Display

If you don't find the ratings you want,customization can be ok.Kindly leave me a message for details as well as discount rates that go with big quantity.
