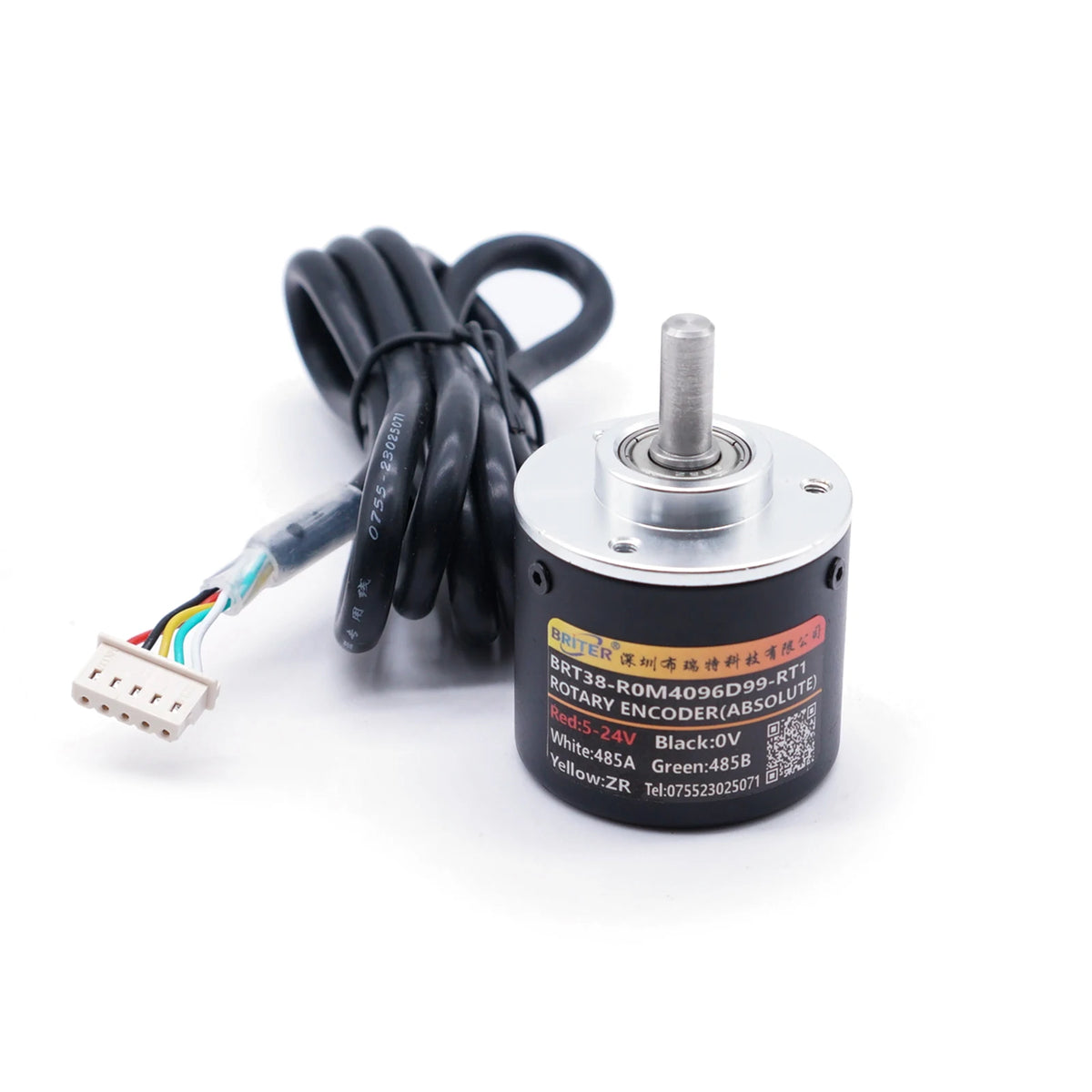

Rotary Absolute Encoder Magnetic Single Multiturn Angle Sensor CAN RS485 Power Off Memory High Precision Durable Versatile
Rotary Absolute Encoder Magnetic Single Multiturn Angle Sensor CAN RS485 Power Off Memory High Precision Durable Versatile
SPECIFICATIONS
Baud rate: RS485/RS232/ModBus RTU: 9600~115200(default 9600); CAN: 100K~1M(default 500K); SSI:100K-5M
Brand Name: briter
Certification: RoHS,CE,ce,EMC,ROHS
Communicate Protocol: SSI, Canopen, RS485 Modbus RTU, RS232,Analog
Connection Type: Male Connector Cable
Current consumption: max. 70 mA
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Electrical life: > 100000 h
Email: brt@briterencoder.com
Encoder Technology: Absolute
Flange: clamping flange, blind hollow shaft
Flange material: aluminum
High-concerned chemical: none
IP Rating: IP54
Item Type: SWITCHES
Kernel refresh cycle: < 50uS
Material: Alloy
Maximum mechanical speed: Single-turn max of 8000 RPM, Multiturn max of 3000 RPM
Multi-turn technology: no battery and with gear
Origin: Mainland China
Power consumption: max. 0.38 W
Power-off memory: Single-turn within 0~360°, Multiturn within 0~360°*N turns
Resolution: 1024(10bit), 4096(12bit), 16384(14bit), 32768(15bit), 65536(16bit) per 360°
Shaft Diameter: 6mm
Shaft Type: Solid
Shaft load axial / radial: 20 N/80 N
Shaft material: stainless steel
Single-turn accuracy: < ±0.025°
Single-turn repeat accuracy: < ±0.05°
Supply Voltage: 5 VDC up to 32 VDC
Temperature: -40 °C up to +85 °C
Turns: Single turn,16,25,32,50,64,100,400,1800,5400,10800,21600
Weight: 86~200g (include 1.2m wire)
download website: www.briterencoder.com

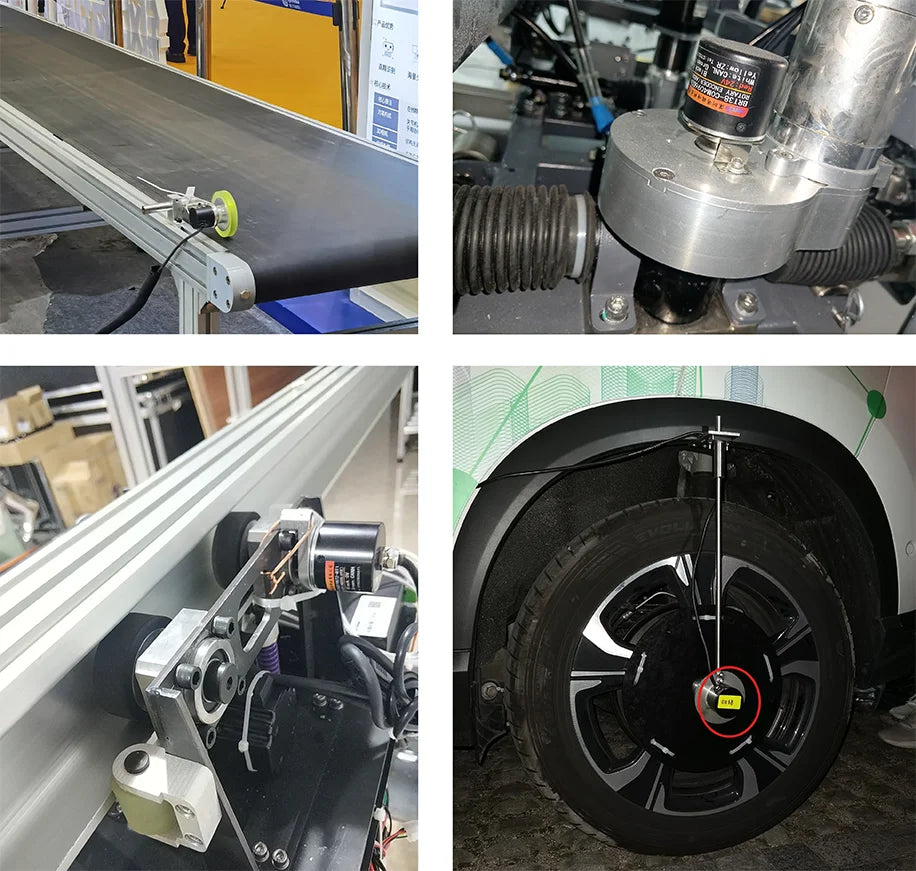

1. What is a Rotary Angle Encoder?
A rotary angle encoder (also known as an angle sensor) precisely measures:
* Rotation angles
* Speed
* Angular displacement
Key Functions:
* Accurate angle tracking
* Real-time speed monitoring
* Precise angular displacement analysis
Absolute Value Encoder Benefits:
* Power Loss Memory: Retains position data even after power loss for continuous, uninterrupted operation.
2. Electrical Parameters, Mechanical Parameters, Environment parameters
Encoder Technology |
Absolute Magnetic Encoder |
Power-off memory |
Retains position after power loss |
Memory Range |
Single-turn within 0~360°; Multiturn within 0~360°*N turns |
Multiturn Turns |
Single turn, 16turns, 64turns, 100turns, 1800turns |
Interface |
SSI, CANopen, CANbus, RS485 Modbus RTU, RS232 Modbus RTU, Analog 4-20mA, Analog |
Maximum mechanical speed |
Single-turn max of 8000 RPM |
Kernel refresh cycle |
< 50uS |
Electrical life |
> 100000 h |
Supply Voltage |
5v~24V |
Baud rate |
RS485/RS232/ModBus RTU: 9600~115200(default 9600); CAN: 100K~1M(default 500K); SSI:100K-5M |
Resolution |
1024(10bit), 4096(12bit), 32768(15bit), 131072 (17bit) per 360° |
Current consumption |
max. 70 mA |
Power consumption |
max. 0.38 W |
Shaft Diameter |
6mm |
Flange material |
Aluminum |
Shaft Type |
Solid Shaft |
Shaft material |
Stainless steel |
Protection Rating |
IP54 |
Temperature |
-40 °C up to +85 °C |
Connection Type |
Male Connect or Cable |
Flange |
Clamping flange |
Shaft load axial / radial |
20 N/80 N |
Weight |
86～200g |
Single-turn accuracy |
< ±0.025° |
Repeat accuracy |
< ±0.05° |
3. Product Characteristics
Official Website: www.briterencoder.com

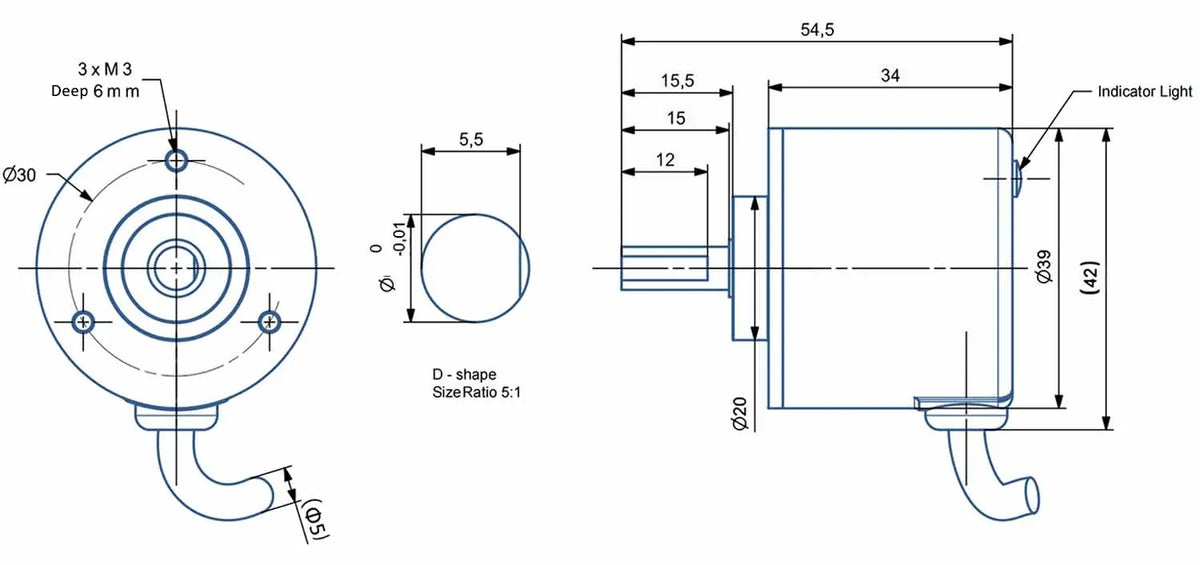

More information ( Specification, drawings, 3D models, manuals)please visit our website (supports multiple languages).

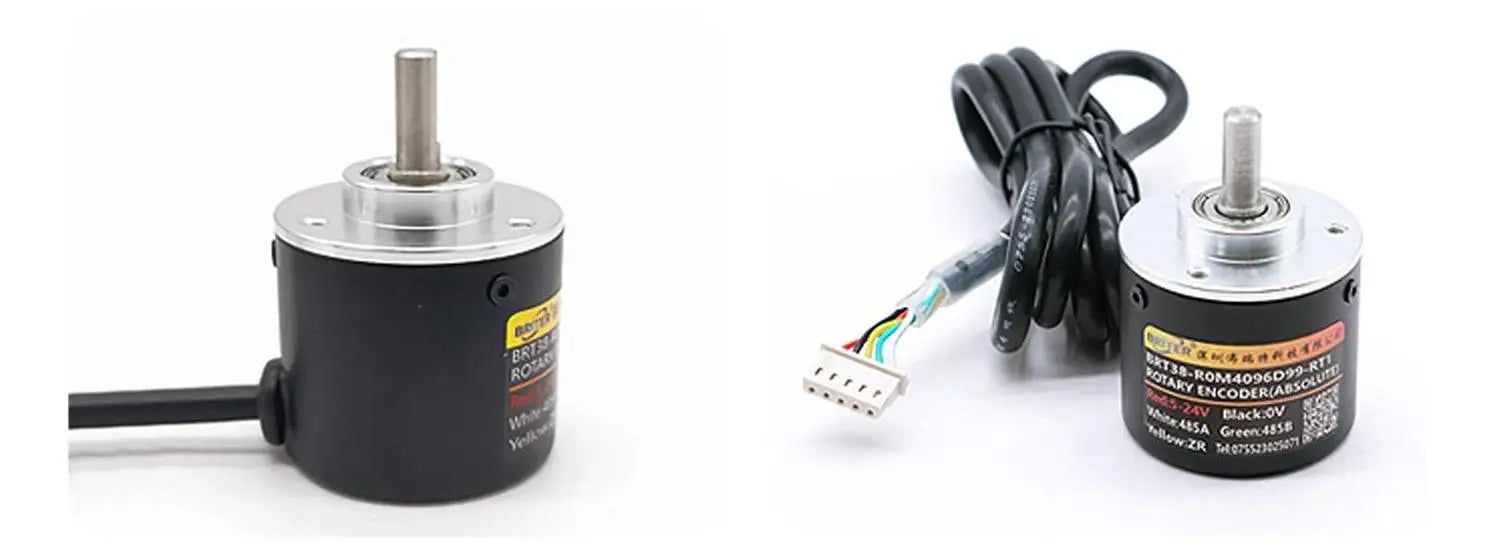

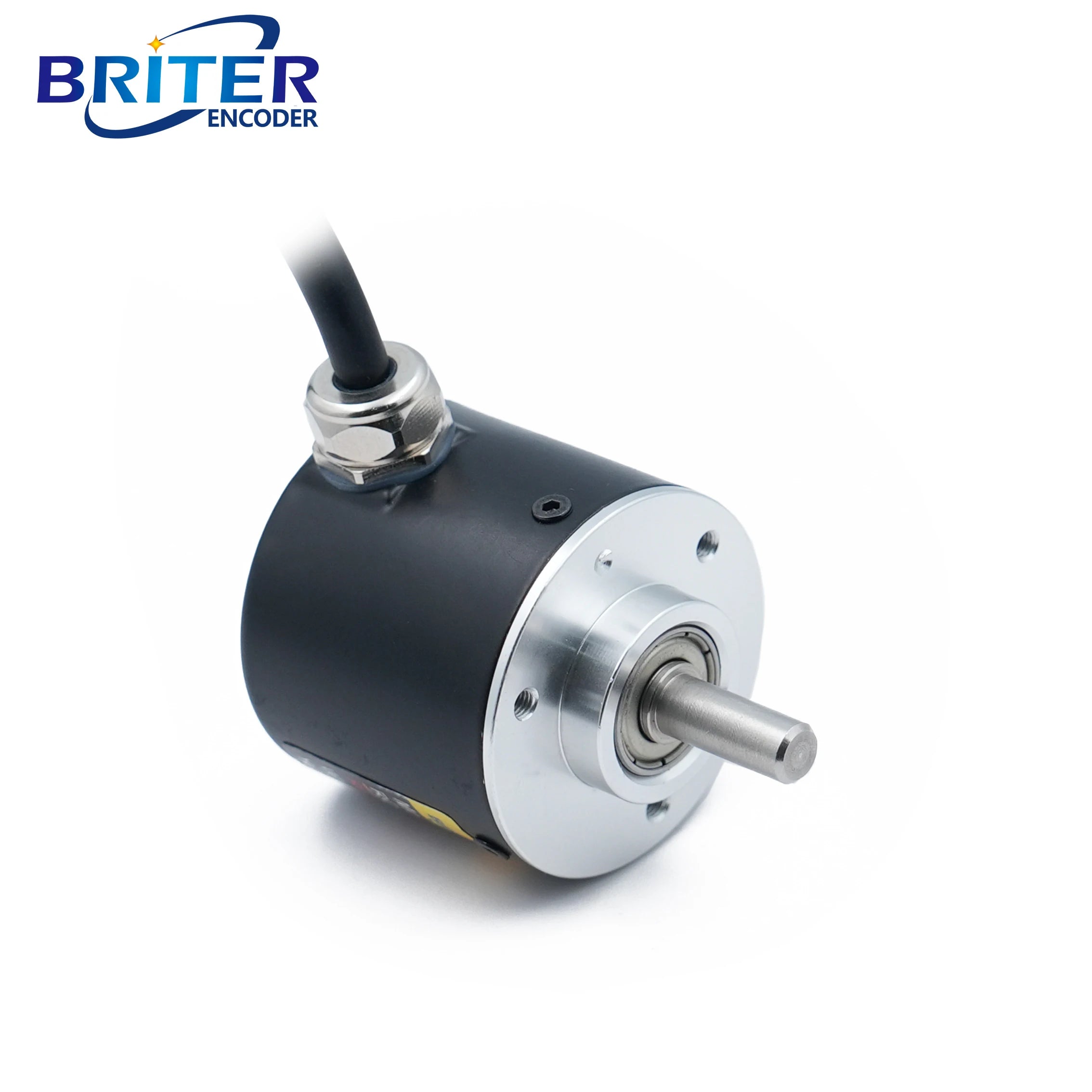

Single-turn and Multi-turn Absolute Rotary Encoder

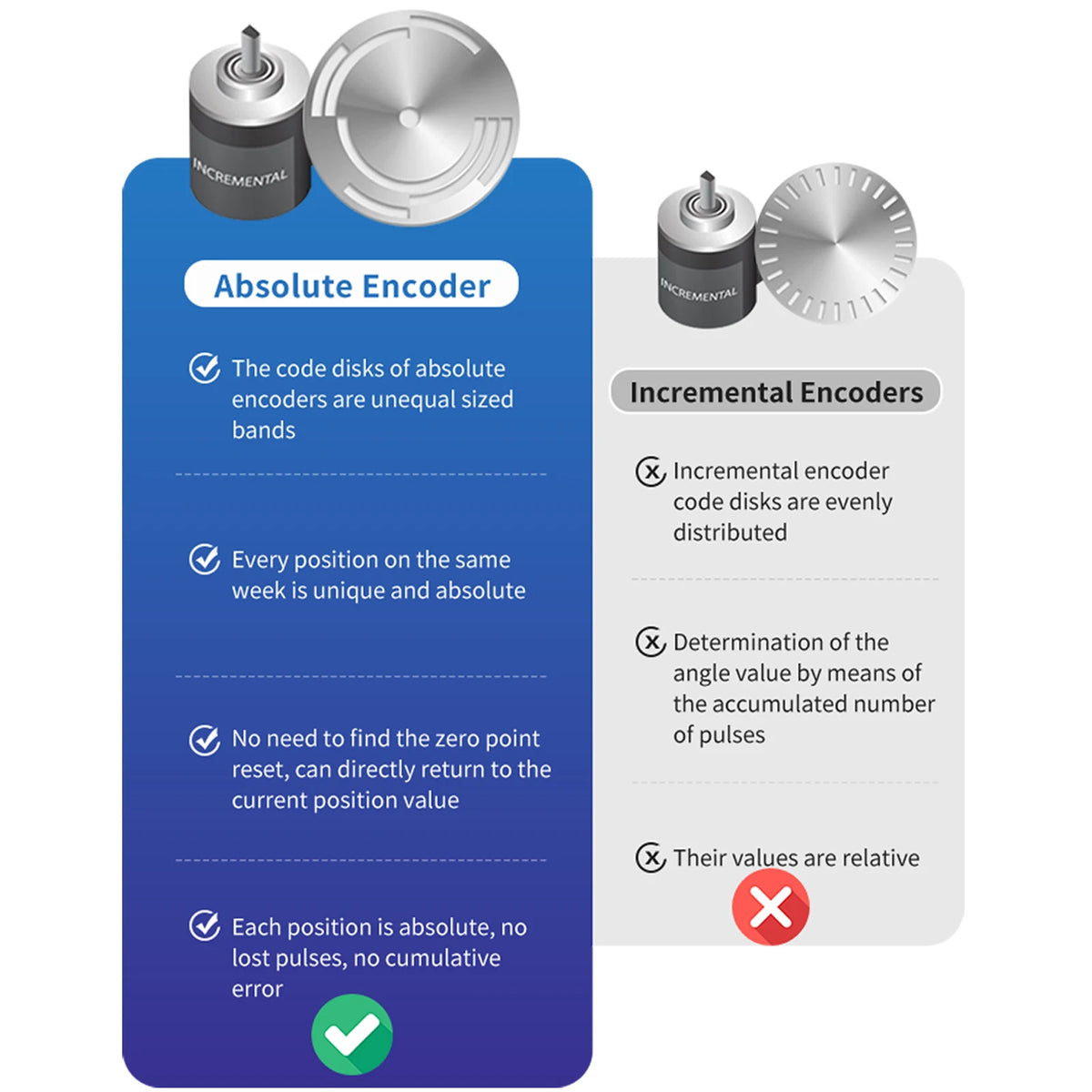

Clarifying a common misconception: A single-turn encoder does not mechanically limit to one turn, and a multi-turn encoder does not mechanically limit to multiple turns. The key difference lies in their power-off memory range.
Single-turn encoders can mechanically rotate endlessly but retain position data only within one turn. Multi-turn encoders, while also mechanically unlimited, retain position data across multiple turns. This makes multi-turn encoders ideal for applications needing accurate position recovery over multiple turns.
Key features
• Power-off memory: 0° to 360° range with absolute position tracking and power-off memory.
• Absolute Multi-Turn: Delivers precise position data across multiple turns.
• Power-Off Memory: Maintains position information even after power loss.
• Mechanical Gear Count: Utilizes mechanical gears for counting turns, eliminating the need for an internal battery.
• High Resolution: 17-bit resolution with 0.07° accuracy.

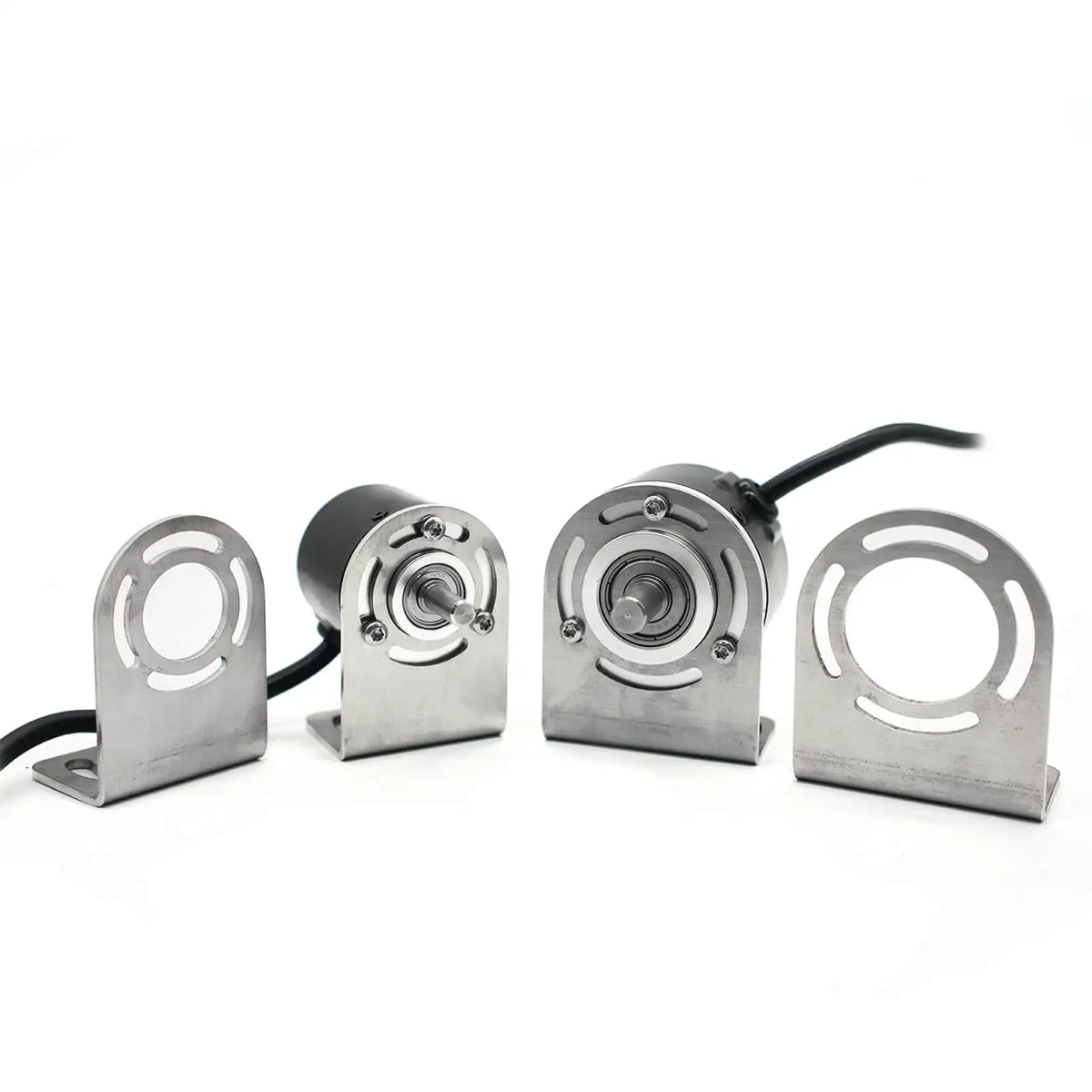

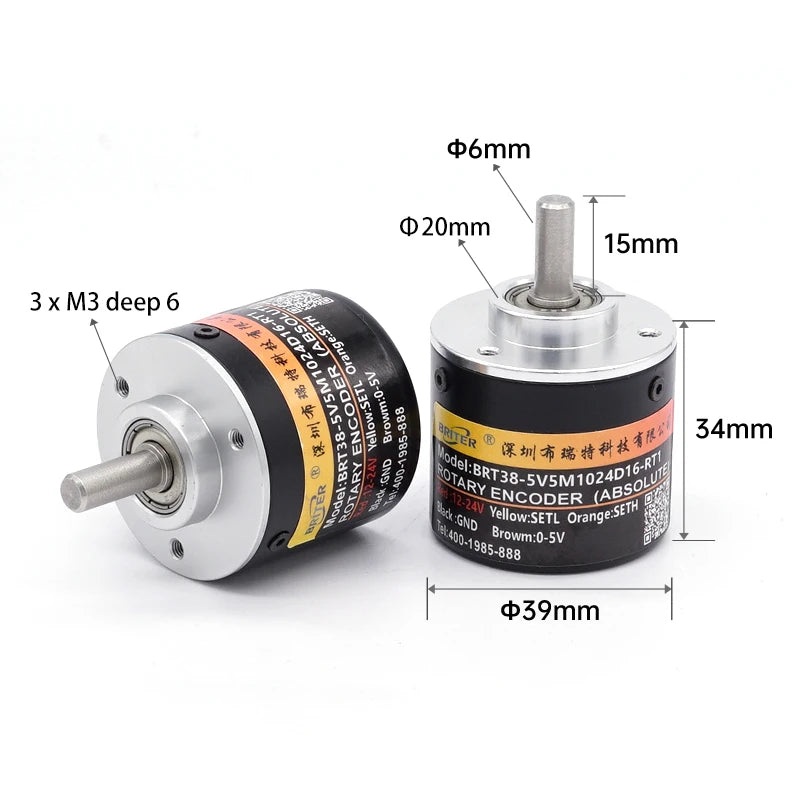

• Compact Design: With a minimum outer diameter of just 39mm, this industrial-grade encoder is built to endure tough environments.
• Data Interfaces: Equipped with SSI, CANopen, CANbus, RS485 Modbus RTU, RS232 Modbus RTU, Analog 4-20mA, Analog 0-5V, Analog 0-10V, SPI, BISS for versatile connectivity and integration.
• Wide Voltage Compatibility: Engineered to operate under various voltage conditions and has passed rigorous EMC testing, ensuring strong anti-interference capabilities.

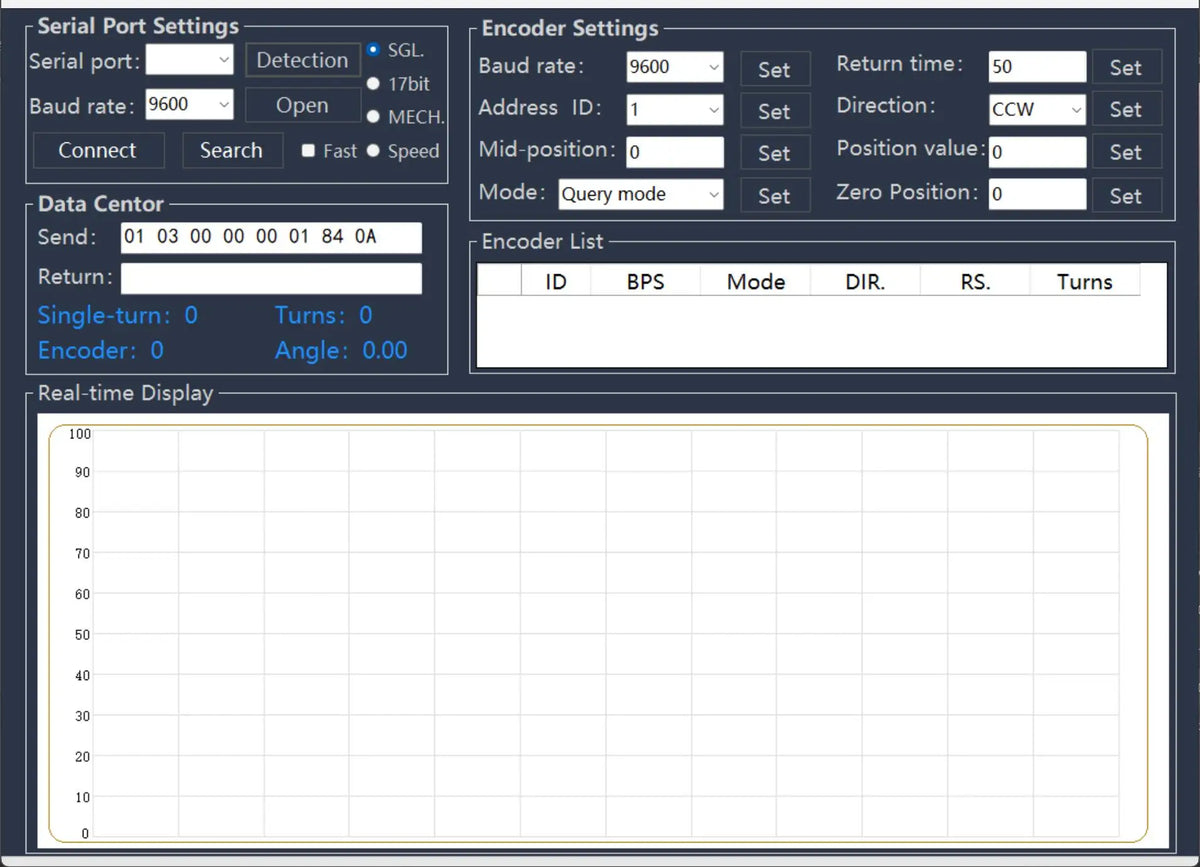

• User-Friendly Configuration: Parameter settings are easily managed via communication protocols and upper computer software, making setup intuitive and straightforward.
• Flexible Operation Modes: Supports both query and automatic return modes for real-time position and speed feedback. Programmable features include baud rate, setting position, counting direction, and speed feedback.
• Compact and Cost-Effective: Space-saving design with high performance at a competitive price.
• Rugged and Reliable: Magnetic sensors endure harsh environments.
