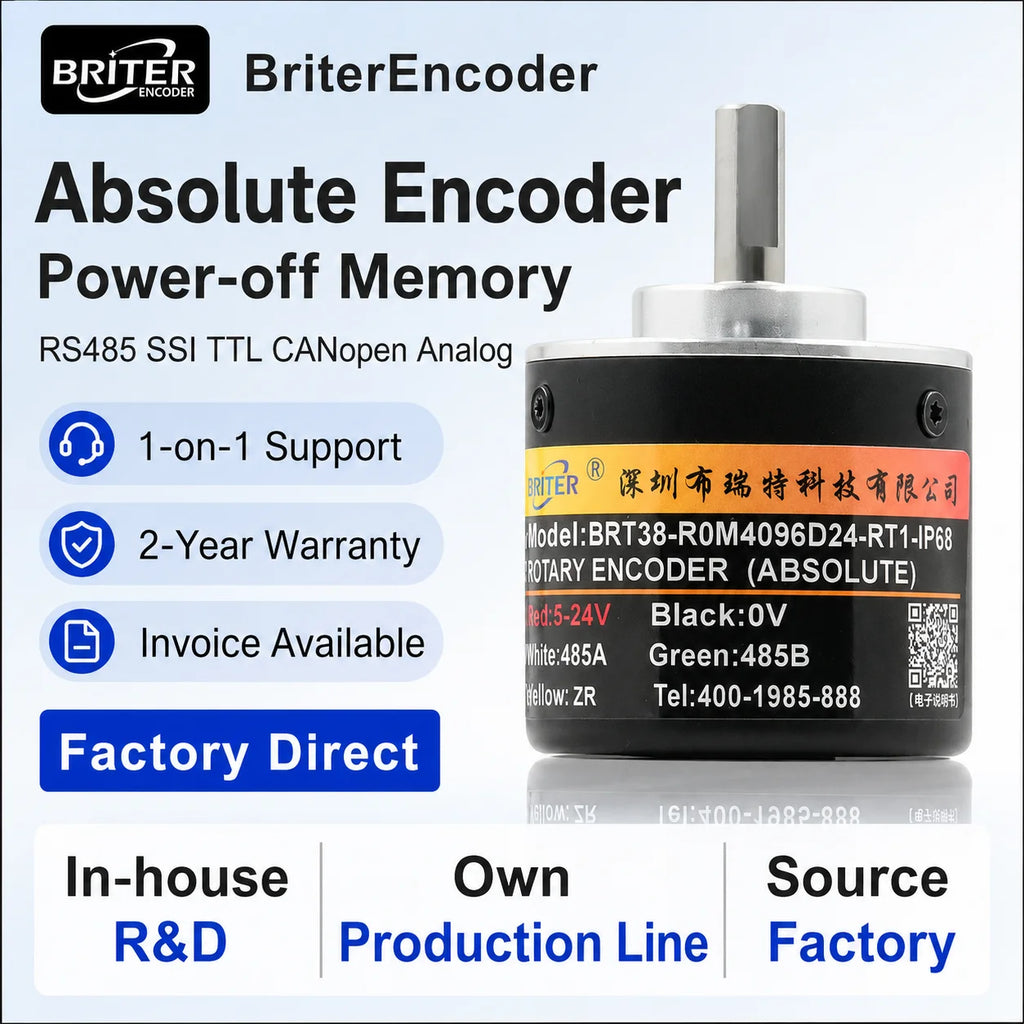

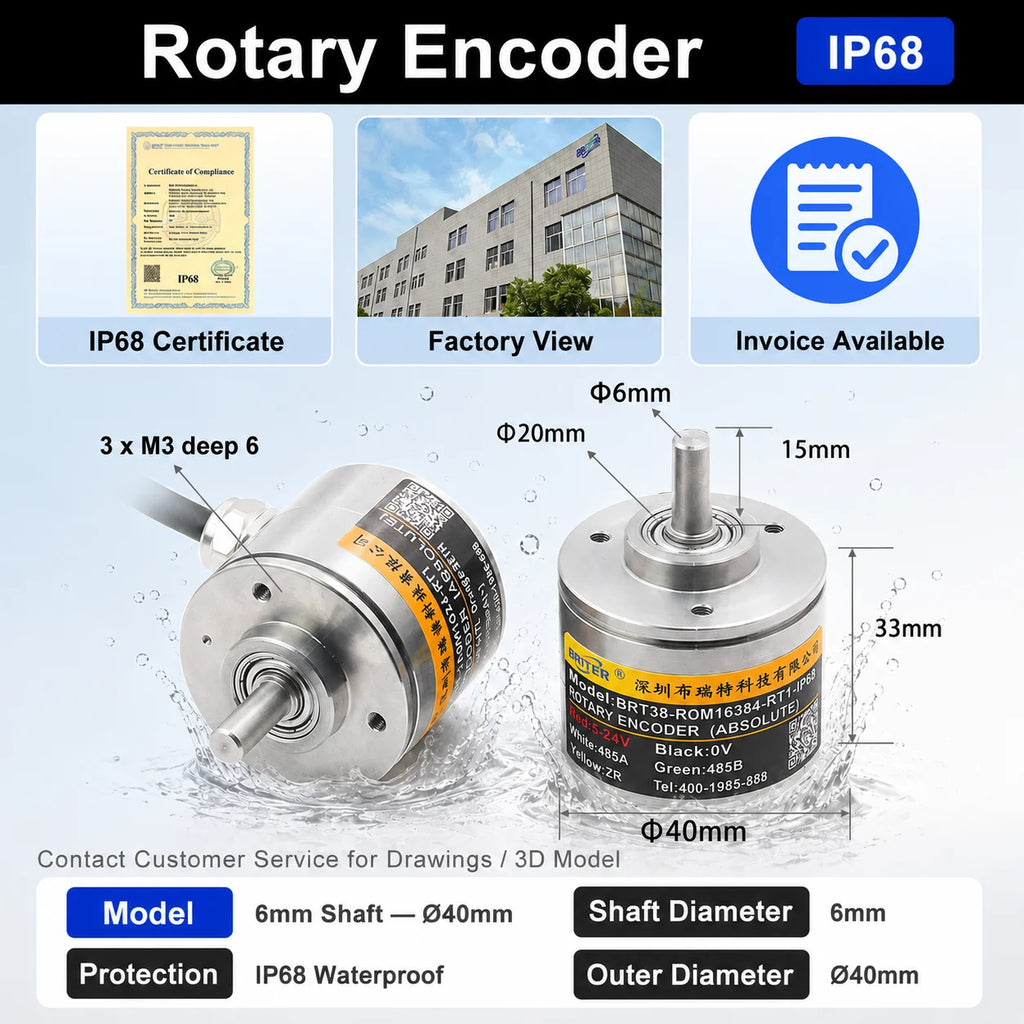

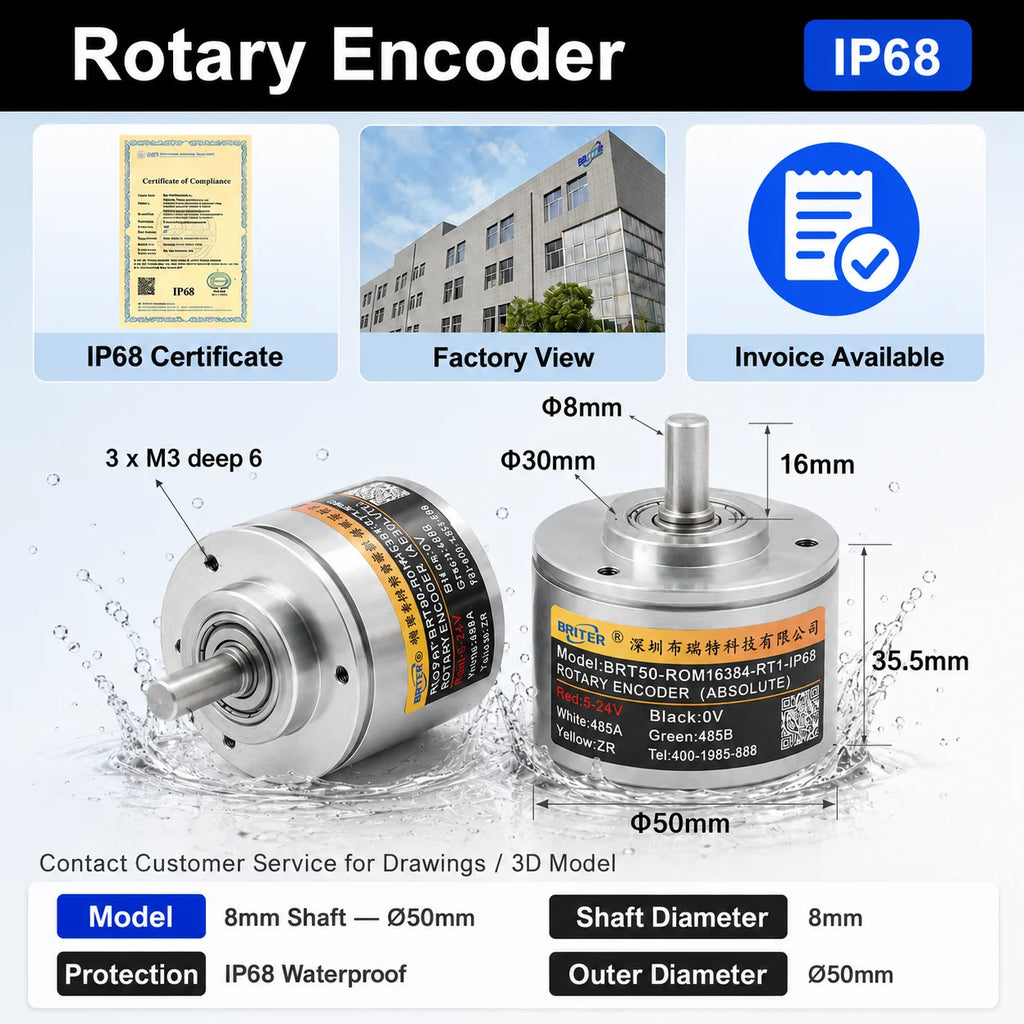

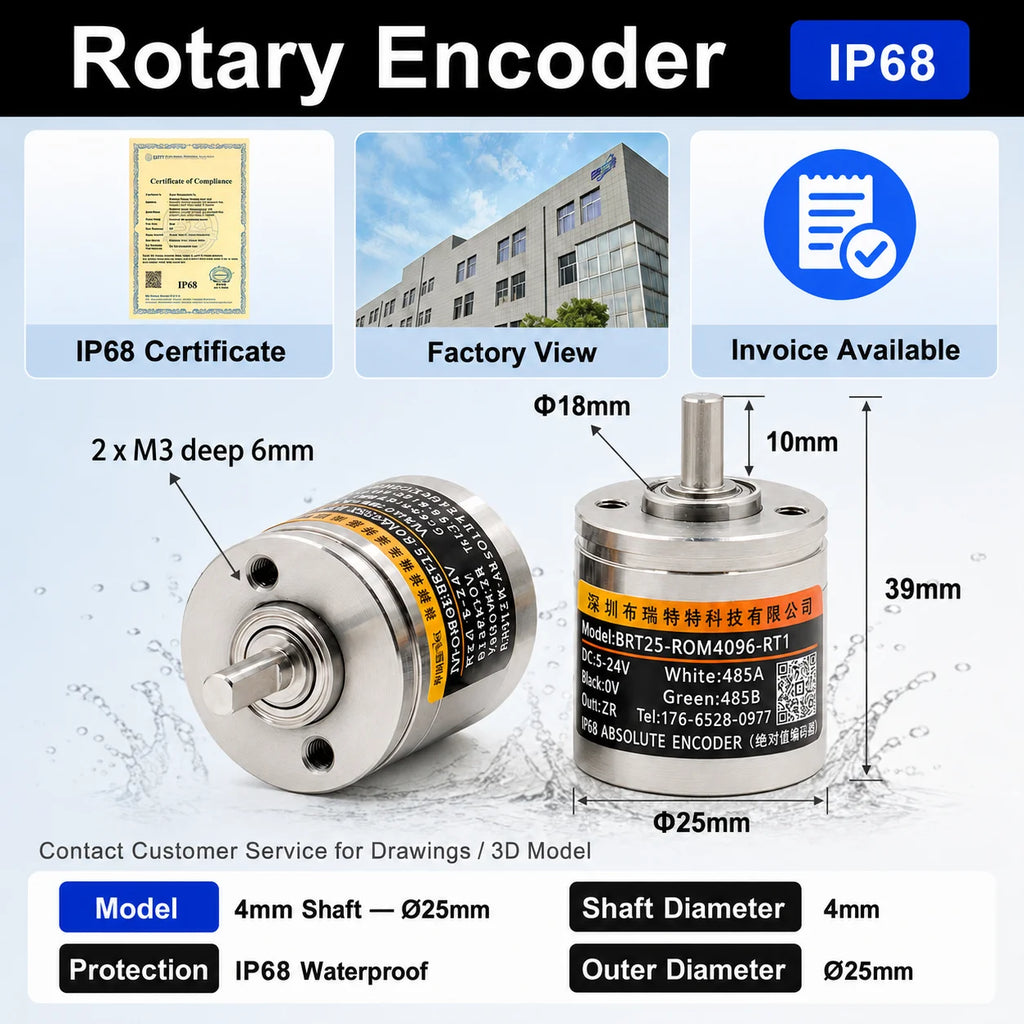

Rotary Absolute Encoder single-turnRS485 SSI CAN Power-Off Memory Angle Sensor for Equipment Waterproof
Rotary Absolute Encoder single-turnRS485 SSI CAN Power-Off Memory Angle Sensor for Equipment Waterproof
SPECIFICATIONS
Brand Name: NONE
Communicate Protocol: Modubus RTU, CANbus, CANopen, SSI, Analog
Condition: New
Connection Type: Male Connector/Cable
Encoder Technology: Absolute
High-concerned chemical: none
Max. operating speed: 8000rpm
Maximum Operating Temperature: 85°C
Minimum Operating Temperature: -40°C
Origin: Mainland China
Package Type: Surface mount
Protection Grade: IP54.IP68
Resolution: 10bit, 12bit, 15bit, 17bit
Shaft Diameter: 4mm,6mm, 8mm, 10mm
Supply Voltage: Digital:5-24V;Analog:12~24V
Turns: Single Turn

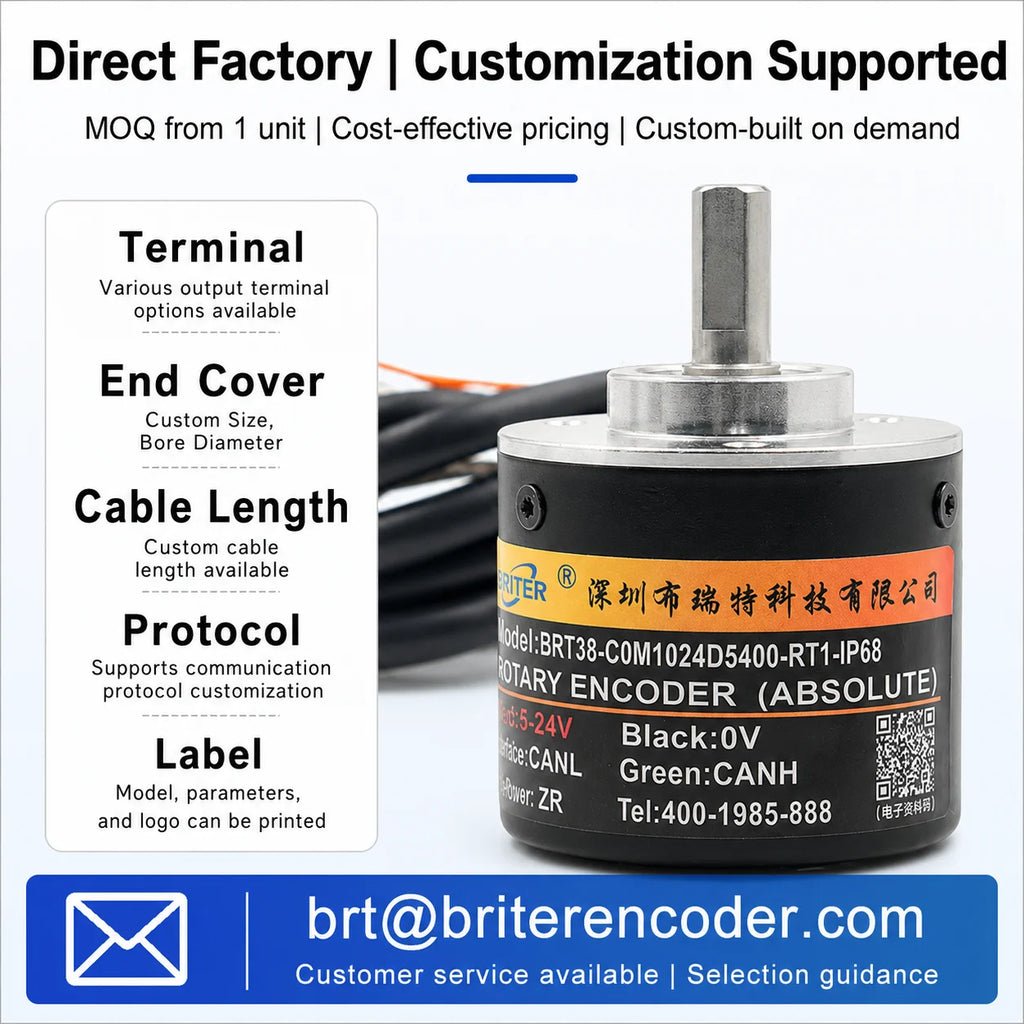

is_customized: Yes
shaft Type: Solid shaft, Blind Hollow

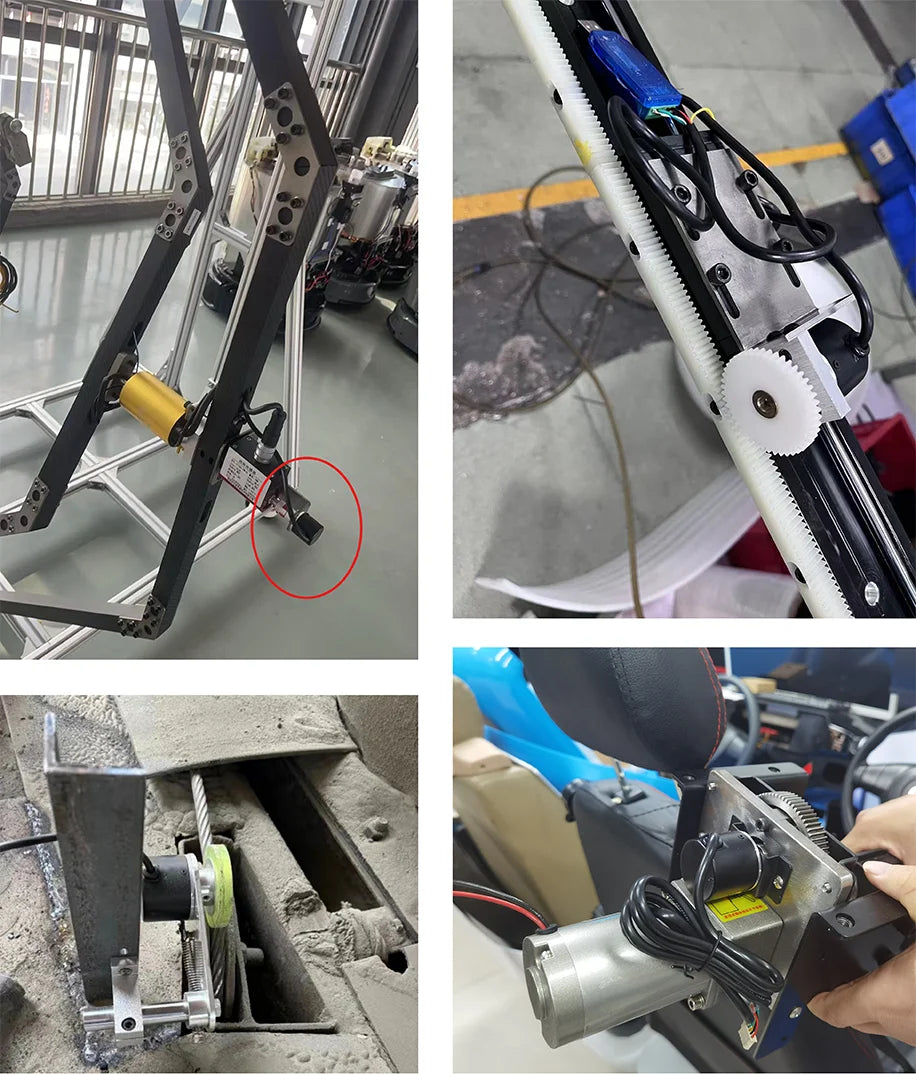

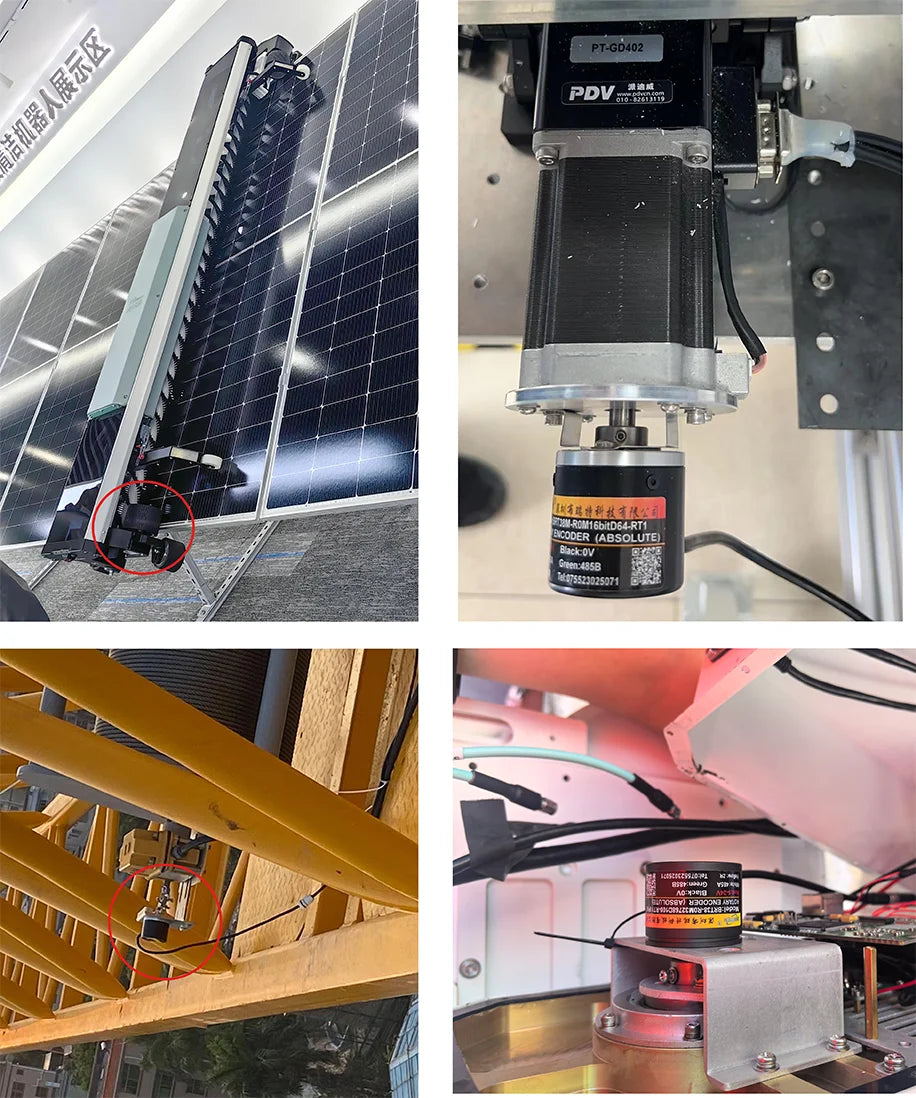

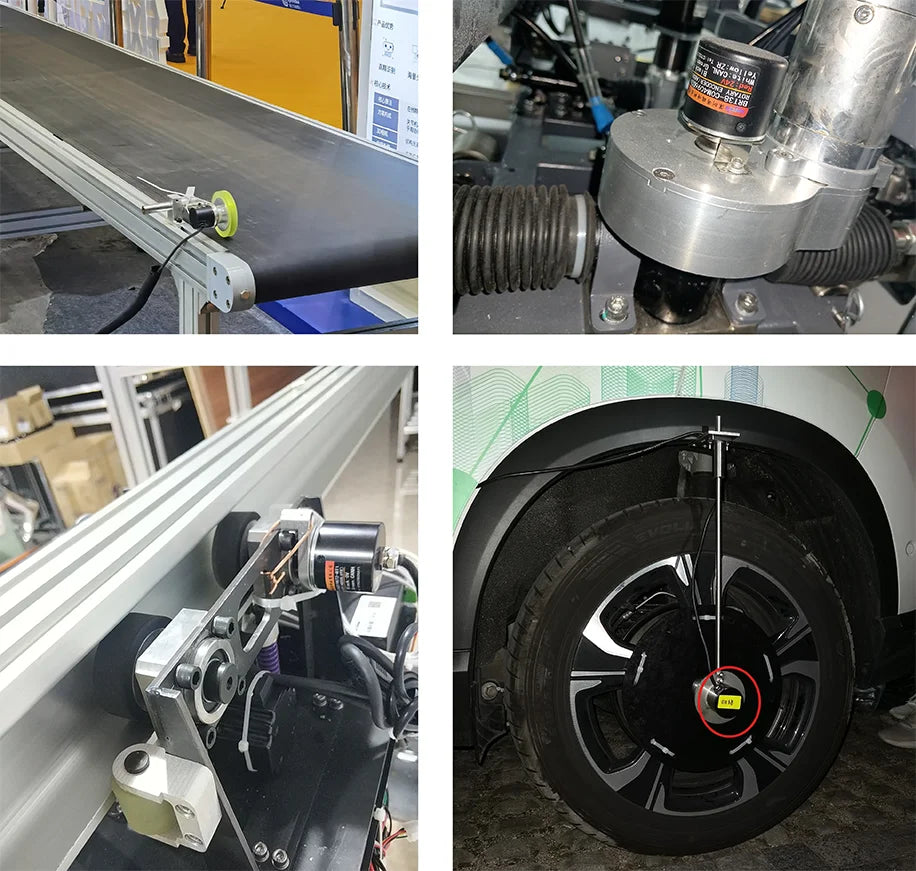

1. What is a Rotary Angle Encoder?
A rotary angle encoder (also known as an angle sensor) precisely measures:
* Rotation angles
* Speed
* Angular displacement
Key Functions:
* Accurate angle tracking
* Real-time speed monitoring
* Precise angular displacement analysis
Absolute Value Encoder Benefits:
* Power Loss Memory: Retains position data even after power loss for continuous, uninterrupted operation.
2. Electrical Parameters, Mechanical Parameters, Environment parameters
Encoder Technology |
Absolute Magnetic Encoder |
Power-off memory |
Retains position after power loss |
Memory Range |
Single-turn within 0~360° |
Interface |
RS485 Modbus RTU, RS232 Modbus RTU, CANbus,CANopen,Analog 4-20mA, Analog 0-5V, Analog 0-10V |
Maximum mechanical speed |
Single-turn max of 8000 RPM |
Supply Voltage |
Digital:5V~24V Analog:12~24V |
Electrical life |
> 100000 h |
Kernel refresh cycle |
< 50uS |
Baud rate |
RS485/RS232/ModBus RTU: 9600~115200(default 9600); CAN: 100K~1M(default 500K); SSI:100K-5M |
Resolution |
1024(10bit), 4096(12bit), 32768(15bit), 131072 (17bit) per 360° |
Current consumption |
max. 70 mA |
Power consumption |
max. 0.38 W |

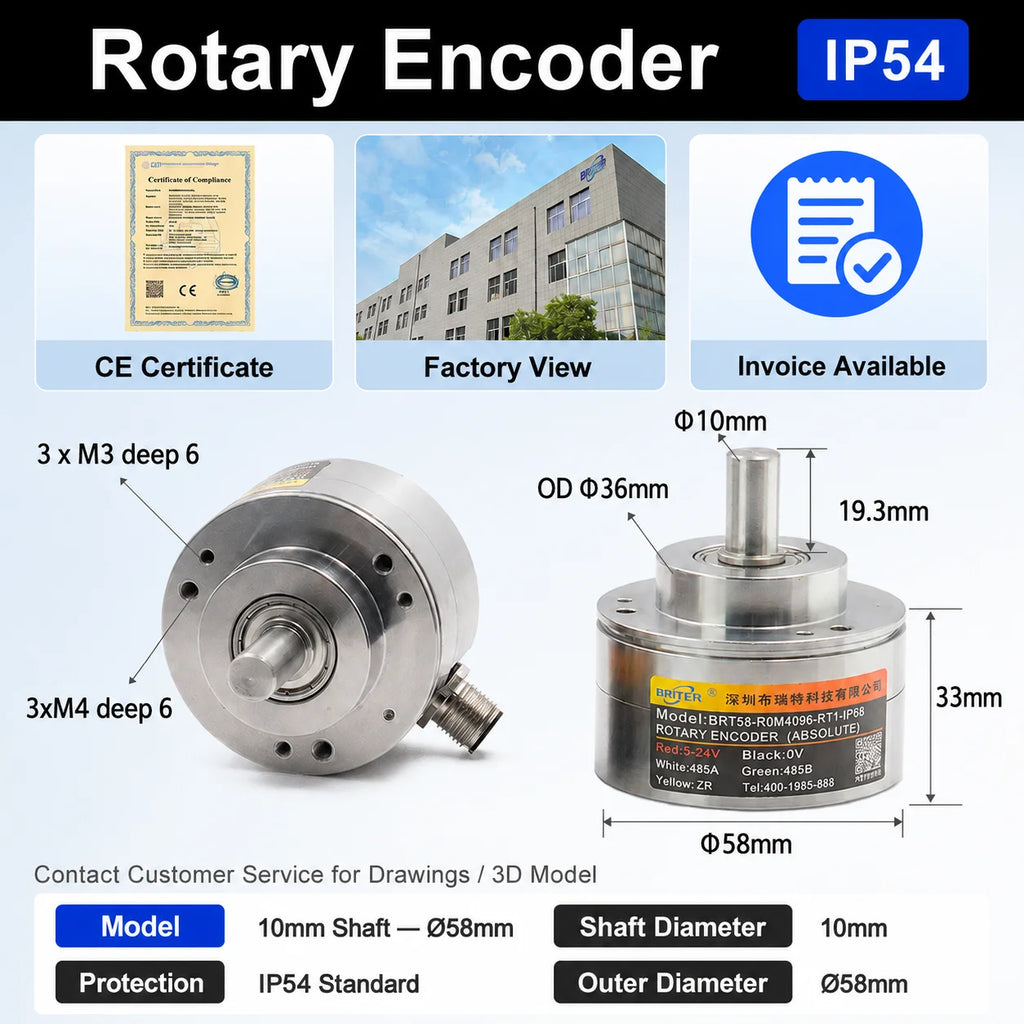

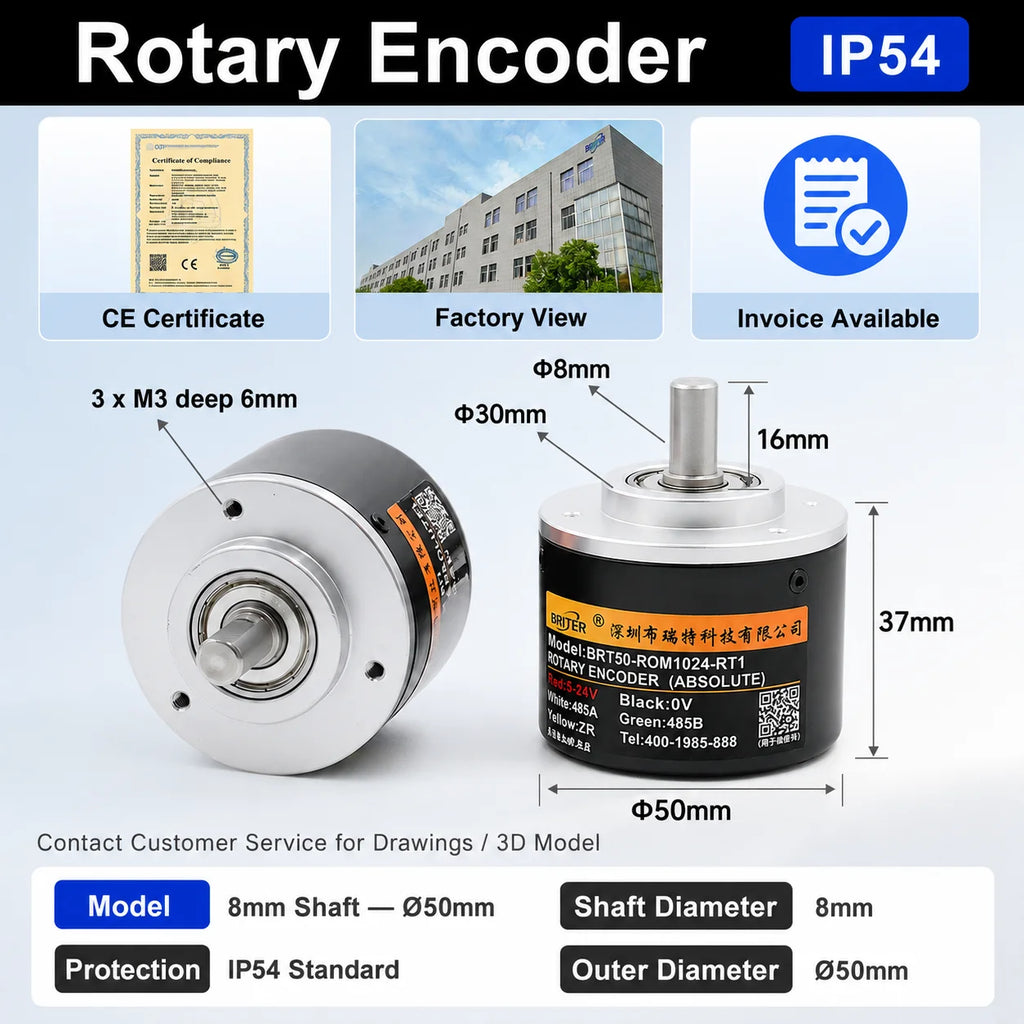

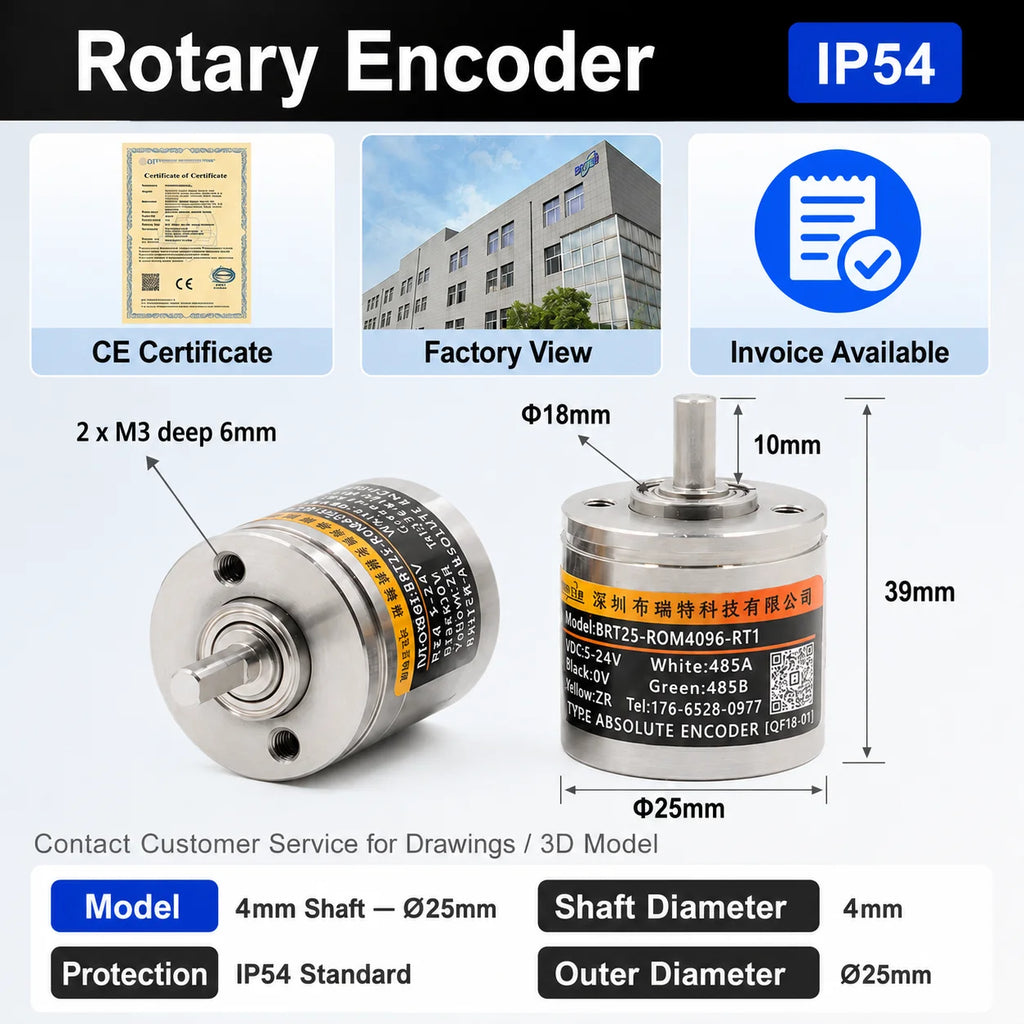

Shaft Diameter |
4mm,6mm,8mm,10mm |
Flange material |
Aluminum |

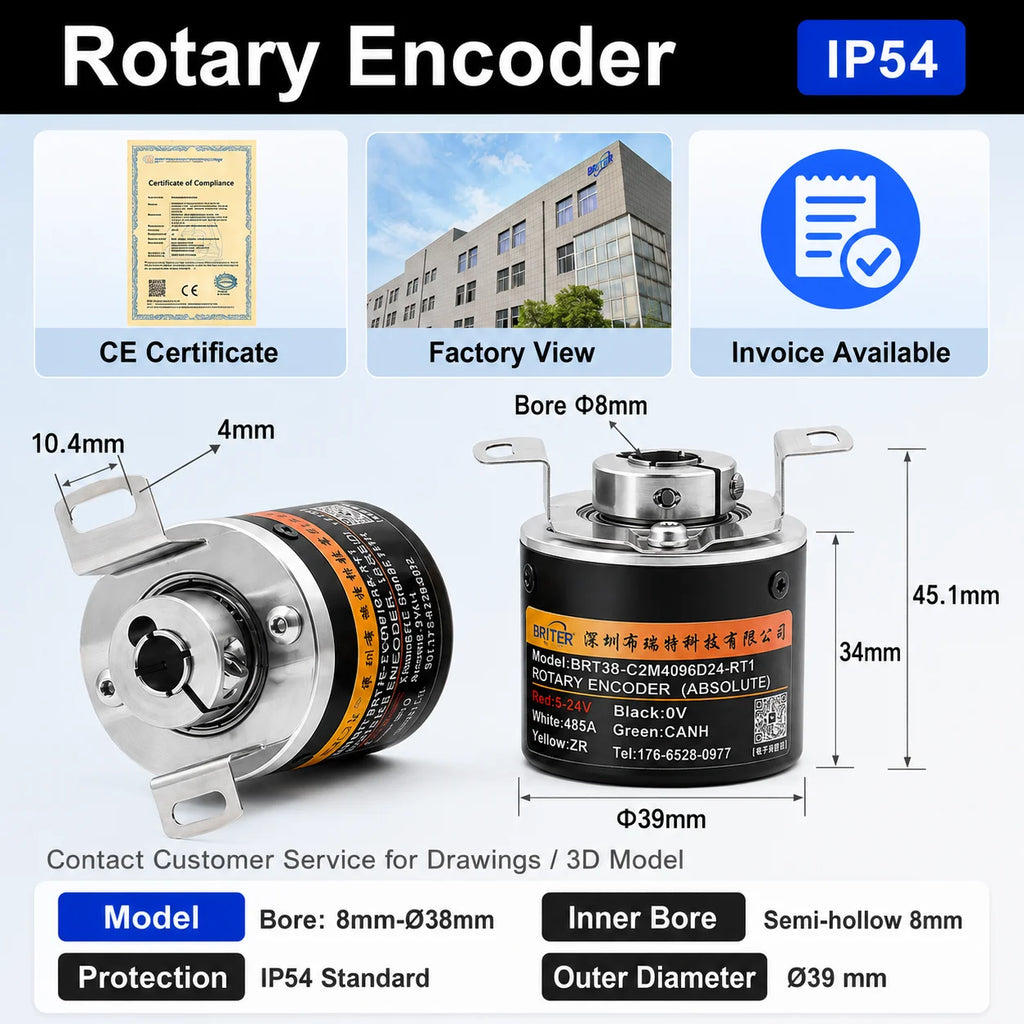

Shaft Type |
Solid Shaft,blind hollow |
Shaft material |
Stainless steel |

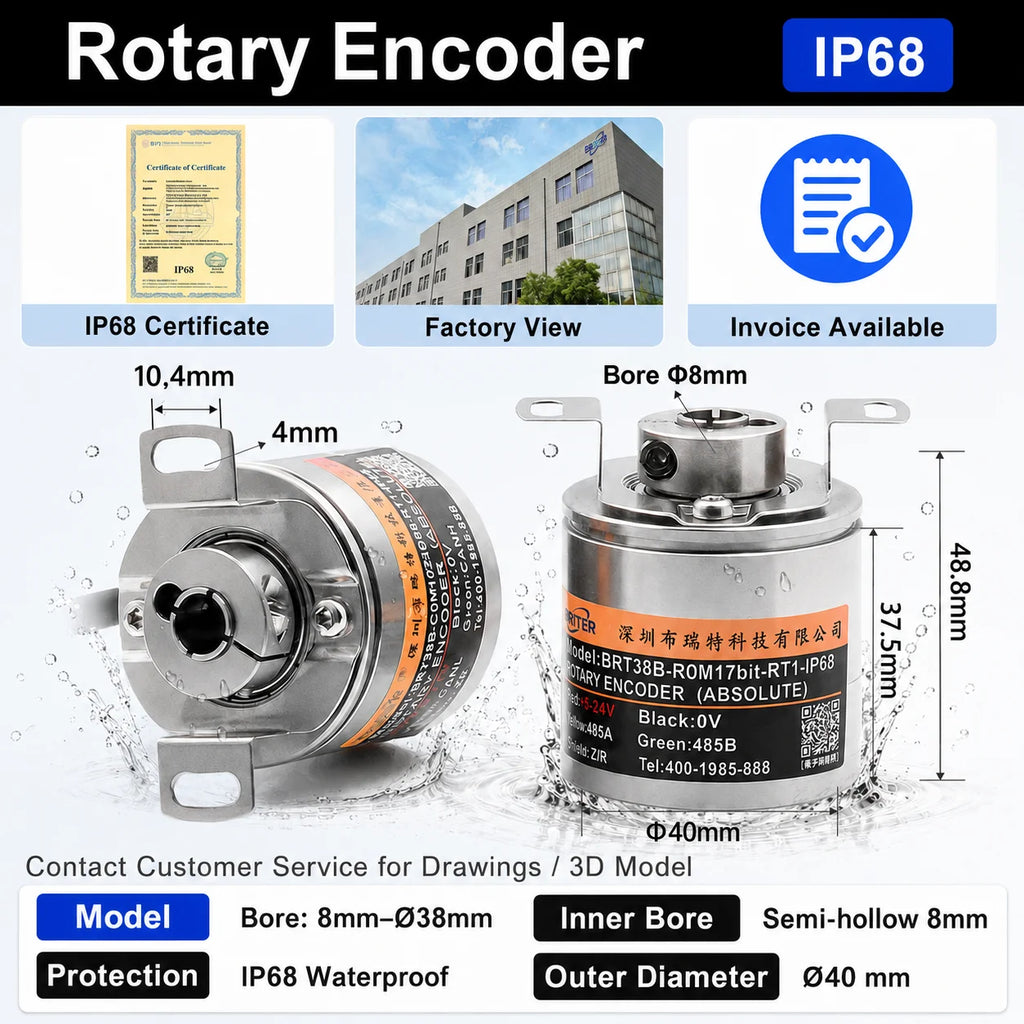

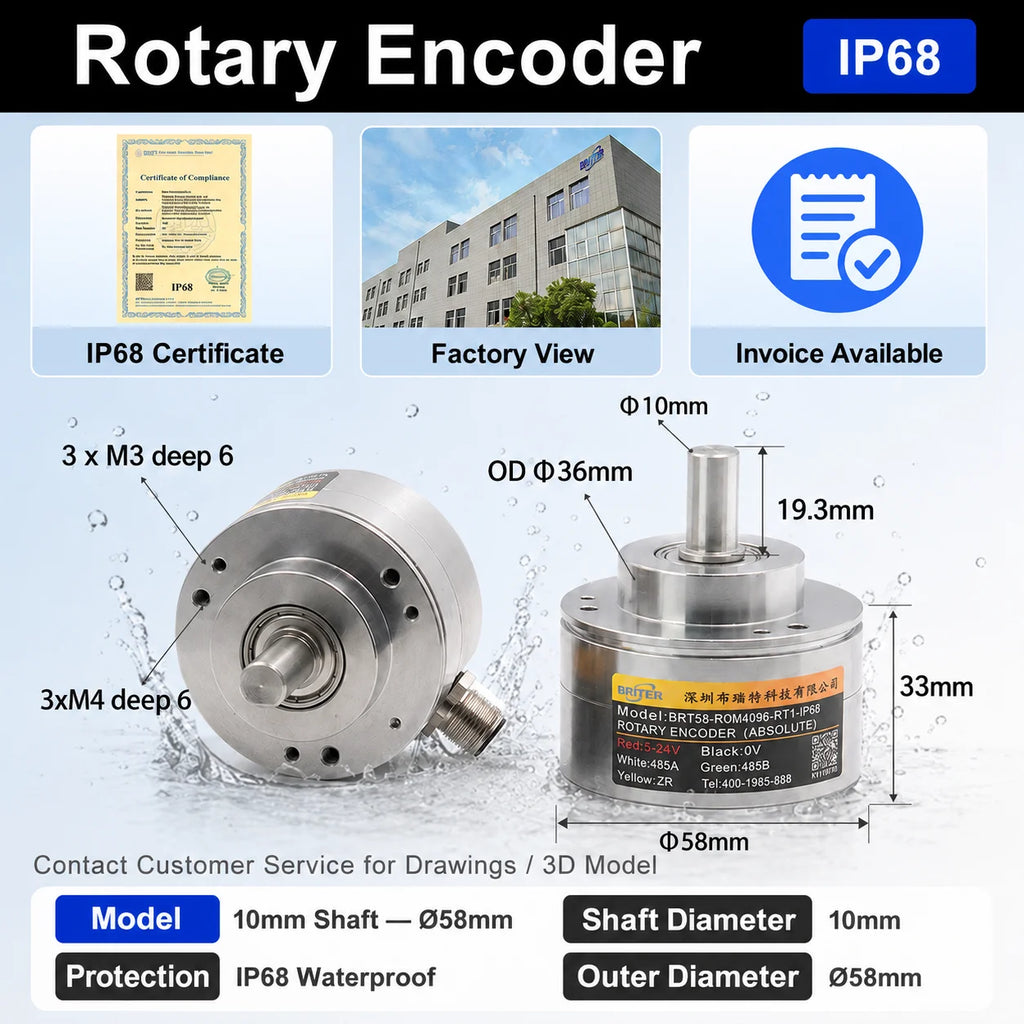

Protection Rating |
IP54/IP68 |
Temperature |
-40 °C up to +85 °C |
Connection Type |
Male Connect or Cable |
Flange |
Clamping flange |
Shaft load axial / radial |
20 N/80 N |
Weight |
86～200g |
Single-turn accuracy |
< ±0.025° |
Repeat accuracy |
< ±0.05° |
3. Product Characteristics
Official Website: www.briterencoder.com
More information ( Specification, drawings, 3D models, manuals)please visit our website (supports multiple languages).

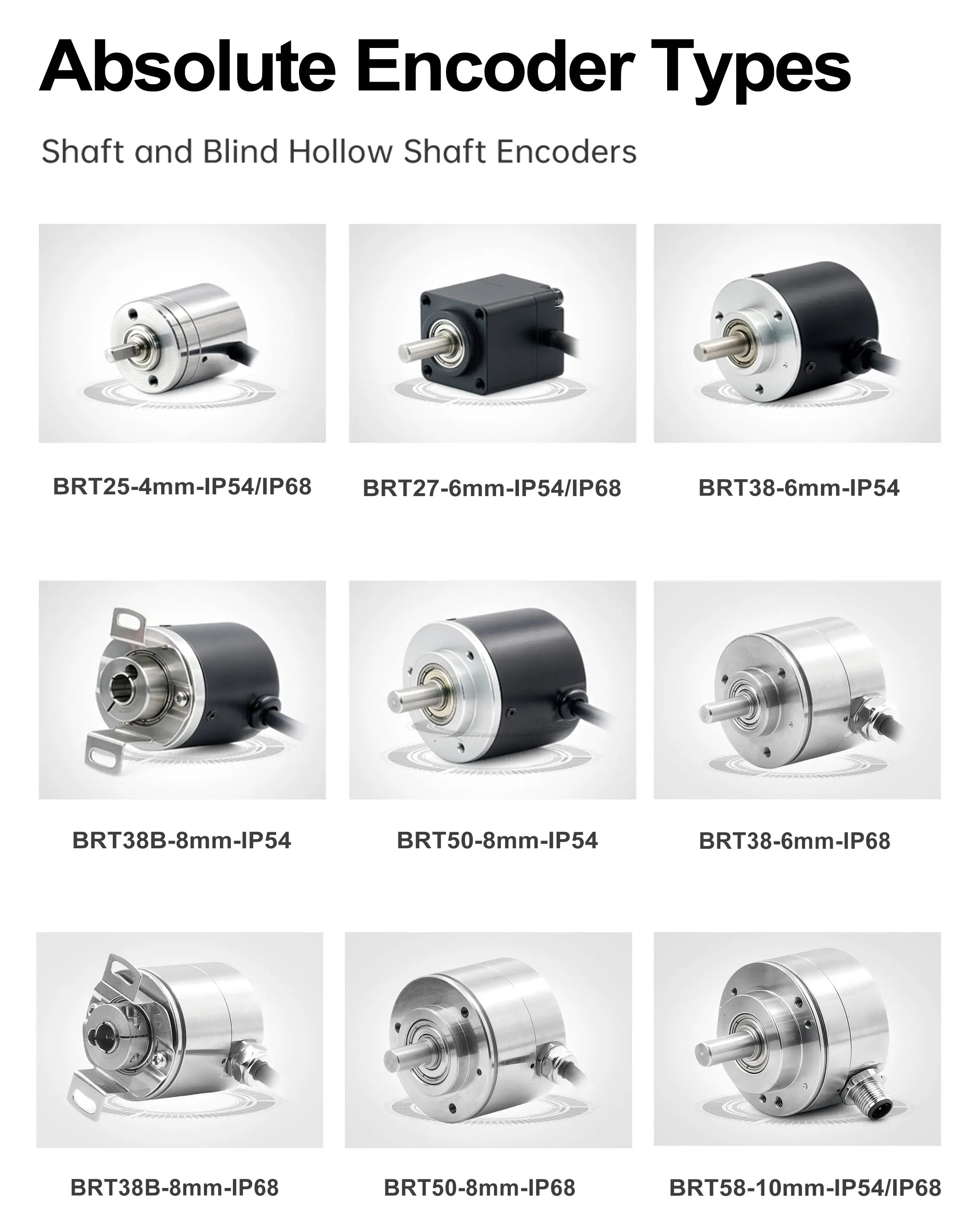

Single-turn and Multi-turn Absolute Rotary Encoder
Clarifying a common misconception: A single-turn encoder does not mechanically limit to one turn, and a multi-turn encoder does not mechanically limit to multiple turns. The key difference lies in their power-off memory range.
Single-turn encoders can mechanically rotate endlessly but retain position data only within one turn. Multi-turn encoders, while also mechanically unlimited, retain position data across multiple turns. This makes multi-turn encoders ideal for applications needing accurate position recovery over multiple turns.
Key features
• Power-off memory: 0° to 360° range with absolute position tracking and power-off memory.
• Absolute Multi-Turn: Delivers precise position data across multiple turns.
• Power-Off Memory: Maintains position information even after power loss.

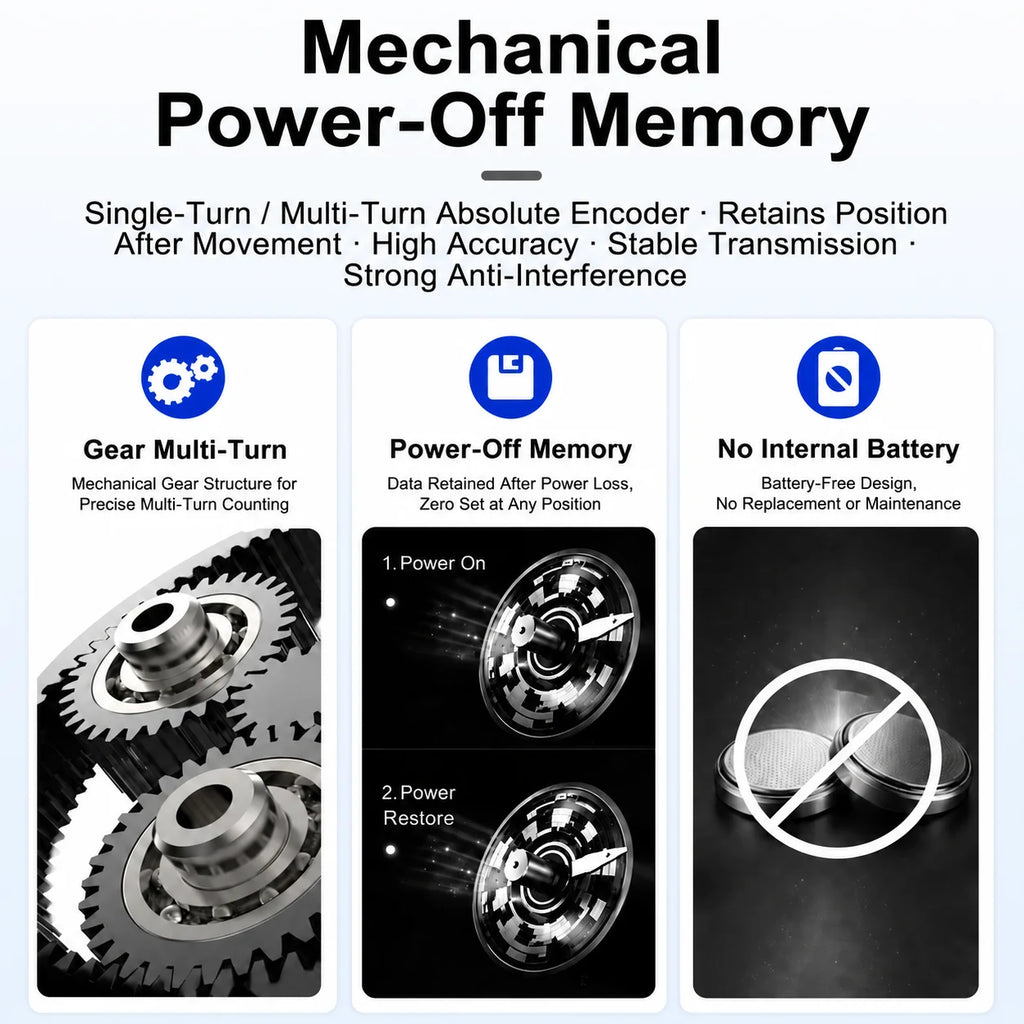

• Mechanical Gear Count: Utilizes mechanical gears for counting turns, eliminating the need for an internal battery.
• High Resolution: 17-bit resolution with 0.07° accuracy.
• Compact Design: With a minimum outer diameter of just 39mm, this industrial-grade encoder is built to endure tough environments.

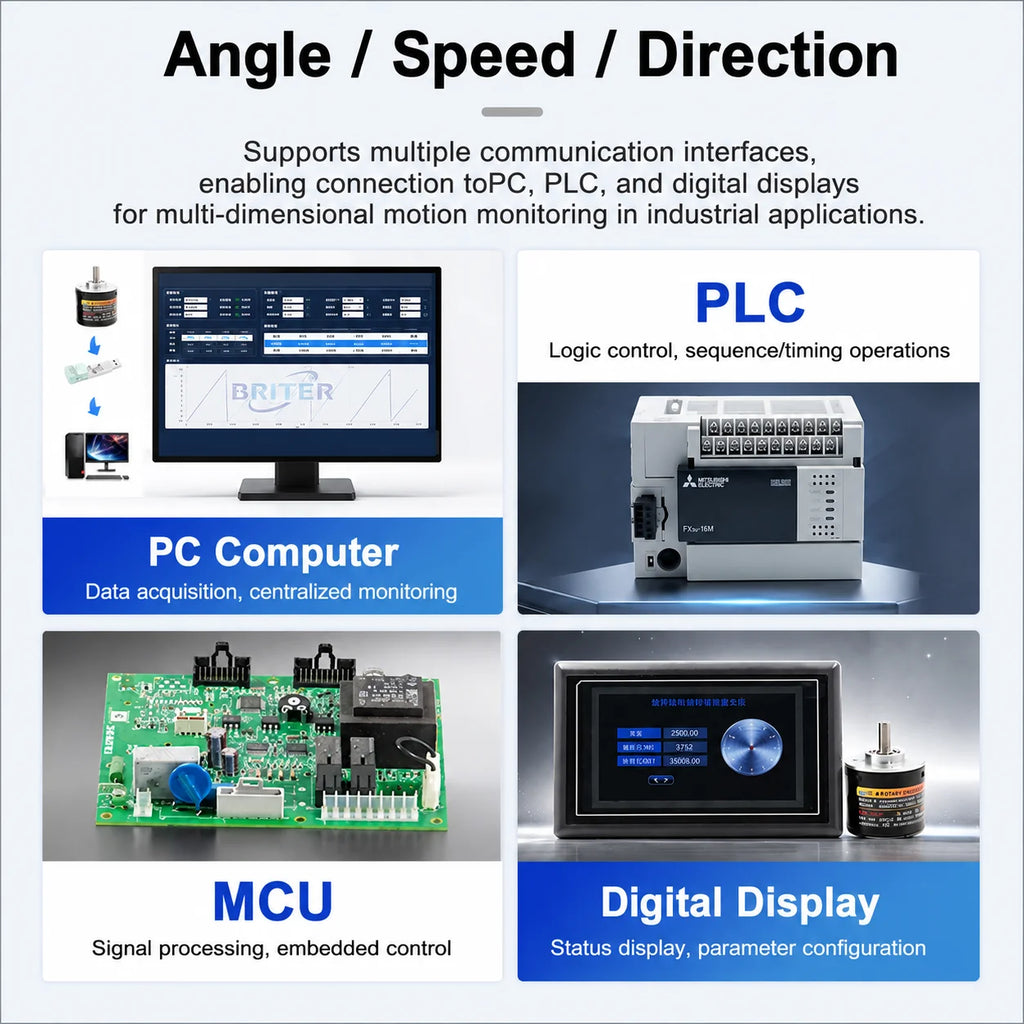

• Data Interfaces: Equipped with SSI, CANopen, CANbus, RS485 Modbus RTU, RS232 Modbus RTU, Analog 4-20mA, Analog 0-5V, Analog 0-10V, SPI, BISS for versatile connectivity and integration.

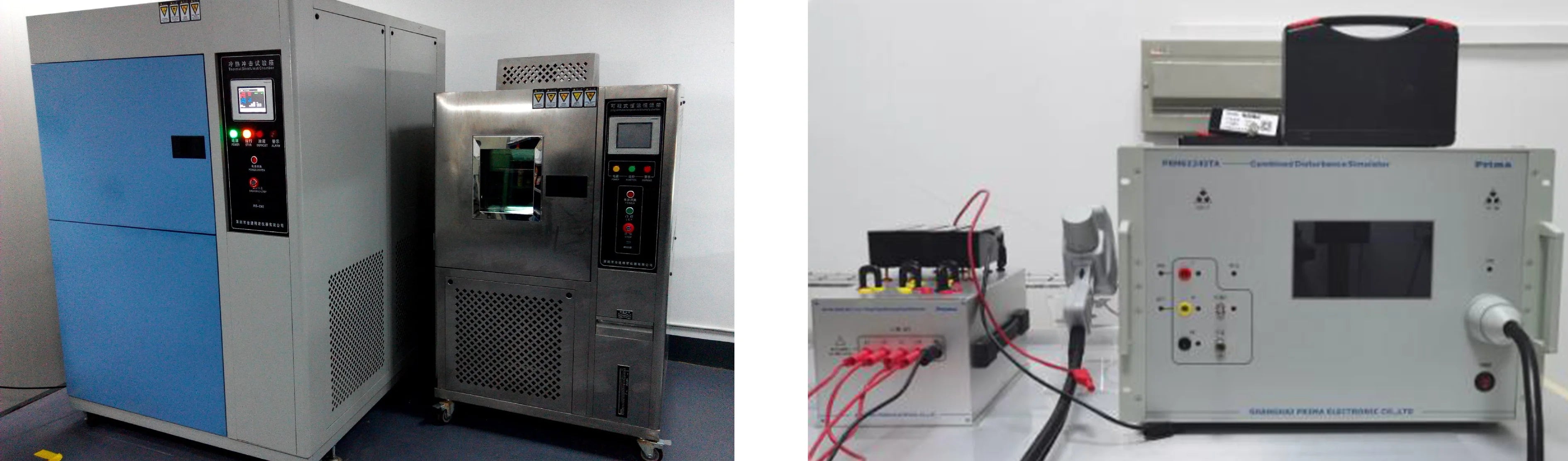

• Wide Voltage Compatibility: Engineered to operate under various voltage conditions and has passed rigorous EMC testing, ensuring strong anti-interference capabilities.

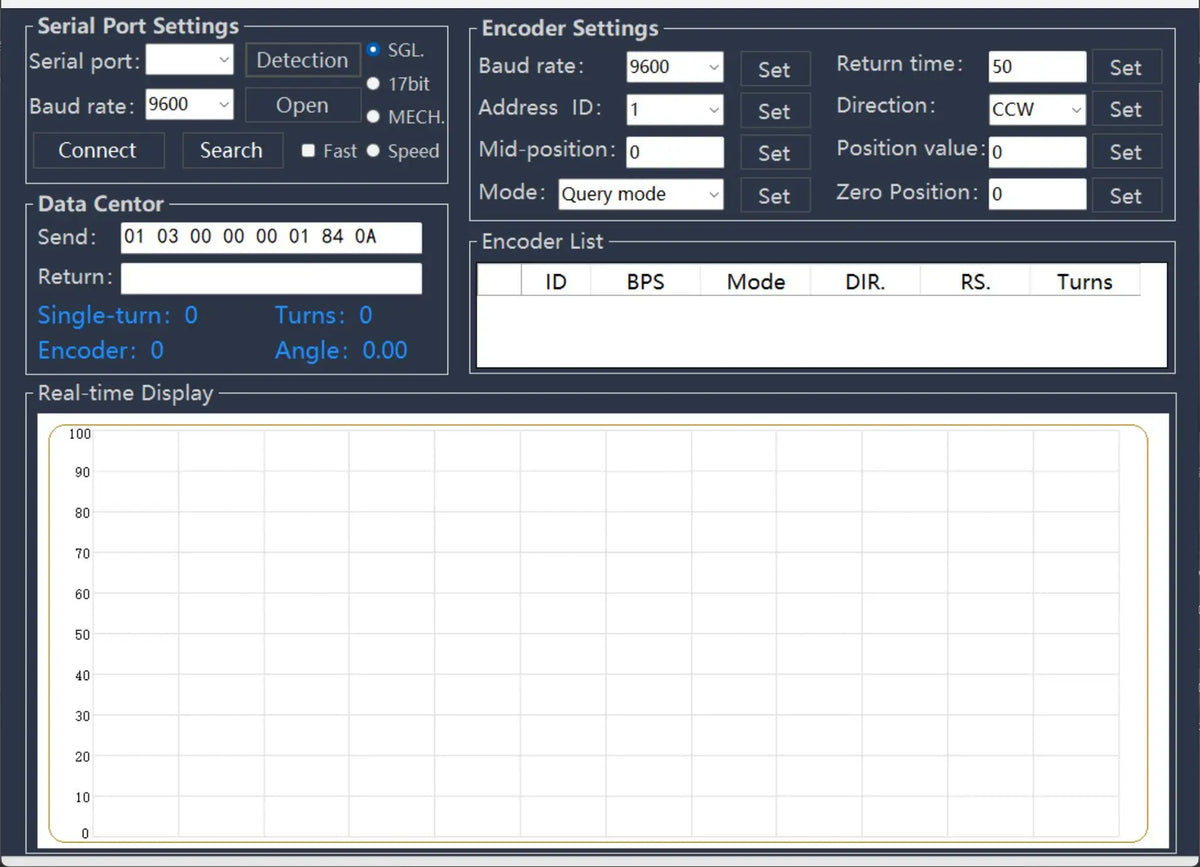

• User-Friendly Configuration: Parameter settings are easily managed via communication protocols and upper computer software, making setup intuitive and straightforward.
• Flexible Operation Modes: Supports both query and automatic return modes for real-time position and speed feedback. Programmable features include baud rate, setting position, counting direction, and speed feedback.
• Compact and Cost-Effective: Space-saving design with high performance at a competitive price.
• Rugged and Reliable: Magnetic sensors endure harsh environments.
