SPECIFICATIONS

Brand Name: NONE

Condition: New

Feature 1: RP2350 Development Board

Feature 10: Embedded Control Module

Feature 2: For Raspberry Pi Pico 2 Compatible Board

Feature 3: Microcontroller Board

Feature 4: MCU Development Board

Feature 5: TYPE-C Development Board

Feature 6: USB-A Expansion Board

Feature 7: W25Q16 Flash Board

Feature 8: Reset Boot Button Development Board

Feature 9: Micro Python Programmable Board

High-concerned chemical: none

Operating Temperature: 0-50C

Origin: Mainland China

Package: SOP

Quantity: 1

Supply Voltage: 5V

Type: Module

is_customized: Yes

Product Features:

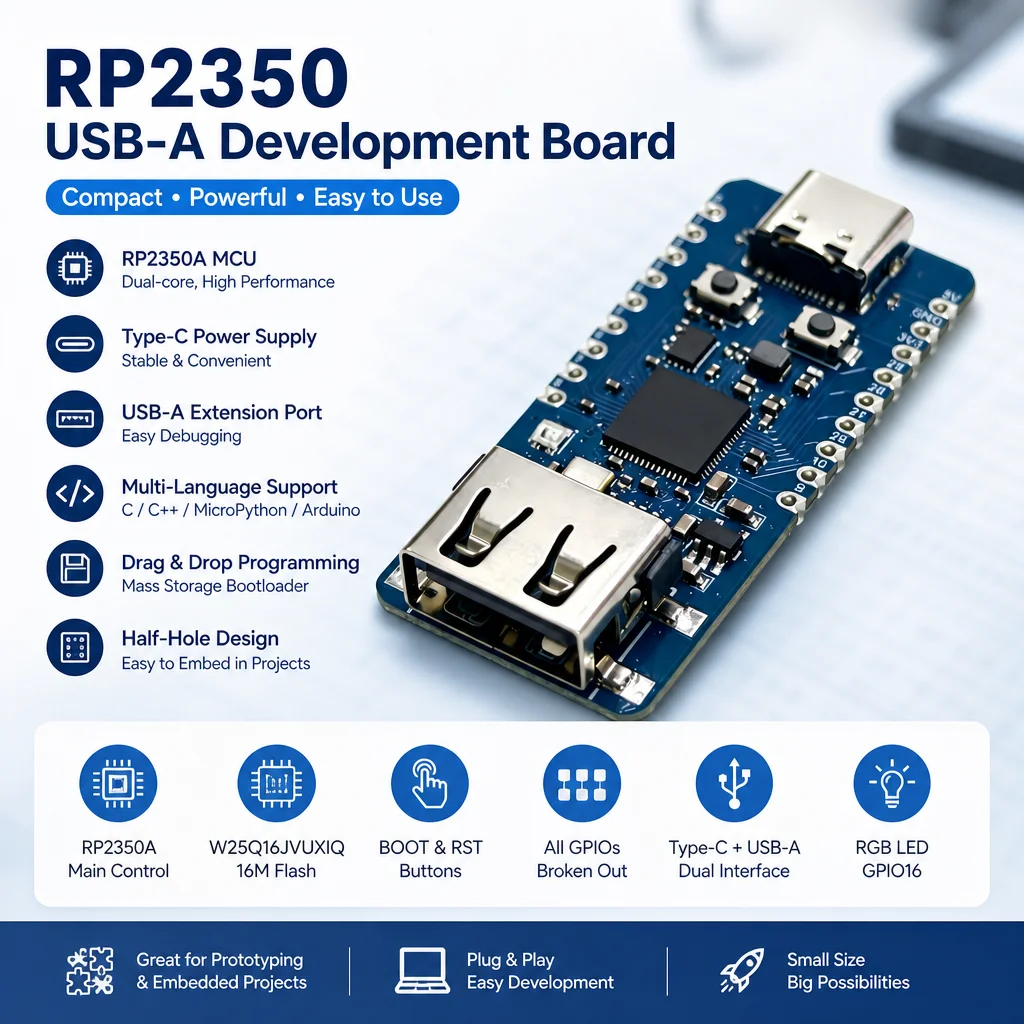

1. Equipped with RP2350A controller and onboard W25Q16 high-capacity Flash
2. Extract all IO, equipped with BOOT and RST function buttons
3. Type-C power supply, with built-in USB-A expansion interface for easy debugging
4. Support multilingual development, drag and drop files to quickly burn programs
5. Half hole miniaturization design, suitable for embedded control project development

Overview

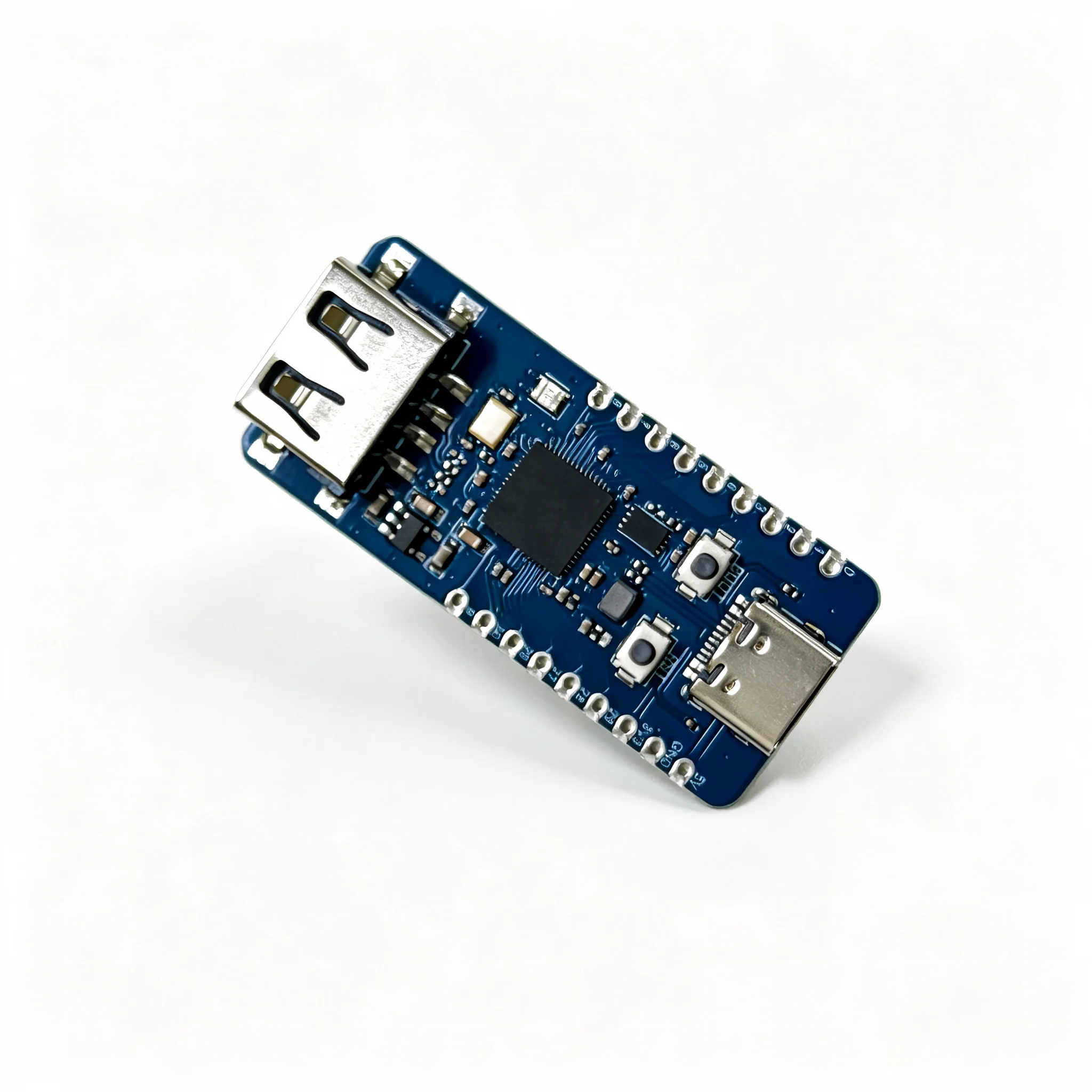

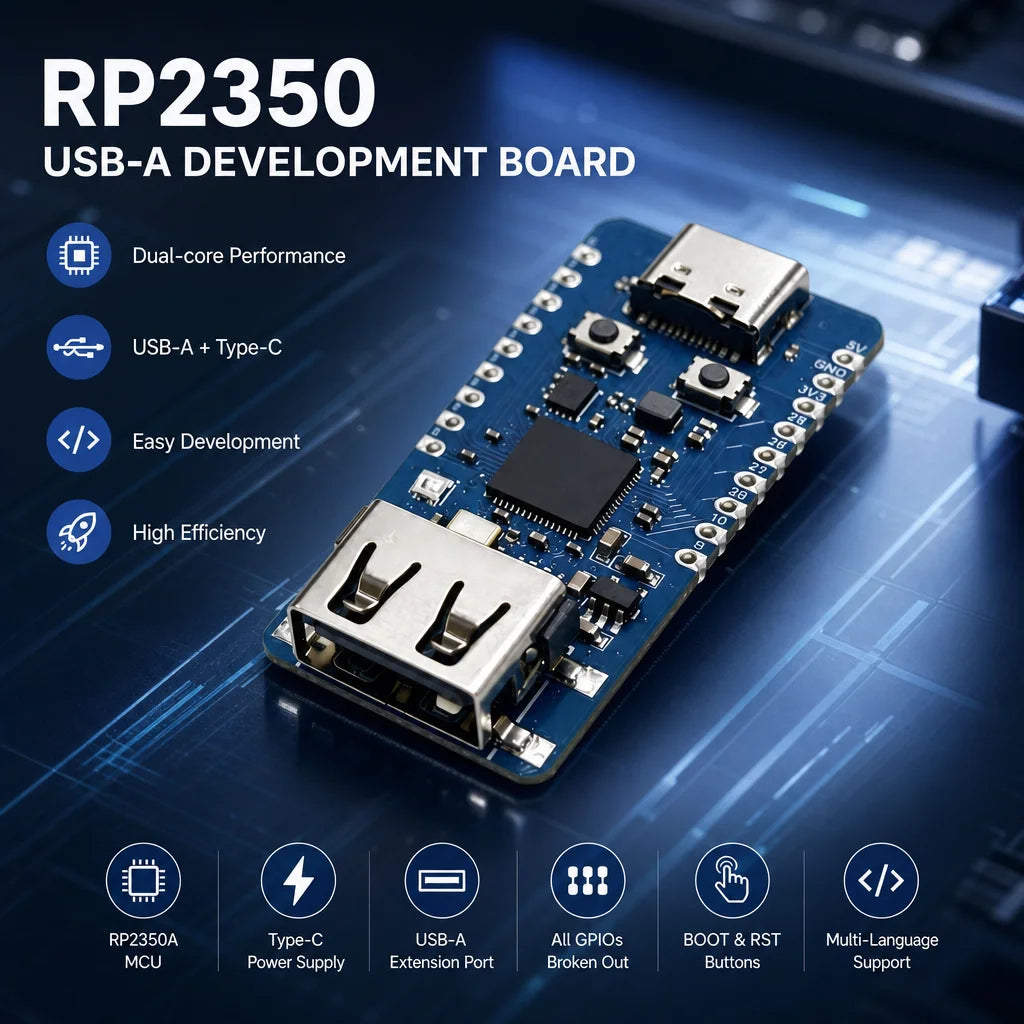

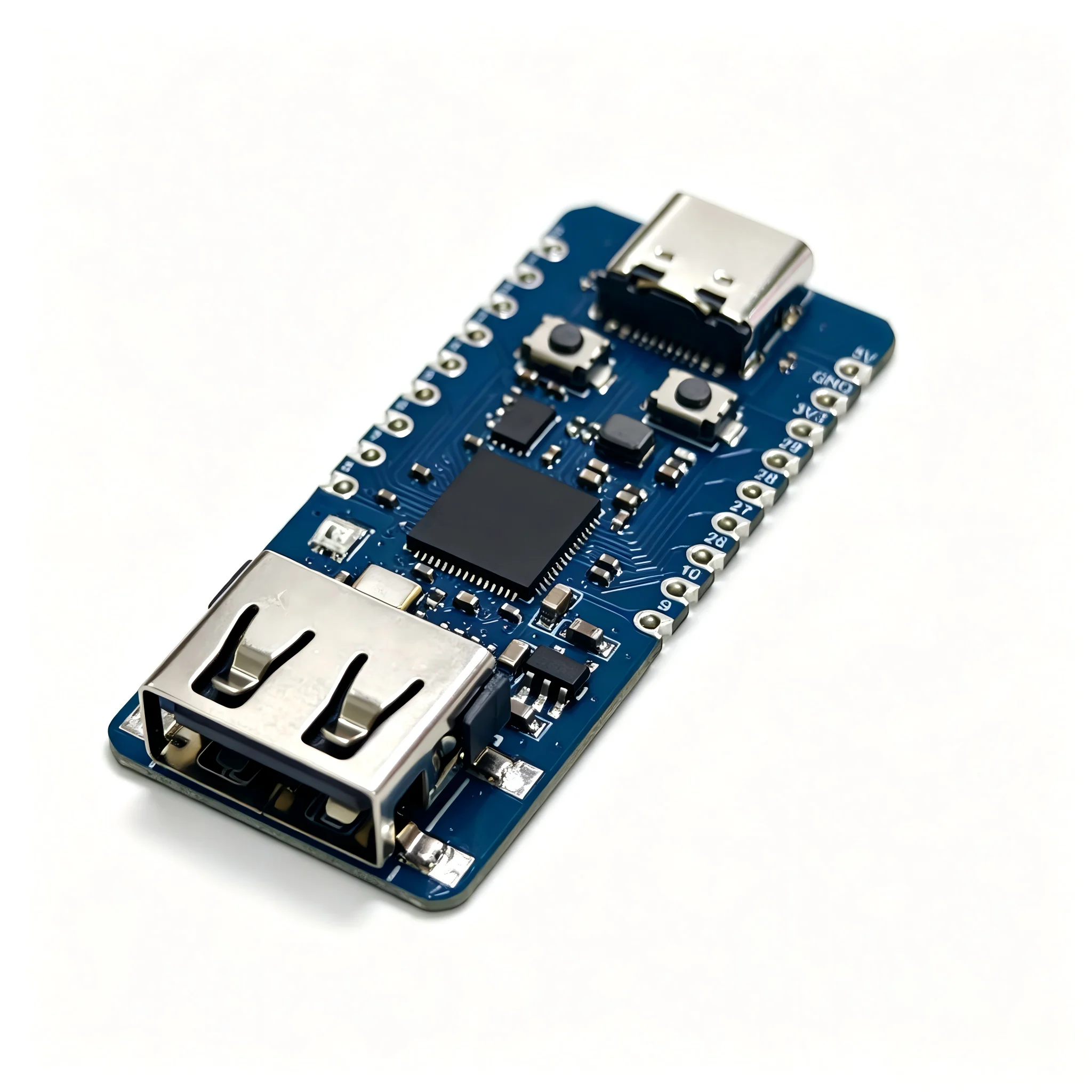

This RP2350_V2 USB expansion development board is developed based on RP2350A, with a small-sized FLASH-W25Q16JVUXIQ onboard. It uses a Type-C port, an IO port, and onboard BOOT and RST keys. There is also one USB expansion port onboard for easy user debugging. It supports various development environments such as C, C++, Micro Python, Ard, etc. The module can be recognized as a large capacity storage through USB for program burning.

Features:
IO port output and onboard BOOT and RST keys
FLASH-W25Q16JVUXIQ with small size and large capacity onboard
Supports multiple development environments such as C, C++, Micro Python, Ard, etc
Designed with half hole technology, it can be embedded and combined into various products
Support computer USB recognition, copy the program into a large capacity storage device to achieve burning
Onboard 1 USB expansion port

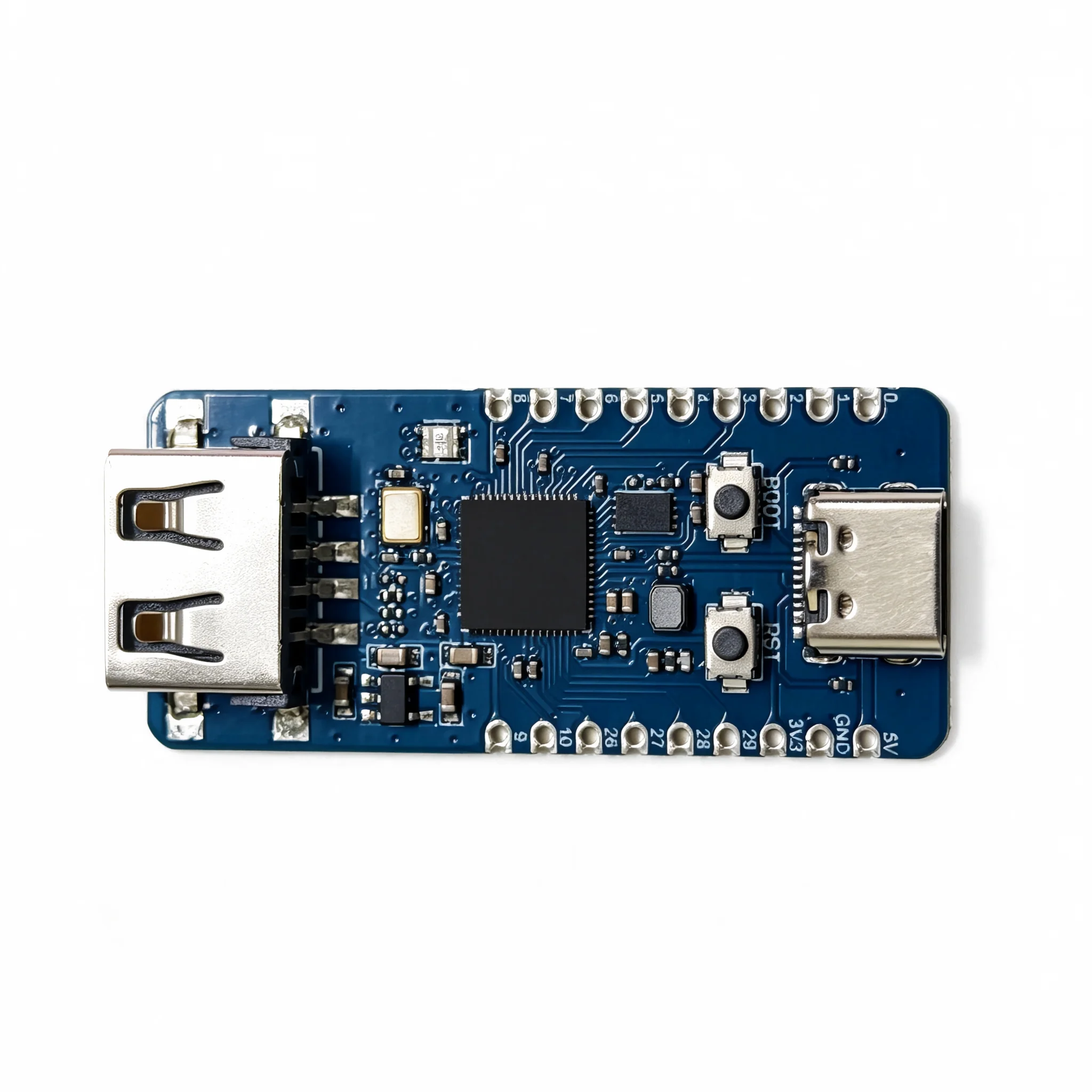

Product Parameters:
Interface: Type-C port, USB A port
RESET button: Reset button
BOOT button: Press it during reset to enter the burning module
FLASH with small size and large capacity: W25Q16JVUXIQ
MCU：RP2350A（LQFN-60）
RGB lights, GPIO16
USB-A interface, GPIO12,GPIO13
Voltage regulator chip
GPIO output port
Product size: 45mm * 20mm

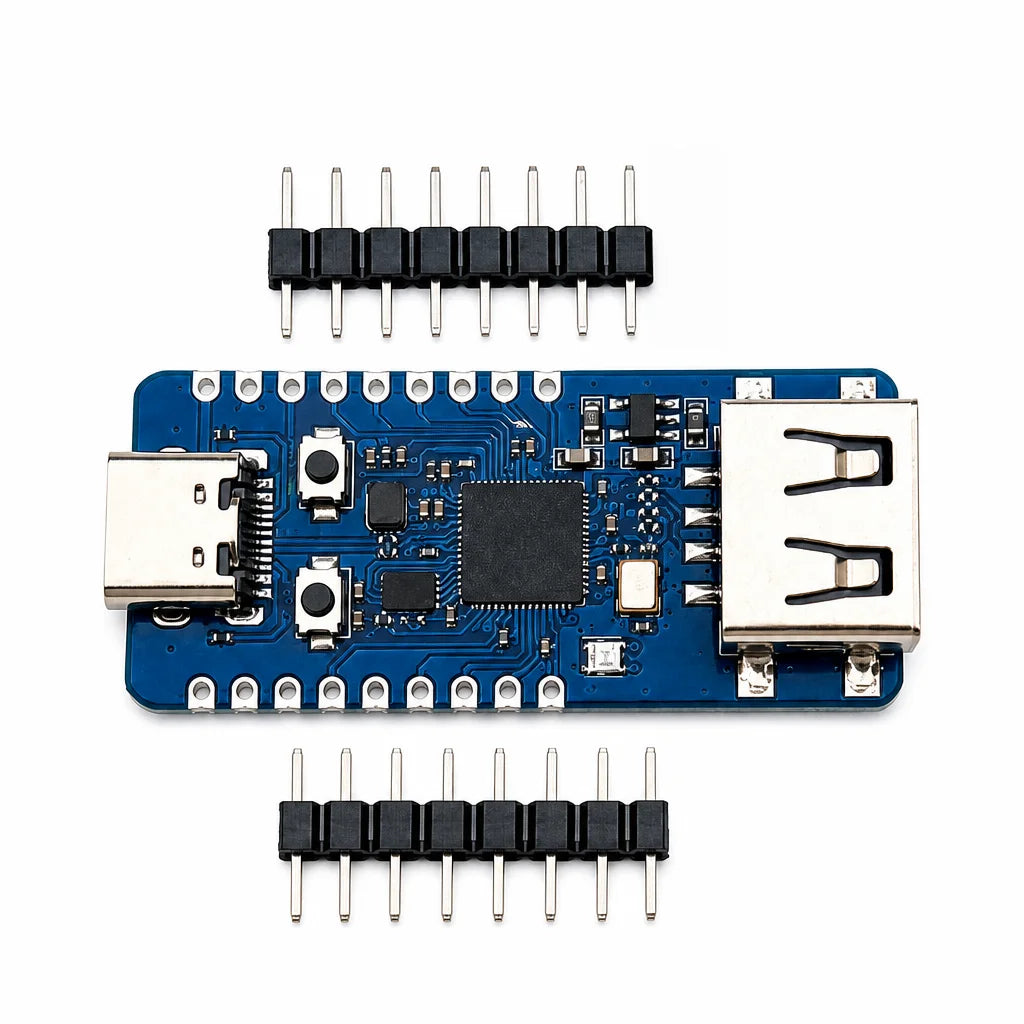

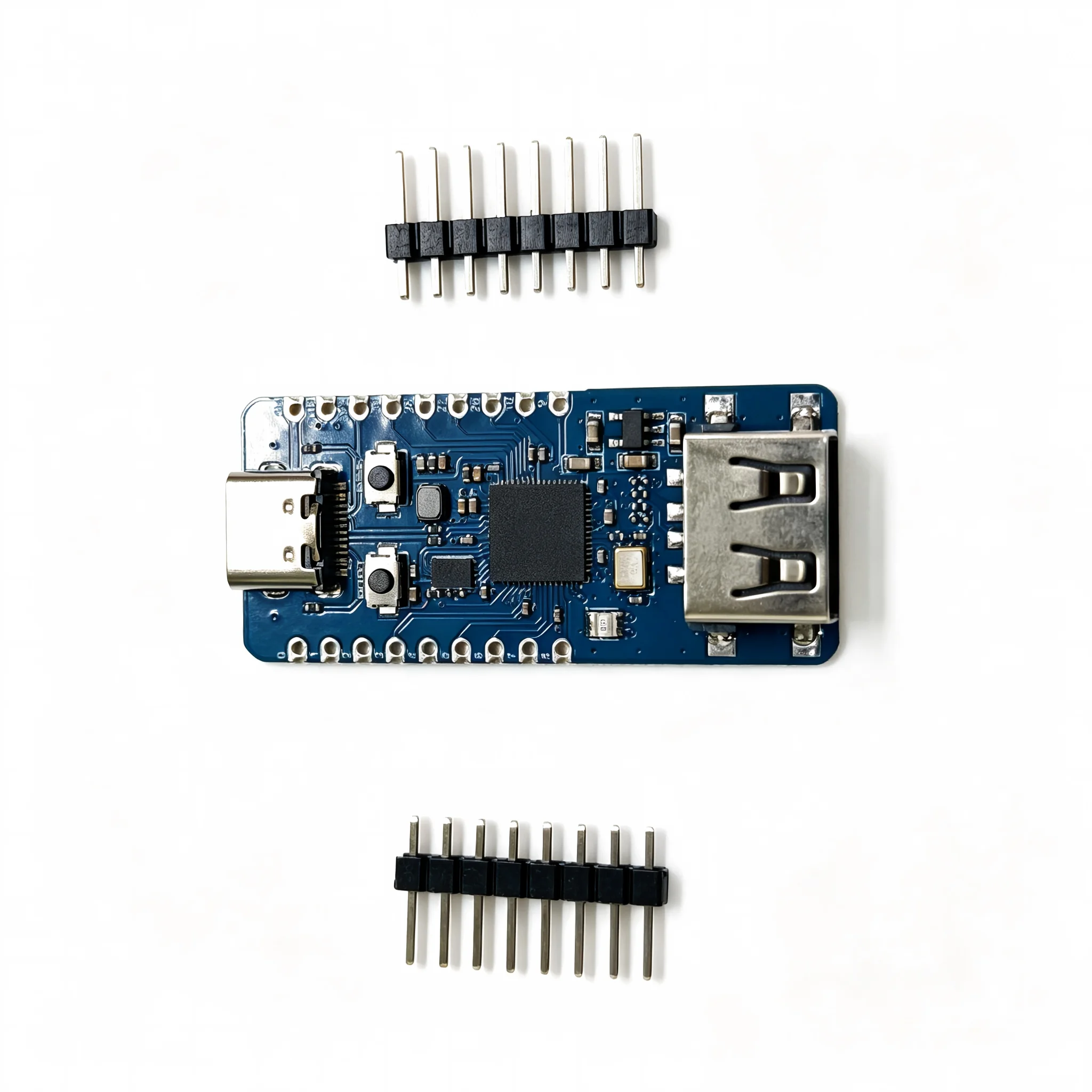

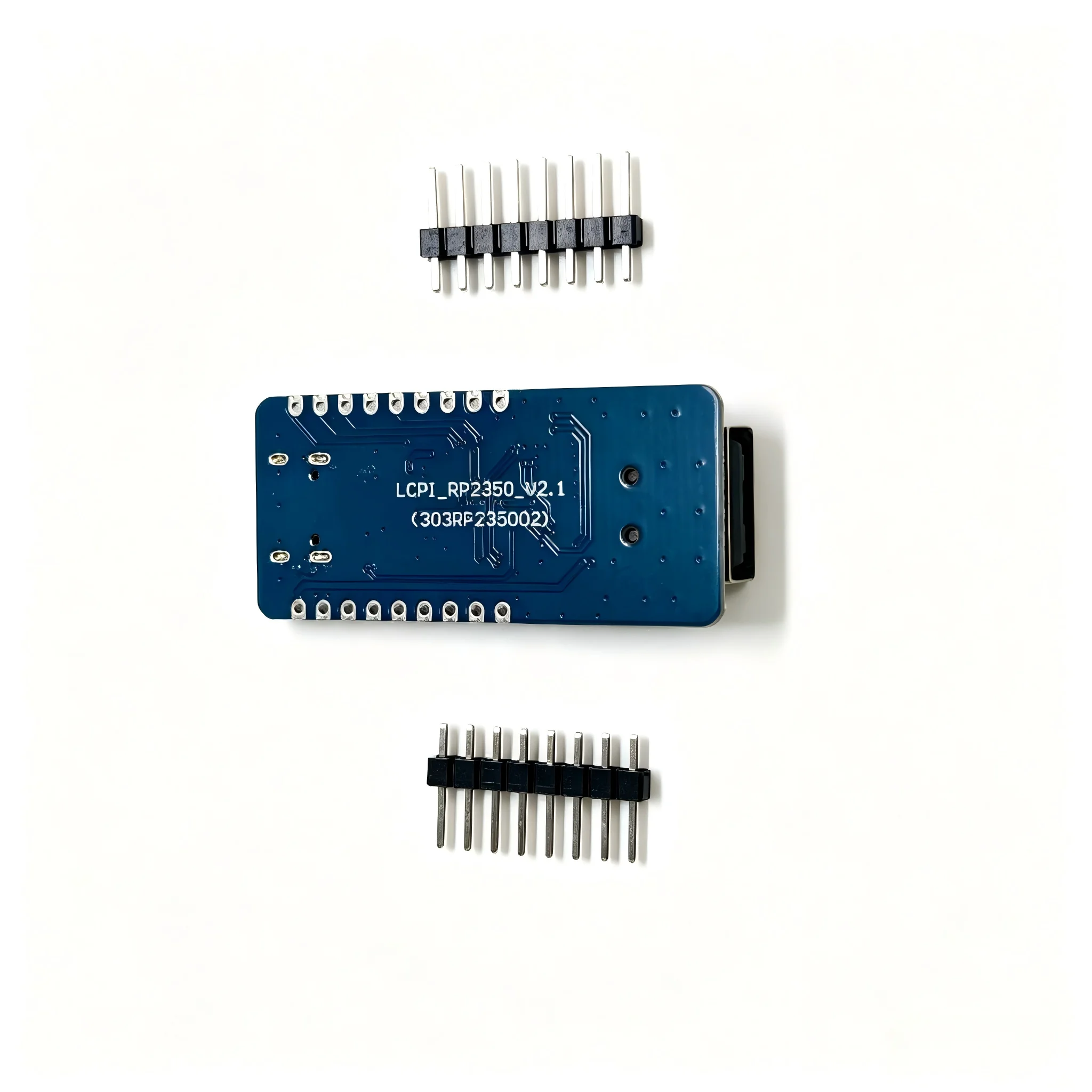

Product List:
1X development board
2X needle arrangement
