Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Color: Silver

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): Starting current above 2A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: /

High-concerned chemical: none

Model Number: 775

Origin: Mainland China

Output Power: ＜18.65,/

Protect Feature: /

Torque: /

Type: Micro Motor

Usage: Home Appliance

Use: Home Appliance

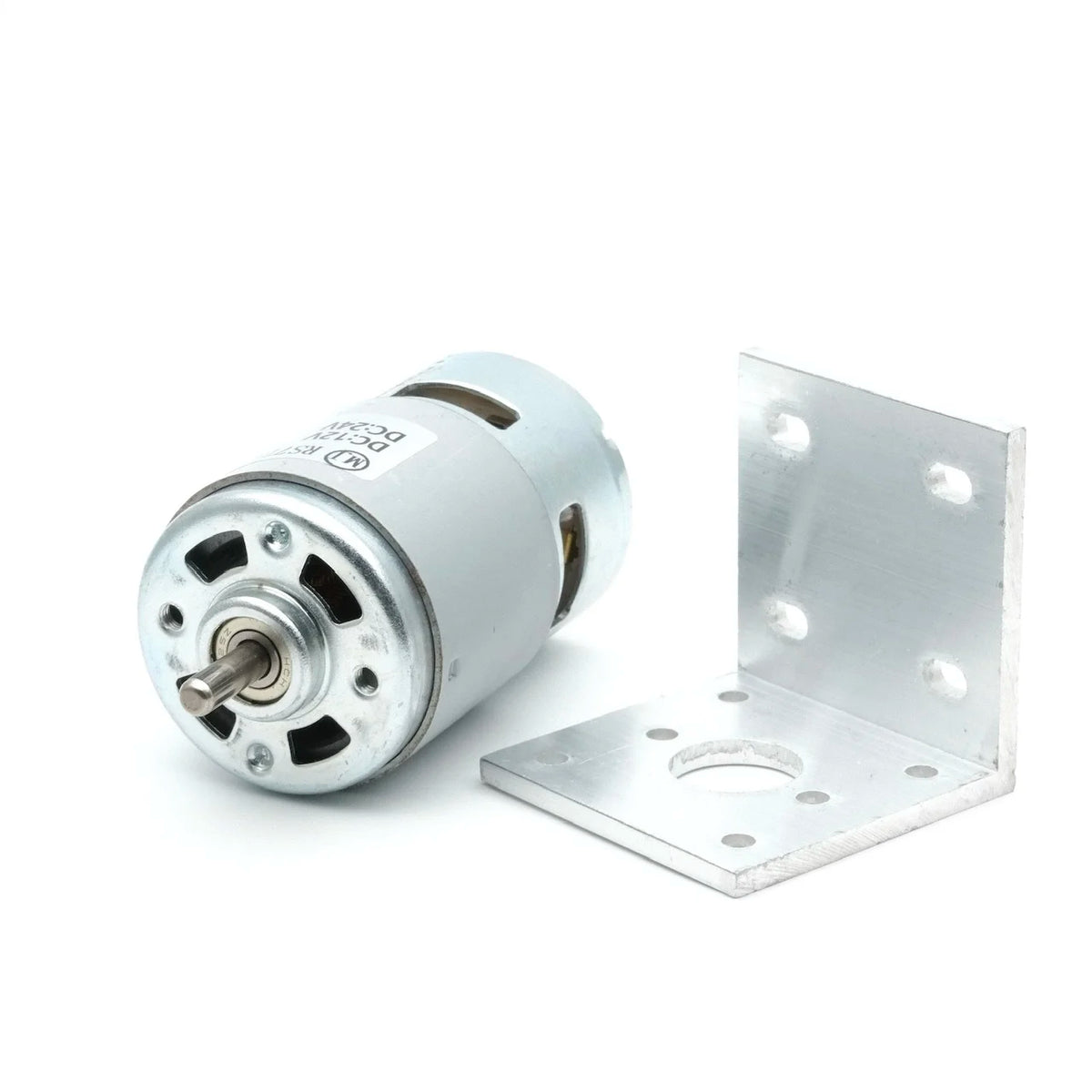

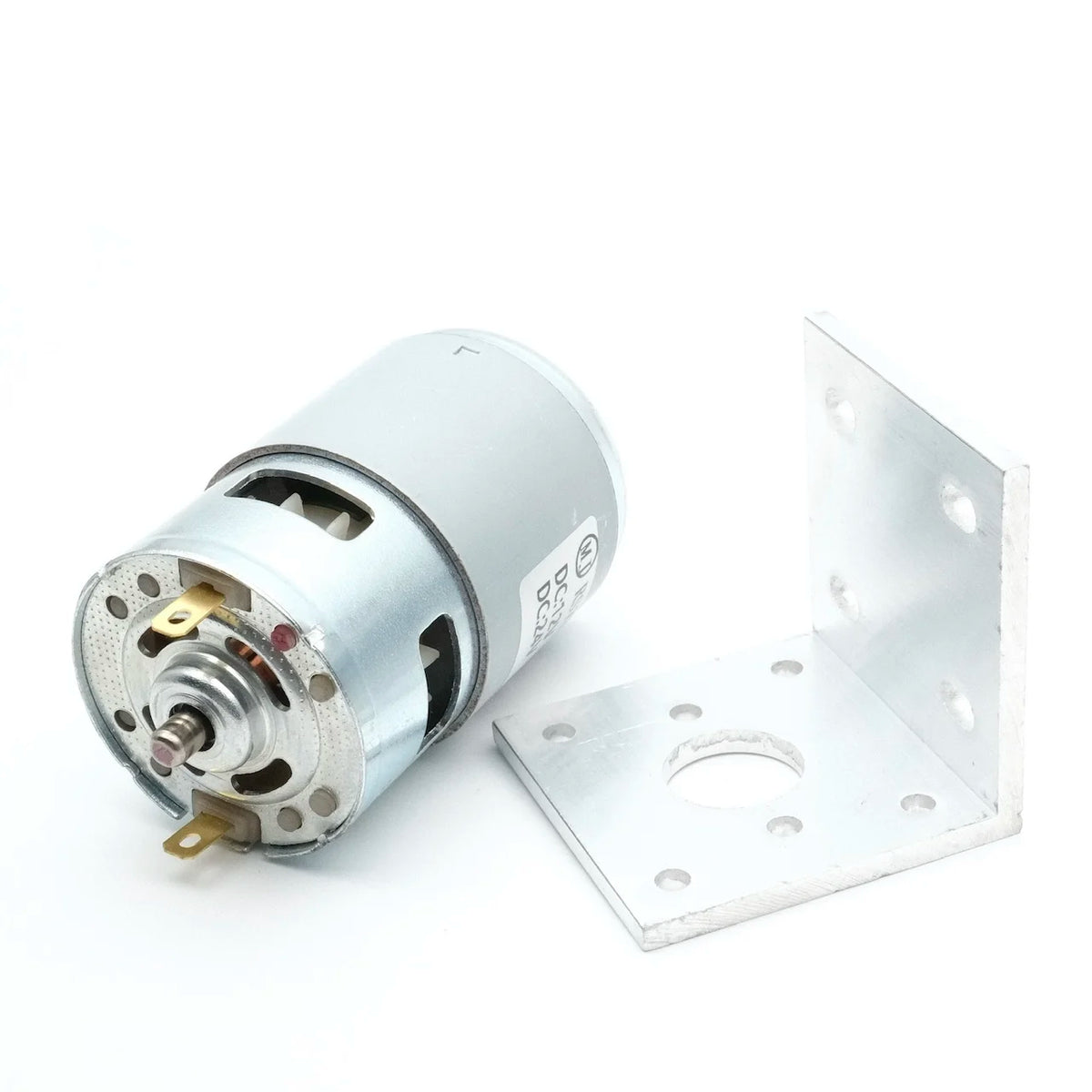

DC 12V-60V 3400-20000rpm Motor

Universal voltage: 12-60V

Voltage range explanation:
24V=DC12-24V universal
36V=DC12-36V universal
48V=DC12-48V General

Other speeds optional:

Speed / per minute
(DC12V): 3400 rpm 4750 rpm 5000 rpm 6000 rpm 10000 rpm 15000 rpm
(DC24V): 6800 rpm 9500 rpm 10000 rpm 12000 rpm 20000 rpm
(DC36V): 10000 rpm 20000 rpm
(DC48V): 10000 rpm 20000 rpm

No-load power: 20.4W
12V: about 3400-15000r / min
24V: about 6800-20000r / min
36V: about 10000-20000r / min
48V: about 10000-20000r / min
Shaft length: 12mm
Shaft diameter: 5mm
No-load current: 1.7A (starting current 2.2A)
Rated current: 4.7A
Weight: 0.35KG

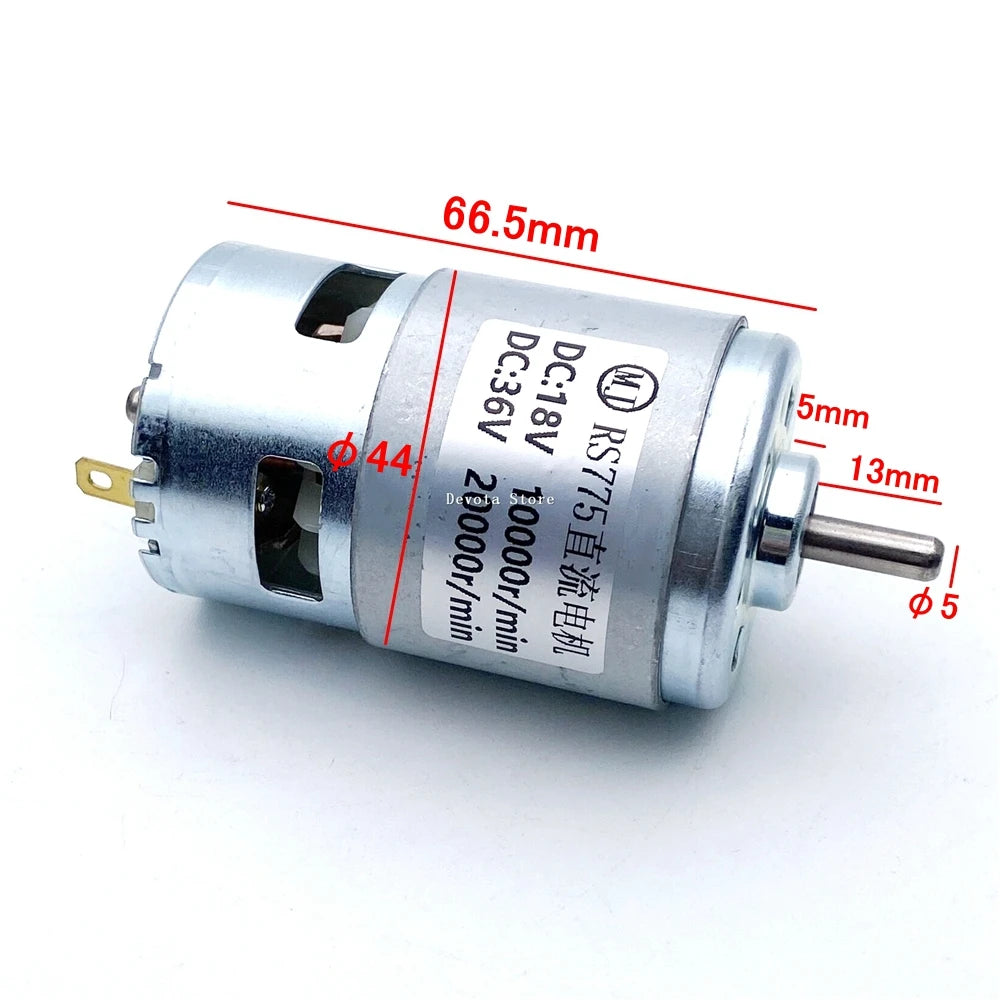

Dimensions: outer diameter 44mm, length 66.5mm

Note: The DC motor cannot work continuously; the test run is feasible for 35 minutes, and there is no actual test at the specific time.

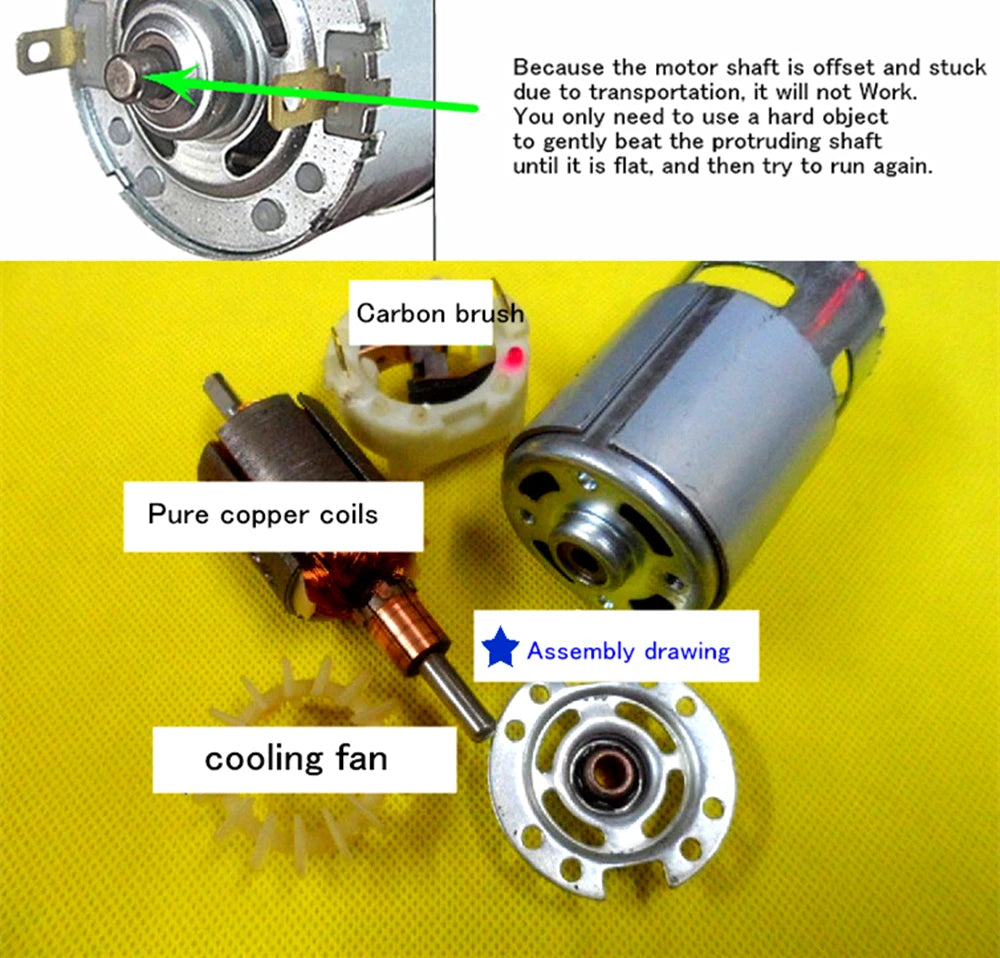

The motor does not rotate for the following reasons:
The starting current of this motor is more than 2A, and it needs more than 6A at high speed;
Maybe you need to replace the DC power supply with a large one.
