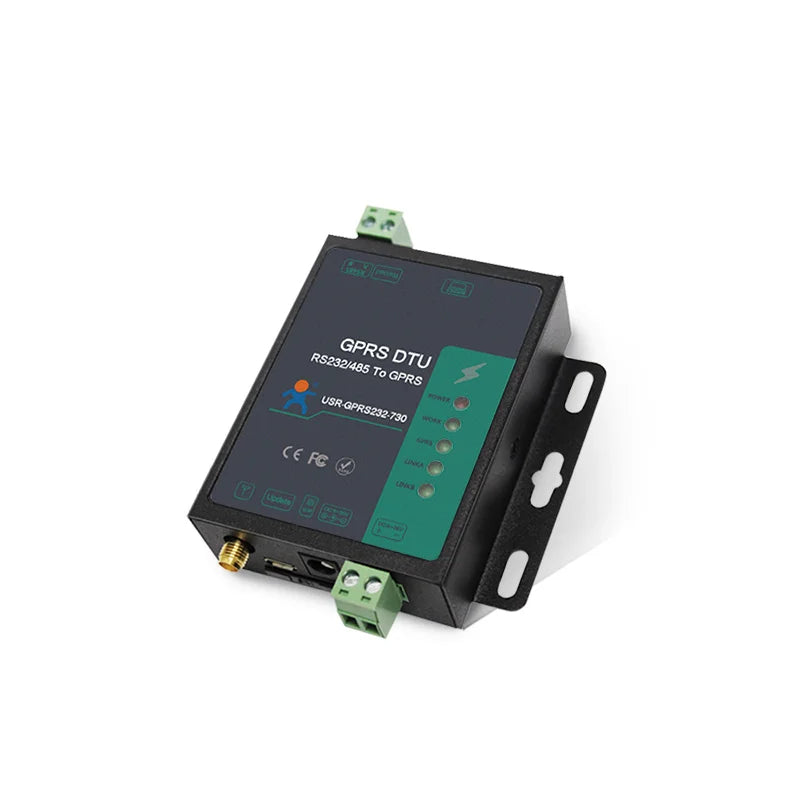

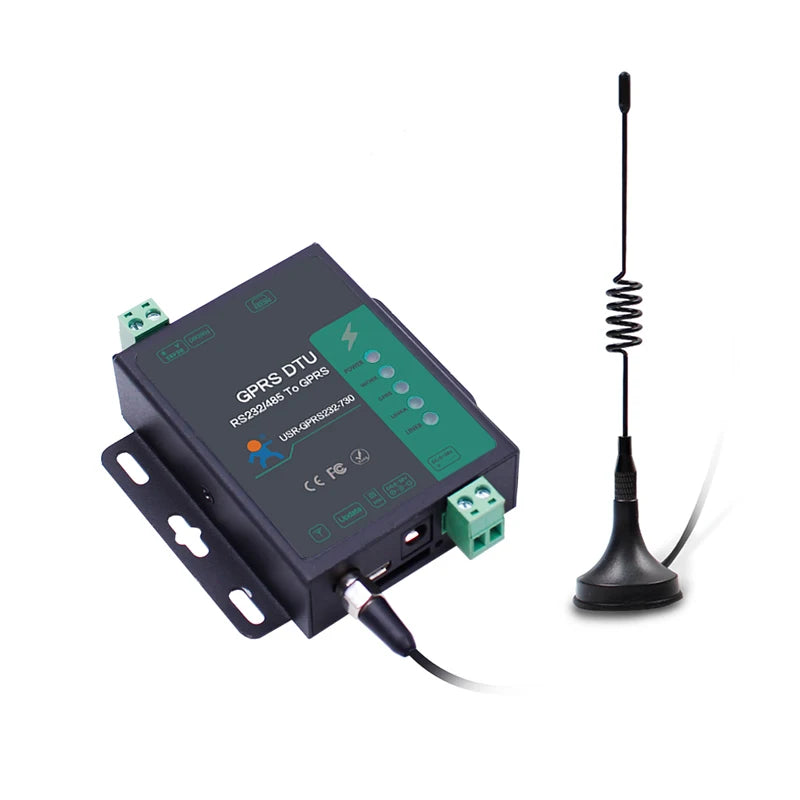

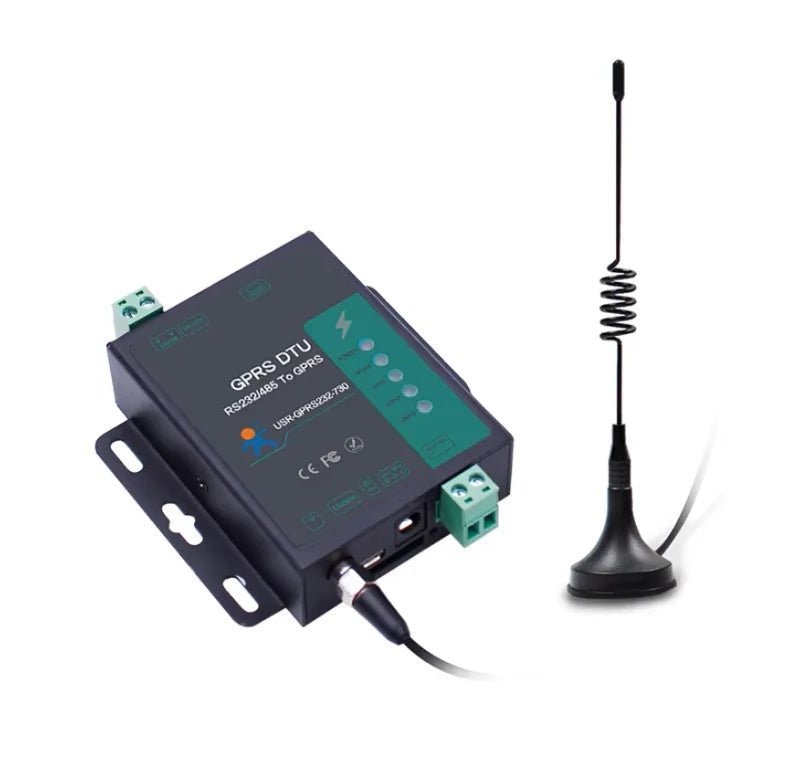

RS232+485 Serial to GPRS DTU GSM Wireless Transmission Module USR-GPRS232-G730

RS232+485 Serial to GPRS DTU GSM Wireless Transmission Module USR-GPRS232-G730

$79.16

$79.16 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE,CE

High-concerned chemical: none

Model Number: USR-GPRS232-G730

Origin: Mainland China,Mainland China

Smart home platform: NONE,NONE

Introduction of GSM Modem RS232/RS485

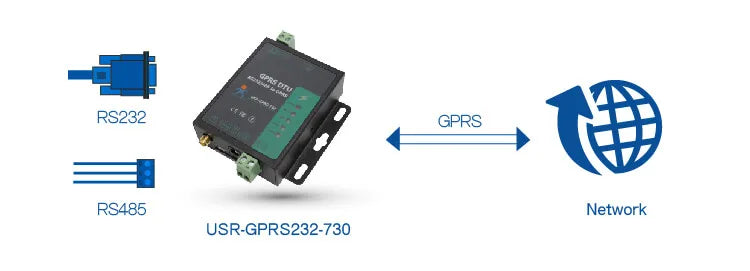

Industrial Serial to IP cellular GPRS modem which convert the serial data RS232/485 into IP data and then transfer to data center through GPRS 2.5G mobile network. USR-GPRS232-730 is based on USR-GM3. Can use this product to realize bidirectional transparent transmission from serial port to network through simple AT command.

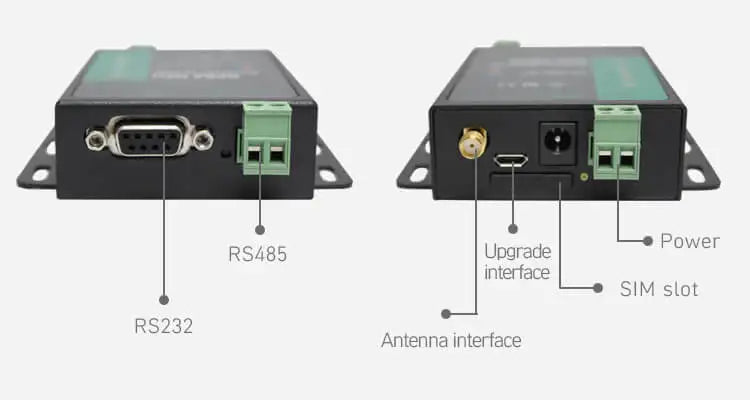

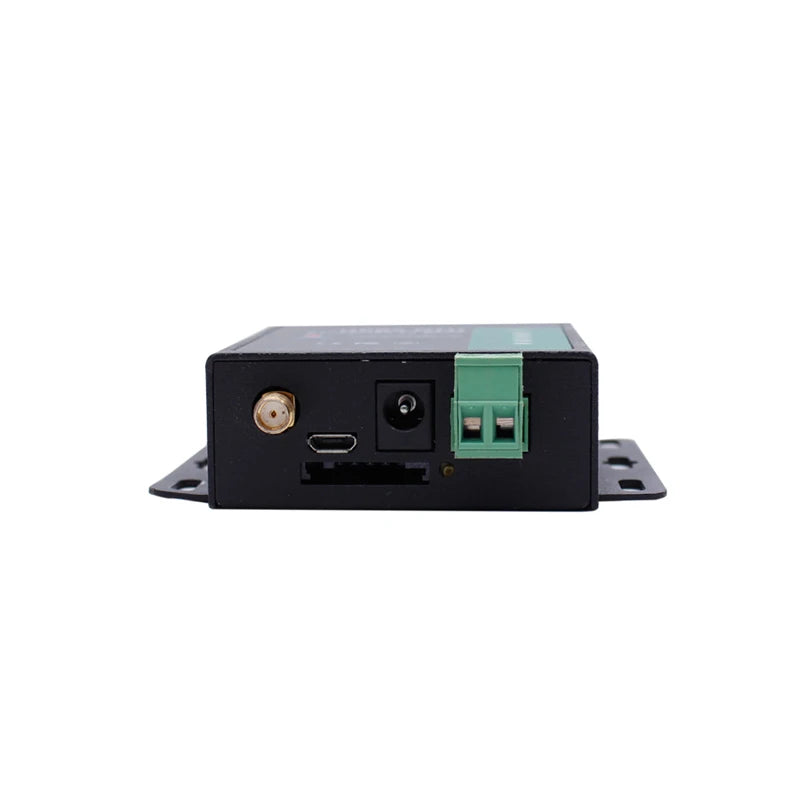

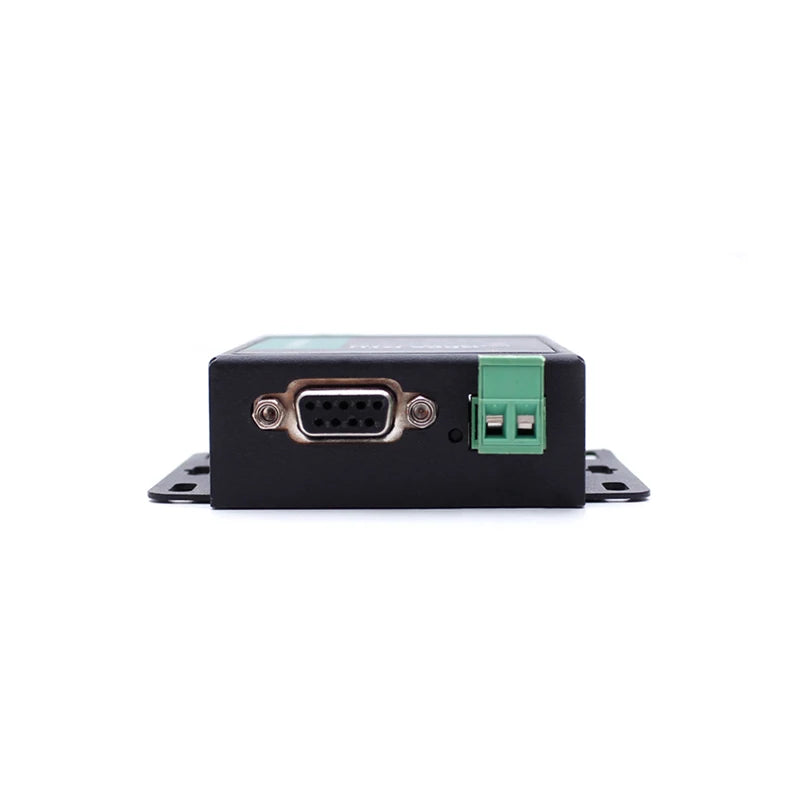

Port of RS232/RS485 Industrial Modem USR-TCP232-730Features of RS232 / RS485 Cellular Modem USR-TCP232-730

RS232 or RS485 interface, can’t be used at one time

2G Frequency: GSM850/900,DCS1800/1900, 2G GSM/GPRS

Work Mode: TCP and UDP Client

Supports register packet and heartbeat packet

Can be remote configurated via SMS

Support multi work modes : SMS transmission mode,network transmission mode and httpsD mode

Support basic instruction set and extension instruction set

Hardware flow control RTS/CTS

Functions of RS232 / RS485 Modem GSM USR-TCP232-730

Network Transmission

Bidirectional transparent transmission between modem and network

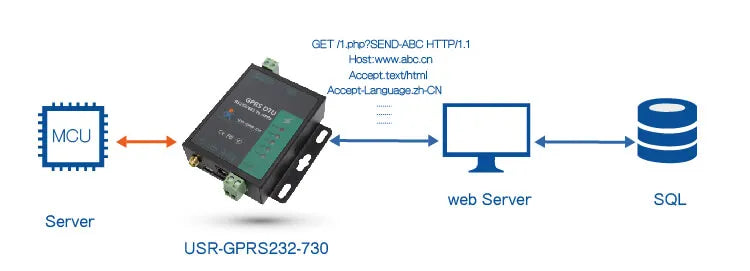

httpsD Client

Support serial data https(GET/POST) to submit to the specified server.

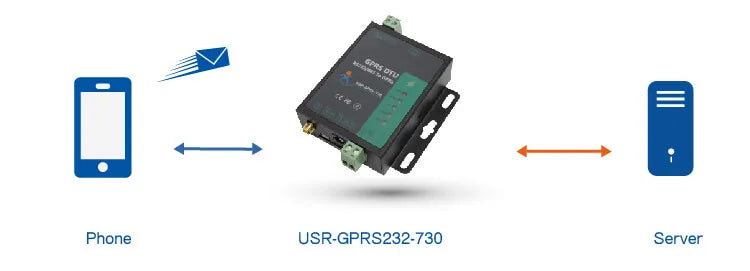

SMS Transmission

To achieve transparent communication between mobile phones and serial devices.

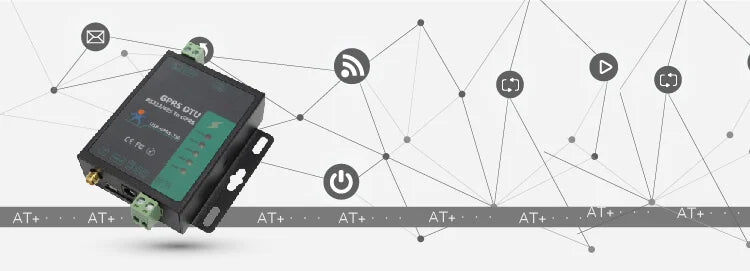

At Command

Support AT command query and set the parameters via- serial, network, SMS.

Application of RS232 / RS485 M2M Modem USR-TCP232-730

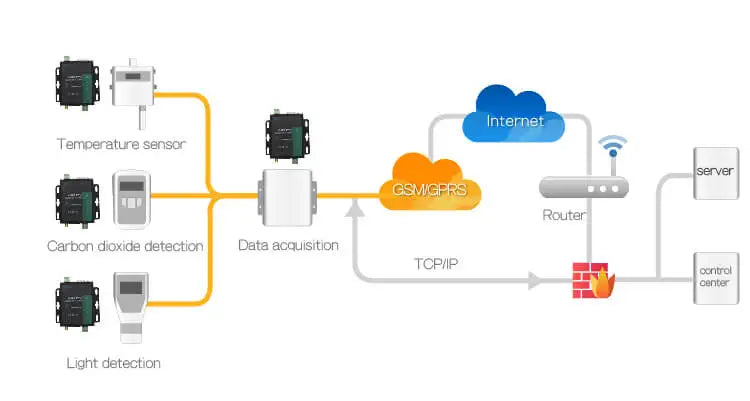

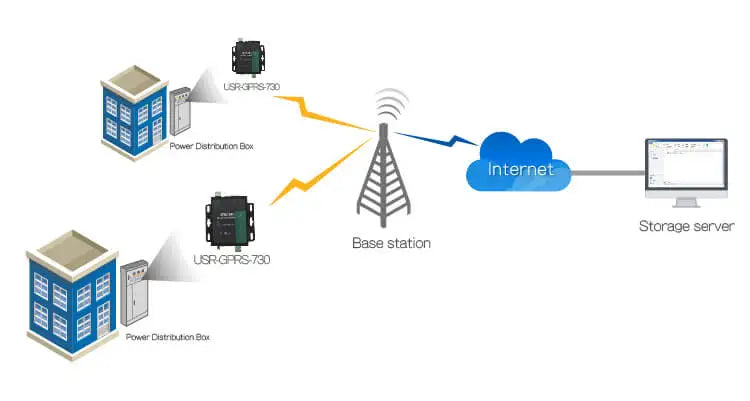

Data Acquisition of Intelligent Electricity

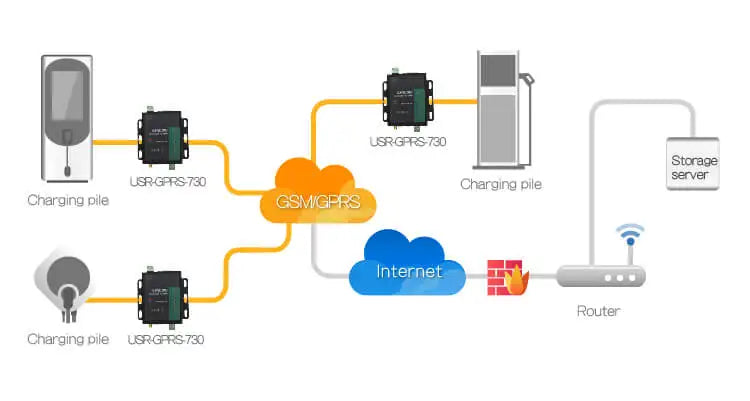

Real-time Data Transmission of Charging Piles

Environmental Monitoring of Agricultural Networking

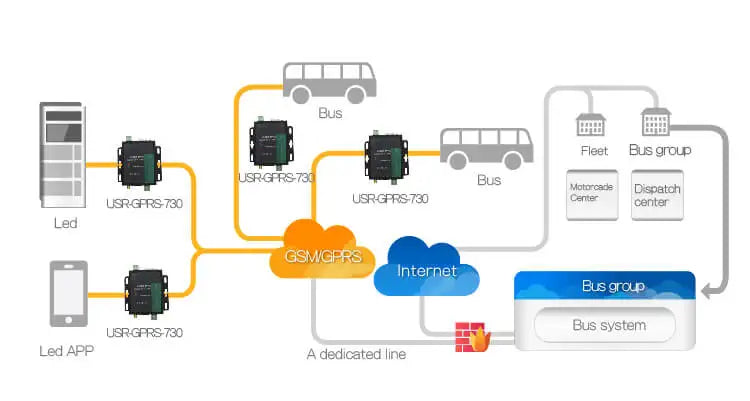

Real-time Data Collection of Urban Public Transport

Power industry: power remote meter reading, substation monitoring, power line monitoring

Municipal industry: street lamp remote monitoring management, pipe network remote monitoring, urban energy consumption monitoring

Oil industry: remote monitoring of oil-gas well, GPRS remote oilfield automation detection monitoring system, Gas pipe network monitoring system solutions

Environmental protection industry: pollution sources monitoring, atmospheric environment monitoring, noise monitoring, dust monitoring

Agricultural application: greenhouse remote monitoring and management, aquaculture monitoring management, agricultural water pump monitoring management

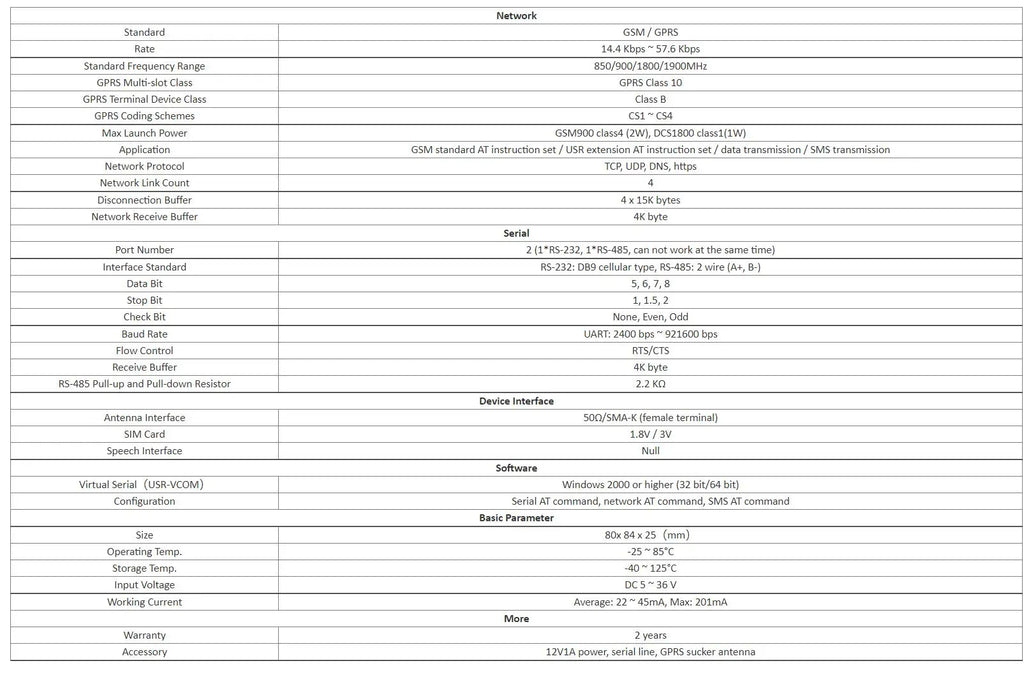

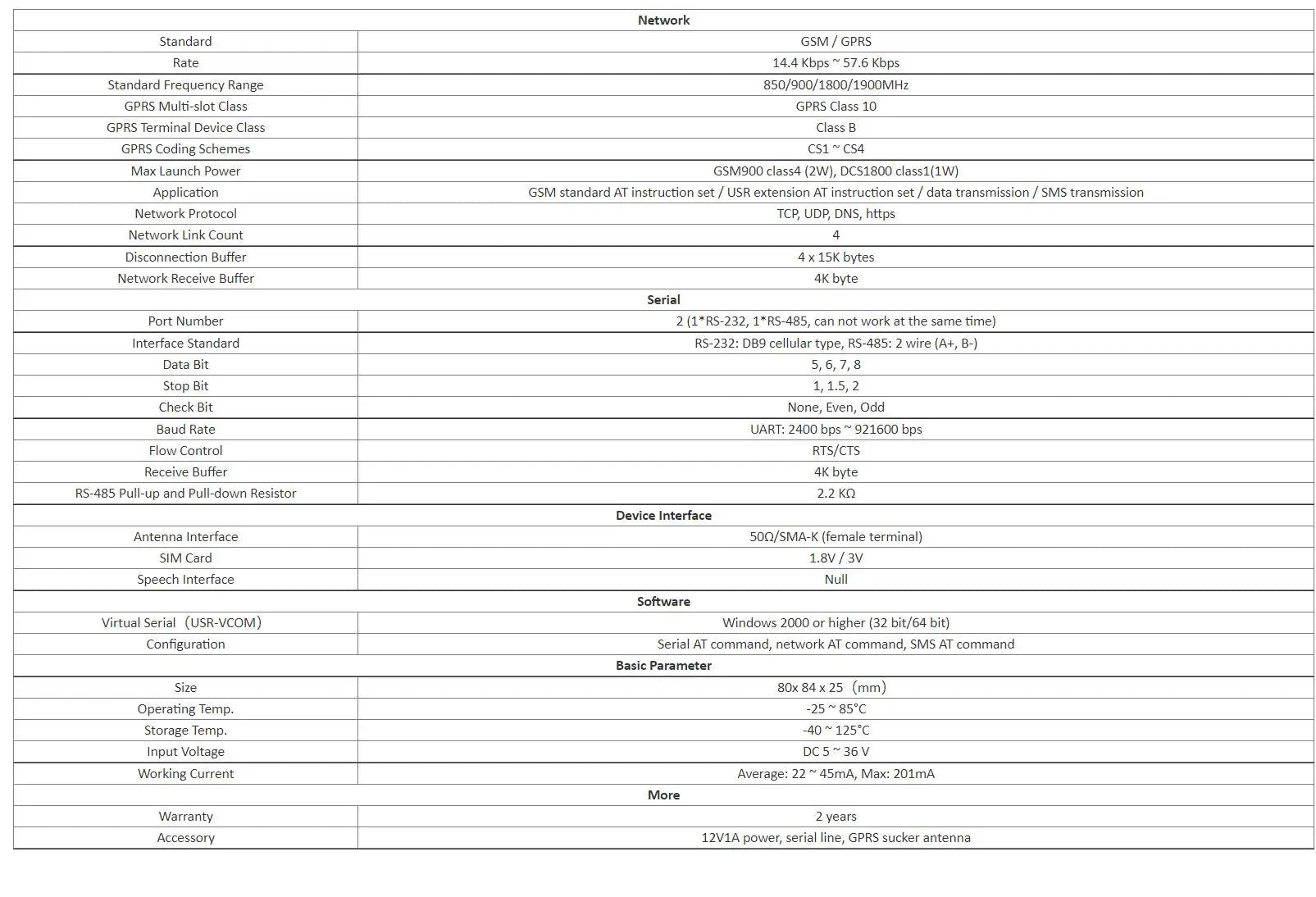

Specification:
