RS232 Interface Near Infrared Adapter IR IRDA Converter CP2102 Transparent Transmission IEC62056-21 IEC1107 DLMS MODBUS Cable
2.0m
$135.59
Sale price
$135.59
Regular price
$0.00
Skip to product information
RS232 Interface Near Infrared Adapter IR IRDA Converter CP2102 Transparent Transmission IEC62056-21 IEC1107 DLMS MODBUS Cable
$135.59
Sale price
$135.59
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: YIDAMA-TONGLE
Certification: CE,RoHS
Chip: CP2102
Choice: yes
FEATURE: RS232 Interface
Feature: USB to Near Infrared
High-concerned chemical: none
Magnetic Heads: Yes
Model Number: YDM230529A
Origin: Mainland China
Package: Yes
Serial: RS232
Support: IEC62056-21 IEC1107 DLMS MODBUS
System Support: Windows, Mac os, Linux, Vista, Wince, Android
TYPE 01: Transparent Transmission
TYPE 02: IR Converter
Type: IRDA adapter,Serial Cable
pinout: TXD RXD GND VCC
semi_Choice: yes

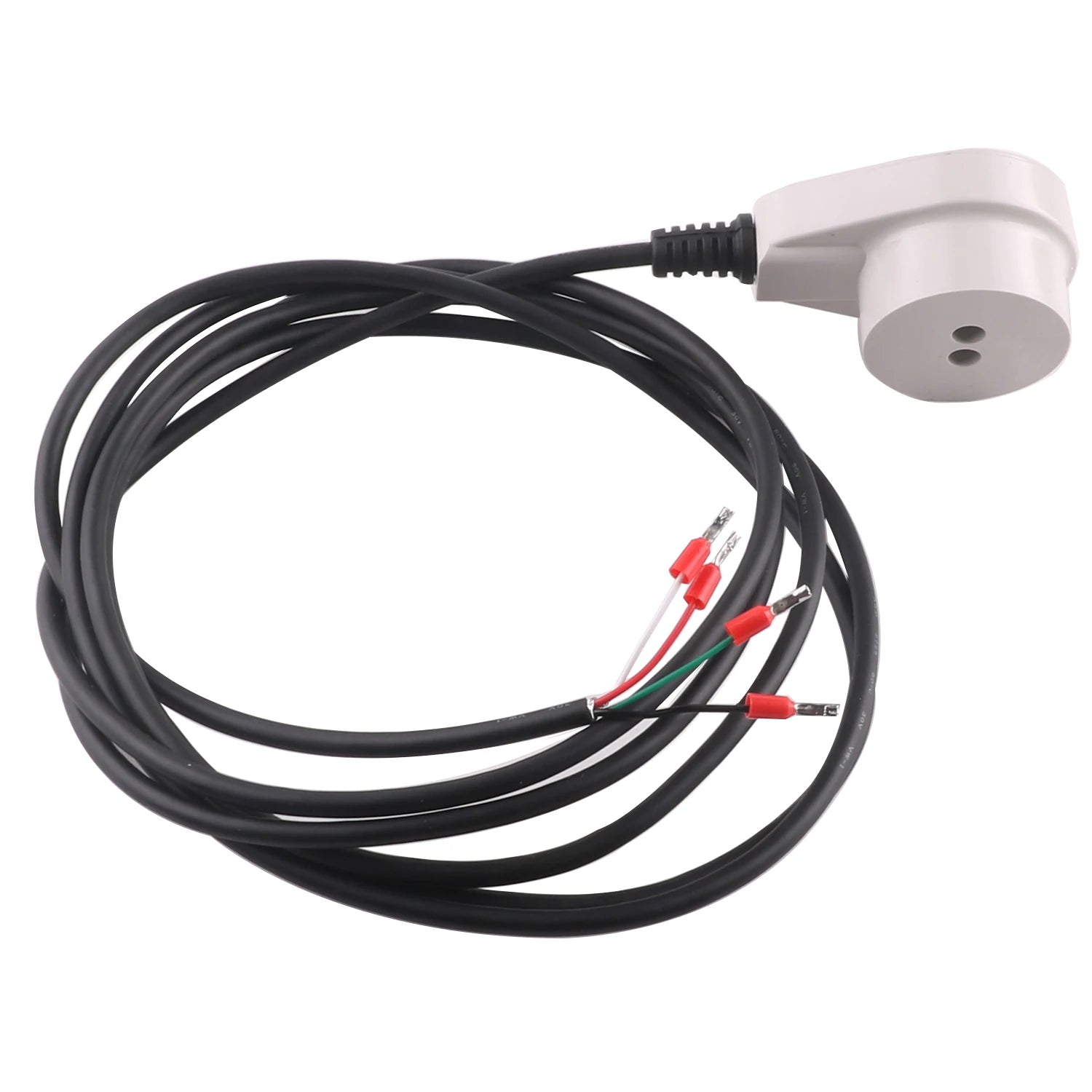

RS232 Interface Near Infrared Adapter IR IRDA Converter CP2102 Transparent Transmission IEC62056-21 IEC1107 DLMS MODBUS Cable
Transparent transmission. Support multiple communication protocols such as overseas IEC62056-21, IEC1107, DLMS, MODBUS, domestic DL/T 645, DL/T 698, etc.
Overall dimensions: diameter: 32mm, transmitting and receiving spacing: 6.5mm

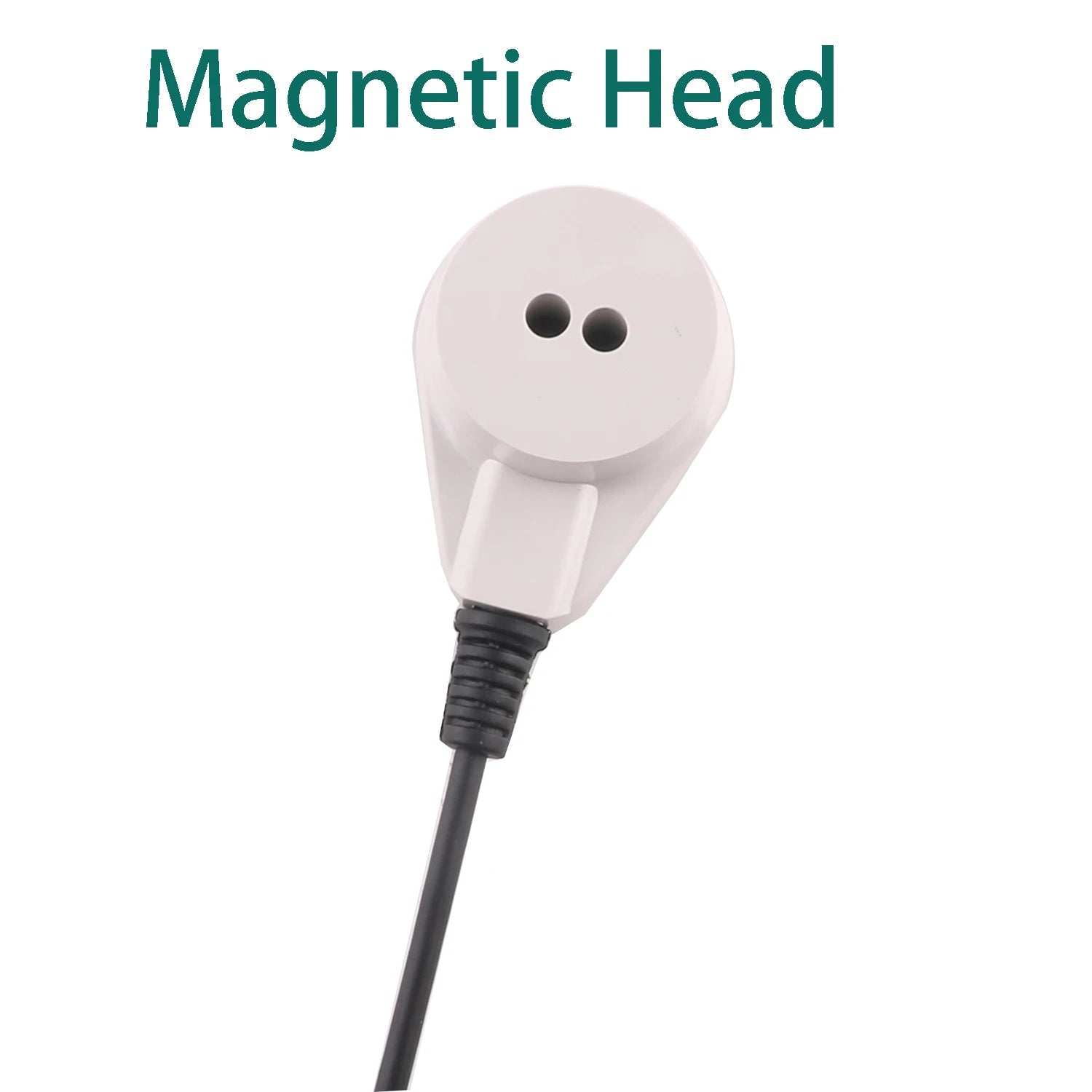

Magnet: 25mm * 15mm * 5mm, super strong magnetic adsorption
Baud rate: 300-19200bps
Power supply voltage: DC3.0V-5.5V
Note: If the power supply is greater than DC6.0V, it needs to be explained in advance, otherwise it is not supported
Environment: -25 ℃ -70 ℃

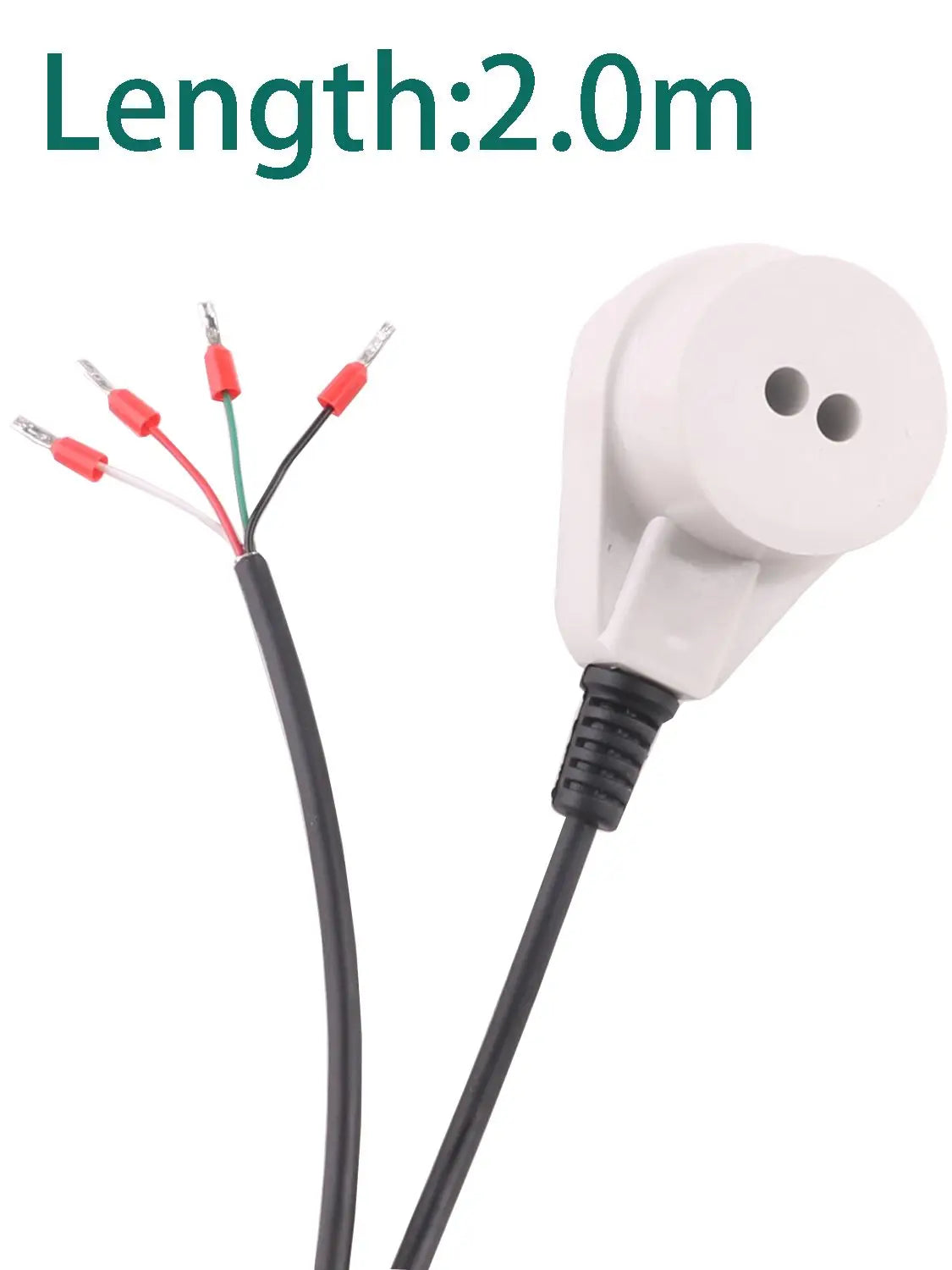

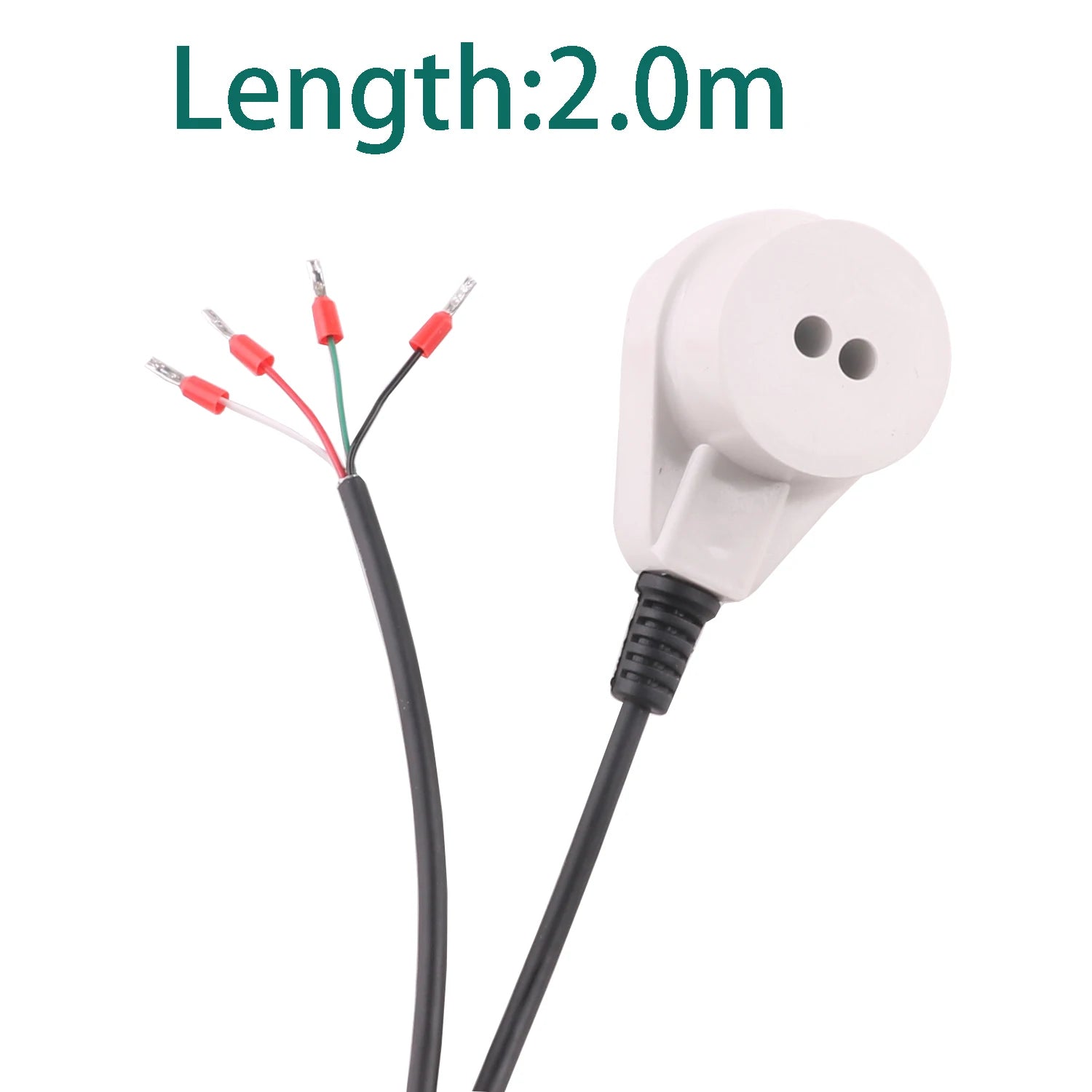

Length: 2m

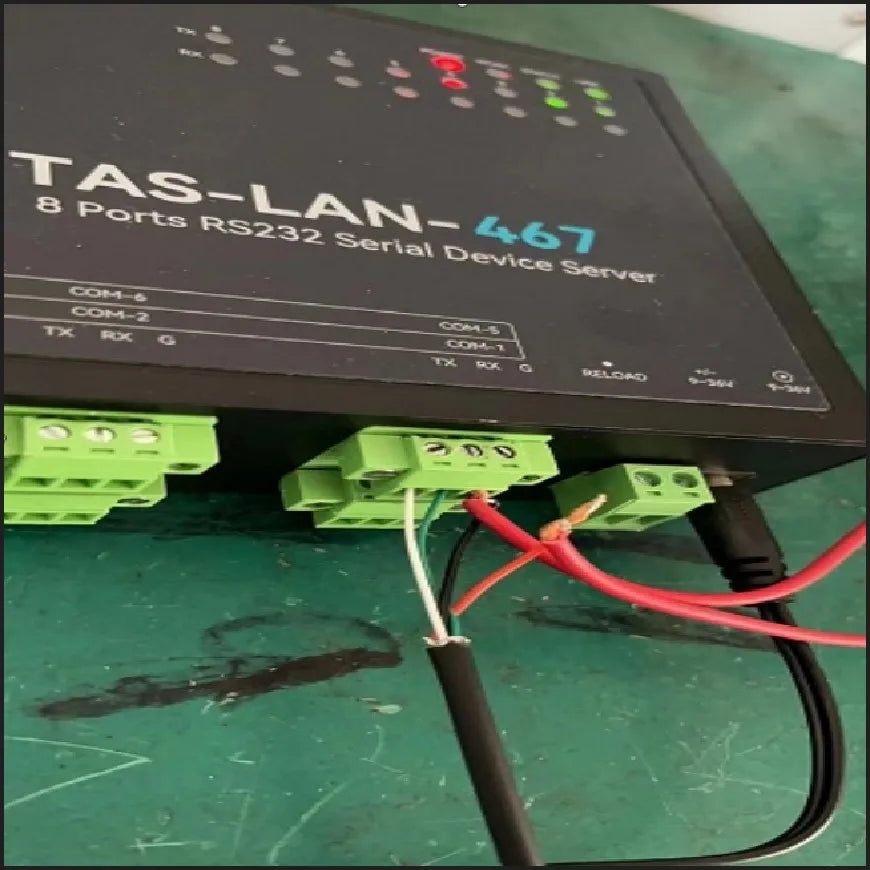

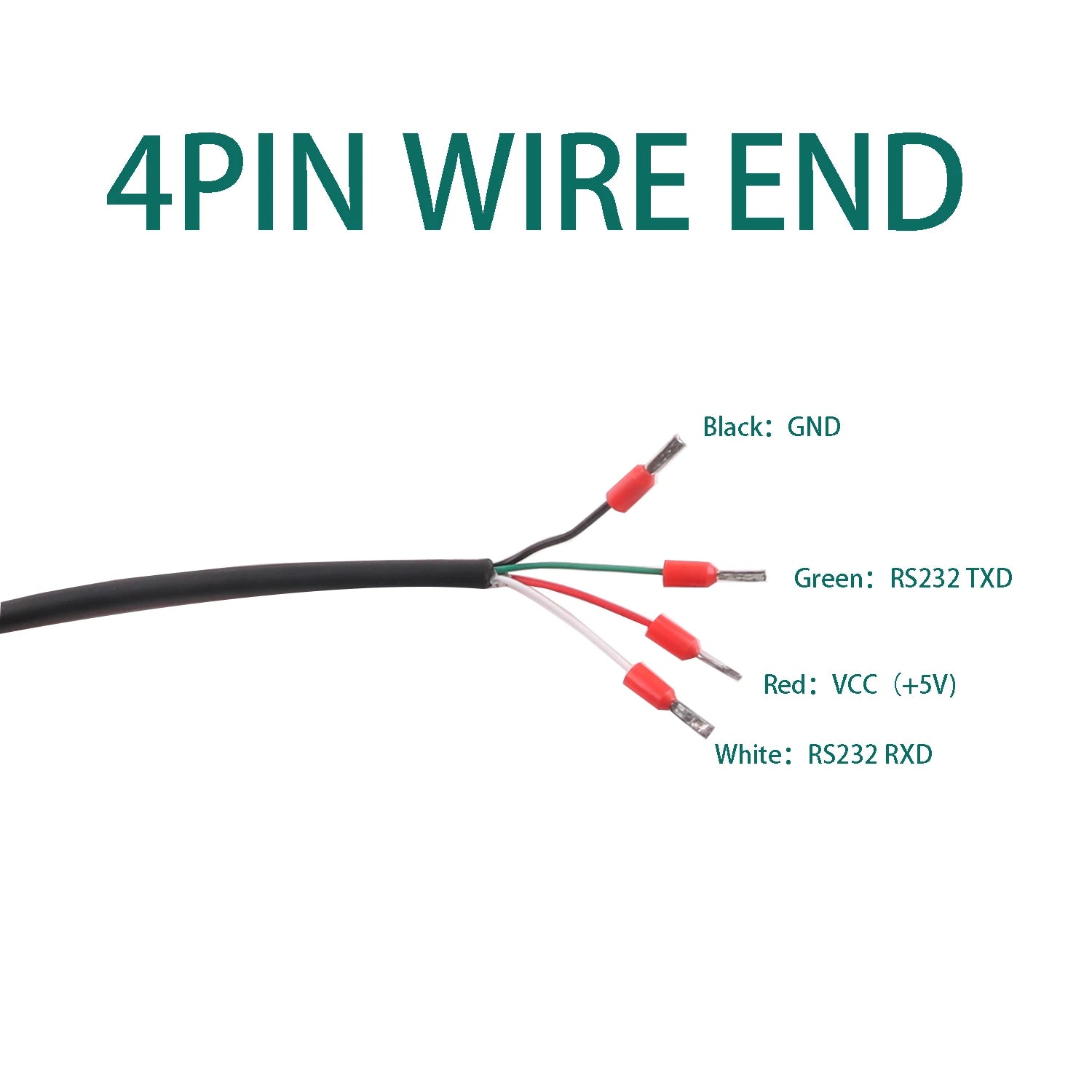

Pinout: Red：VCC(DC3.0V-5.5V) Black:GND Green:RS232 TXD White: RS232 RXD
CP2102 Driver,Please Click Here !
About CP2102
Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101
USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-Event character support
-Line break transmission
Virtual COM Port Device Drivers
-Works with existing COM port PC Applications
-Royalty-free distribution license
-Windows 10/8/7/Vista/Server 2003/XP/2000
-Mac OS-X/OS-9
-Linux
USBXpress? Direct Driver Support
-Royalty-Free Distribution License
-Windows 7/Vista/XP/Server 2003/2000
-Windows CE
Example Applications
-Upgrade of RS-232 legacy devices to USB
-Cellular phone USB interface cable
-USB interface cable
-USB to RS-232 serial adapter
Supply Voltage
-Self-powered: 3.0 to 3.6 V
-USB bus powered: 4.0 to 5.25 V
CP2102 USB to UART Bridge VCP Drivers
The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication with CP210x products. These devices can also interface to a host using the direct access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below:
AN197: The Serial Communications Guide for the CP210x
Download Software
The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archived Application Note Software.
Windows 7/8/8.1/10 (v6.7.3)
Windows XP/Server 2003/Vista/7/8/8.1 (v6.7)
Windows 2K (v6.3a)
WinCE
Macintosh OSX (v4)
Linux
Android
