SPECIFICATIONS

Optical-Electronics Sensor

As an optical-electronics sensor, it combines optical theory with electronic processing for enhanced performance.

4000m Measurement Range

This sensor boasts a generous measurement range of up to 4000m, making it suitable for various applications.

115200bps Data Transmission

With a data transmission rate of 115200bps, this sensor offers fast and efficient communication.

High-Stability Gyroscope Rangefinder Module

Equipped with a high-stability gyroscope rangefinder module, this sensor ensures accurate distance measurements.

1535nm Laser Distance Sensor

Utilizing a 1535nm laser, this sensor provides precise and reliable distance readings.

Email: demi@jrt-measure.com

WhatsApp: +86 18302879423

Contact for Product Datasheet and Sample

RS422 High-Stability Gyroscope Rangefinder Module 1535nm 115200bps 0.4mrad 4000m Laser Distance Sensor for UAS

Model	ETRC-40X High-Stability Rangefinder Module
Measurement range	30-4000m Laser Distance Sensor
Measurement accuracy	+/-2m
Blind area	<30m
Laser class	Class I
Laser type	1535nm

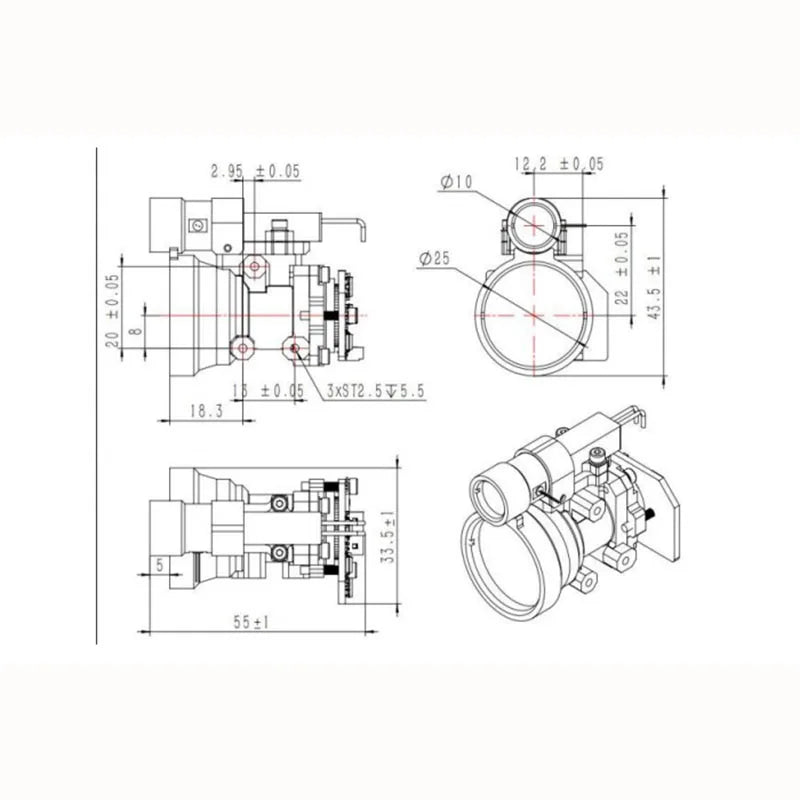

Size	≤55mm*34mm*45mm
Weight	75g
Voltage	9V-15V
Output mode	TTL/ RS422 communication, UART
Working temperature	-40-70 ℃
Working requency	1HZ-10HZ

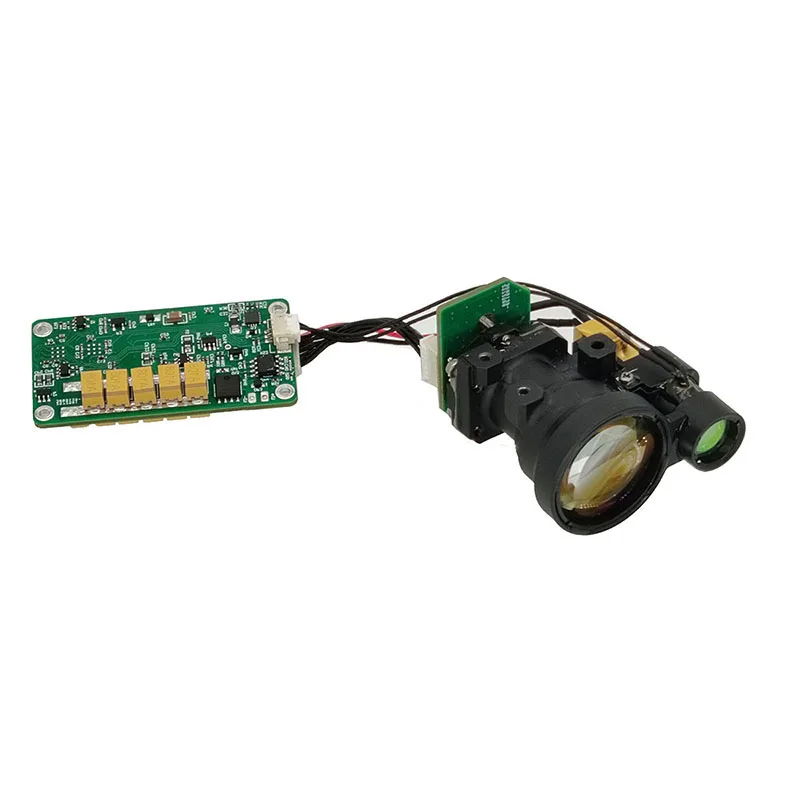

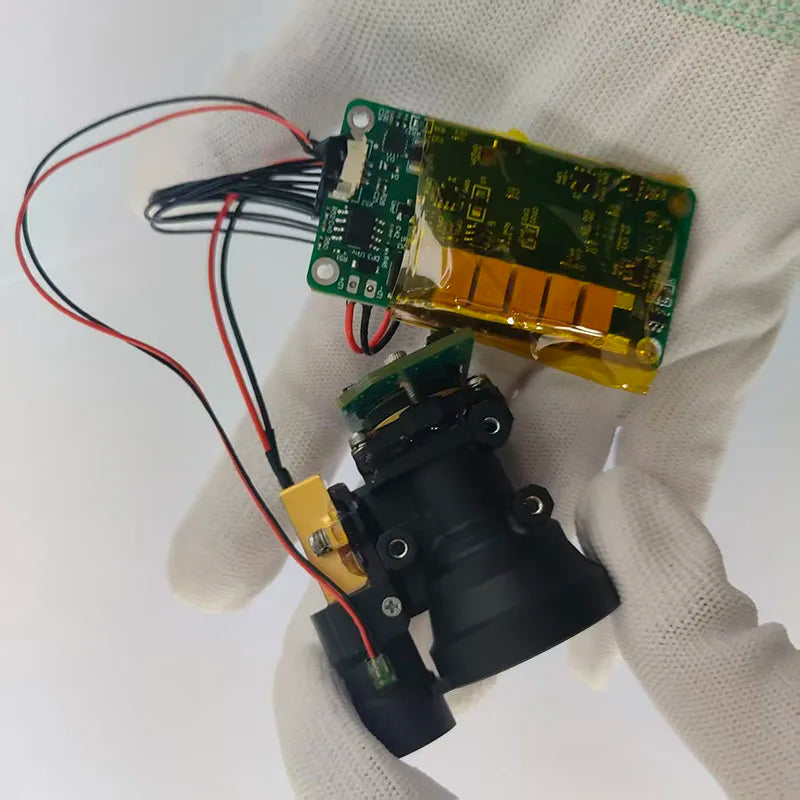

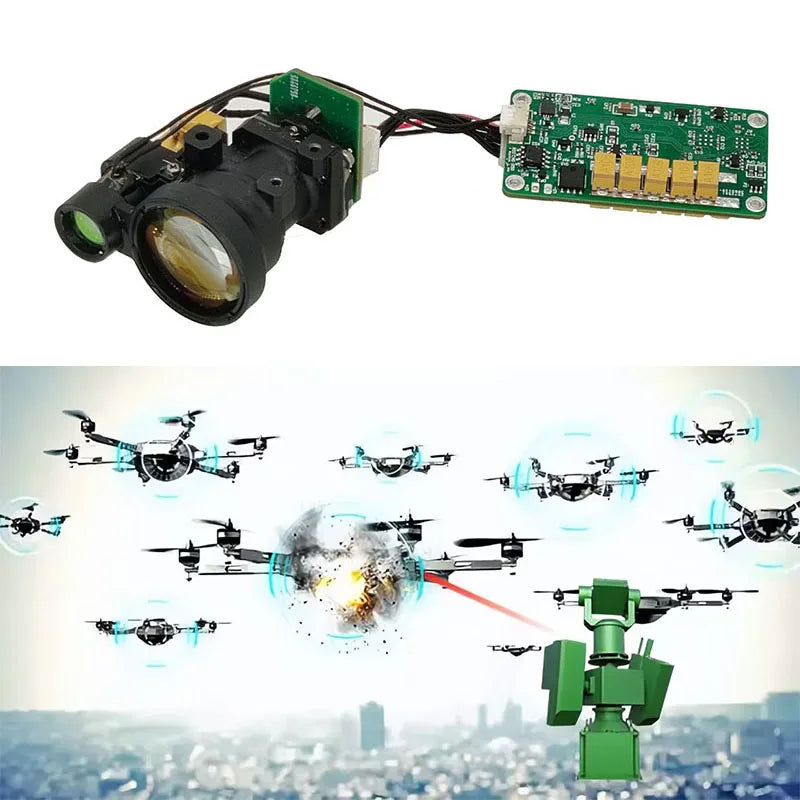

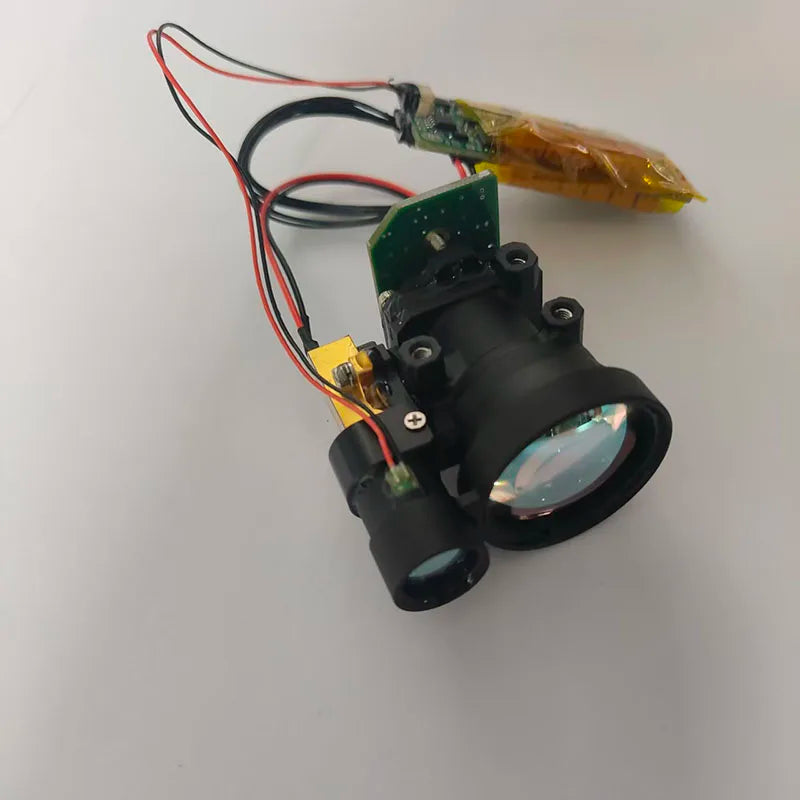

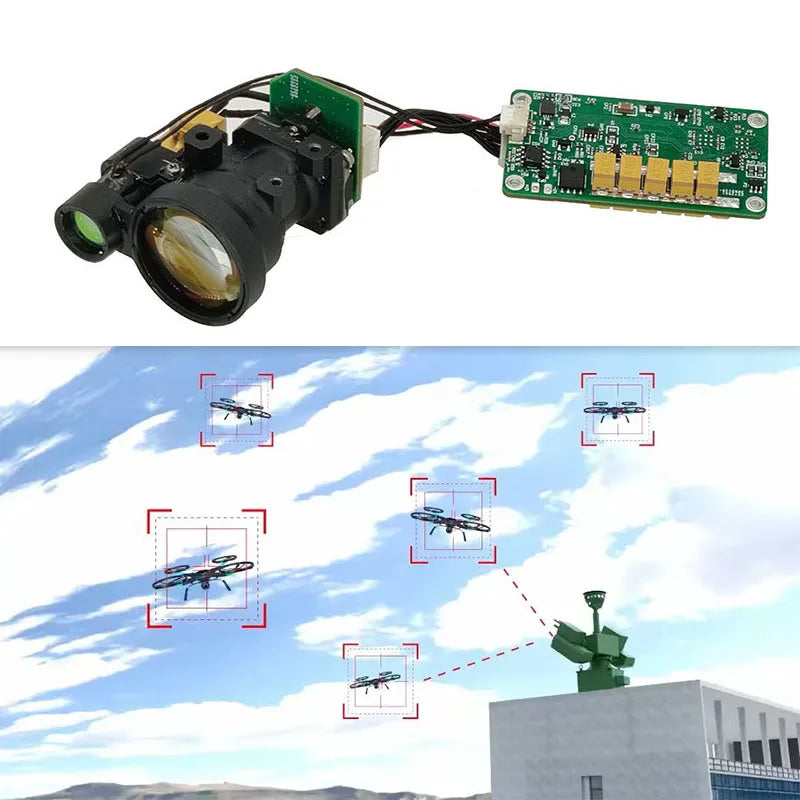

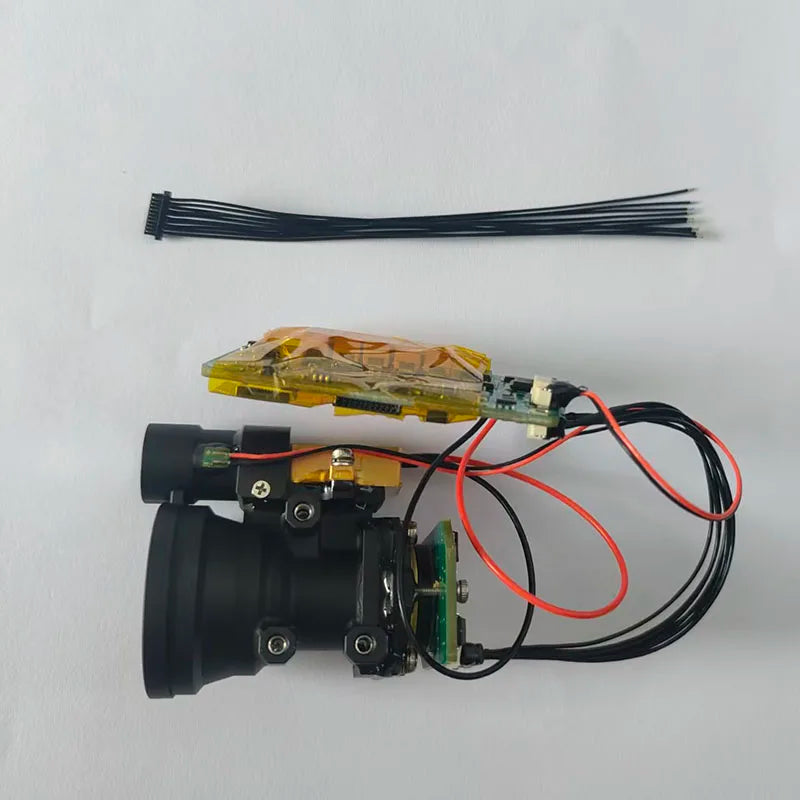

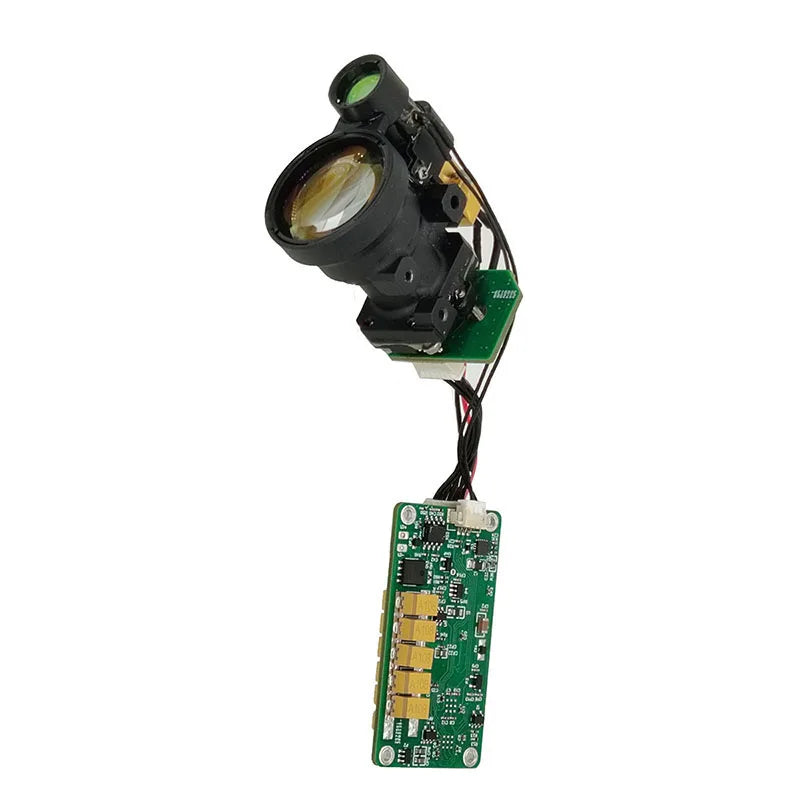

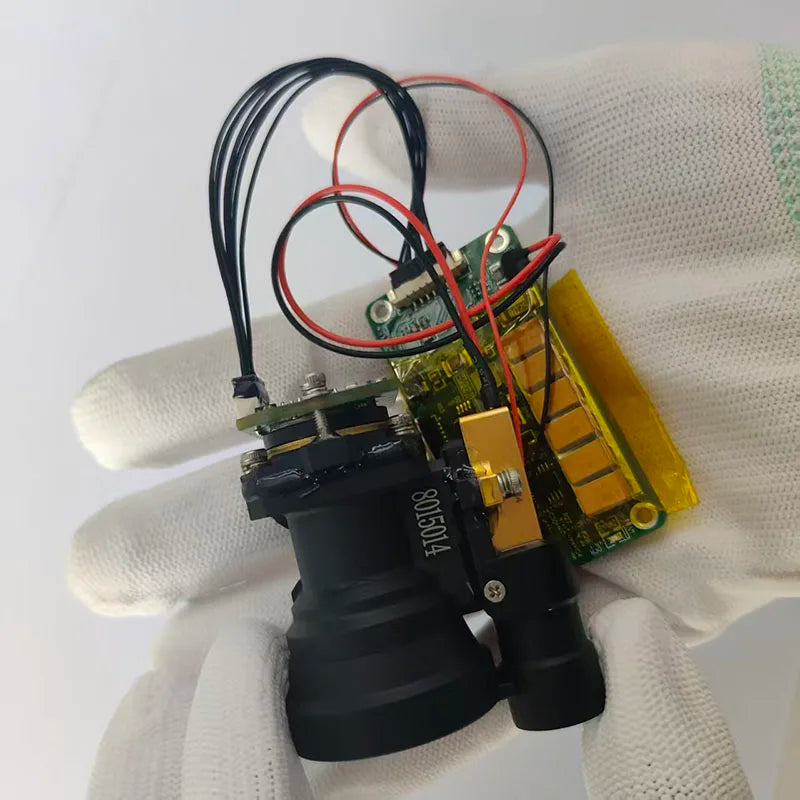

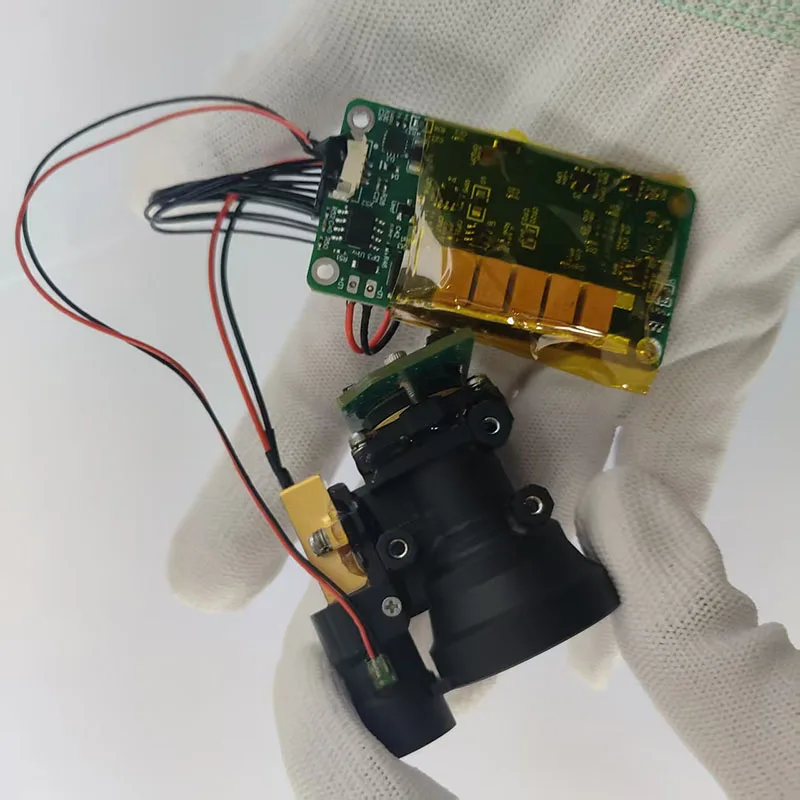

The ETRC-40X drone laser rangefinder module is developed based on a 1535nm erbium glass laser and is a Class 1 eye-safe product. 4000m rangefinder module uses single-pulse ranging with a maximum range of ≥4km; it features a TTL/RS422 interface and provides host computer testing software, instruction sets, and communication protocols for easy secondary development. The 4000m laser distance sensor is lightweight, compact, and stable, and can be applied to UAS, handheld, vehicle-mounted, and pod-based optoelectronic devices.

Company Profile

Chengdu JRT Meter Technology Co., Ltd. is an enterprise specializing in the production and development of laser distance module industry and trade. We are a manufacturer possess of the world's advanced laser technology single transmit and single receive. JRT Meter insist on developing and producing laser distance measurement sensor with better quality, smaller size, more favorable prices. We can do OEM/ODM designs and customize product functions as customer required.Our production line: Laser Distance Meter Module, Industrial Laser Distance Sensor, Laser Rangefinder.

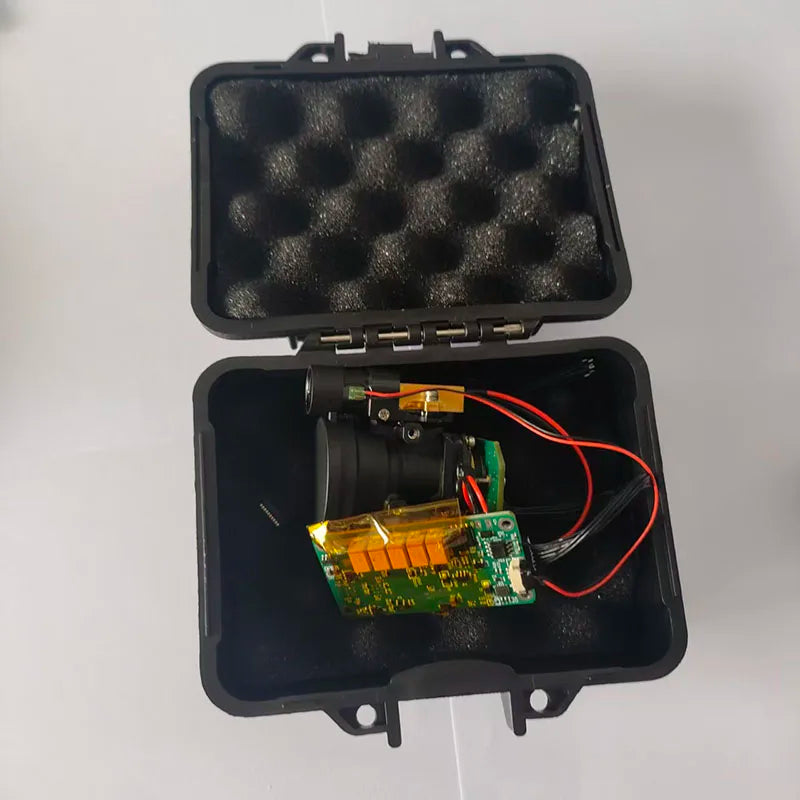

Packaging&Shipping

Certifications

FAQ

1: Are you factory or wholesaler or trading company?
We're the one of three leading manufacturers in China, production capacity up 10000 units/day.

2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.

3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.

4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.

5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.

6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.

7:After-sale service?
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support.
