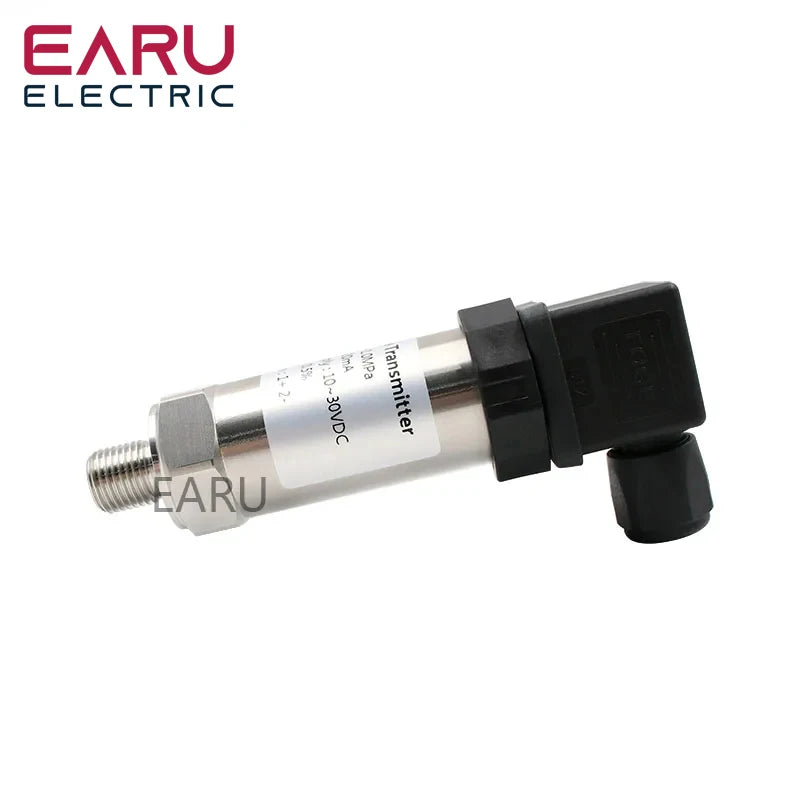

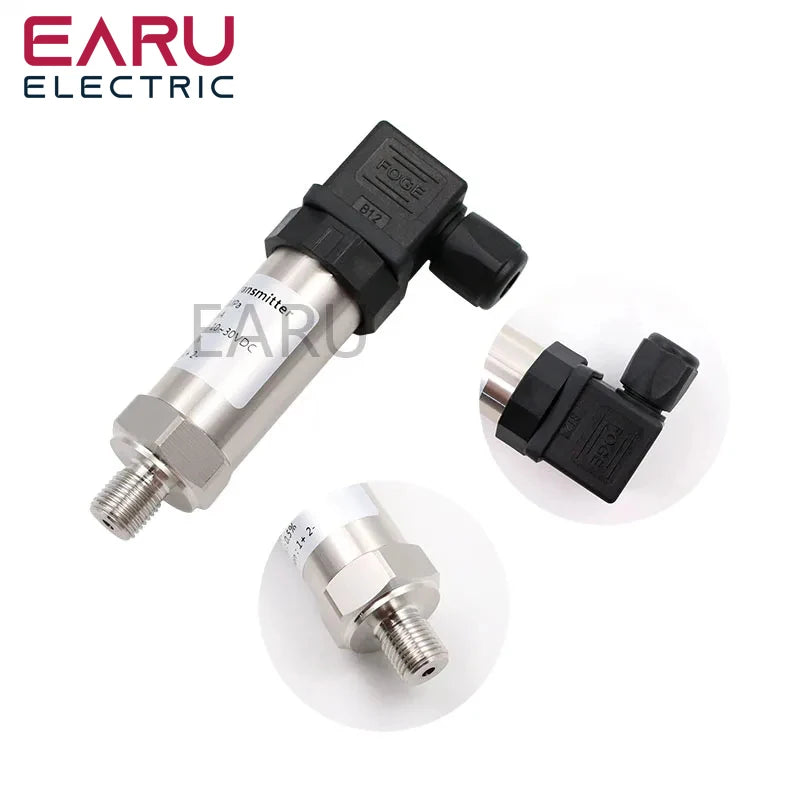

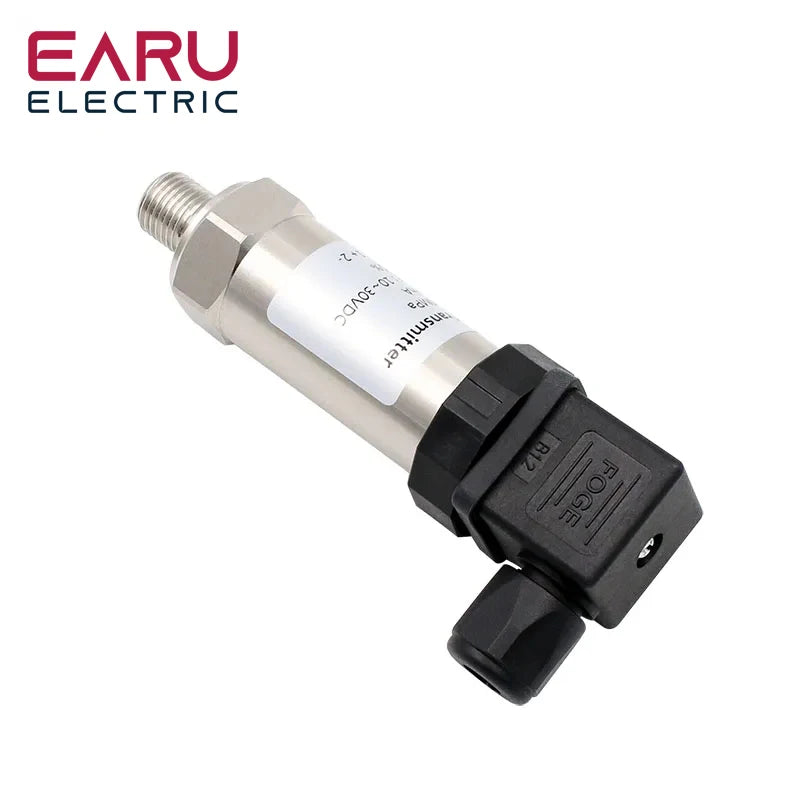

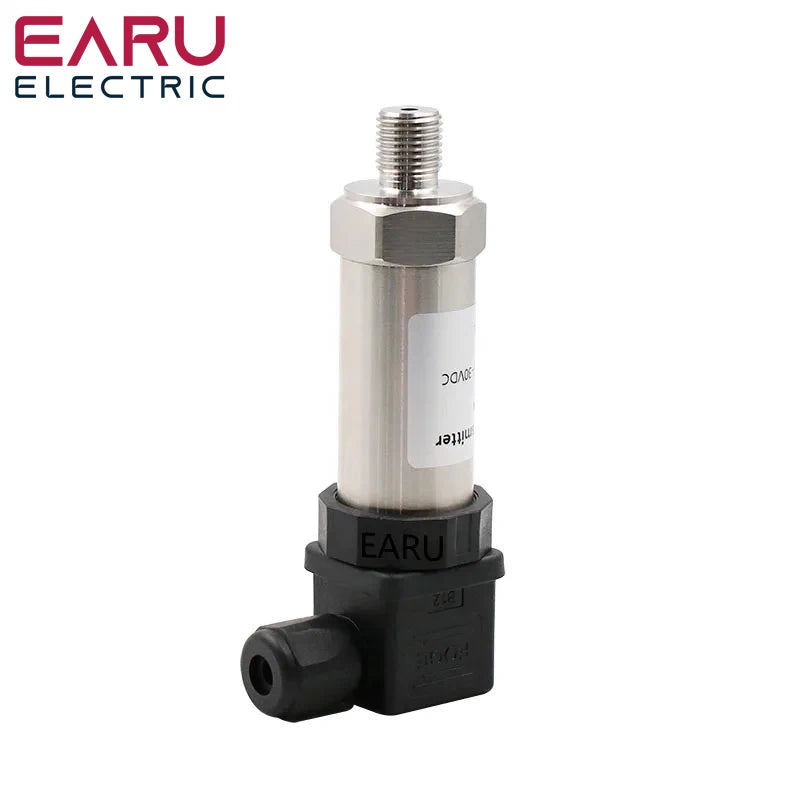

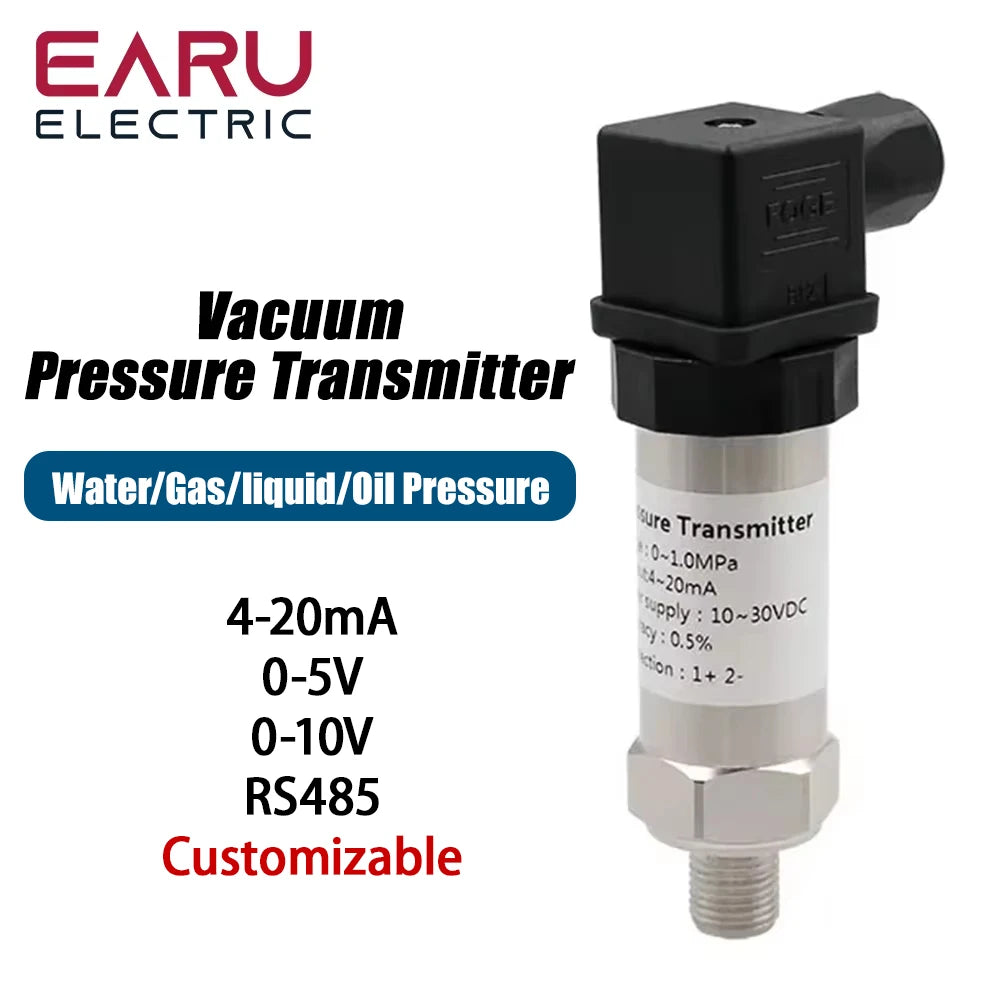

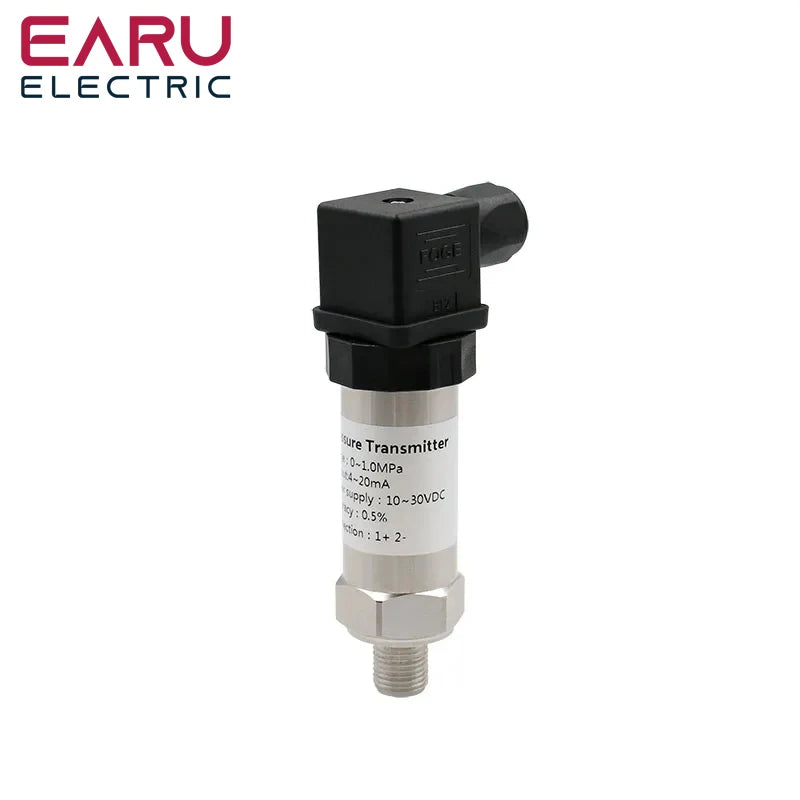

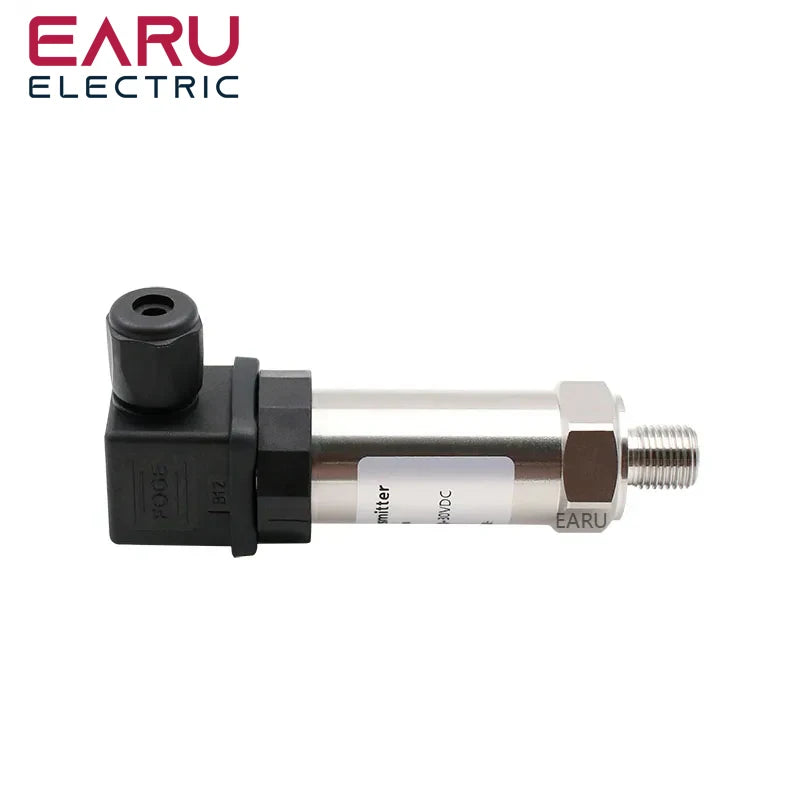

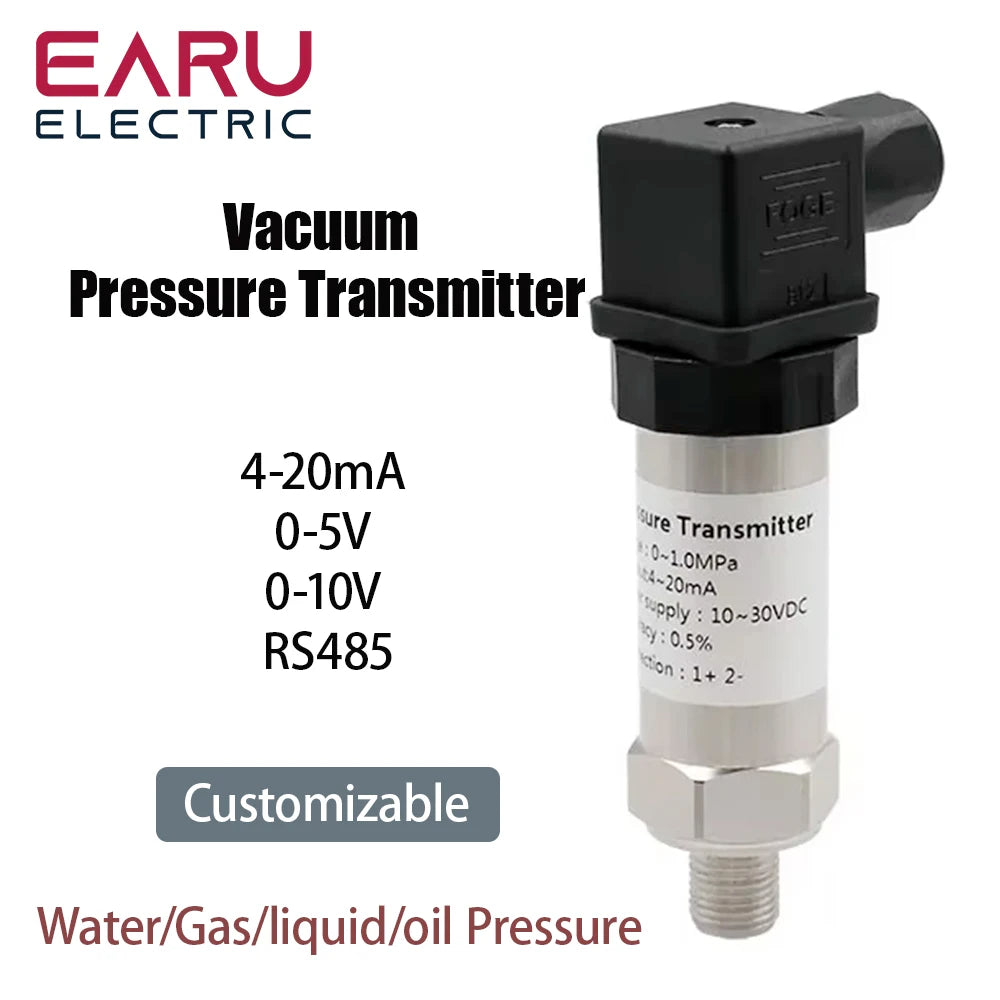

RS485 4-20mA 0-5V 0-10V Output -1-400Bar G1/4 Vacuum Pressure Transmitter Transducer Sensor Controller 0.5% FS High Precision
4-20mA Output / 0 to 6 bar
$136.94
Sale price
$136.94
Regular price
$0.00
Skip to product information
RS485 4-20mA 0-5V 0-10V Output -1-400Bar G1/4 Vacuum Pressure Transmitter Transducer Sensor Controller 0.5% FS High Precision
$136.94
Sale price
$136.94
Regular price
$0.00
Description
SPECIFICATIONS
Battery Included: no
Brand Name: EARU
Certification: CE,RoHS,NONE
Electrical Connection: DIN 43650C
High-concerned chemical: none
Max Measuring Range: 400 Bar & Above
Measurement Accuracy: 0.5% FS
Model Number: EAPT
Origin: Mainland China
Output Signal: 4-20mA/0-5V/0-10V/RS485
Package Size: 13cm x 8cm x 6cm (5.12in x 3.15in x 2.36in)
Package Weight: 0.2kg (0.44lb.)
Power Supply: 10-30V DC
Protection Class: IP65
Semi-finishedproduct: No
Thread Size: G1/4 by Default(Contact seller to custom-made other Size)
Unit Type: Piece
0-5V/0-10V/4-20mA Output -1~0~10bar/16bar/6bar/25bar 10-30VDC G1/4 Thread 0.5% Pressure Transmitter Pressure Transducer Sensor High Precision
Application:
Aerospace, electric power, sewage treatment, water supply system, petroleum chemical industry, pharmaceutical industry, power units, air conditioning units, refrigeration units, compressor unit, laboratory pressure detection and efficacy, industrial process control, internal combustion engine, engine, hydraulic and pneumatic system, constant pressure water supply system in sectors such as liquid, gas measurement and control

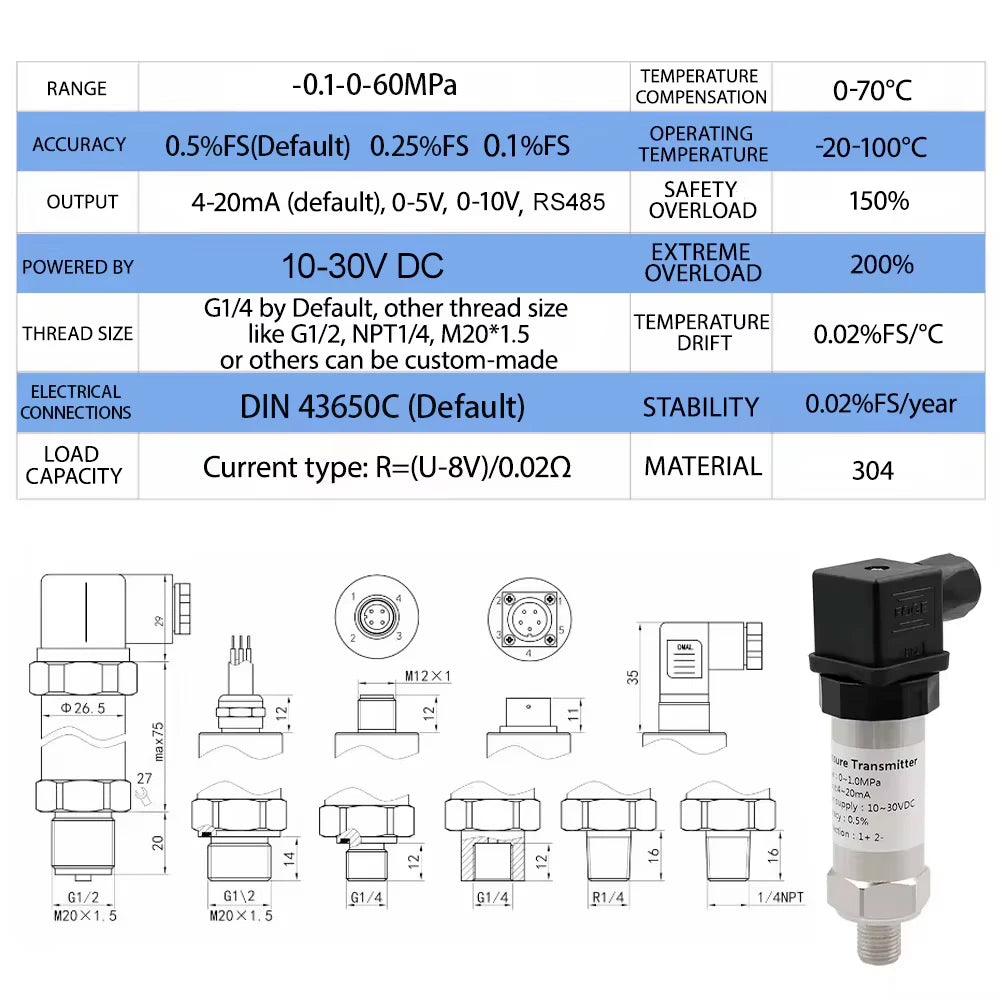

Technical parameter
Measuring Range |
-1~400bar (can choose any range) |
||||
Media |
Air, Water, Oil, Refrigeration liquid, Other weak acid and alkalescent media |
||||

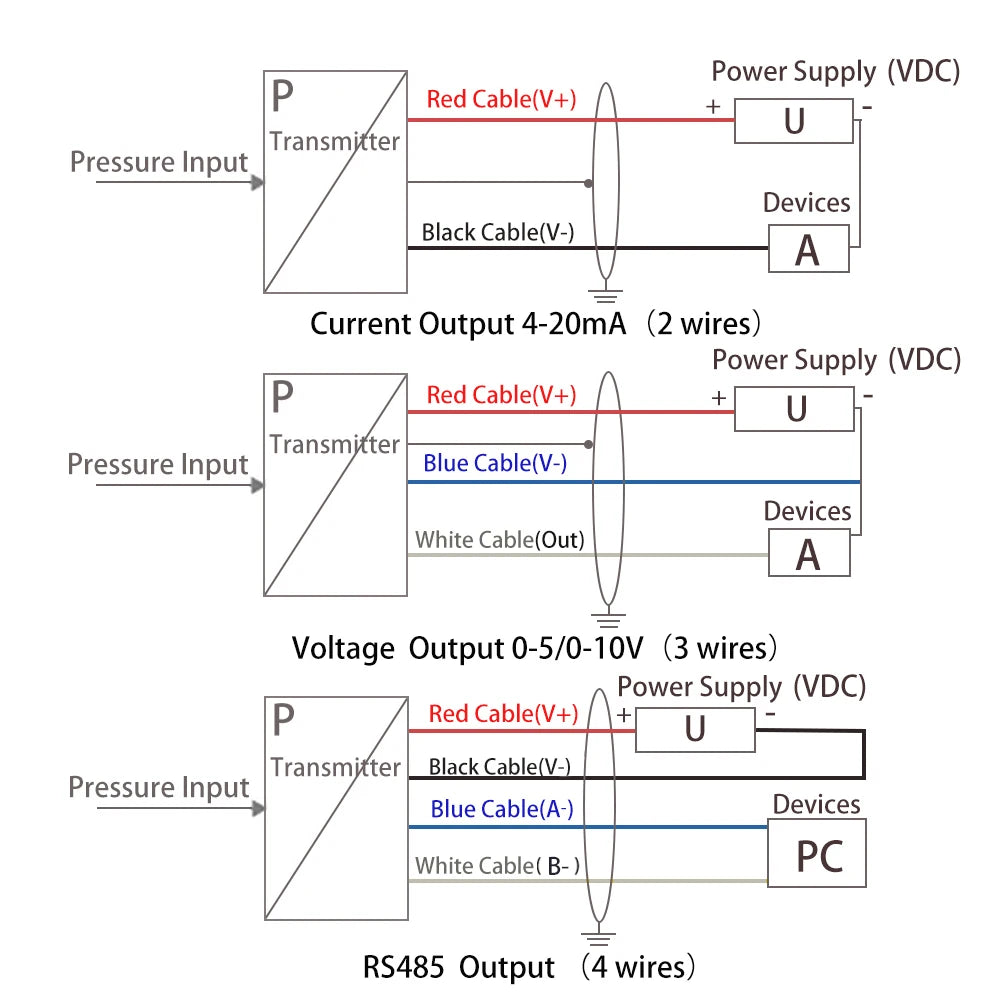

Output |
4~20mA (Default) |
0~5V |
0~10V |
||
Power Supply |
10~30V DC |
10~30V DC |
24V DC |
||
Accuracy |
±0.5%F.S |
||||
Long Term Stability |
≤±0.2%F.S |
||||
Overload Pressure |
200%F.S |
||||
Resolution ratio |
1/100000 |
||||
Zero temperature coefficient |
Typical: ±0.02%FS/°; Maximum: ±0.05%FS/° |
||||
Sensitivity temperature coefficient |
Typical: ±0.02%FS/°; Maximum: ±0.05%FS/° |
||||
Impact resistant |
100g, half sine of 11ms, duration |
||||
Anti-vibration |
≤±0.01% F.S(X, Y, Z axis, 200Hz/g) |
||||
Insulation resistance |
> 100 MΩ, inspired 500 VDC |
||||
Response time |
≤2ms |
||||
Load |
Current type: ≤[(U-7.5V)/0.02A]Ω Voltage type: ≥10kΩ |
||||
Working Temperature |
-20 °～+120 ° |
||||
Pressure Connection |
G1/4(Default),NPT1/4, 7/16-20UNF (Female and other connection available on request) |
||||
Electrical Connection |
DIN 43650C (Default) |
Cable |
Packard |
||
Protection Class |
IP65 |
IP67 |
IP65 |
||
Pressure Form |
Guage pressure |
||||
Insulation |
>100M(Ω)@50V |
||||
Electromagnetic Compatibility |
EN50081-1/-2; EN50082-2 |
||||
