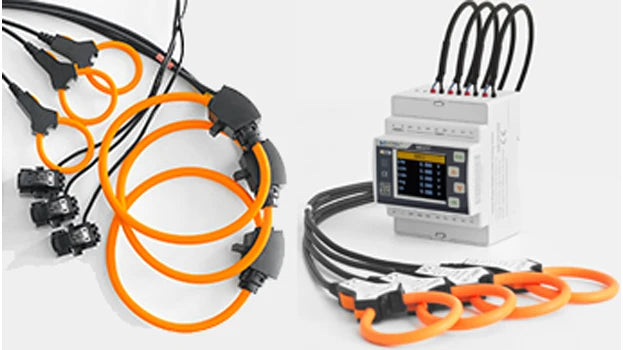

RS485 Digital Meter Modbus ME231 Din Rail Three Phase Rogowski Coil Multi-Tariff Smart Energy Meter
1000A Rogowksi coil
$516.24
Sale price
$516.24
Regular price
$0.00
Skip to product information
RS485 Digital Meter Modbus ME231 Din Rail Three Phase Rogowski Coil Multi-Tariff Smart Energy Meter
$516.24
Sale price
$516.24
Regular price
$0.00
Description
SPECIFICATIONS
Accuracy Class: 0.1%
Brand Name: NONE
Communication protocol: MODBUS-RTU
Current sensor: Rogowski coil/ 333mV CT
Display: 1.77 inch TFT screen display
Display Type: Digital Only
Frequency: 45~65Hz
Measuring Energy Range: 0 to 999.9GWh
Operating Temperature: -25℃~+60℃
Origin: Mainland China
Output Voltage: 95~265VAC/110~260VDC
Phase: Three Phase
Place of Origin: Shanghai, China
Primary current: 1-999999A
Product name: DIN RAIL Smart meter
Quality level: High quality, Touch button
Type: Three phase / Single phase
Voltage range: 0~600VAC Phase Voltage
Product Description

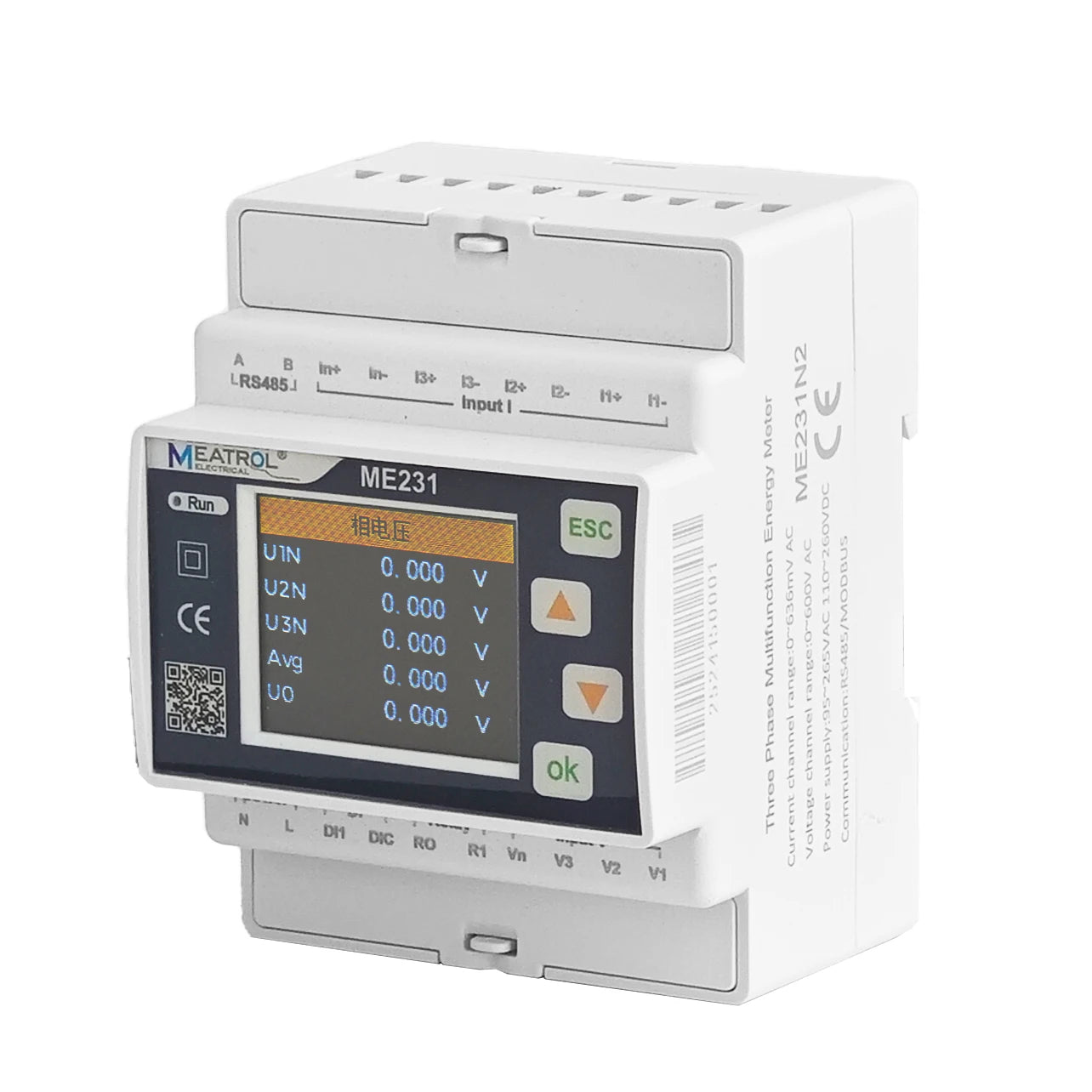

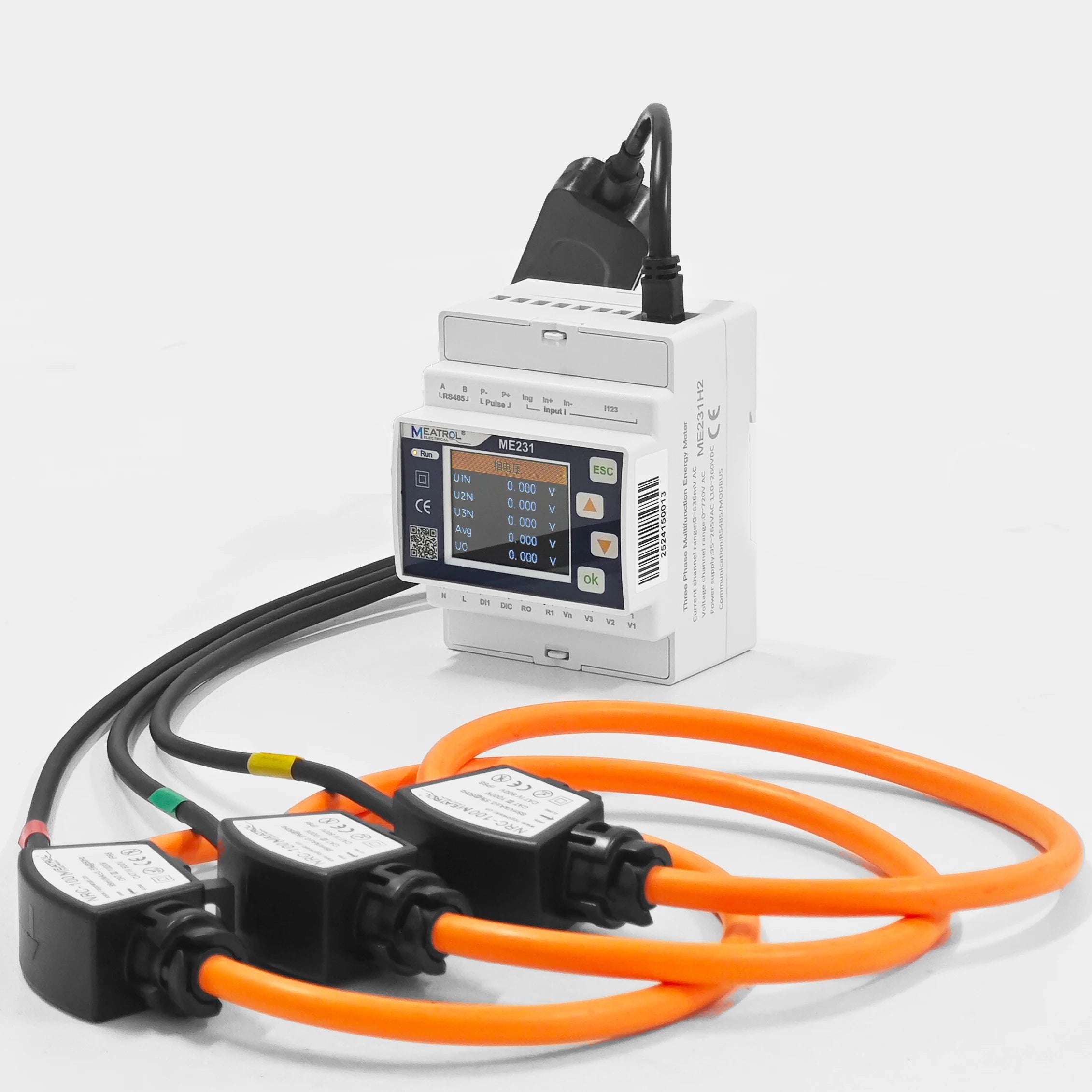

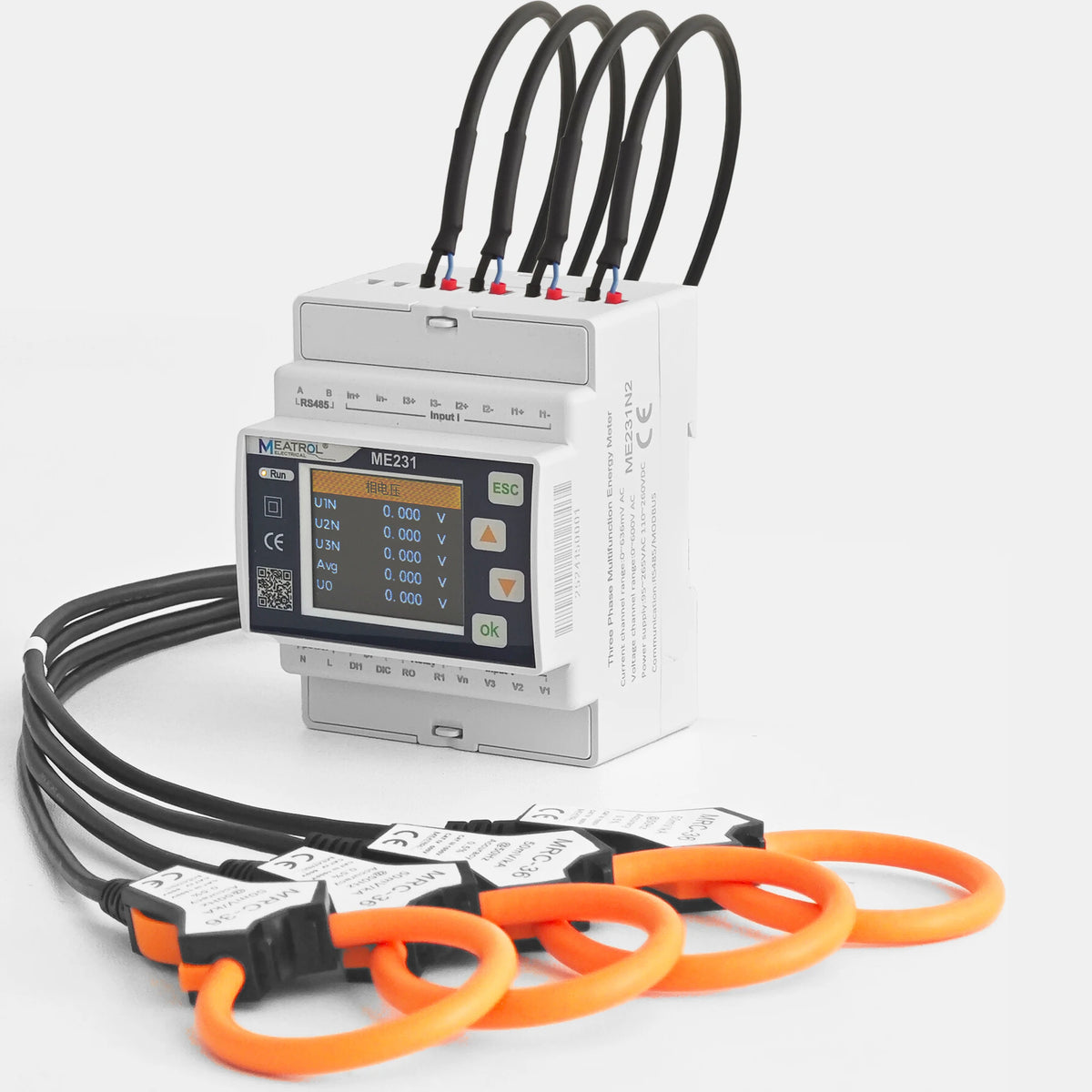

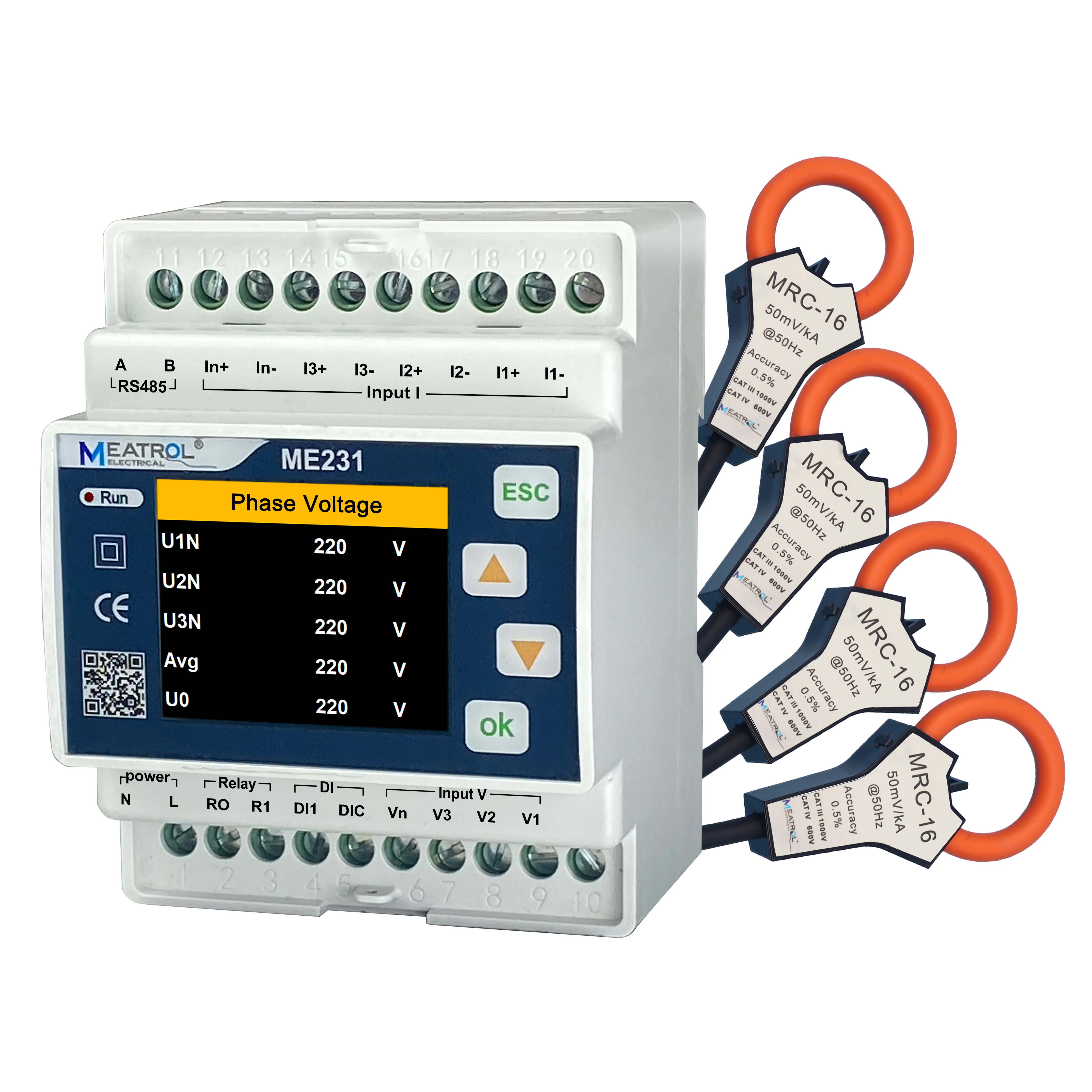

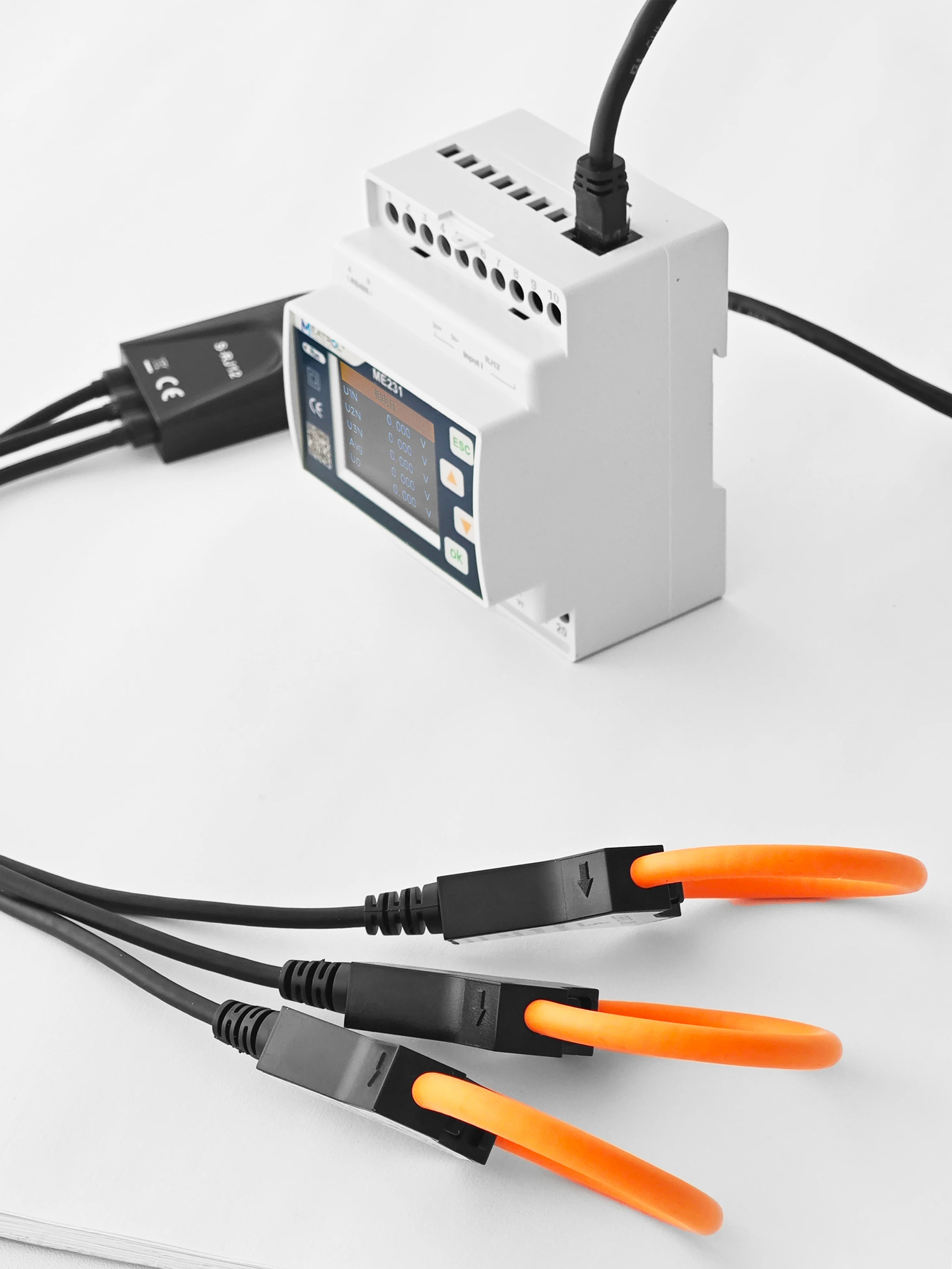

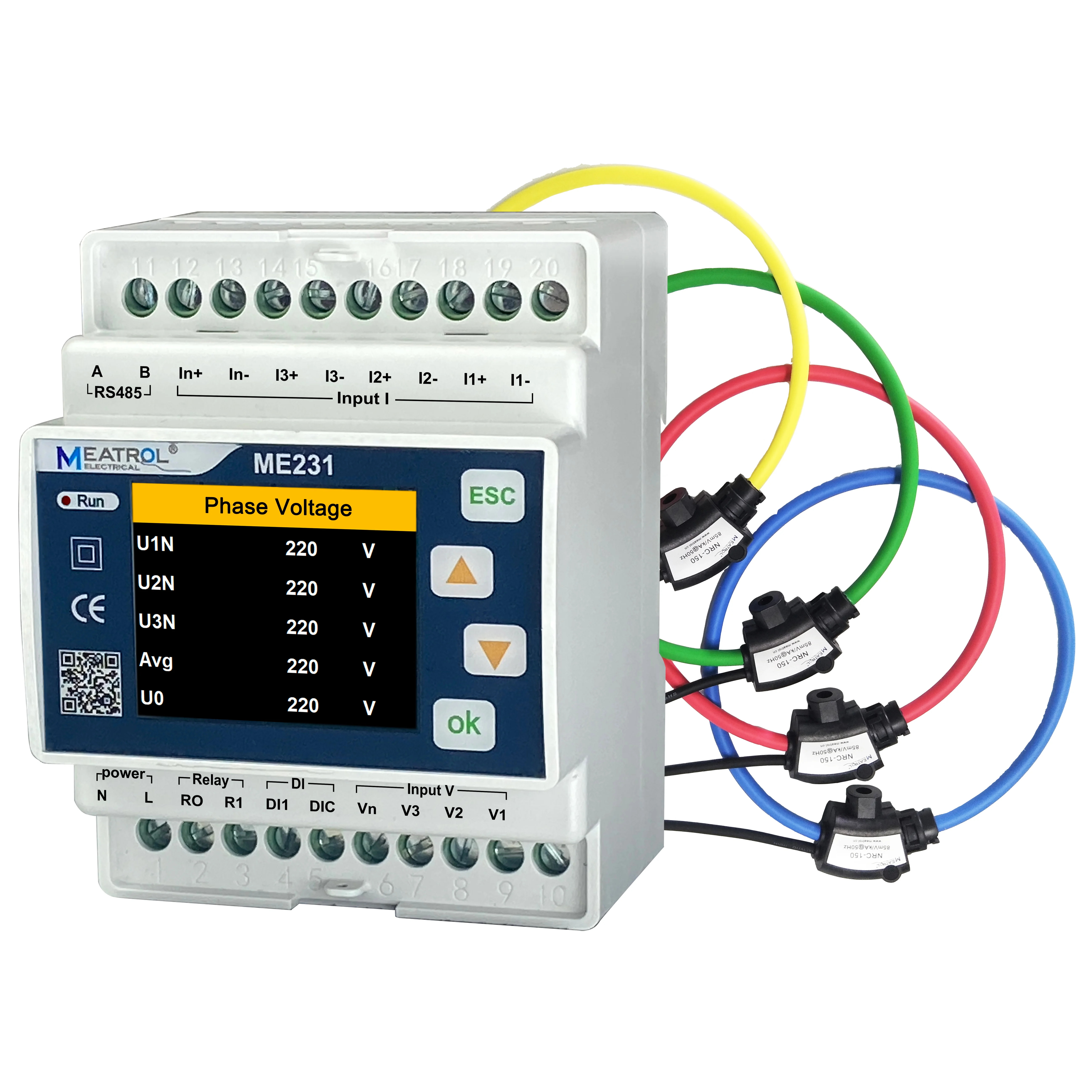

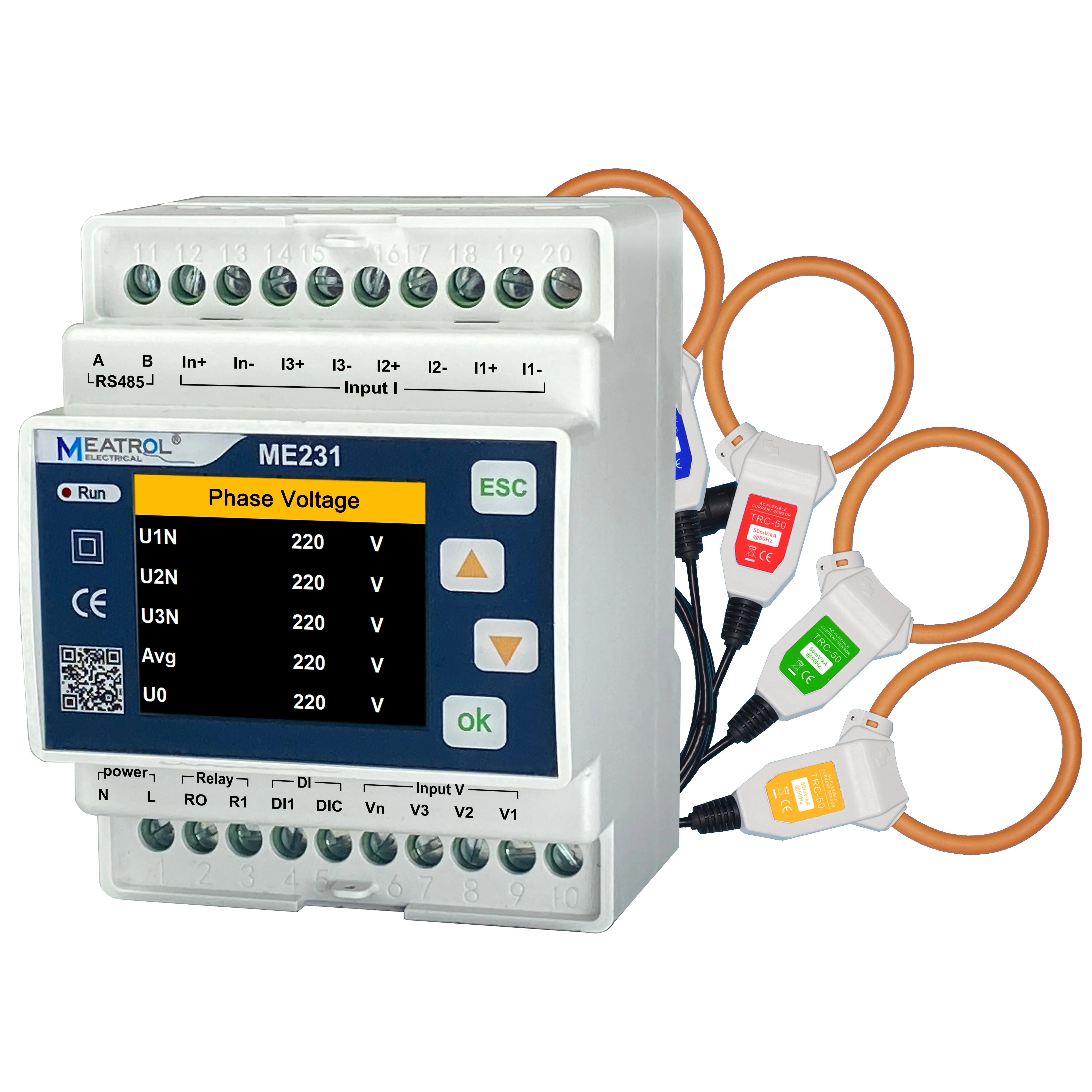

The ME231 is a DIN-Rail three-phase multifunctional smart meter that supports externally connected with open type Rogowski coil or voltage type CT, it can realize none dismantling wire test, simplify test steps, save construction cost, and is more convenient for engineering test as well as the inspection and maintenance of distribution system.
The ME231 support systems of single-phase and three-phase. It can measure multiple electrical parameters such as current, voltage, power factor, harmonics, power, energy and other electrical parameters of L1,L2,L3.The standard RS485 communication interface can be compatible with various configuration systems through the standard MODBUS-RTU protocol.
|
Description
|
|
|
|
Type
|
DIN rail
|
|
|

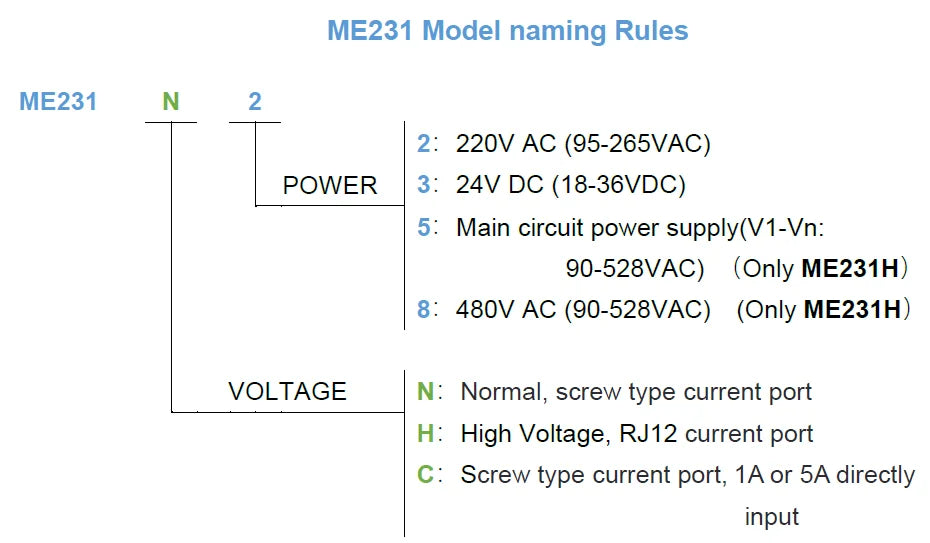

Model
|
ME231
|
|
|
Current sensor type
|
Rogowski coil
Voltage-output current clamp 1A or 5A CTs
|
|
|
Advantage
|
Suitable for wide current range, no dismantling measurement
|
|
|
Wiring system
|
3P4W 4CT，3P4W 3CT，3P3W 3CT，3P3W 2CT，1P3W，1P2W
|
|
|
Application field
|
Power analysis
Tariff meter |
|
|
Display screen
|
1.77 inch TFT screen display
|
|
|
Dimension
|
L*W*D: 9.45*7.25*6.6CM
|
|
|
Current
|
|
|
|
Channel input
voltage range |
0-900mVAC peak,636 mV RMS
|
|
|
Measurement range
|
Different current sensors have different ranges
|
|
|
Rcoil
|
50mV/kA@50Hz(0-12000A),@60Hz(0-10000A)
85mV/kA@50Hz(0-7000A),@60Hz(0-6000A) ... |
|
|
VCT
|
0~99999A
|
|
|
Voltage
|
|
|
|
Channel input
voltage range |
0~600VAC Phase Voltage
|
|
|
Maximum range
|
720VAC Phase Voltage
|
|
|
Digital Signal
|
|
|
|
Relay output
|
One way electromagnetic relay output，contact capacity:3A 30V DC，3A 250V AC
|
|
|
Digital input
|
One way dry contact input, optocoupler isolation（5kVrms）
|
|
|
RS485 communication
|
One way RS485 communication interface
Interface type: two wire half duplex Communication baudrate: 2400bps ~ 38400bps Protocol: Modbus RTU |
|
|
Power Supply
|
95~265VAC/110~260VDC，45~60Hz(DC power supply version can be customized)
|
|
|
Maximum power consumption
|
3.5VA
|
|
|
Data display
|
|
|
|
Instantaneous value
|
|
|
|
Phase Voltage
|
U1,U2,U3,AVG
|
|
|
Line Voltage
|
U12,U23,U31,AVG
|
|
|
Current
|
I1,I2,I3,AVG,IN
|
|
|
Grid Frequency
|
F1,F2,F3,∑
|
|
|
Power Factor PF
|
PF1,PF2,PF3,∑
|
|
|
Fundamental power factor DPF
|
DPF1,DPF2,DPF3,∑
|
|
|
Active power
|
P1,P2,P3,∑
|
|
|
Reactive power
|
Q1,Q2,Q3,∑
|
|
|
Apparent power
|
S1,S2,S3,∑
|
|
|
Energy
|
Active energy, Reactive Energy, Apparent Energy, Tariff Energy
|
|
|
Harmonics
|
Voltage and Current Harmonic Distortion, Voltage and Current Harmonic Value
|
|
|
Phasor diagram
|
between voltage and current; Phase Sequence, Angle
|
|
|
Demand
|
P,Q,S
|
|
|
Unbalance
|
Voltage unbalance; current unbalance
|
|
|
Max.&Min.
|
Phase Voltage, Line Voltage, Line Voltage, Current, Active power, Reactive power, Apparent power
|
|
