Description

SPECIFICATIONS

Brand Name: eletechsup

Certification: NONE

Choice: yes

Contact Load: Low Power

Model Number: 25IOA08 25IOB16 25IOC32

Origin: Mainland China

Power Source: DC

Protect Feature: Epoxy

Theory: Solid State Relay

Use: General Purpose

Voltage: 12V

is_customized: Yes

semi_Choice: yes

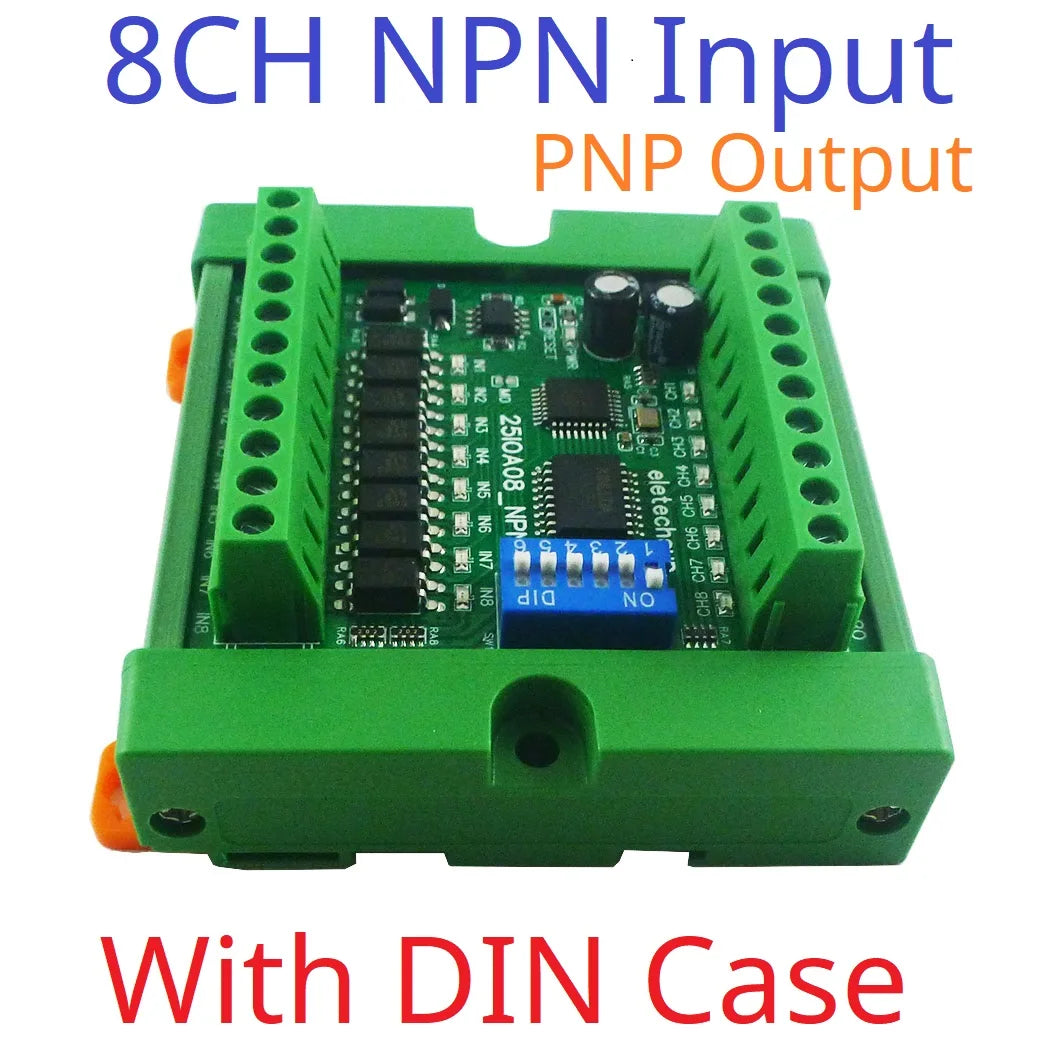

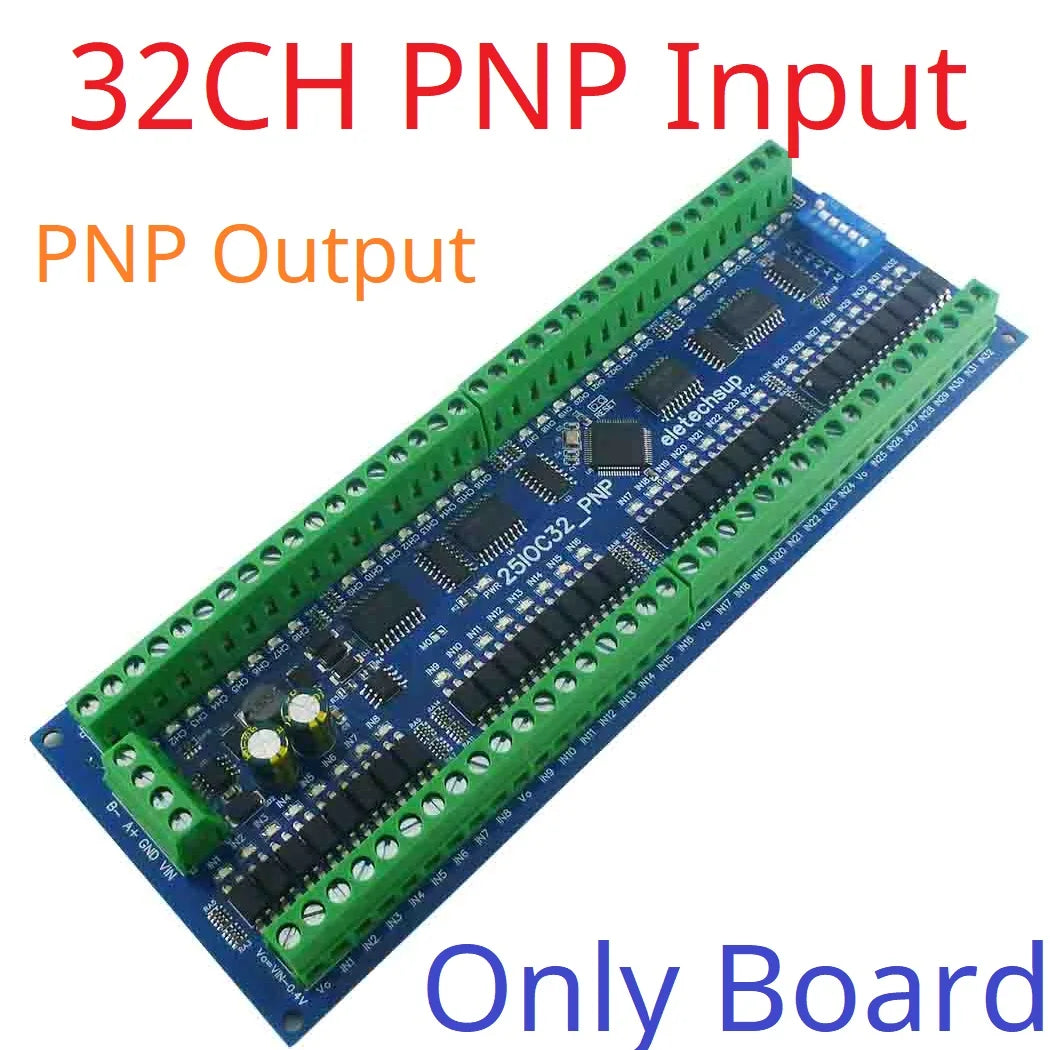

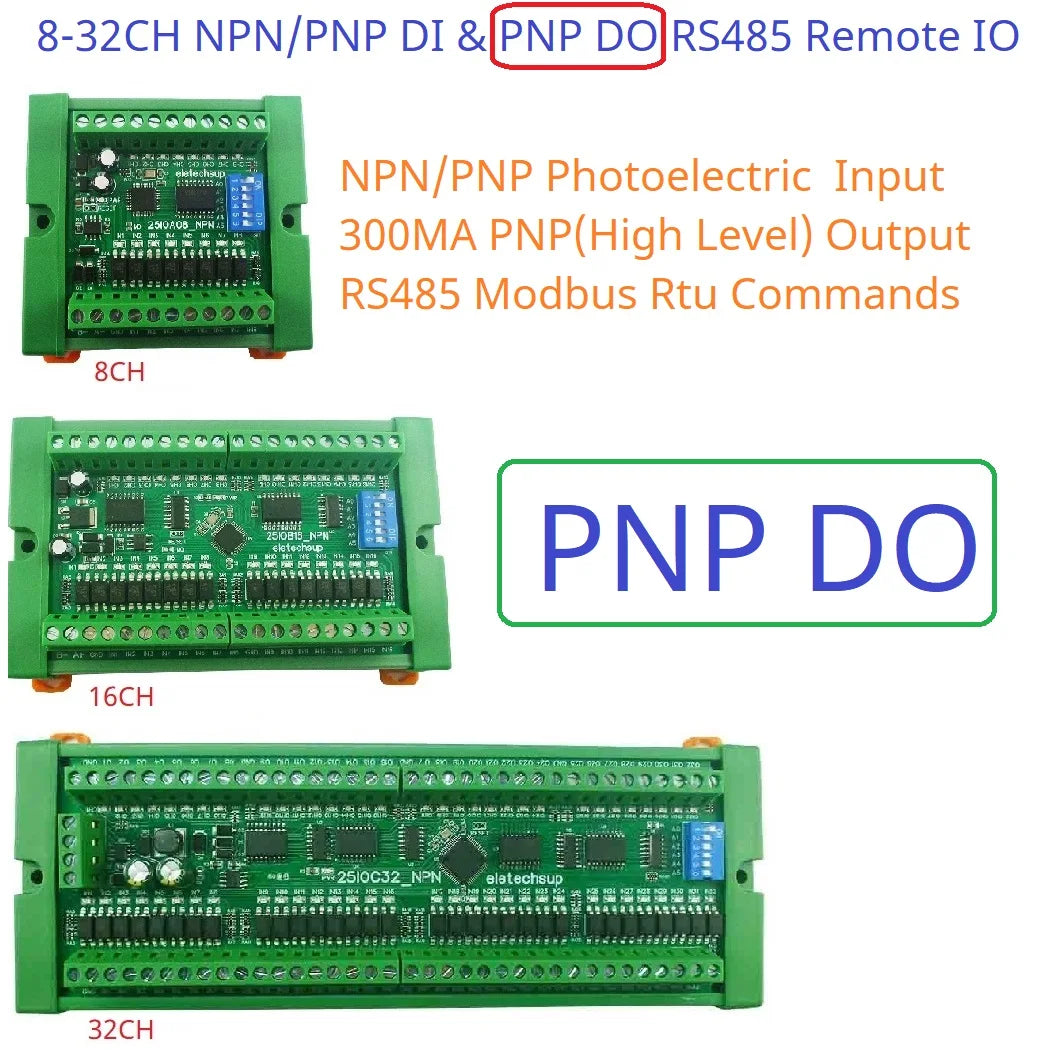

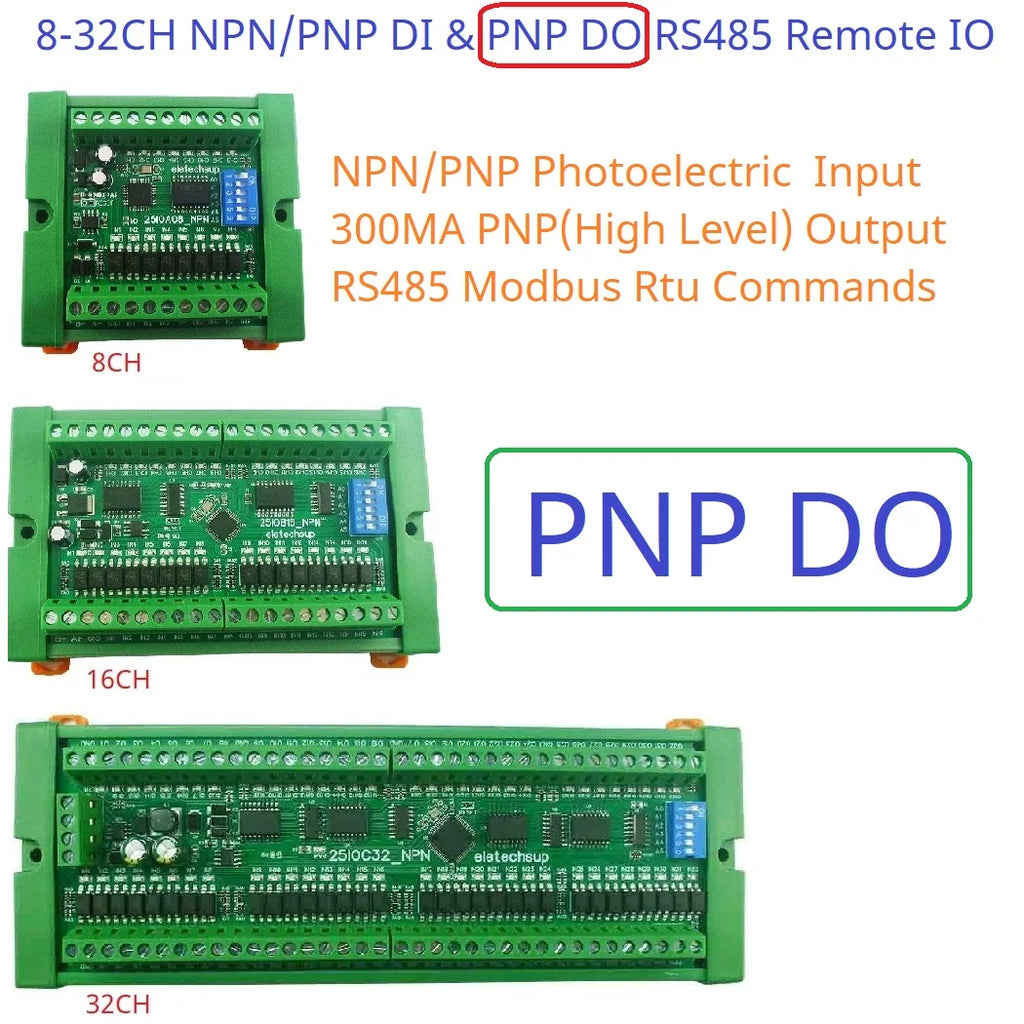

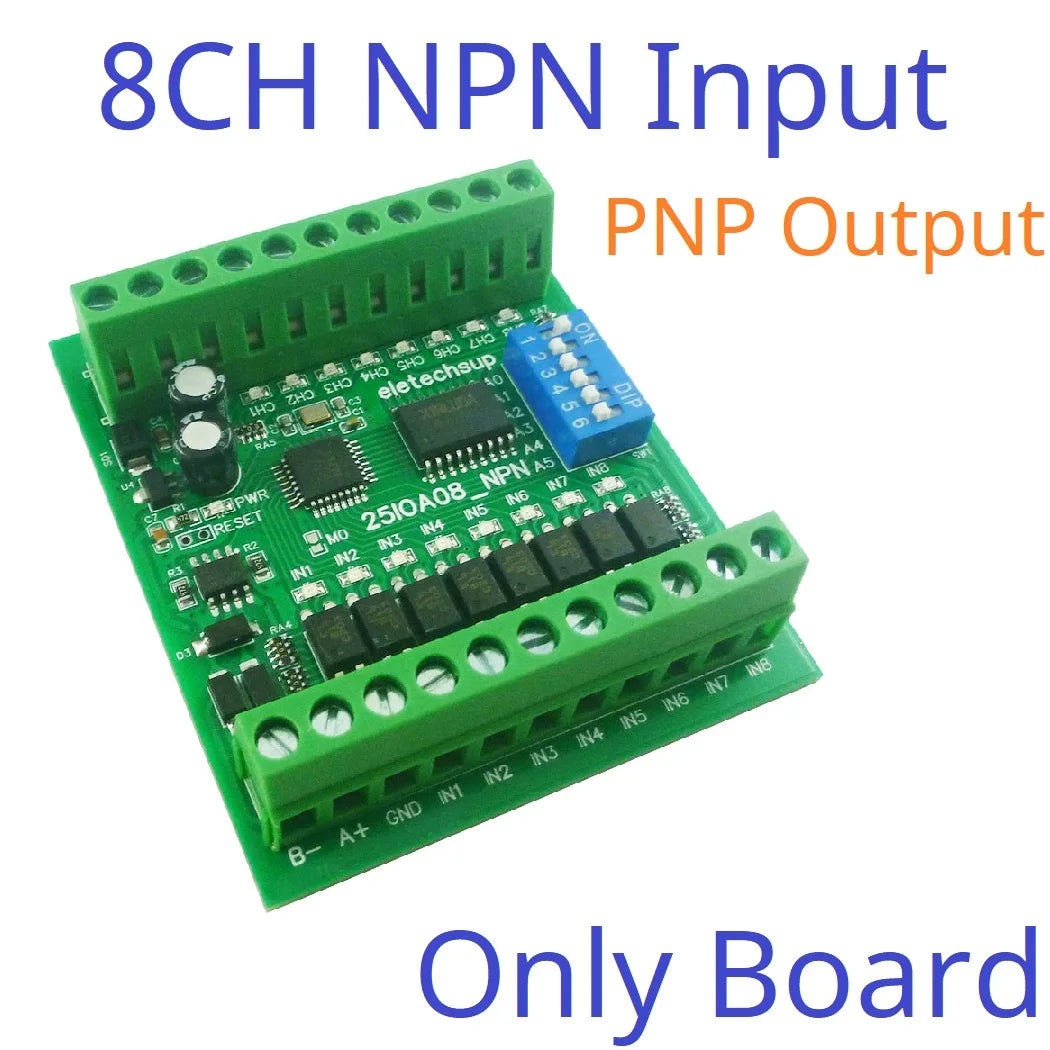

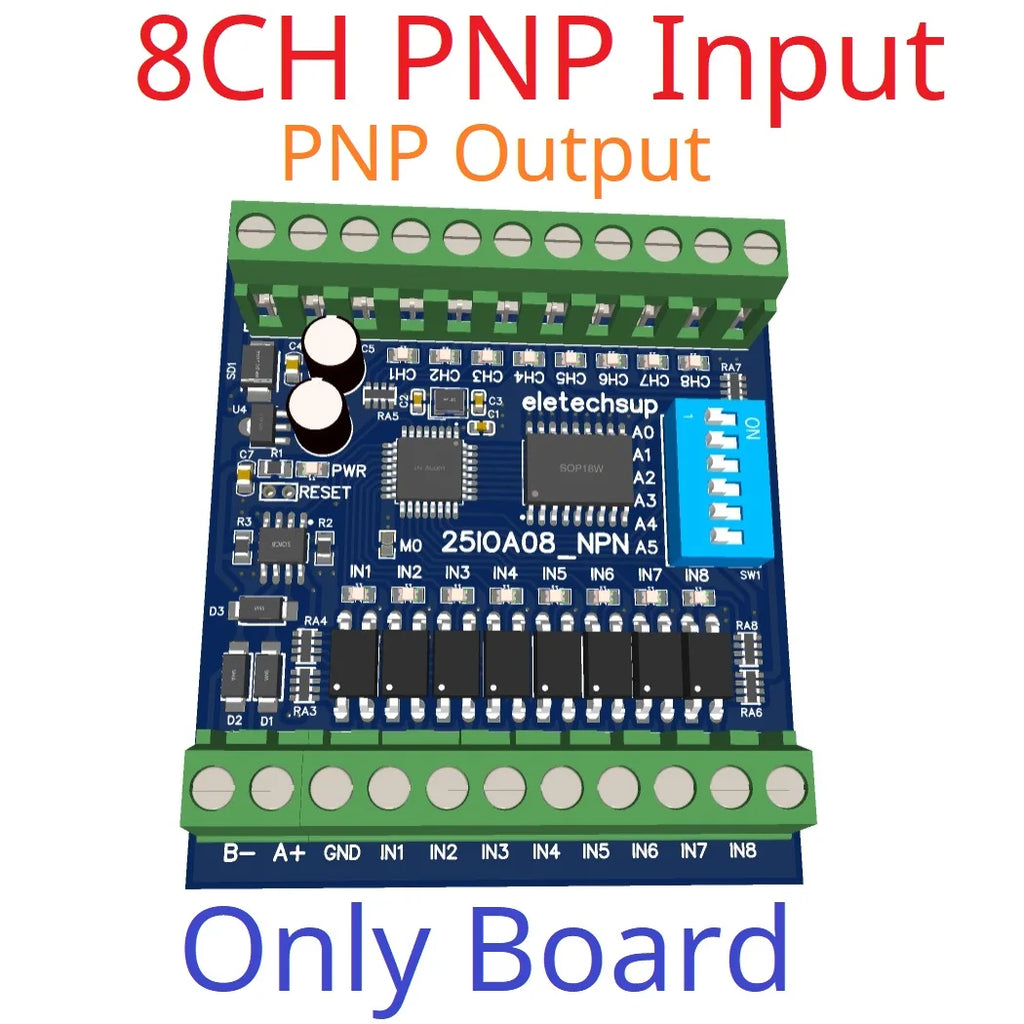

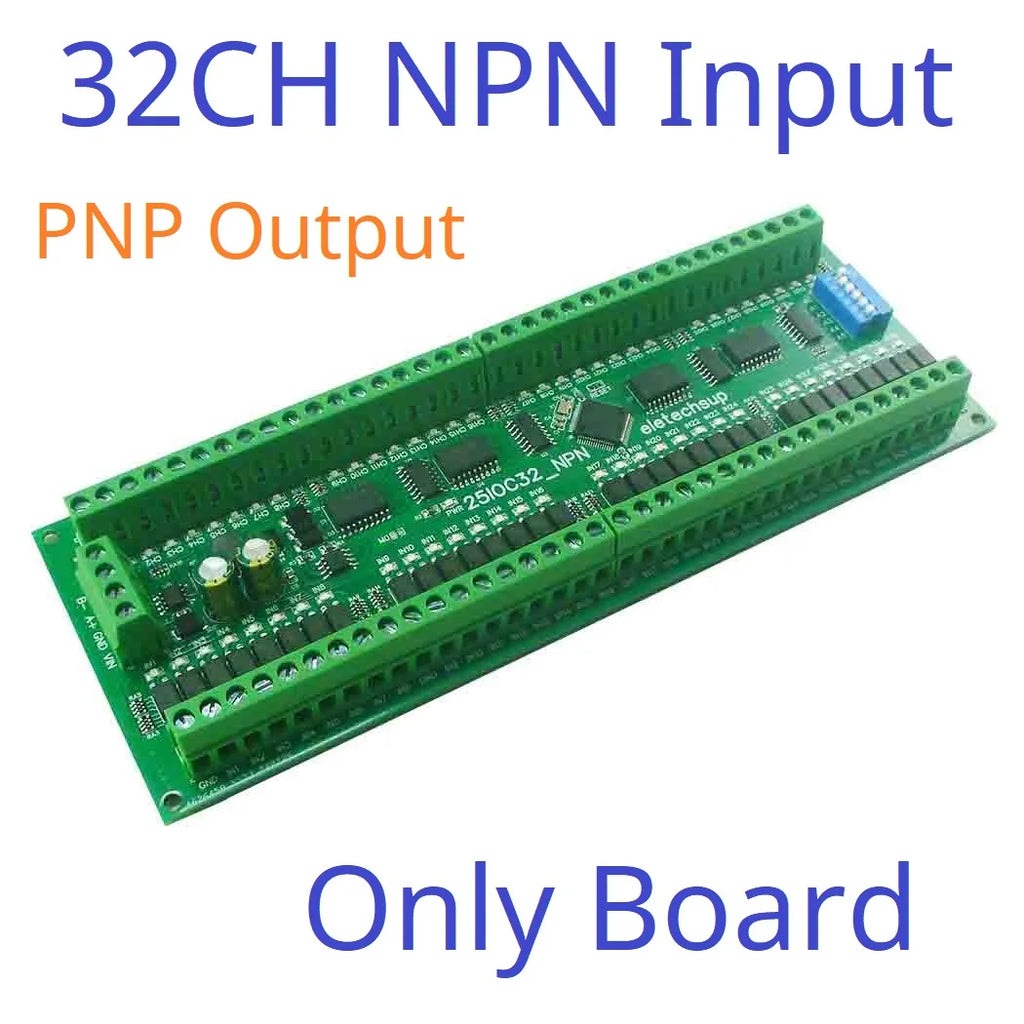

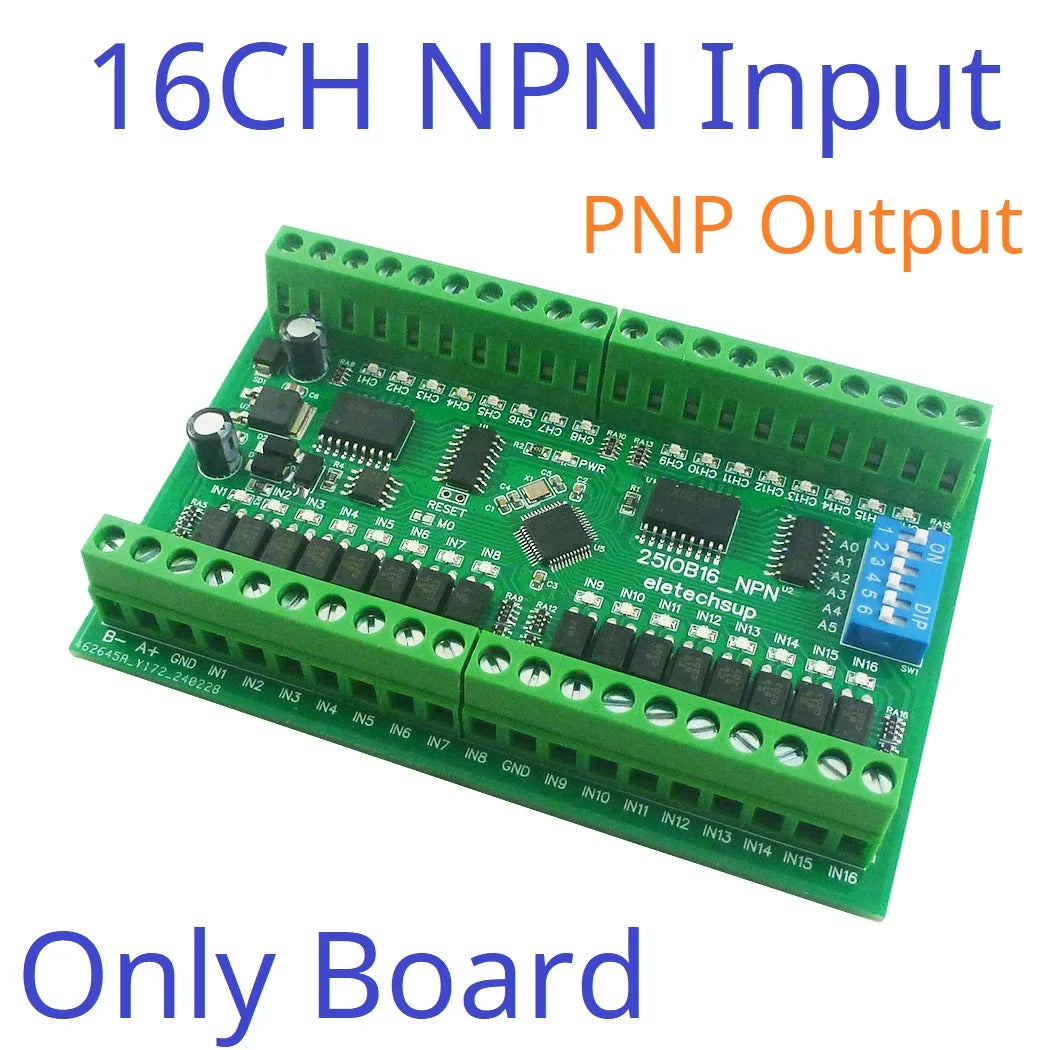

25IOA08 25IOB16 25IOC32 series products are eletechsup's first PNP Output RS485 IO module. With 8/16/32 channels NPN/PNP Photoelectric isolation input and the same channel 300MA
DMOS PNP Output.
(NPN Output Please select 23IOA08 23IOB16 23IOC24 23IOD32 23IOE48)

Features:

1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA

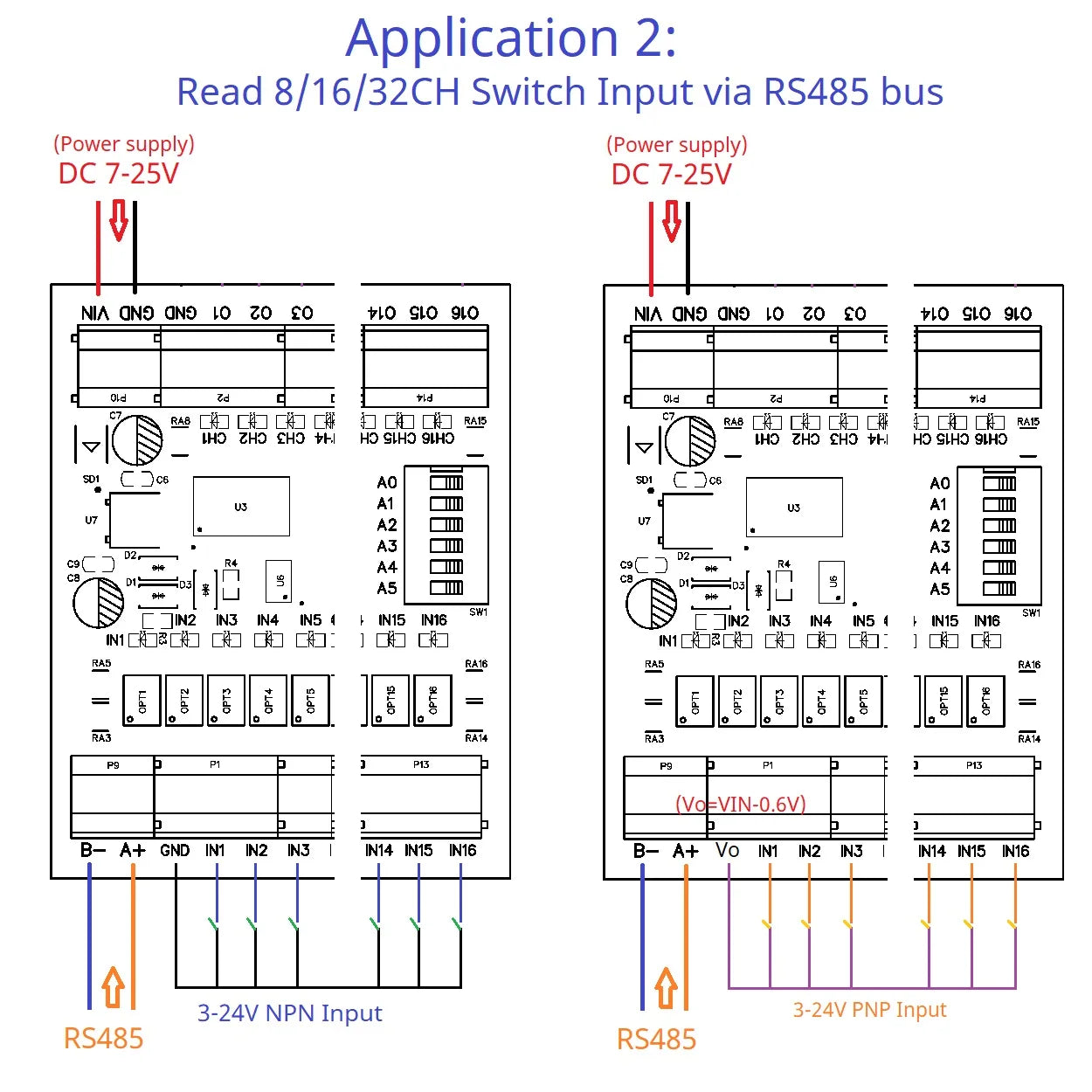

3 8/16/32 photoelectrically isolated input ports, NPN/PNP(optional)
4 8/16/32
DMOS PNP outputs
(high level output, drive current 300MA)
5 The default command has multiple output modes: six output modes: Open/Close/Toggle (Self-locking)/Latch(Inter-locking)/Momentary (Non-locking) /Delay .

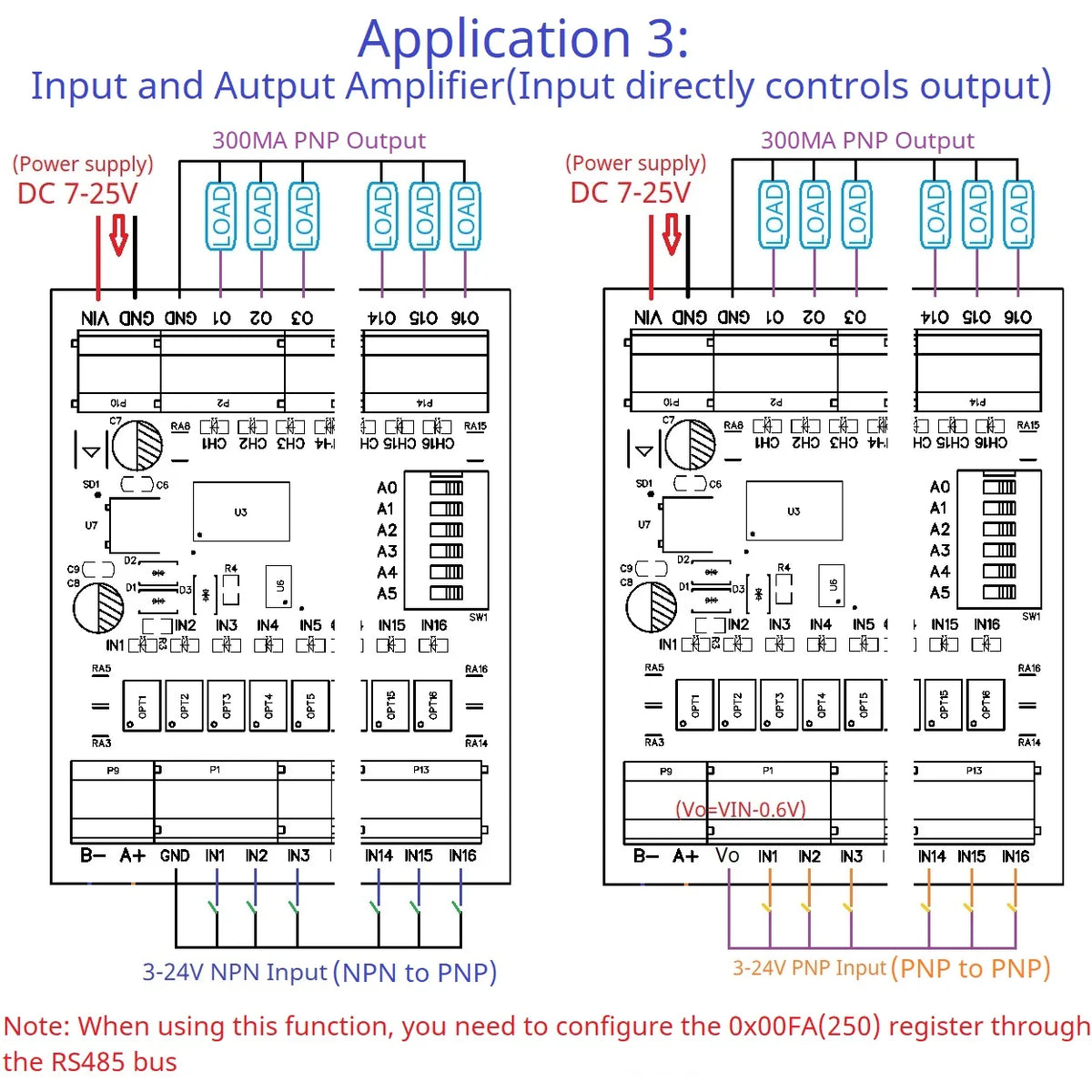

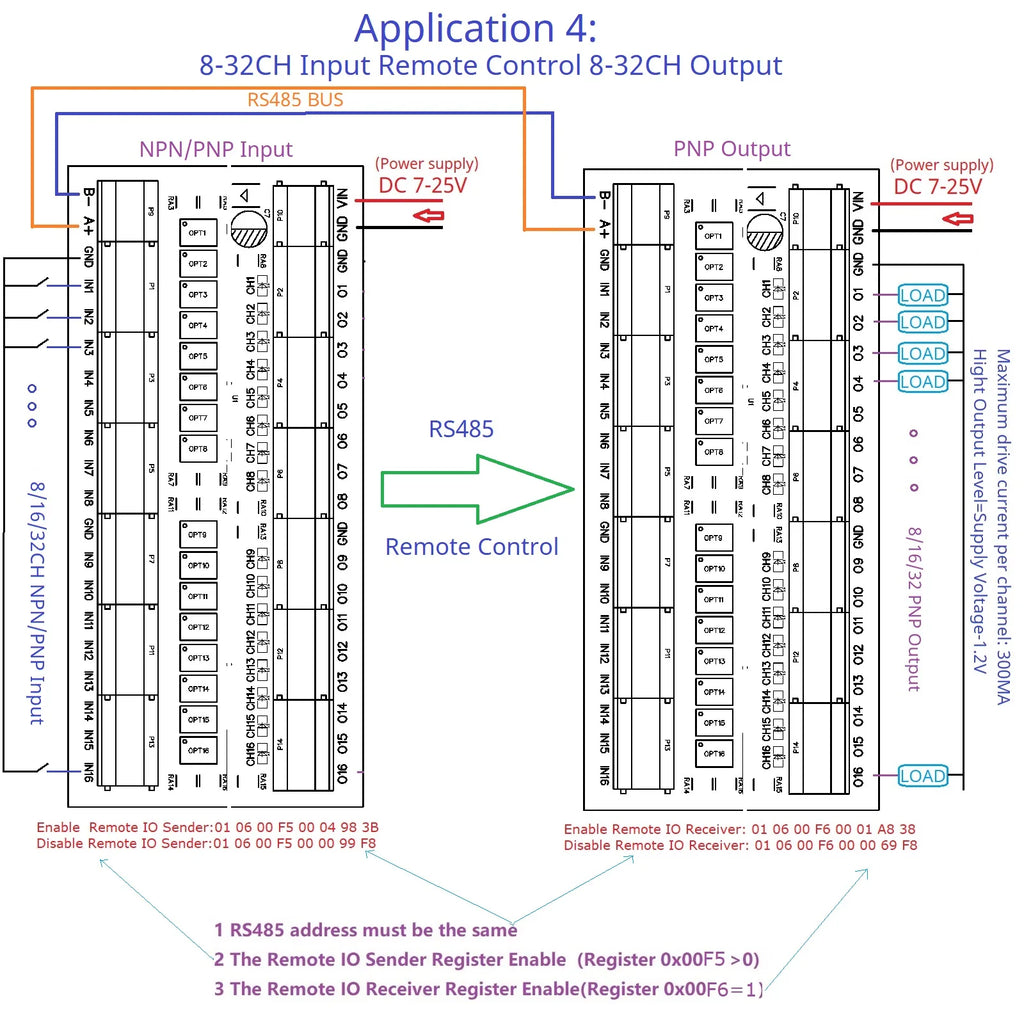

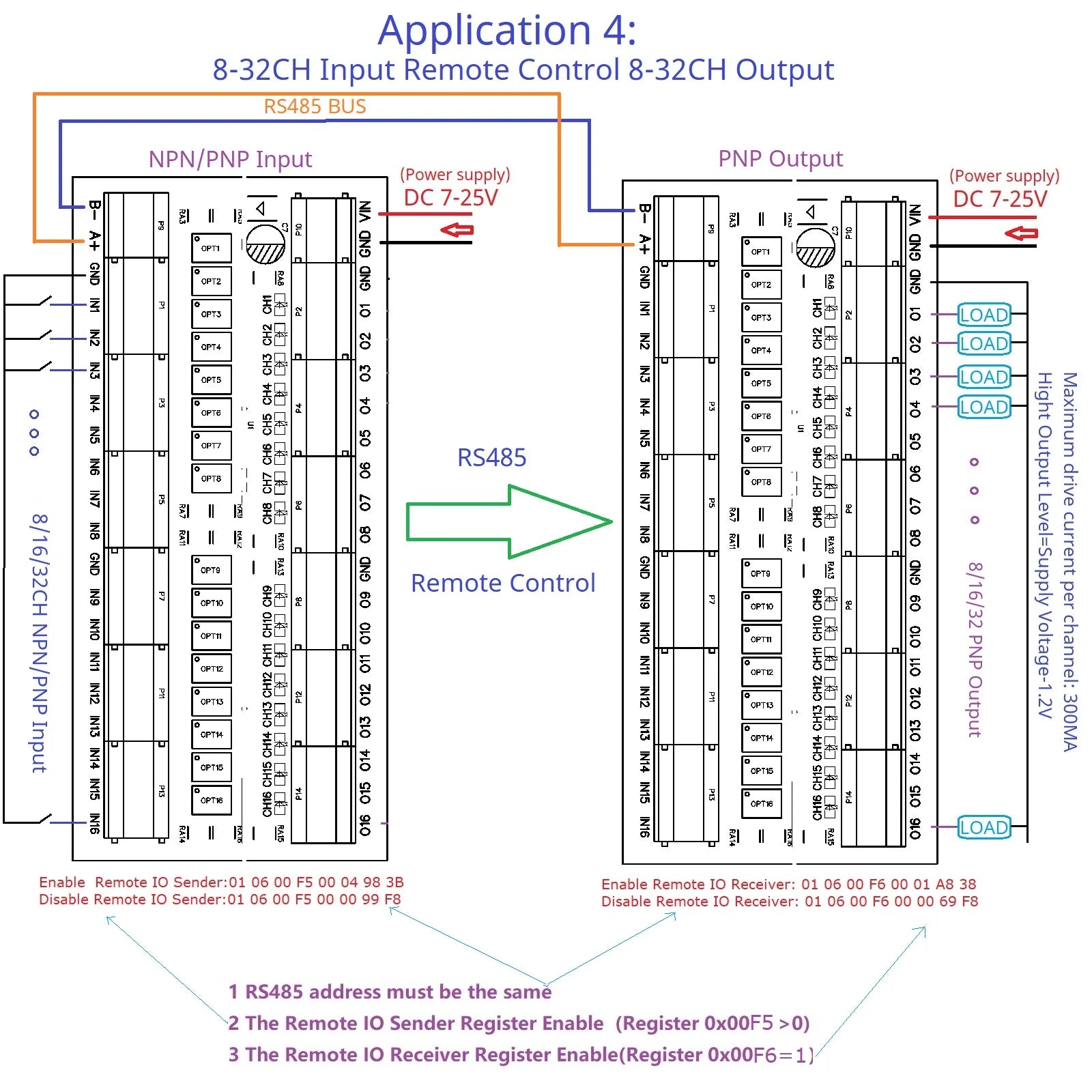

6 The input port can remotely control the output port of another board through the RS485 bus
7 MODBUS command 1 supports 03 06 16 function code, MODBUS command 2 supports 01/02/03/05/06/15/16 function code
8 The maximum delay under MODBUS command 1 is 255 seconds.

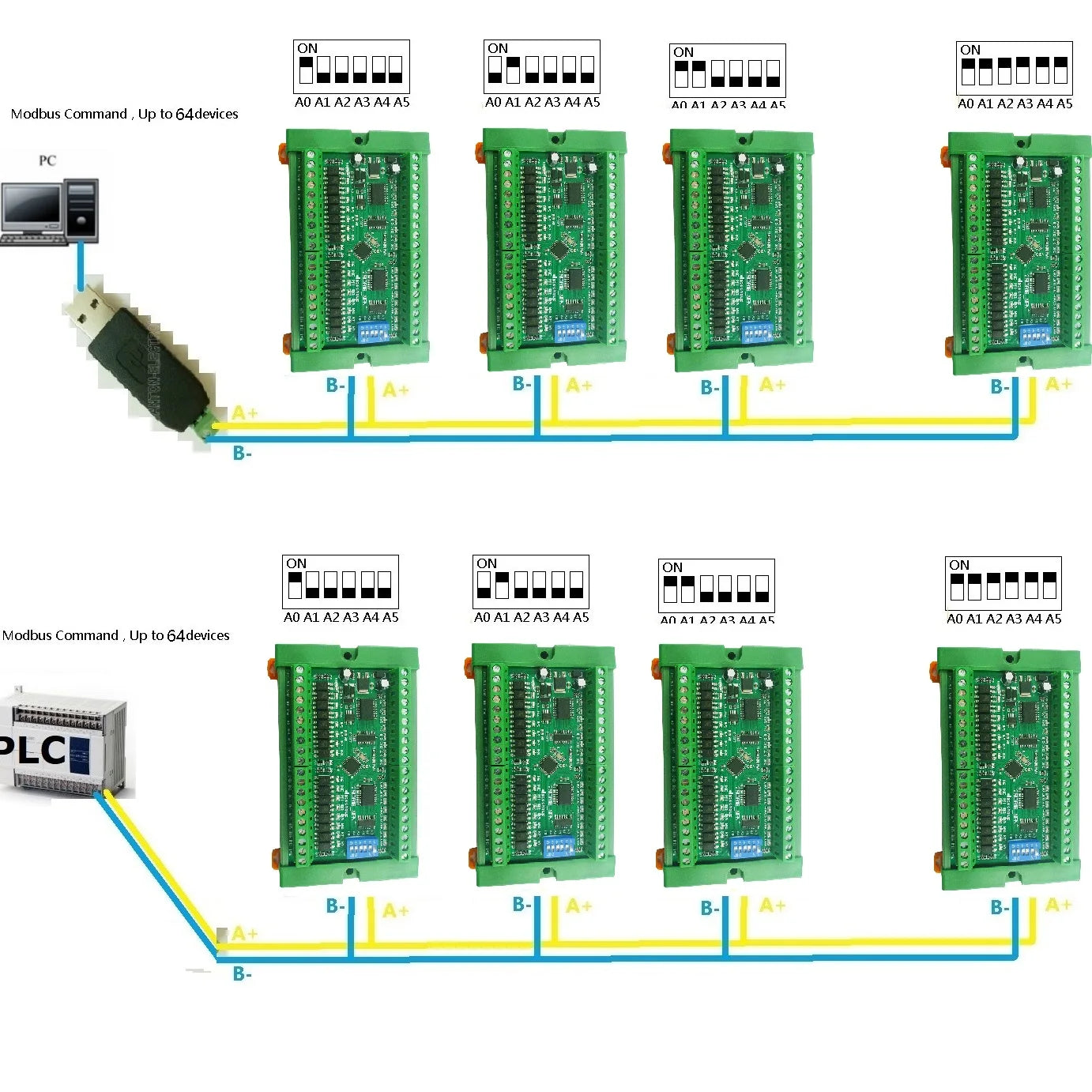

9 In MODBUS command mode, up to 64 devices can be supported in parallel.
10 The default baud rate is 9600BPS, Can be set :1200/2400/4800/19200/38400/57600/115200BPS

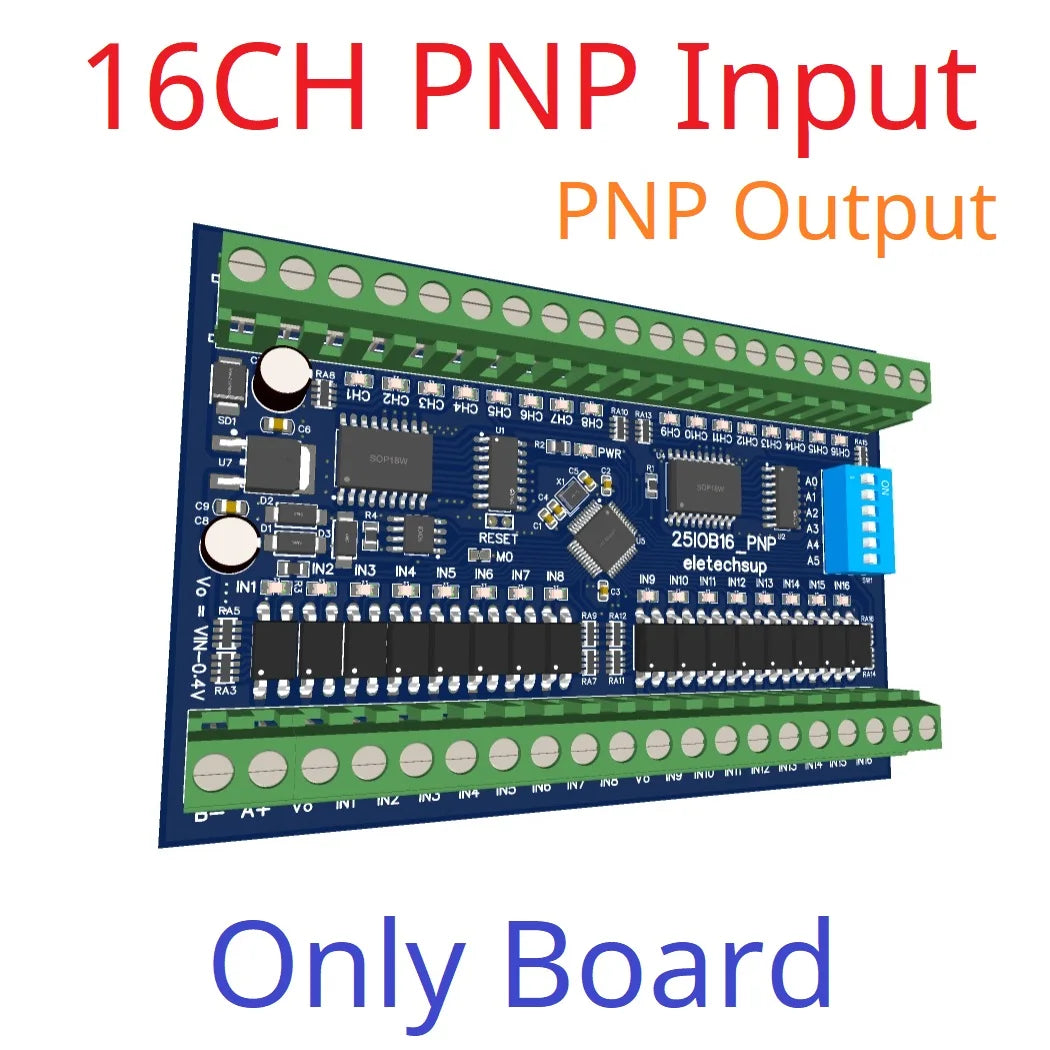

11 Sizes (Only Board): 61x72x18MM (8CH), 106x72x18MM (16CH), 196x72x18MM (32CH)

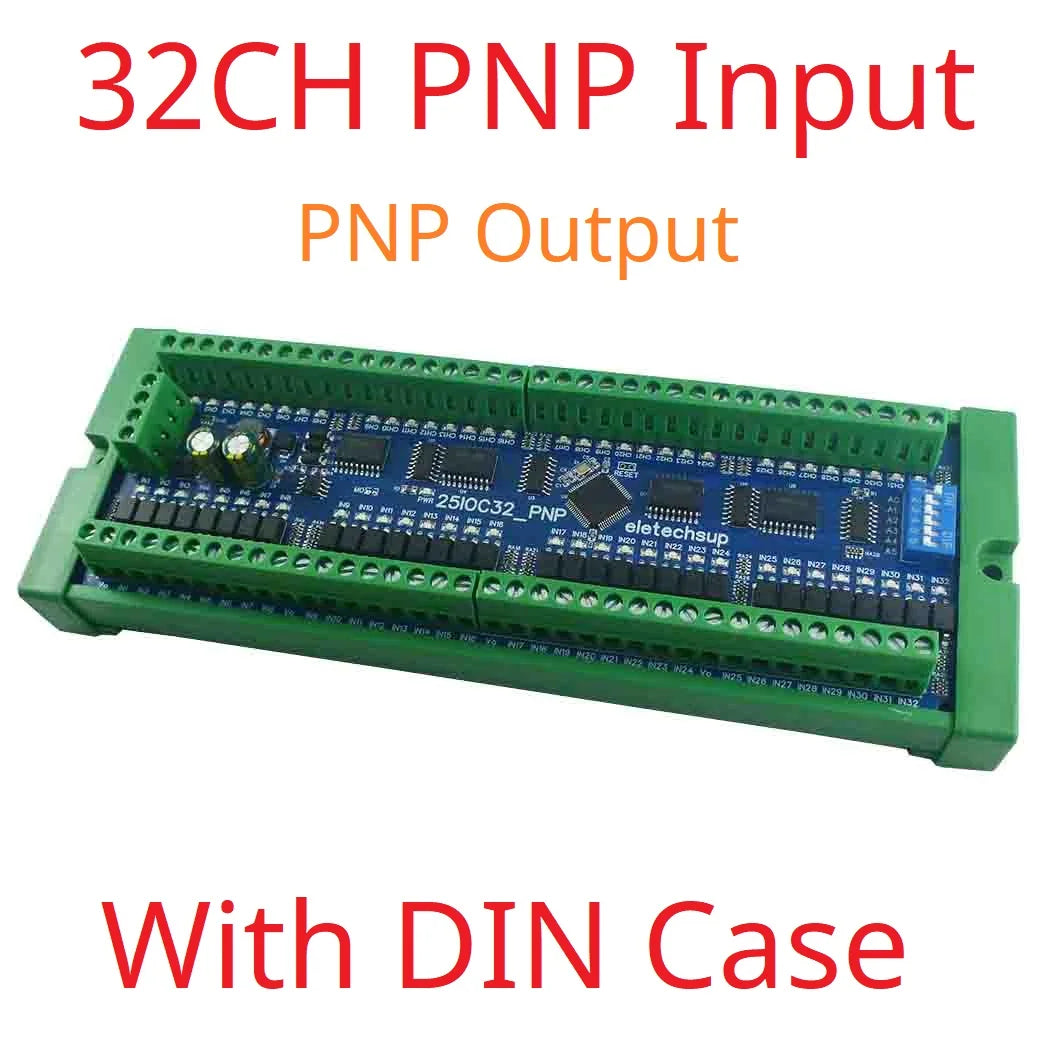

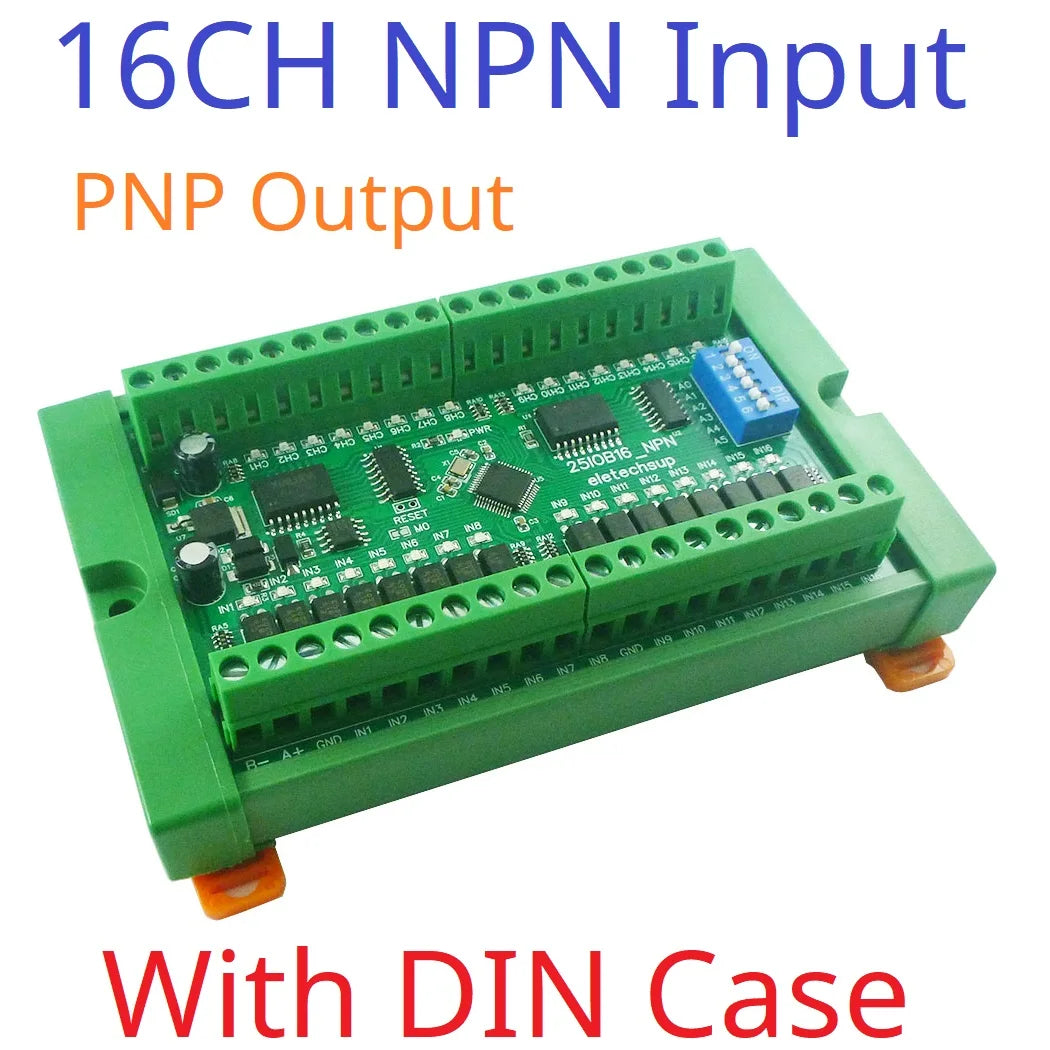

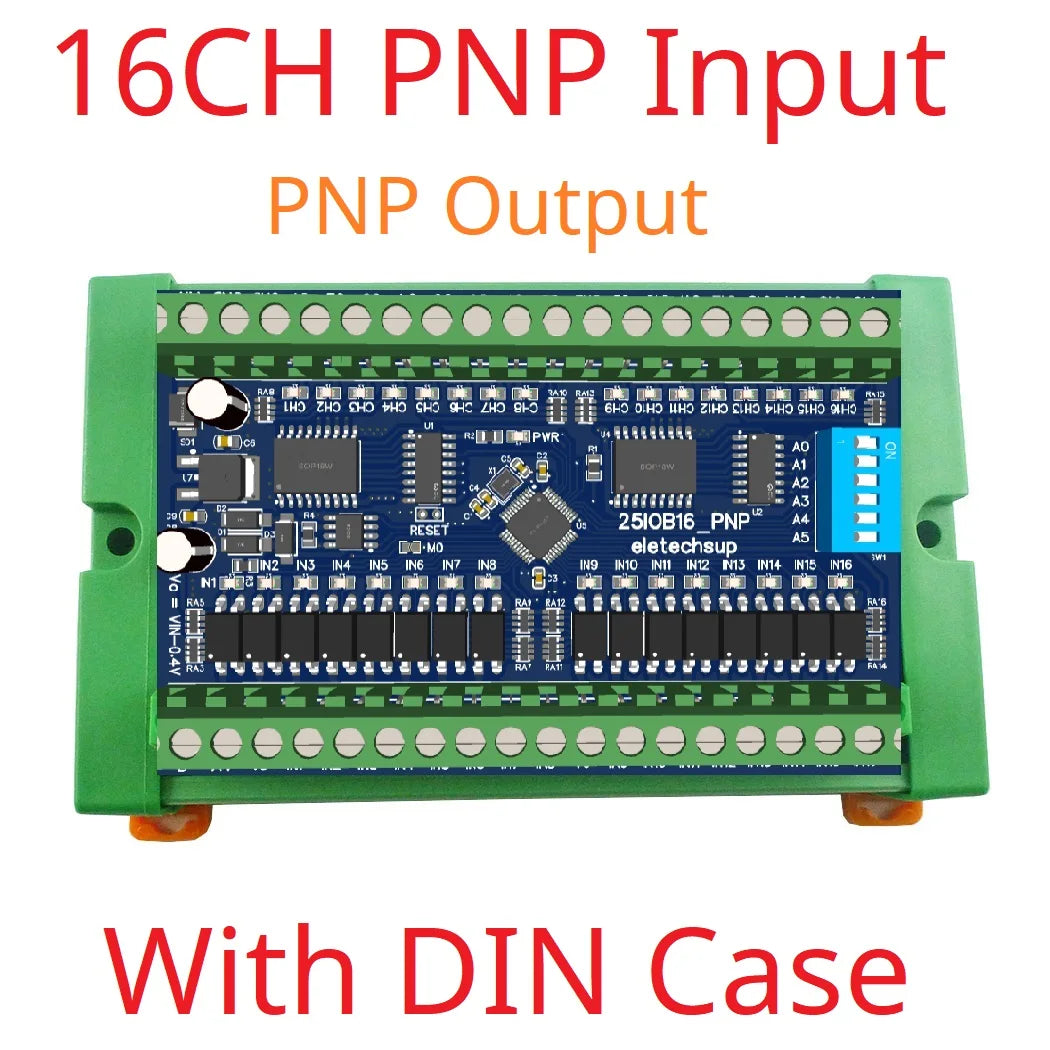

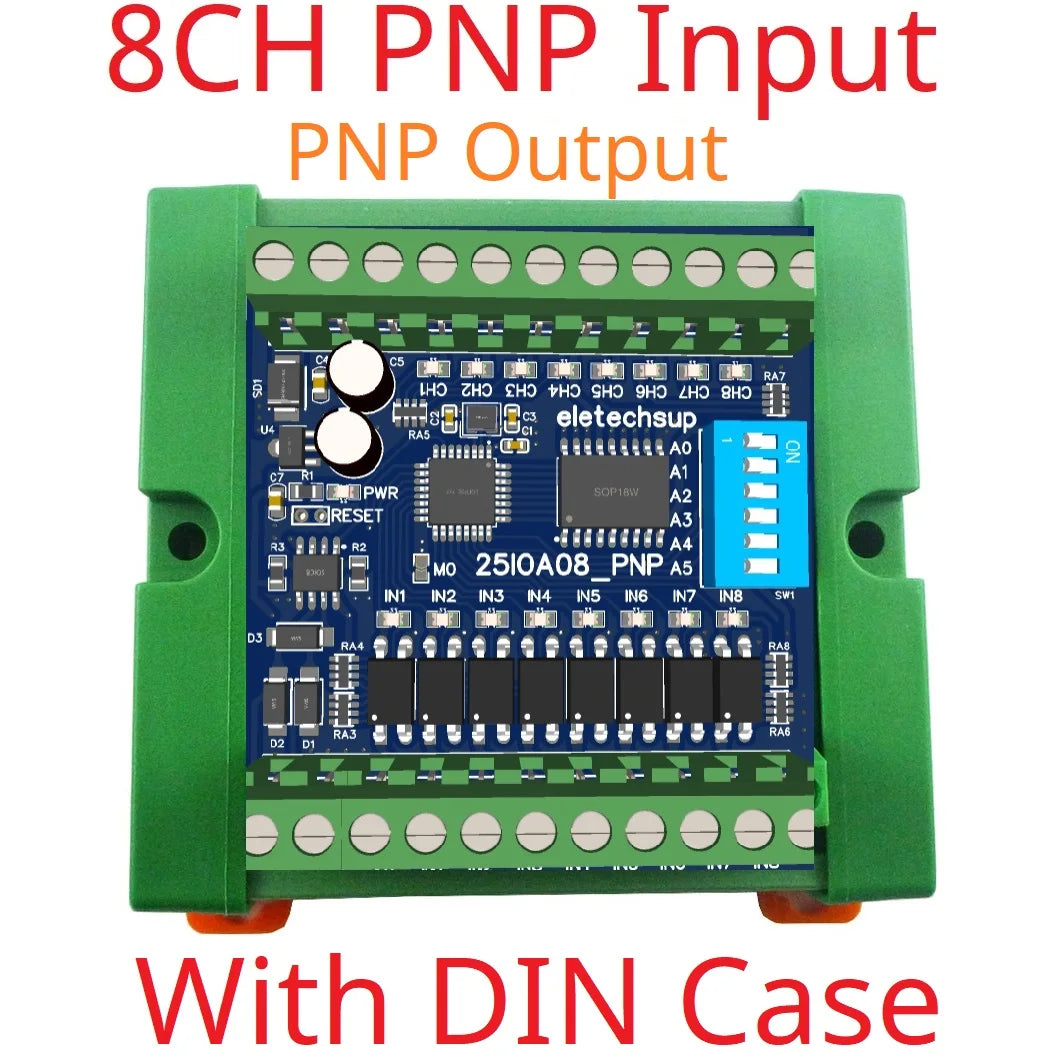

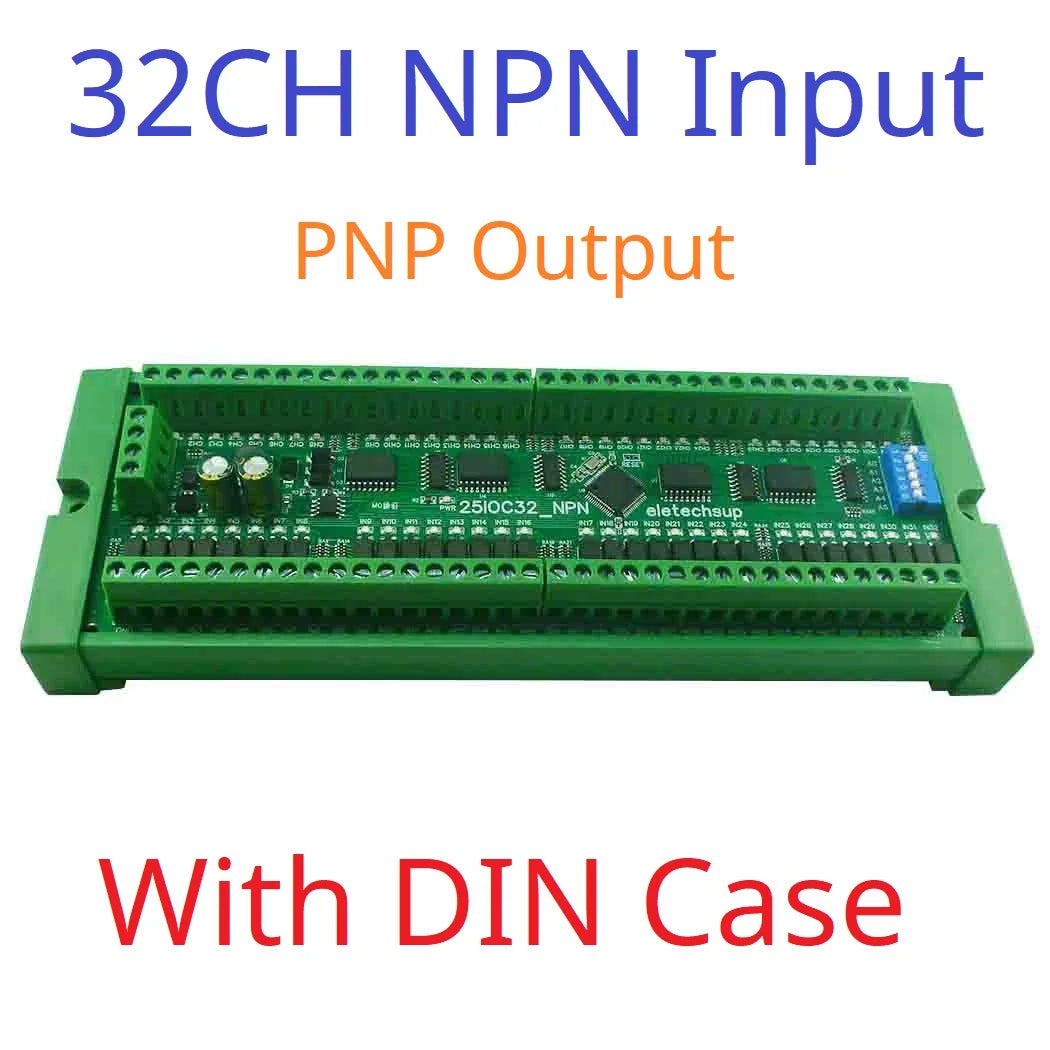

12 Dimensions (Wth DIN Box): 64x80x30MM (8CH), 109x80x30MM (16CH), 199x80x30MM (32CH)
14 Weight (Only Board): 46g (8CH), 80g (16CH), 152g (32CH),
15 Weight (Wth DIN Box): 85g (8CH), 145g (16CH), 247g (32CH)

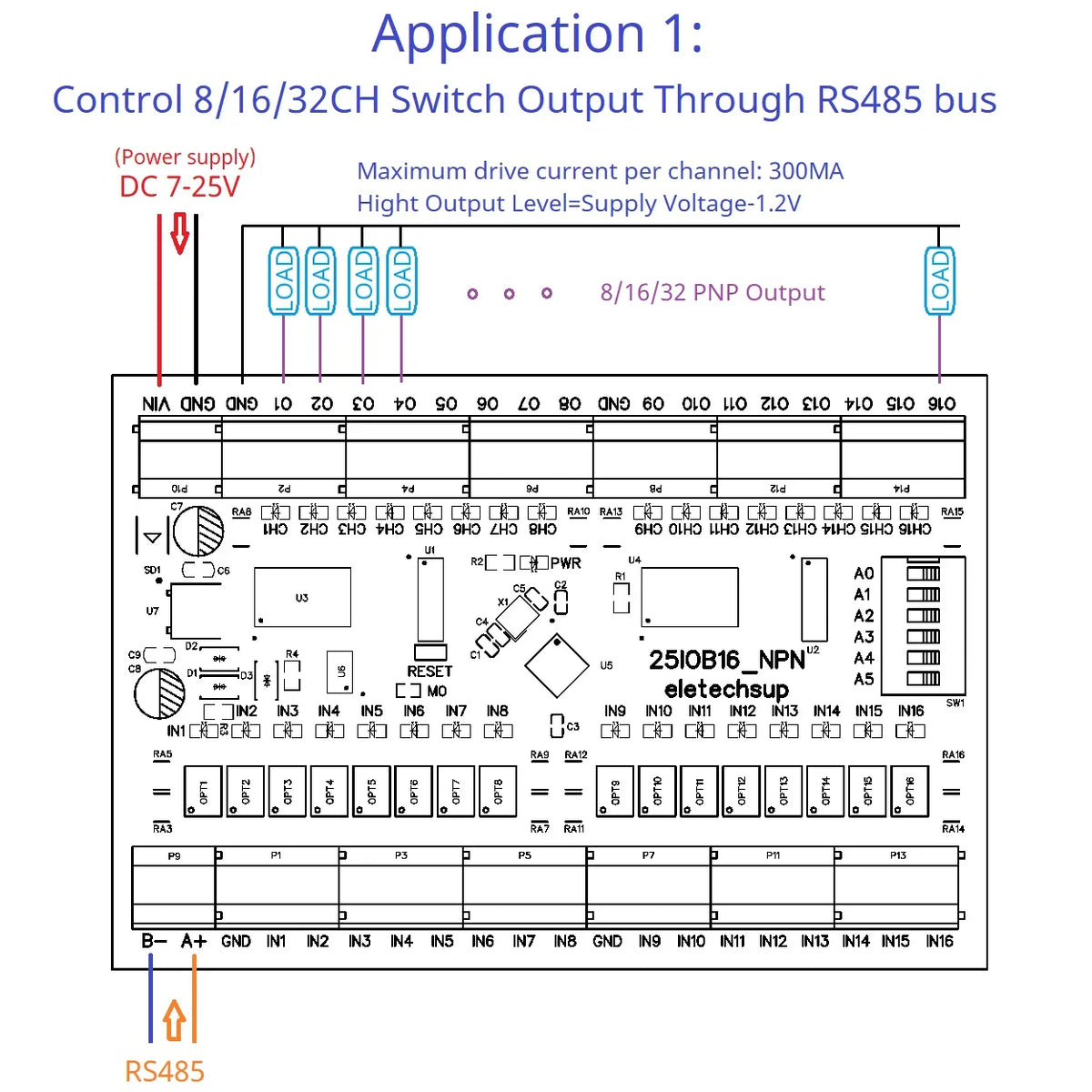

16 Maximum load: The maximum load current of each channel is 300MA

For more information, please contact me

Application

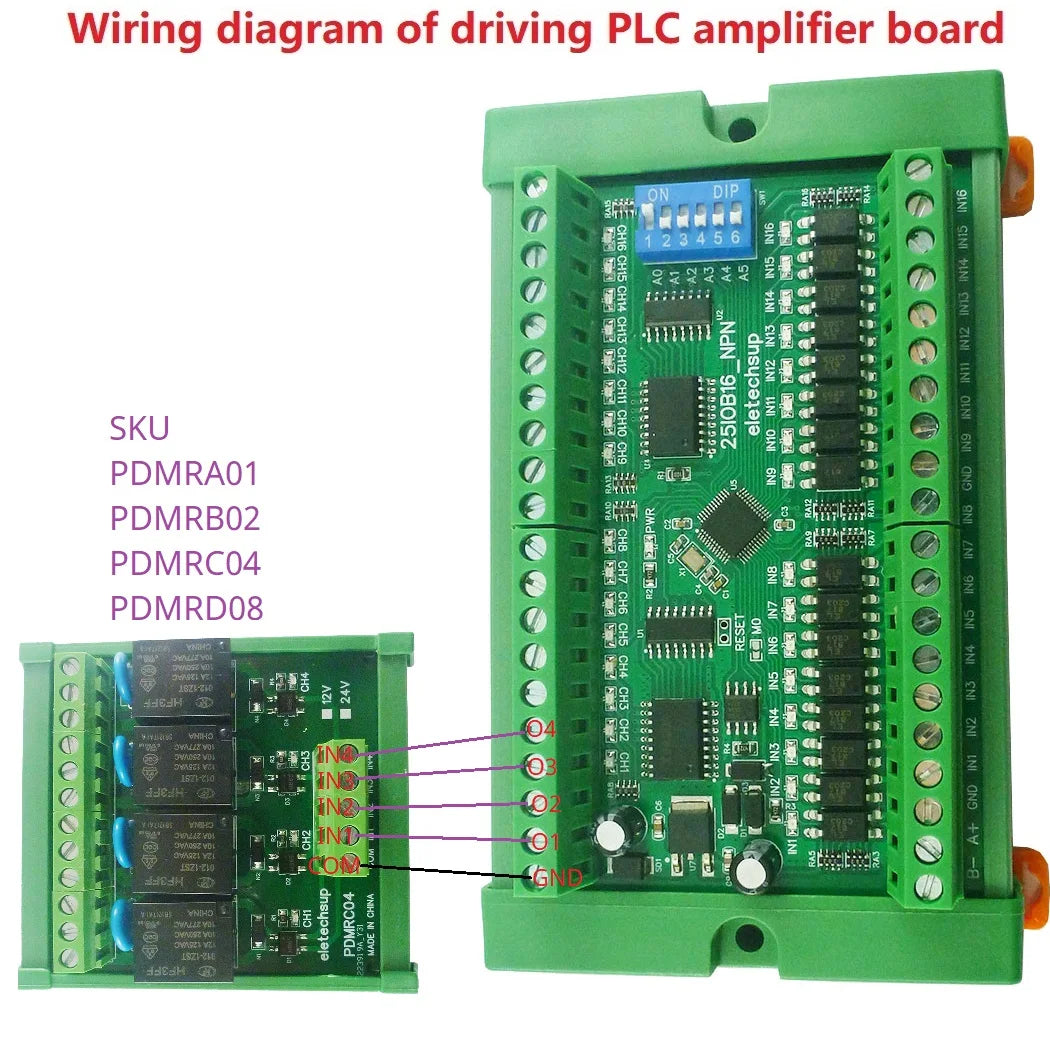

PLC IO expansion board
RS485 Remote Control
Smart Home,Home Automation ,Wiser Home;
PTZ IP Camera
Security Monitoring
Identification system;
LED Lamp Drivers
Automatic curtain control
