SPECIFICATIONS

Brand Name: NONE

Certification: CE

High-concerned chemical: none

Interface Type: RS232/485

Model Number: USR-W610

Networking Protocol: TCP/UDP/ARP/ICMP/DHCP/DNS/https

Origin: Mainland China

Power supply: DC5-36V

Smart home platform: NONE

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

WiFi: 802.11 b/g/n

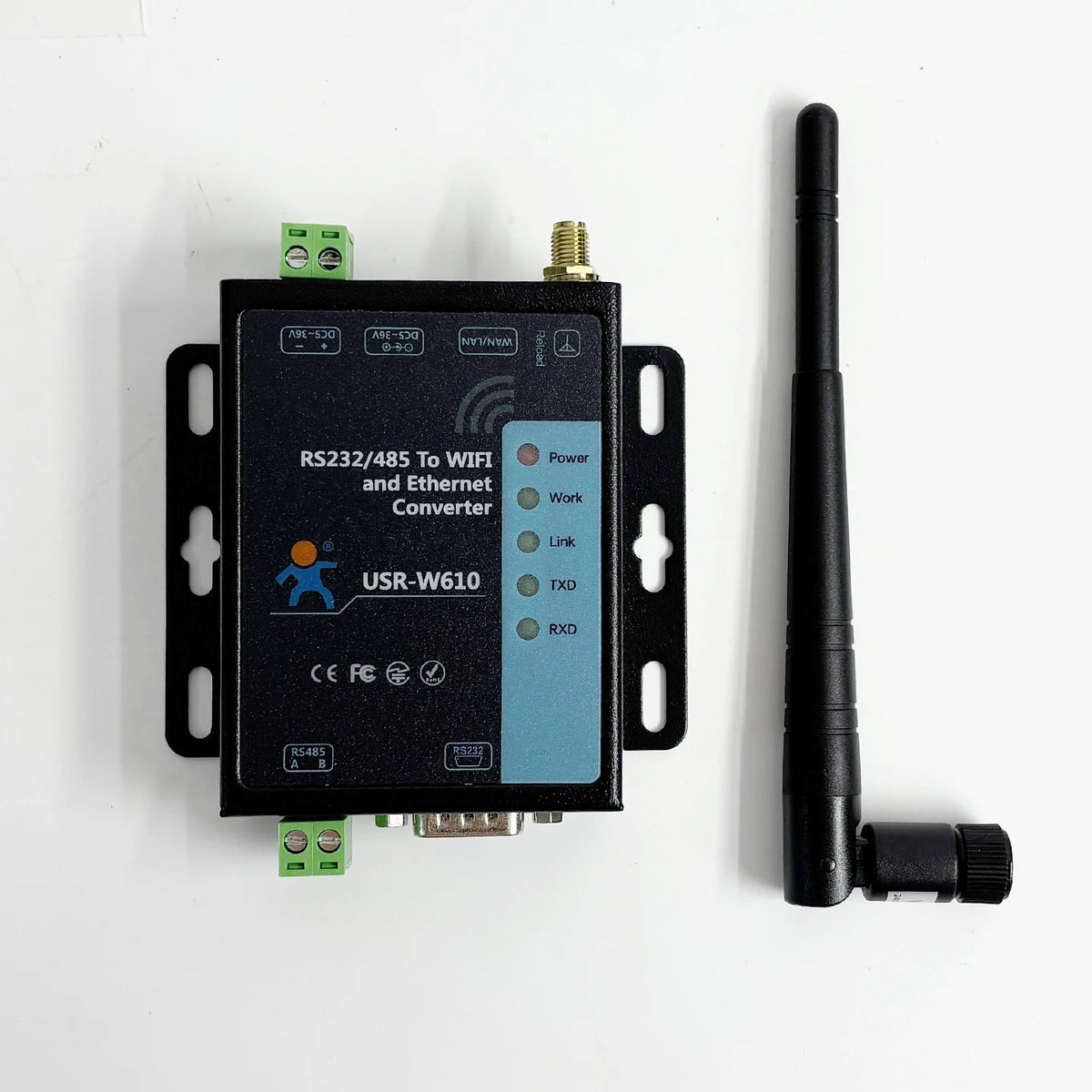

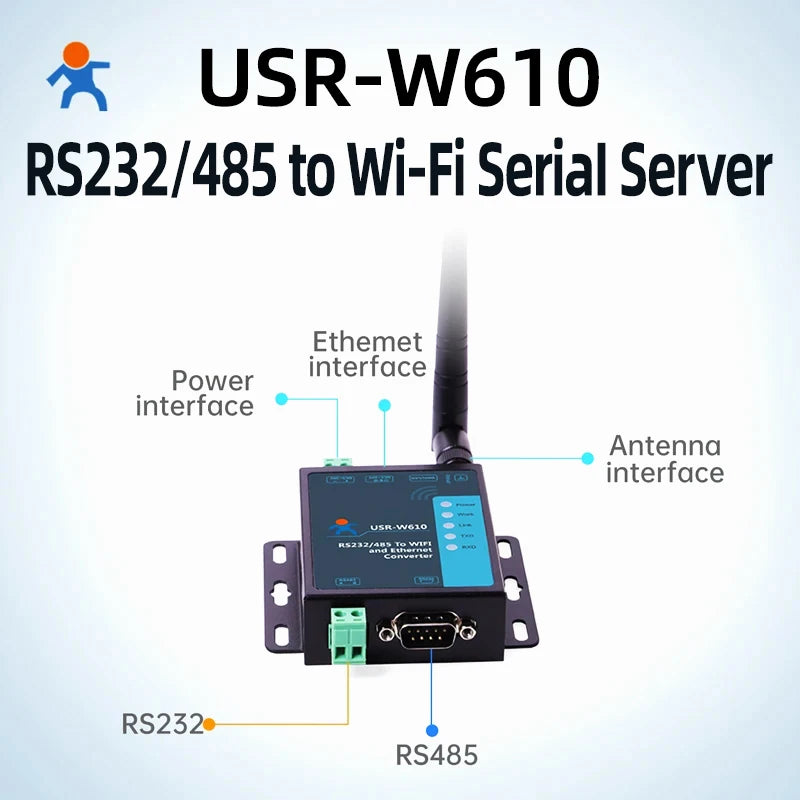

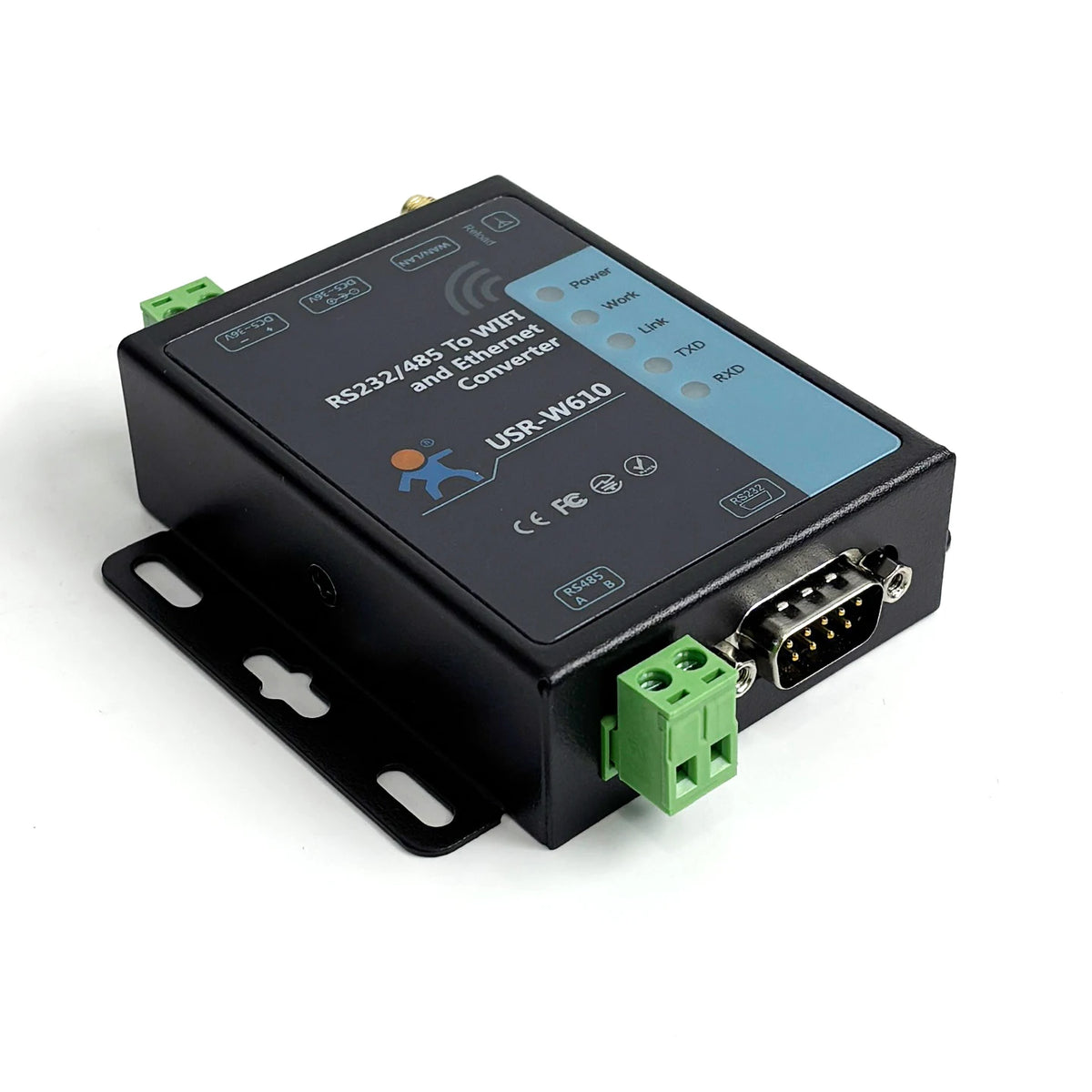

                              RS232/485 to Wi-Fi/Ethernet Converter

USR-W610 is a device that can realize data communication between serial port and Ethernet/

Wi-Fi. Through this device, the communication between the on-site serial device and the

remote SCADA system can be realized. It has a 232 serial port and a 485 serial port, but the

two serial ports cannot be used simultaneously. It integrates a wealth of network protocols l

ike MQTT, TCP, UDP etc. and supports a variety of networking methods, suitable for various

scenarios.

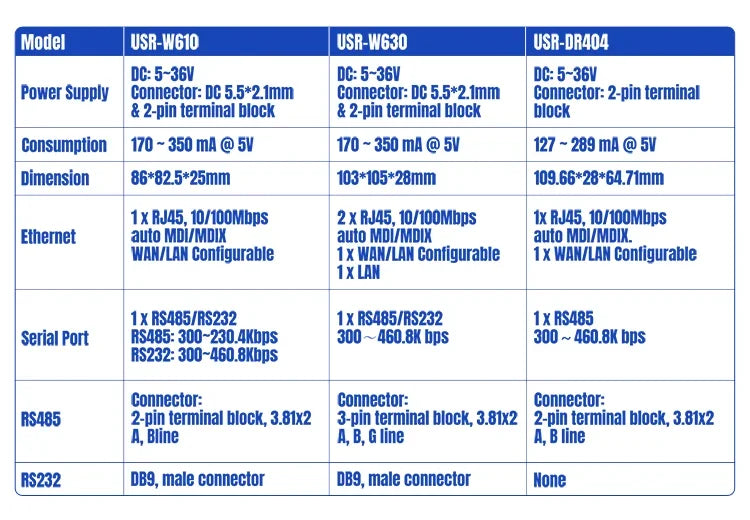

                                                                Ordering Guide

For serial to Wi-Fi/Ethernet convertor, PUSR offers 3 models to meet the needs of customers

in different scenarios, and the main differences are shown in the table on the left.

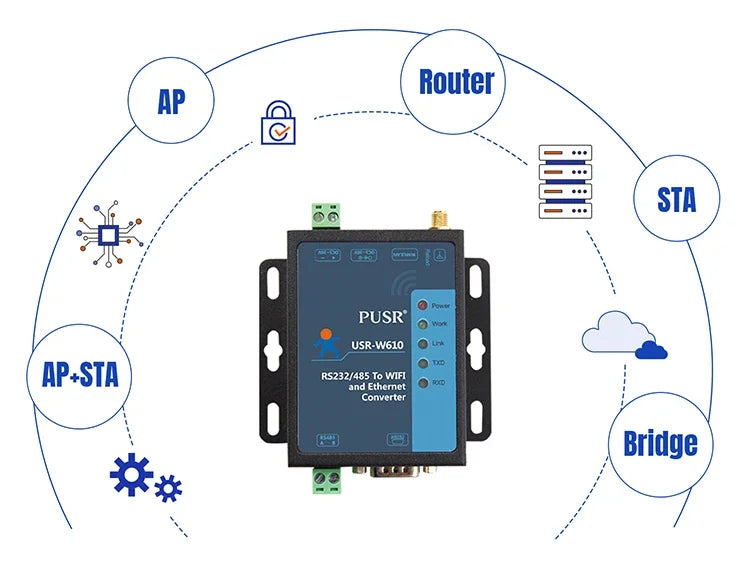

                                                    Multiple Networking Options

The USR-W610 provides a wealth of networking methods to meet customer networking needs.

• AP mode: Allow network devices to access USR-W610 via Wi-Fi or Ethernet.
• STA mode: USR-W610 as a network device accesses other networks via Wi-Fi.
• AP+STA mode: Work in AP and STA mode simultaneously.
• Bridge mode: The device connected to the Ethernet port of W610 is equivalent to directly

connecting to the upper-level network, and the W610 is equivalent to being transparent.
• Router mode: The device connected to the Ethernet port of W610 will be assigned an IP by

the W610.

                                            Transparent Transmission Mode

Data is transmitted transparently between serial port and Wi-Fi / Ethernet via TCP/UDP/HTTP

Protocol, enabling data transfer between serial port device and network device.

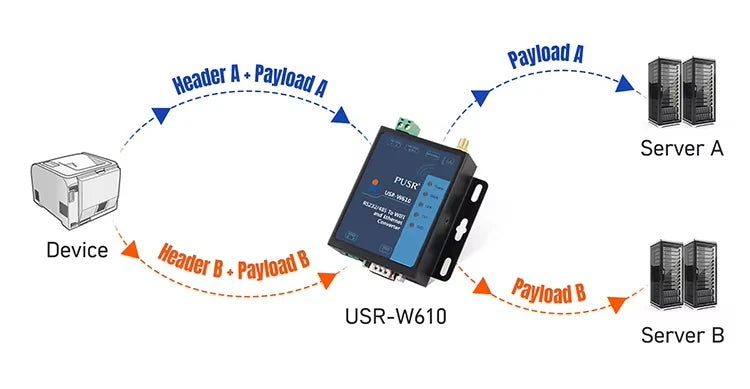

                                                            Serial Command Mode

In this mode, USR-W610 needs work as UDP Client or TCP Client, it allows users to send

serial data to different servers. Data, server IP and port information should be included in the

data packet sent by the serial device

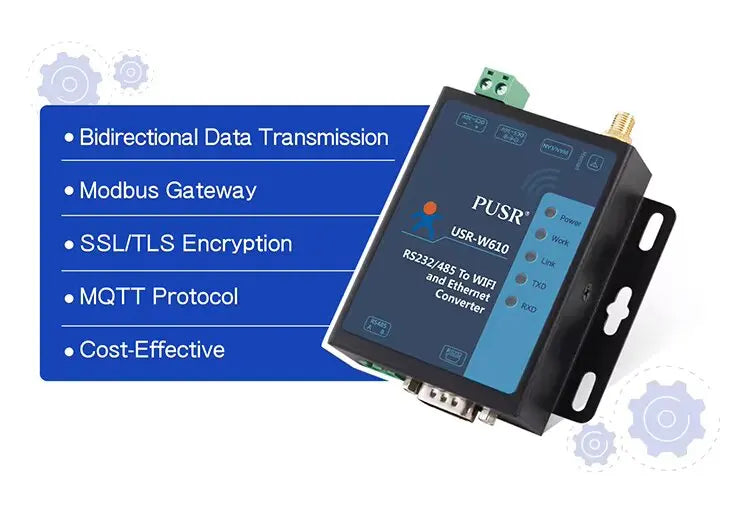

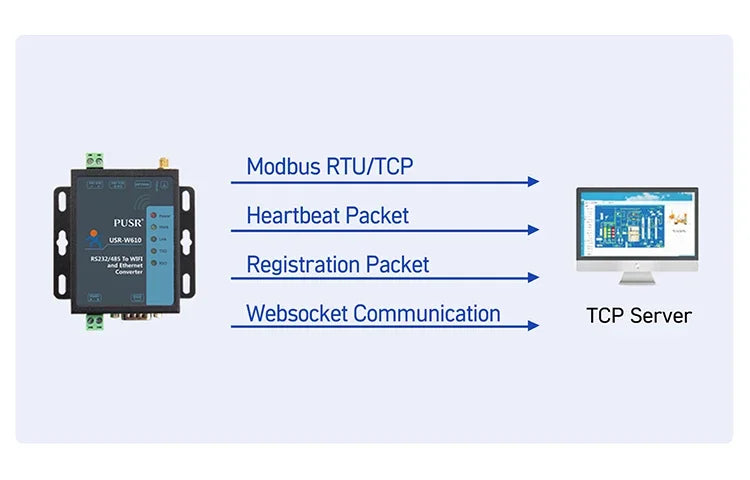

                                                           Addtional Features

• Modbus Gateway: Modbus RTU/TCP protocol conversion and multi-host Modbus polling
• Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client

  using this feature.
• Registration Packet Funciton: The server can identify different

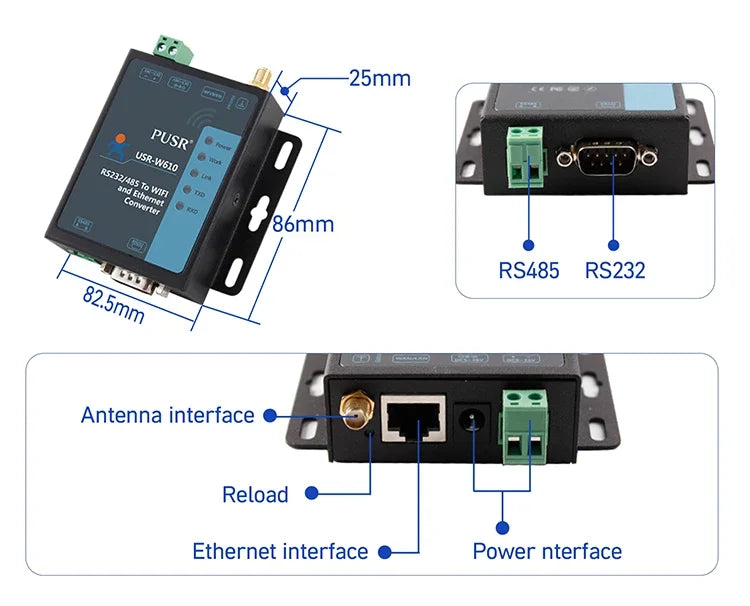

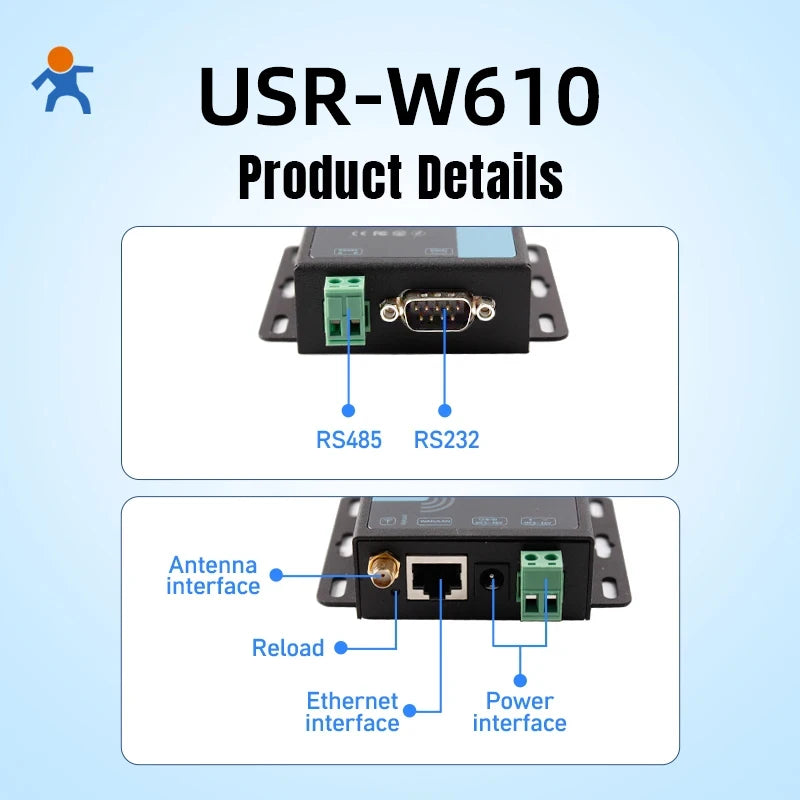

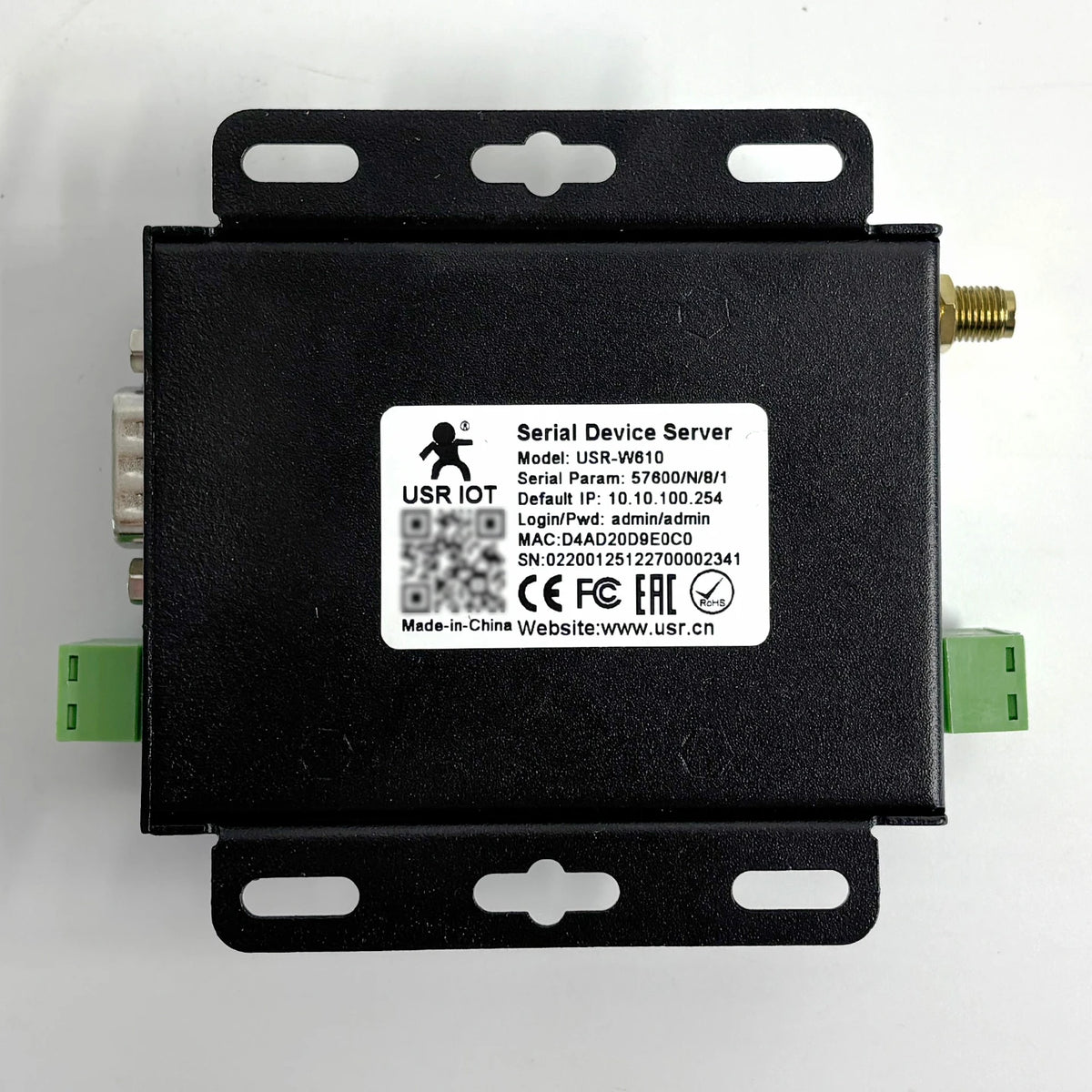

                                                                     Product Details

• Dimension: 82.5*86*25 mm
• Serial port: 1*RS232, 1*RS485. Baud rate range: 300~460.8K bps. The two serial port can't

  work simultaneously.
• Ethernet port: 10/100M MDI/MDIX, auto switch between cross and direct connection, 1.5KV

   electromagnetic isolation.
• Power Supply: 5~36V input, DC socket and terminal block
• Installation: Wall mounting
• Reload button: In the case of forgetting the parameters, long press to restore the factory

   settings.
• Antenna Connector: 1*SMA-Female

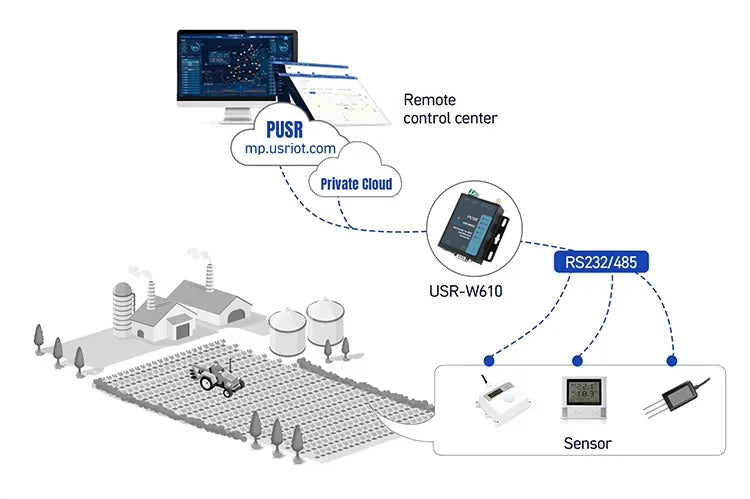

                                                       Smart Agriculture

The USR-W610 combined with soil sensors can quickly and effectively acquire multiple sets

of important data such as farmland soil temperature, humidity, pH, etc., which is convenient for

users to adjust the management method in time, improve management efficiency, and create

modern smart agriculture.

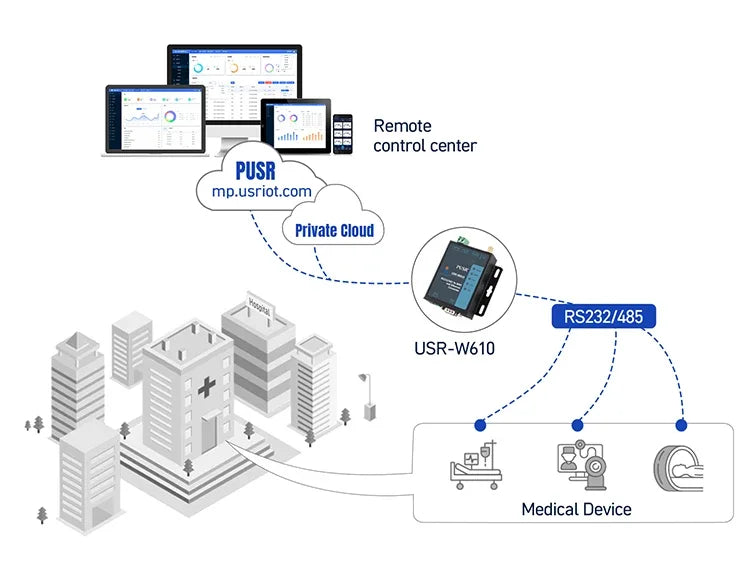

                                Medical Device Data Transmission Solution

The medical equipment transmits the entered data to the cloud server in real time through

Wi-Fi network of W610.Users can quickly complete the collection, storage and analysis of

important data.
