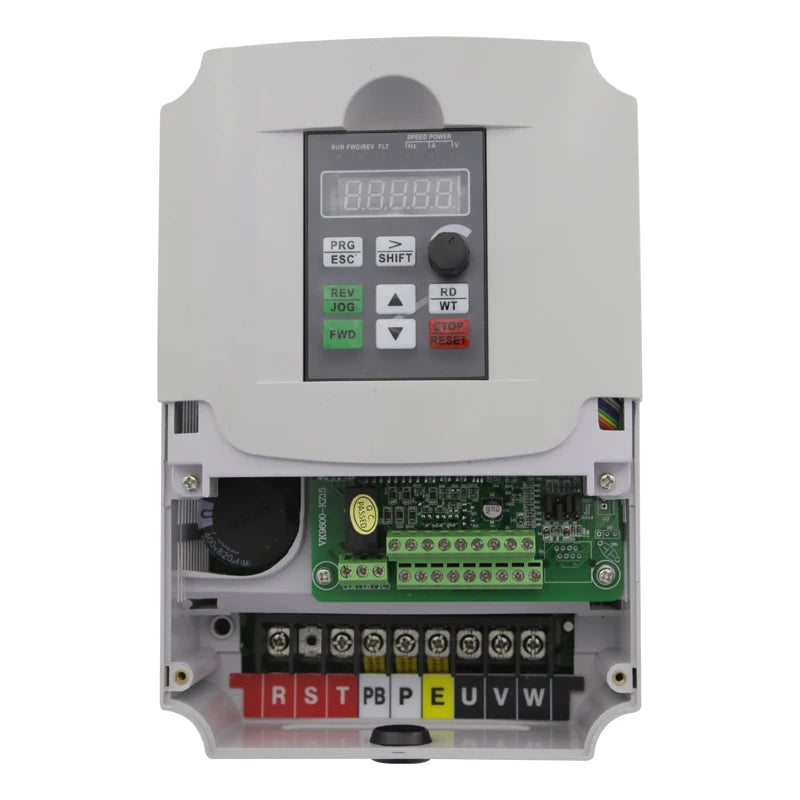

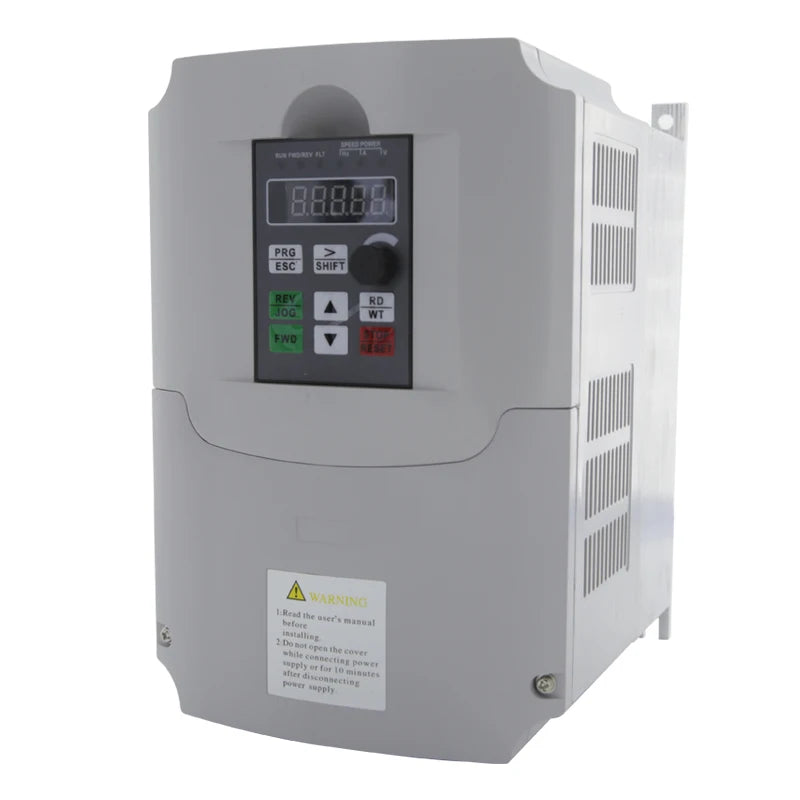

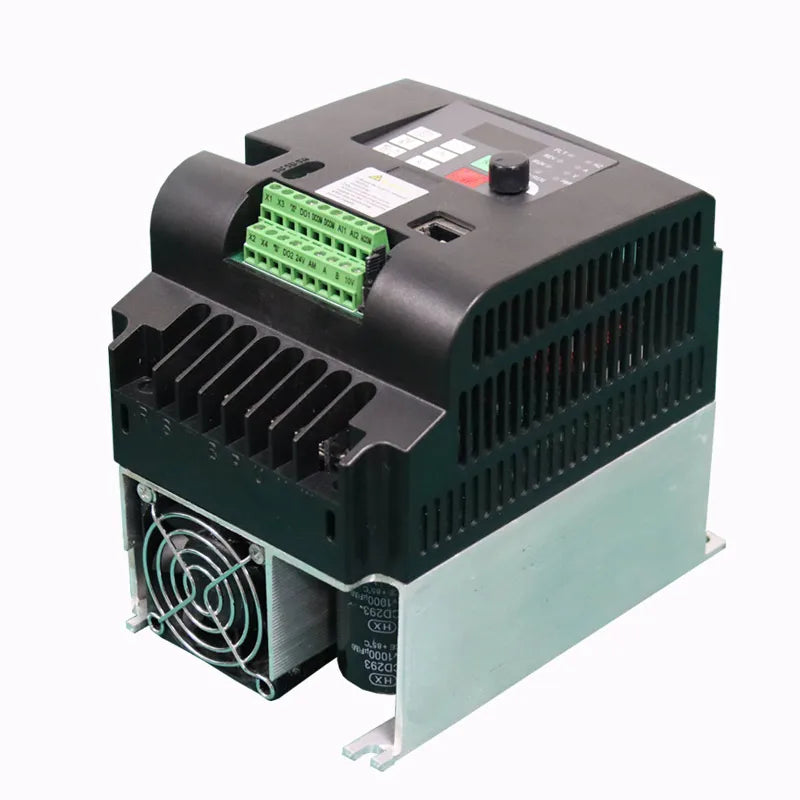

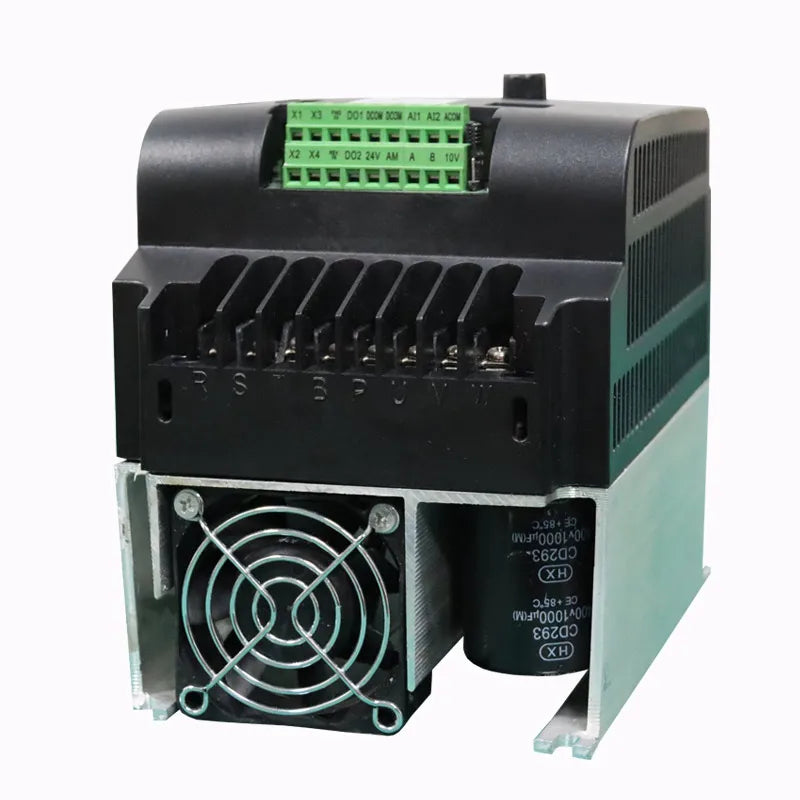

RS485 VFD 220V or 380V 3 Phase Output Frequency Inverter 0.75/1.5/2.2/4/5.5/7.5KW Converter Variator Drive for Motor Pump Speed

1.5KW / 1 phase 220V / 3 phase 380V|China Mainland

$426.72

Sale price $426.72 Regular price $0.00

Skip to product information

RS485 VFD 220V or 380V 3 Phase Output Frequency Inverter 0.75/1.5/2.2/4/5.5/7.5KW Converter Variator Drive for Motor Pump Speed

RS485 VFD 220V or 380V 3 Phase Output Frequency Inverter 0.75/1.5/2.2/4/5.5/7.5KW Converter Variator Drive for Motor Pump Speed

$426.72

Sale price $426.72 Regular price $0.00

Color 1.5KW 0.75KW 2.2KW 4KW 5.5KW 7.5KW 11KW

Input Voltage1 phase 220V

Description

SPECIFICATIONS

Applications: Universal

Brand Name: NFLIXIN

Certification: CE

Control method: V/F

High-concerned chemical: none

Input Voltage: single phase 220V

Level of portection: Ip20

Model Number: 9100-1T3 / 9600D-1T3

Origin: Mainland China

Output Current: 2.5A/3.7A/5A/8.5A/13A/16A/25A

Output Frequency: 0-400HZ

Output Power: 1 - 200 KW

Output Type: triple

Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/ inerter

Size: 155mm*82mm*135mm / 172mm*125mm*165mm / 220mm*152mm*179mm

Type: DC/AC Inverters

Weight: 1KG / 2.2KG / 3.5KG

is_customized: Yes

output Voltage: 3 phase 380V

NFLIXIN Variable Frequency Drive Single Phase 220V Input 3-Phase 380V Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW Frequency Converter Motor Drive VFD

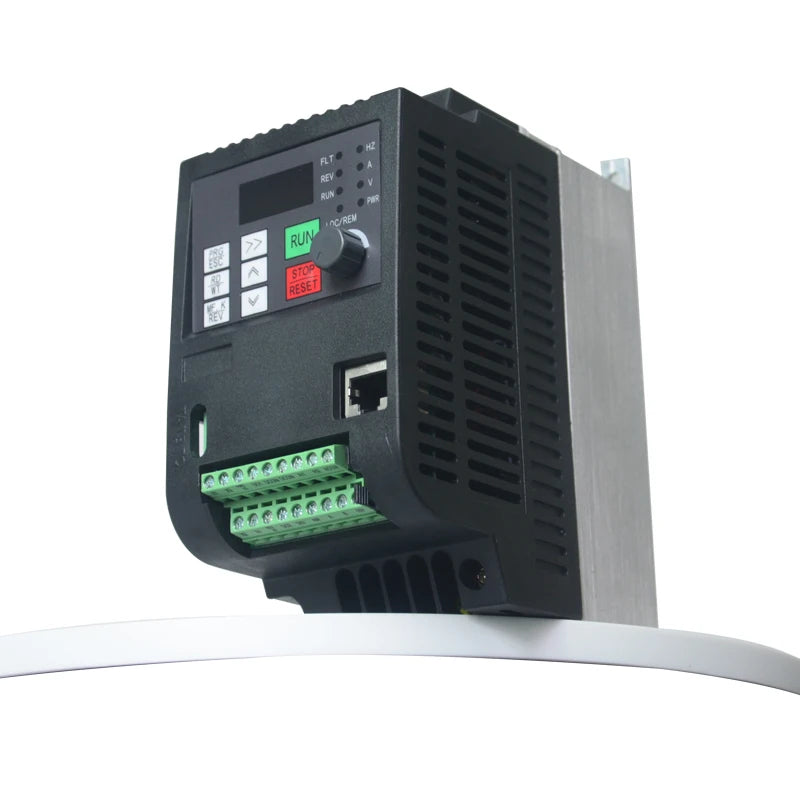

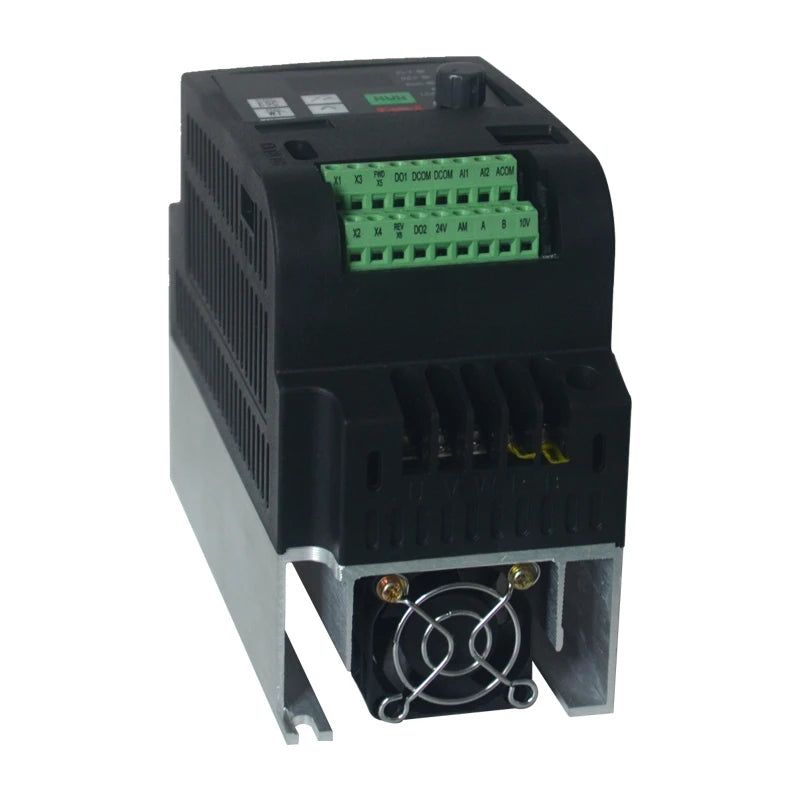

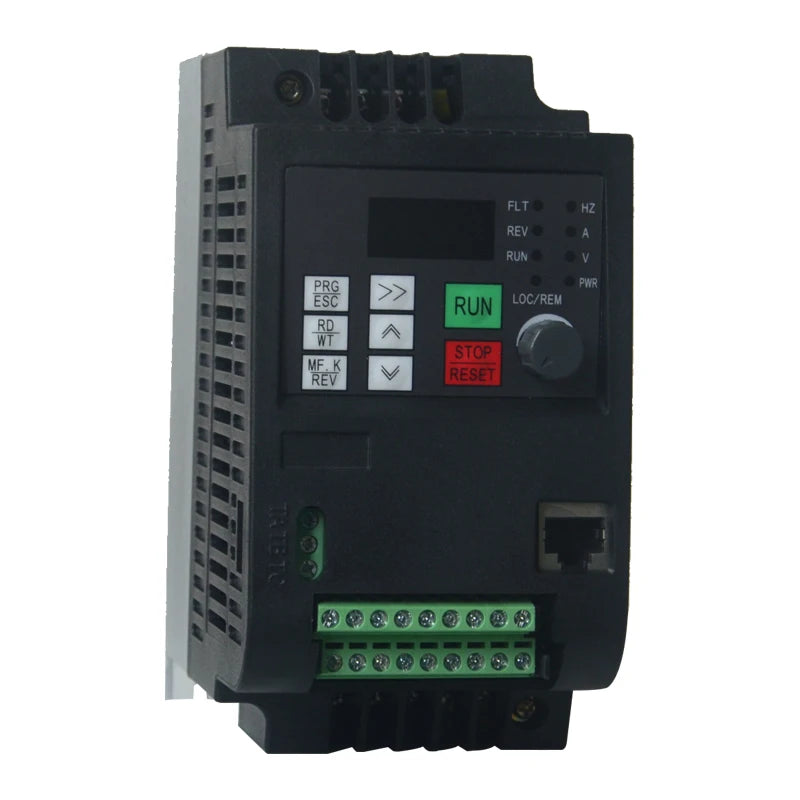

Promotion: This product is changed to a black model

1.Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw

2.Rated Frequency :50hz/60hz

3.Output Frequency Range:0~400Hz

4.Input Voltage Range:1 phase 220V±15%

5.Output Voltage Range:3 phase 380V±15%

6.Control way: Open loop vector control(SVC) V/F control

7.Main function: Control and adjust the speed of the ac motor

Feature:

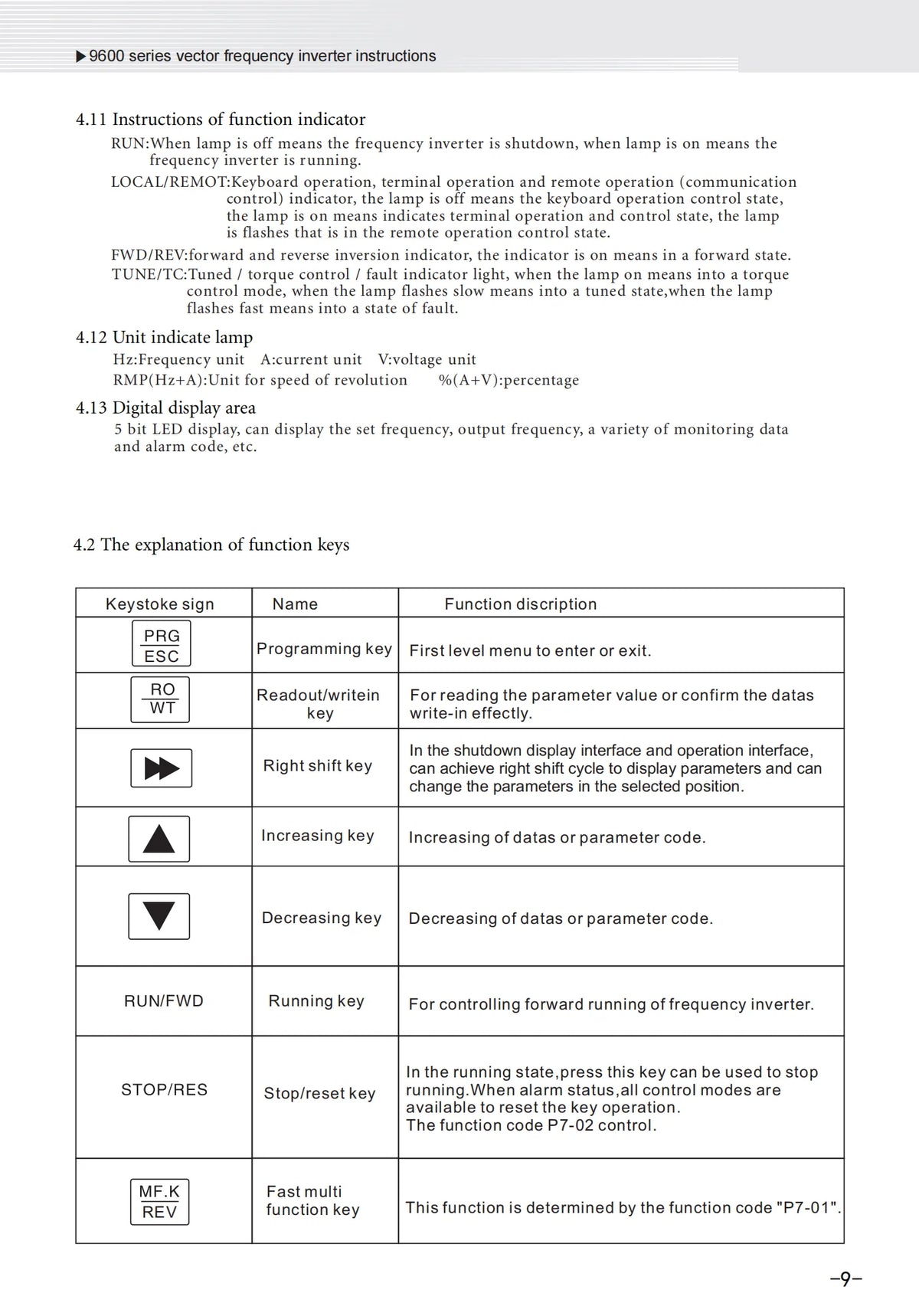

1. Humanized keyboard design, convenient operation and clear display

2. The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable

3. Double-layer board design, reasonable structure and safety, greatly reducing the failure rate

4. Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety

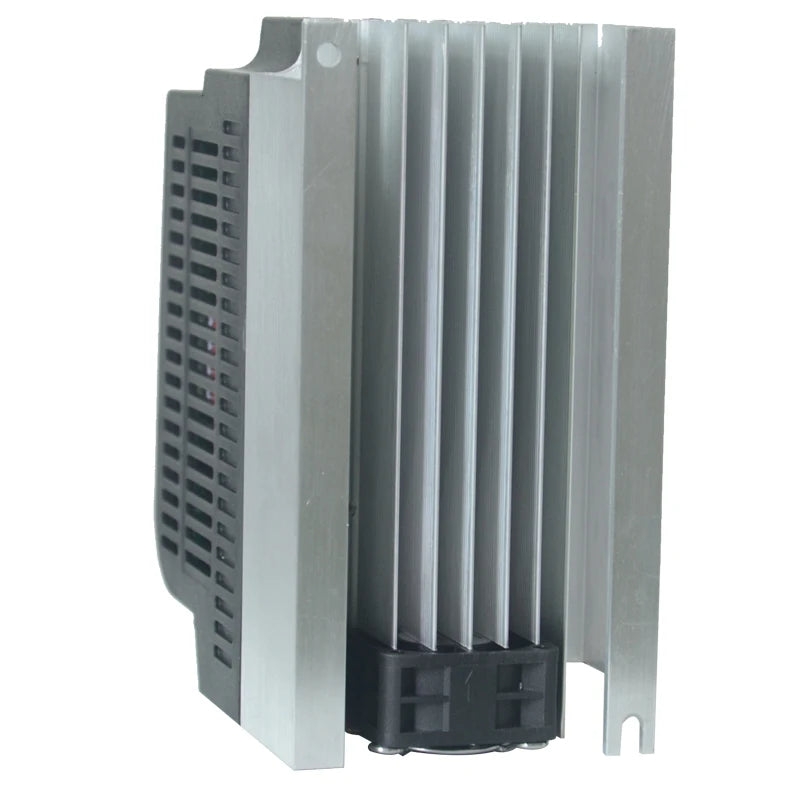

5. Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation

6.Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

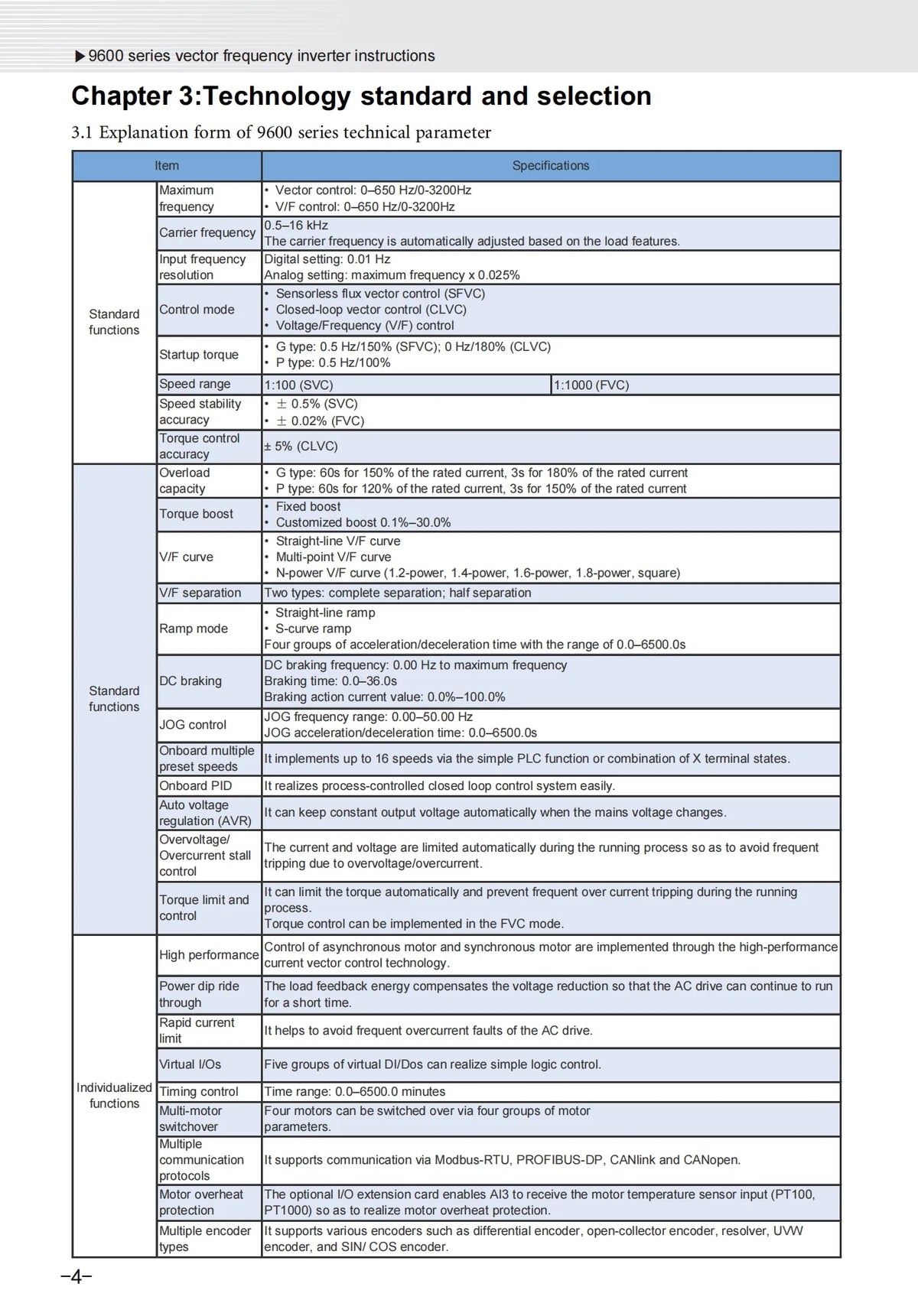

Specification:

IteItem Type: Variable Frequency Drive

Brand: NFLIXIN

Model: 1T3-00075G / 1T3-00150G / 1T3-00220G / 1T3-00400G / 1T3-00550G / 1T3-00750G / 1T3-01100G

Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz

Output Voltage: AC 3PH 0V-380V 0Hz-650Hz

Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW

Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A

Voltage Type: AC220V to AC380V

Output Voltage Adjustment Mode: PWM control

Control Method: Current vector

Filter: Built-in filter

Protection Level: IP20

Product Function:

Low frequency and large torsion

Sensorless vector control

Standard V / F control

Multi-speed adjustable

Built-in RS485 communication

Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower

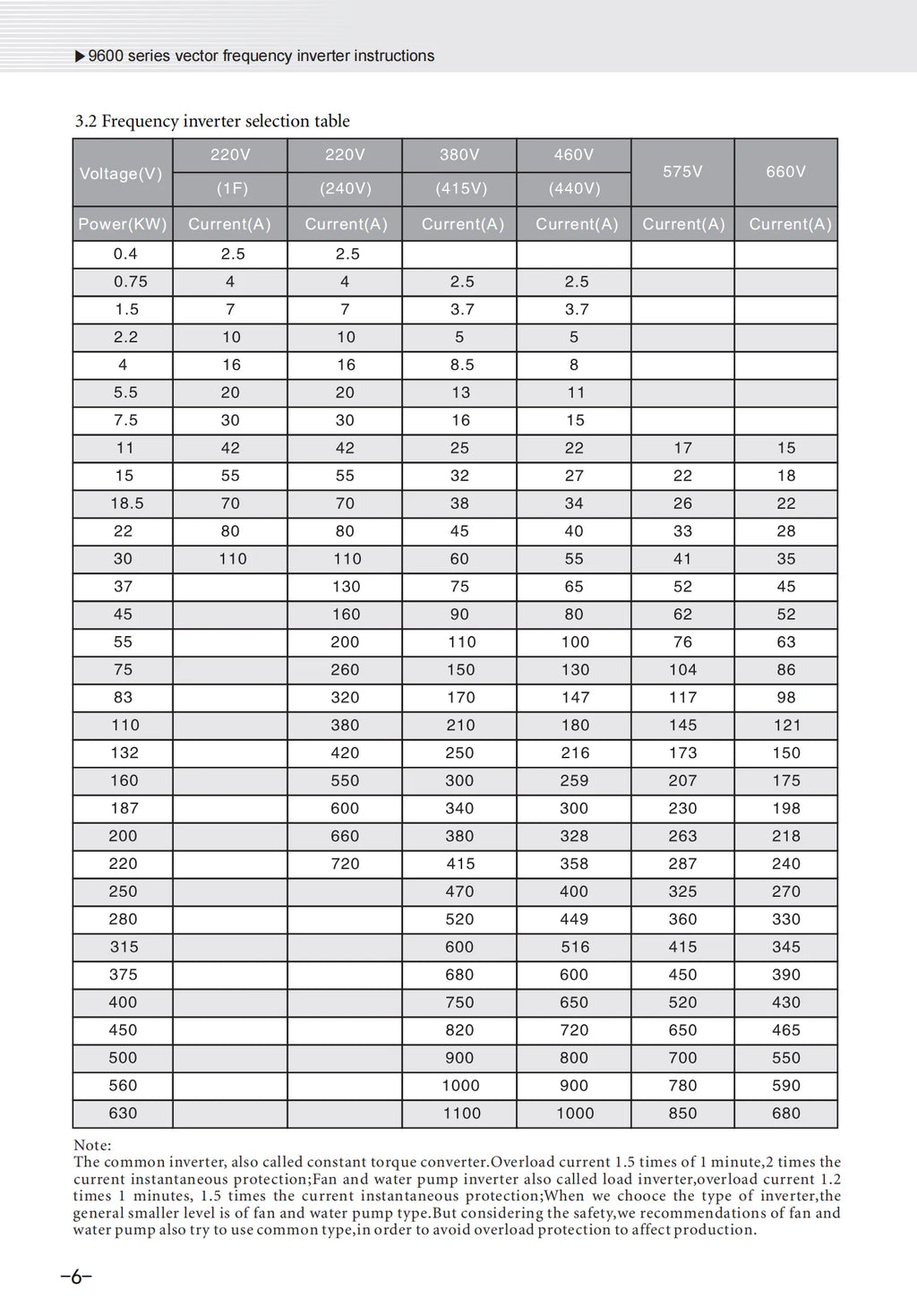

Type	220V TO 380V 0.75KW VFD	220V TO 380V 1.5KW VFD	220V TO 380V 2.2KW VFD	220V TO 380V 4KW VFD	220V TO 380V 5.5KW VFD	220V TO 380V 7.5KW VFD	220V TO 380V 11KW VFD
Input Voltage	220V	220V	220V	220V	220V	220V	220V
Output Voltage	380V	380V	380V	380V	380V	380V	380V
Input Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Output Frequency	0~400Hz	0~400Hz	0~400Hz	0~400Hz	0~400Hz	0~400Hz	0~400Hz
Rated current	2.5A	3.7A	5A	8.5A	13A	16A	25A
Input Phase	1 phase	1 phase	1 phase	1 phase	1 phase	1 phase	1 phase
Output Phase	3 phase	3 phase	3 phase	3 phase	3phase	3 phase	3 phase

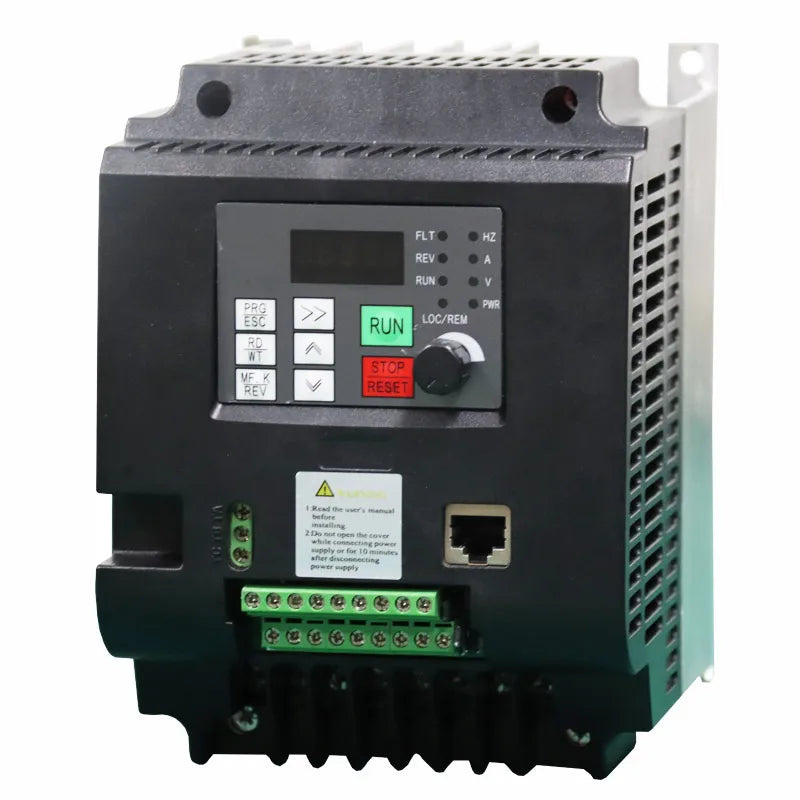

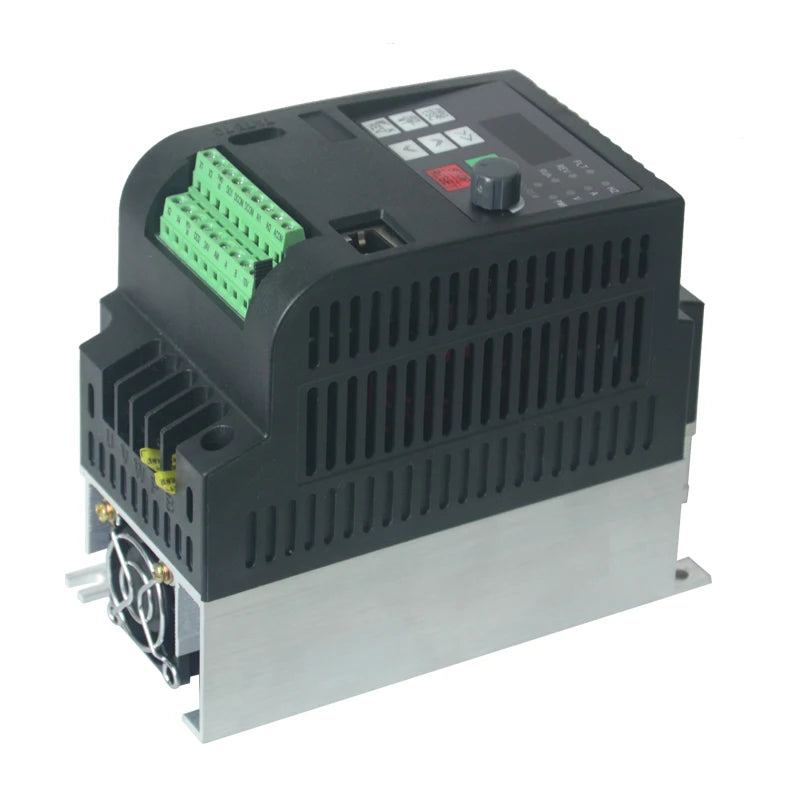

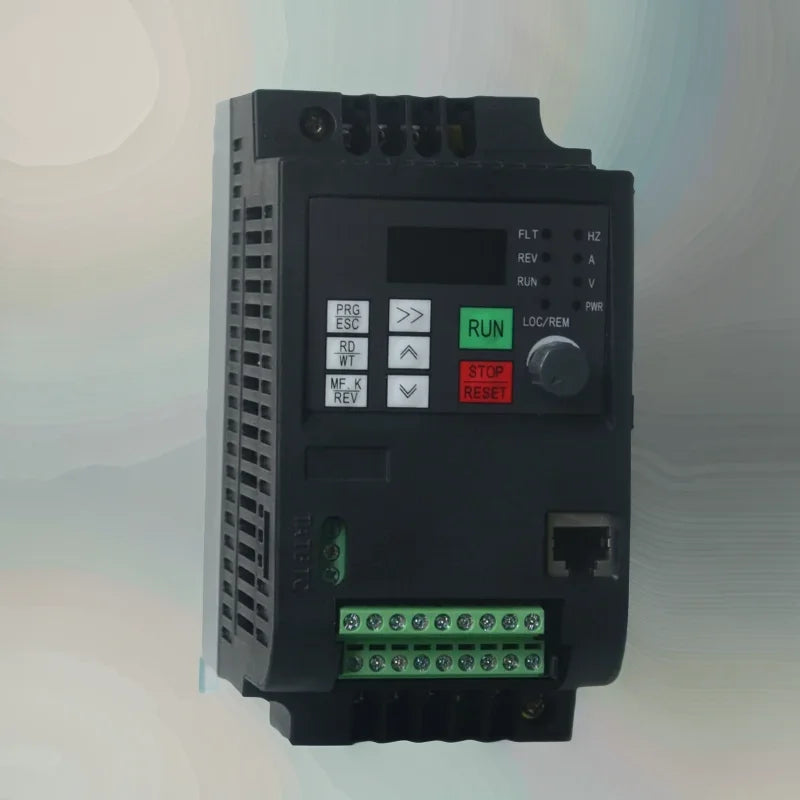

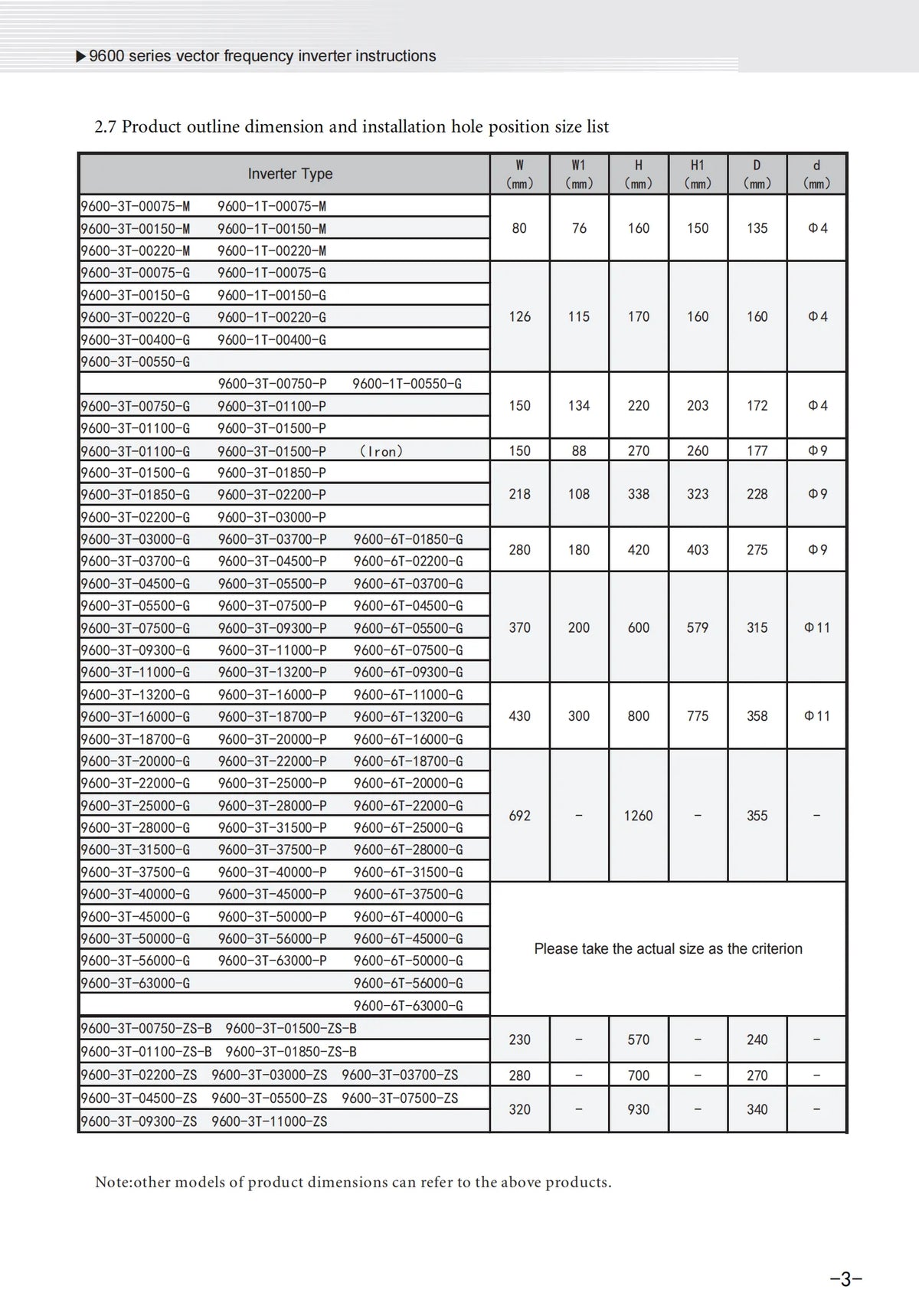

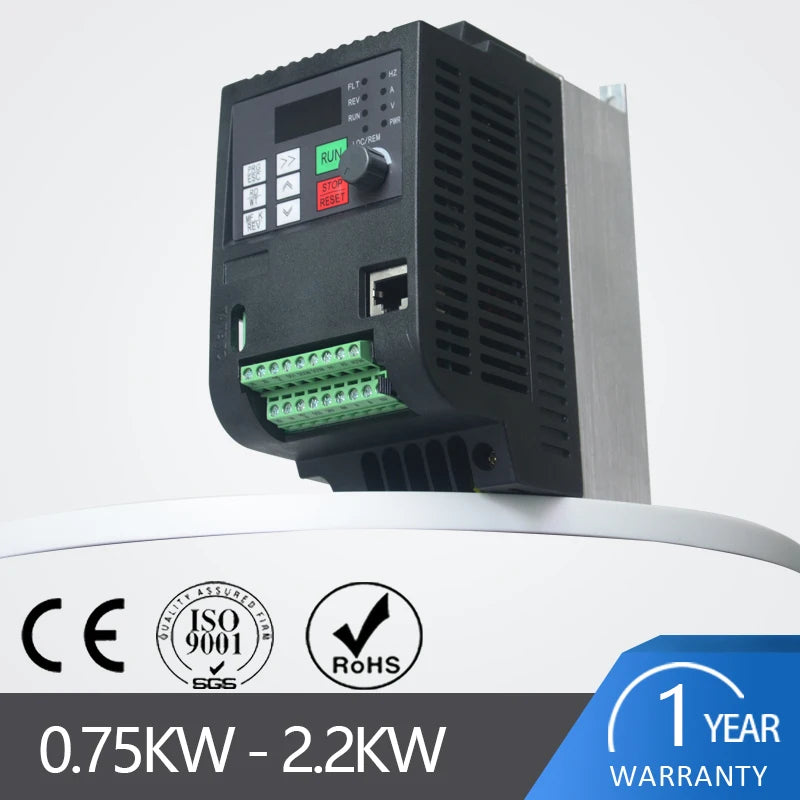

220V to 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter

Size: 85mm*125mm*150mm

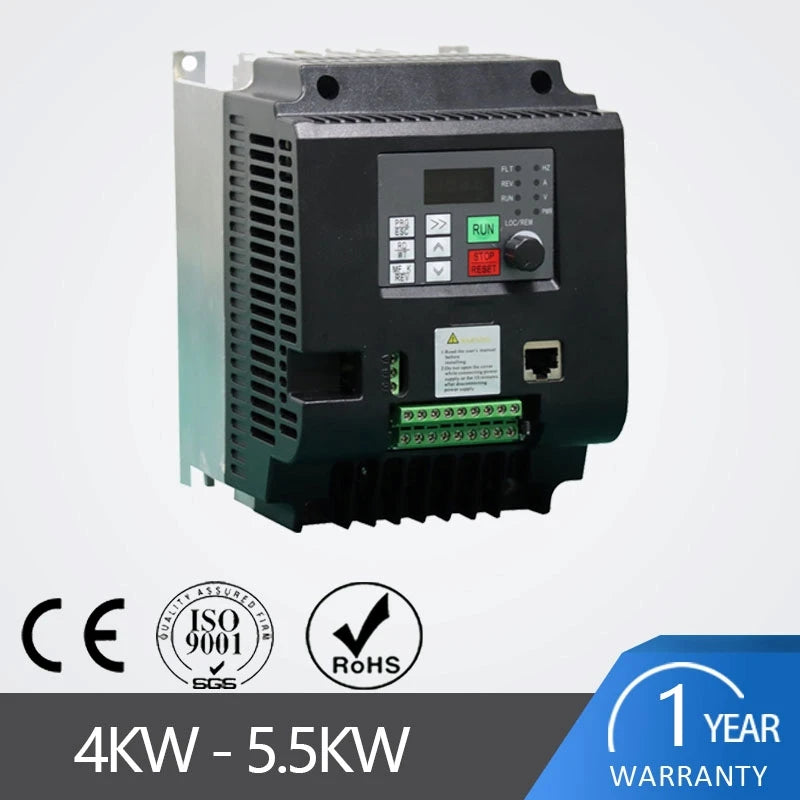

220V to 380V 4KW/5.5KW Frequency inverter

Size: 172mm*125mm*165mm

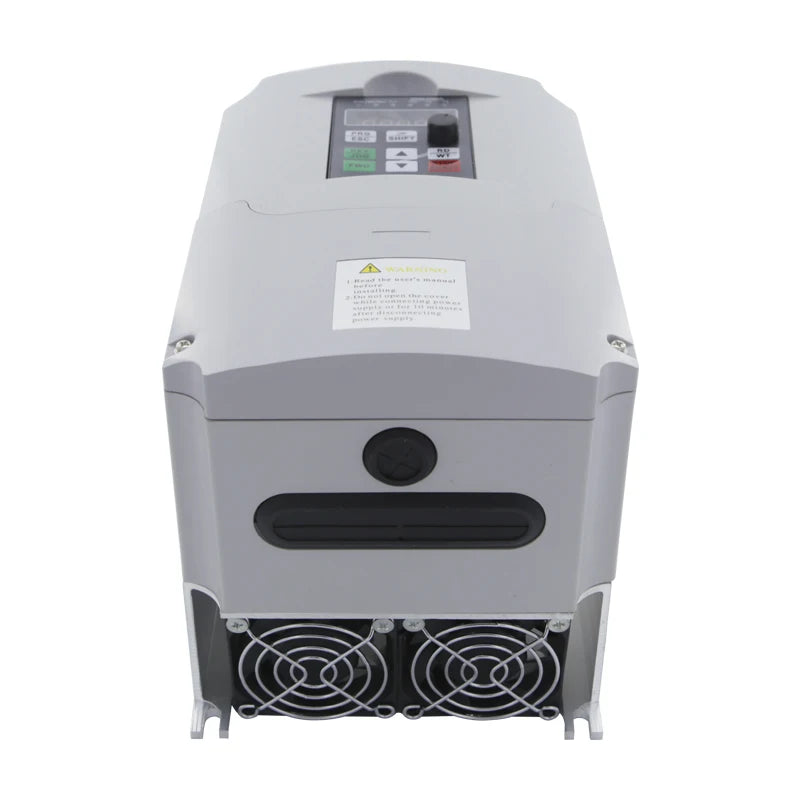

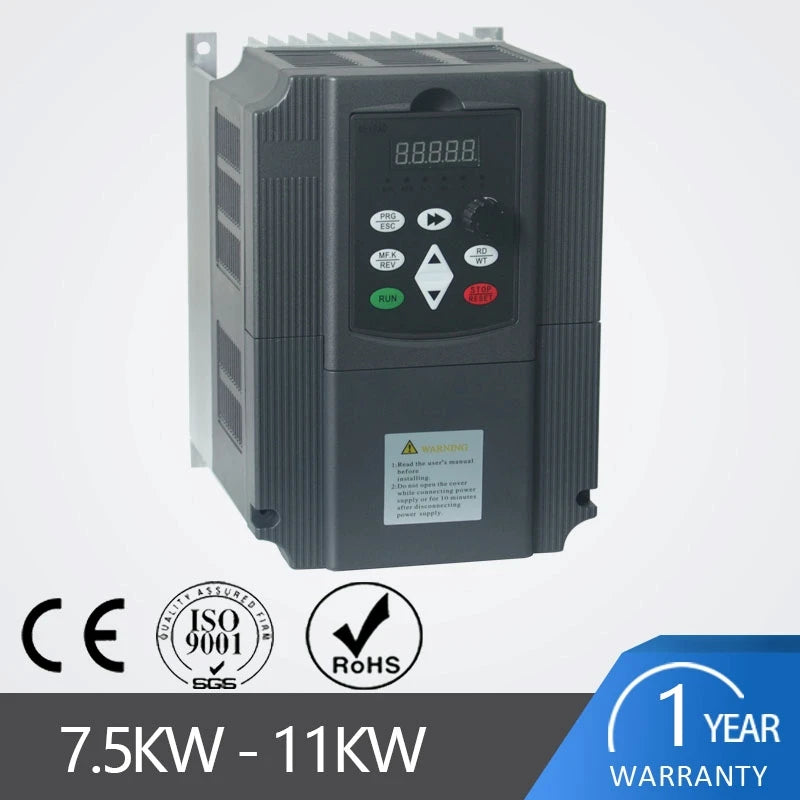

220V to 380V 7.5KW / 11KW Frequency inverter

Size: 220mm*152mm*179mm

We will reply to your enquiries as immediately aspossible.However,please note that we have 12-16 hours time difference

with western Europe and 8 hours time difference withU.S.A.Therefore,we promise will try best to reply within 24 hours.

For bulk order,also please contact us for details.

If you are satisfied with our products and service, please kindly leave a positive five starfeedback for us,It is very important for us . Thanks very much in advance.

Feedback

your positivefeedback is highly appreciated.We guarantee the quality of our products. Each item will bechecked carefully before delivery.Please contact us immediately if there is any reason you feel.We will always do our best to makethe customer satisfaction.

Delivery

1.All package is standard paper box packing or wooden packing for big order.

2.Pls note the delivery date using different Express , so pls choose the right delivery according to your need .

3.If you prepare to big order ,please contact us if want delivery by any other method.

4. All packages will shipped with a Tracking Number.

Payment

1.Please make payment by Secure payment in advance. .

2.please write your detailed delivery address ,contact information and phone number on payment,it isvery important to deliver package successfully.Please make sure your address in Aliexpress is matched with your shipping address before you pay.Specially, for Russian customer, must write the full name(the first name , middel name, last name) for using EMS SHIPPING .Thanks very much.

3.We are not responsible for any custom duty or import tax.Please check with your country customs office to determine what these additional costs will be before bidding/buying.

We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:

1: V/F control, vector control and output torque control;

2:Built-in RS-485 communication interface

3:Compact size, easy to install;

4:With a speed potentiometer and external panel;

5:Built-in synchronous control and proportional synchronization control;

6:16 speed control modest,Can run automatically;

7:Can choice multiple running commands or frequency channel;

8:Can be achieve Part or all of the keys
locked(Analog potentiometer unlock);

9:Relay normally open or closed and two high configuration output have 100 kinds of ways optional;

10:6 digital opto-isolated inputs, 100 kinds of ways optional;

11:3 analog input, 1 analog output channel;

12:Having textile pendulum frequency function, It can be widely applications for many kinds of textile

equipment;

13:Built-in user timer / counter;

14:Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,

pressure and tension.

15:At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
