SPECIFICATIONS

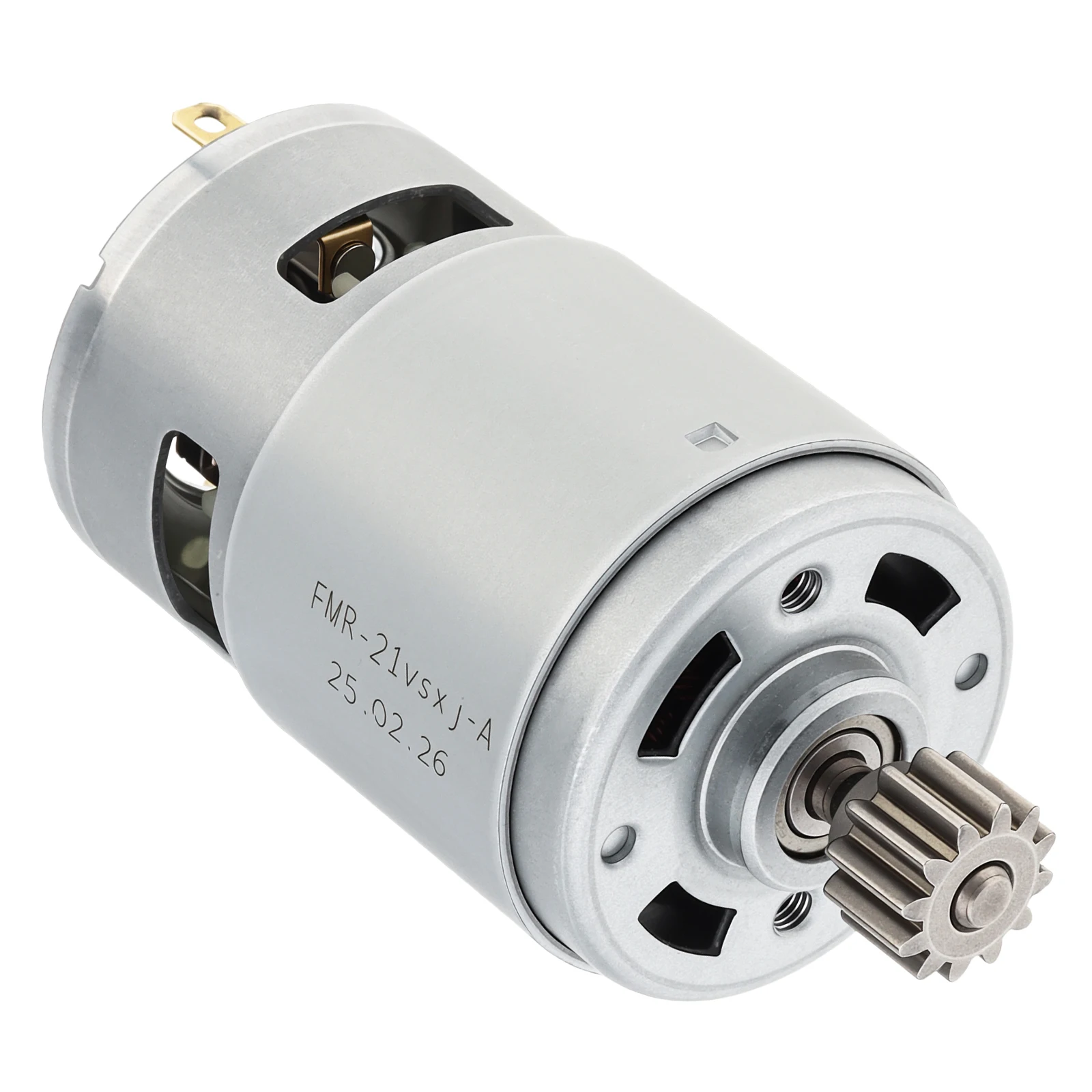

Product Name: RS775 DC Motor

Rotation Direction: CW/CCW

Installation Screw Size: M4 (Not included)

No Load Speed: 20000-24000RPM

Model Number: RS775

No Load Current: 2.2 - 2.5A

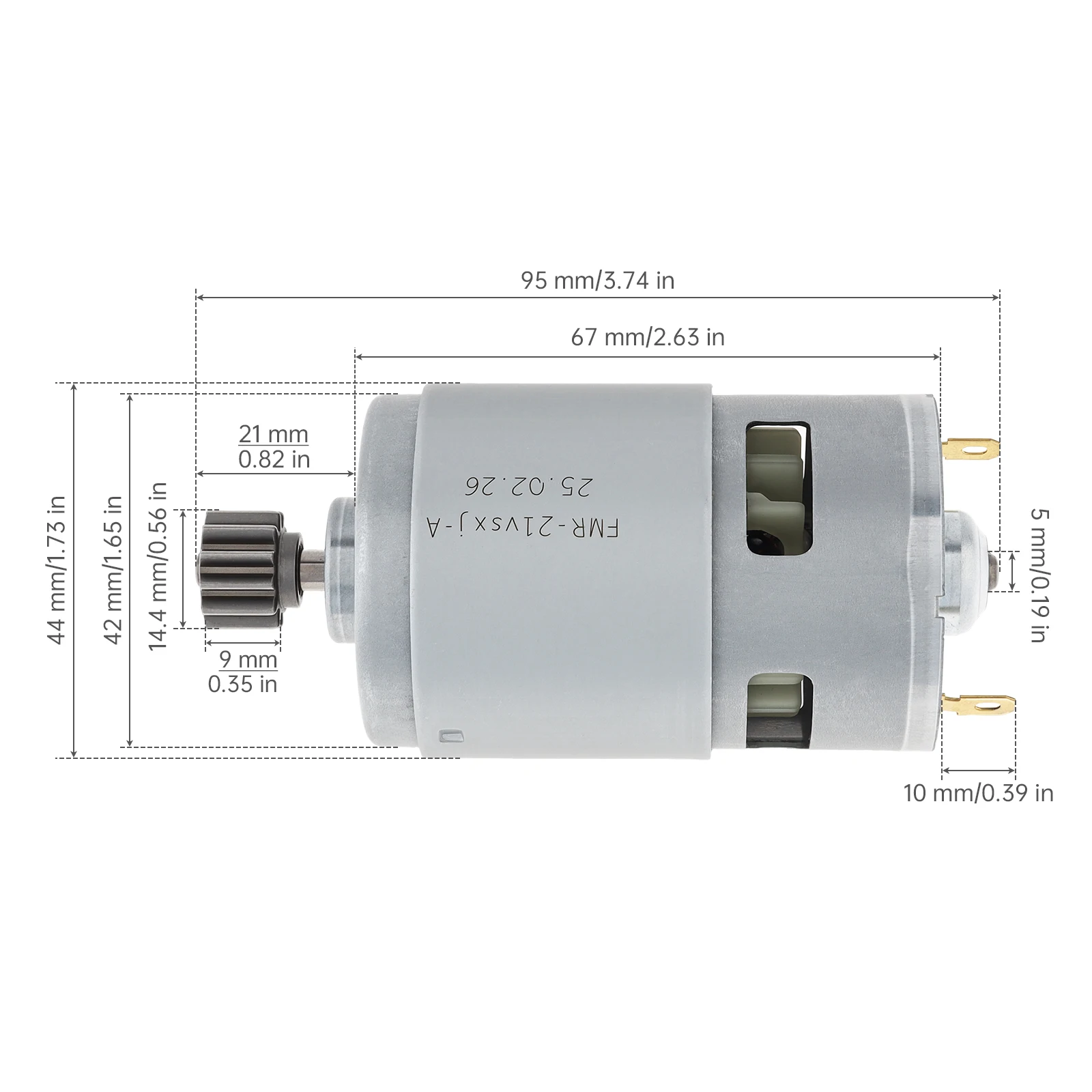

Shaft Diameter: 5mm

Voltage: 18 - 21V DC

Gear Diameter: 14.4mm

Installation Screw Spacing: 29mm

Commutation: Brushed

Gear Face Width: 9mm

Features:
The best replacement for damaged DC gear motors or rust on machines.

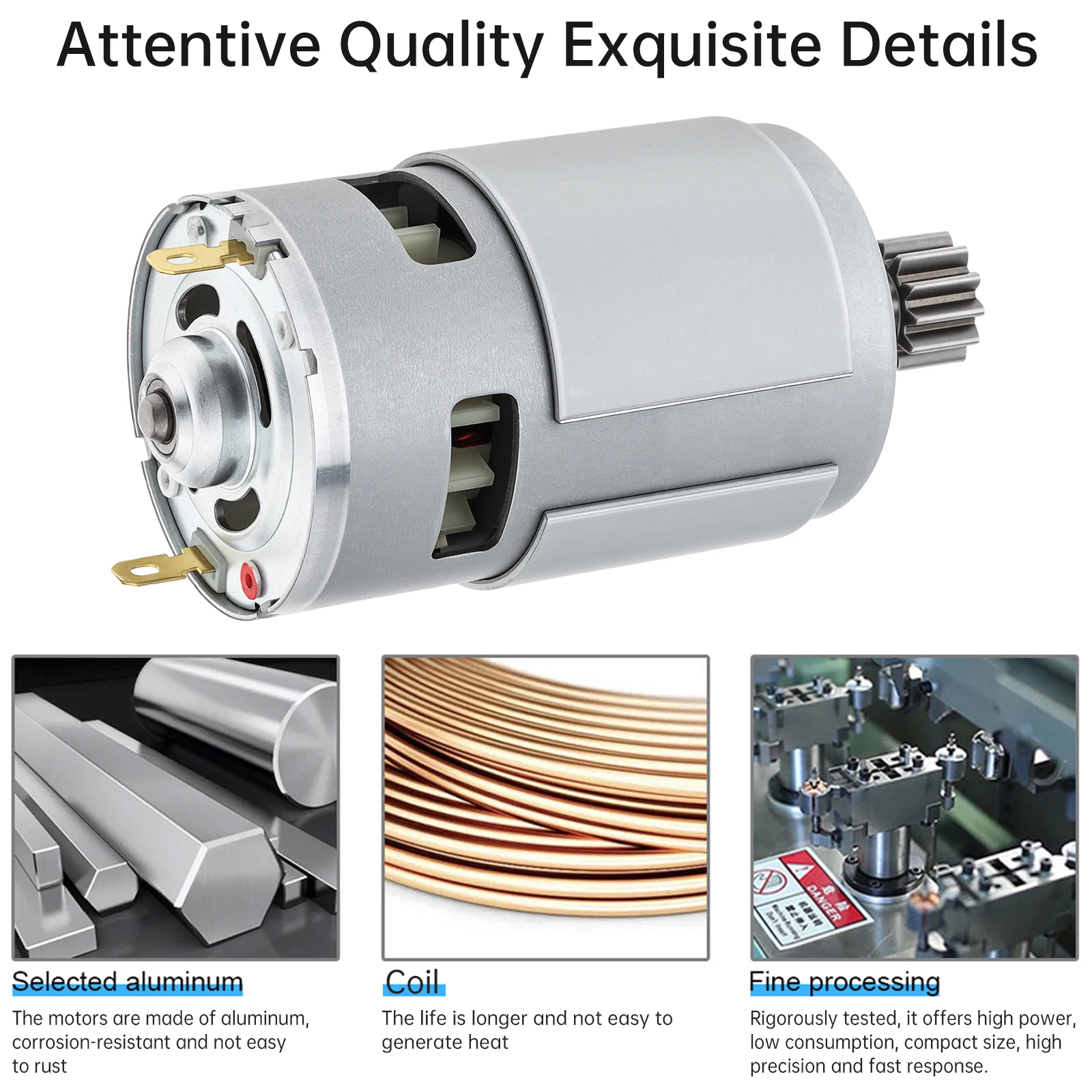

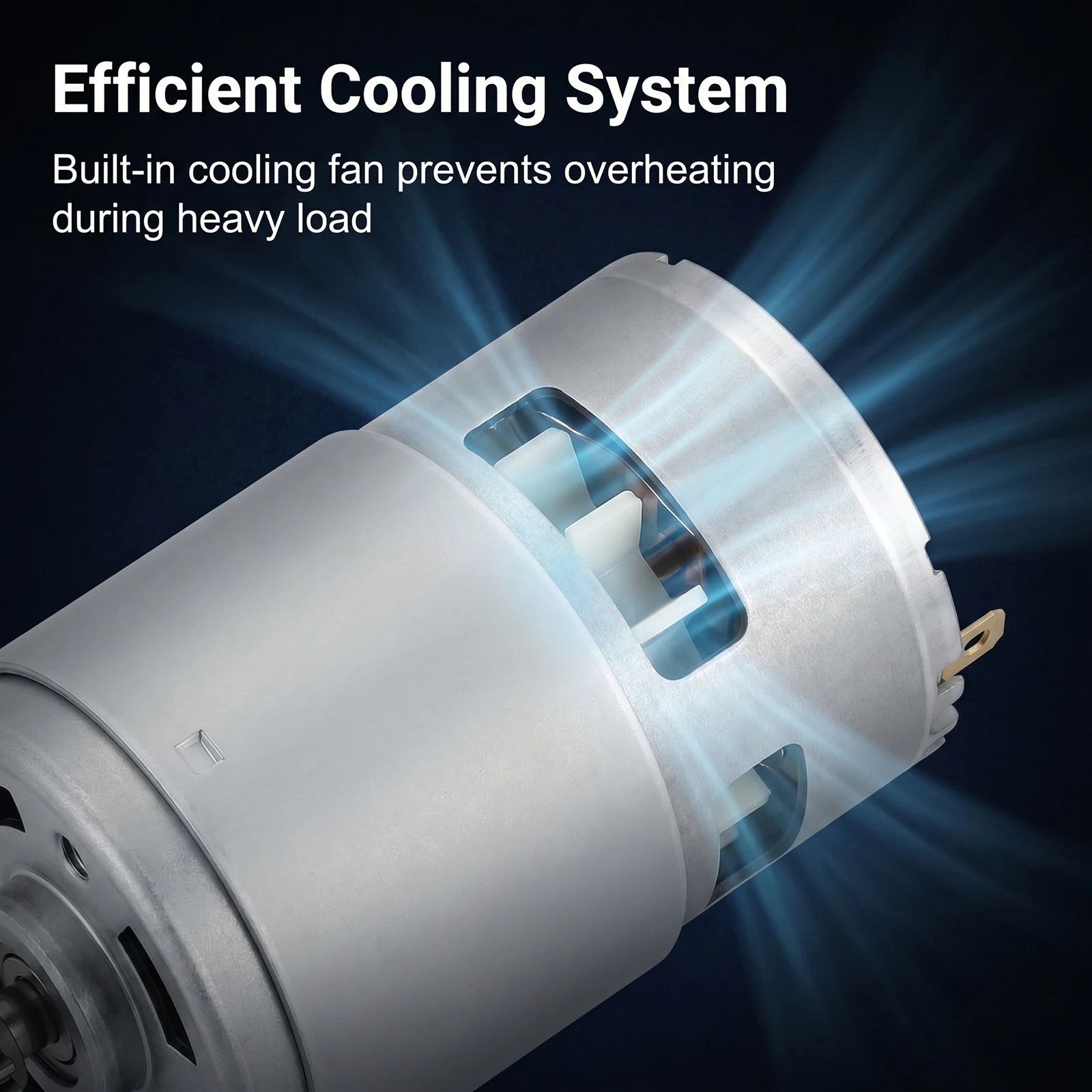

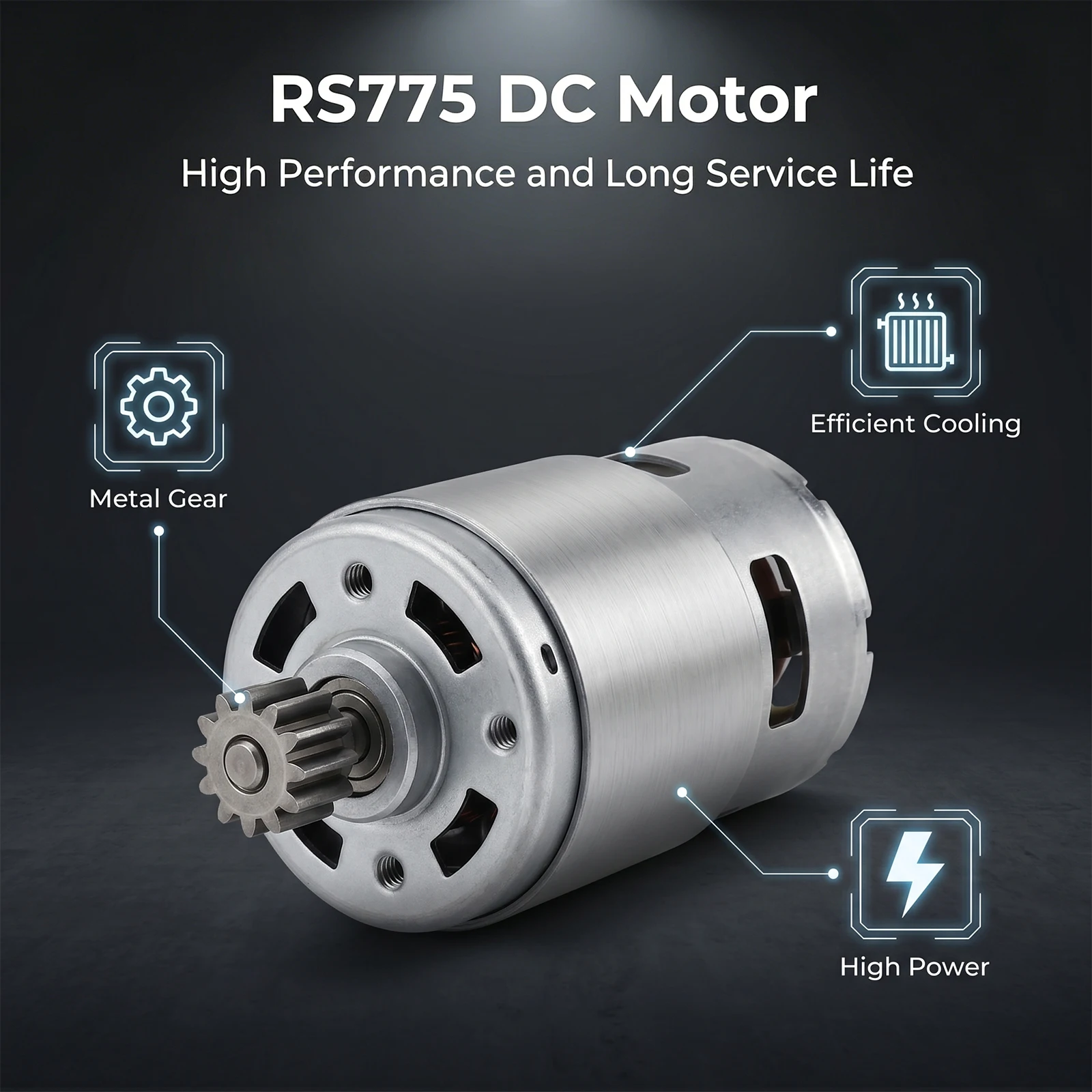

Pure copper coil, built in cooling fan, good heat dissipation performance, accurate mould, solidly constructed.
Suitable for electric lawn mower, electric chainsaw, hedge trimmer, weed trimmer, electric trimmer, electric pruner, and other DIY power tools, etc.

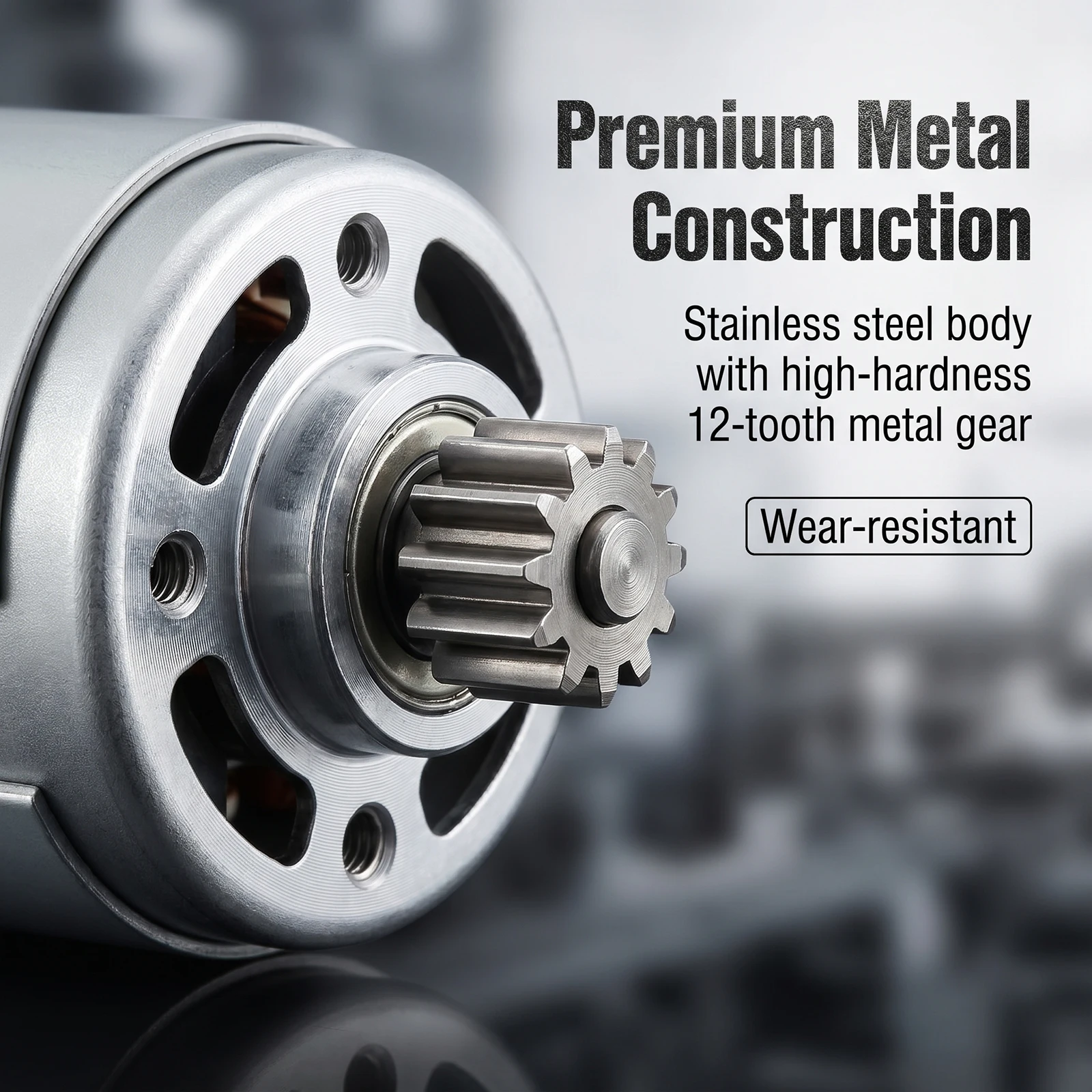

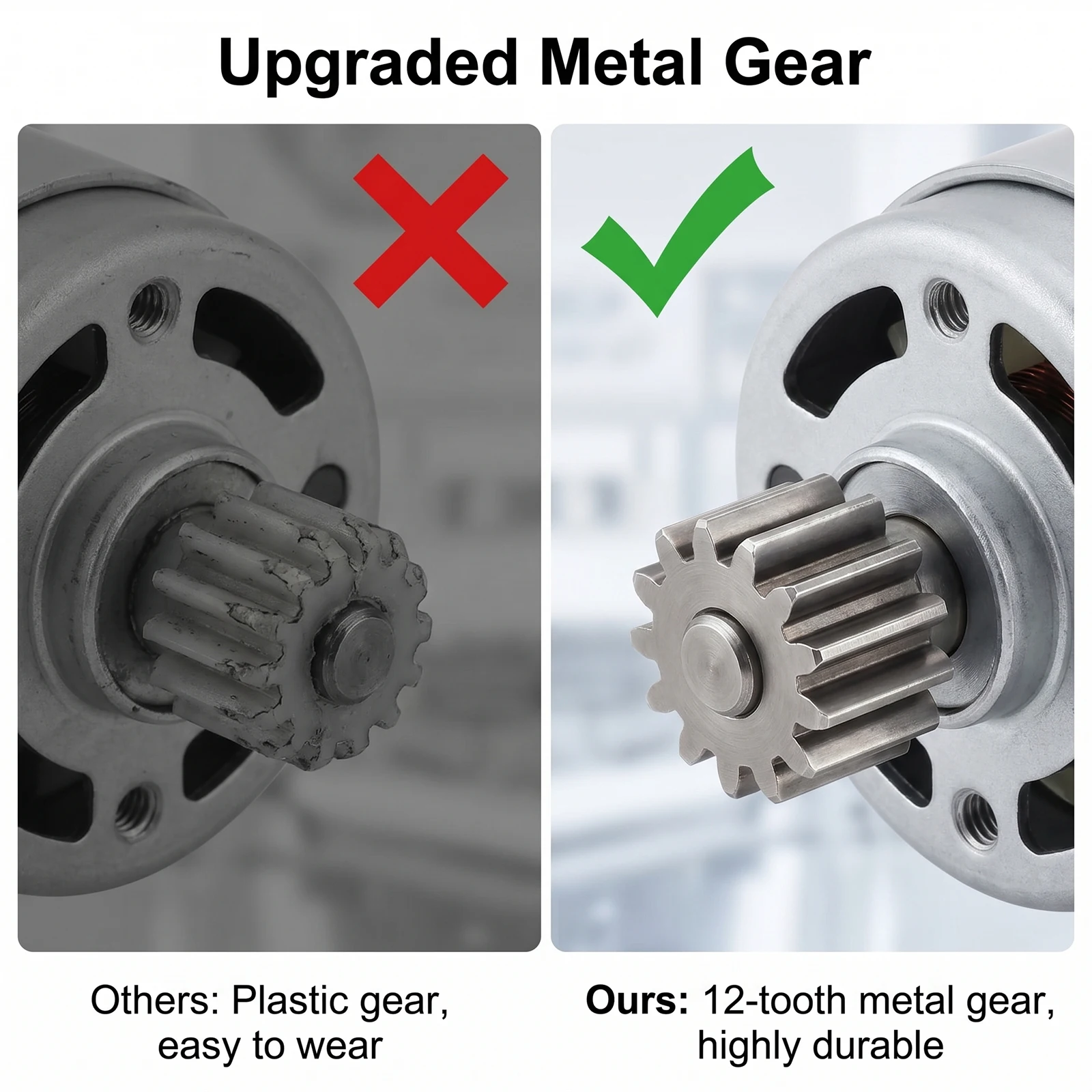

- RS775 DC motor with a 12-tooth gear, offering exceptional power and efficiency for your electric tools.
18V - 21V universal motor, high speed, high efficiency, strong output power, stable performance.

Note:
- Please compare carefully before purchasing, and only replace if the size and dimensions of the motor match exactly with the original one!

Product Weight: 352 G / 12.42 Ounces

Product Dimensions (L*W*H): 9.4*4.5*4.5 CM / 3.70*1.77*1.77 Inches

Package Weight: 355.0 G / 12.52 Ounces

Package Dimensions (L*W*H): 9.5*5.0*5.0 CM / 3.74*1.97*1.97 Inches

Retail Packaging: Yes, Colored Box

Package Including:

1 x DC Motor
