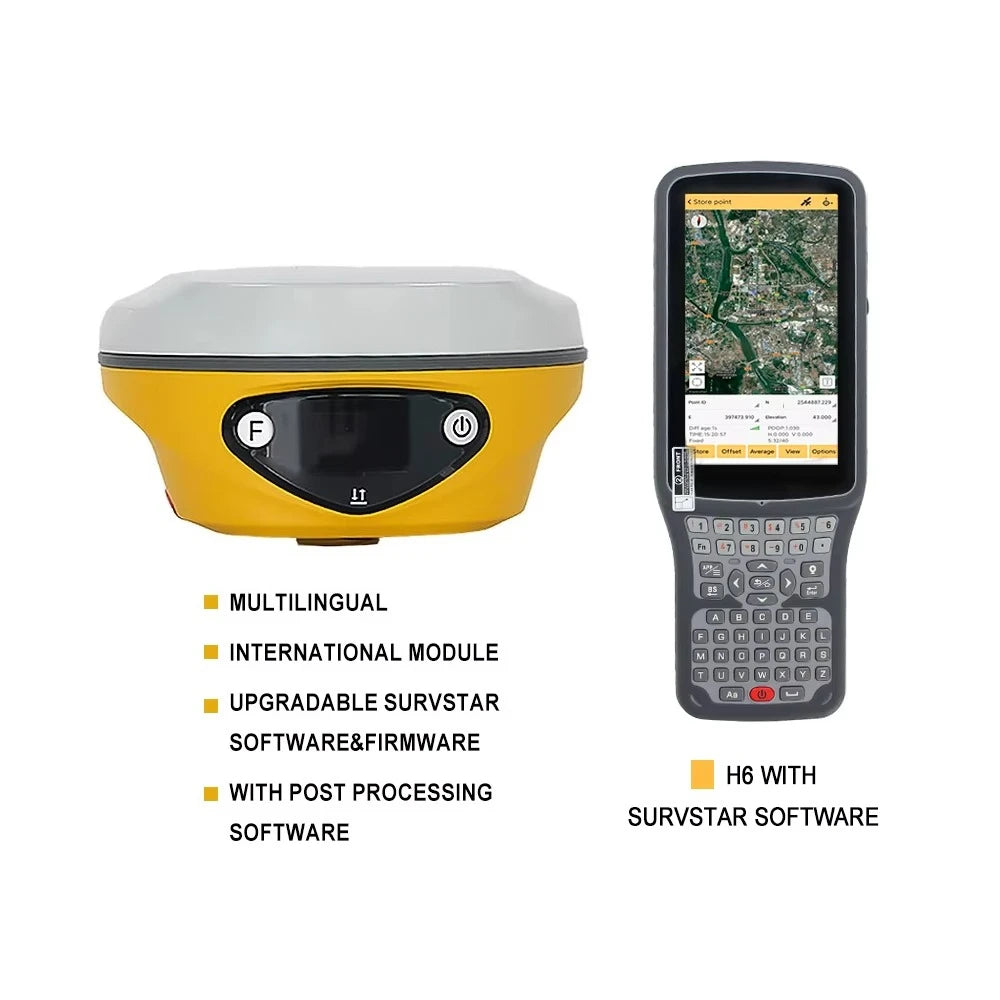

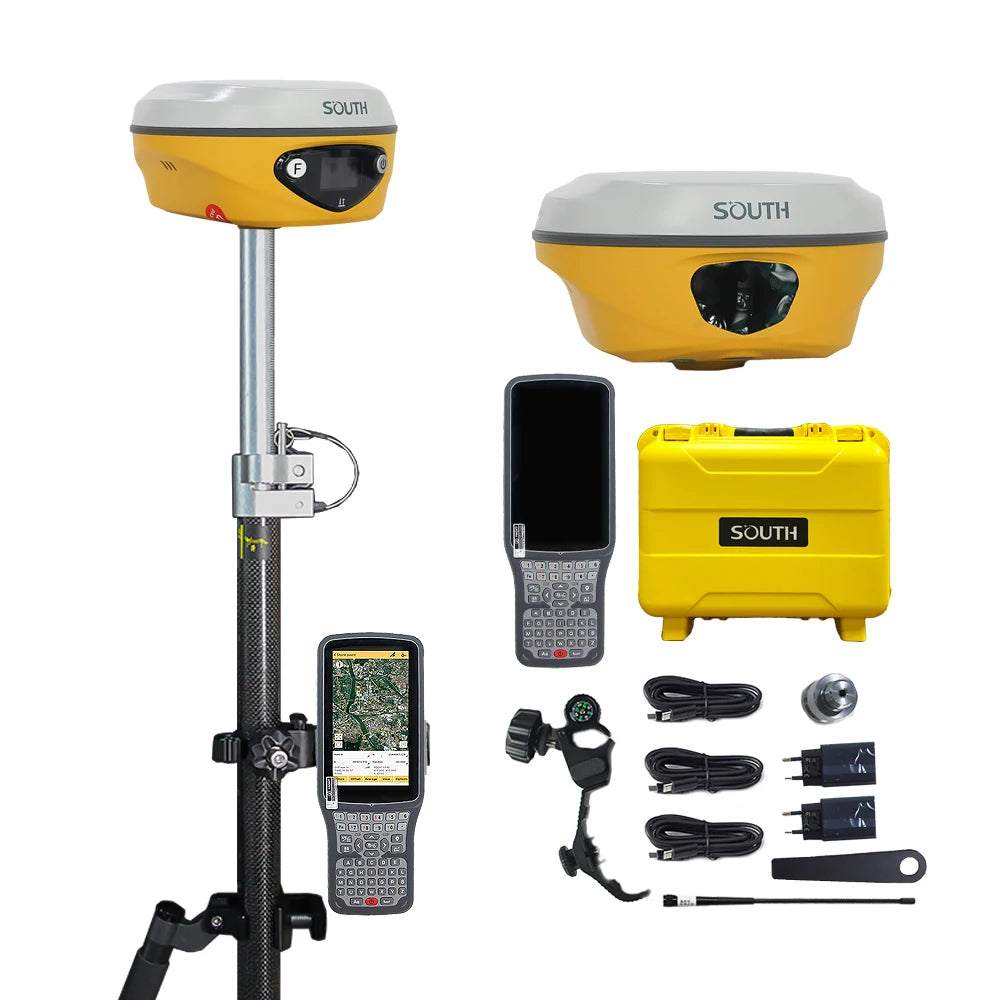

Rtk Gnss Receiver International Module Differential Gps Laser Gnss Rtk with Upgradable SurvStar Software&Firmware

Rtk Gnss Receiver International Module Differential Gps Laser Gnss Rtk with Upgradable SurvStar Software&Firmware

$26,154.88

$26,154.88 $0.00

Description

SPECIFICATIONS

BDS: B1I, B2I, B3I, B1C, B2a, B2b, B1I, B2I, B3I, B1C, B2a, B2b

Brand Name: smvp

Channels: 1698 Channels

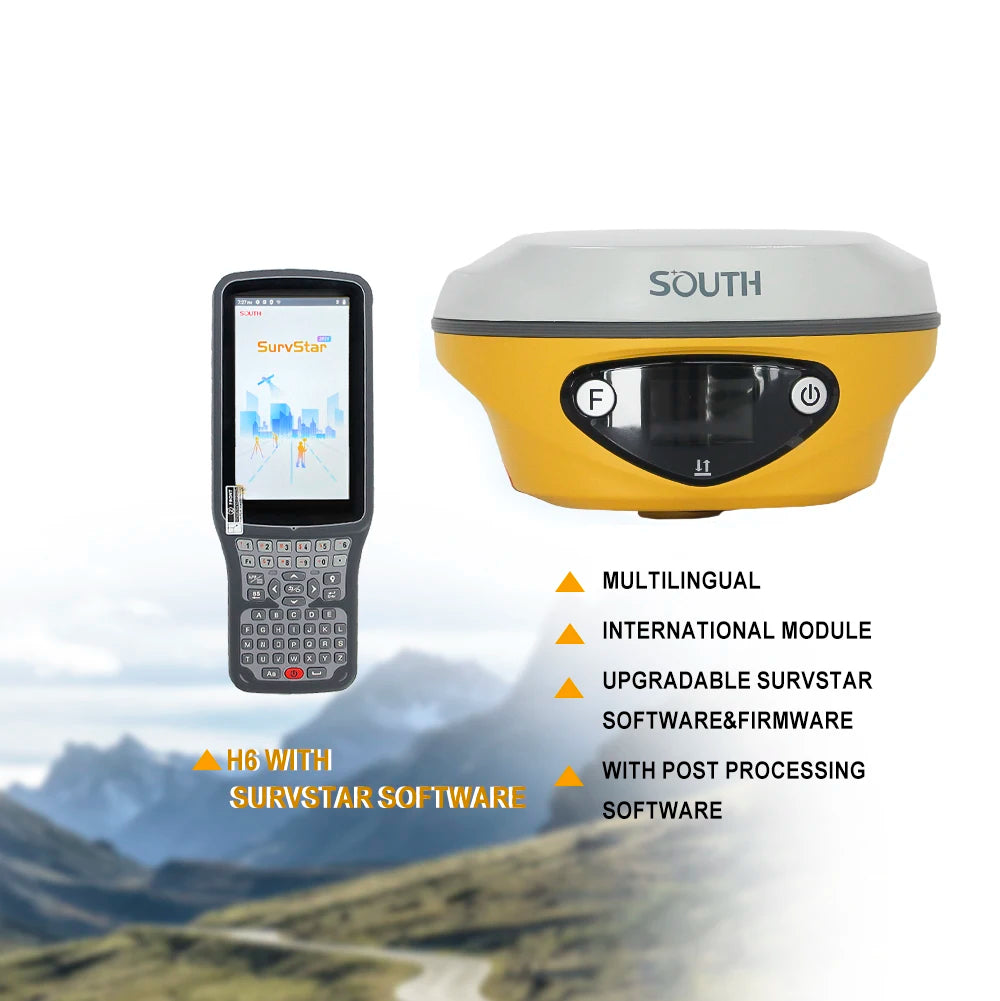

Function: with Upgradable SurvStar Software&Firmware/Post Processing Software

GALILEO: E1, E5a, E5b, E6, AltBOC*, E1, E5a, E5b, E6, AltBOC*

GLONASS: G1, G2, G3, G1,G2,G3

GPS: L1C, L1C/A, L2C, L2P(Y), L5

IP Rating: IP68

Movable: Yes

NavlC: L5, L2, L1

Network Module: Wifi, Bluetooth, 5 g, 4 g

Operating Temperature: -45℃~+75℃

Origin: Mainland China

Place of Origin: Jiangxi, China

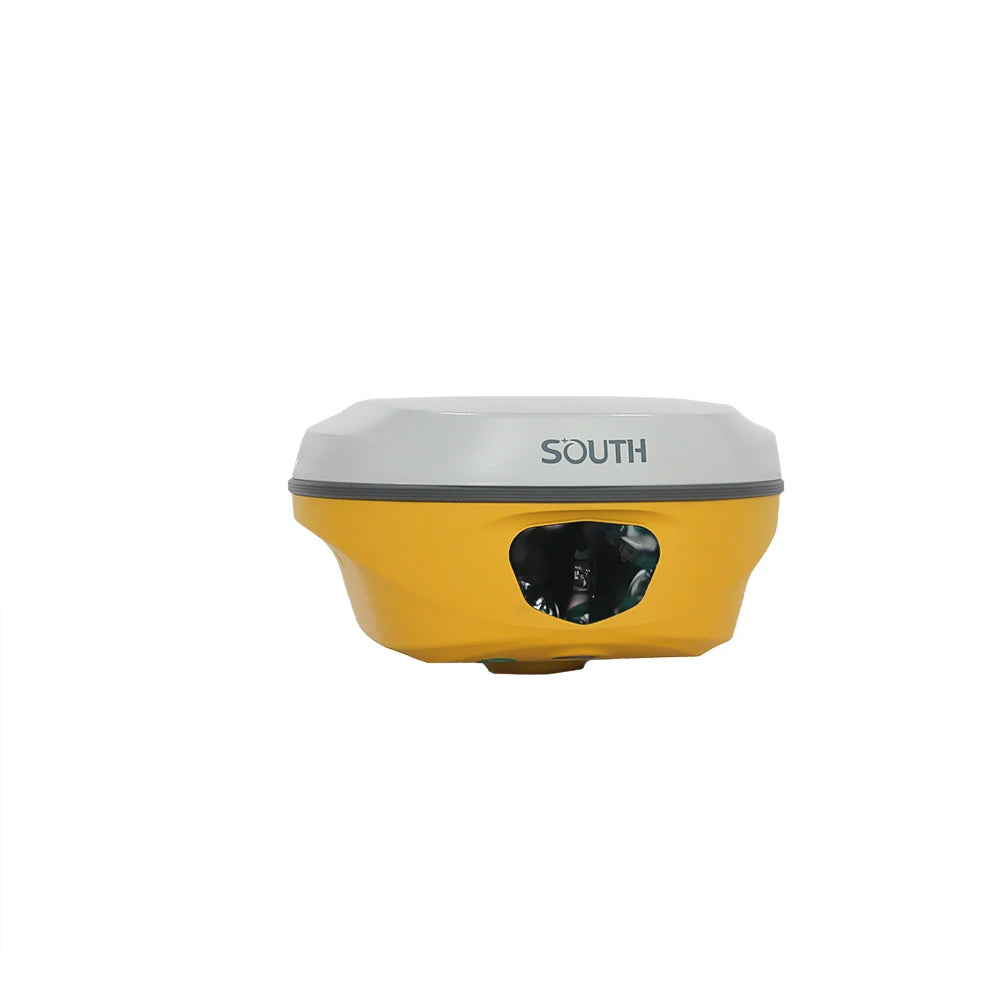

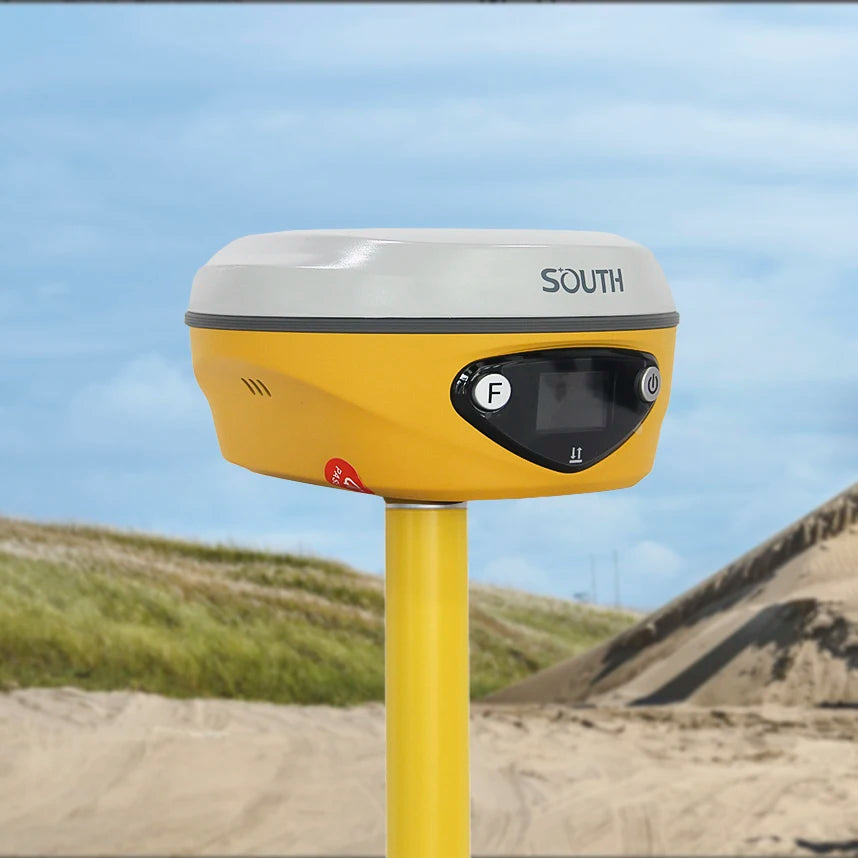

Product name: International Module Multilingual SOUTH ALPS1 GPS RTK

QZSS: L1, L2C, L5*

SBAS: L5, L1

Transmitting power: 0.5W, 1W, 2W adjustable

Transmitting speed: 9.6Kbps, 19.2Kbps

Type: RTK Receiver

Waterproof/Dustproof: IP68

gps: L1C, L1C/A, L2C, L2P(Y), L5

If you need other models of this kind of product, feel free to contact me via the following methods! WhatsApp: +8613770606036 WeChat: 13770606036 Email: 1760016115@pagecom. Dear friends, please choose the correct model to place your order and make the payment; we will ship it out to you as soon as possible! If you can't find the model you need on the website, please click on the "Contact Us" button on the upper right corner of the page; I will reply to you as soon as possible! Please note that the quantity marked on the website is the quantity of each individual item; some products may include shipping to your country/region; however, you may need to pay taxes on the goods once they arrive in your country/region; for large or heavy items, the shipping cost may not be accurate; please contact us for more details. Thank you for your support and understanding!

Specification
GNSS Features	Channels	1698
	GPS	L1C, L1C/A, L2C, L2P(Y), L5
	GLONASS	G1, G2, G3
	BDS	B1I, B2I, B3I, B1C, B2a, B2b
	GALILEOS	E1, E5a, E5b, E6, AltBOC*
	SBAS	L1*
	SBAS	L5*
	QZSS	L1, L2C, L5*
	MSS L-Band	Reserve
	Positioning Output Rate	1Hz~20Hz
	Initialization Time	< 10s
	Initialization Time	> 99.99%
Positioning Precision	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code differential GNSS positioning	Vertical: 0.50 m + 1 ppm RMS
	GNSS Static	Horizontal: 2.5 mm + 0.5 ppm RMS
	GNSS Static	Vertical: 3.5 mm + 0.5 ppm RMS
	Static (Long Observation)	Horizontal: 2.5 mm + 0.1 ppm RMS
	Static (Long Observation)	Vertical: 3 mm + 0.4 ppm RMS
	Rapid Static	Horizontal: 2.5 mm + 0.5 ppm RMS
	Rapid Static	Vertical: 5 mm + 0.5 ppm RMS
	PPK	Horizontal: 3 mm + 1 ppm RMS
	PPK	Vertical: 5 mm + 1 ppm RMS
	RTK(UHF)	Horizontal: 8 mm + 1 ppm RMS
	RTK(UHF)	Vertical: 15 mm + 1 ppm RMS
	RTK(NTRIP)	Horizontal: 8 mm + 0.5 ppm RMS
	RTK(NTRIP)	Vertical: 15 mm + 0.5 ppm RMS
	SBAS Positioning	Typically<5m 3DRMS
	RTK Initialization Time	2~8s
	IMU Accuracy	8mm+0.7 mm/°tilt
	IMU Tilt Angle	Optimal accuracy within 60°
Hardware Performance	Dimension	134mm(φ)×79mm(H)
	Weight	860g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating Temperature	-45鈩儈+75鈩�
	Storage Temperature	-55鈩儈+85鈩�
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Power Supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 7.4v 6800mAh rechargeable Lithiumion battery
	Battery Life	25h (static)
	Battery Life	20h (rover mode, optimal condition)
Communications	I/O Port	5-PIN LEMO interface (external power port + RS232)
		Type-C interface (charge+OTG+Ethernet)
		UHF antenna interface
	Internal UHF	2W Radio Tx&Rx
	Frequency Range	410-470MHz
	Communication Protocol	Farlink, Trimtalk, SOUTH
	Communication Range	Typically 8-10km with Farlink protocol, (12-15km in optimal condition)
	Bluetooth	Bluetooth 5.0, Bluetooth 3.0/4.2 standard,
	Bluetooth	Bluetooth 2.1 + EDR
	NFC Communication	Support
	Modem	802.11 b/g/n standard
Data Storage/Transmission	Storage	16GB SSD internal storage
		Support automatic cycling storage
		Support external USB storage (OTG)
		The customizable sample interval is up to 20Hz
	Data Transmission	Plug and play mode of USB data transmission
	Data Transmission	Supports FTP/HTTP data download
	Data Format	Static data format: STH, Rinex2.01, Rinex3.02, etc.
		Differential data format: RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS output data format: NMEA 0183, PJK plane coordinate, Binary code
		Support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors	IMU	Built-in IMU module, calibration-free, 60°
	Camera	Video Shooting Camera: 8MP (can be used in AR stakeout)
	Camera	AR stakeout camera: 2MP
	Laser	3R green laser, 30m working range
	Electronic Bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
User Interaction	Operating System	Linux

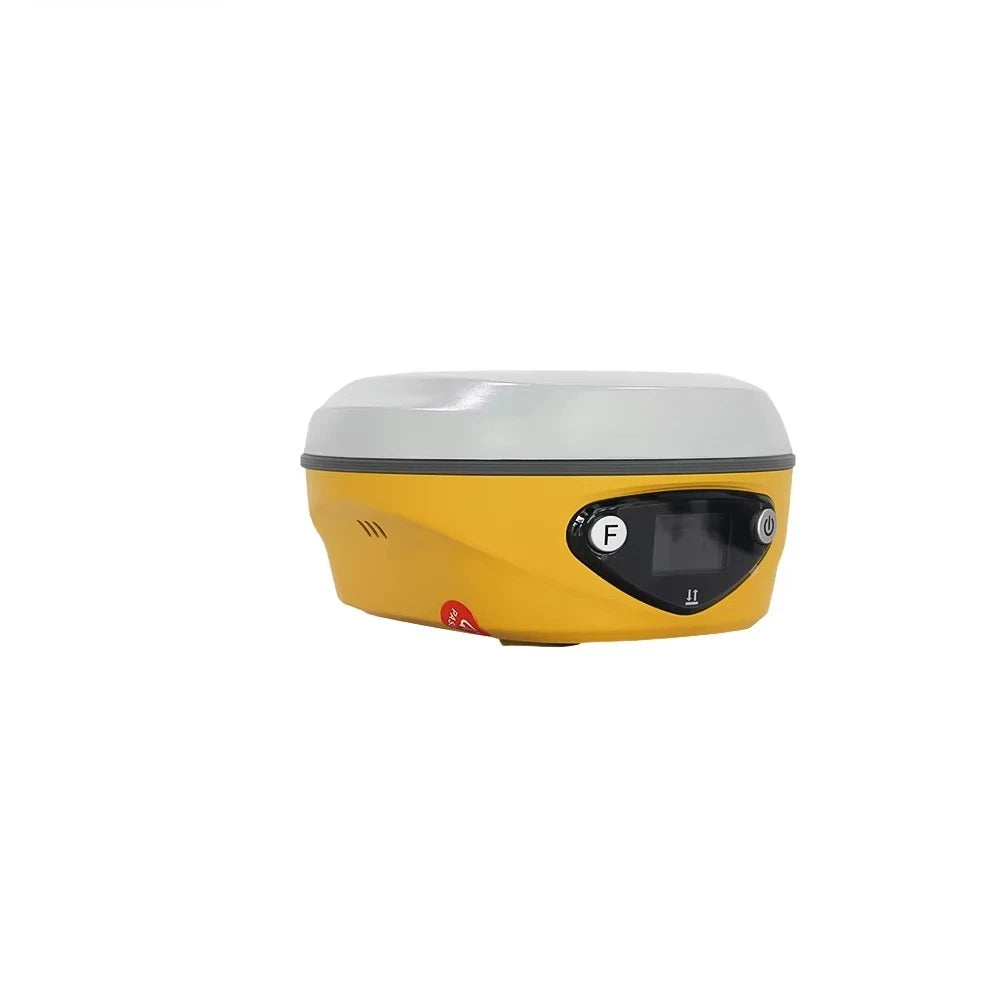

	Buttons	Dual buttons
	Indicators	Satellites, data and power indicators
	Display	1.14'', 135*240
	Web Interaction	With access to Web UI via WiFi or USB connection, users can monitor the receiver status and change the configurations
	Voice Guidance	Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish/French/Italian/Arabic
	Secondary Development	Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition
	Cloud Service	The powerful cloud platform provides online services like remote management, firmware updates, online registers, etc.
