SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

For Vehicle Type: Airplanes

High-concerned chemical: none

Is Batteries Included: No

Is Electric: No battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Origin: Mainland China

RC Parts & Accs: GPS

Recommend Age: 14+y

Remote Control Peripherals/Devices: RECEIVERS

Use: Vehicles & Remote Control Toys

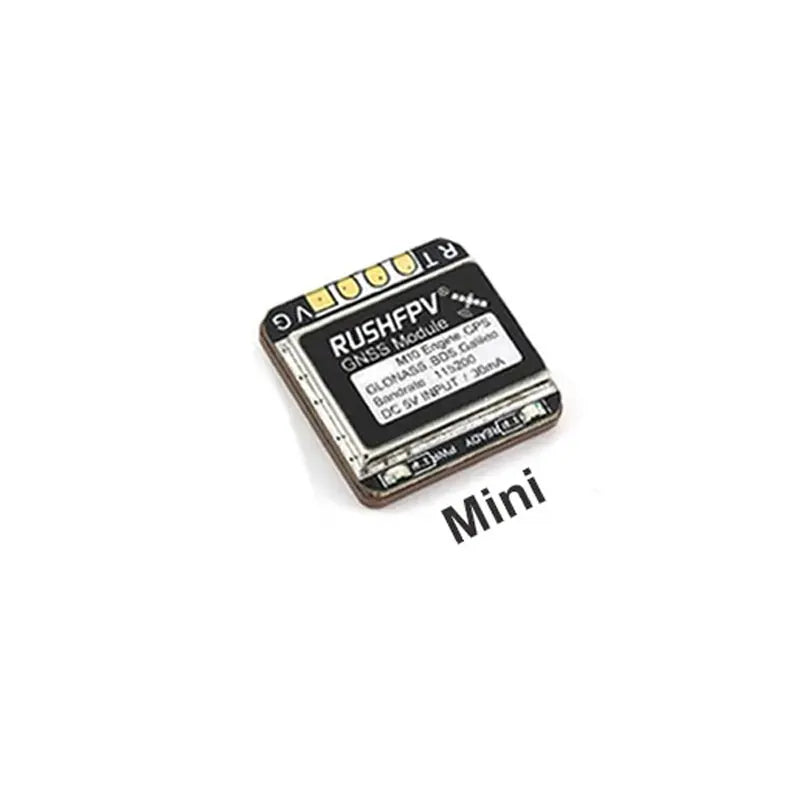

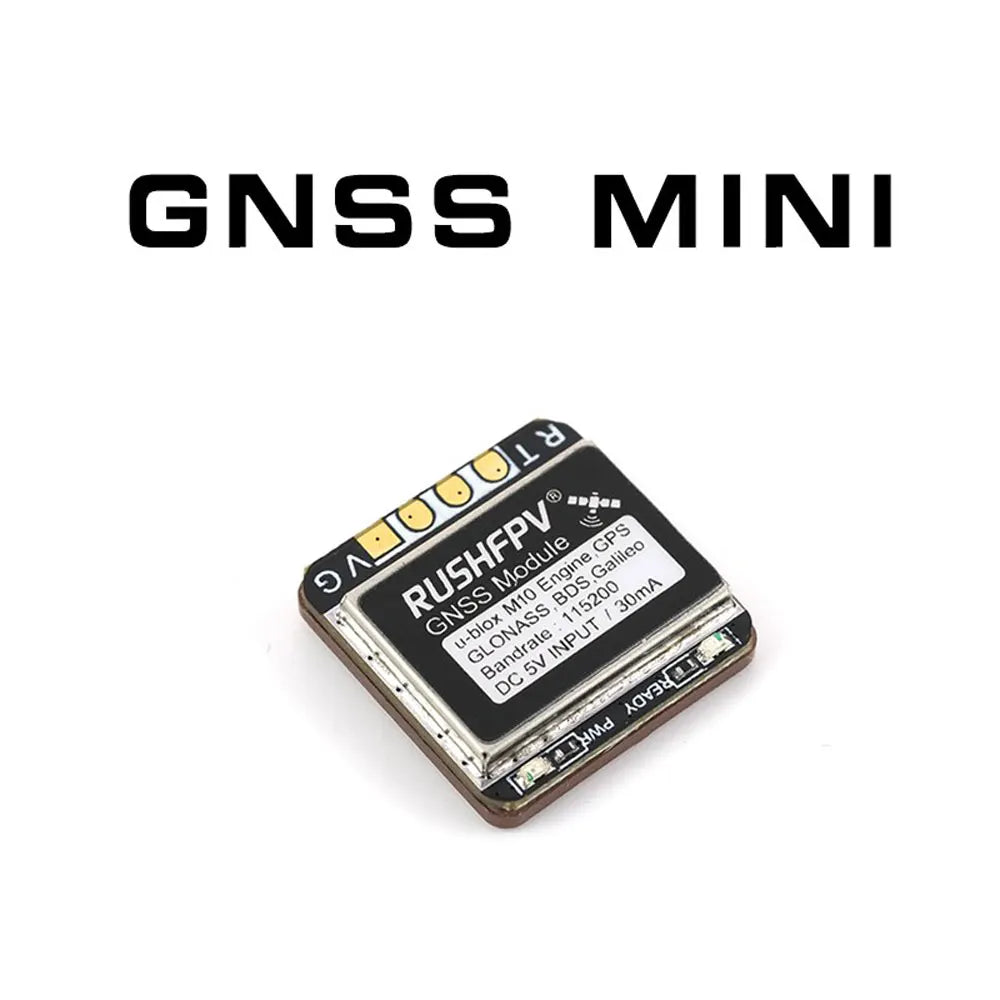

GNSS Mini-5 – Slim Navigation Module for
Versatile FPV Drones

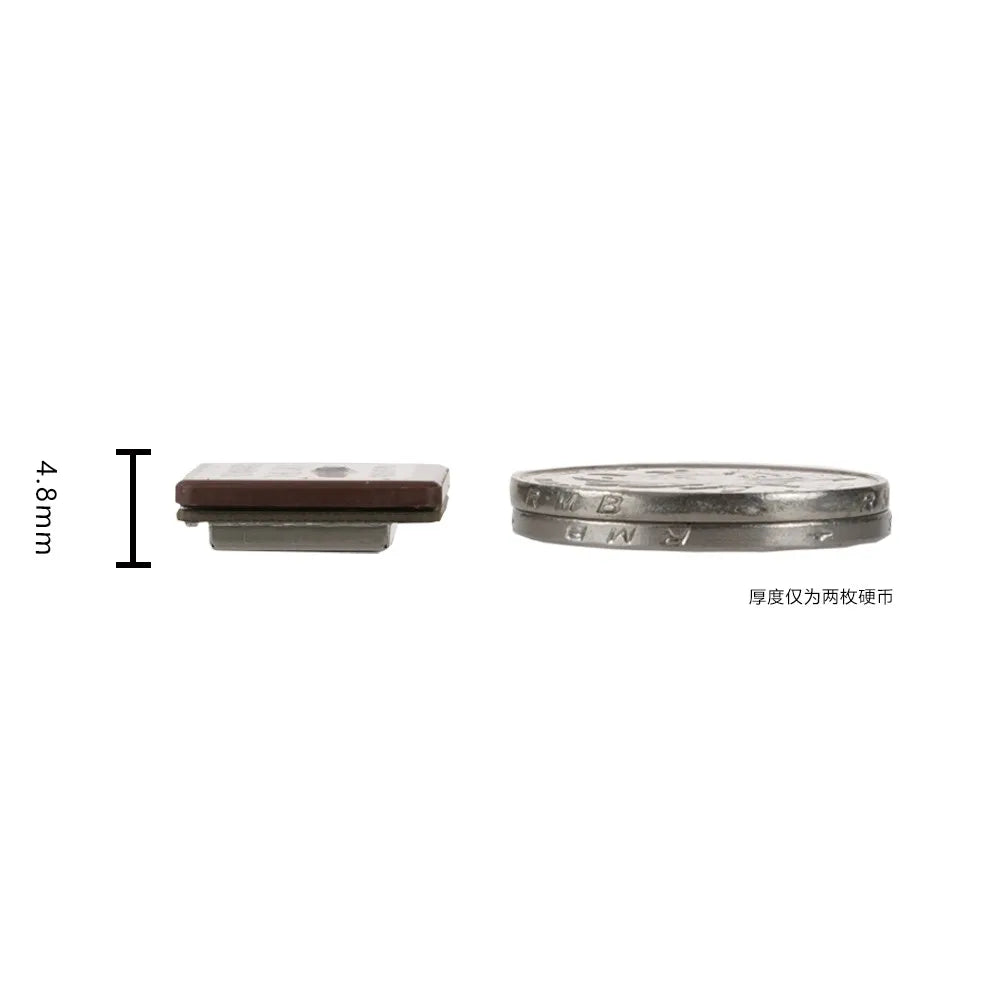

The GNSS Mini-5 strikes a balance between
size and performance, featuring a slim profile—only as thick as two coins.
Powered by the uBlox M10 engine, it supports GPS, BDS, GLONASS, and GALILEO
navigation systems, with connectivity to three systems at once and refresh
rates up to 10Hz. It includes a built-in backup battery and memory for rapid
hot starts, making it suitable for a wide range of FPV applications.

Features:

Slim design, only 4.8mm thick

uBlox M10 multi-GNSS engine

Up to 10Hz update rate

Built-in backup battery and memory

Supports UBLOX and NMEA protocols

Lightweight and space-saving

Specifications:

ParameterValue

Receive BandGPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Channels72CH

Sensitivity-162dBm

Output ProtocolUBLOX / NMEA

Baud Rate115200bps

Update Rate1Hz– 10Hz

Power Input5V, 30mA

Velocity Accuracy0.05m/s

Position Accuracy (2D)1.5m

Max Operating Altitud50000m

Max Velocity500m/s

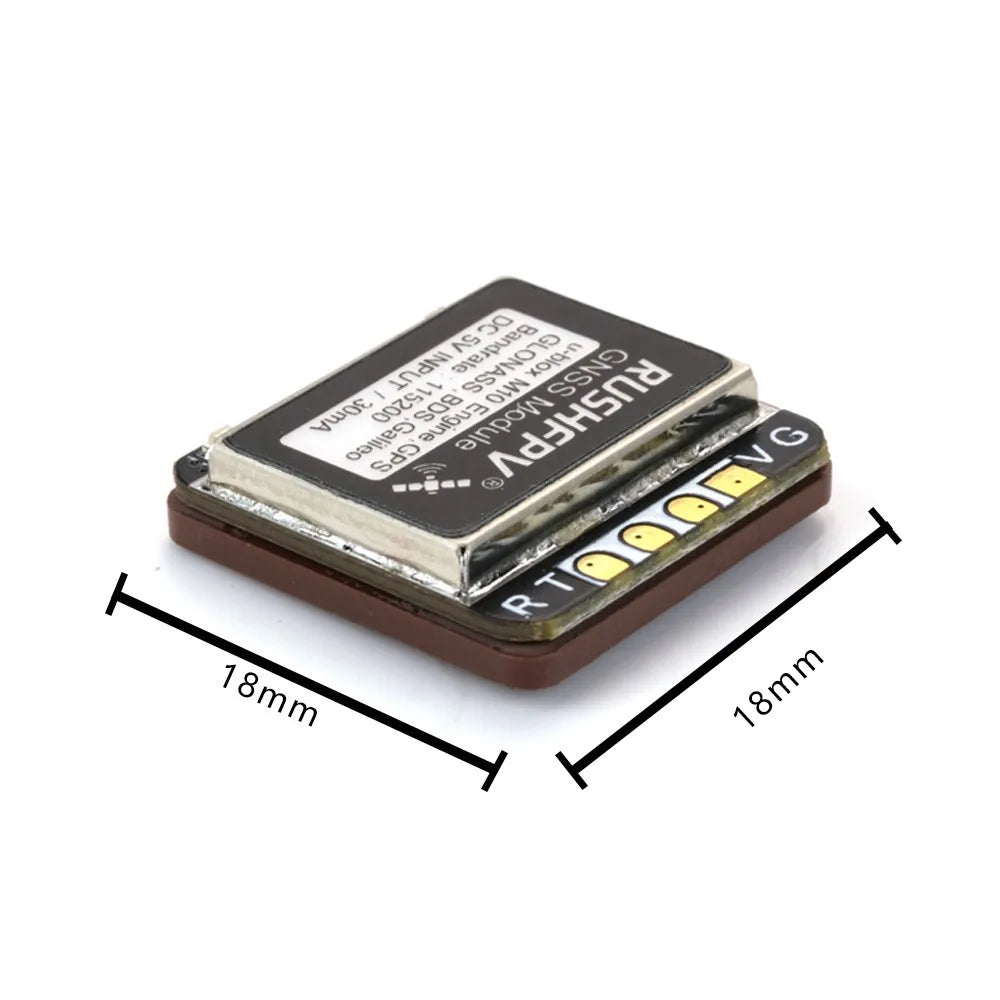

Dimensions18×18×4.8mm

Weight4.2g

Notes:

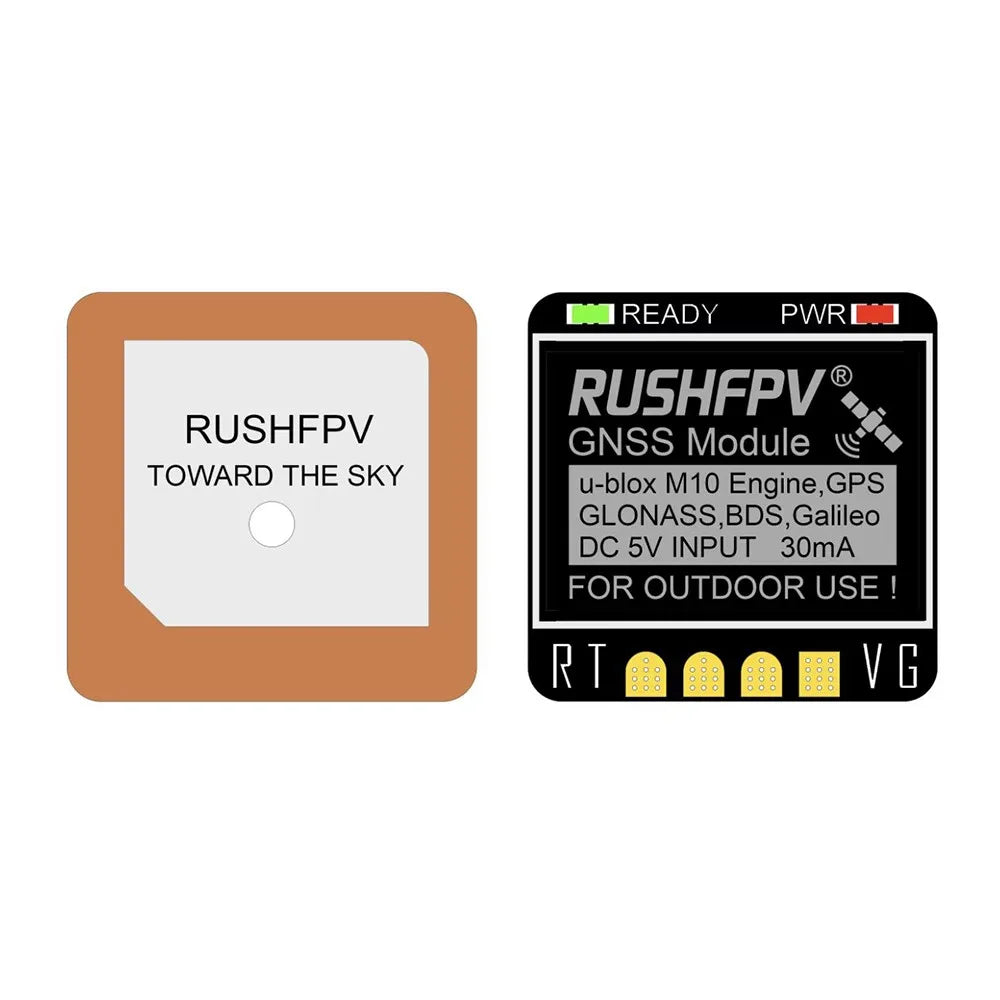

Ensure the ceramic antenna has a clear view of the sky, away from metal and carbon fiber.

For best performance, mount the antenna in an open area using a stand, and keep it distant from VTX and R/C receiver
antennas.

When connecting to flight controller: GNSS
RX → FC TX, GNSS TX → FC RX.

Handle with care; the ceramic antenna is
fragile and should not be dropped or struck.

The engraved marks on the antenna are from
manual tuning to optimize center frequency and are not defects.

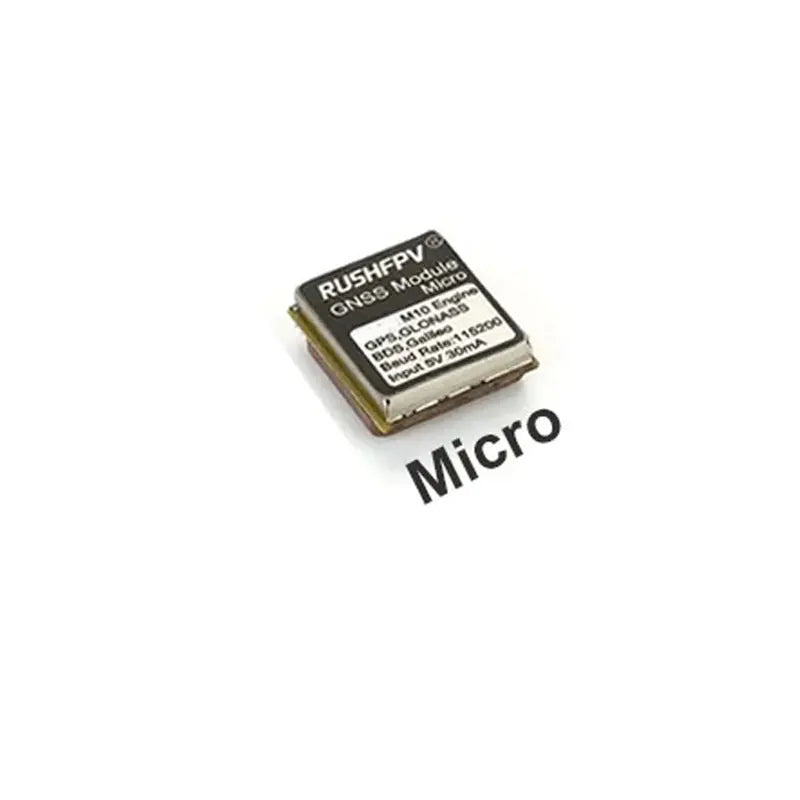

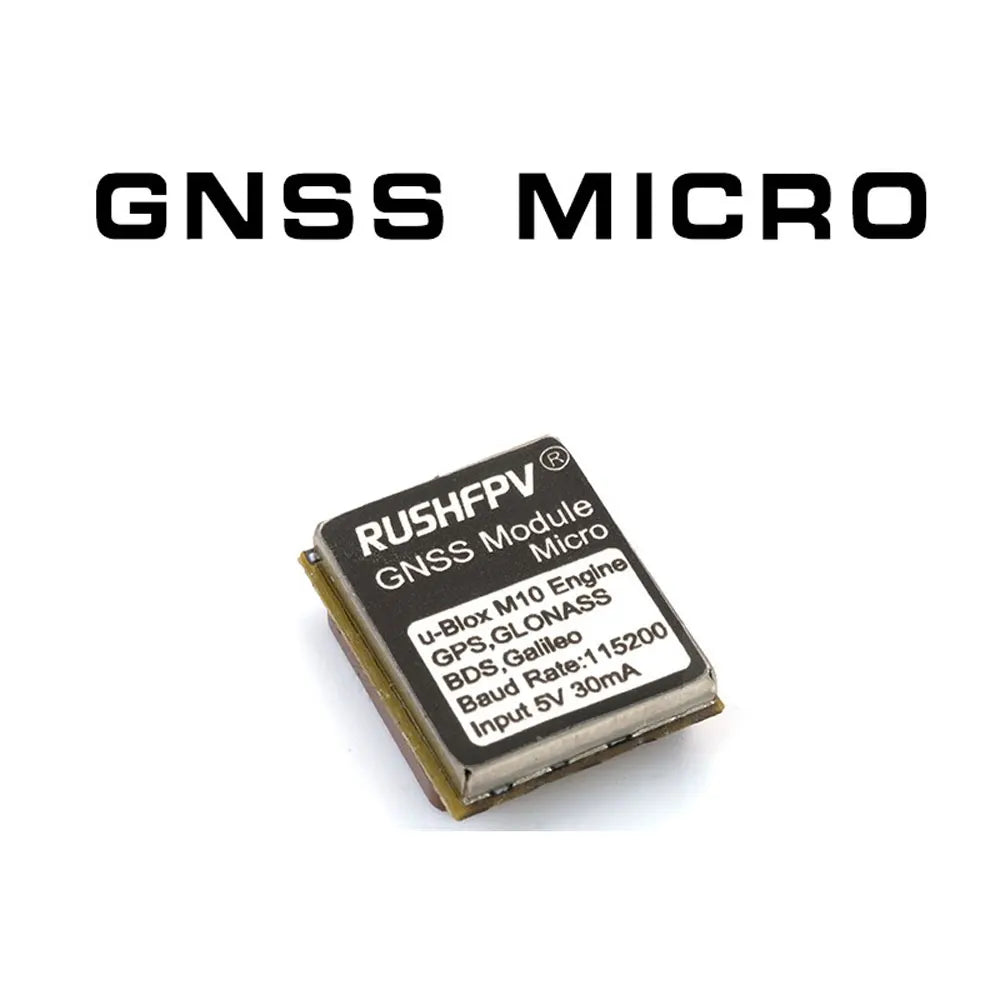

GNSS Micro – Compact Navigation Module for Small FPV Drones

Ideal for small FPV drones, the GNSS Micro is a compact yet powerful navigation module. It features the uBlox M10 engine,supporting GPS, BDS, GLONASS, and GALILEO systems, with the ability to connect to three systems simultaneously at up to 10Hz refresh rate. Built-in backup
battery and memory enable fast hot starts. The ceramic antenna is sealed along with the power section, offering durability and resistance to contamination.

Features:

Ultra-compact form factor for small builds

uBlox M10 engine, multi-GNSS support

10Hz refresh rate capability

Sealed ceramic antenna and power unit

Built-in backup battery and memory for quick starts

Dual LEDs for power and readiness indication

Specifications:

Parameter：Value

Receive Band：GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Channels72CH

Sensitivity：-162dBm

Output Protocol：UBLOX

Baud Rate：115200bps

Update Rate：1Hz –10Hz

Power Input：5V , 30mA

Velocity Accuracy：0.05m/s

Position Accuracy (2D)：1.5m

Max Operating Altitude：50000m

Max Velocity：500m/s

Dimensions：12×15×4.8mm

Weight：2.4g

Notes:

Keep the ceramic antenna unobstructed and away from metal and carbon fiber.

For optimal signal, mount the GNSS antenna in a clear area using a stand, away from VTX and R/C antennas.

When connecting to flight controller: GNSS RX → FC TX, GNSS TX → FC RX.

The antenna is fragile; avoid impacts or drops.

Engraving on the antenna is from manual
frequency tuning for better performance and is not a defect.

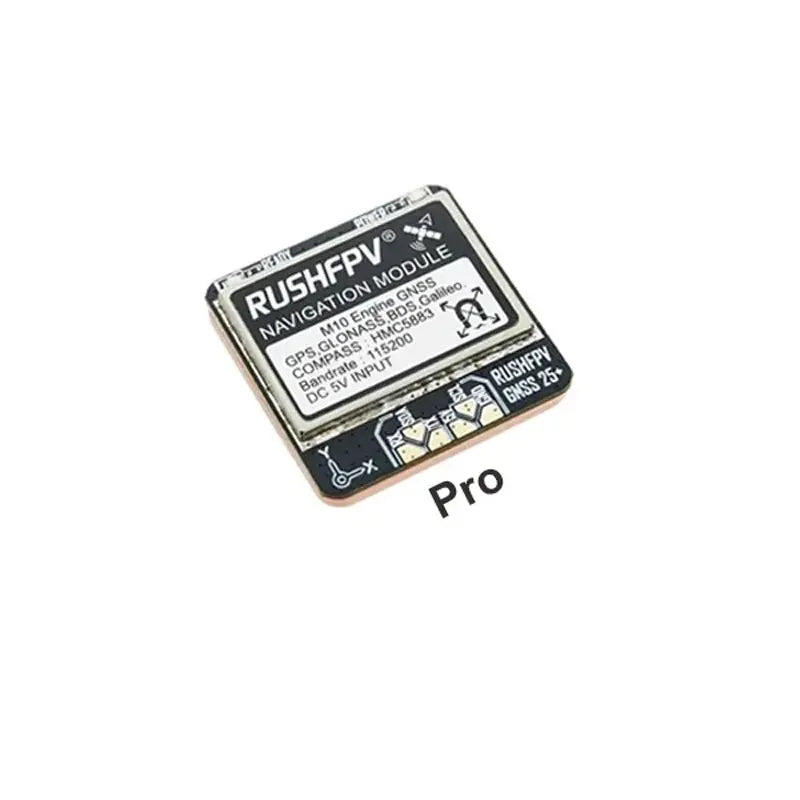

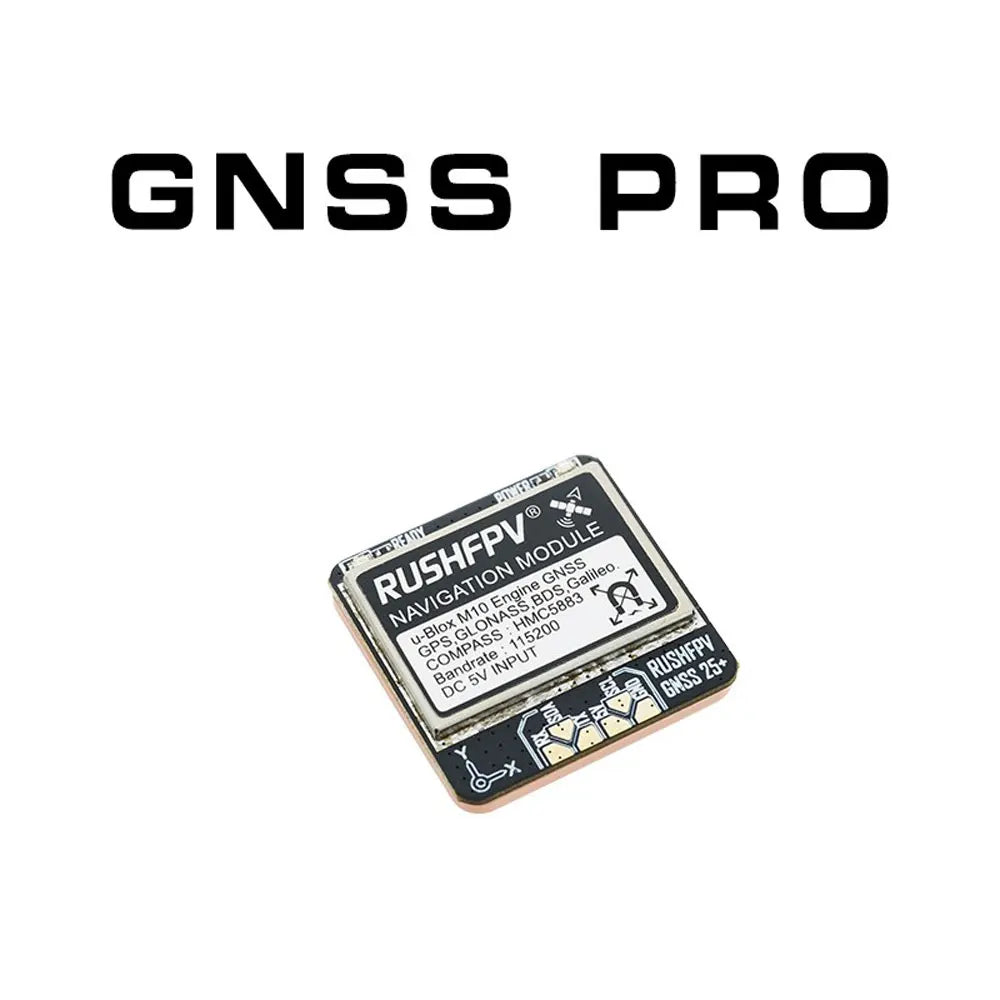

GNSS Pro – Full-Featured Navigation Module for Medium to Large FPV Drones

Designed for medium to large FPV aircraft,this full-featured navigation module delivers reliable positioning and navigation performance. It is built with the latest uBlox M10 engine,supporting GPS, BDS, GLONASS, and GALILEO systems, and can connect to three of them simultaneously with a refresh rate of up to 10Hz. Equipped with a built-in backup battery and memory for fast hot starts, it ensures quick and stable positioning. The ultra-thin antenna is lightweight and features an anti-oxidation coating. It also integrates the HMC5883 electronic compass for enhanced directional accuracy.

Features:

uBlox M10 engine, multi-system support (GPS, BDS, GLONASS, GALILEO)

Up to 10Hz refresh rate

Built-in backup battery and memory for fast hot start

Ultra-thin ceramic antenna with anti-oxidation coating

Integrated HMC5883 electronic compass

Compact and lightweight design

Specifications:

Parameter：Value

Receive Band：GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1

Channels72CH

Sensitivity：-162dBm

Output Protocol：UBLOX / NMEA

Baud Rate：115200bps

Update Rate：1Hz – 10Hz

Power Input：5V , 30mA

Velocity Accuracy：0.05m/s

Position Accuracy (2D)：1.5m

Max Operating Altitude：50000m

Max Velocity：500m/s

Dimensions：25×25×4.8mm

Weight：6.9g

Notes:

Keep the ceramic antenna clear of obstructions and away from metal and carbon fiber.

For best reception, mount the GNSS antenna in an open area using a stand, and keep it away from VTX and R/C receiver
antennas.

The electronic compass is sensitive to magnetic fields; install away from ferromagnetic materials.

When connecting to flight controller: GNSS RX → FC TX, GNSS TX → FC RX.

To use the compass, connect SCL/SDA to the flight controller’s I²C interface.

The ceramic antenna is fragile; avoid impact or dropping.

Engraving marks on the antenna are from manual tuning of the center frequency for optimal performance and are not
defects.
