Description

SPECIFICATIONS

0perating temperature: -20℃~+70℃

0utput resistance: 350+5Ω

Brand Name: BENGBUZZYQ

Creep: ±0.03%F.S

High-concerned chemical: none

Incentive voltage: 5V~12V

Input resistance: 380±30Ω

Insulation resistance: ≥2000MΩ/100VDC

Lag error: ±0.03%F.S

Material: Metal

Non-linearity: ±0.03~±0.05%F.S

Origin: Mainland China

Output: Analog Sensor

Protection class: IP65 IP66

Rated load: 0kg~2T

Repeatability: ±0.03%F.S

Safe overload: 150 %F.S

Sensitivity: 1.0-2.0±0.05 mV/V

Sensitivity temperature coefficient: ±0.05%F.S/10℃

Theory: Resistance Sensor

Type: Optical-Electronics Sensor

Use: Pressure Sensor

Zero temperature coefficient: ±0.05%F.S/10℃

is_customized: Yes

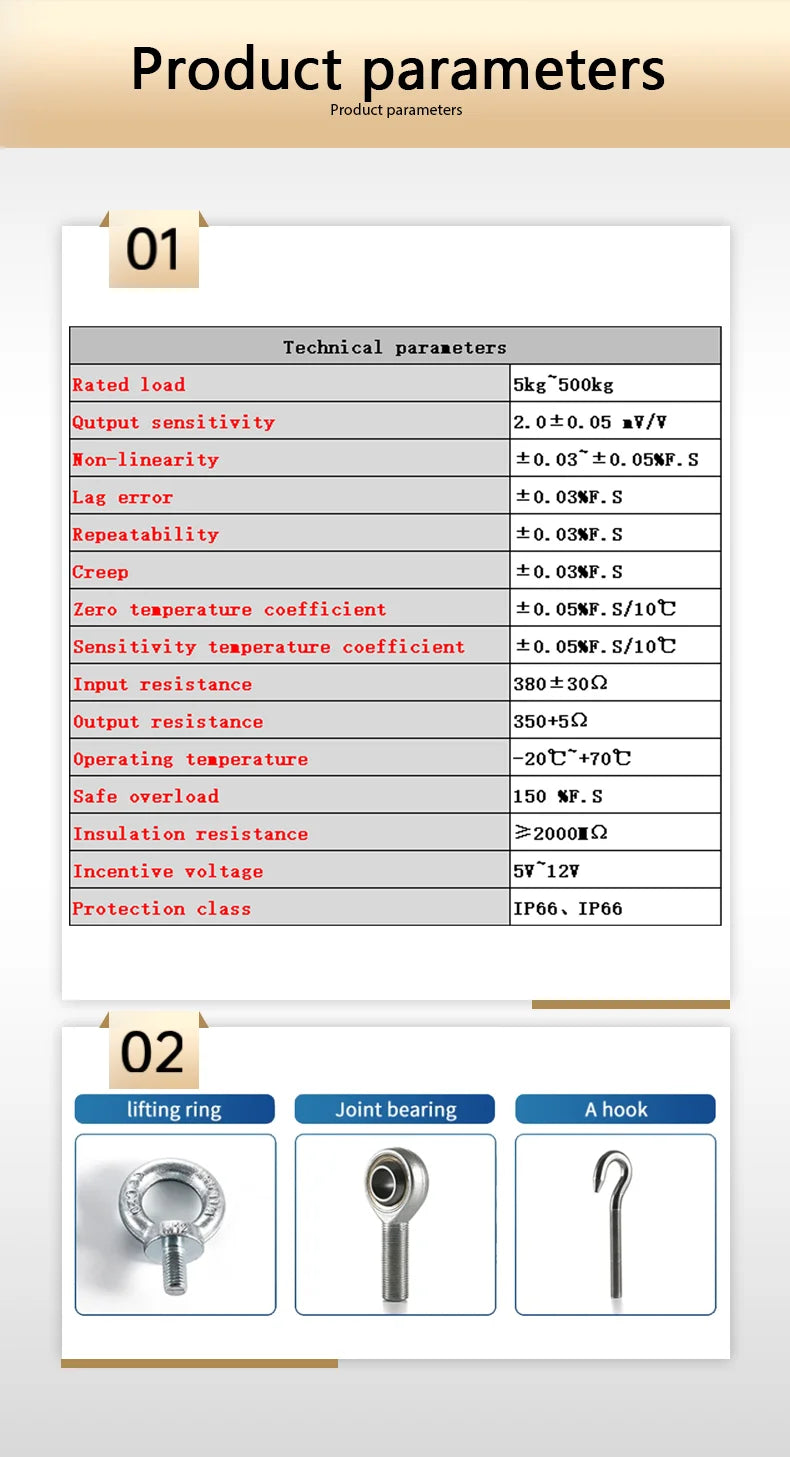

Technical parameters
Rated load	5kg~5T
Qutput sensitivity	2.0±0.05 mV/V
Non-linearity	±0.03~±0.05%F.S
Lag error	±0.03%F.S
Repeatability	±0.03%F.S
Creep	±0.03%F.S
Zero temperature coefficient	±0.05%F.S/10℃
Sensitivity temperature coefficient	±0.05%F.S/10℃
Input resistance	380±30Ω
0utput resistance	350+5Ω
0perating temperature	-20℃~+70℃
Safe overload	150 %F.S
Insulation resistance	≥2000MΩ
Incentive voltage	5V~12V
Protection class	IP65、IP66

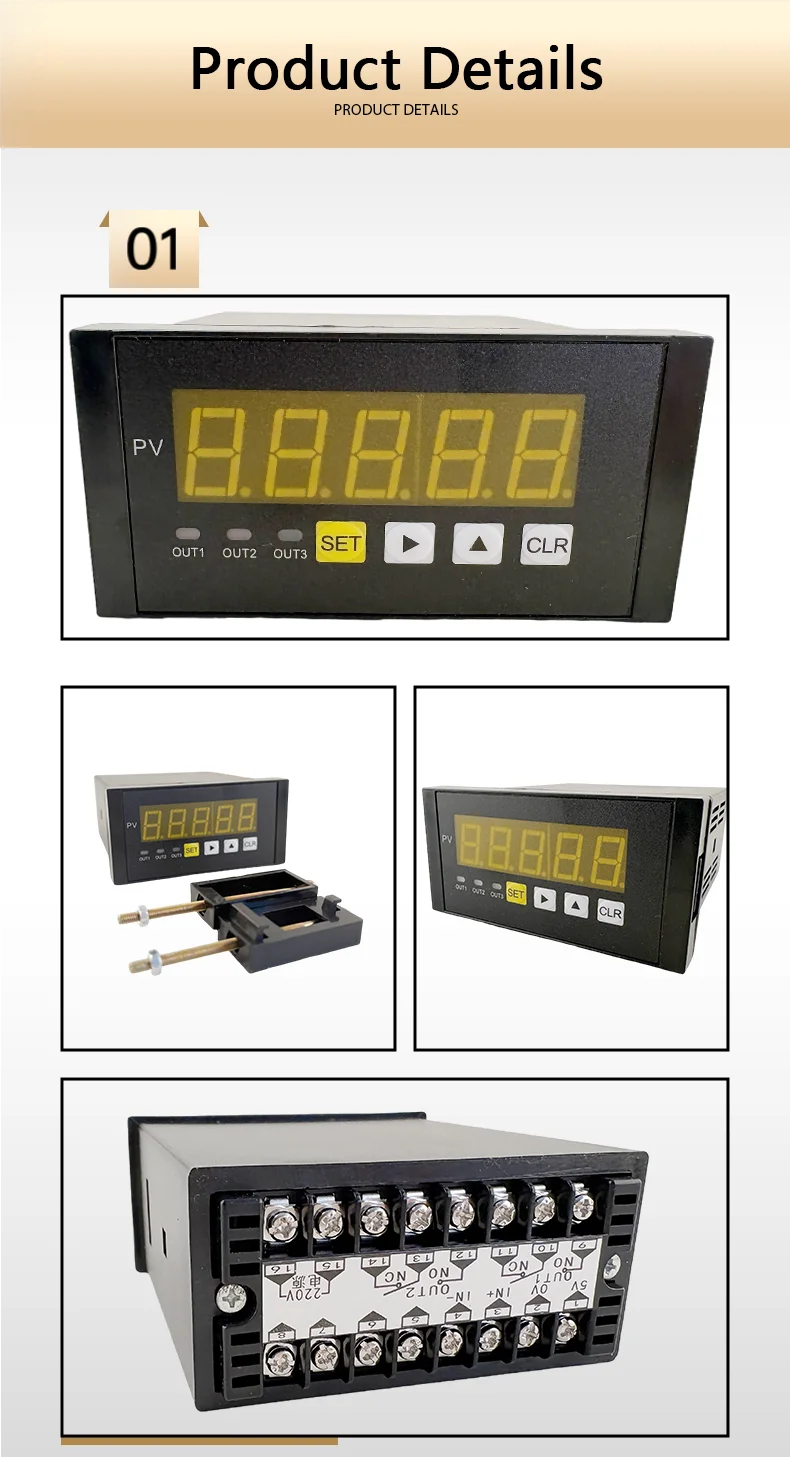

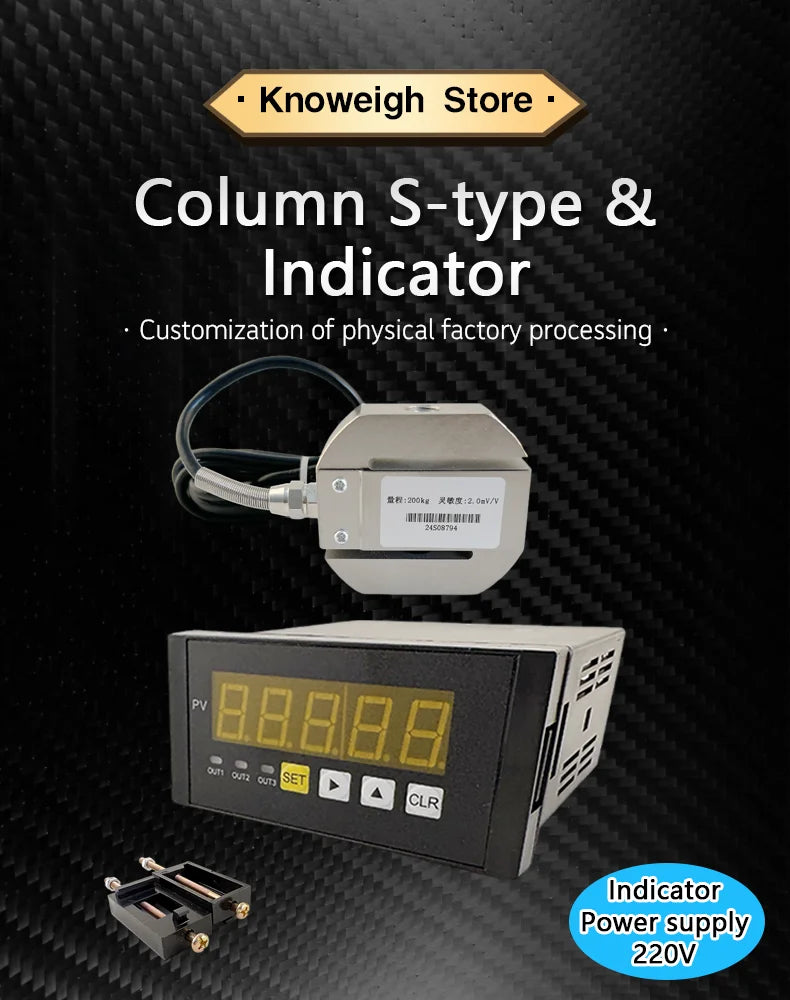

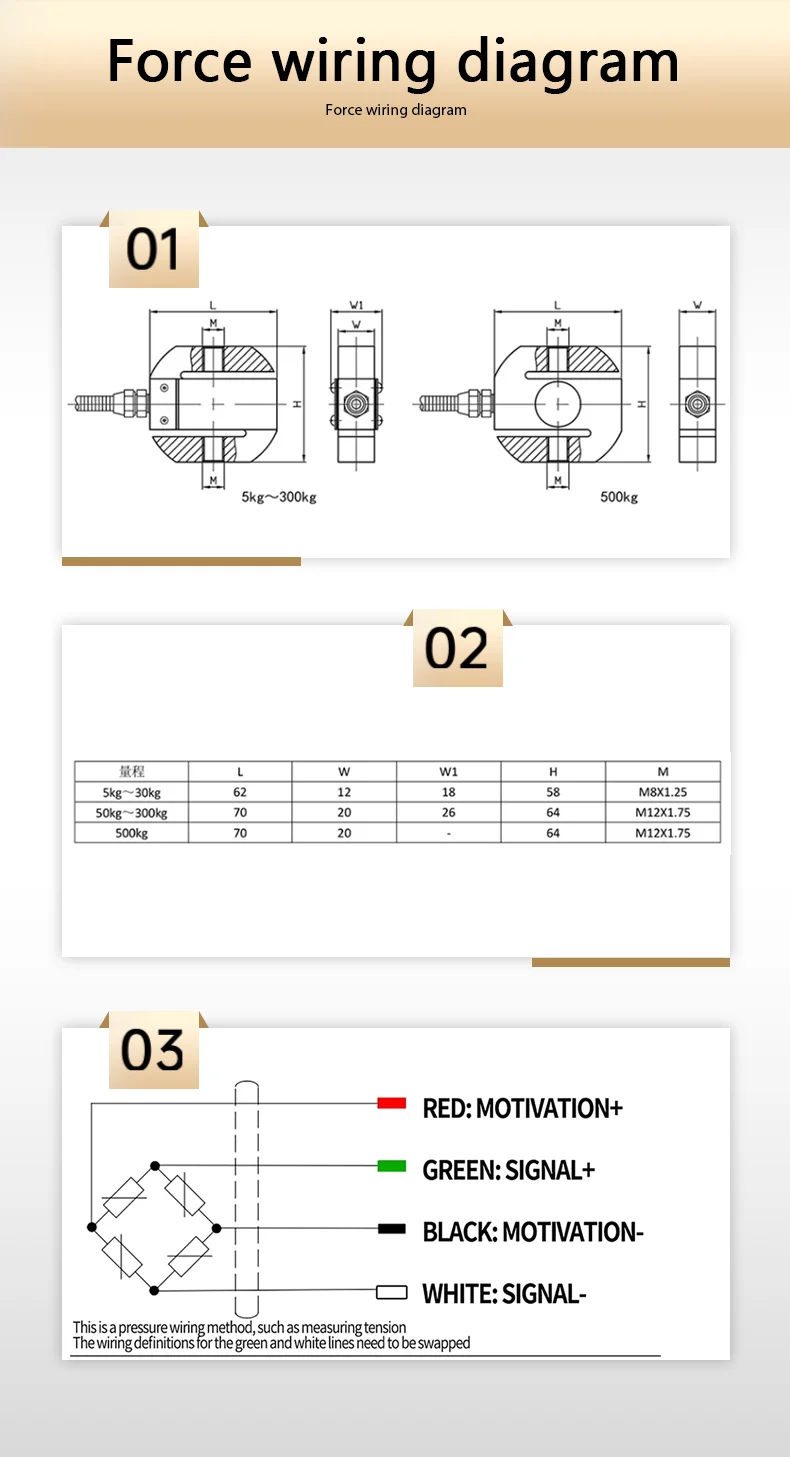

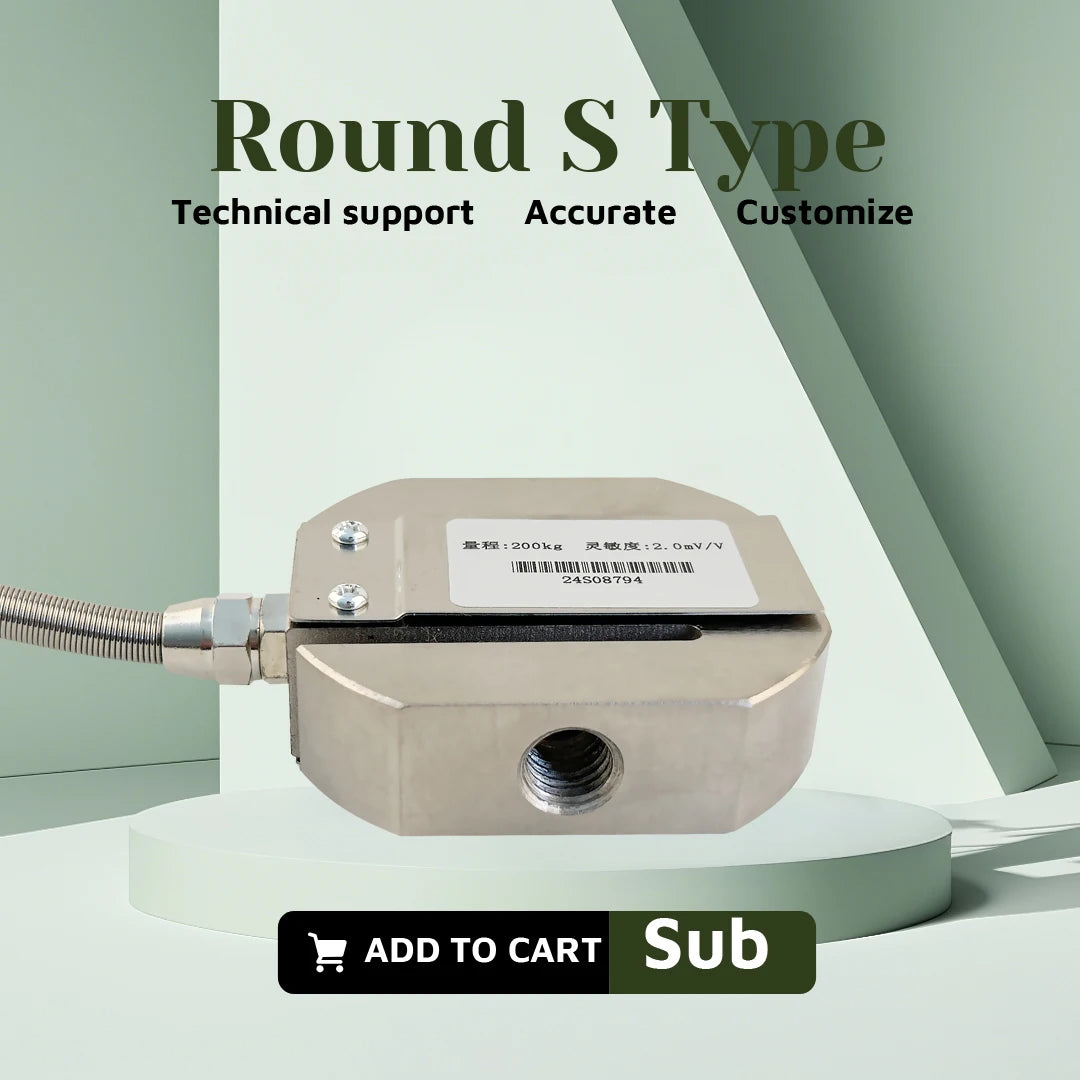

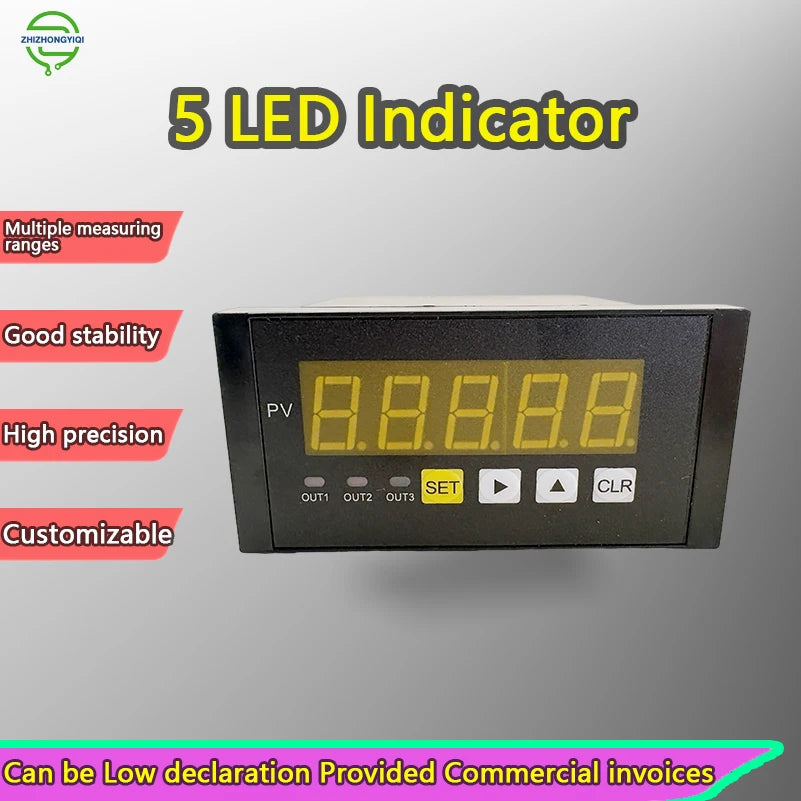

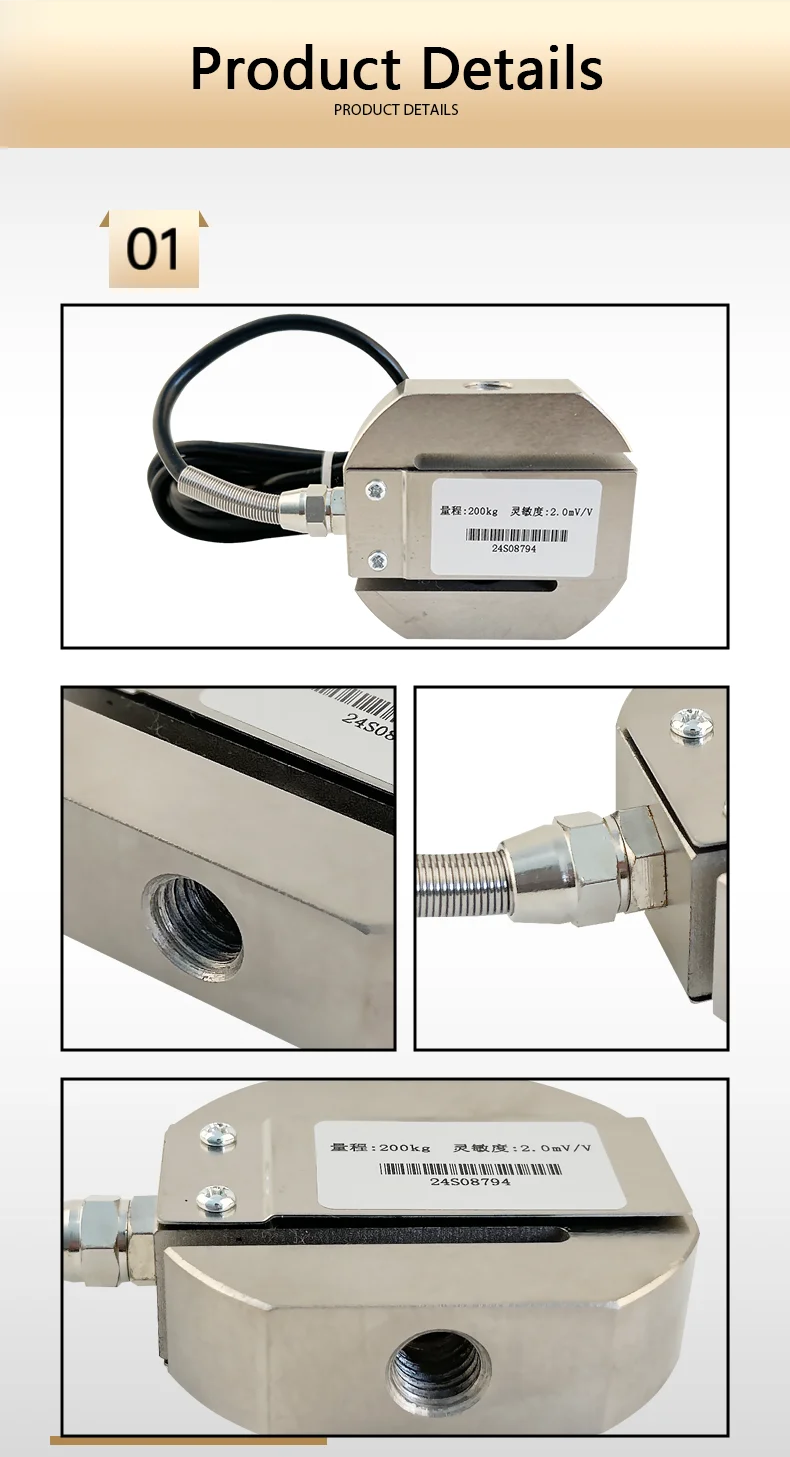

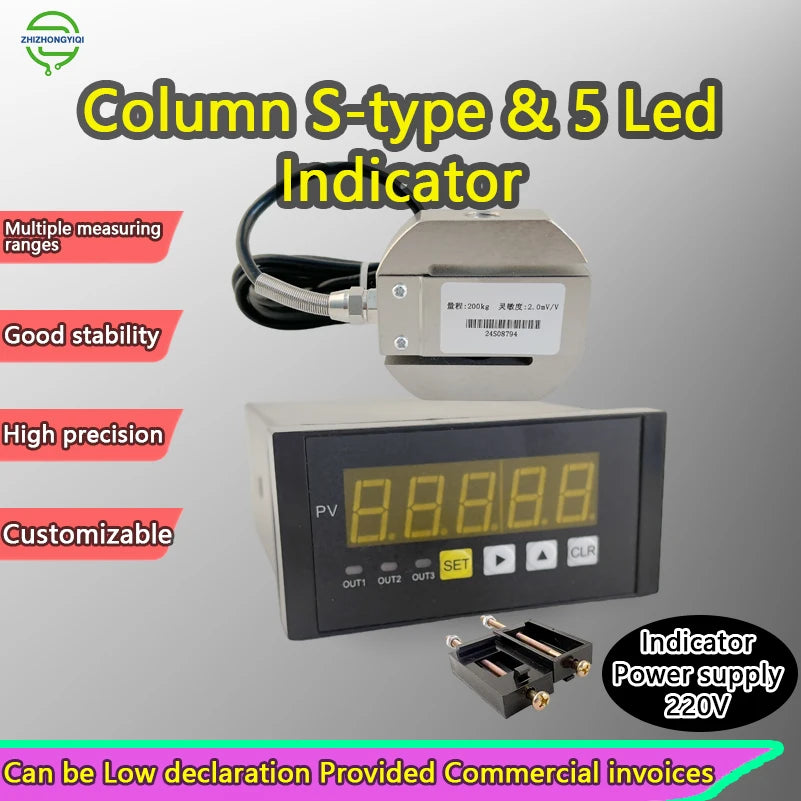

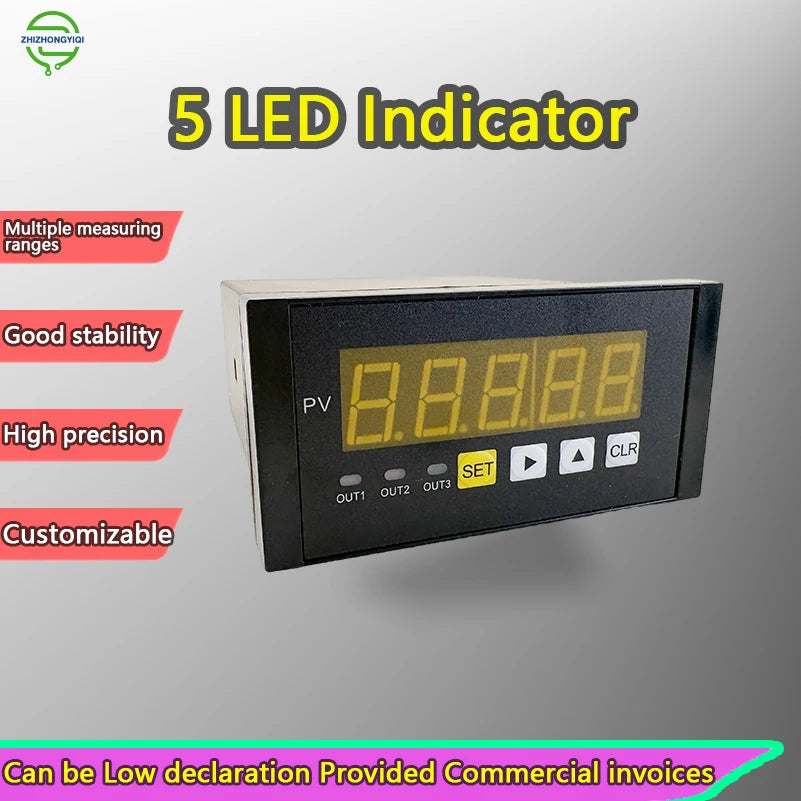

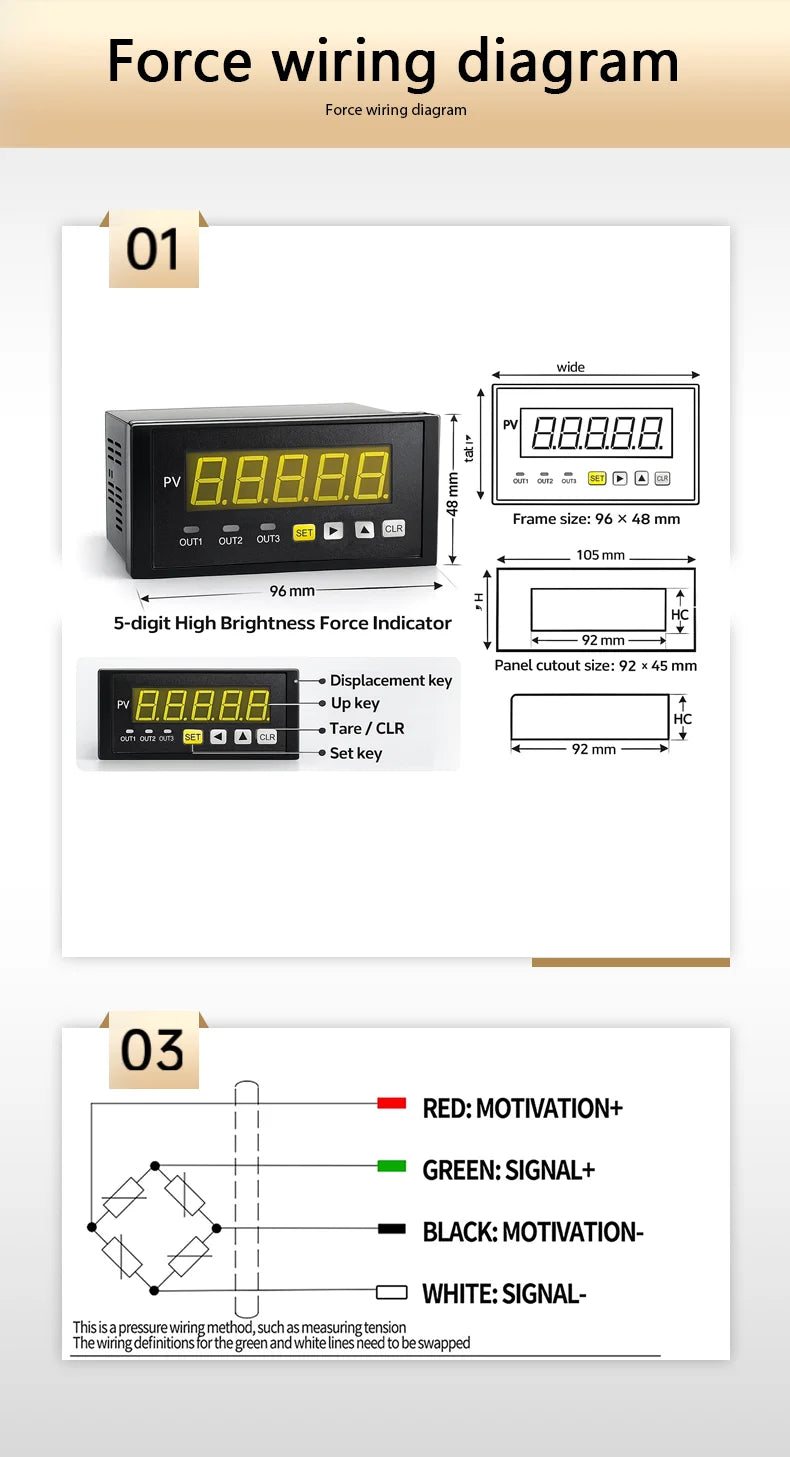

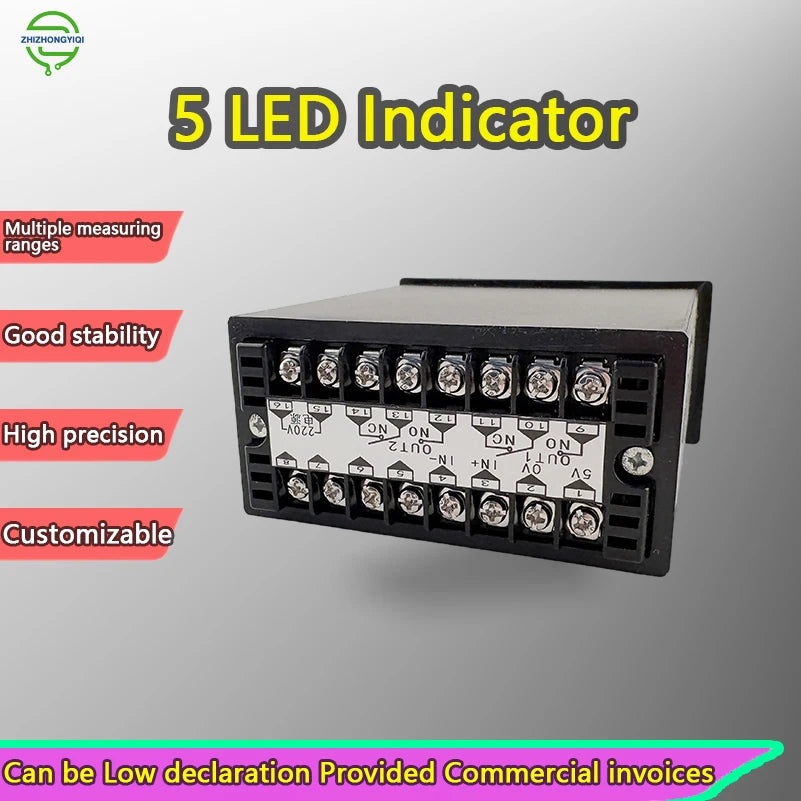

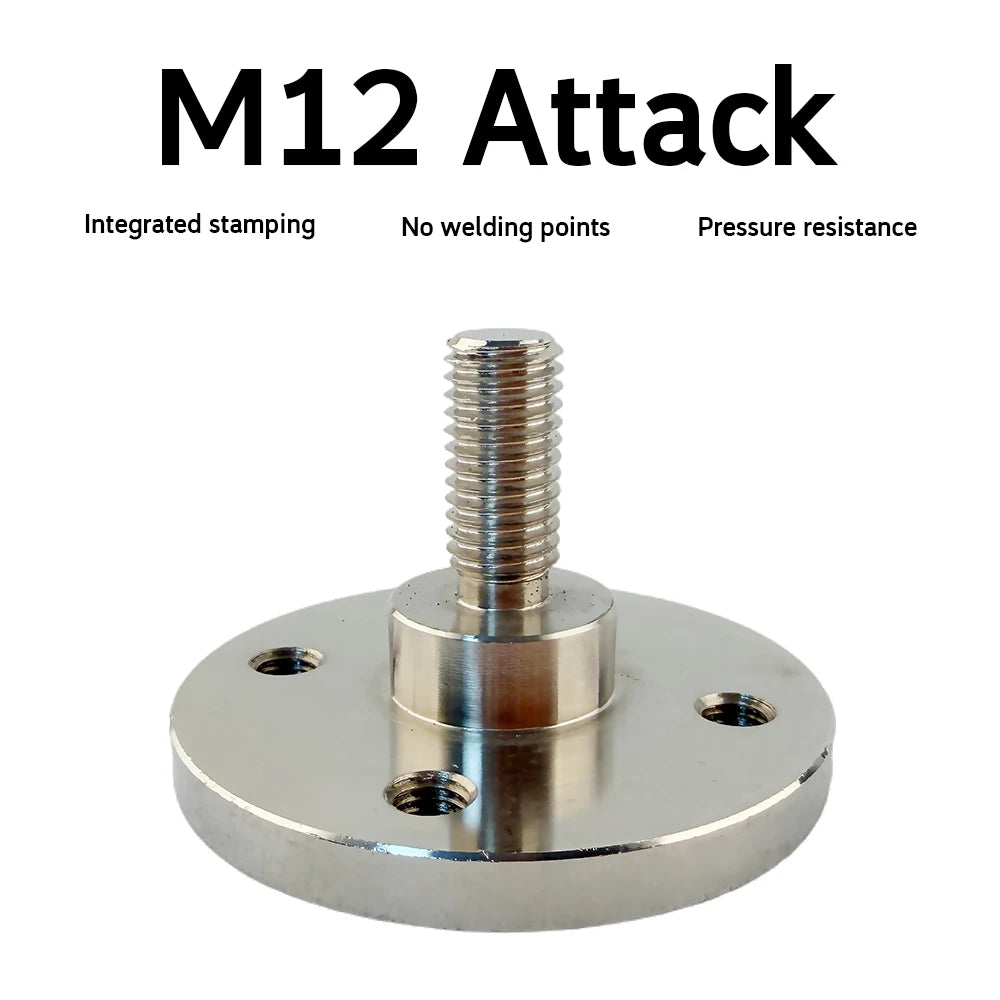

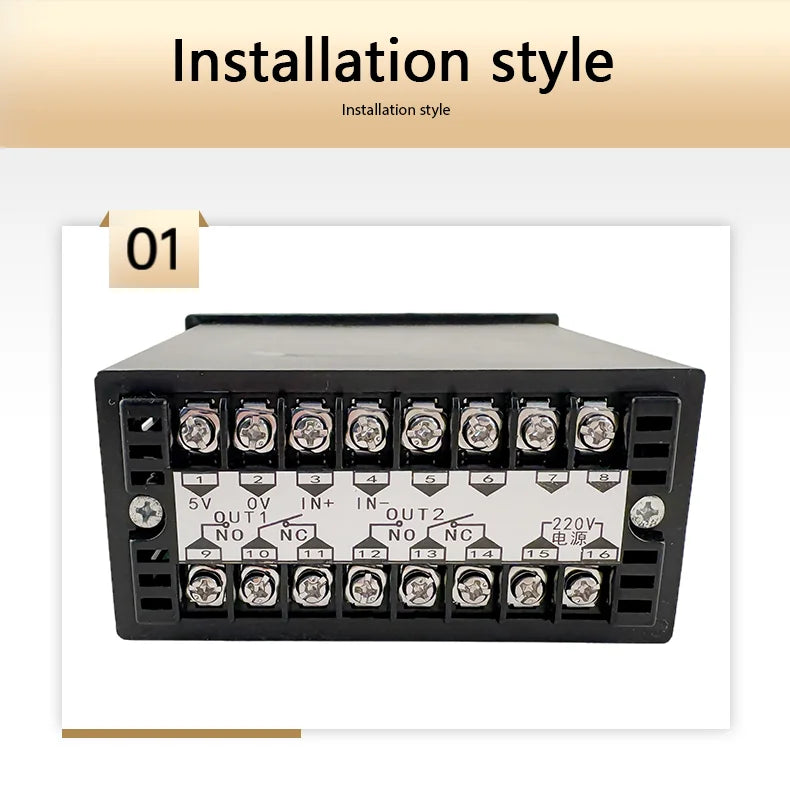

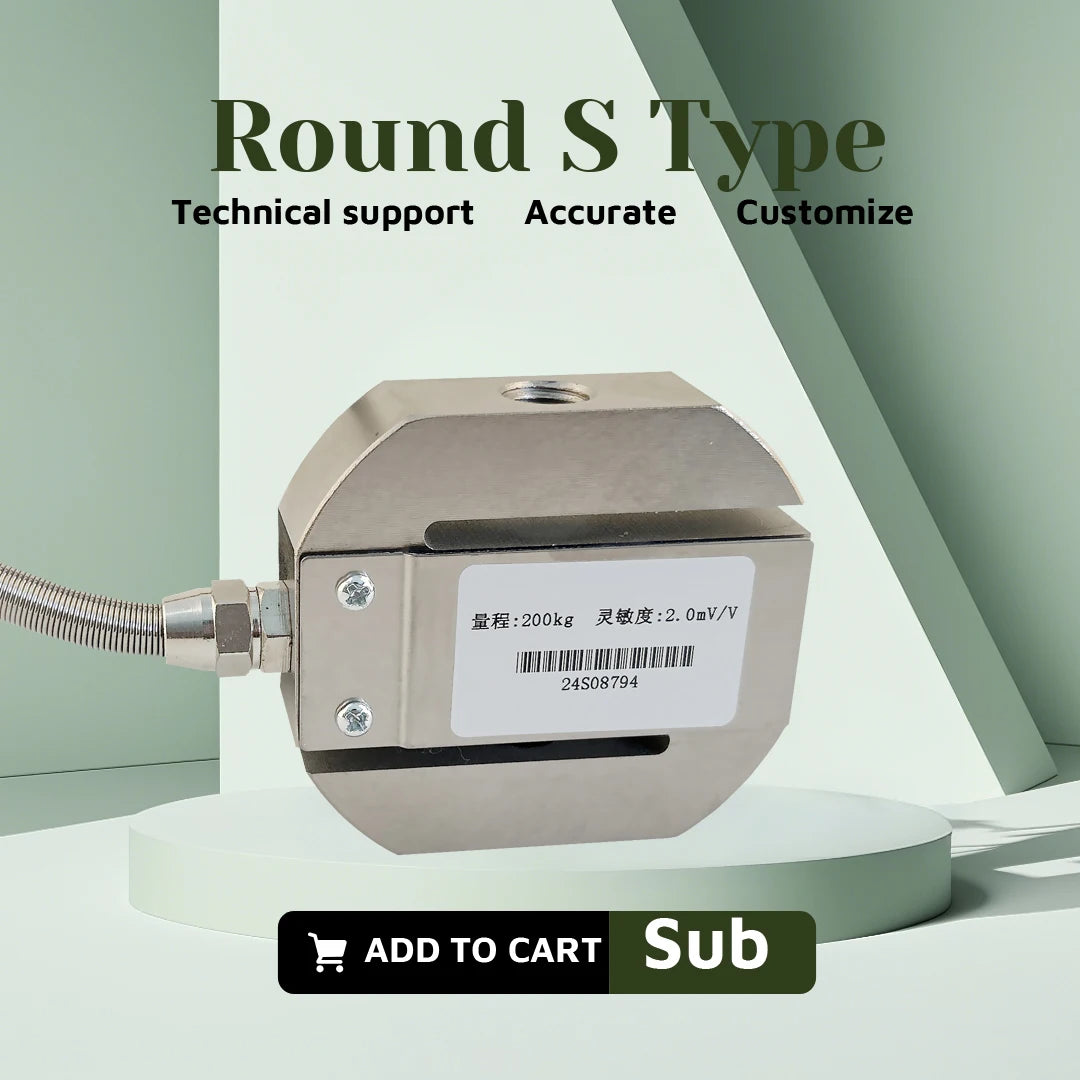

This kit combines a Column S-Type tension/compression load cell with a 5-digit high brightness digital force indicator. It is designed for tension testing, compression measurement, hanging force monitoring, and industrial automation applications. The sensor provides a stable 4-wire mV/V output (2.0 mV/V class), IP66 protection, and 150% safe overload. The panel-mount indicator (96×48mm, 92×45mm cutout) runs on 220V and supports relay outputs (OUT1/OUT2) for alarm or control integration. Optional accessories such as lifting ring, rod end bearing, and hook help with easy installation in real-world setups.
