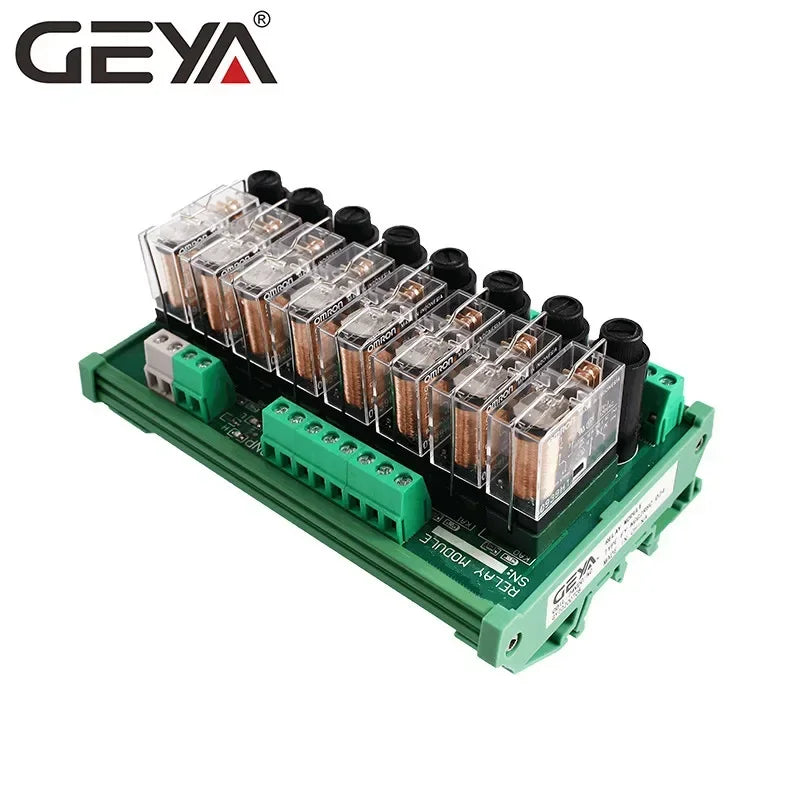

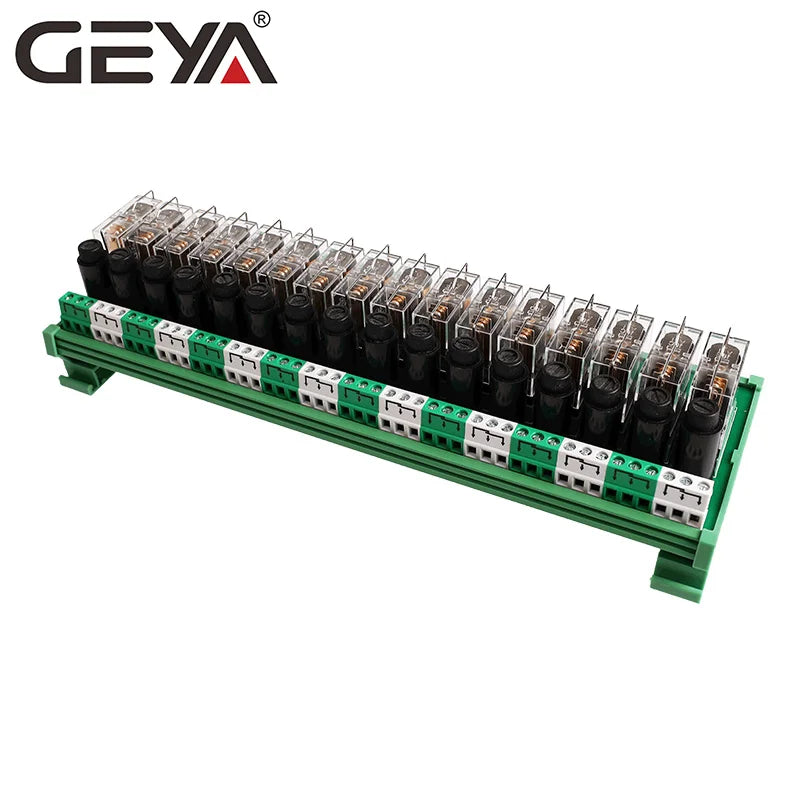

SALE GEYA 2/4/16 Channel PLC Relay Module 12V/24V DC 8A with Fuse Protection DIN Rail Mount Industrial Automation
4Channel / 12VACDC
$101.16
Sale price
$101.16
Regular price
$0.00
Skip to product information
SALE GEYA 2/4/16 Channel PLC Relay Module 12V/24V DC 8A with Fuse Protection DIN Rail Mount Industrial Automation
$101.16
Sale price
$101.16
Regular price
$0.00
Description
SPECIFICATIONS
Applicable Object: Electromechanica
Brand Name: GEYA
Certification: CE
Choice: yes
Coil Power: Approx 0.53W
Contact Arrange: SPDT
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: FY-NGG2R Relay Module with Fuse
Operate Time: less than 15ms
Origin: Mainland China
Power Source: DC,DC
Product Name: Omron Relay Module with Fuse Protection
Protect Feature: Sealed
Rated Load Current: 8A 250VAC/30VDC
Rated voltage: 12VAC/DC, 24VAC/DC
Relay Mounting: Omron Relay Plug Type with Fuse
Release Time: less than 10ms
Theory: Electromagnetic Relay
Use: General Purpose
Voltage: 24V
is_customized: Yes

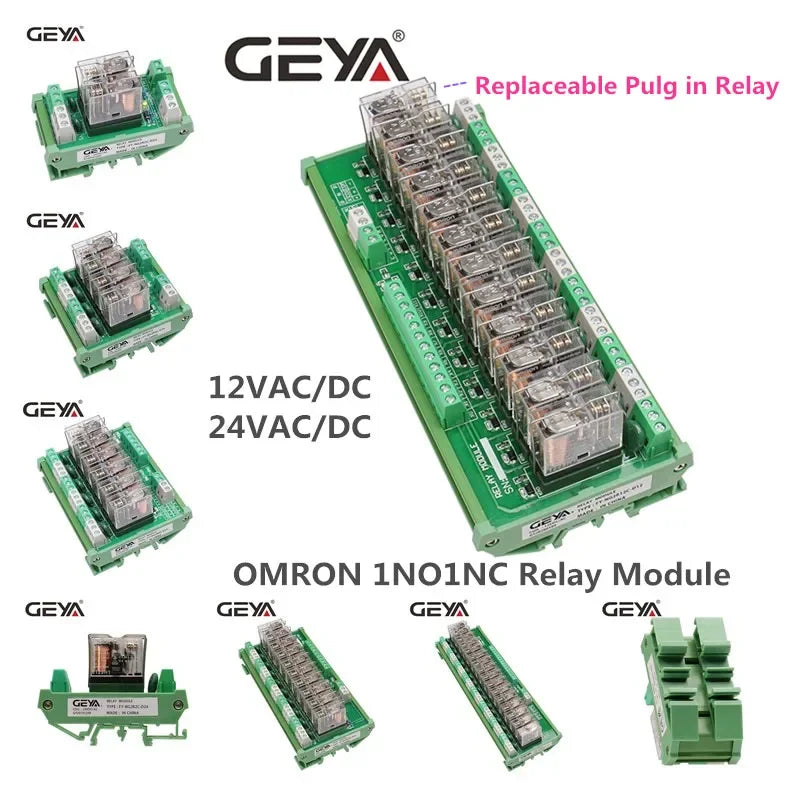

GEYA NGG2R 2/4/8/16 Channel Omron Relay Module for PLC Controller SPDT PLC Relay 12VDC 24VDC with Fuse Protection 8A
General
Relay Modulesis used for PLC output load current amplification and isolation protection,and installed in the digital output terminal of PLC,MCU industrial control board, time relay, buttons and other controllers. It amplifies the output current of the output terminalfor high-power equipment and weak current control, to protect the control system not being damaged.
Features:
1. 1NO 1NC independent relay module;
2. Buit-in Omron Electromagnetic relay certified with UL,CSA, VDE,CE and RoHS compliant;
3. Switching current upto 10A at 250VAC or 30VDC
4. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use
5. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel
6. DIN Rail mountable for width TS15/28/35

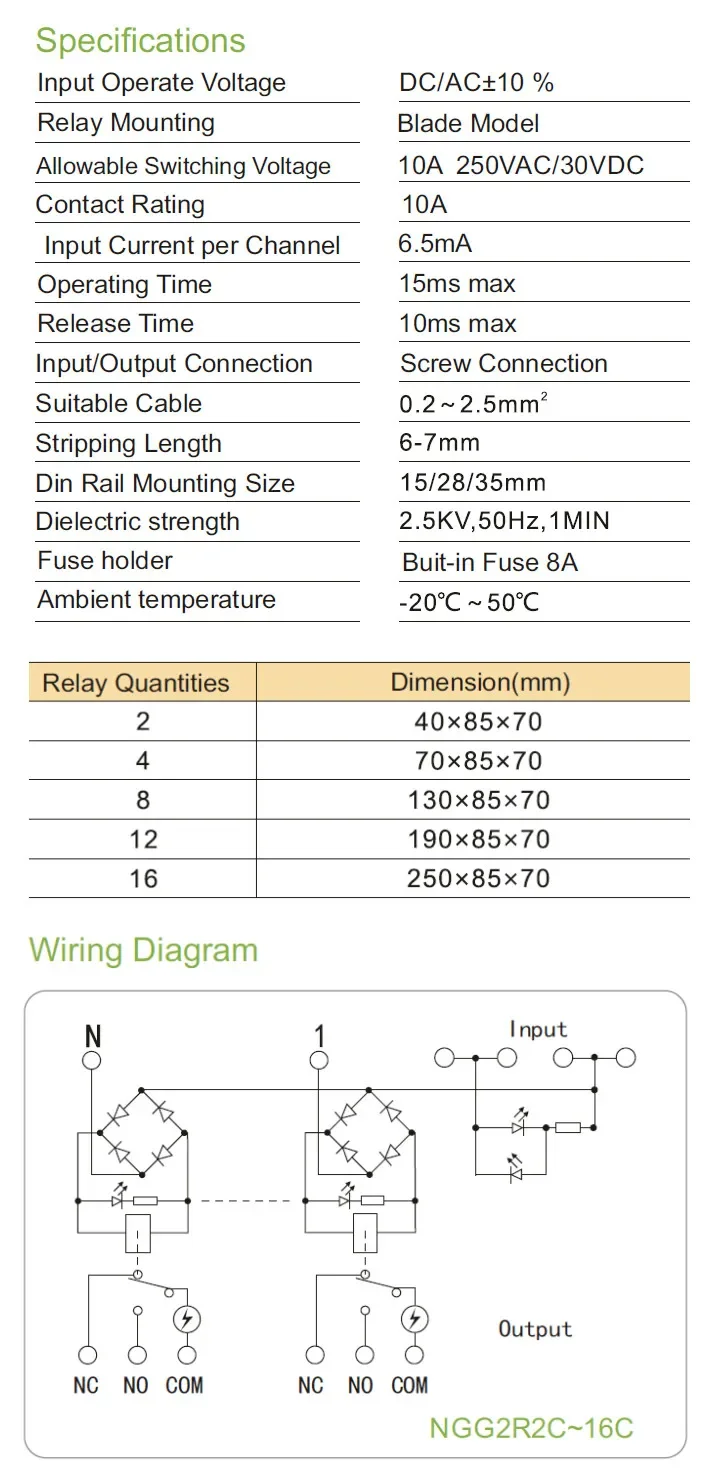

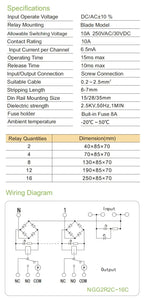

Technical Data
