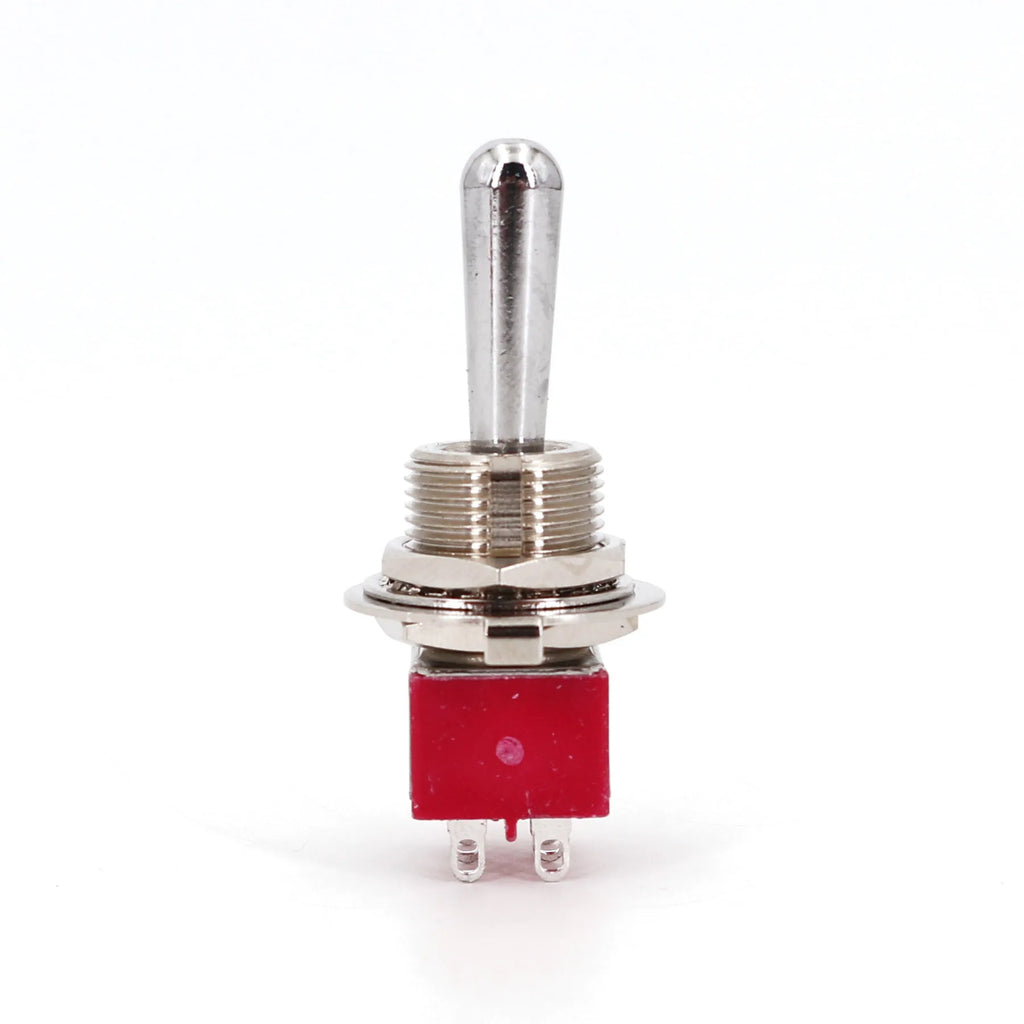

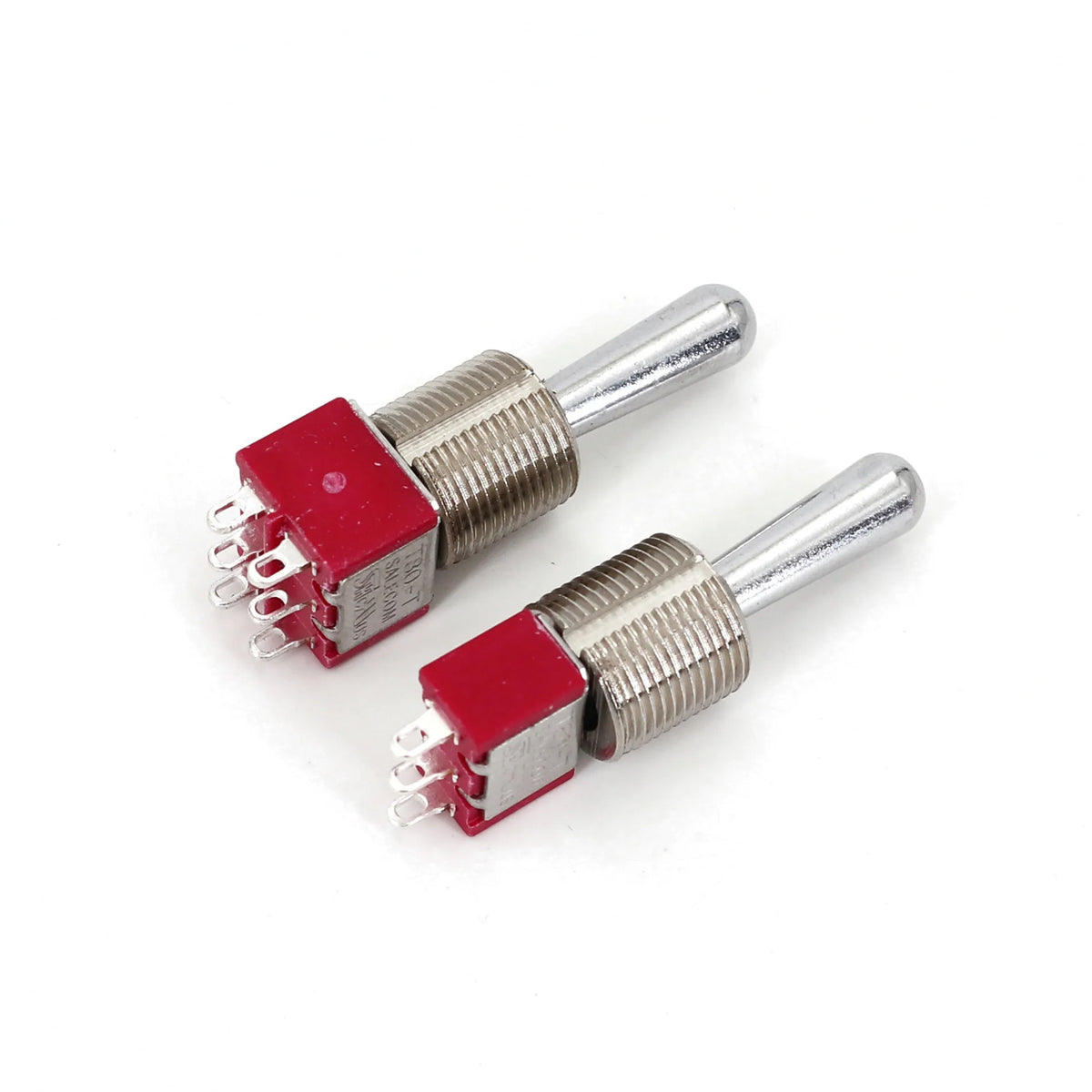

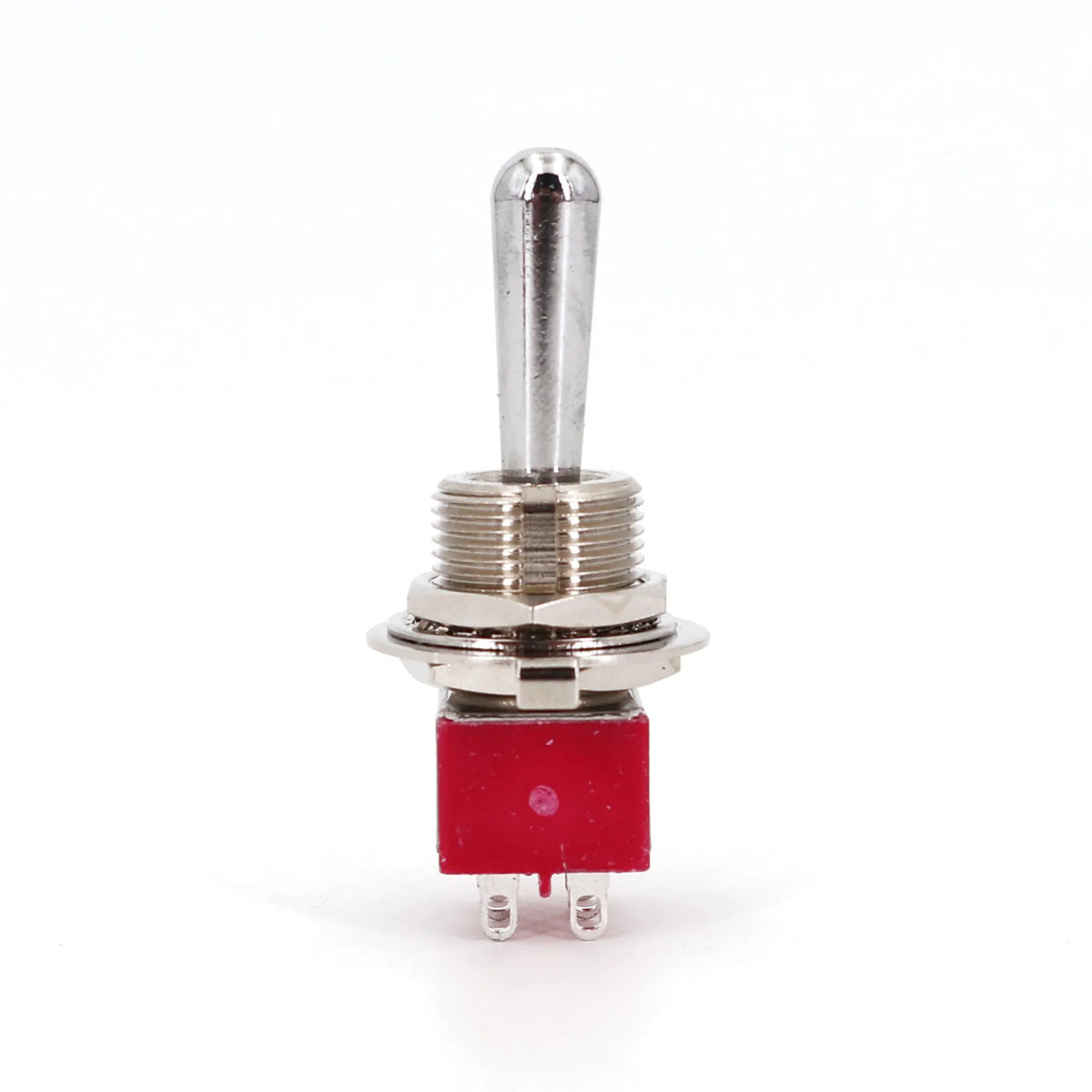

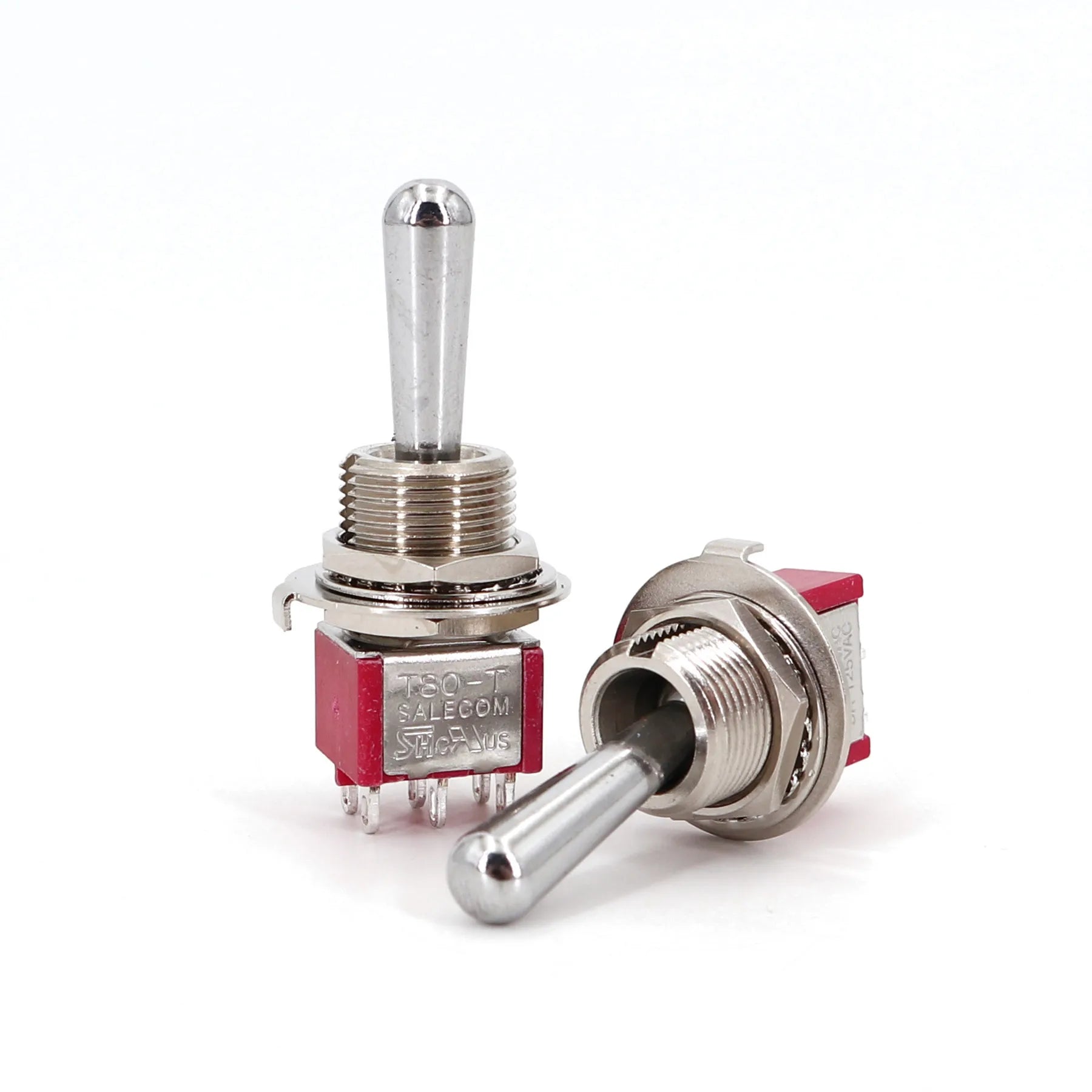

Salecom SH T80-T Z1 Large Long Handle Mini Toggle Switch 12mm Panel Mount 5A/125VAC

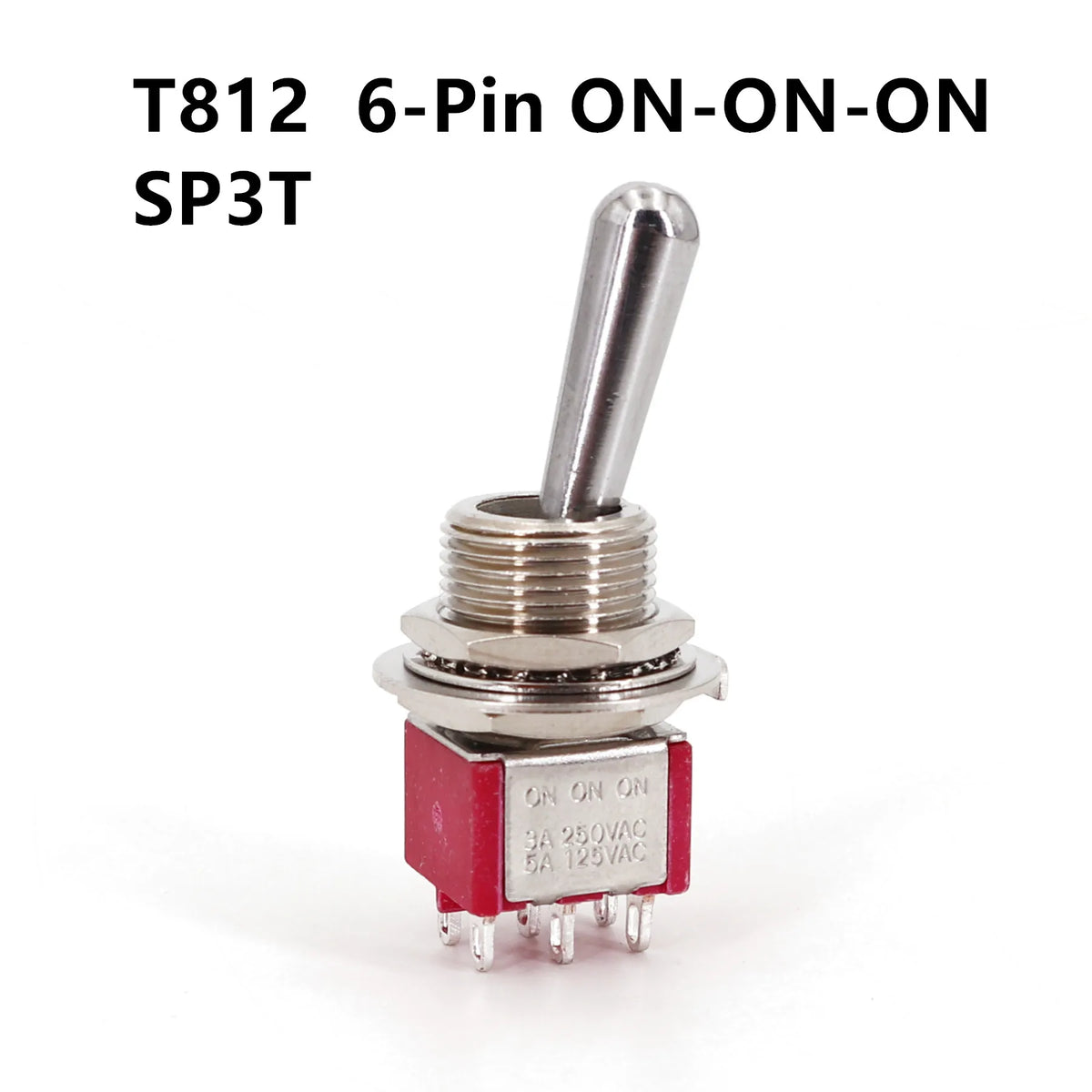

T812 6Pin ON-ON-ON
$13.73
Sale price
$13.73
Regular price
$0.00
Skip to product information
Salecom SH T80-T Z1 Large Long Handle Mini Toggle Switch 12mm Panel Mount 5A/125VAC
$13.73
Sale price
$13.73
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: UL,RoHS,CQC,CQC,ROHS,UL
Current: 5A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: Large Long Handle
High-concerned chemical: none
Item Type: SWITCHES
Material: Alloy
Model Number: T80-T Z1 Lever
Mounting Diameter: 12mm
Origin: Mainland China
Switch Type: Toggle Switch
Feature

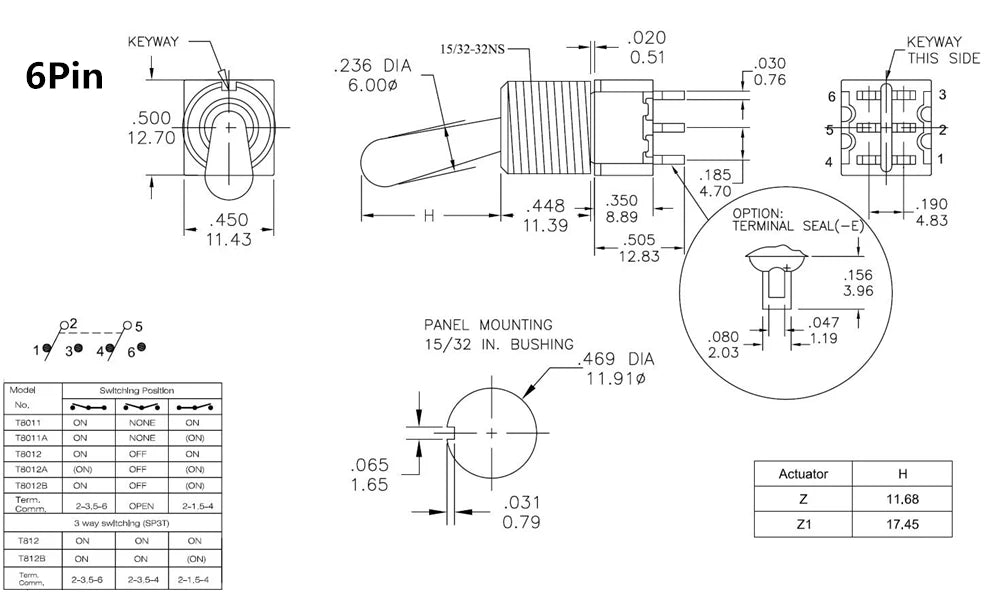

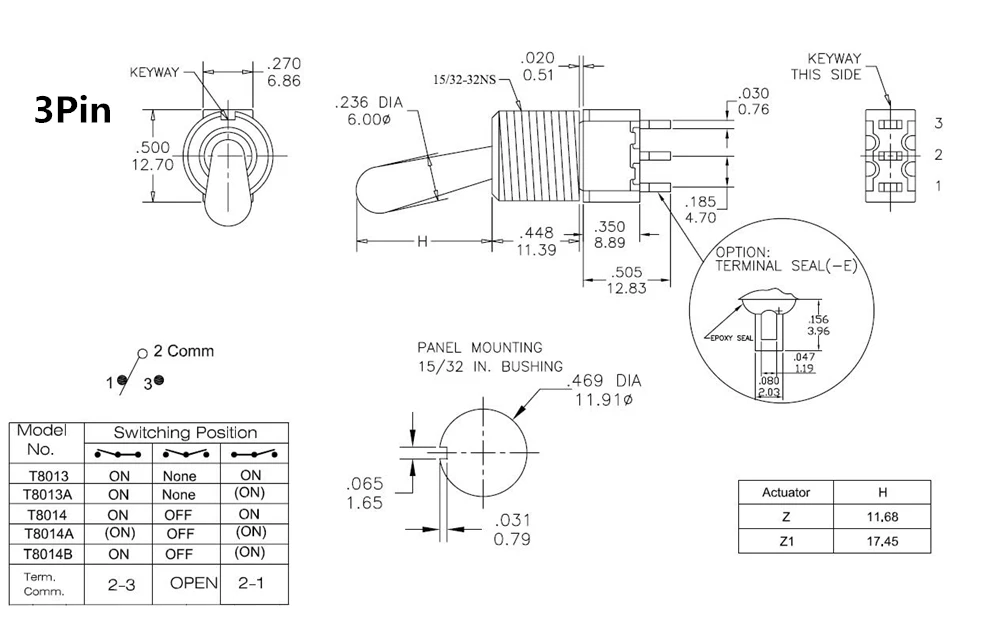

Model: T80-T Large Long Handle Miniature Toggle Switch

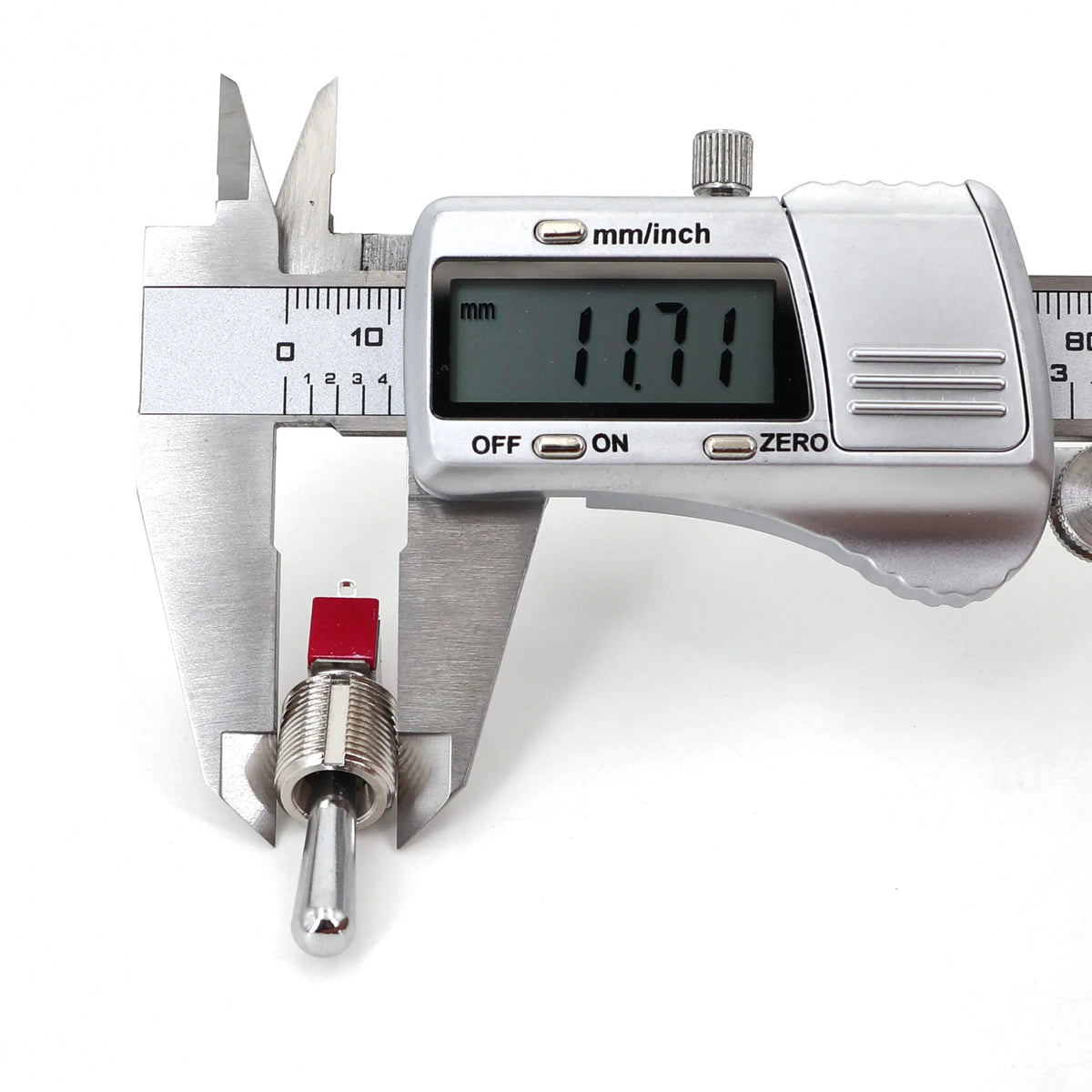

Mounting Diameter: 15/32 Inch (about 12mm)

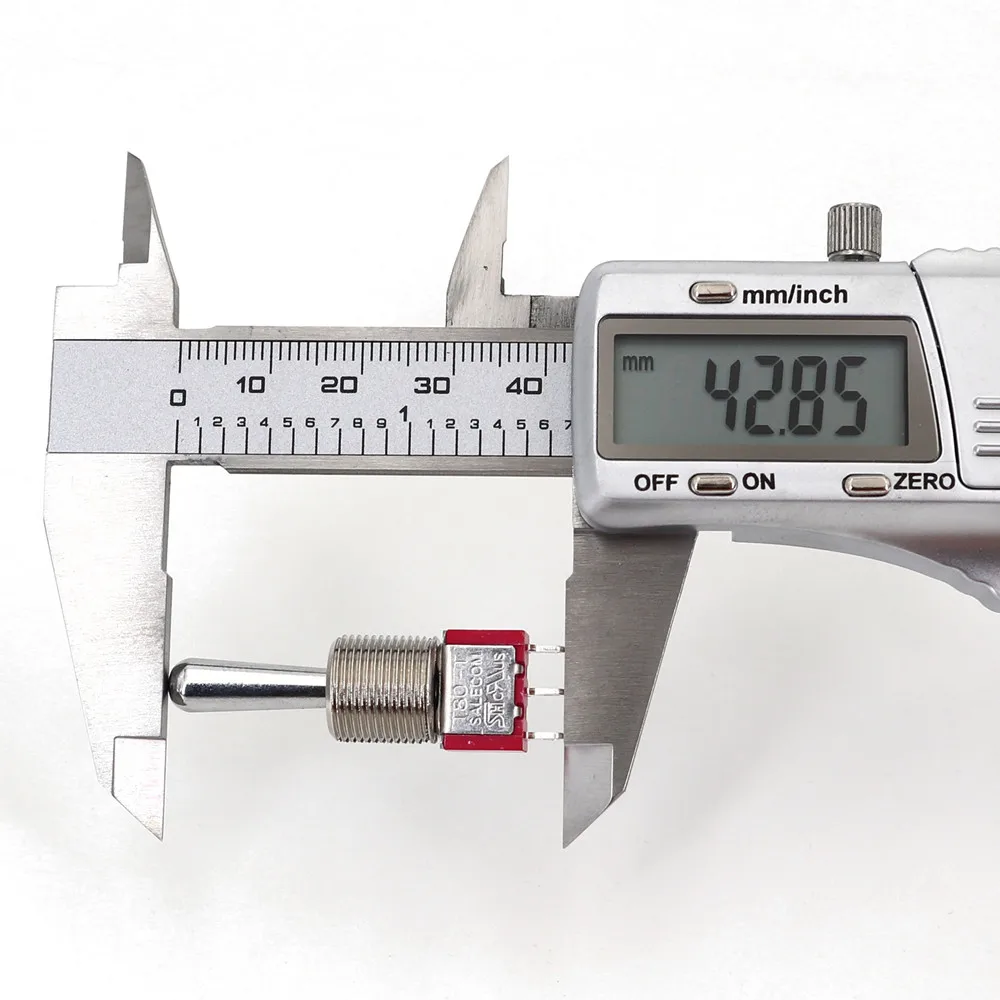

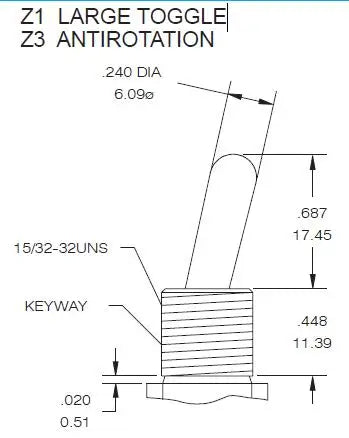

Handle Length: 17.45mm
Handle Max Diameter: 6mm

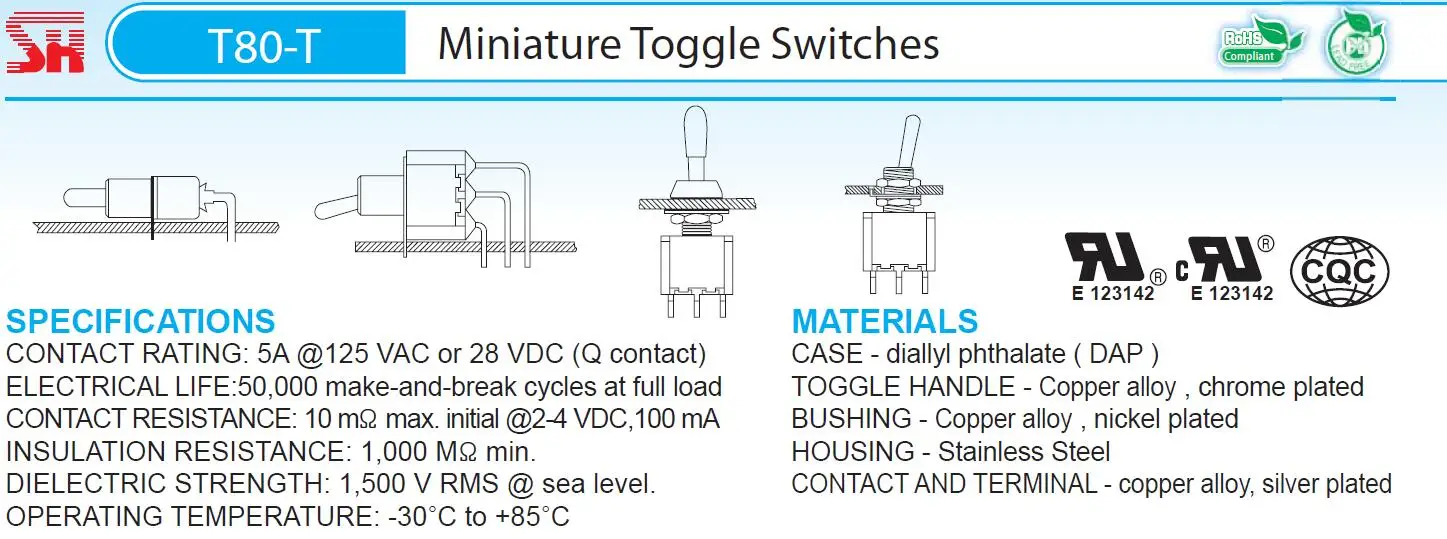

Contact Rating: 5A @125 VAC or 28 VDC
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
