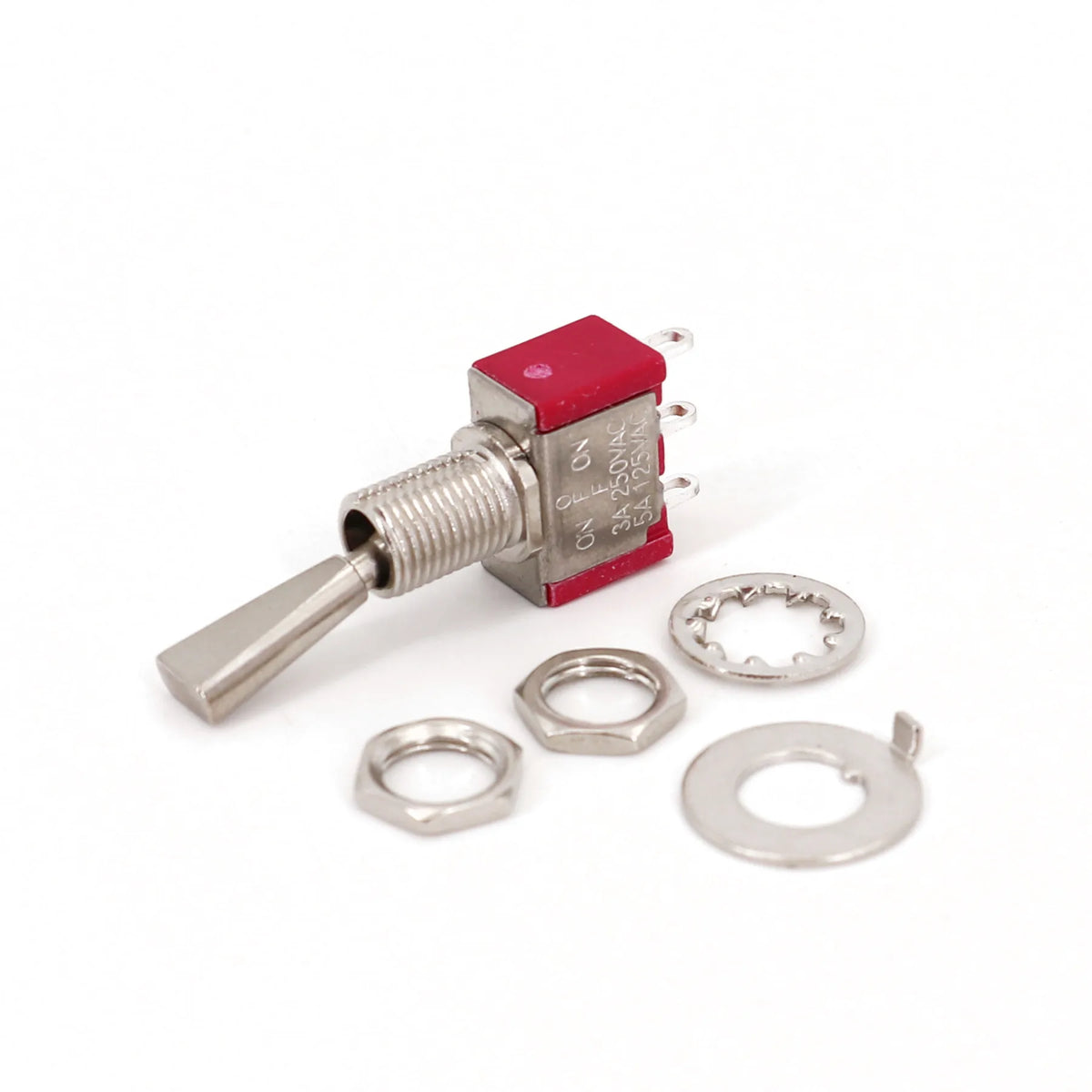

Salecom T80-T U/U2 Series Flat Handle Remote Control Mini Toggle Switch 6.35mm Panel Mount 5A/125VAC

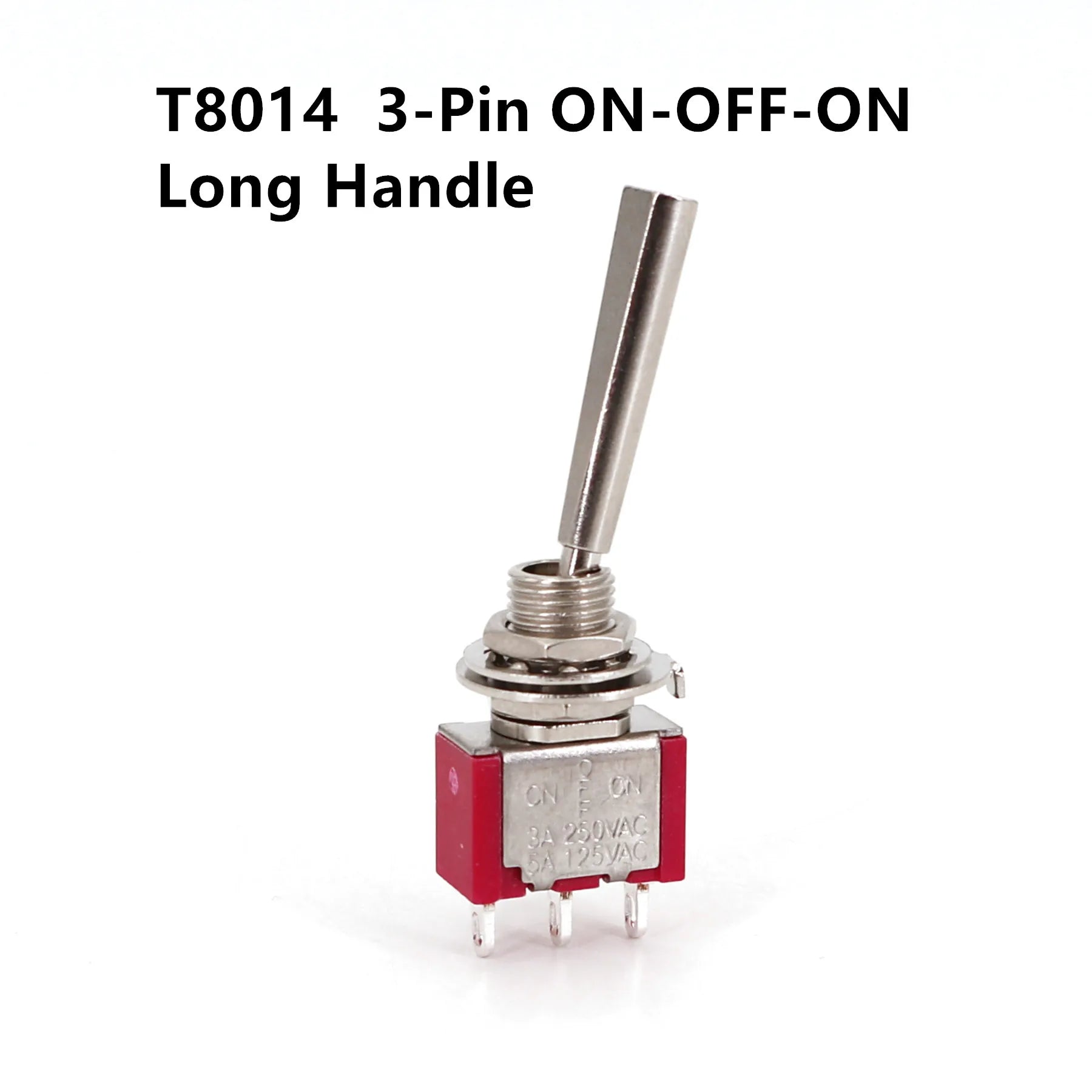

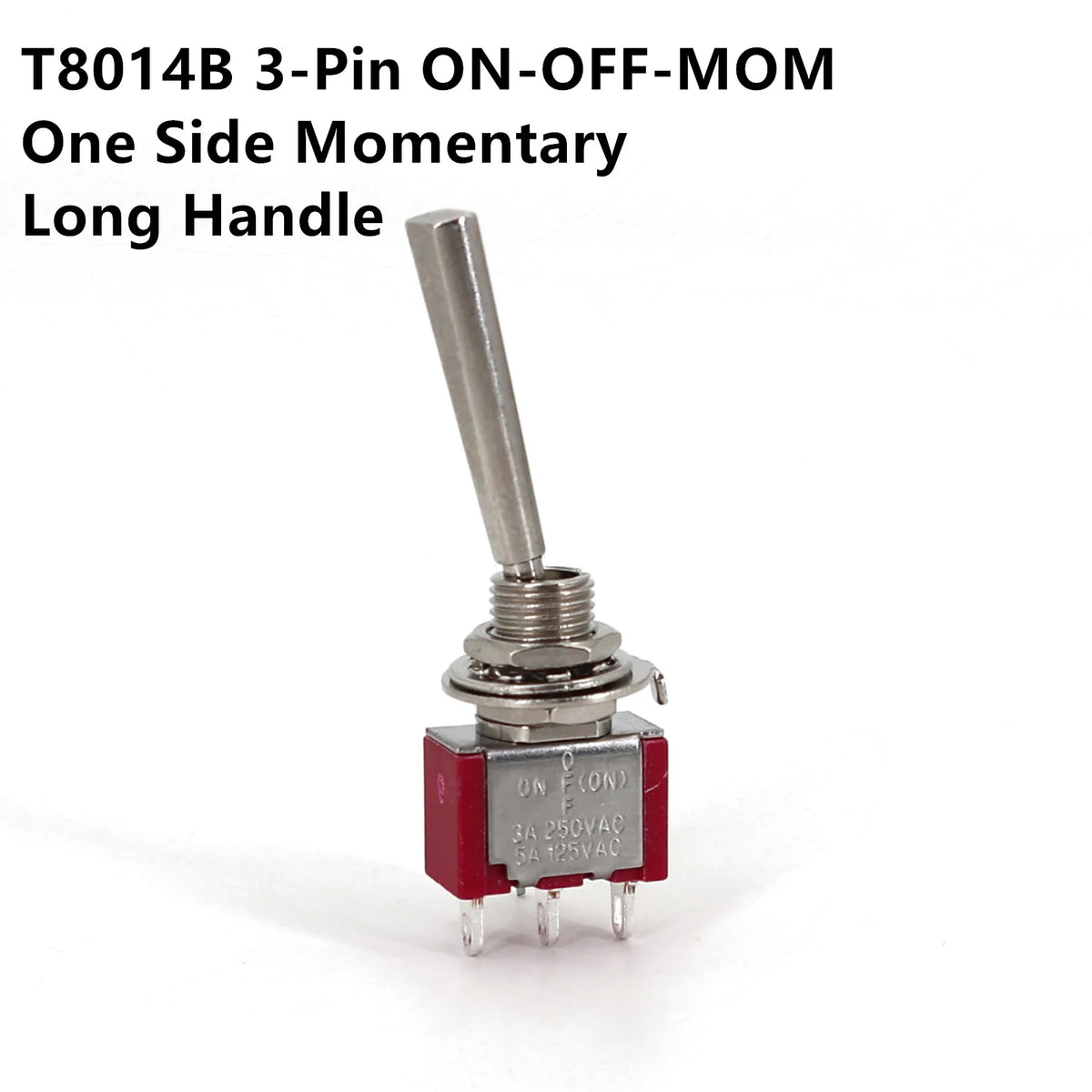

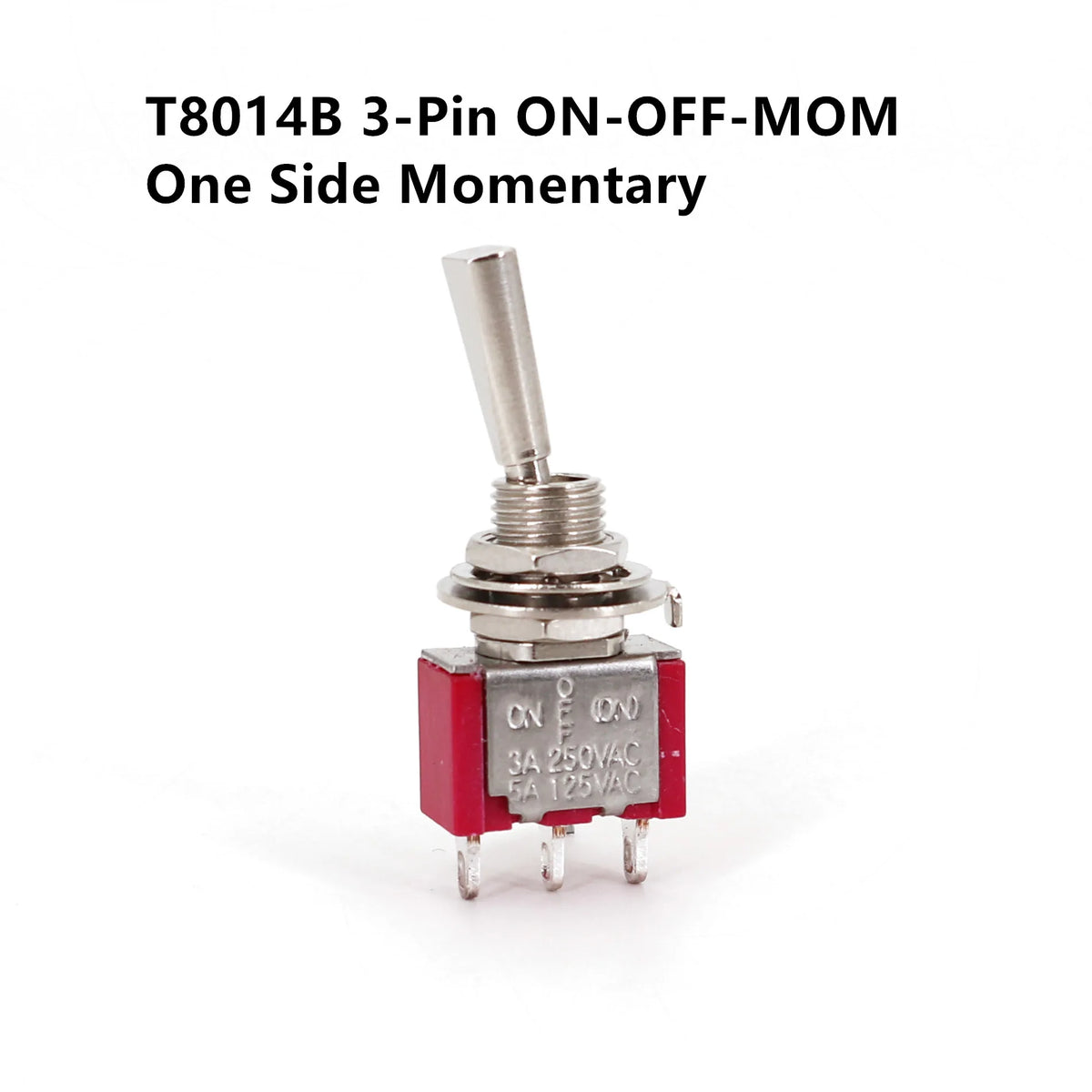

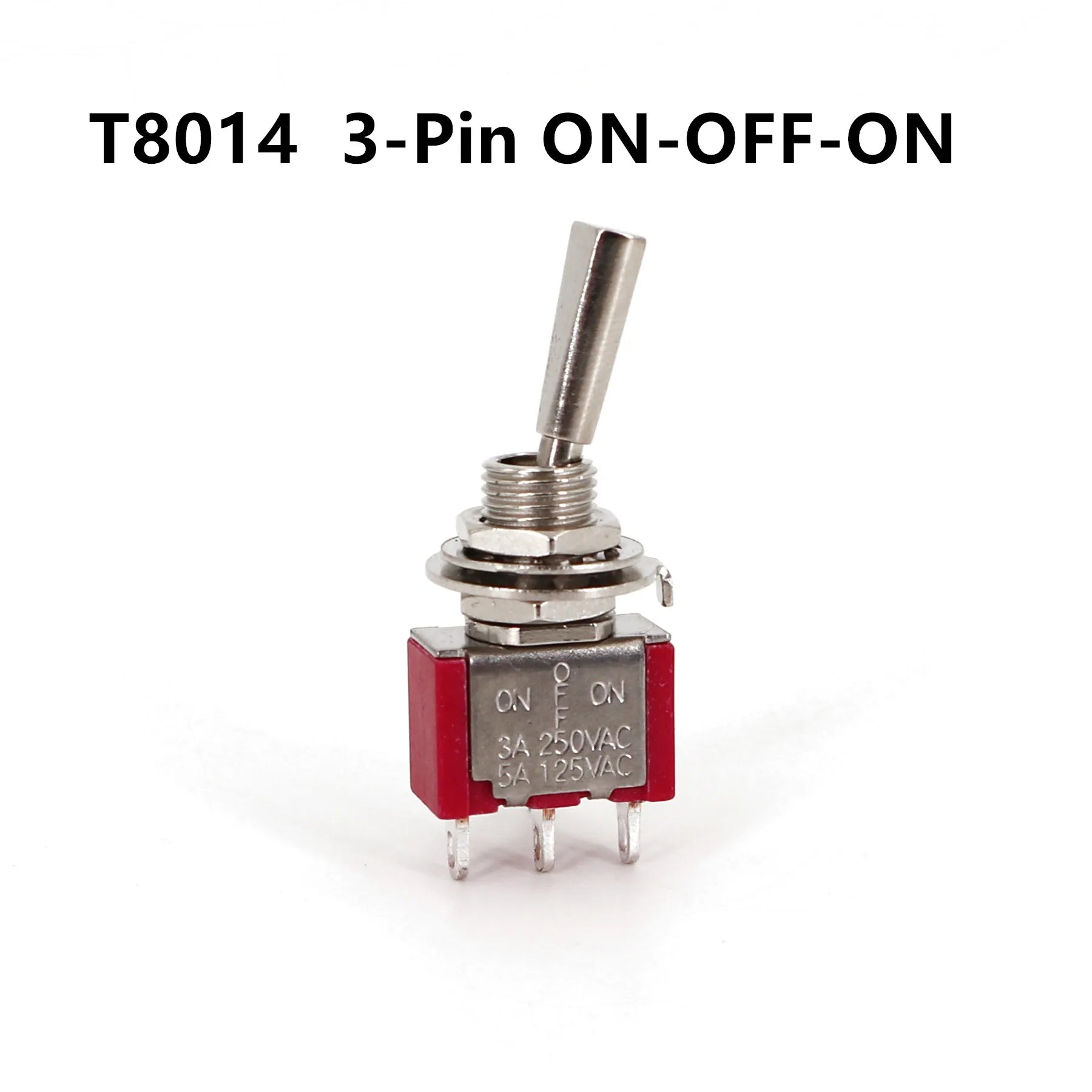

T8014BU2 Long Handle
$13.82
Sale price
$13.82
Regular price
$0.00
Skip to product information
Salecom T80-T U/U2 Series Flat Handle Remote Control Mini Toggle Switch 6.35mm Panel Mount 5A/125VAC
Salecom T80-T U/U2 Series Flat Handle Remote Control Mini Toggle Switch 6.35mm Panel Mount 5A/125VAC
$13.82
Sale price
$13.82
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Certification: UL,RoHS,CQC,CQC,ROHS,UL
Choice: yes
Current: 5A
EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
Features: Flat Handle
High-concerned chemical: none
Item Type: SWITCHES
Material: Alloy
Model Number: T80-T
Mounting Diameter: 6.35mm
Origin: Mainland China
Switch Type: Toggle Switch
semi_Choice: yes

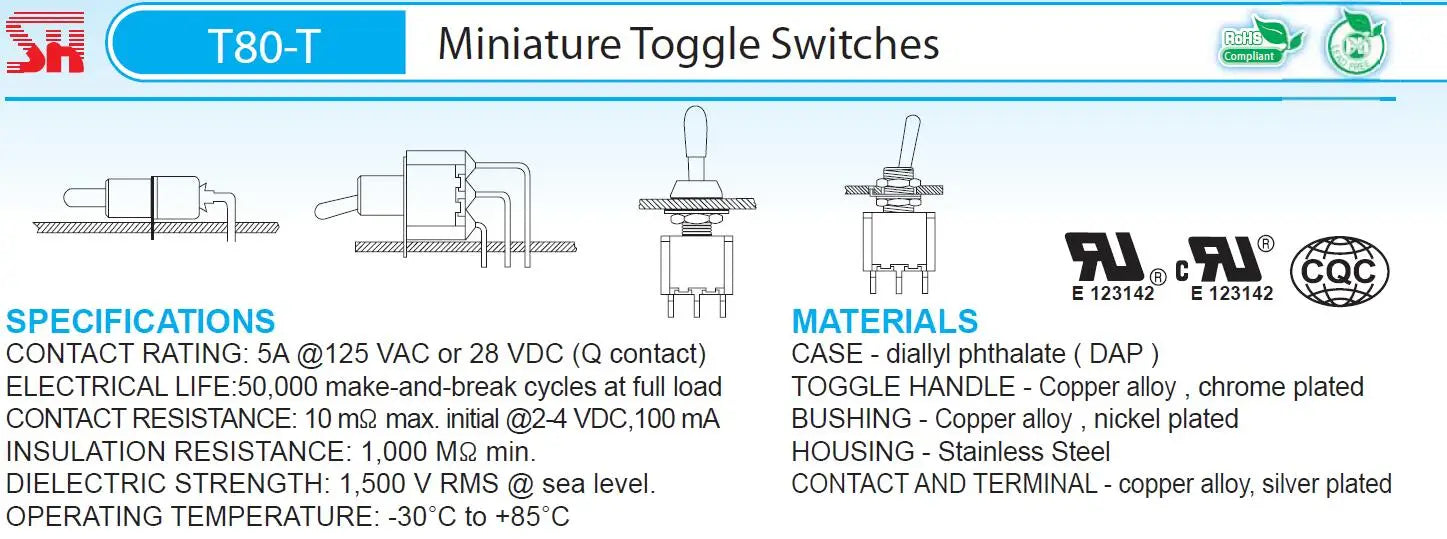

Feature

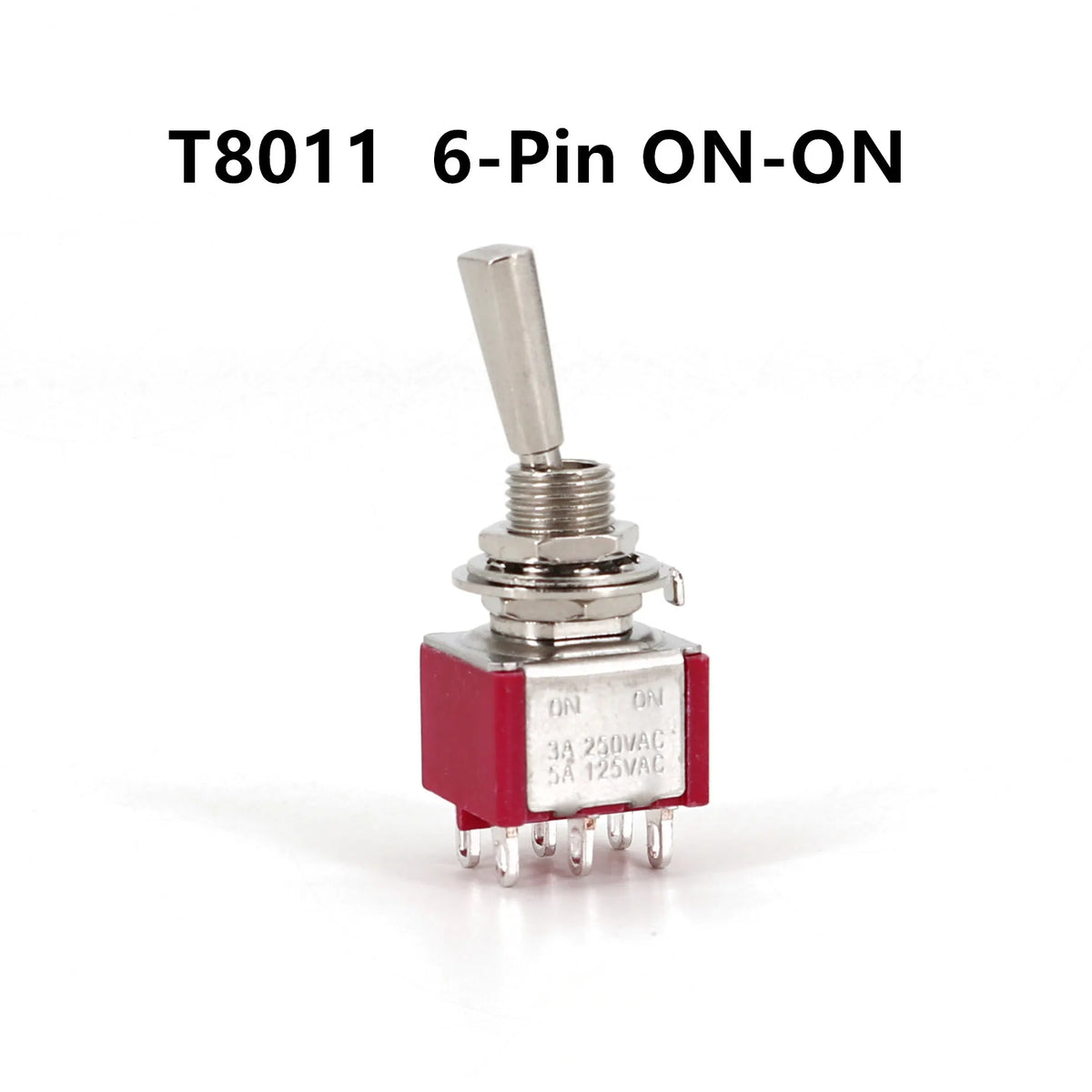

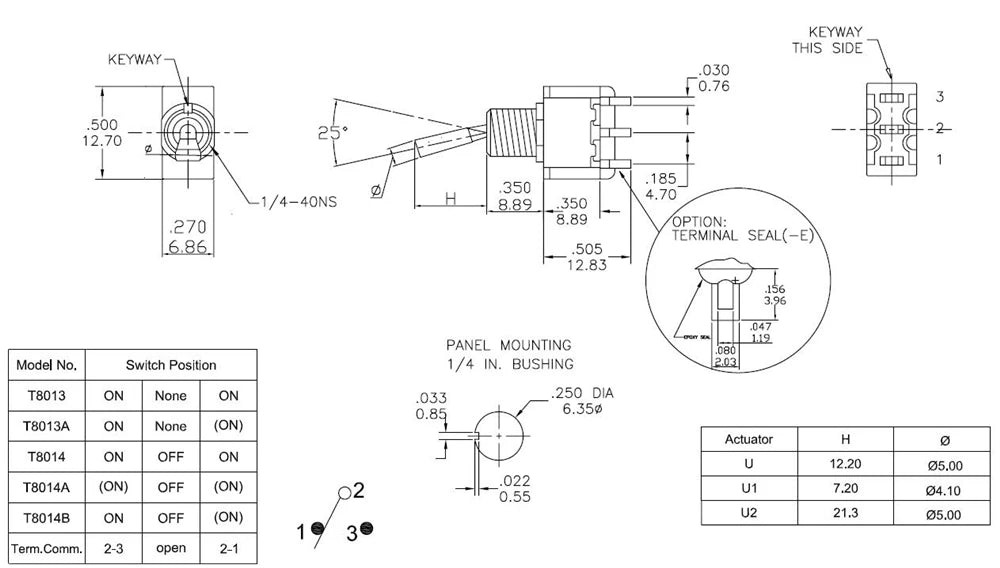

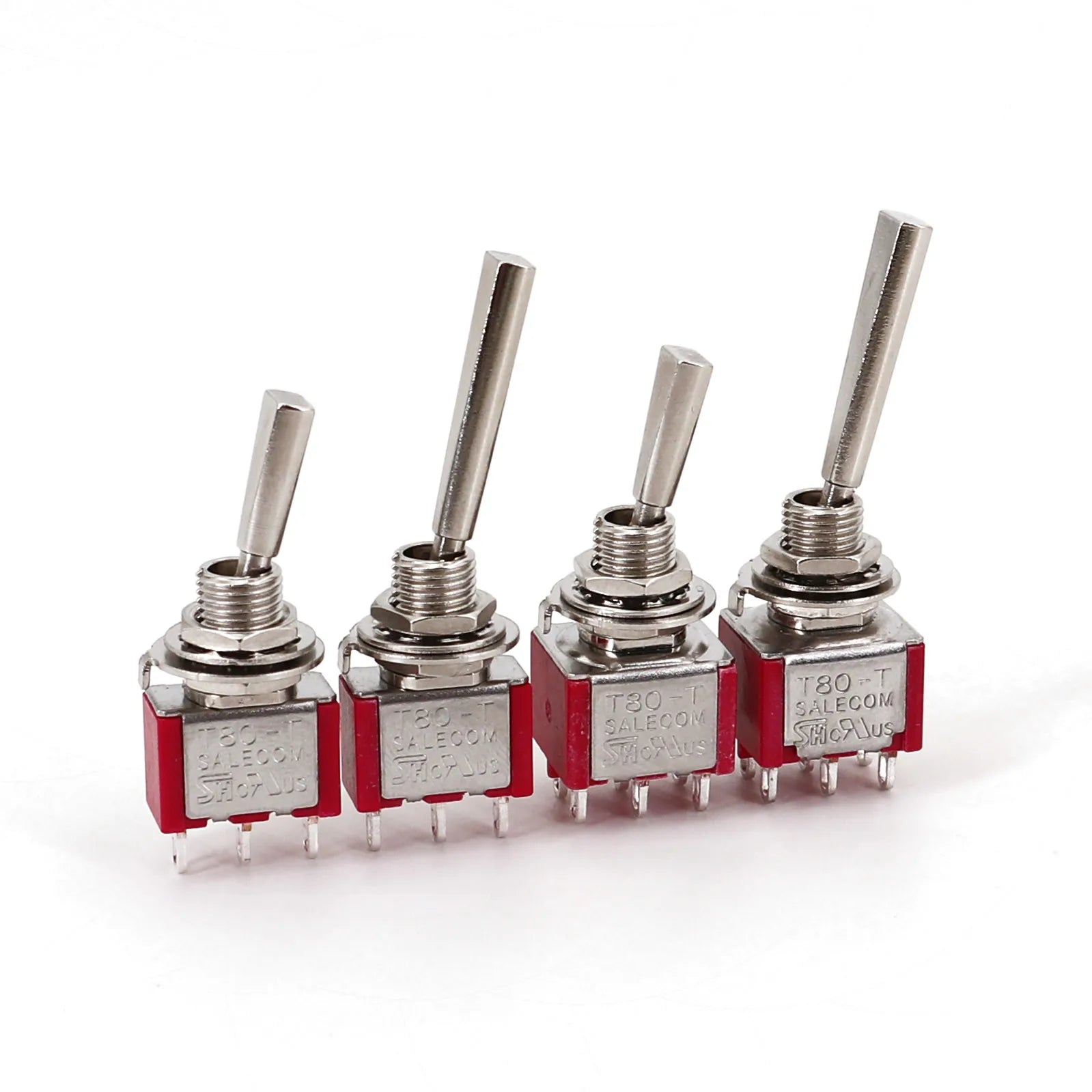

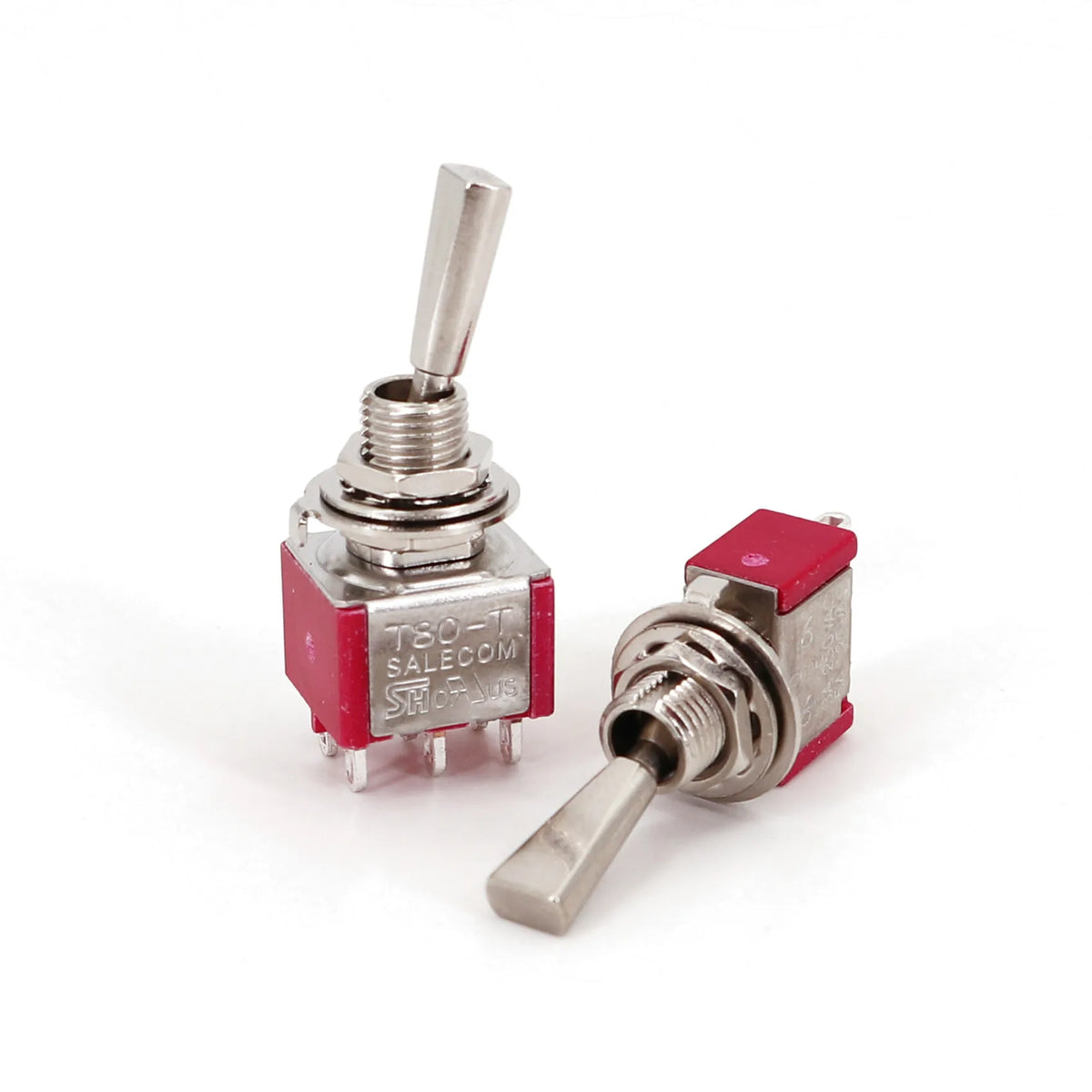

Model: T80-T Flat Handle Mini Toggle Switch

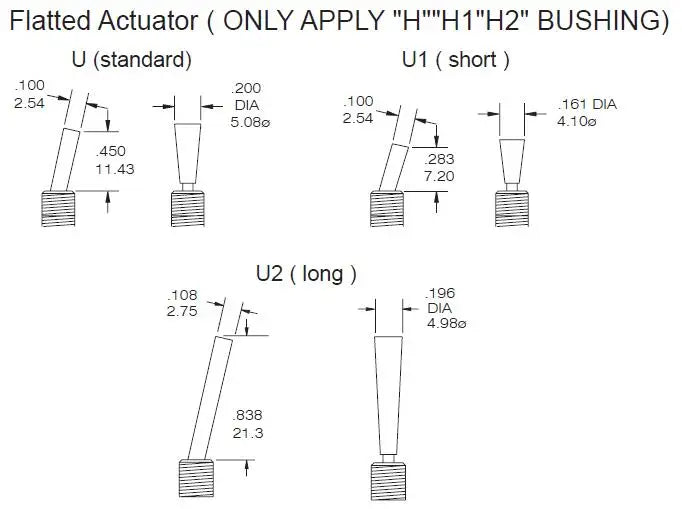

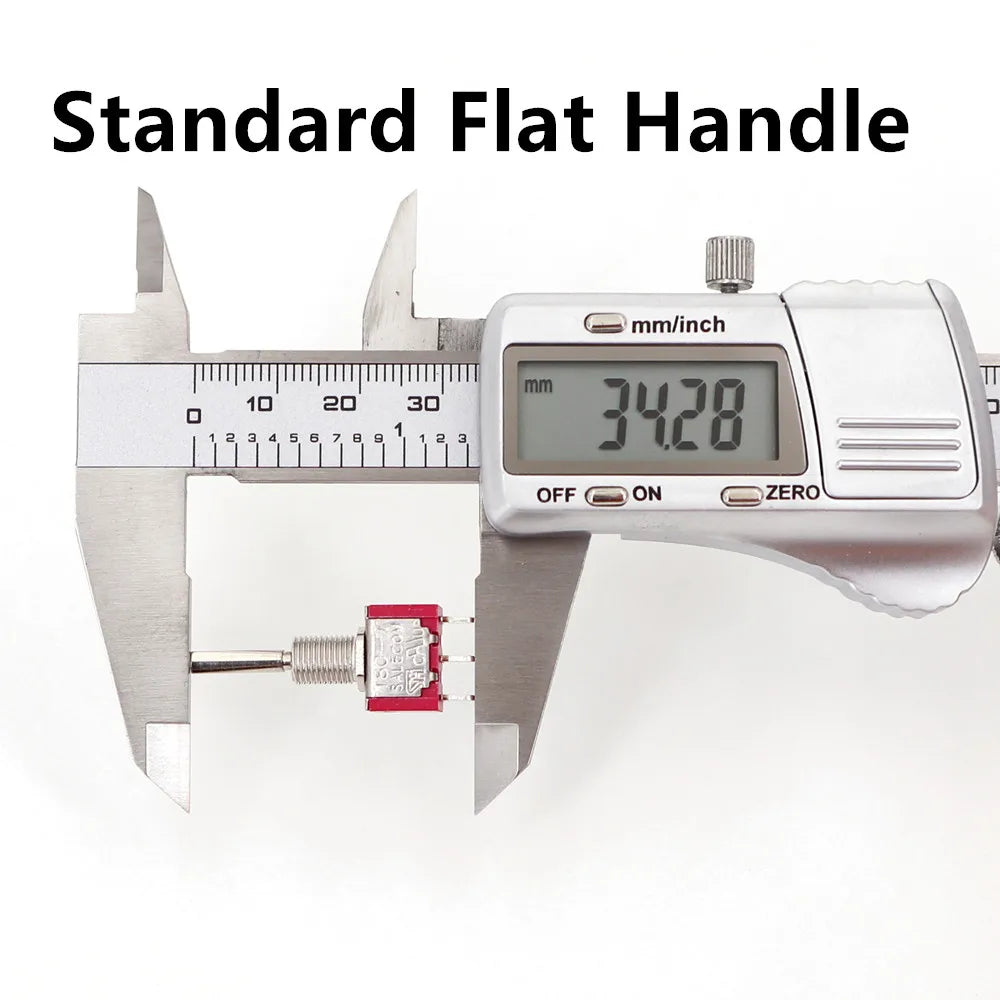

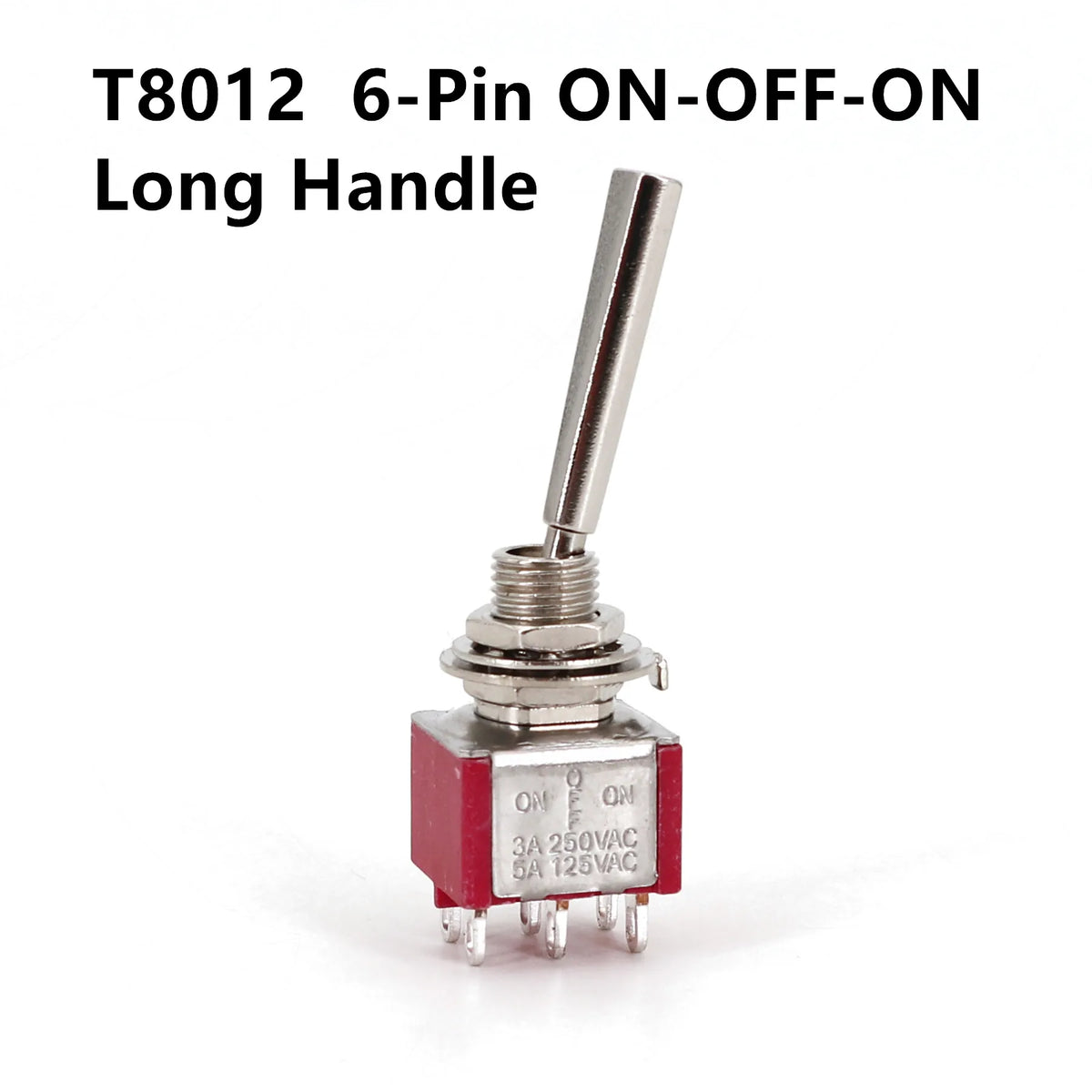

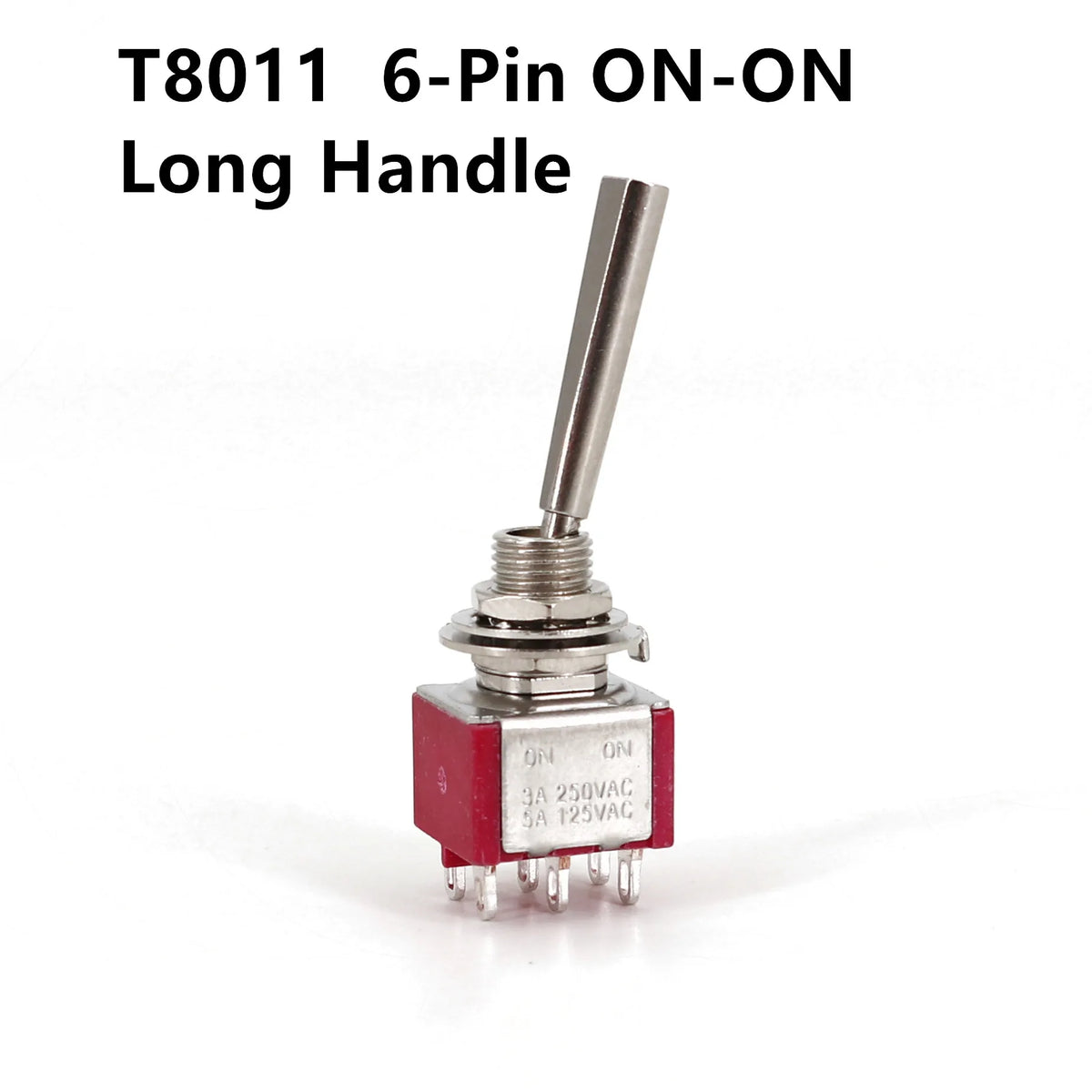

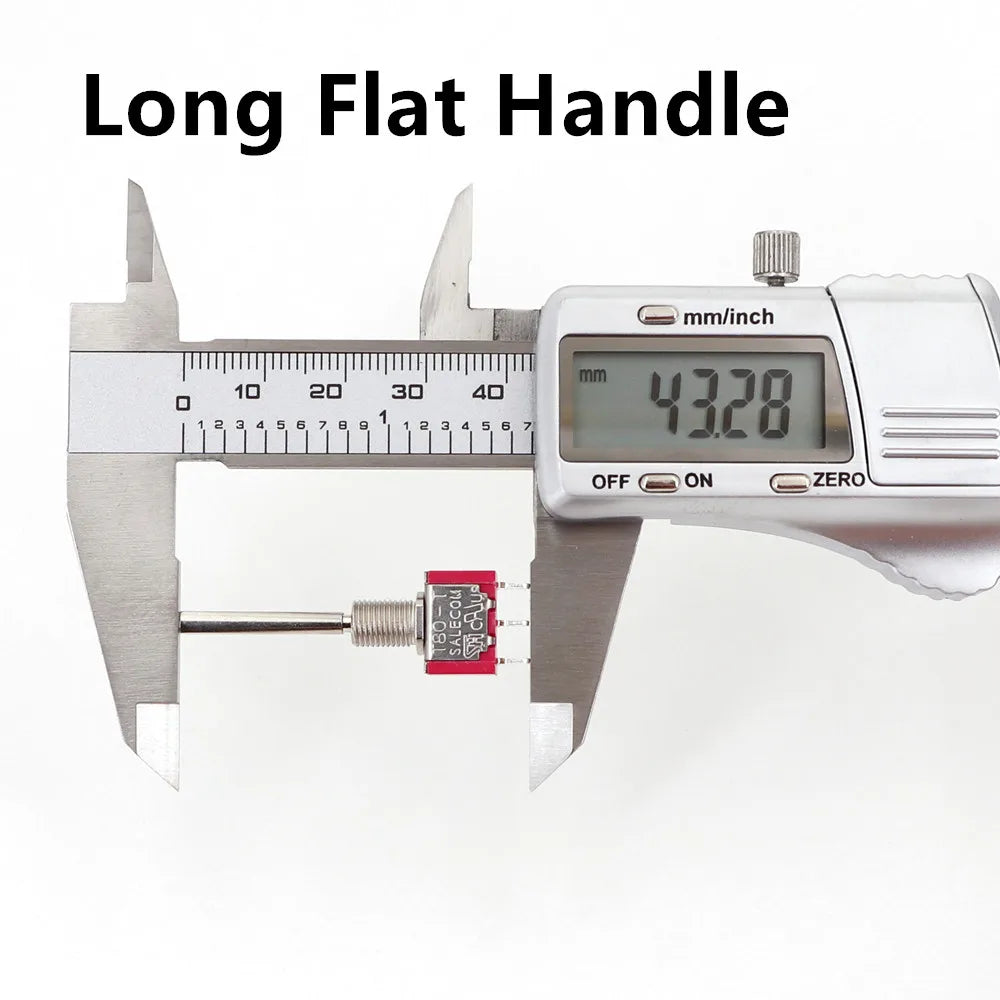

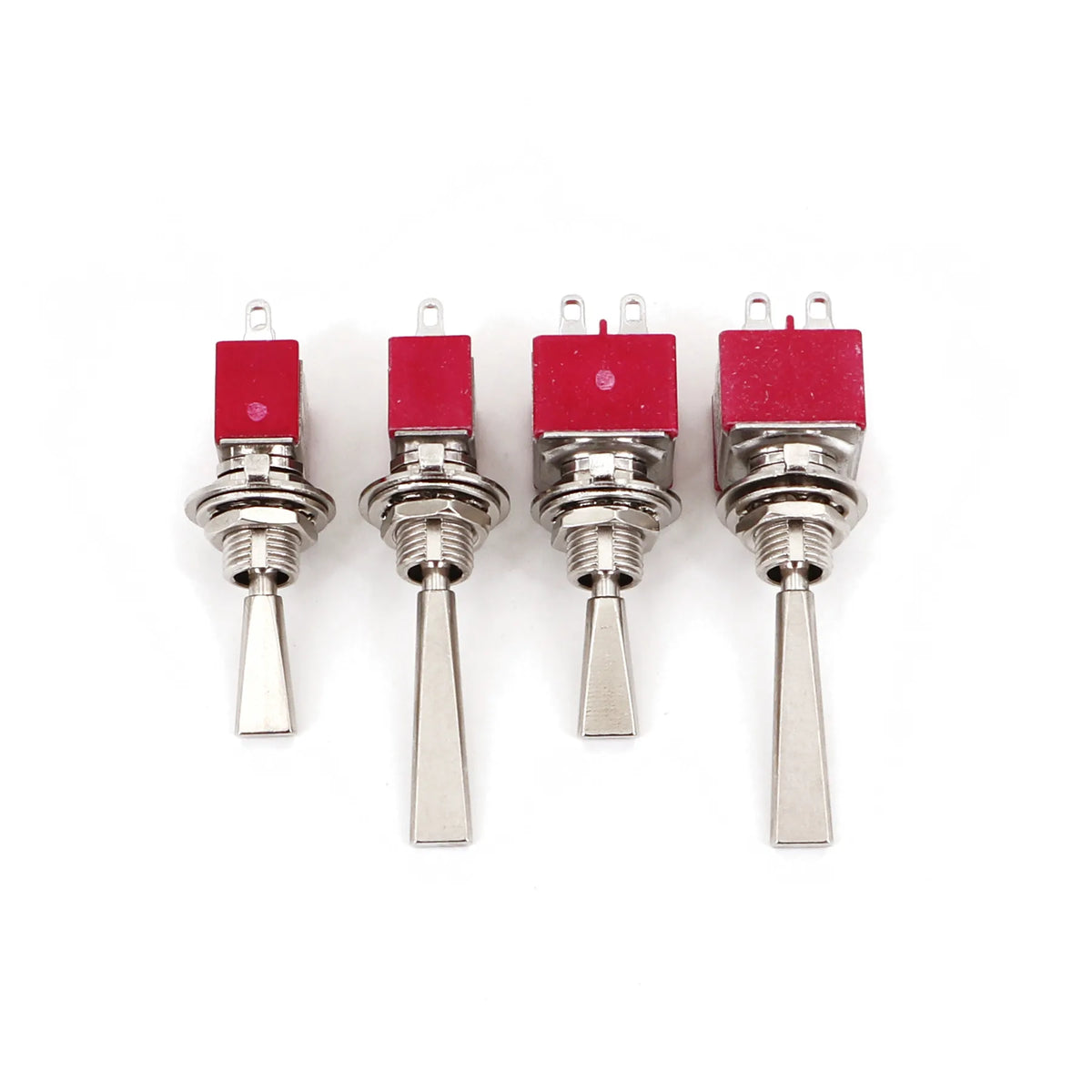

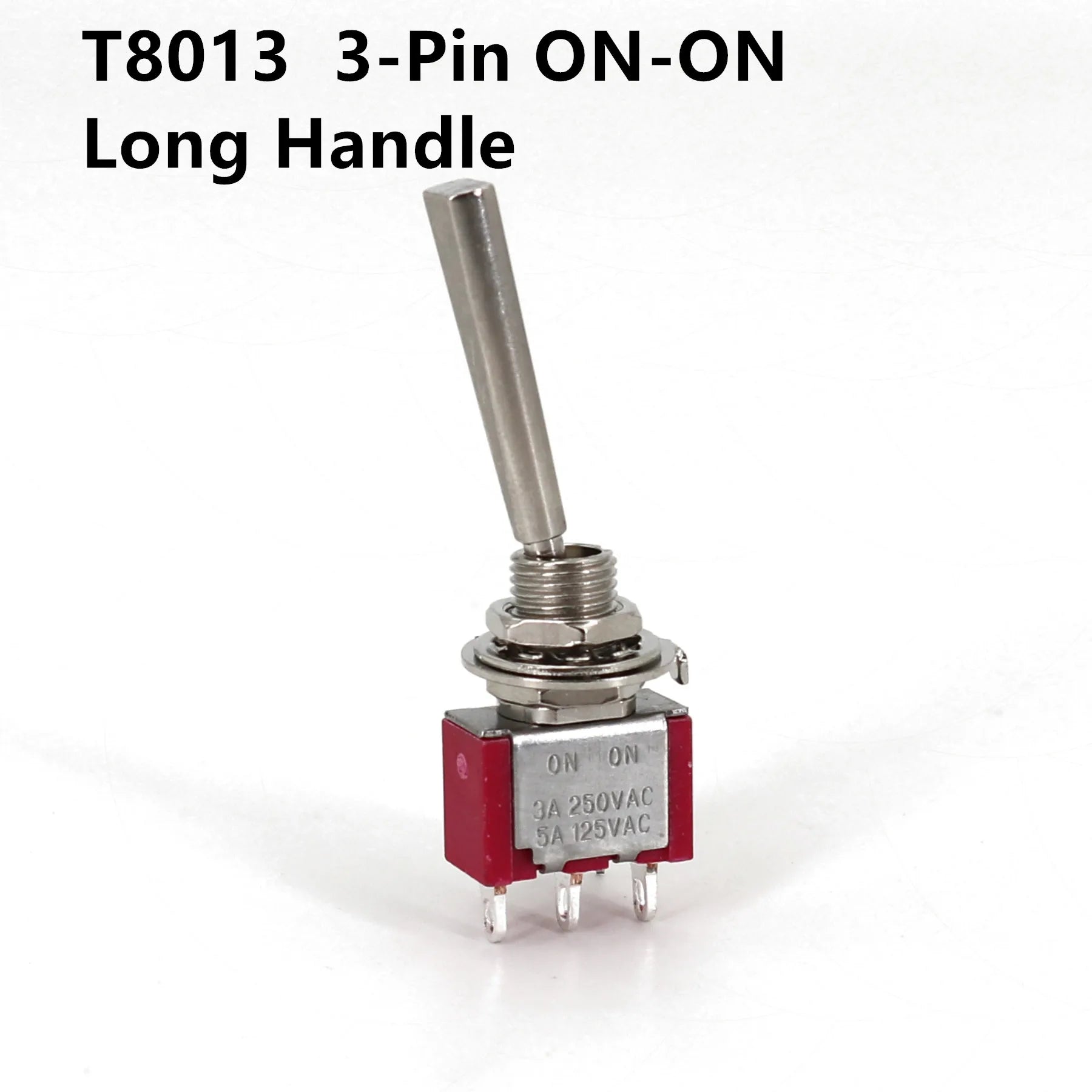

Handle Length U: 12.2mm (Standard) , U2: 21.3mm (Long)

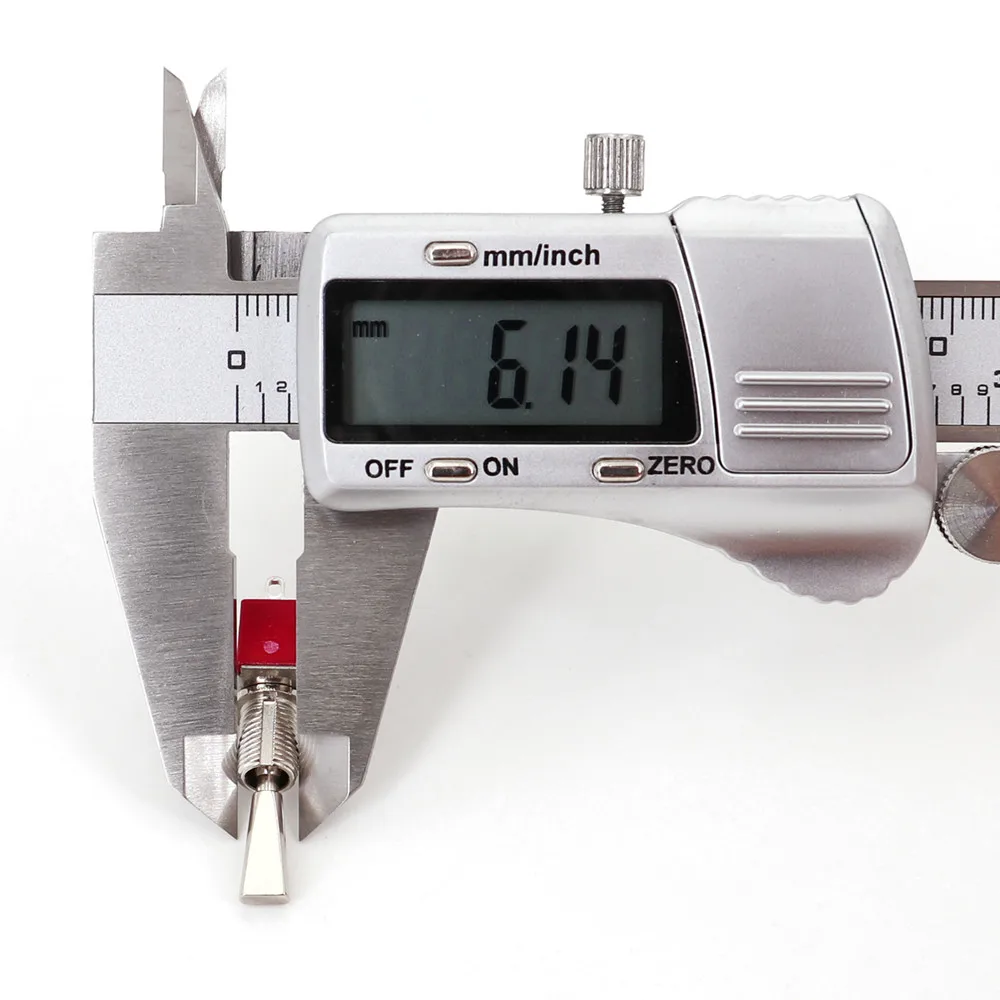

Mounting Diameter: Inch thread 1/4-40UNS (about 6.35mm)

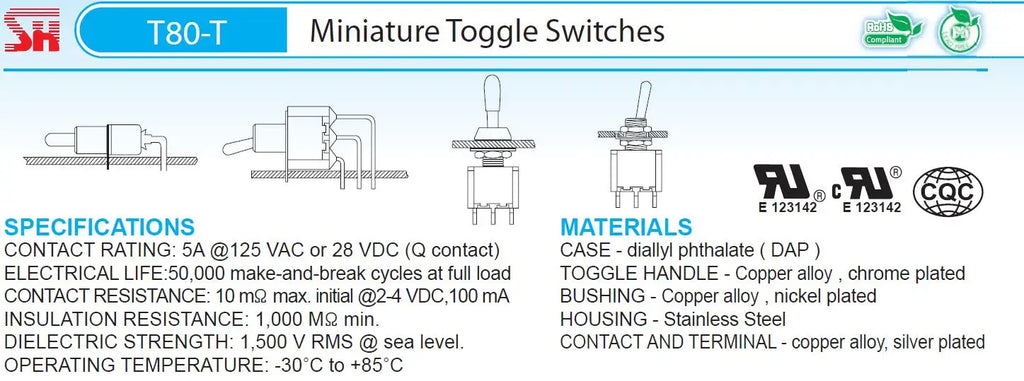

Contact Rating: 5A @125 VAC or 28 VDC
Electrical Life: 50,000 make and break cycles at full load
Contact Resistance: 10 mΩ max. initial @2-4 VDC,100 mA
Insulation Resistance: 1,000 MΩ min.
Dielectric Strength: 1,500 V RMS @ sea level.
Operating Temperature: -30°C to 85°C
Weight: 5g
