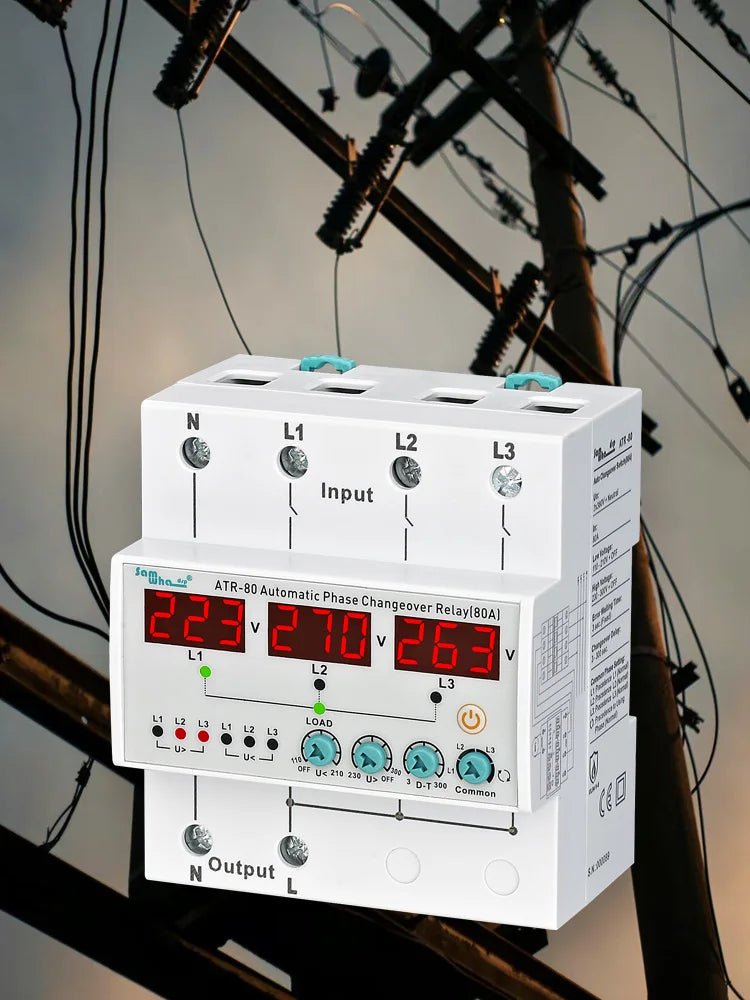

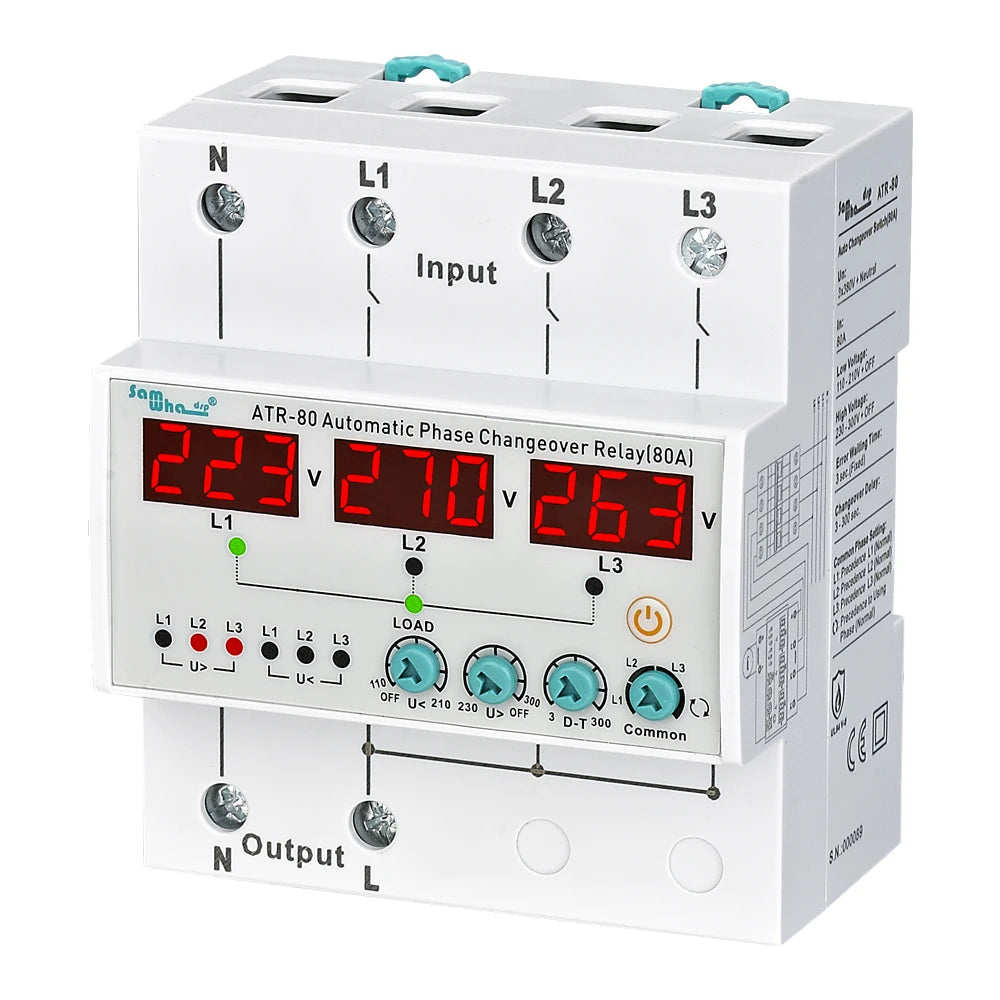

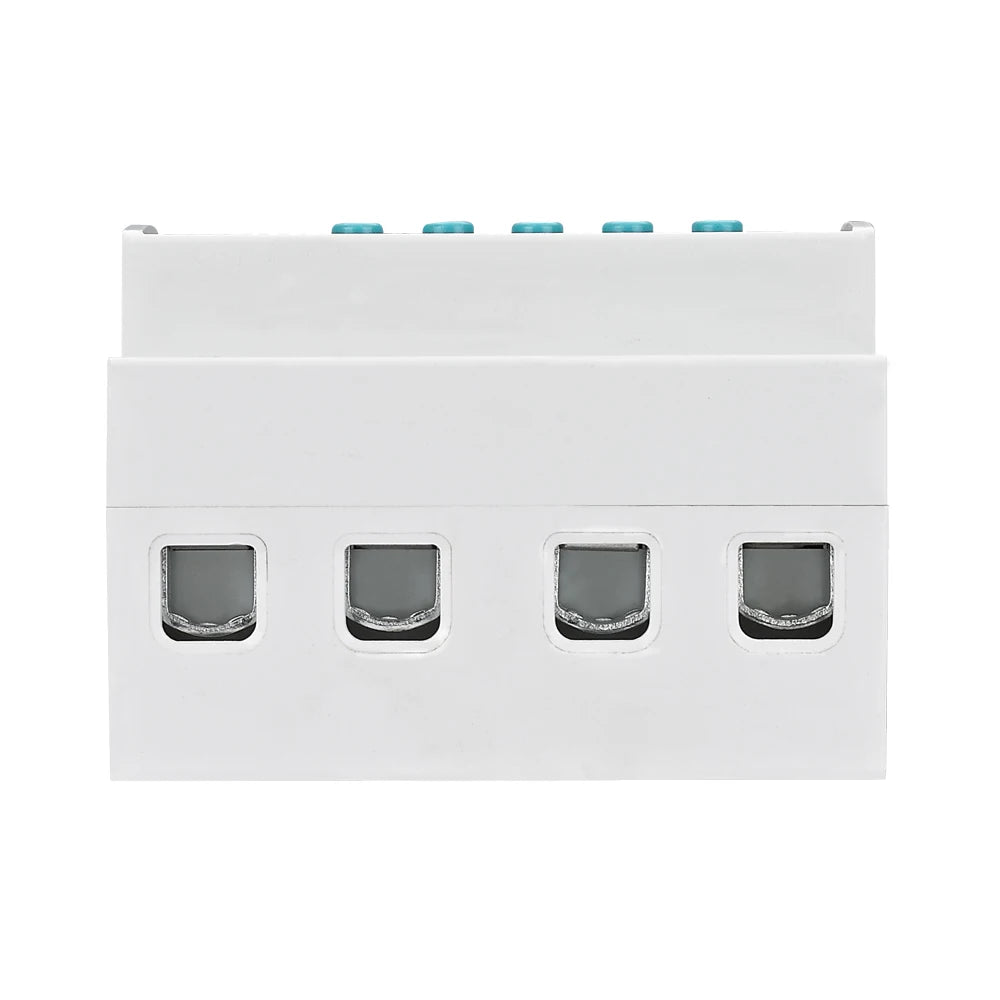

Samwha-Dsp ATR-XX 3P4W Automatic Phase Changeover Relay 63A,80A,100A

Samwha-Dsp ATR-XX 3P4W Automatic Phase Changeover Relay 63A,80A,100A

$152.91

$152.91 $0.00

Description

SPECIFICATIONS

Brand Name: samwhadsp

Certification: CE

Contact Load: High Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

Model Number: ATR

Origin: Mainland China

Power Source: Ac

Protect Feature: Sealed

Use: Protective

Voltage: 380V

is_customized: Yes

-General-

ATR automatic phase changeover relay is designed to switch the fault phase to the normal phase from errors that:may arise from mains high and low voltage.

-Device Usage and Principle of Operation -

Make the connections of the device according to the connection type. Otherwise, the device may be damaged. Adjust the over-current andhigh & low voltage and settings of the device according to the coperating current and voltage values of the load you will use.

High Voltage Error state:
If the used phase voltage value is over the high voltage set values the device waits for the 3sec.(fixed), then the device de-energizes the relay, the V>led turn on, the high voltage value displayed on the screeflashes throughout the error period.
The device waits for the set time of D-T to switch to another normal phase and energizes the relay.

Low VoltageError state:
If the used phase voltage value is under the low voltage set values the device waits for the 3sec.(fixed), then the device de-energizes the relay, the V< led turn on, the low voltage value displayed on the screen flashes throughout the error period.
The device waits for the set time of D-T to switch to another normal phase and energizes the relay.

Common phase settings:
when set to cyclical the current phase is maintained when the current phase is not faulty. When the curren phase fails, switch to the next fault-free phase and hold.

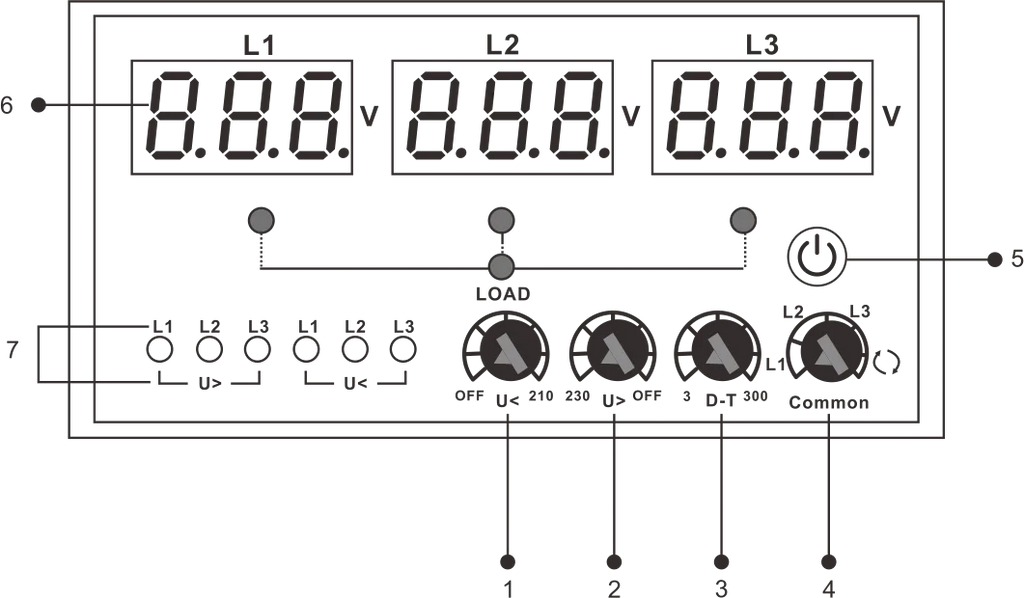

-Display and Buttons-

1 - Low voltage setting knob

2 - High voltage setting knob

3 - Changeover delay setting knob

4 - Common phase setting knob

5 - Manual On/Off Button:
For close the device output. In this state, the screen will display "off" and the device cannot be automatic changeover. Press this button again toswitch on the device intouse again.

6 - Voltage Display
Display Group: During normal operation, the input voltage value isdisplayed here, the screen lights up steadily when not in error state, the display flashes in case of error (high or low Voltage).

7 - LEDs:
L1 (U>): Lights up when L1 phase has high voltage fault.

L2 (U>): Lights up when L2 phase has high voltage fault.

L3 (U>): Lights up when L3 phase has high voltage fault.

L1 (U<): Lights up when L1 phase has low voltage fault.

L2 (U<): Lights up when L2 phase has low voltage fault.

L3 (U<): Lights up when L3 phase has low voltage fault.

-Working-

Example: Set the low voltage value(U<) to 160V, the high voltage value(U>) to 260V, and the time of Changeover delay time is 5 sec. Set the common is cycle.

Make the connections of the device according to the connection type.L1 is trouble-free and energizesrelay, led is turn on, output led is turn on.

When the L1 voltage is under 160V, the delayis 3 seconds(fixed), cut off the L1 phase and ( L1 U<) error led turn on, turn on the fault-free L2 phase after the delay of D-T (5 sec.), theled turn on, and the output led is turn on.

When the L2 voltage is over 260V, the delay is 3 seconds (fixed), cut off the L2 phase and( L2 U>)error led turn on, turn on the fault-free L3 phase after the delay of D-T (5 sec.), theled turn on, and the output led is turn on.

When the L3 voltage is over 300V, the delay is 3 seconds(fixed), cut off the L3 phase and( L3 U>)error led turn on. In this state,L1,L2, and L3 are all faulty, disable the output, wait for any one phase to return tonormal, and then turn on the load again.

-Warnings-

Please use the device according to the manual.
Don't use the device in wet.
lnclude a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device,operator can reach easily.
Mark the swith and circuit breaker as releasingconnection for device.

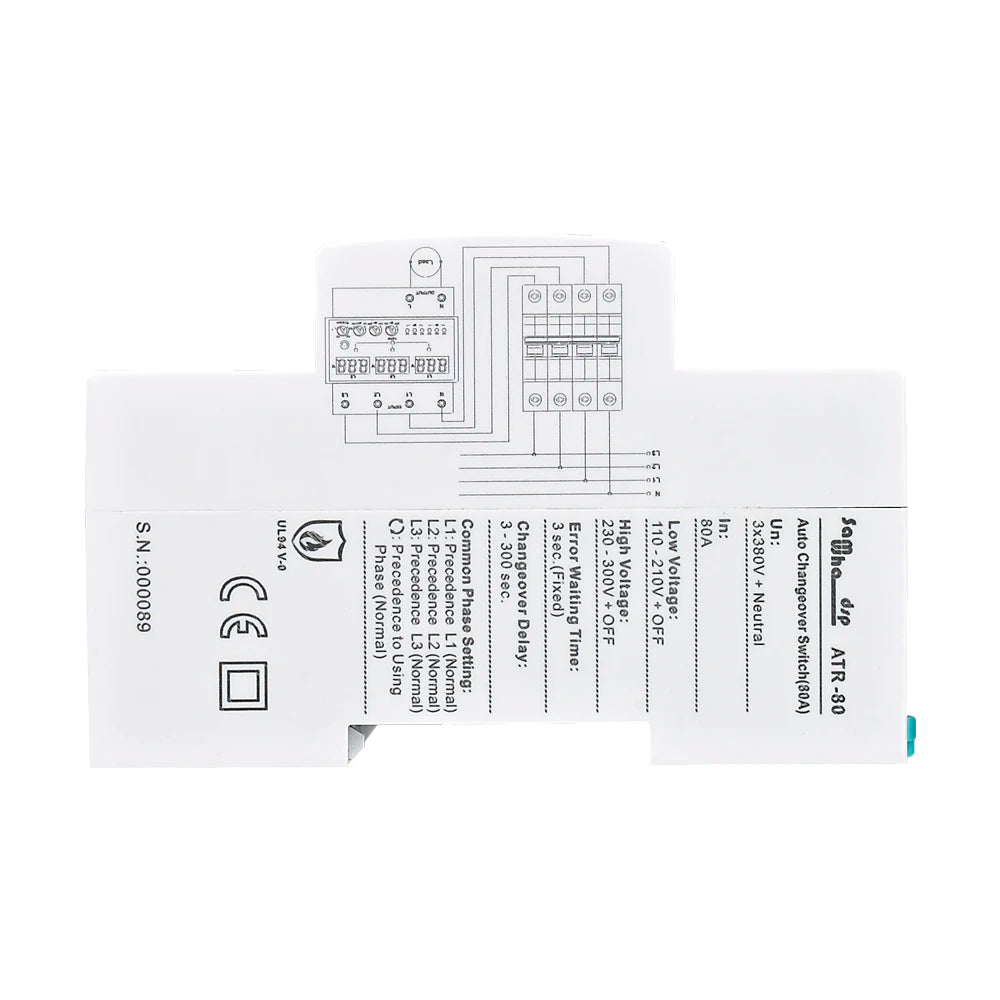

Connection Diagram

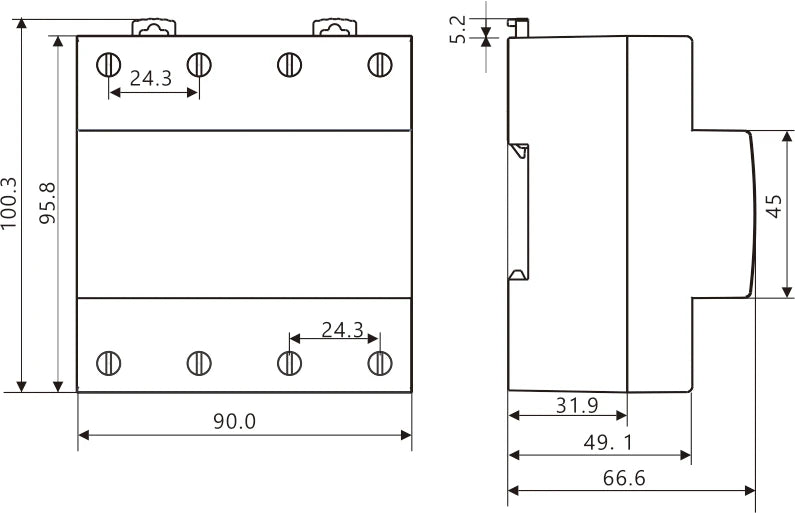

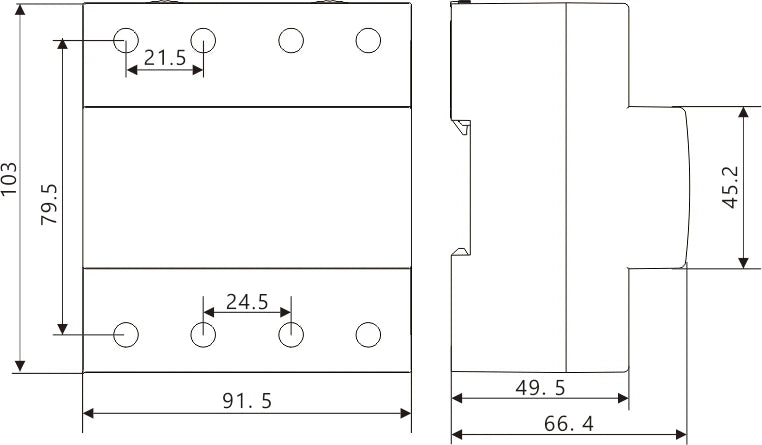

Dimensions

ATR-63

ATR-80/100

Specifications

Operation Voltage(Un)....: 3x380V+Neutral
Operation Frequecey.......: 50/60Hz
Operating Power..: <6VA
Operating Temp...: -20°C.....+55°C
High Voltage Set(U>)....: 230 - 300V + Off
Low Voltage Set(U<).....: 110 - 210V + Off
Error Watting Time........: 3 sec.(Fixed)
Changeover Delay.........: L1, L2, L3 and cycle
Display........: 3x3 digit LED display 6 Leds
Measurement Precision..: ±1%
Connecction Type...: Terminal Commection
Operating Altitude..: <2000meter
