Description

SPECIFICATIONS

Brand Name: samwhadsp

Certification: CE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: none

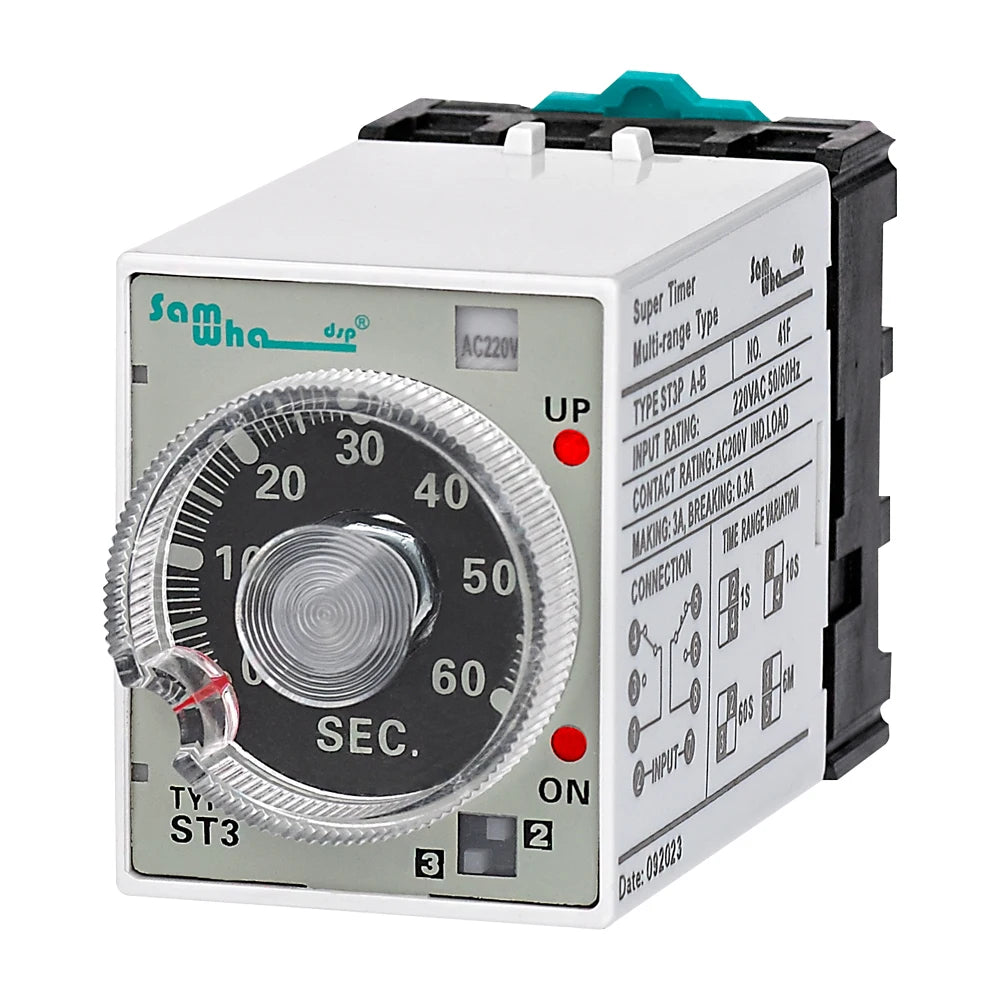

Model Number: ST3P

Origin: Mainland China

Protect Feature: Sealed

Theory: Time Relay

Use: General Purpose

is_customized: Yes

semi_Choice: yes

General

ST3P timer relays are used in all fields (industry, house, plant etc.) need controlls related to the time.

Usage and Working Principle

Make the connections according to the diagram.
Please make the connection according to the diagram. Please adjust the delaying time by the knob. Energizethe device. Device will count the stand by time. Power led gets on when the counting occurs. During this step contact output is (NC) 4 and (NC) 5. After the time is uprelay led gets on and contact out put gets into(NO) 3 and (NO) 6. Untill it is de-energized device remains the same.

ST3PA-A: 0.5sec. / 5sec. / 30sec. / 3min.

ST3PA-B: 1sec. / 10sec. / 60sec. / 6min.

ST3PA-C: 5sec. / 50sec. / 5min. / 30min.

ST3PA-D: 10sec. / 100sec. / 10min. / 60min.

ST3PA-E: 60sec. / 10min. / 60min. / 6hours.

ST3PA-F: 2min. / 20min. / 2hours / 12hours.

ST3PA-G: 4min. / 40min. / 4hours. / 24hours.

Maintenance

Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical
might damage the device. Make sure device works after cleaning

Warnings

Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.

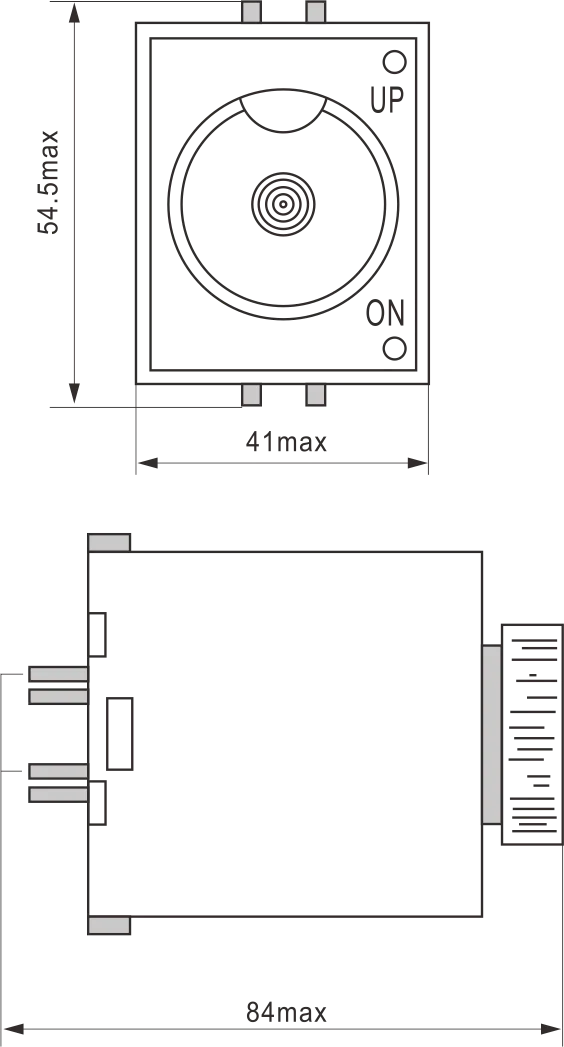

Specifications

Operating Voltage(Un)....: 12VAC/DC, 24VAC/DC,
110VAC, 220VAC, 380VAC
Operating Frequency.......: 50/60 Hz.
Operating Power...............: <4VA
Operating Temperature..: -20°C.....+55°C
Time(t).................................: 0.1sec. - 24 hrs.
Display:...............................: On led and Out led
Connection Type..............: 8 pin socket
Weight................................: Max.80gr.
Contact....................:5A/250V AC (Resistive Load)
Mounting...........................: Vertical assembled in
the panel or assembled on the din rail
Operating Altitude..........: <2000meter
Cable Diameter.................: 2,5mm²

Working Mechanism
