Description

SPECIFICATIONS

Brand Name: NONE

Certification: CCC,ce

Choice: yes

Current: 2A

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Item Type: SWITCHES

Material: Aluminium alloy

Origin: Mainland China

Switch Type: Push Button Switch

Warranty: half a year

semi_Choice: yes

If you want more item, please contact us,we will add the quantity and give you the cheaper price

Momentary

After pressing the button ,press-key will return automatically If you don't continue to press the button。Self-reset.

Specification

Max Switch Rating: 3A/250VAC
Contact Configuration: 1 NO
Operation Type: Momentary (push it-on, release it-off)
The Front Shape: Camber Surface
The Crust Material of silver button :Nickel-plated Brass

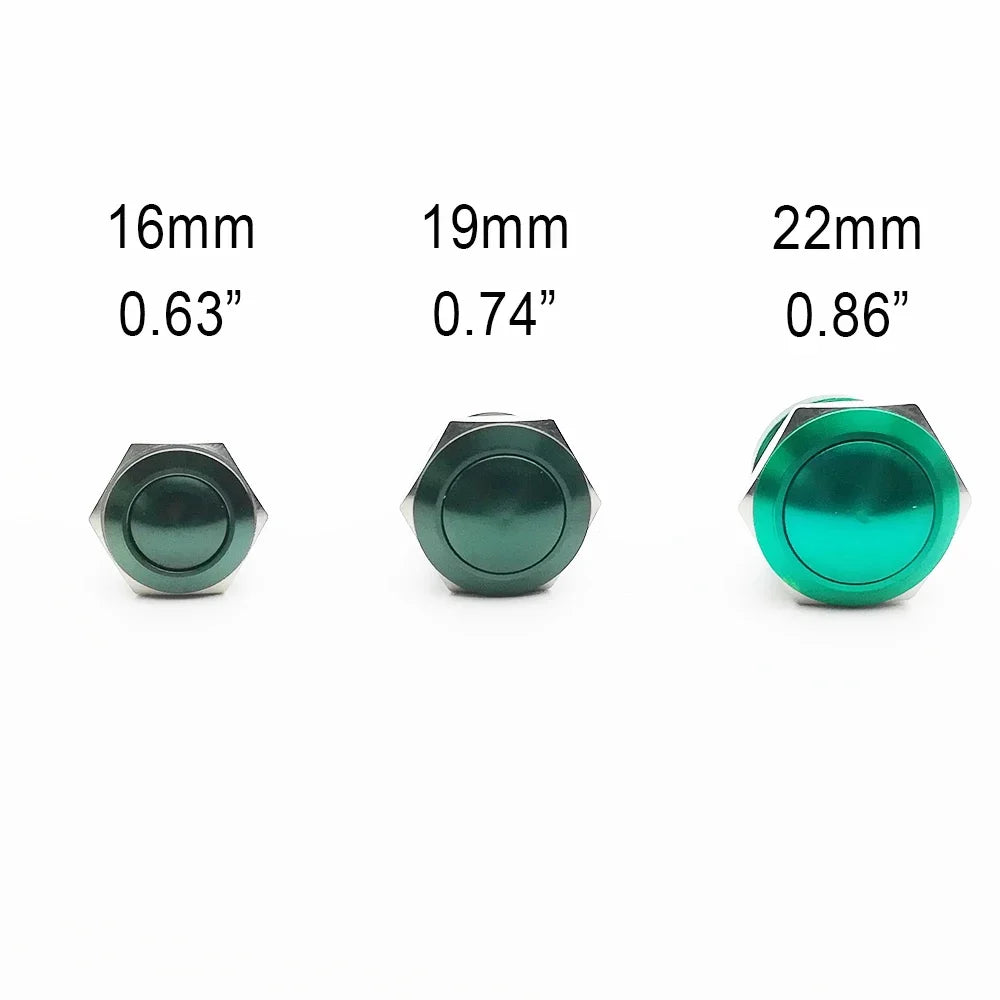

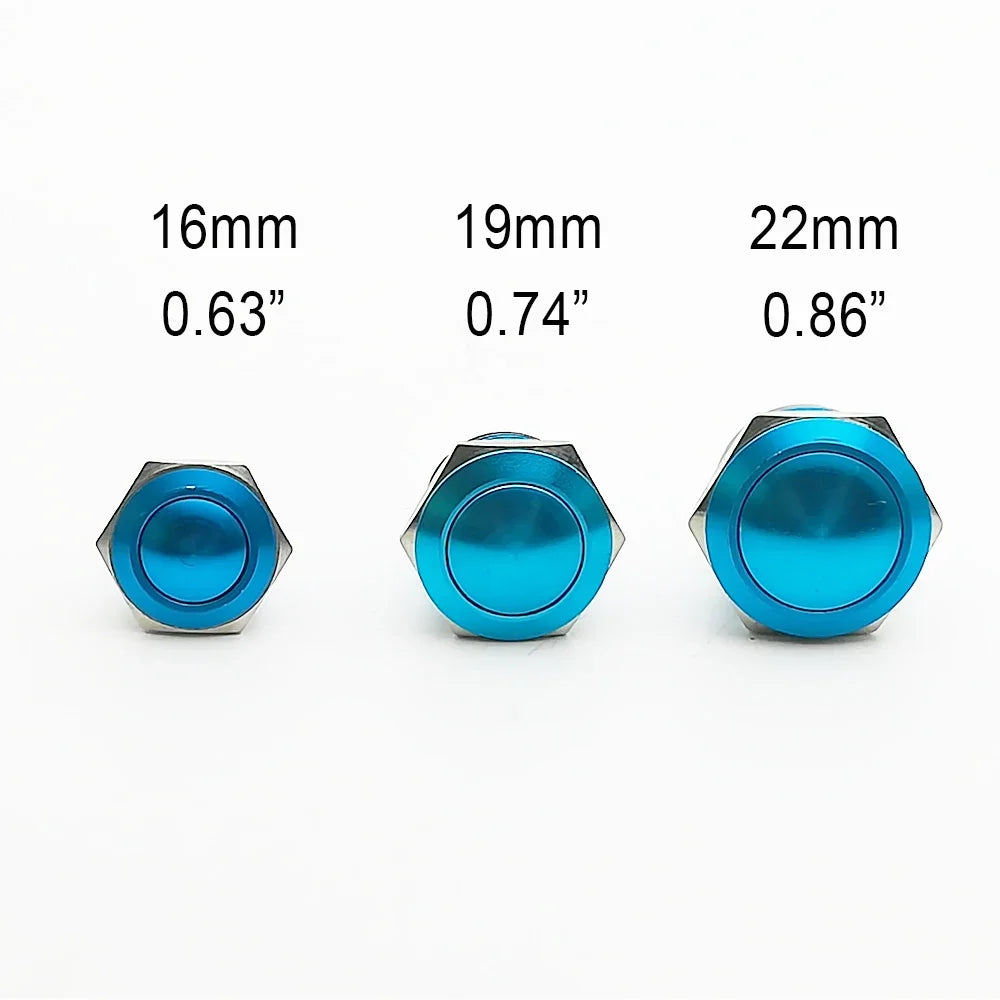

The Crust Material of red,blue,yellow,green,black button: Aluminium Oxide
Protection Degree: IP65 ,IK08

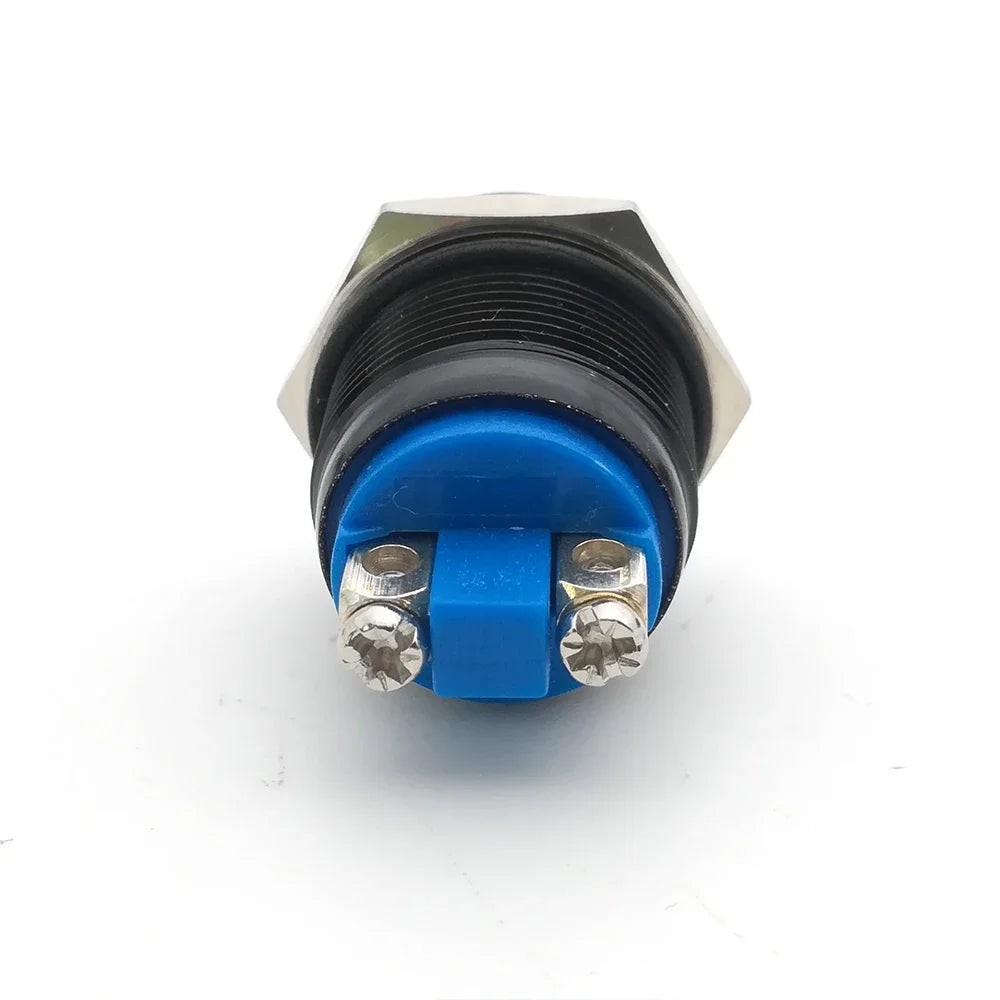

Terminal Type: Screw
Switch Type: Two terminal breakpoints slow moving contact
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥1000mΩ
Dielectric Strength: 2000VAC
Operation Temperature: -20℃ to +55℃
Operating Pressure: About 4N
Contact: Alloy
Base: PBT

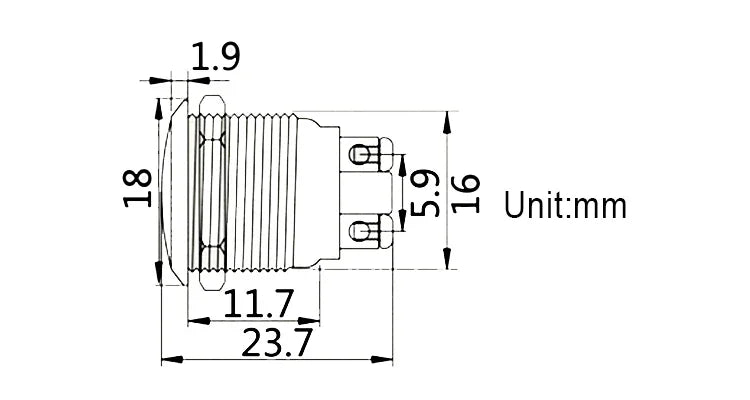

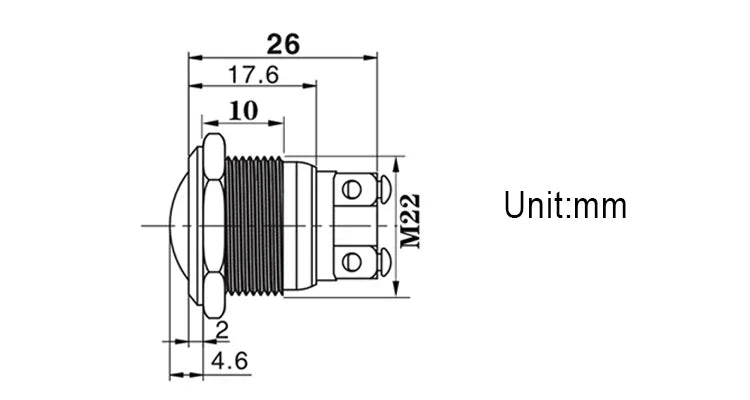

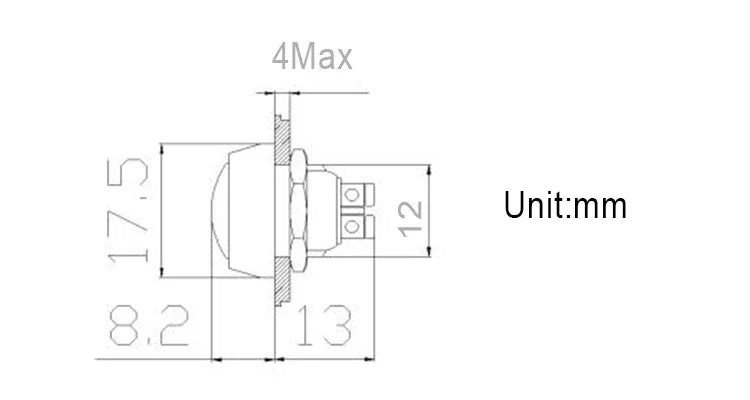

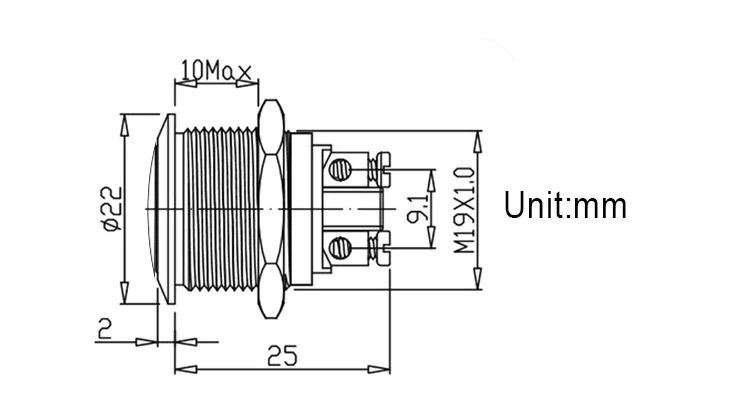

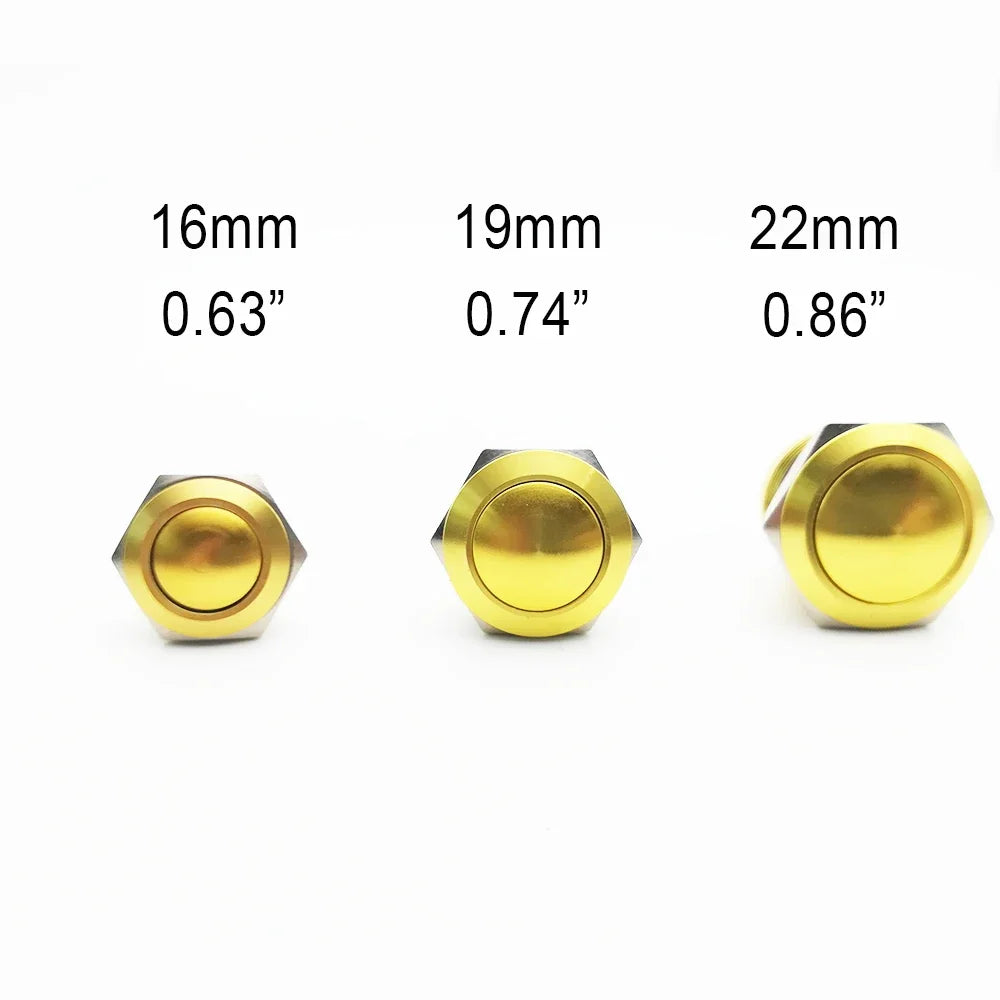

Size

Please allow 1-3mm differs due to manual measurement,

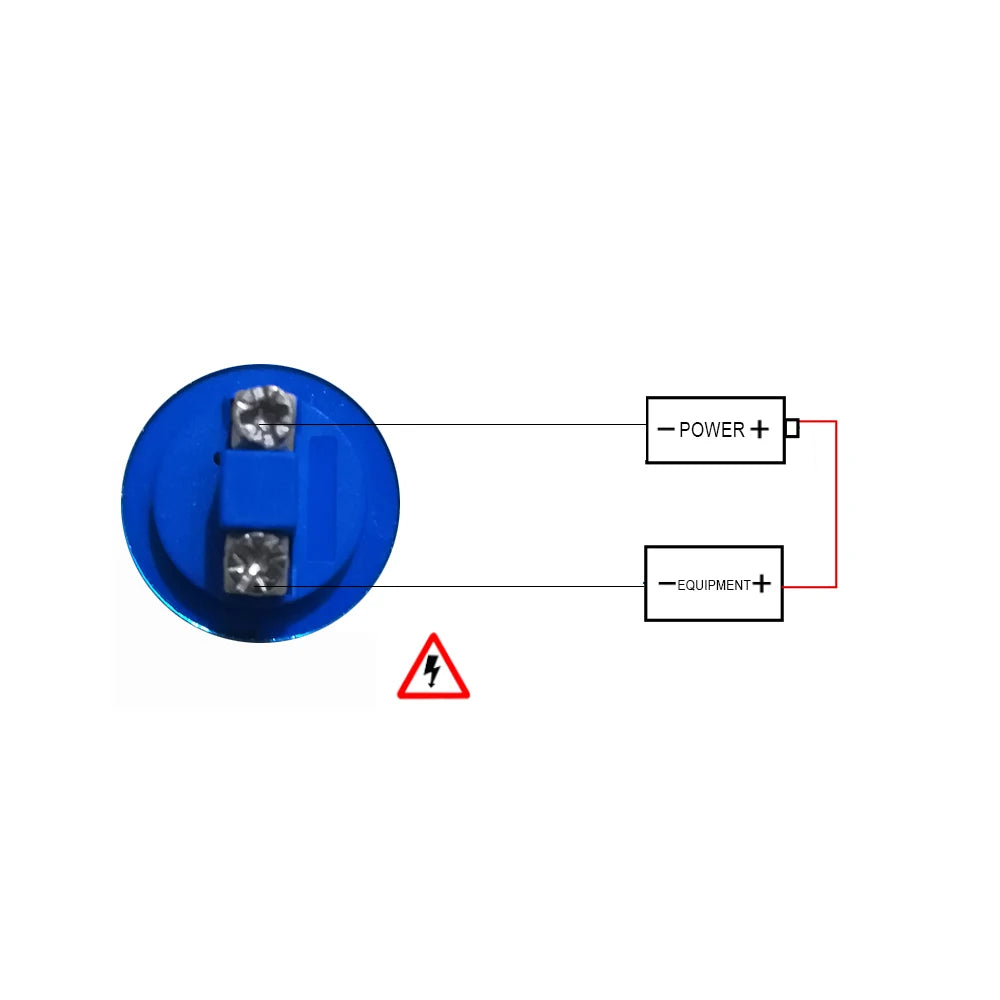

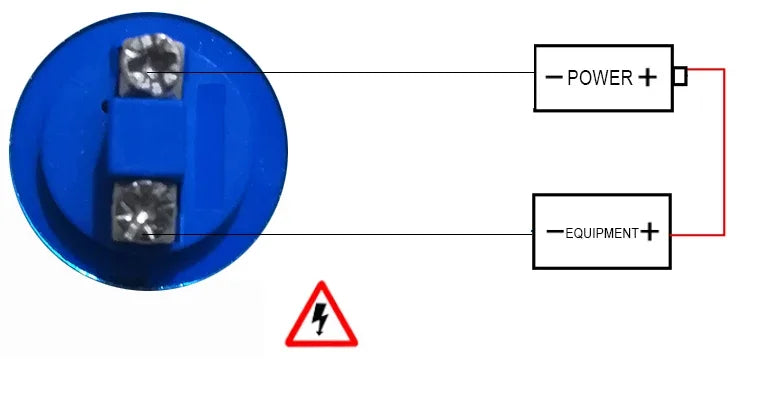

Application Method

There are many aplication method, the picture below is just for reference

Specification

Made of stainless steel material, strong and durable.
High-grade appearance and nice touch feeling.
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use.
Copper plating silver terminals for good conductive properties.
Momentary type, push it-on, release it-off.
Metal button head durable for longstanding press.
