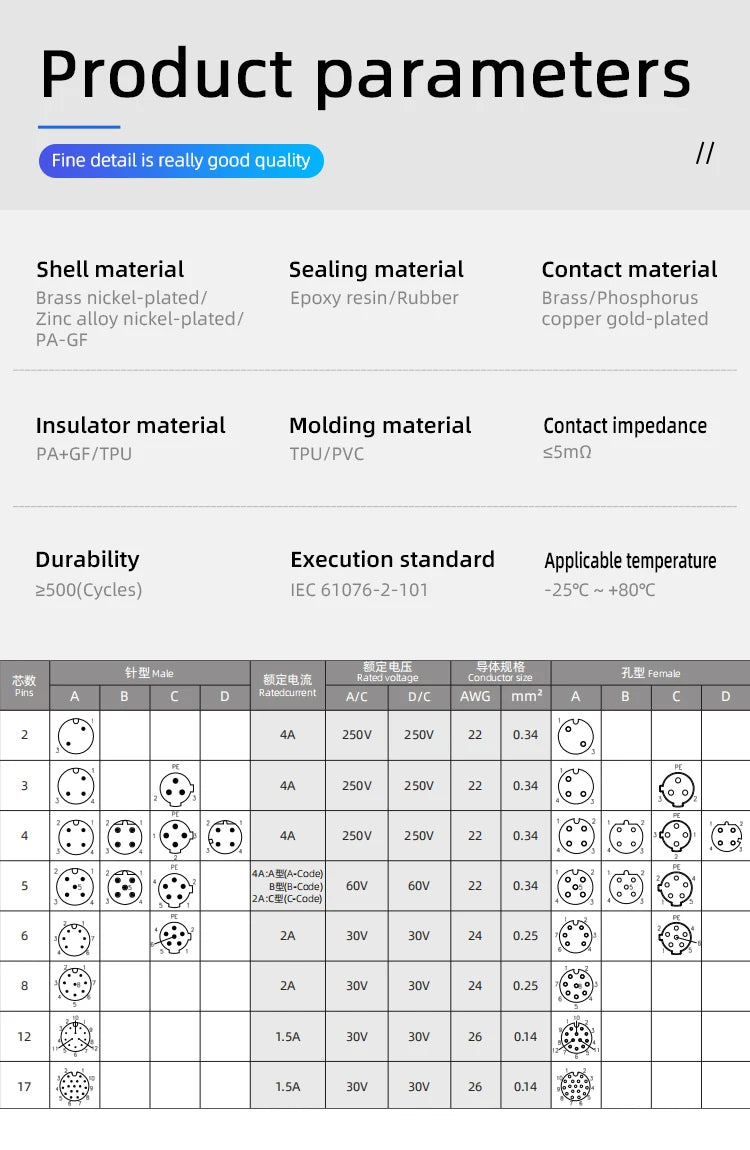

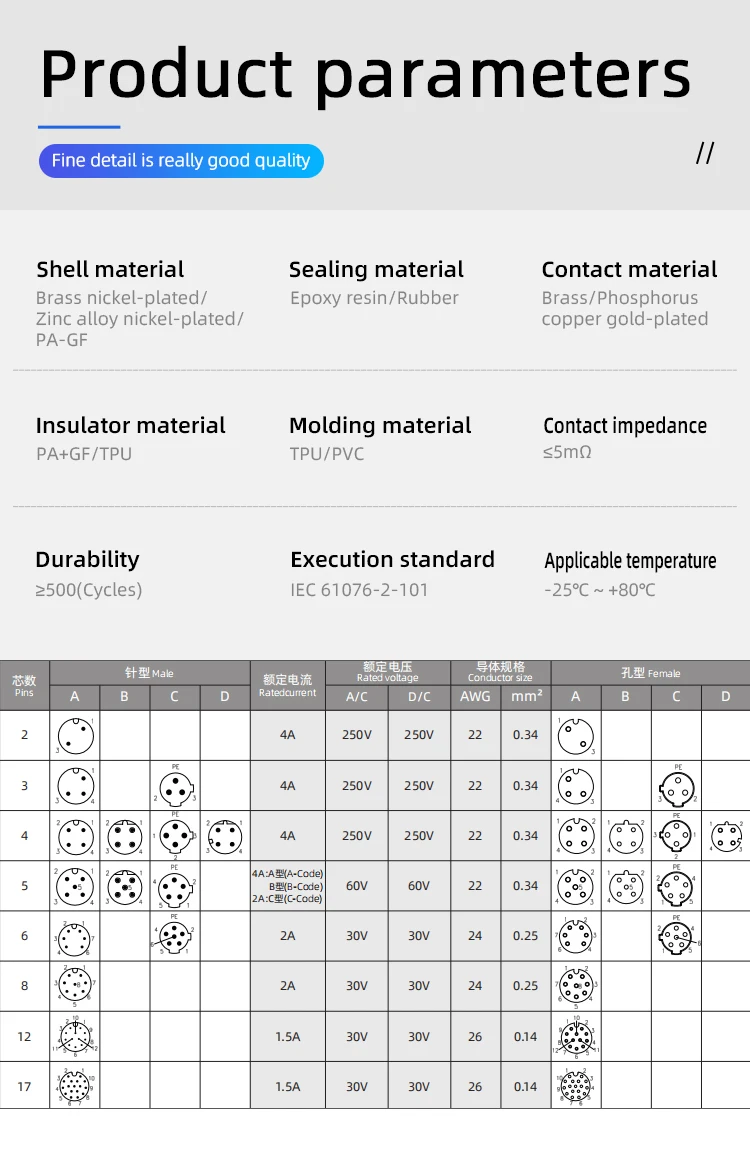

SPECIFICATIONS

Brand Name: STA

Code: A, B, D

Does it include a Battery?: No

Does it include wireless functionality?: No

Durability: ≥500 cycles

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

HS Code: 8536909000

High-concerned chemical: none

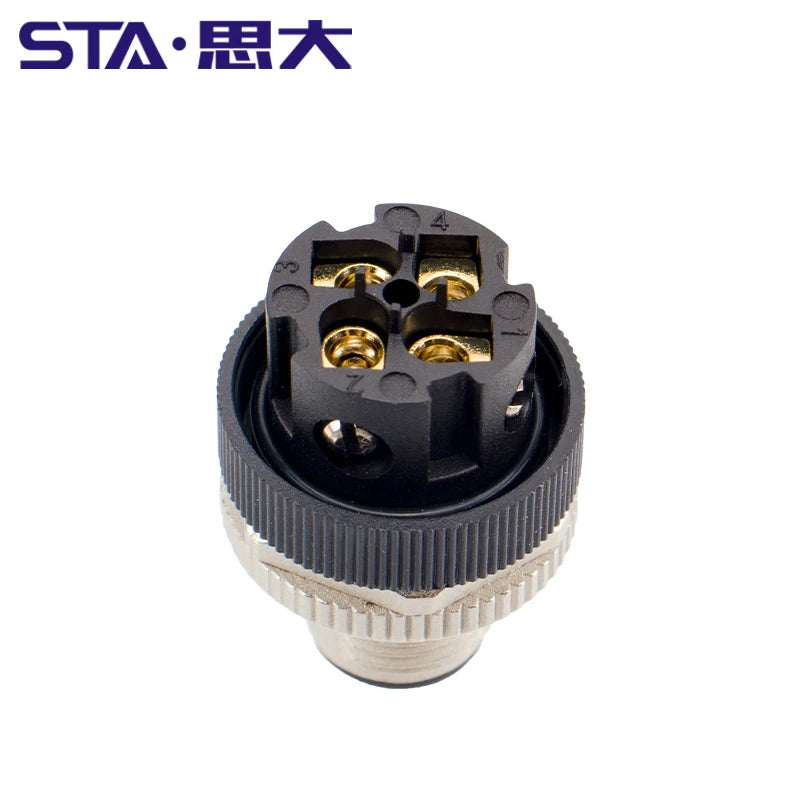

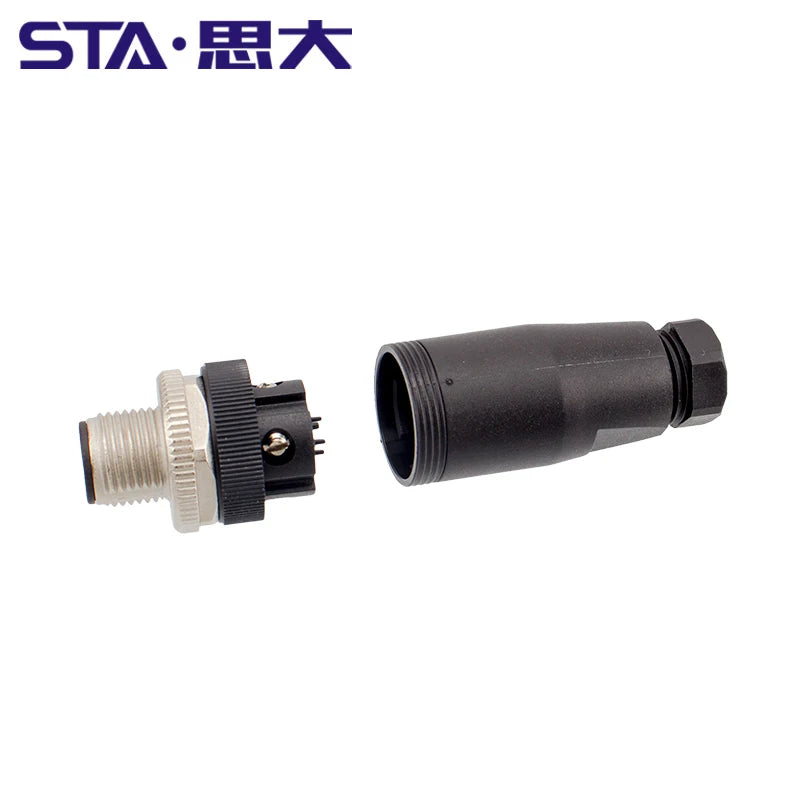

Model Number: M12P-xA-P-PG7/PG9

Name: M12 Plastic Field Connector

Origin: Mainland China

Pins: 2, 3, 4, 5, 6, 8

Protection: IP67

Single Weight: 23~35g

Temperature: -40℃~+80℃

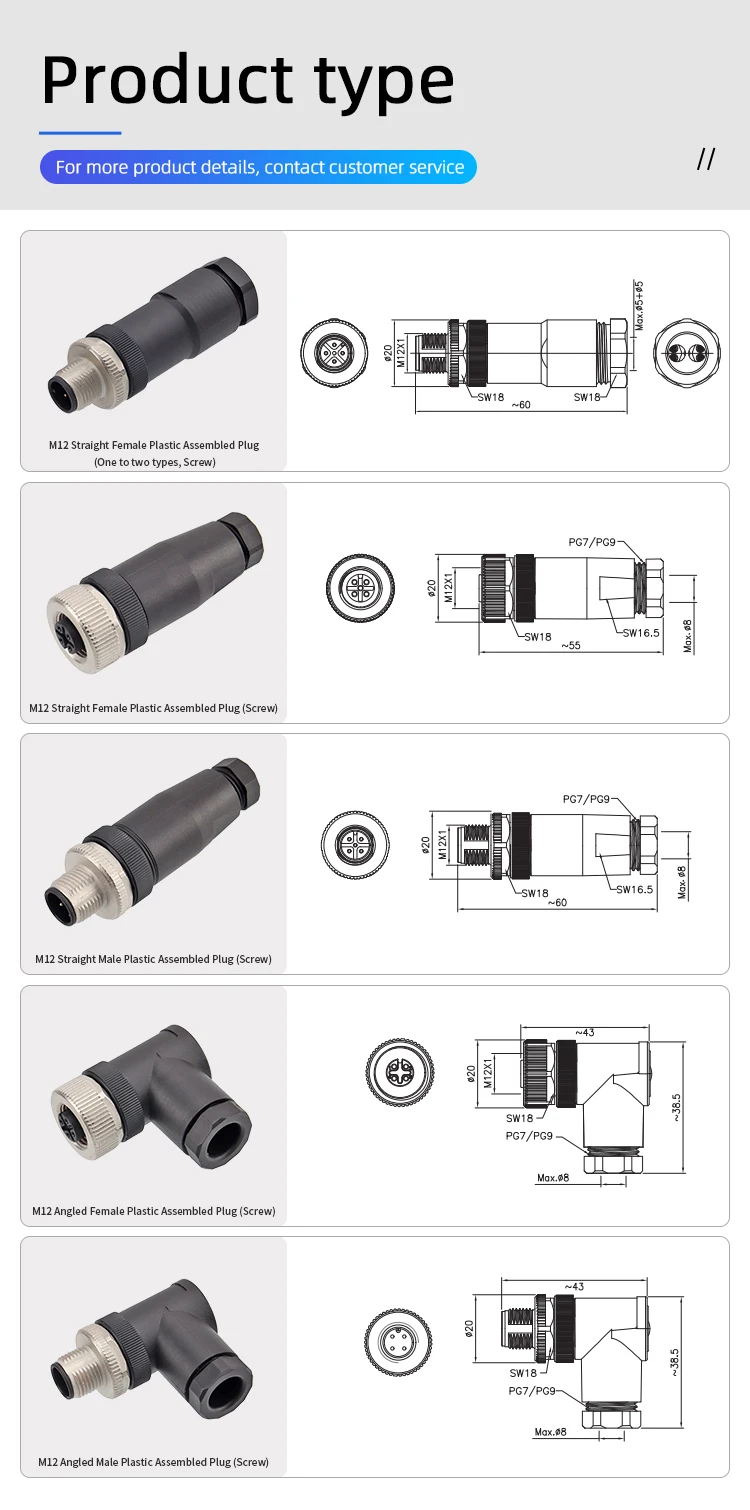

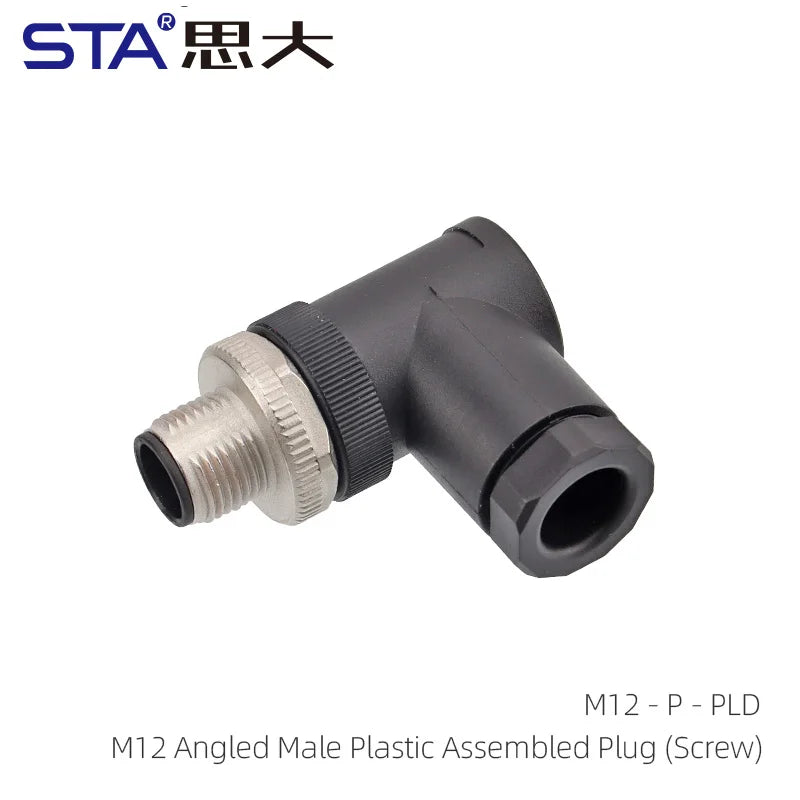

Type: Male Female Straight Angle

Voltage: 220 V

Wiring Mode: Screw

Wiring Range: PG7(4~6mm); PG9(6~8mm)

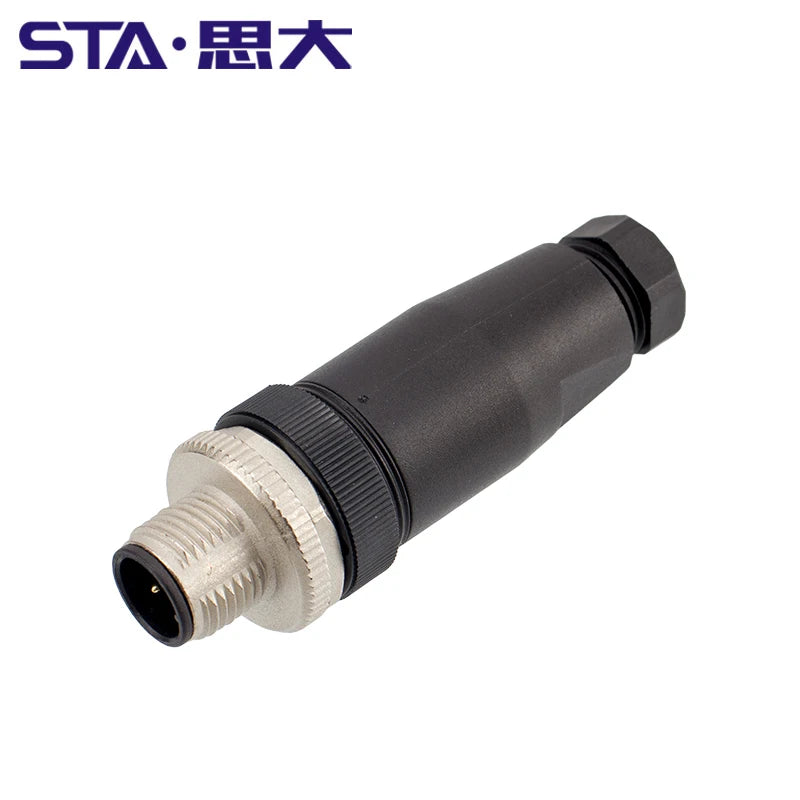

M12 Aviation Plug Screw Straight/Angled Male Female Plastic Assembled Connector Waterproof IP67 PG7/PG9/PG11 Crimp Type

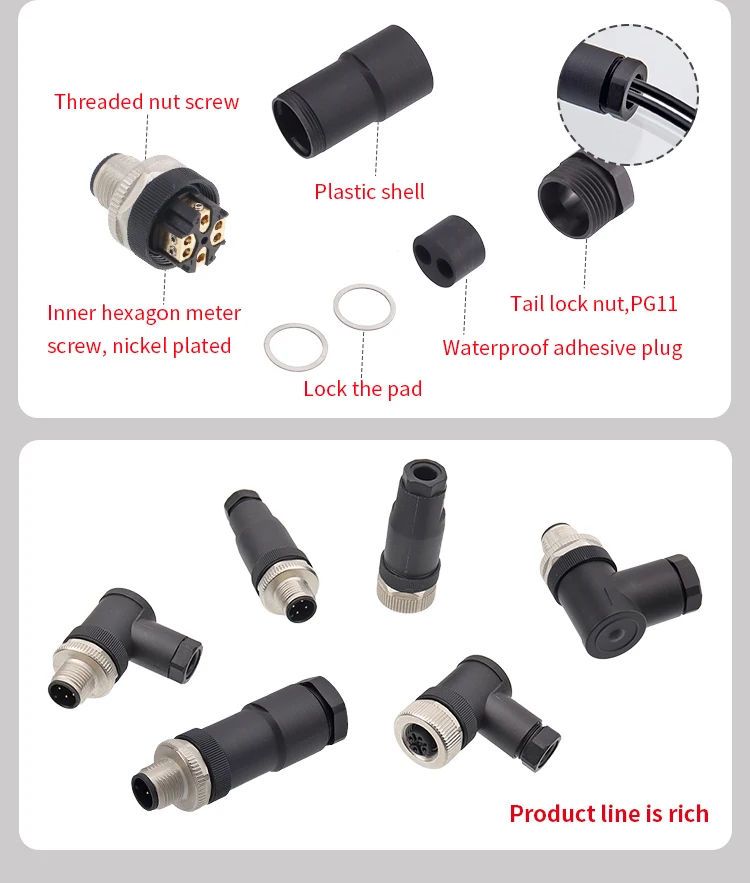

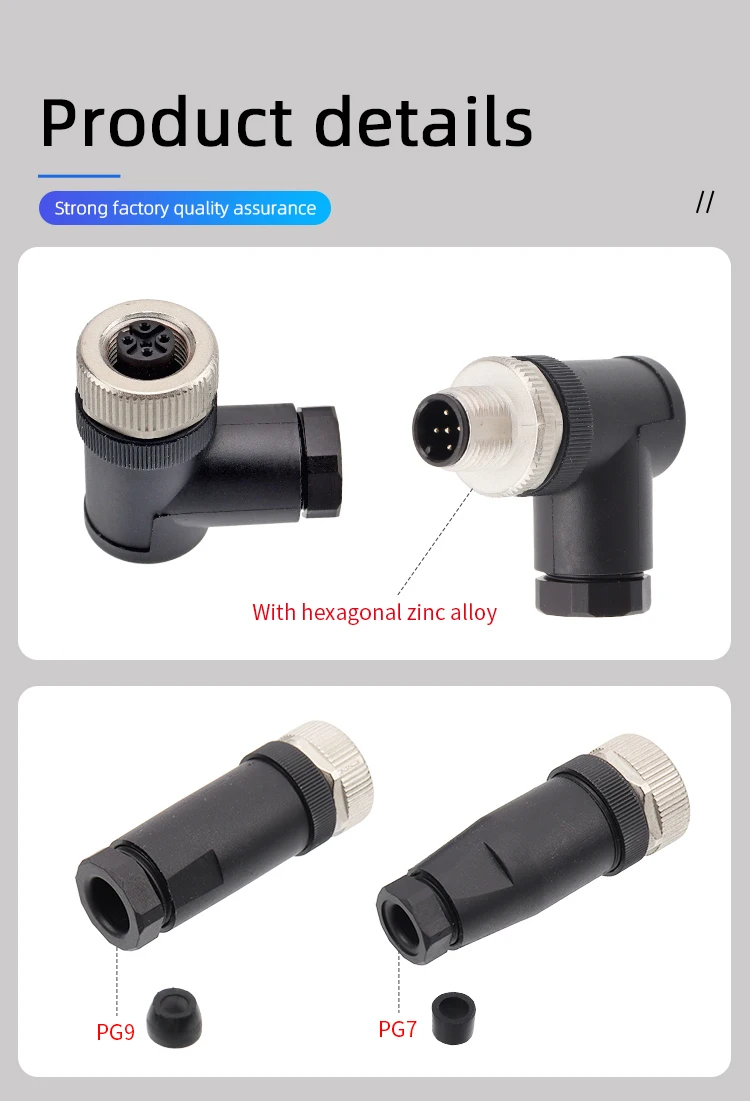

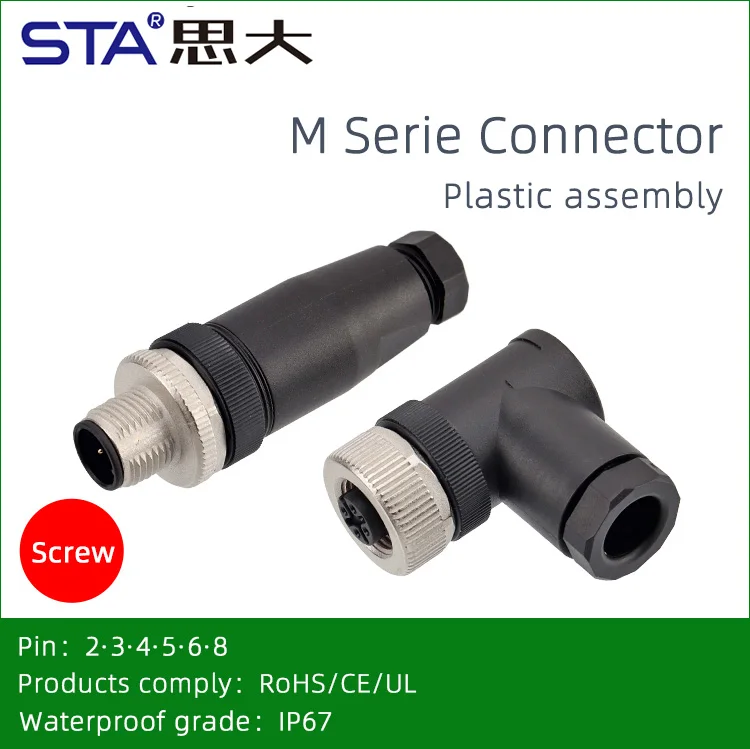

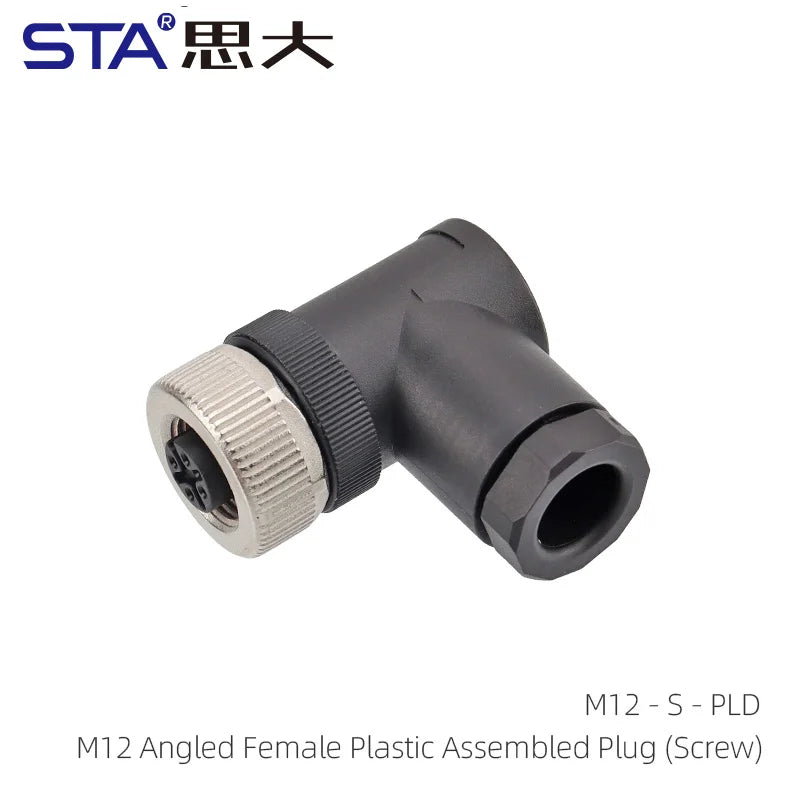

The M12 Aviation Plug Screw Type Plastic Assembled Connector offers a reliable and cost-effective solution for industrial signal and power transmission. Available in 2, 3, 4, 5, 6, and 8-pin configurations with A, B, and D coding, this connector ensures compatibility with a wide range of sensors and control devices. The straight and angled male/female versions feature a lightweight plastic housing, screw crimp terminals, and PG7, PG9, or PG11 cable glands for various cable diameters. With IP67 waterproof protection, it provides stable, vibration-resistant performance for automation, robotics, and machinery applications.

FAQ

1.What are the types of industrial connectors?

Industrial connector types include: power (PIN type) / data USB. TYPE C / signal (RJ45 fiber optic) customizable connectors. Which type do you specifically need to use, and I will give you a precise recommendation.

2.What types of connectors does STA provide?

We offer a full range of industrial connectors, including:

M Series Circular Connectors (M5/M8/M12/M16/M23/M40),Waterproof IP67/IP68 Connectors，Aviation Plugs & Industrial Circular Connectors,RF / Coaxial ConnectorsPush-pull Metal Connectors,

Customized OEM/ODM Cable Assembly Solutions.

3.Can you provide samples for testing?

Yes. We provide free or low-cost samples depending on the product model.

Shipping cost may be borne by the customer.

4.What industries do your connectors serve?

Our products are widely used in:Industrial automation & factory machinery,Robotics & smart manufacturing,Rail transportation & heavy equipment,Medical devices & instrumentation,Communication & wireless systems,Smart agriculture & outdoor equipment,New energy & EV equipment.

5.Do your connectors follow international standards?

Yes. Our connectors comply with:IEC / DIN standards,EU circular connector standard,MIL-DTL specifications (for MIL series).

6.How do circular connectors work?

Circular connectors transmit signals, data, or power between devices through multiple conductive contact pins arranged in a circular pattern.

They ensure reliable connection through locking structures (thread, bayonet, push-pull) and environmental sealing to resist dust, water, and vibration.

7.Do you support OEM/ODM customization?

Yes. We offer complete OEM/ODM customization, including:Pin configuration,Cable length & material (PVC/PUR/Shielded),Shell material (metal/plastic),Waterproof rating (IP67/IP68),Shielding & EMC requirements,Special structure design according to customer applications.

8.What certifications do your products have?

CE / RoHS,IP67 / IP68 Waterproof test,EMC shielding test,ISO 9001 factory system certified.
