Description

SPECIFICATIONS

Accessory Type: Extension Board

Battery Included: no

Brand Name: seeed studio

Compatible With: ESP32

High-concerned chemical: none

Origin: Mainland China

Typical Application Fields: Education and Learning

Seeed Studio XIAO ESP32C6 is powered bythe highly-integrated ESP32-C6 SoC, built on two 32-bit RISC-V processors, with ahigh-performance (HP) processor with running up to 160 MHz, and a low-power (LP) 32-bit RISC-V processor, which can be clocked up to 20 MHz. There are512KB SRAM and 4 MB Flash on the chip, allowing for more programming space, and bringing more possibilities to the IoT control scenarios.

XIAO ESP32C6 is Matter native thanks to its enhanced wireless connectivity. The wireless stack supports 2.4 GHz WiFi 6, Bluetooth® 5.3, Zigbee, and Thread (802.15.4). As the first XIAO member compatible with Thread, it's a perfect fit for building Matter-compliant projects, thus achieving interoperability in smart-home.

To better support your IoT projects, XIAO ESP32C6 not only provides seamless integration with mainstream cloud platforms like ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud, but also leverages security for your IoT applications. With its on-chip secure boot, flash encryption, identity protection, and Trusted Execution Environment (TEE), this tiny board ensuresthe desired level of securityfor developers looking to build smart, secure, and connected solutions.

This new XIAO is equipped with a high-performanceonboard ceramic antenna with up to 80m BLE/Wi-Fi range, while it also reserves an interface for an external UFL antenna. At the same time, it also comes with an optimized power consumption management. Featuring four power modes and an onboard lithium battery charging management circuit, it works in the Deep Sleep mode with a current as low as 15 µA, making it an excellent fit for remote, battery-powered applications.

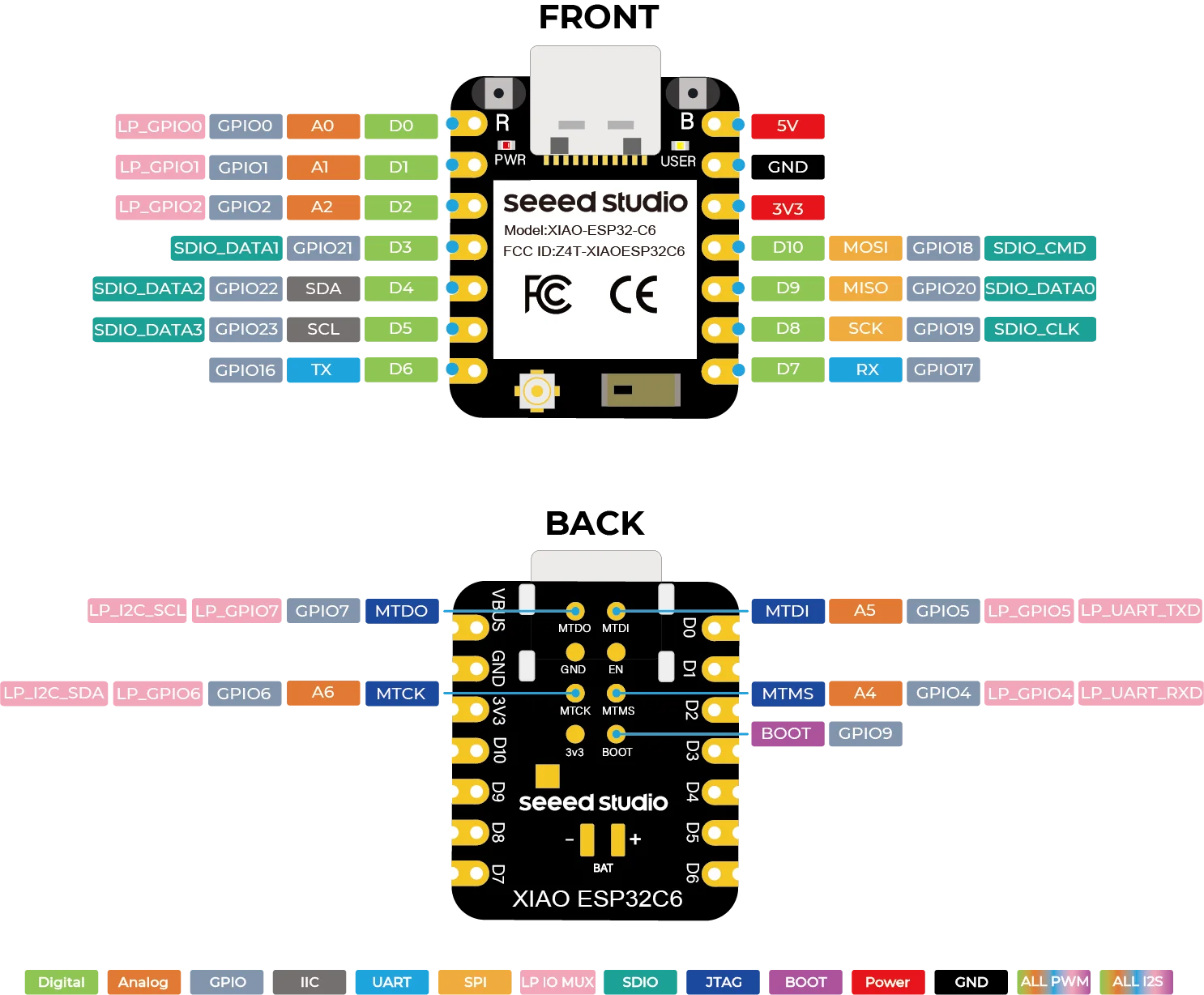

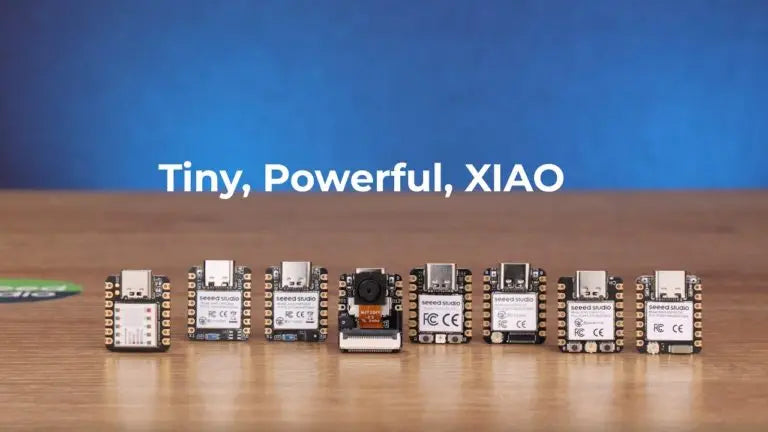

Being the 8th member of the Seeed Studio XIAO family, XIAO ESP32C6 remains the classic XIAO design. It is designed to fit the 21 x 17.5mm, XIAO Standard Size, while remains its classic single-sided components mounting. Even being thumb-sized, it amazingly breaks out15 totalGPIO pins, including 11 digital I/Os for PWM pins and 4 analog I/Os for ADC pins. It supports UART, IIC, and SPI serial communication ports. All these features make it a perfect fit for either space-limited projects such as wearables, or a production-ready unit for your PCBA designs. (check out ourFusion one-stop prototyping and manufacturing services to explore what support you can get!).

Note

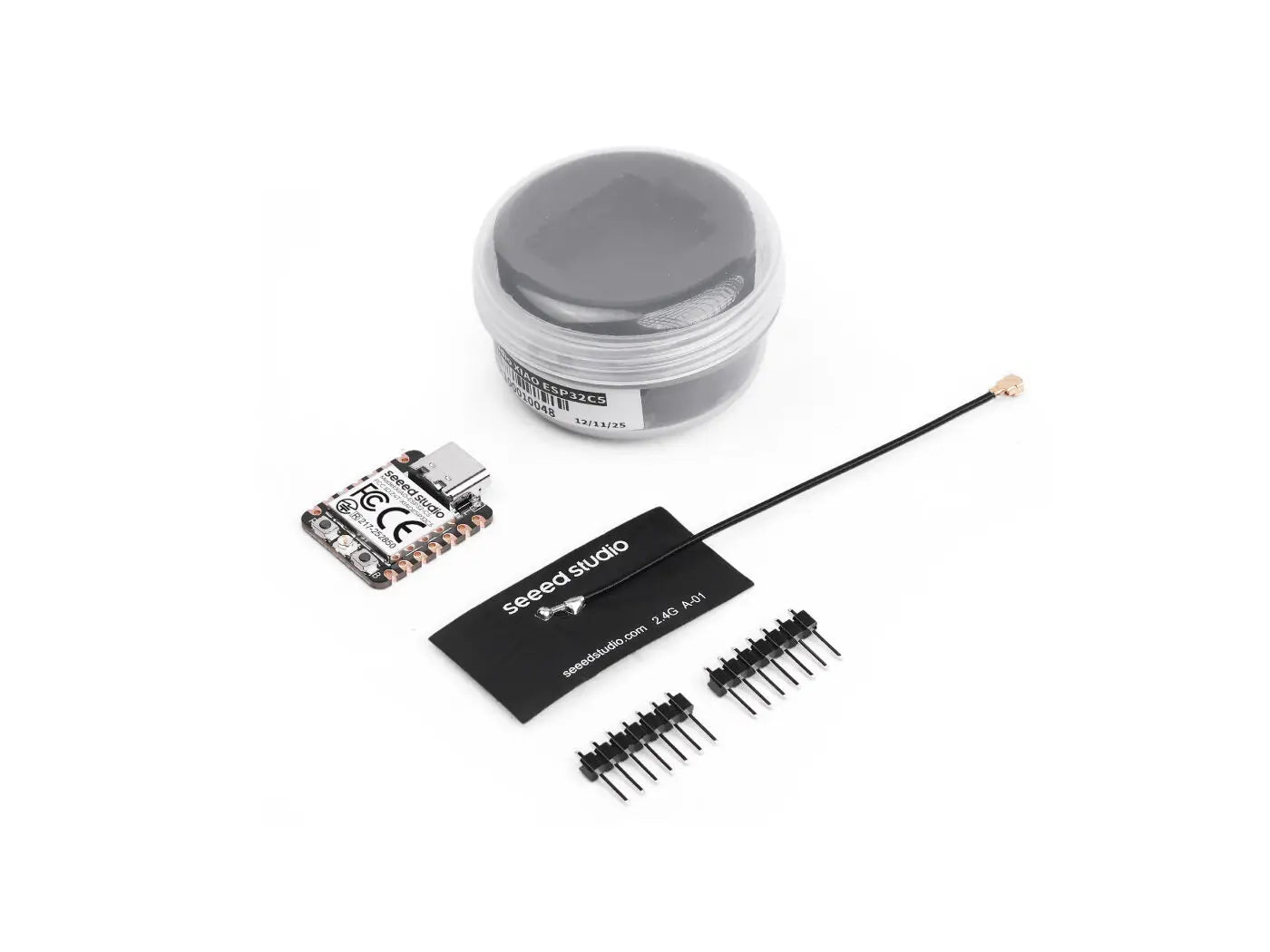

Please note that the classic pin heads for XIAO are not included in this product as we want to avoid component wastes (we got this input from the community and we want to contribute a bit to a greener earth). If you want to equip your XIAO ESP32C6 with the pinheads, you canclick here to add it to your cart with ease.

It's super developer-friendly to get started with XIAO ESP32C6 too. Compatible with both Arduino and ESP-IDF, it offers developers the way you prefer to tinker around. Moreover, we also provide the starter kit along with courses for beginners to quickly tap into the world of electronics.

Application

Secure and Connected Smart Home, enhancing everyday life through automation, remote control, and more

Space-limited and Battery-Powered Wearables,thanks to their thumb-size and low-power consumption

Wireless IoT Scenarios, enabling rapid, reliable data transmission

Specification Comparison

Product	XIAO ESP32C6	XIAO ESP32C3	XIAO ESP32S3
Processor	Espressif ESP32-C6 SoC	Espressif ESP32-C3 SoC	Espressif ESP32-S3R8
Processor	two 32-bit RISC-Vprocessors, with the high-performance one running up to 160 MHz, and the low-power one clocking up to 20 MHz	RISC-V single-core 32-bit chip processor with a four-stage pipeline that operates at up to 160 MHz	Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
Wireless	Complete 2.4GHz Wi-Fi 6 subsystem	Complete 2.4GHz Wi-Fi subsystem	Complete 2.4GHz Wi-Fi subsystem
	BLE: Bluetooth 5.0, Bluetooth mesh	BLE: Bluetooth 5.0, Bluetooth mesh	BLE: Bluetooth 5.0, Bluetooth mesh
	Zigbee,Thread,IEEE 802.15.4	/	/
On-chip Memory	512KB SRAM & 4MB Flash	400KB SRAM & 4MB Flash	8M PSRAM & 8MB Flash
Interface	1x UART,1x LP_UART, 1x IIC, 1x LP_IIC, 1x SPI,11x GPIO(PWM), 7x ADC, 1xSDIO	1x UART, 1x IIC, 1x SPI,11x GPIO(PWM), 4x ADC	1x UART, 1x IIC, 1x IIS, 1x SPI,11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED
Interface	1x Reset button, 1x Boot button	1x Reset button, 1x Boot button	1x Reset button, 1x Boot button
Dimensions	21 x 17.5mm	21 x 17.5mm	21 x 17.5mm
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA	Circuit operating Voltage (ready to operate): - USB:5V@9mA - BAT:3.8V@9mA	Circuit operating Voltage (ready to operate): - Type-C: 5V@19mA - BAT: 3.8V@22mA
	Charging battery current:100mA	Charging battery current: 350mA	Charging battery current: 100mA
Power Consumption Model (Supply Power: 3.8V)	Modem-sleep Model: ~ 30 mA Light-sleep Model: ~ 2.5 mA Deep Sleep Model: ~15 μA	Modem-sleep Model: ~ 24 mA Light-sleep Model: ~ 3 mA Deep Sleep Model: ~44 μA	Modem-sleep Model: ~ 25 mA Light-sleep Model: ~ 2mA Deep Sleep Model: ~ 14 μA
Working Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 65°C

Seeeduino XIAO

Features:

Powerful CPU: ARM® Cortex®-M0+ 32bit 48MHz microcontroller(SAMD21G18) with 256KB Flash,32KB SRAM

Flexible compatibility: Compatible with for Arduino IDE

Easy project operation: Breadboard-friendly

Small size: As small as a thumb(20x17.5mm) for wearable devices and small projects.

Multiple development interfaces: 11 digital/analog pins, 10 PWM Pins, 1 DAC output, 1 SWD Bonding pad interface, 1 I2C interface, 1 UART interface, 1 SPI interface.

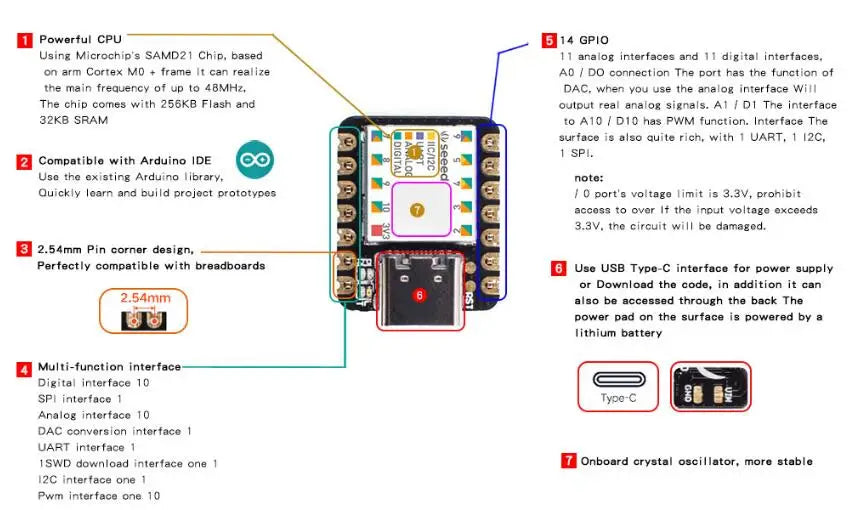

Description:

Take a look at Seeeduino XIAO. What a small size and cute looking! It is the smallest member of the Seeeduino family. Seeeduino XIAO still carries the powerful CPU-ARM® Cortex®-M0+(SAMD21G18) which is a low-power for Arduino microcontroller. On the other hand, this little board has good performance in processing but needs less power. As a matter of fact, it is designed in a tiny size and can be used for Arduino wearable devices and small projects.

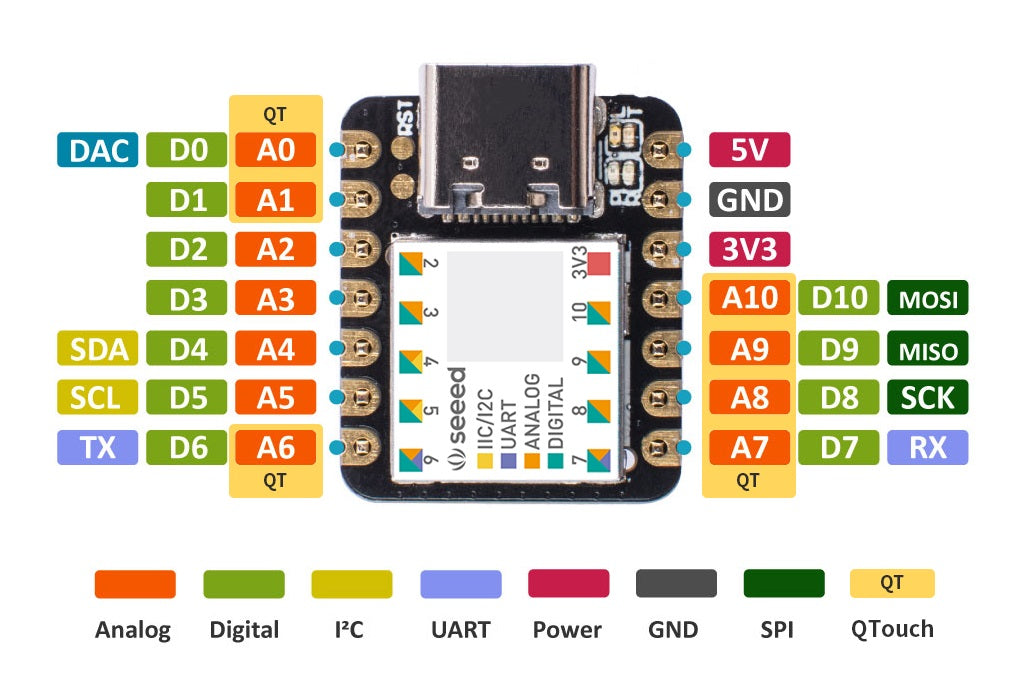

Apart from the strong CPU, Seeeduino XIAO is excellent in many other functions. It has 14 GPIO PINs, which can be used for 11 analog PINs, 11 digital PINs, 1 I2C interface, 1 UART interface, and 1 SPI interface. Some PINs have various functions, A1/D1 to A10/D10 Pins have PWM functions and Pin A0/D0 has a function of DAC which means you can get true analog signals not PWM signals when you define it as an analog pin, that’s why 14 GPIO PINs can realize more I/O PINs and interfaces. Moreover, Seeeduino XIAO supports the USB Type-C interface which can supply power and download code. There are power pads at the back of the XIAO which support battery and make it designed for wearable devices to become realistic. Except for the power LED, we add a user LED on board for your better coding experience. Usually a Dev. Board as small as this size will use the chip’s inner crystal oscillator for time fixing, in order to make the clock more accurate, Seeeduino XIAO layouts an extra 32.768KHz to make the clock more stable.

Specification:

CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz

Storage: 256KB Flash,32KB SRAM

I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin

Interface: 1 I2C interface,1 UART interface, 1 SPI interface

Power supply and downloading interface: USB Type-C interface

LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading

Reset button: two reset button short connect to reset

Power Pads: For the battery power supply

Software compatibility: Compatible with for Arduino IDE

Projection cover for protecting the circuit

Dimensions: 20x17.5x3.5 mm
