Seeed Studio XIAO ESP32 S3 Sense Development Board Wi Fi BLE Camera Microphone 8MB PSRAM FLASH for AIoT Embedded ML Projects

Seeed Studio XIAO ESP32 S3 Sense Development Board Wi Fi BLE Camera Microphone 8MB PSRAM FLASH for AIoT Embedded ML Projects

$107.04

$107.04 $0.00

Description

SPECIFICATIONS

Brand Name: seeed studio

Choice: yes

High-concerned chemical: none

Model: ESP32-S3 Sense

Origin: Mainland China

Type: ESP Series

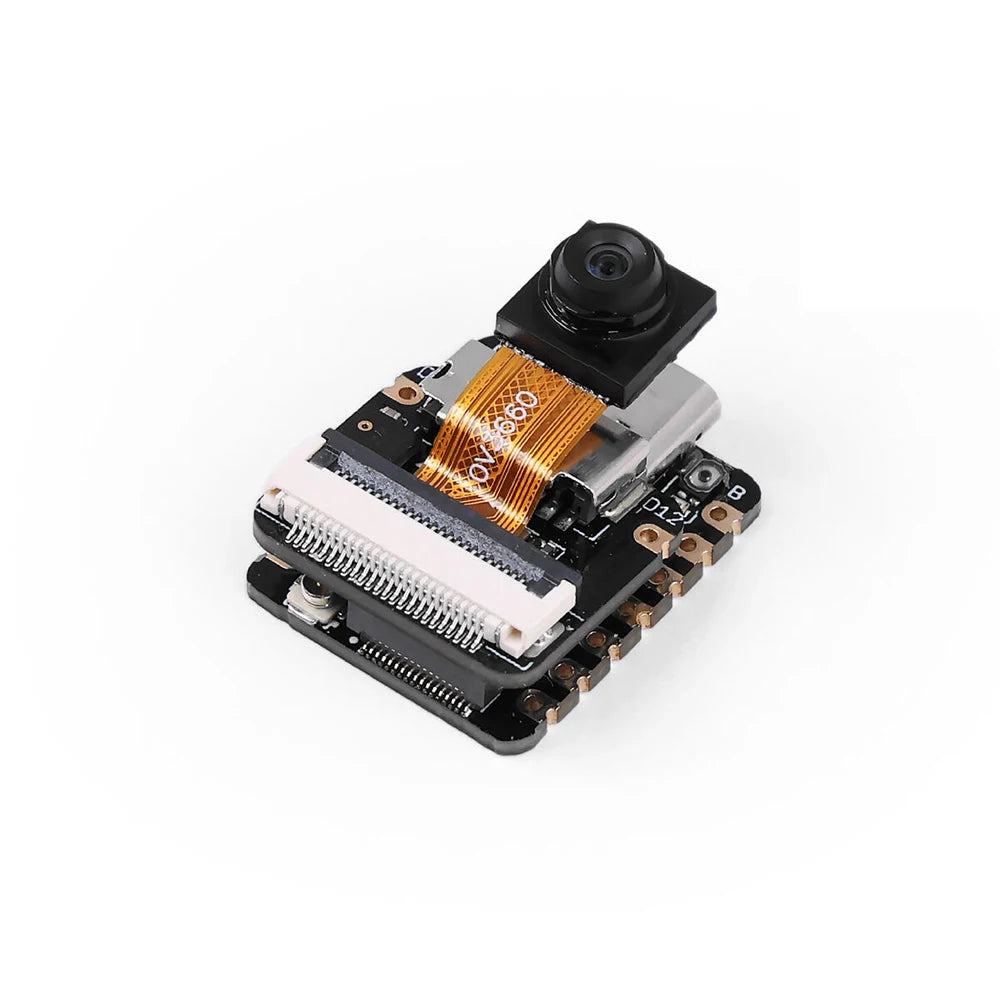

Seeed Studio XIAO ESP32-S3 Sense MCU Board

Product Features

Powerful MCU Board: Incorporate the ESP32-S3 32-bit, dual-core, Xtensa processor chip operating up to 240 MHz, mounted multiple development ports, Arduino / MicroPython supported
Advanced Functionality: Detachable OV3660 camera sensor for 2048*1536 resolution, compatible with OV5640 camera sensor, integrating additional digital microphone
Great Memory for more Possibilities: Offer 8MB PSRAM and 8MB FLASH, supporting SD card slot for external 32GB FAT memory
Outstanding RF performance: Support 2.4GHz Wi-Fi and BLE dual wireless communication, support 100m+ remote communication when connected with U.FL antenna
Thumb-sized Compact Design: 21 x 17.8mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices
Pre-trained Al models from SenseCraft AI for no-code deployment

Applications

Image processing
Speech Recognition
Video Monitoring
Wearable devices
Smart Homes
Health monitoring
Education
Low-Power(LP) networking
Rapid prototyping

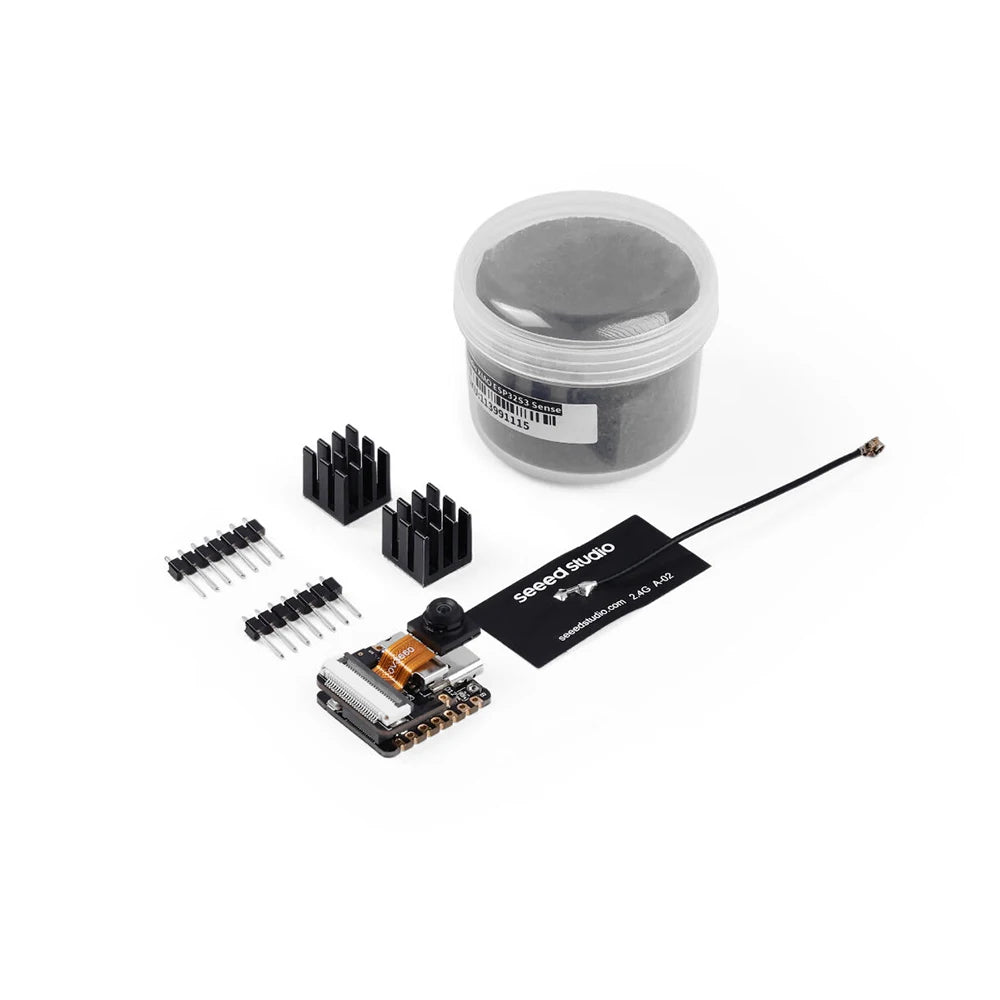

Package Includes

1x XIAO ESP32-S3

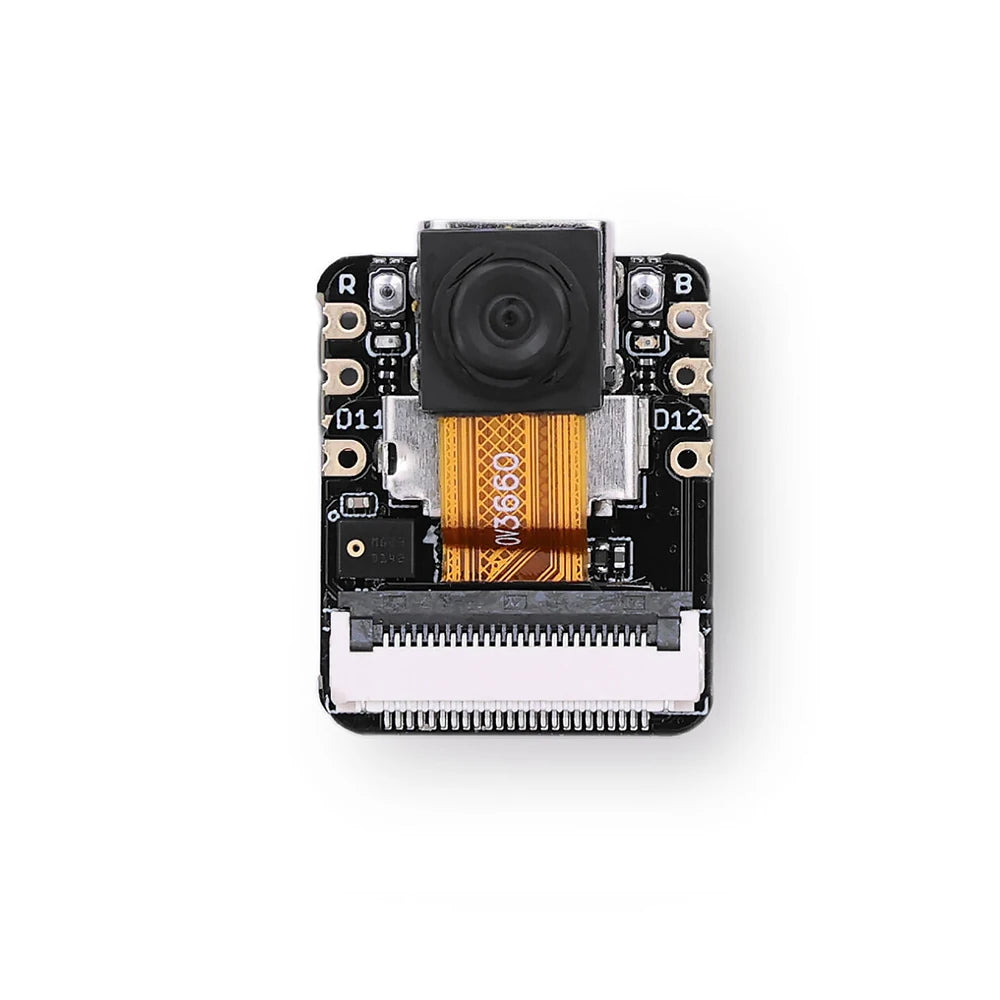

1x Plug-in camera sensor board

1x Aluminum Heat Sink For XIAO

1x Antenna

2x 7 Pin Header

Specification

Product	Seeed Studio XIAO ESP32-S3	Seeed Studio XIAO ESP32-S3 Sense
Processor	ESP32-S3R8 Xtensa LX7 dual-core,32-bit processor that operates at up to 240 MHZ
Wireless	Complete 2.4GHz Wi-Fi subsystem Bluetooth Low Energy 5.0 / Bluetooth Mesh
Built-in Sensors	/	1x OV3660 camera sensor 1x Digital Microphone
Memory	On-chip 8MB PSRAM & 8MB Flash	On-chip 8MB PSRAM & 8MB Flash Onboard SD Card Slot, supporting 32GB FAT
lnterface	1x UART 1x IIC 1x SPI 11x GPIO(PWM) 9x ADC 1x User LED 1x Charge LED 1x Reset button 1x Boot button	1x UART 1x lIC 1x lIS 1x SPI 11x GPIOs (PWM) 9x ADC 1x User LED 1x Charge LED 1x B2B Connector(with 2 additional GPIOs) 1x Reset button 1x Boot button

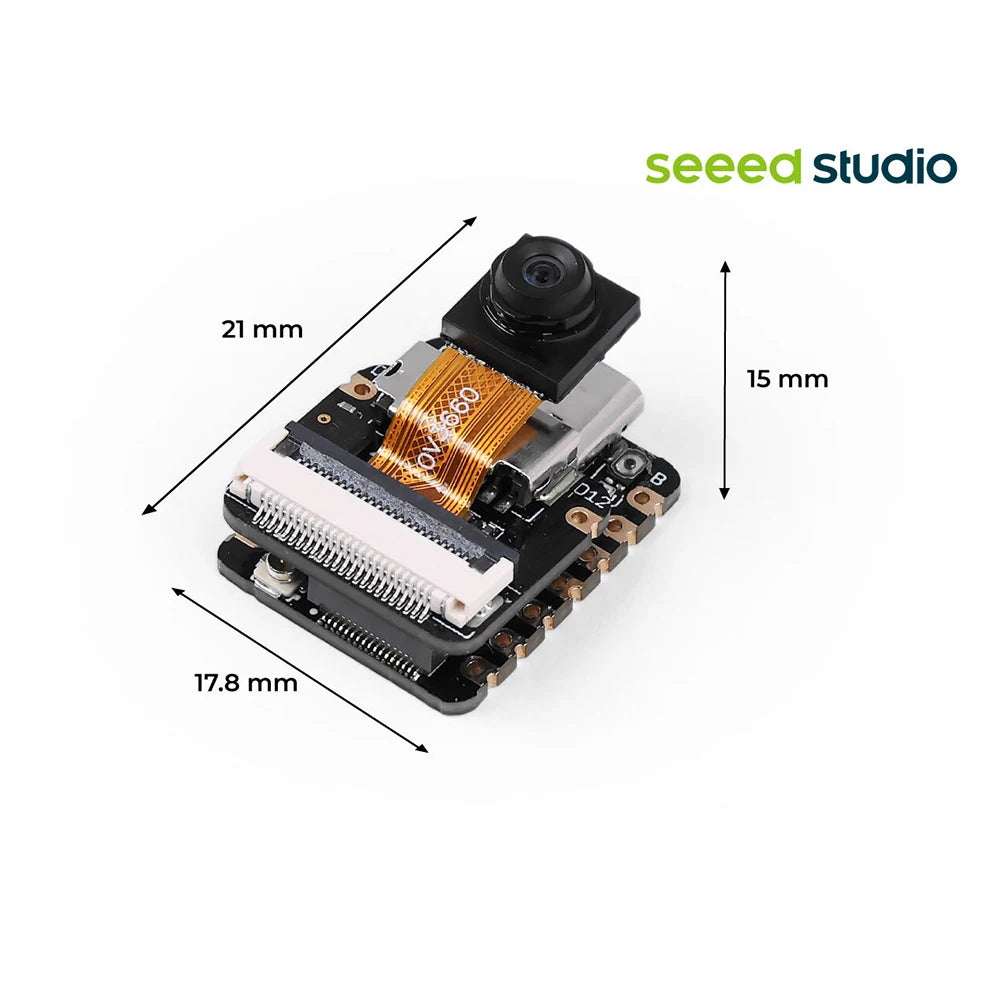

Dimensions	21 x 17.8mm	21 x 17.8 x 15mm (with expansion board)
Power(Typ.)	Input voltage (Type-C): 5V lnput voltage (BAT): 3.7V
	Circuit operating Voltage: - Type-C:5V@19mA - BAT: 3.8V@22mA	Circuit operating Voltage: -Type-C: 5V@38.3mA - BAT: 3.8V@43.2mA (with expansion board)
	/	Webcam Web application: - Type-C: - - Average power Consumption: 5V/~140mA - - Peak power consumption(Image Capture): 5V/~347mA - Battery: - - Average power Consumption: 3.8V/~155mA - - Peak power consumption(Image Capture): 3.8V/~366mA
	/	Microphone recording & SD card writing: - Type-C: - - Average power consumption: 5V/54.58mA - - Peak power consumption: 5V/86.7mA - Battery: - - Average power consumption: 3.8V/64.5mA - - Peak power consumption: 3.8V/109.3mA
	50mA(Fast) / 3.8mA(Trickle)
Low Power Consumption Model(Typ.) (Supply Power: 3.8V)	Modem-sleep Mode: 27mA Light-sleep Mode: 2mA Deep Sleep Mode: 14μA	Modem-sleep Mode: 44mA Light-sleep Mode: 5mA Deep Sleep Mode: 3mA
Wi-Fi Enabled Power Consumption(Typ.)	Active Mode: 100 mA	Active Mode: 110 mA (with expansion board)
BLE Enabled Power Consumption(Typ.)	Active Mode: 85 mA	Active Mode: 102 mA (with expansion board)
Working Temperature	-20°C ~65°C

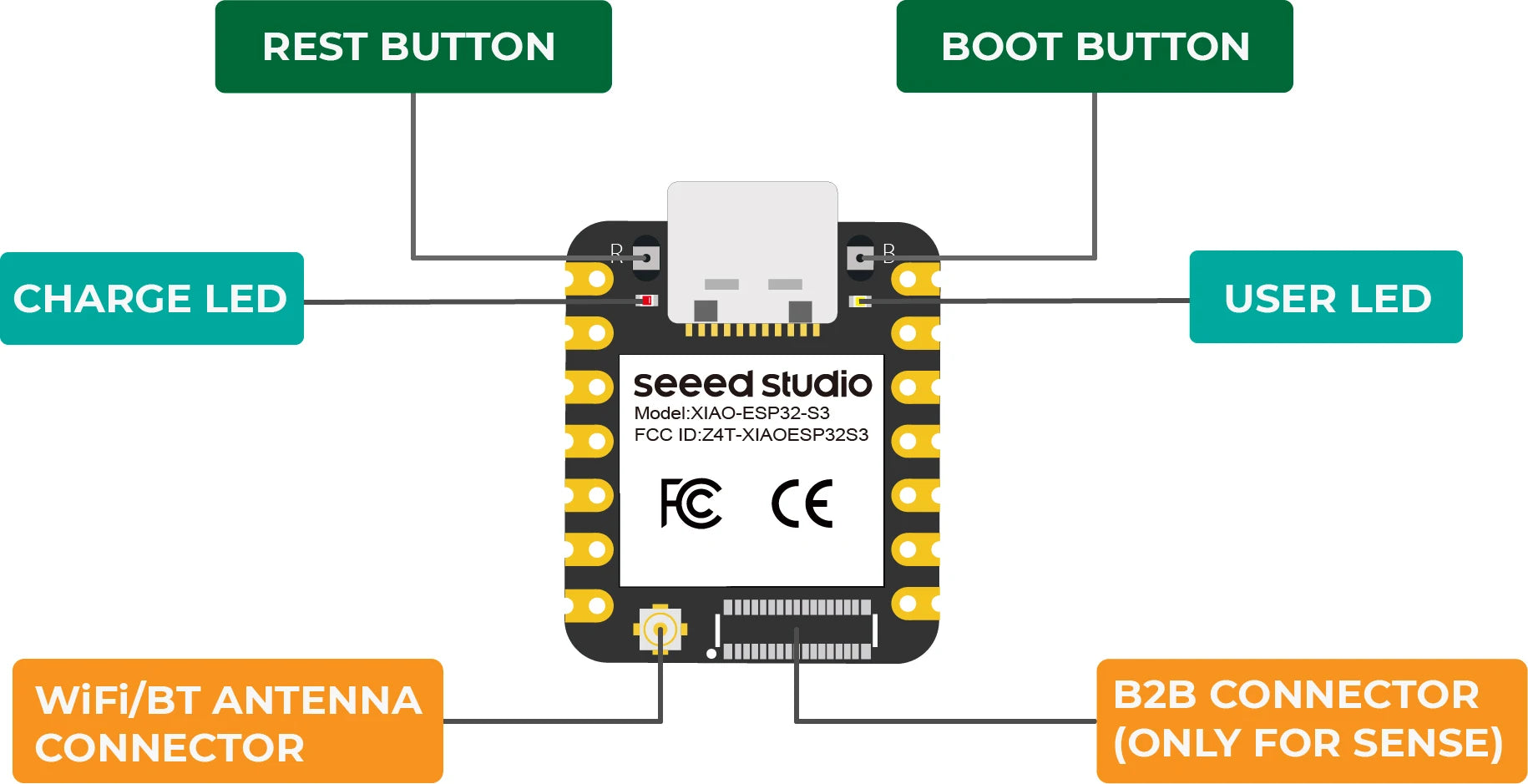

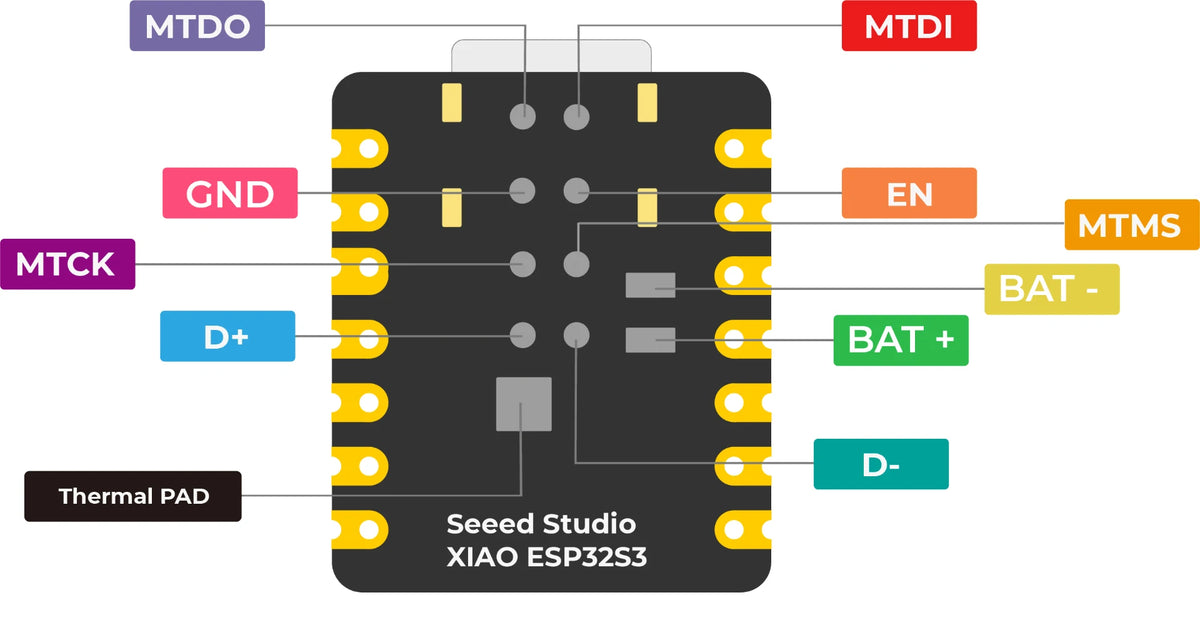

Hardware Overview

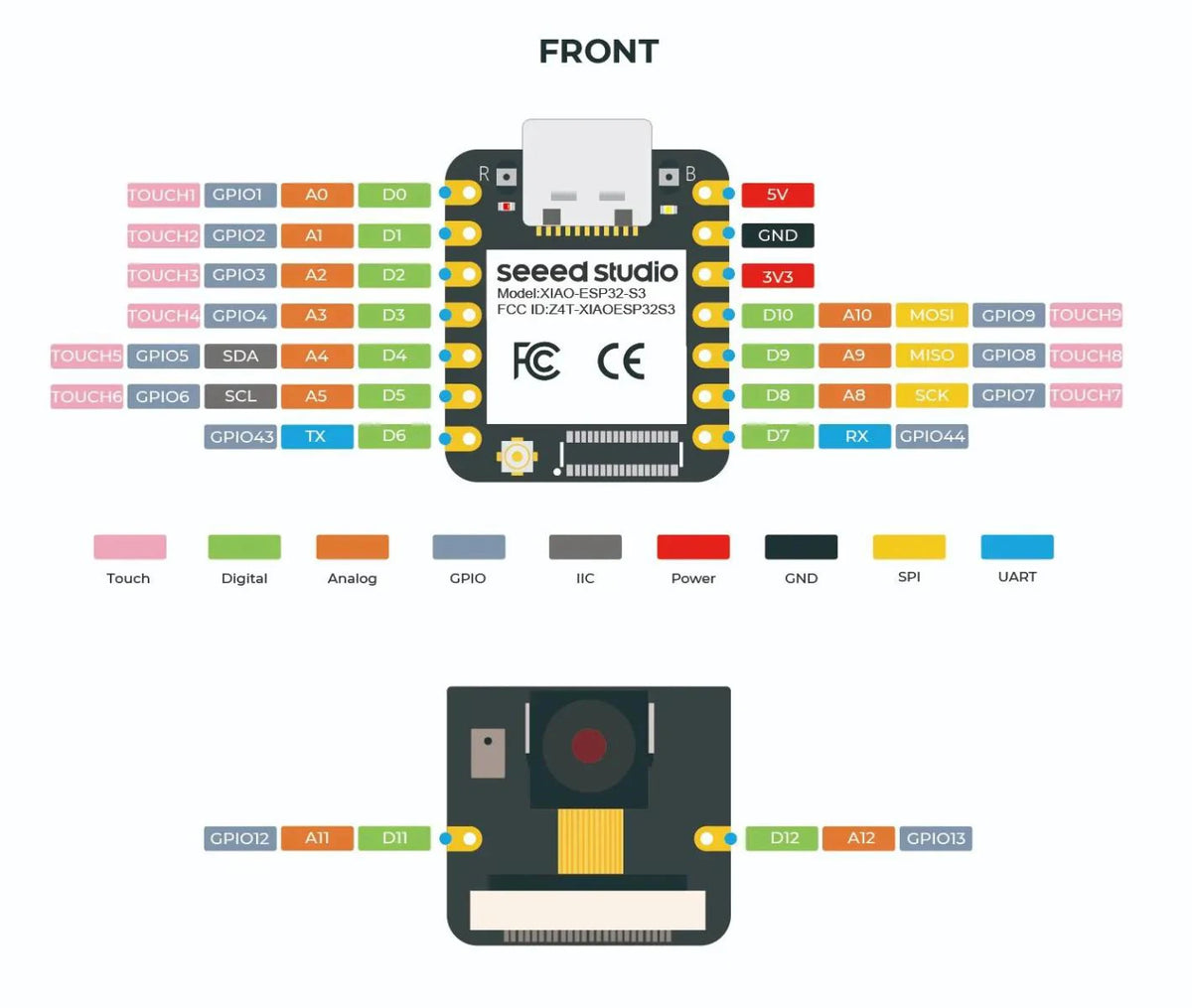

Note: There are two additional GPIO on the plug-in camera sensor board linking to the microphone. If you want to apply these two external IO, the microphone should not be used at the same time.
