SPECIFICATIONS

OVERVIEW

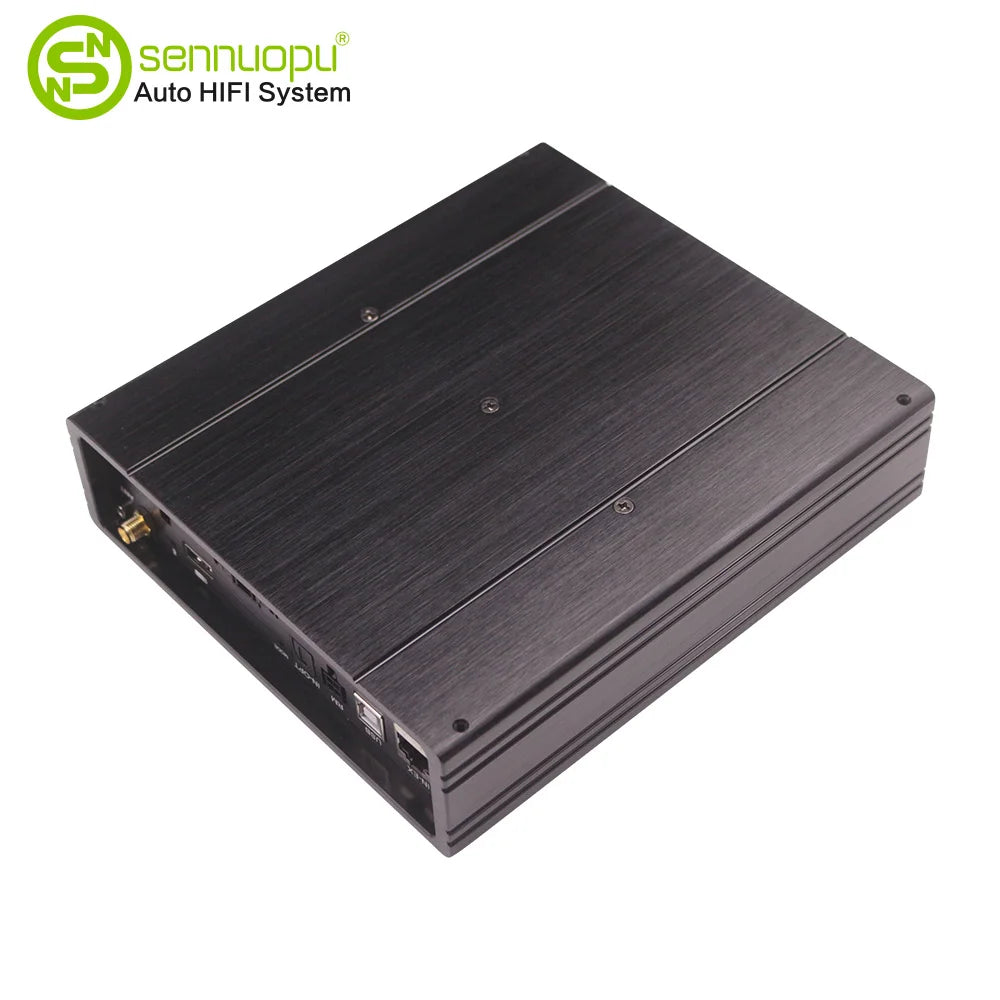

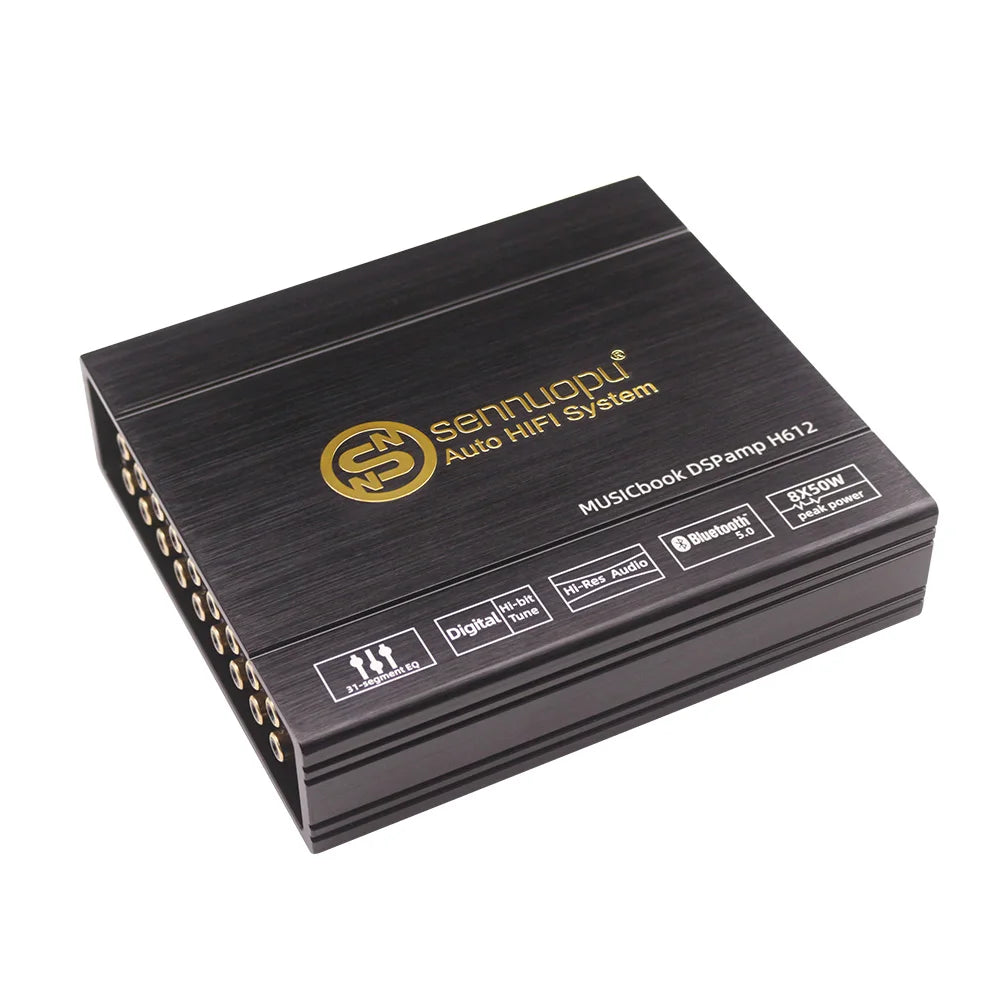

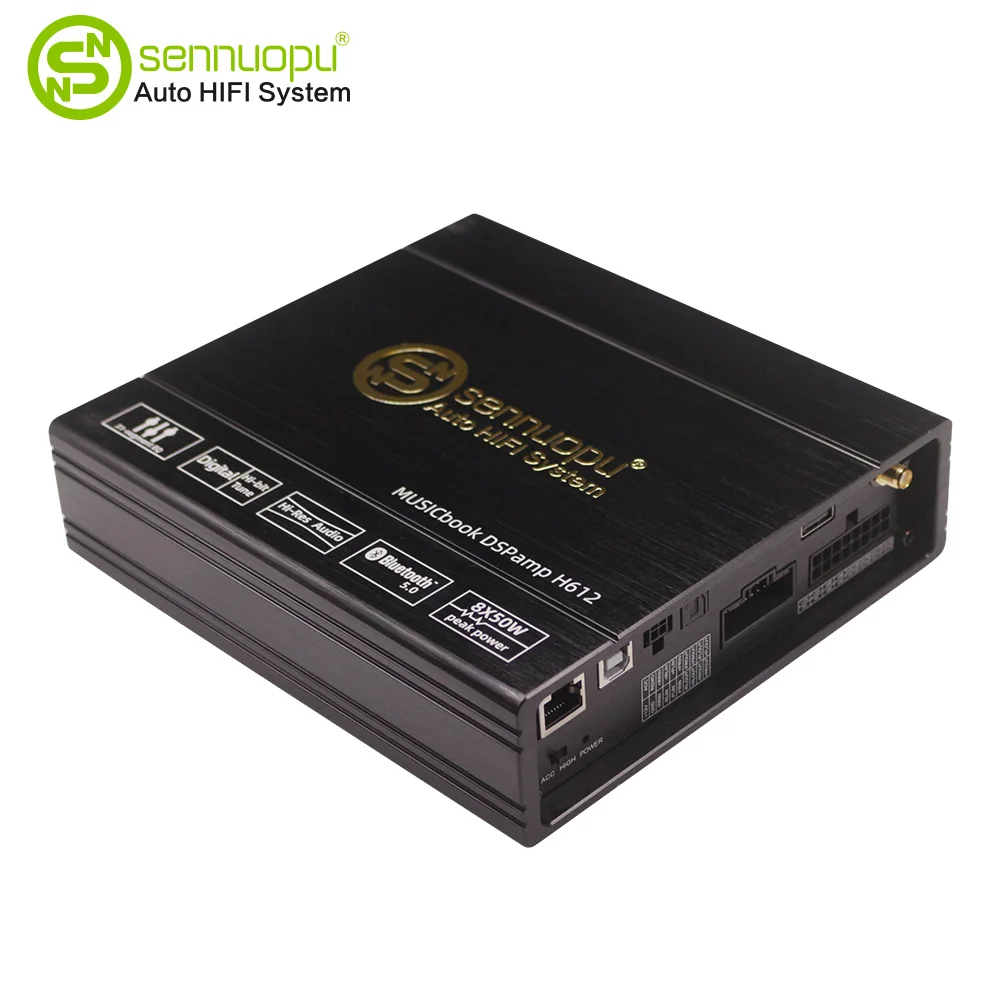

As factory systems continue to advance, digital sound processors are becoming crucial for factory system integration and ideal sound system building. The H612 has 6 low and/or high-level inputs that can be mixed to create a full range signal that sends up to 12 independent channels for versatility in OEM and aftermarket system building.

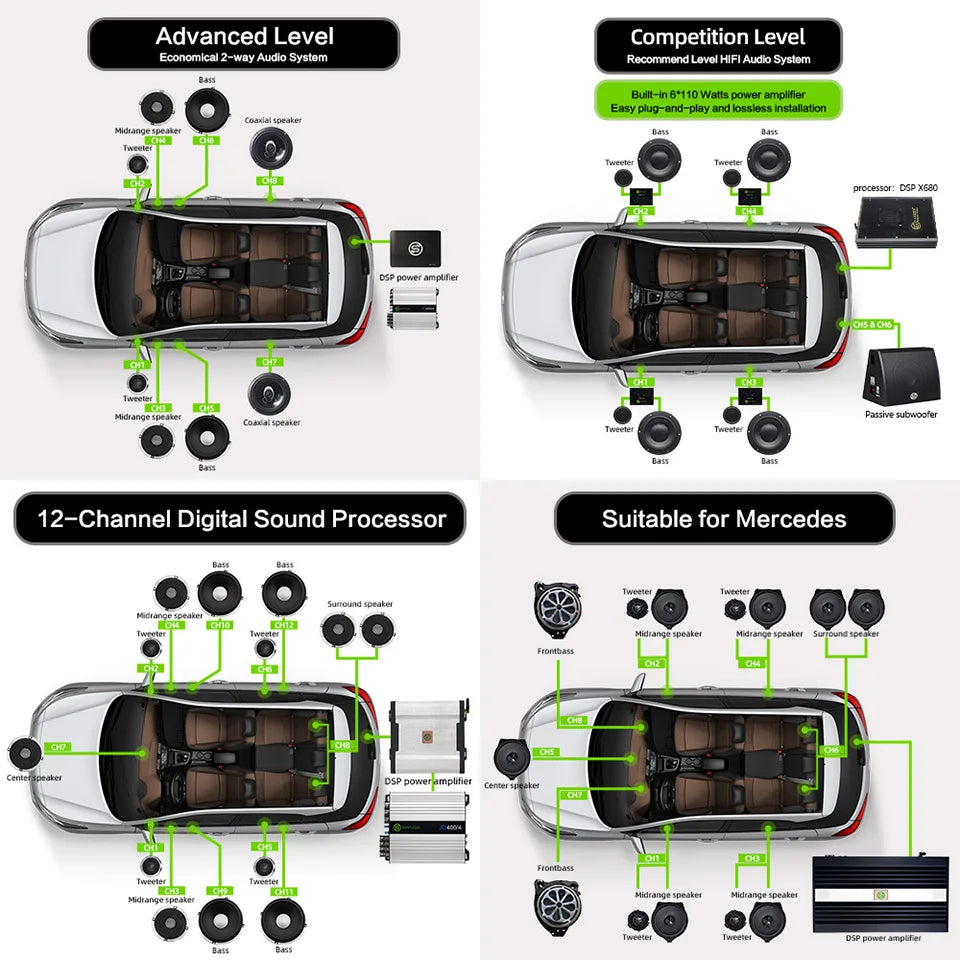

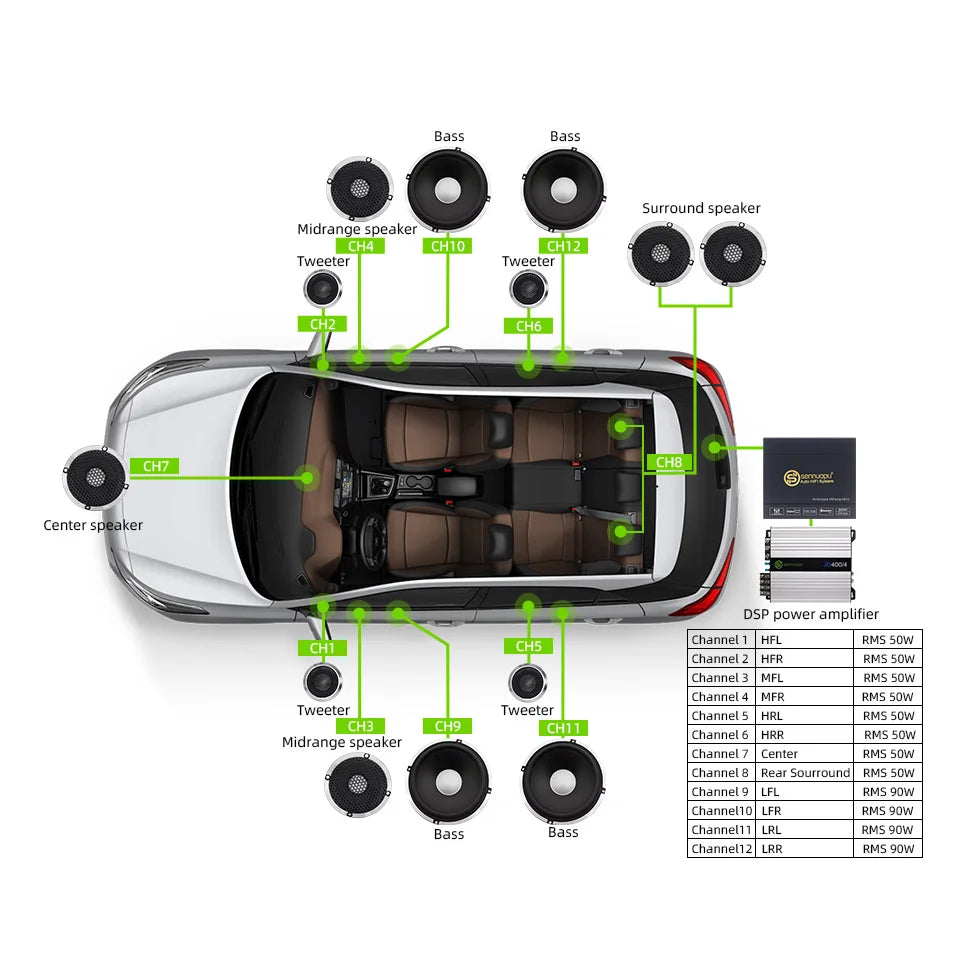

H612 has a 8 channel amplifier built in 50 watts and has 12 channels of output. using it on a 3 way system. Front stage is a 3 way component and rear stage is a 2 way component. The amp portion is driving the tweeters, midrange and center channel. It is connected to additional amps to drive the woofers (front/rear stage) and Sub woofer.

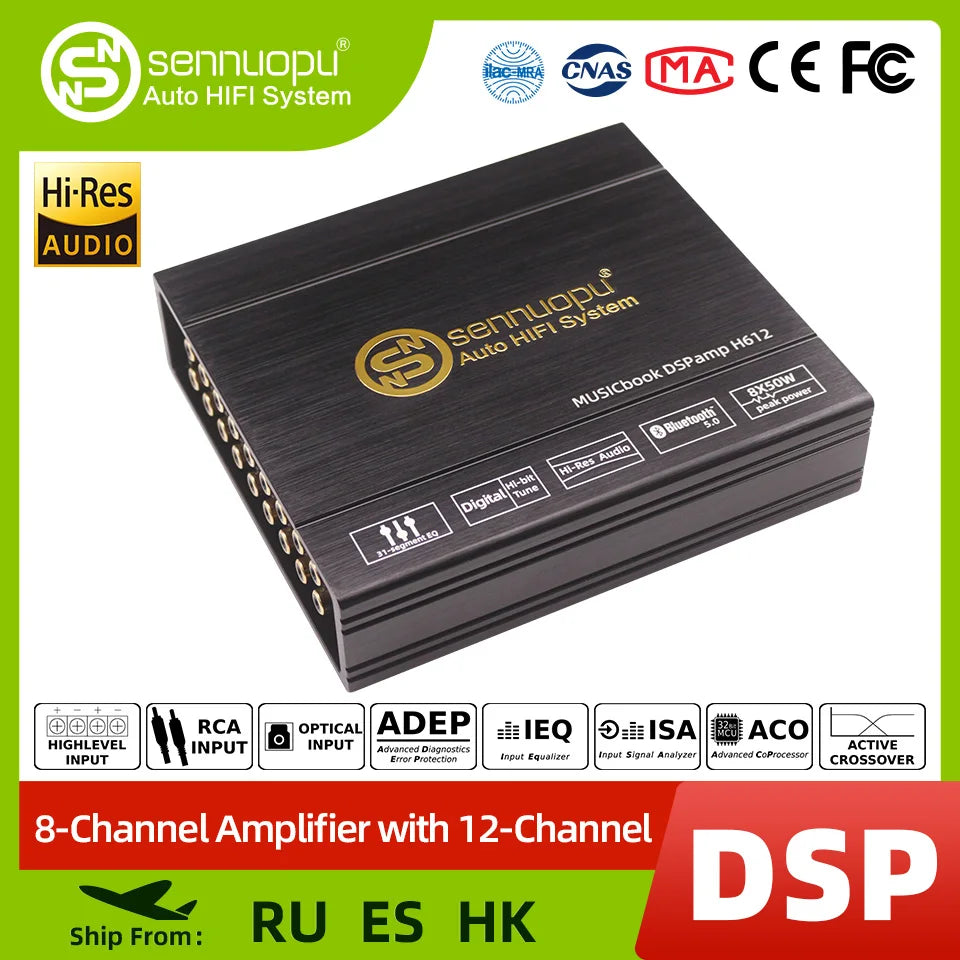

12-Channel Digital Sound Processor

Routing and Mixing
To enhance the audio processor,all input and output signals can be routed with great flexibility,parameters loaded synchronously to ensure filter stability,and then 100% encoding efficiency,system designers can use this DSP to compensate for the actual,limitations of the speaker,amplifier and listening environment through speaker equalization,multiband compression,clipping and third-party algorithms,this significantly improving the sound quality experience

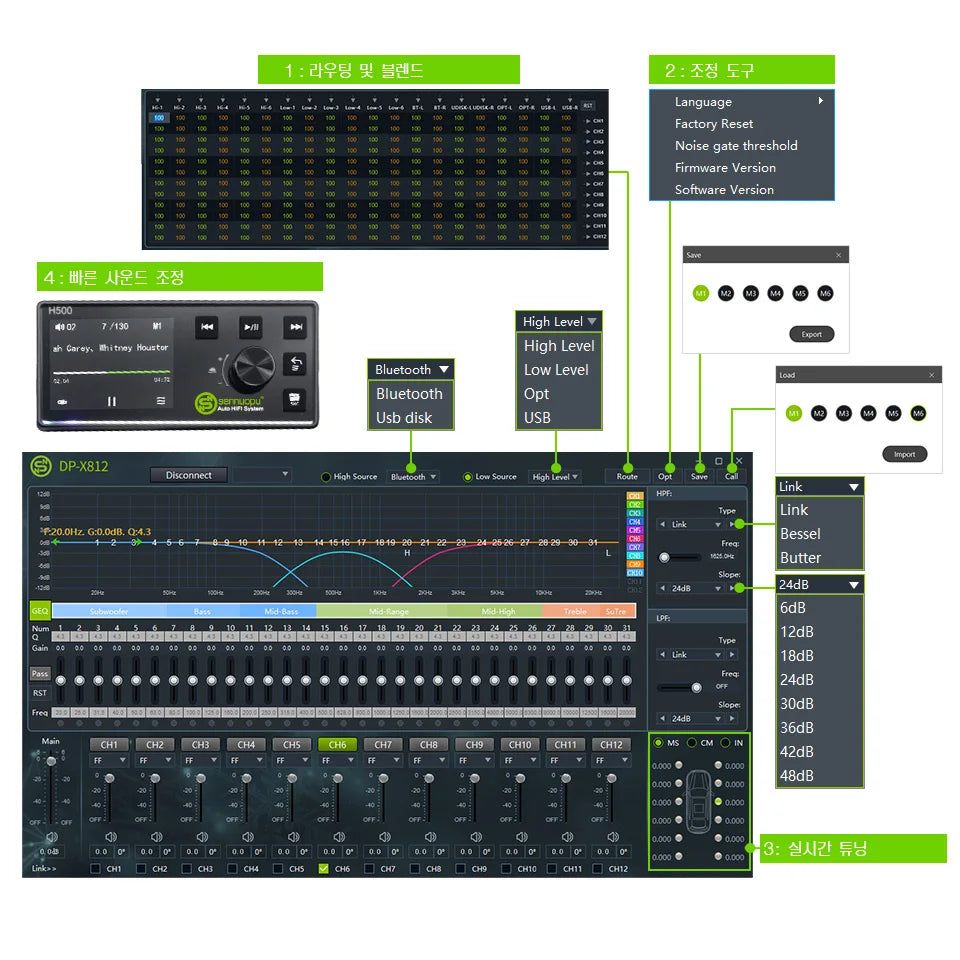

TUNING TOOLS
Objects and materials in the vehicle, like seats, center consoles, leather, and glass, can all contribute to the overall quality of the sound experience. The processor can be tuned with the 31 Band Parametric or Graphic EQ for precise adjustments. Detailed high/low crossovers and expansive time correction can be made to each of the 12 channels. This allows the tuner to overcome acoustical abnormalities in the vehicle and set a proper sound stage for premium sound performance.
REAL-TIME TUNING
Tuning can be done wirelessly via Bluetooth® from a smartphone or through a wired USB connection with a PC. This offers one convenient place to see all inputs/outputs, crossover, time correction, and 31 Bands together for immediate visual recognition.
QUICK SOUND ADJUSTMENTS
The optional LCD remote controller can access some functions of DSP, and the remote controller can be installed on the dashboard to facilitate access. The knob can quickly adjust the volume, preset storage and output, and source selection. The results are displayed on the LED screen.

How to Tune Digital Sound Processor (DSP) with H612
https://youtu.be/JkBz07FIj-8

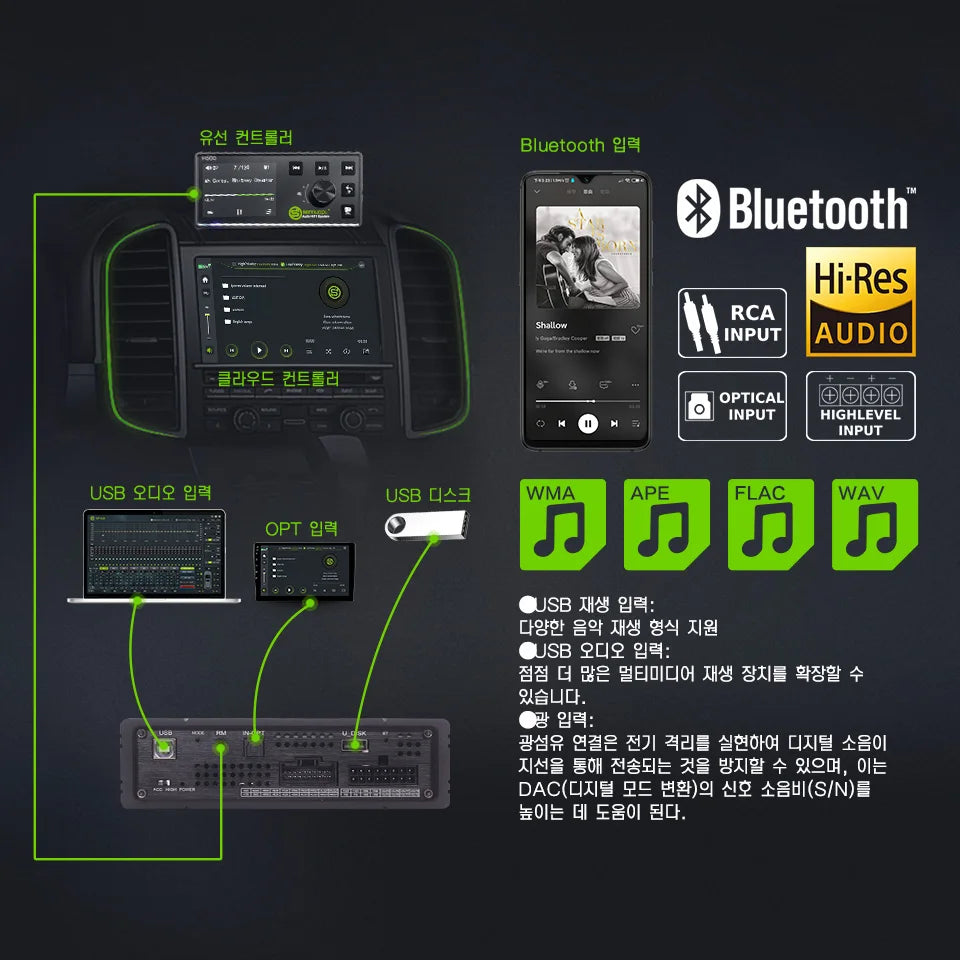

STREAM MUSIC WITHOUT A HEAD UNIT

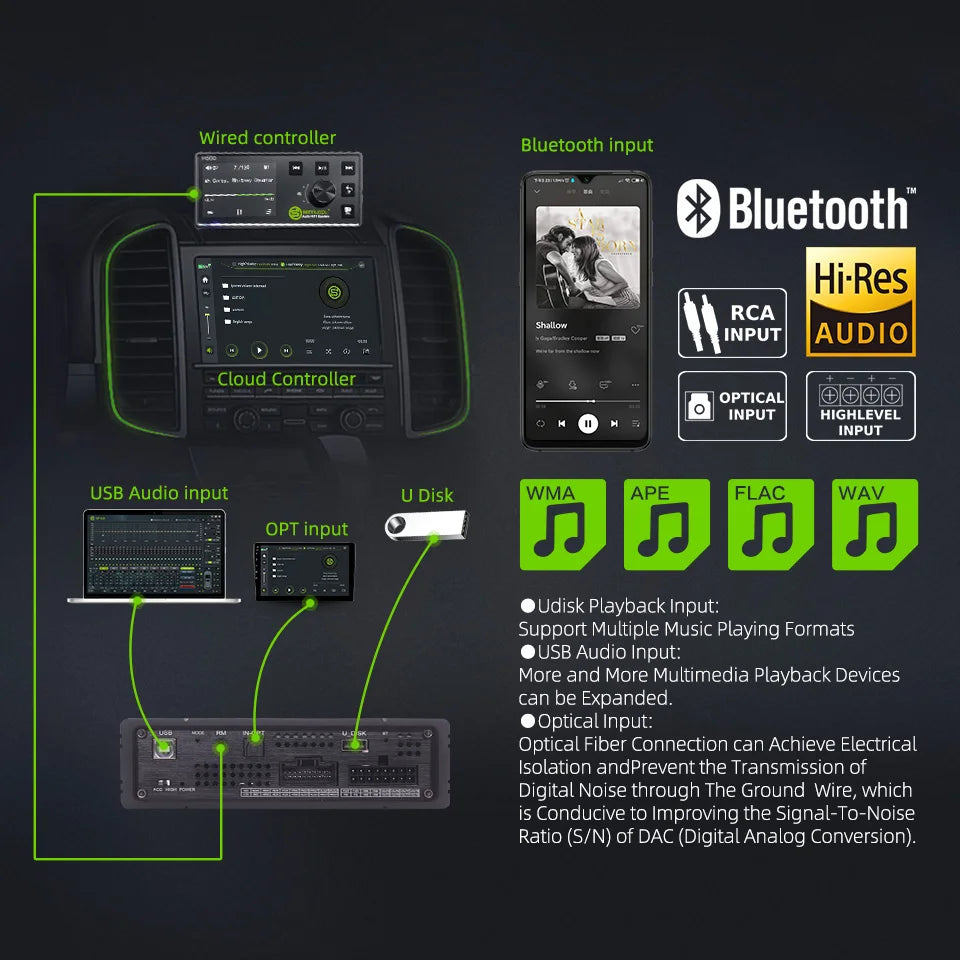

For vehicles that don't have a music source. like a head unit or stereo, the H612 can receive music sent directly from a smartphone with Bluetooth wireless streaming Or use USB memory to store WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3 audio and play music so you can still enjoy personal playlists without replacing the factory head unit or adding an aftermarket head unit.

TECH SPECS

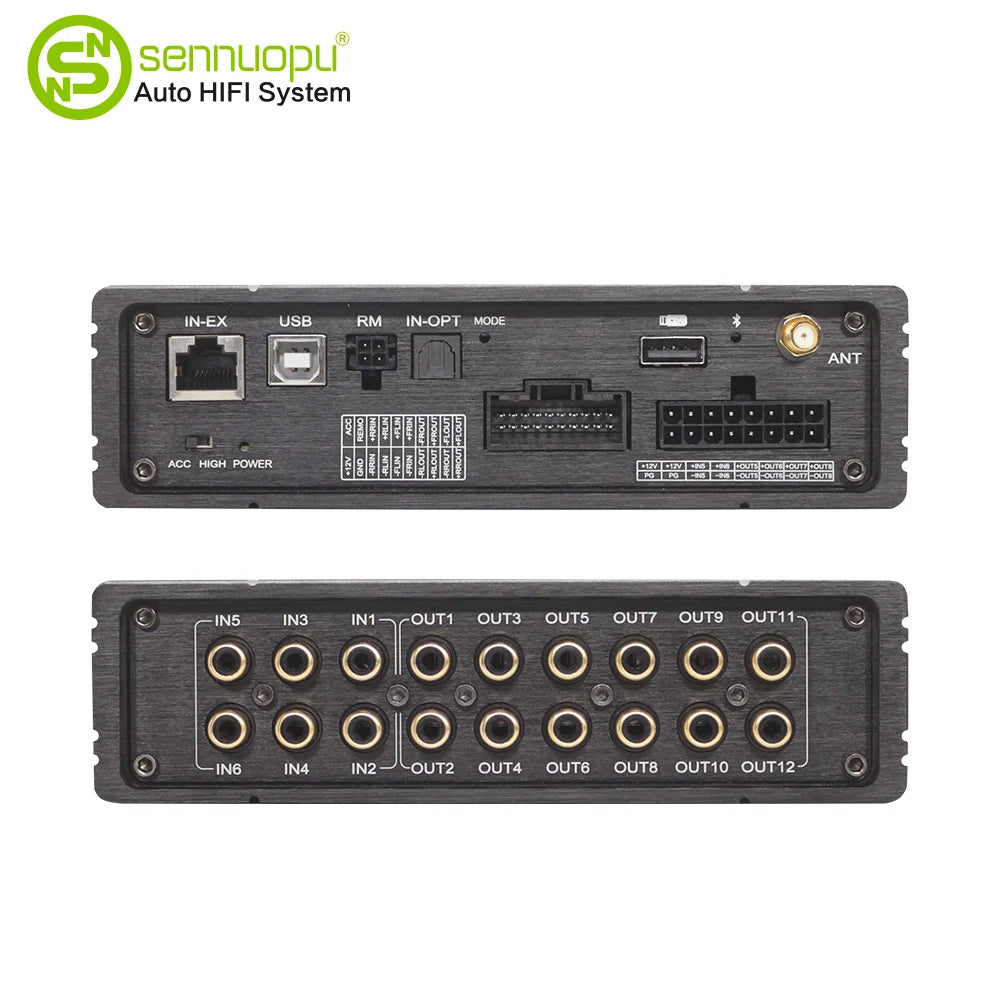

•6 Low and/or High-level inputs
•12 RCA outputs
•Matrix Mixing
•50W RMS x 8 (4Ω,<1% THD+N,14.4V) (mirrors the first 8 RCA outputs)
•Frequency range: 20Hz~20KHz, 1Hz steps
•Q:0.404-28.85, 0.01 steps
•Gain: -12.0dB~+12.0dB, 0.1dB steps
•Filter crossover points:20Hz-20KHz.1Hz steps
•Slopes:6dB,12dB, 18dB, 24dB, 30dB, 36dB, 42dB, 48dB
•31 Band Parametric or Graphic Output EQ
•High pass, low pass, and bandpass, independent filters per channel
•Time correction: Up to 20ms delay per channel
•Delay units: 0.000 to 20 milliseconds, 0.00 to 692 centimeters, 0.00 to 273 inches
•0 deg. or 180 deg. phase adjustment per channel
•Specialized type filtering: Butterworth, Linkwitz-Riley, Bessel

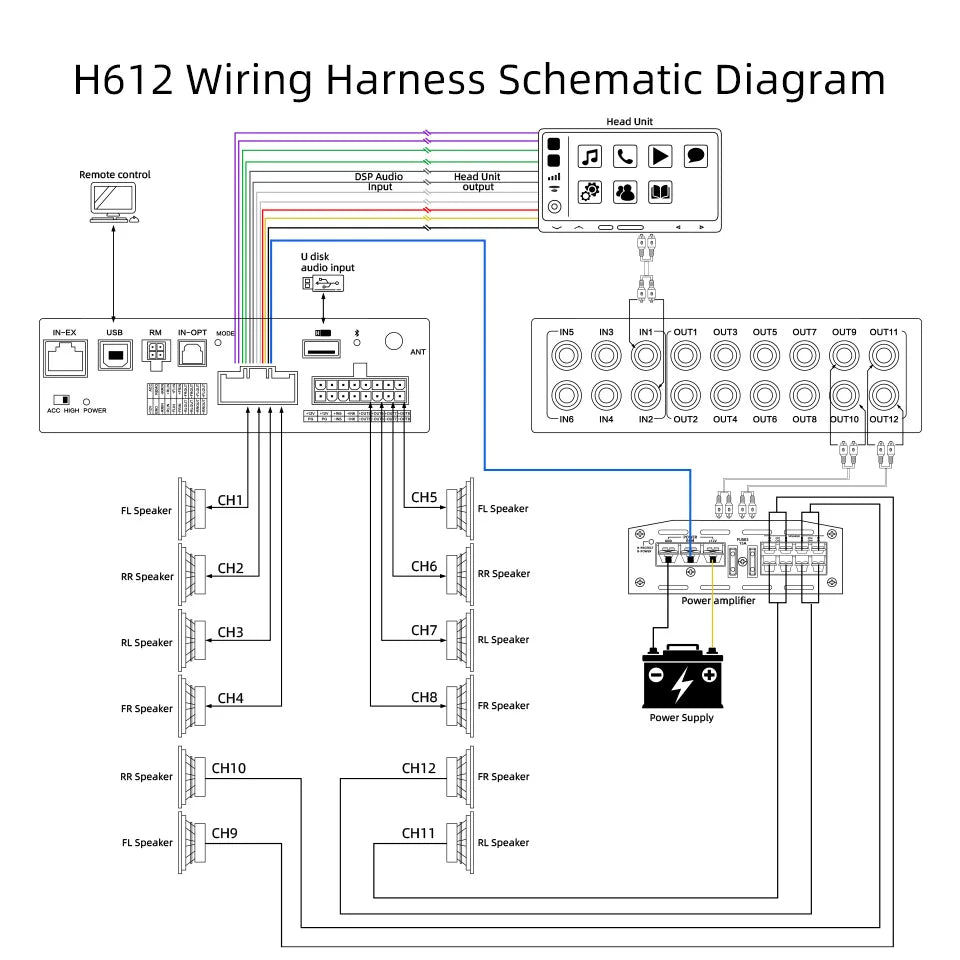

Installation Guide

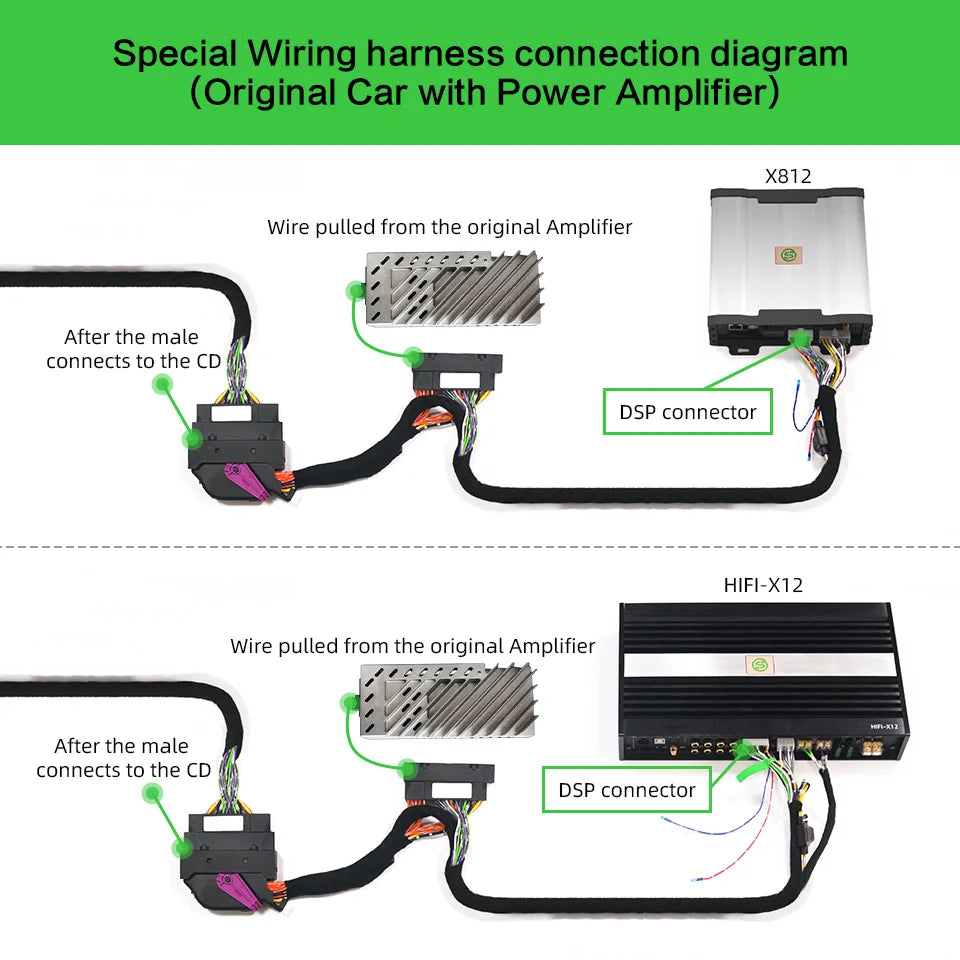

1. Support plug-and-play installation of special car wiring harness, each model is different, please contact us to inquire your model.
Note: Additional purchase is required for special car wiring harness
2. Support multi-channel power amplifier installation.
