SPECIFICATIONS

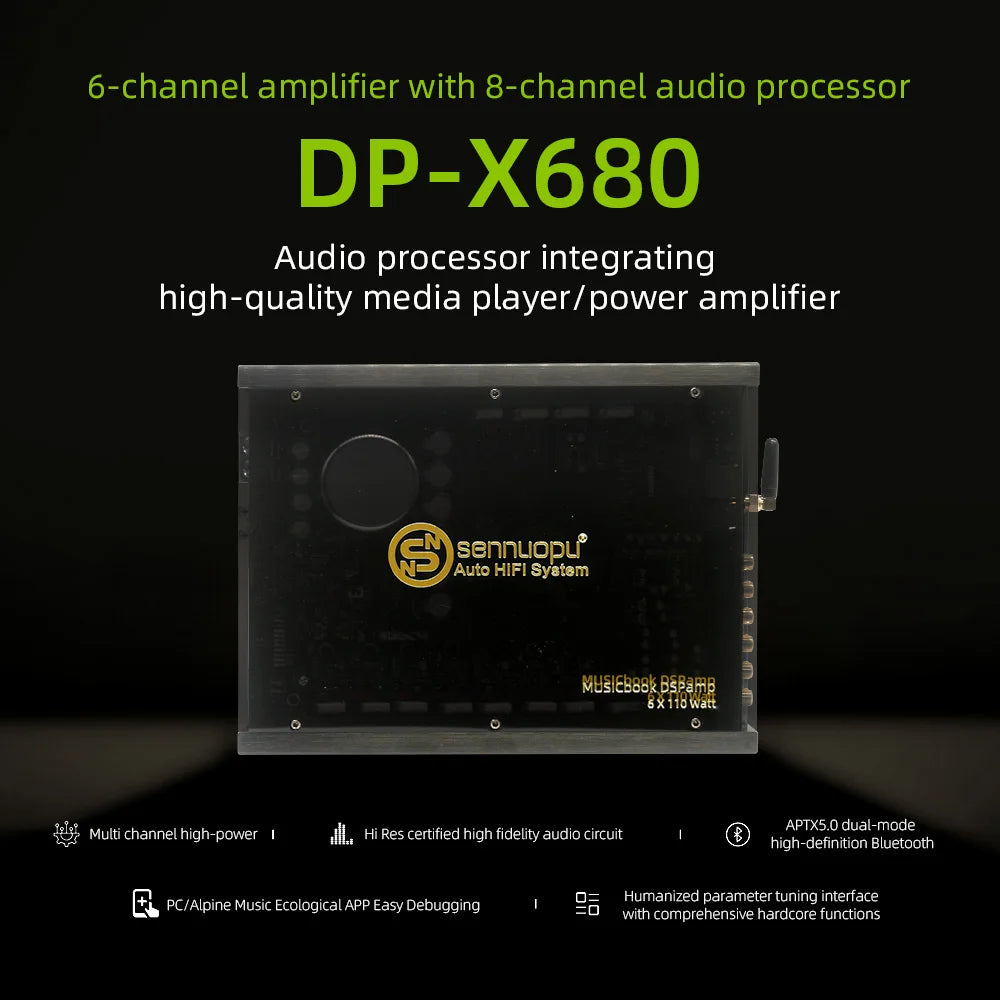

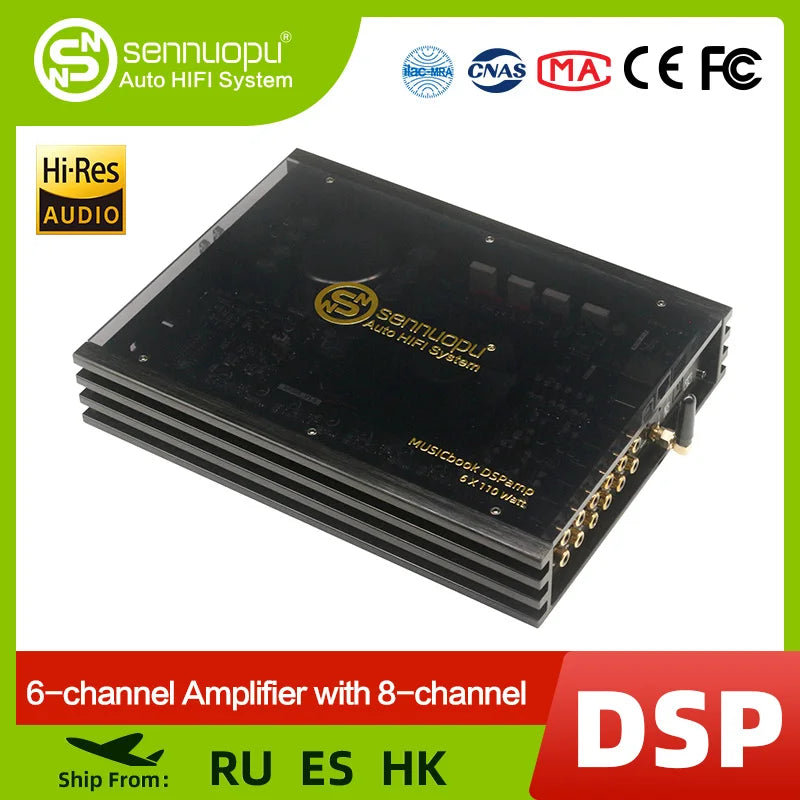

★★★Sennuopu 8 Ch dsp audio processor power 6 Channel subwoofer amplifier car★★★

➤ Experience your music in Hi-Res with the versatile X680 6-Channel Amplifier with 8-Channel Digital Signal Processor, The highest power output in its category, you'll hear the hair-raising details of music with the most accurate sound reproduction for music that stays true to the artist's intention.
➤ Built-in 6*110 Watts power amplifier, with enough energy to push P65-242 2-way speaker with high dynamics, and the 5th and 6th channels can be bridged to push 450 Watts bass speaker.
➤ Easy plug-and-play and lossless installation.
➤ 8-channel DSP, each channel can be adjusted separately, allowing you to easily adjust your car Concert Hall.

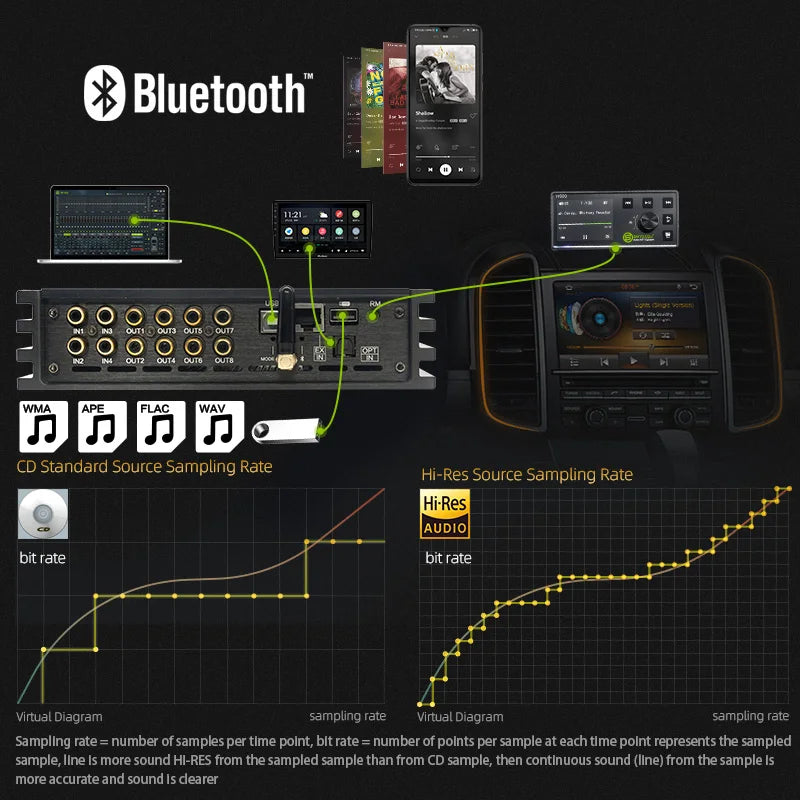

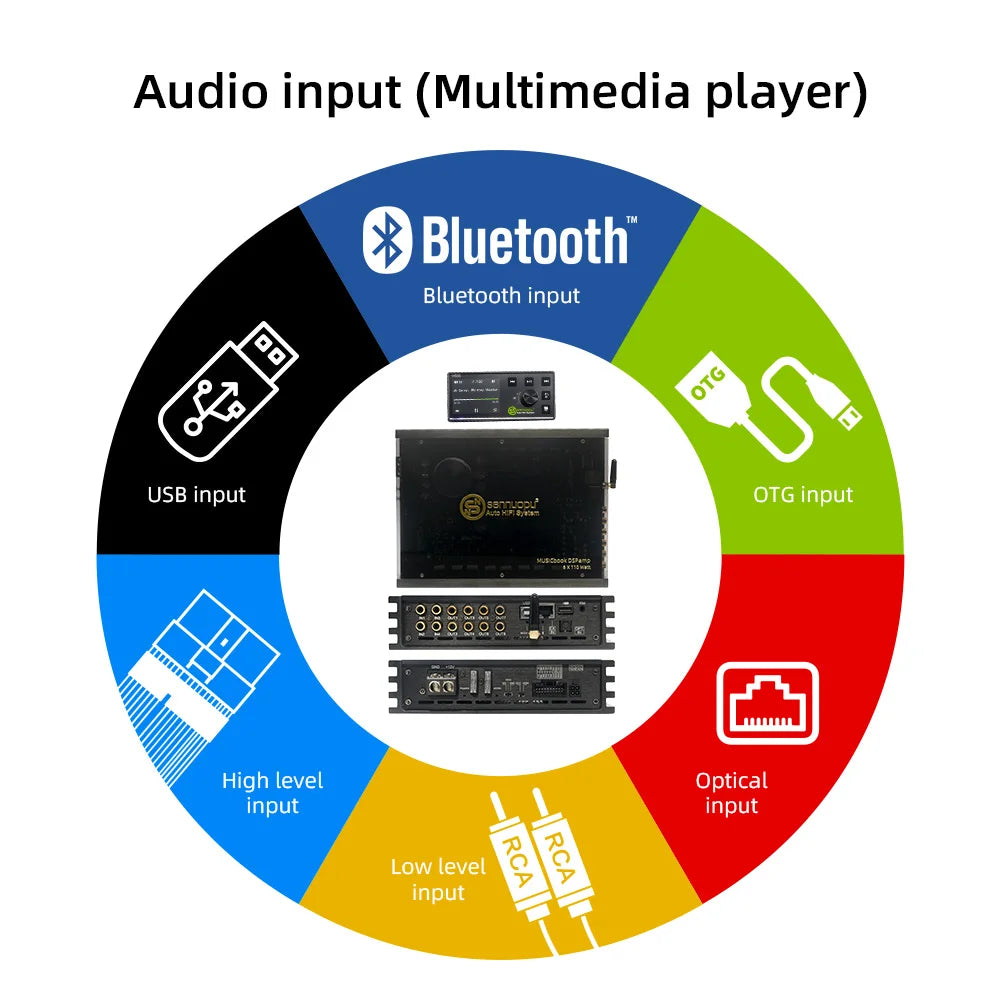

➤ X680 Features--Audio Media Player

X680 is a high-quality audio media player;
Application of HD Bluetooth player audio solution;
● Udisk playback input:Support Multiple Music Playing Formats(FLAC,APE,MP3,WAV,AAC,WMA)
● USB audio input : More and More Multimedia Playback Devices can be Expanded.
USB Format Support : FAT16/32, NTFS
● Ooptical input : Optical Fiber Connection can Achieve Electrical Isolation and Prevent the Transmission of Digital Noise through The Ground Wire, which is Conducive to Improving the Signal-To-Noise Ratio (S/N) of DAC (Digital Analog Conversion).
Udisk playback input supports lossless playback (FLAC / APE / WAV / MP3 / WMA/FIA, etc.);
● Can supports LED remote controller
● Android head unit playback control. Need to download the APP we provide to install in the head unit.

➤ X680 Features--8 CH Digital Signal Processor

X680 is also an 8 Channel Digital Signal Processor;
●8-channel OMAP 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision) digital processor；
●31-band EQ with fine tuning, Adjustable high-, low-, and band-pass filters (20-20 KHz),
●Selectable filter slopes (6, 12, 18, 24, 30, 36, 42, 48 dB/octave), Selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley),
●Delay: 0-20 milliseconds (0-273"),
●Phase adjustment: 0 or 180°.

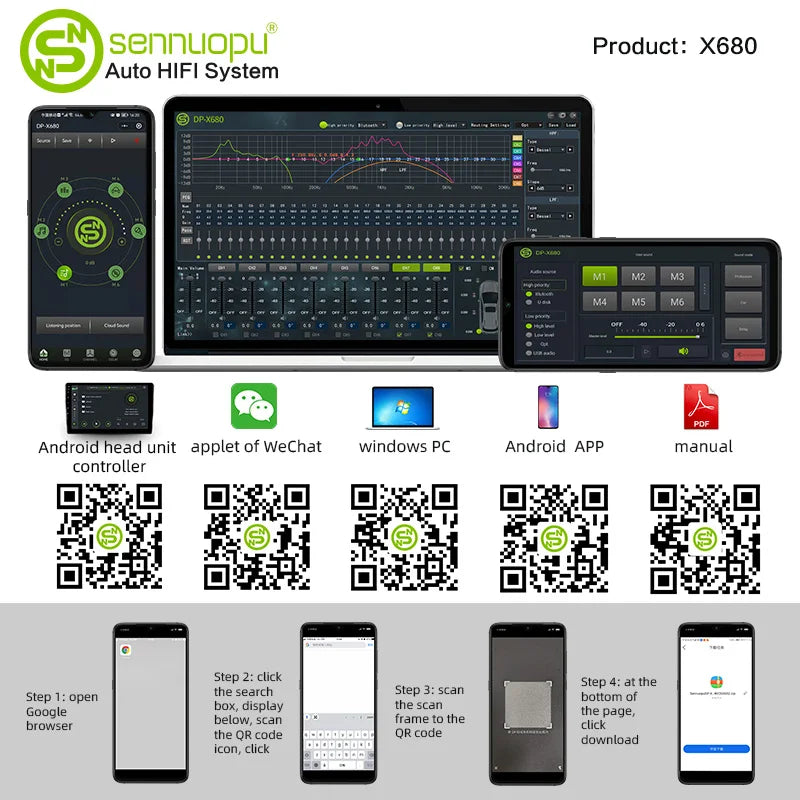

●DSP settings and adjustments made with windows PC via USB.
Note: The APP only supports Android phones and only supports more than 9.0 systems. IPhone is not supported.

➤ X680 Features--6 Channel Power Amplifier

X680 is a 6 Channel Power Amplifier;
6*110W @4Ω (Rated Power)
6*280W @4Ω (Maximum Power)
CH5 & CH6 Bridge--480W @4Ω ,Class AB

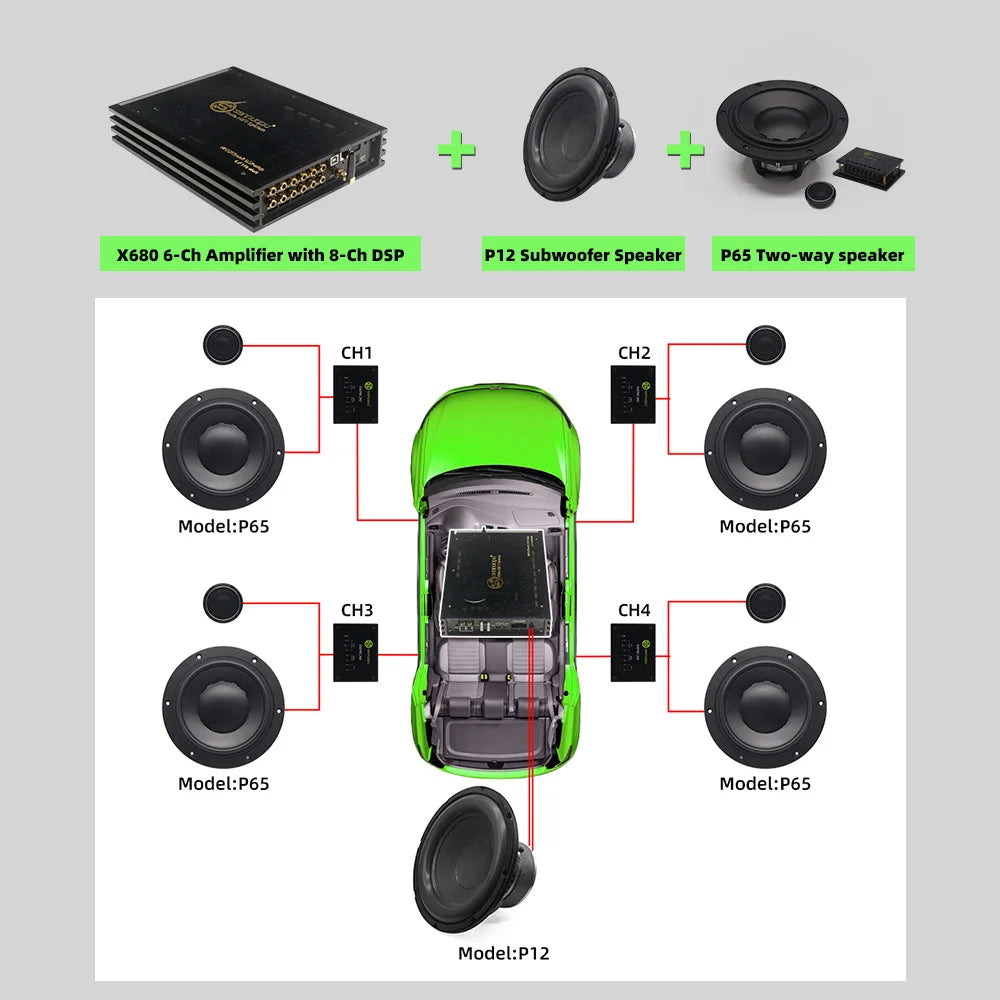

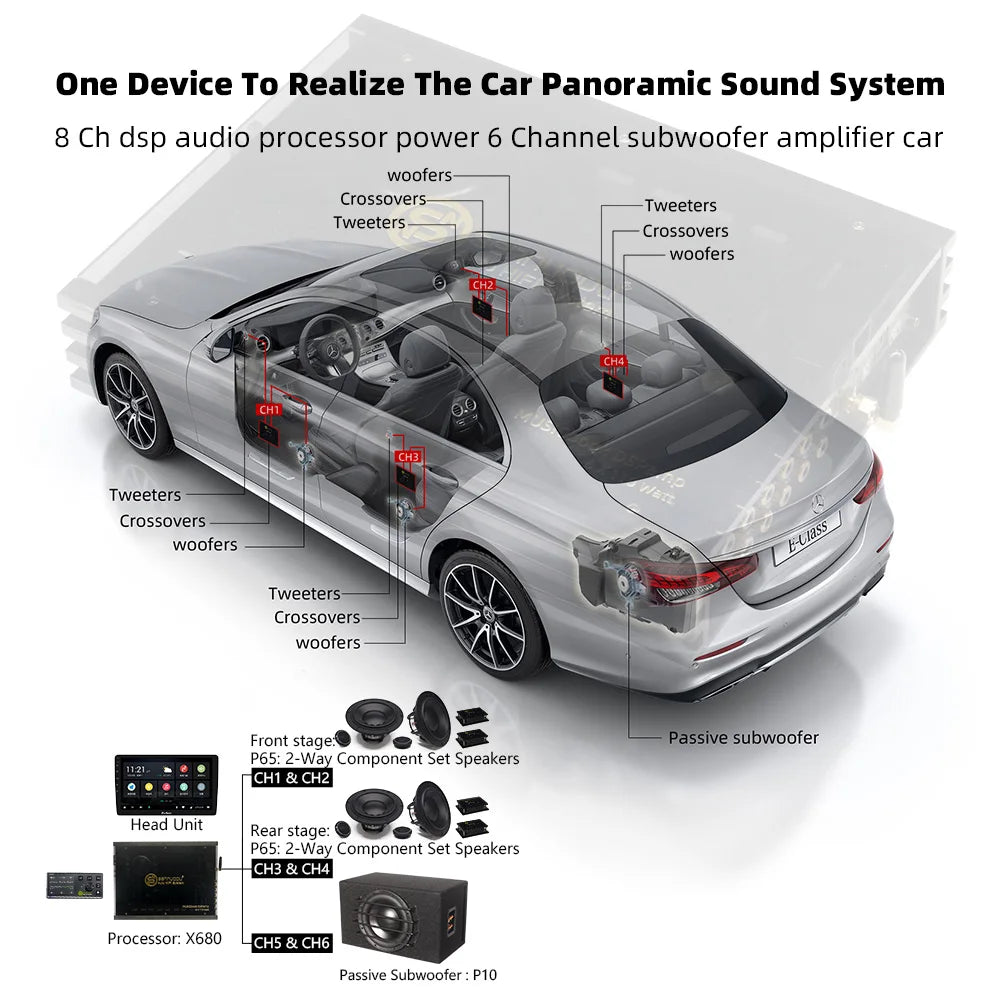

CH1~CH4 is responsible for promoting FF, FR, RF, RR channels. CH5 and CH6 bridge drive passive subwoofer

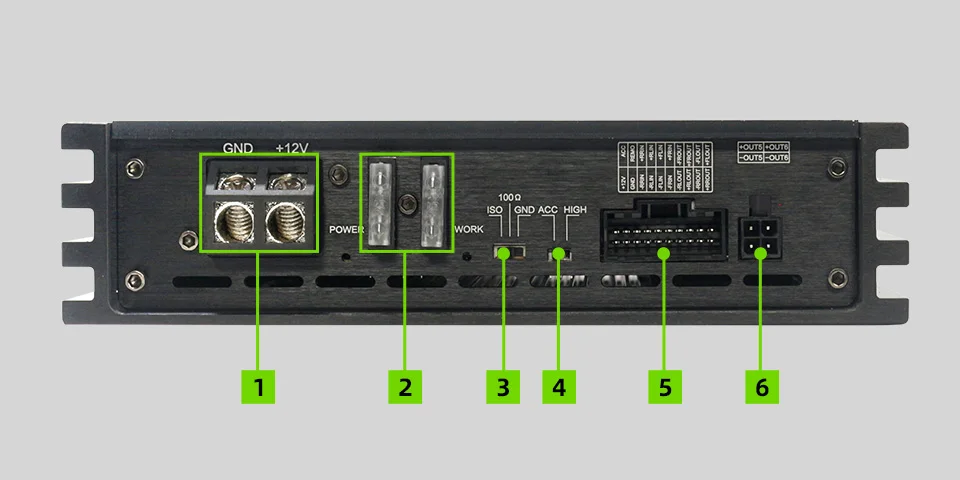

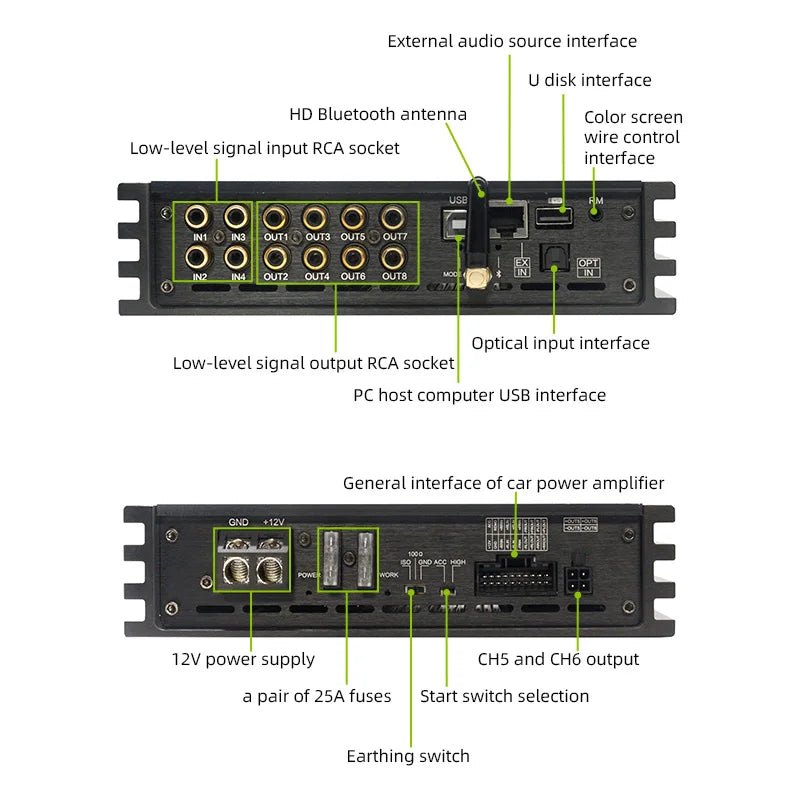

1、12V power supply
2、A pair of 25A fuses
3、Earthing switch
4、Start switch selection
5、General interface of car power amplifier
6、CH5 and 6CH output

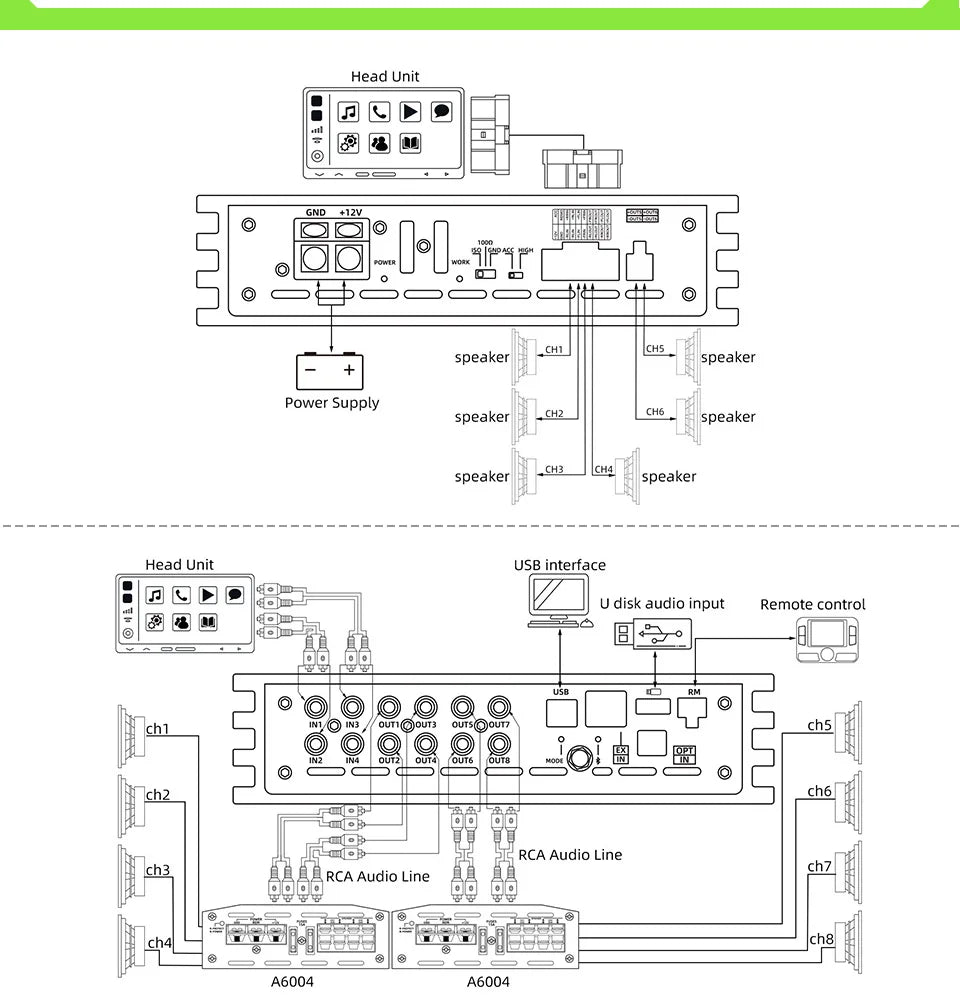

▼▼Installation Guide▼▼

●Support plug-and-play installation of special car wiring harness, each model is different, please contact us to inquire your model.
●Note: Additional purchase is required for special car wiring harness
●Suitable for Volkswagen, BMW, Toyota, Honda, Peugeot, etc.
