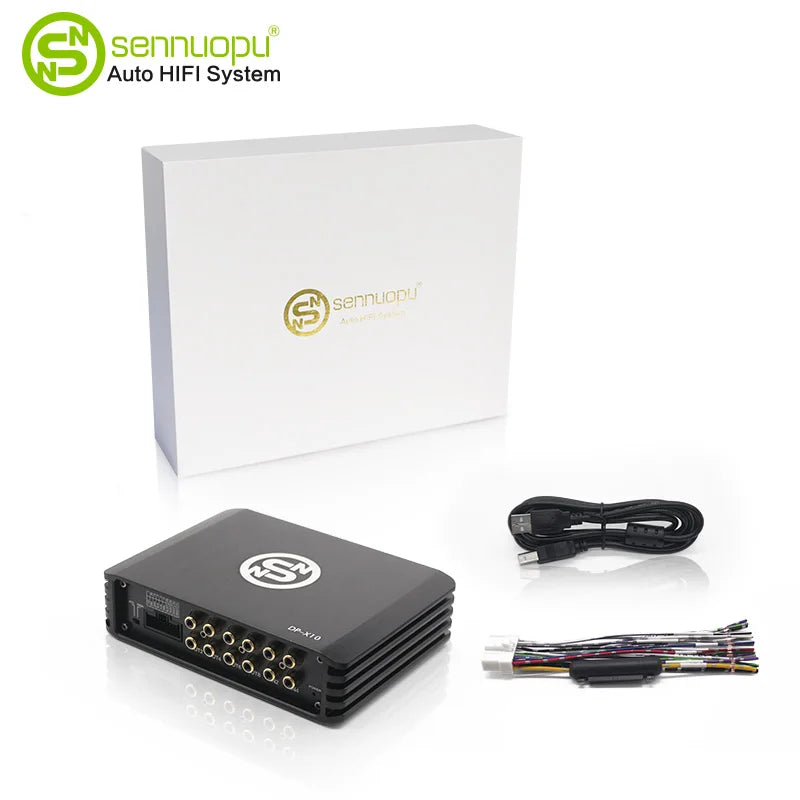

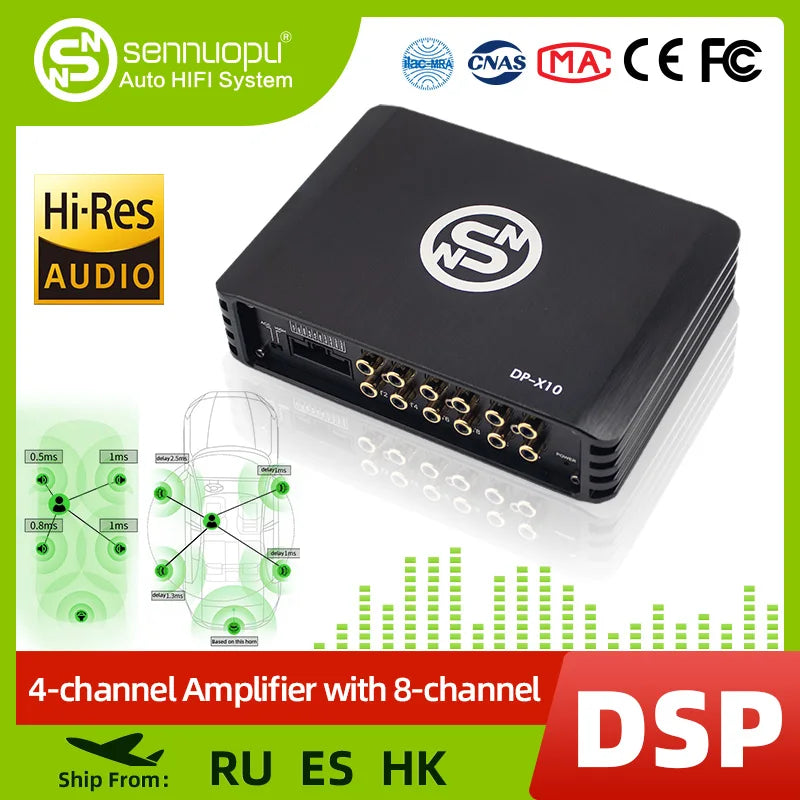

Sennuopu DP X10 Car Audio 4 Ch Power Amplifier 8 Channel Dsp Processor Bluetooth Amp Equalizer Amplificador Automotivio Sound
$438.75
Sale price
$438.75
Regular price
$0.00
Description
SPECIFICATIONS
Applicable models: Volkswagen, BMW, Toyota, Honda, Peugeot, etc.
Audio Encoding: Multichannel
Audio Sensitivity: >100dB
Brand Name: SENNUOPU
Certification: CE,FCC,RoHS
Color Name: black
Controller: LCD Remote Controller
Frequency Range (Hz): 20Hz-20KHz
High-concerned chemical: none
Impedance: 4Ω
Item Size: 280mm*233mm*68mm
Item Type: AMPLIFIERS
Item Weight: 1.45
Material: aluminum
Model Name: DP X10
Origin: Mainland China
Out Power: 4*80W
Signal To Noise Ratio: >94dB
Special Features: Adjustment of the outpower
Testing and certification: CE, FCC, ROSH
channels: 4 channel amplifier with 8 channel DSP

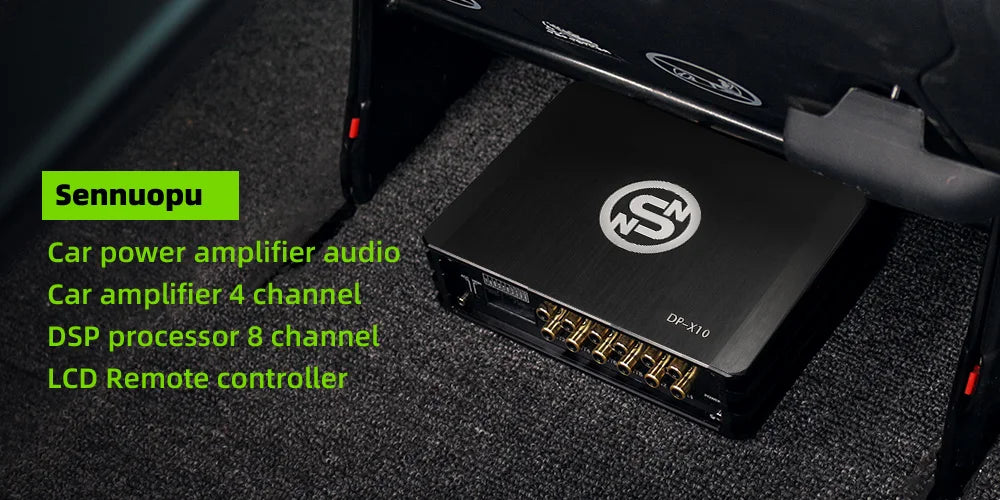

★★★Sennuopu DP X10 Car Audio DSP Processor 8 Channel Audio DSP 4 Channel Car Audio Power Amplifier★★★
The DP-X10 car audio DSP integrates a high-fidelity audio media player, audio power amplifier and digital audio signal processor into a compact body. Designed to deliver premium in-car sound experience, each unit combines advanced switching amplifier technology with a fully functional integrated digital audio signal processor.

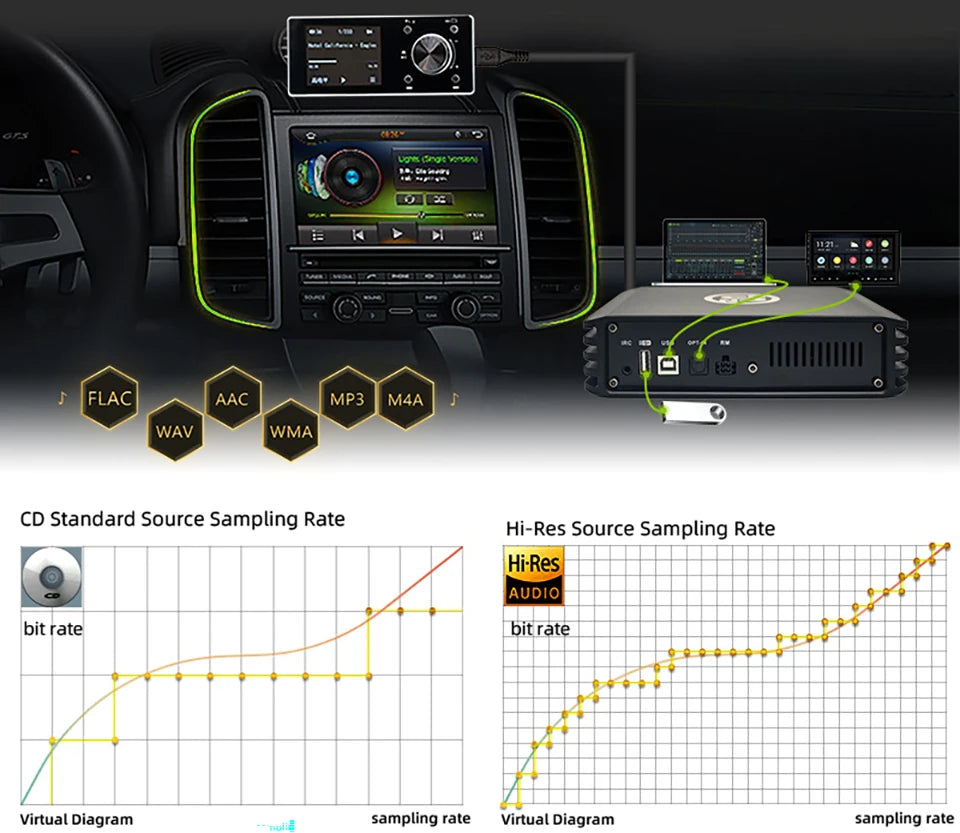

➤ High-Fidelity Audio Media Player Adopts premium HI-FI audio decoding solution, supports U-disk playback, USB audio input, and optical fiber audio input for diverse audio source options.

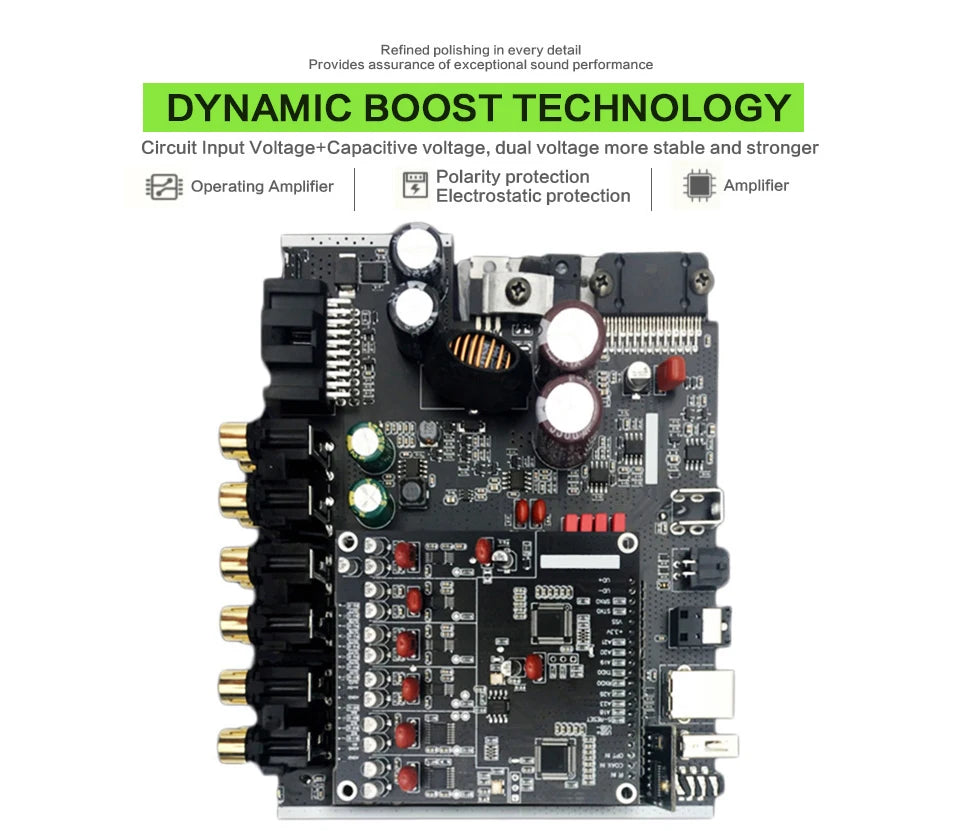

➤ 4-Channel Car Audio Power Amplifier The 4-channel audio amplifier applies advanced switching amplifier technology. It monitors and corrects switching circuit errors in real time, optimizes the dynamic performance of the output filter, and performs timely audio signal correction and amplification, ensuring smooth, delicate and natural amplified sound output.
➤ 8-Channel Digital Audio Signal Processor Equipped with 2 dual-core high-end high-resolution audio processing chips, it delivers natural instrument sound performance and excellent sound separation.
▼▼Core Technical Parameters▼▼
1.Working Voltage: 10V～17V
2.Standby Power Consumption: <0.1W
3.Audio Frequency Response: 20Hz～20KHz
4.Audio Signal-to-Noise Ratio: >100dB
5.Audio Channel Separation: >80dB
6.Audio THD+N: < 0.01%
7.High-Level Audio Noise: 90.96uVrms
8.RCA Audio Noise: 7.66uVrms
9.REM Output: 12V (0.2A)
10.Audio Signal Input Range: 0.05Vrms～10Vrms
11.High-Level Audio Input: 4 Channels
12.RCA Audio Input: 4 Channels
13.USB Input: Supports FLAC/APE/WAV/MP3/WMA/FIA and other audio formats
14.Optical Fiber Audio Input: Supported
15.Sound Card Audio Input: Supported
16.AUX Audio Input: Supported
17.High-Level Audio Output: MAX 90W*4 @4Ω
18.High-Level Audio Output: RMS 50W*4 @4Ω

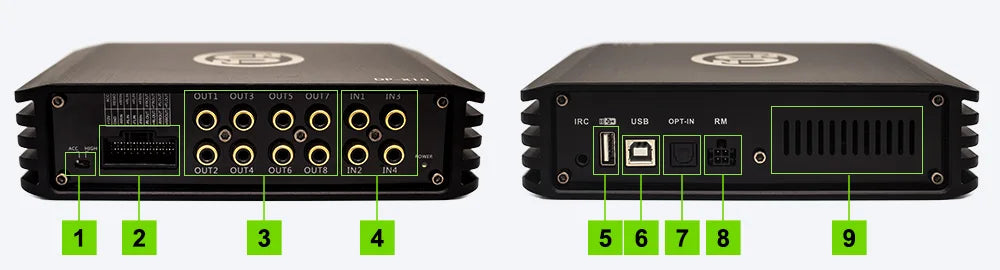

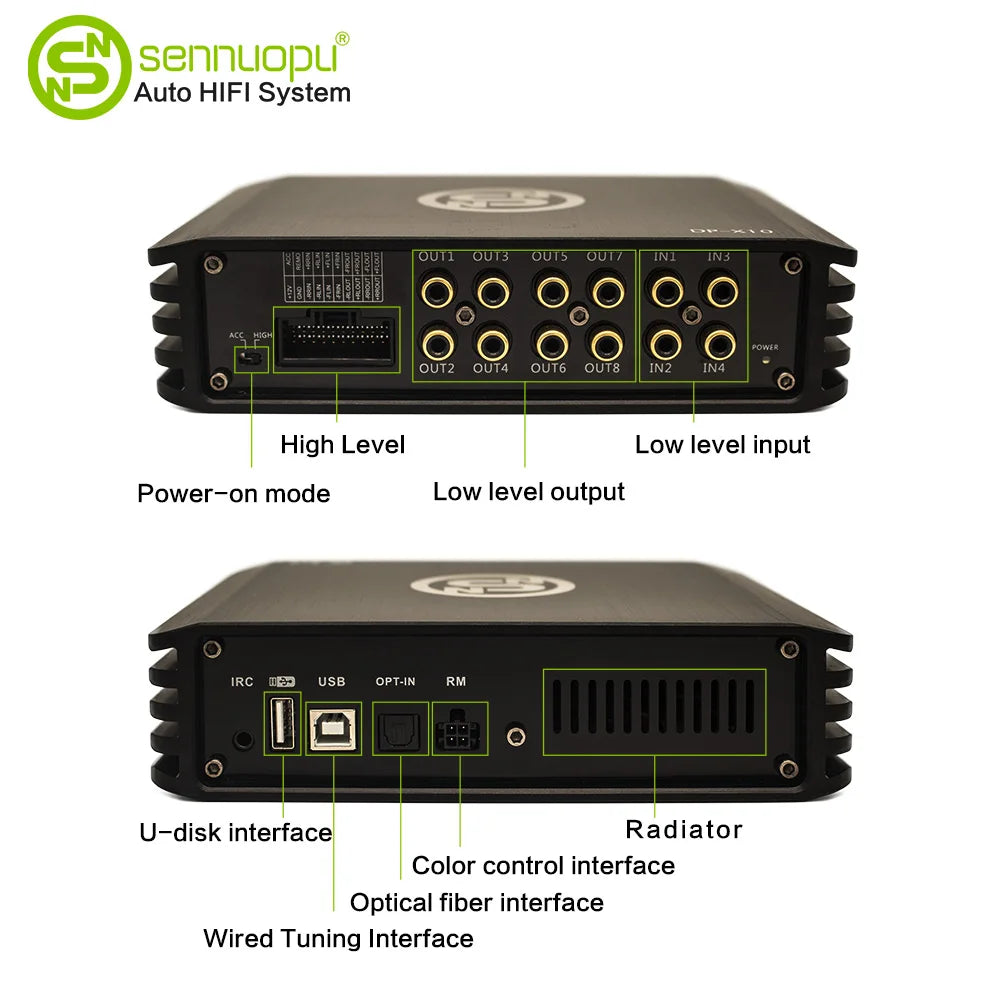

Product Interface Description
1.Power-on mode port
2.High-level audio input port
3.Low-level audio output port
4.Low-level audio input port
5.U-disk interface
6.Wired tuning interface
7.Optical fiber audio interface
8.Color control interface
9.Heat sink

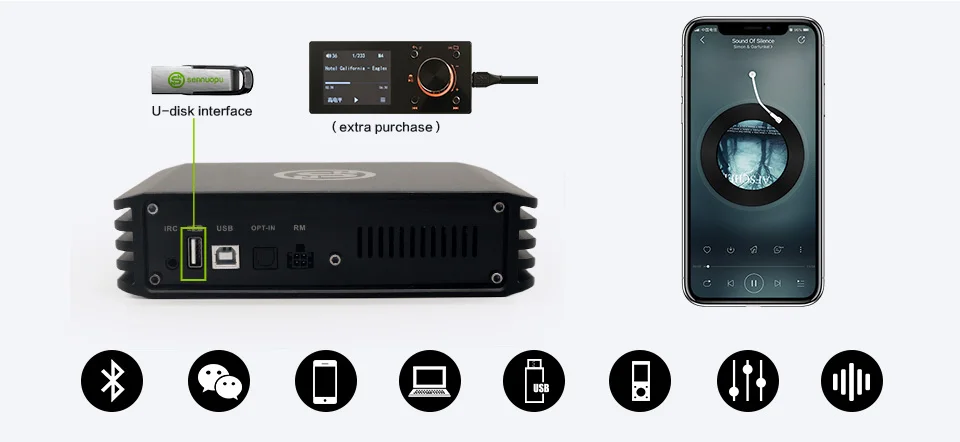

DP X10---Audio Media Player

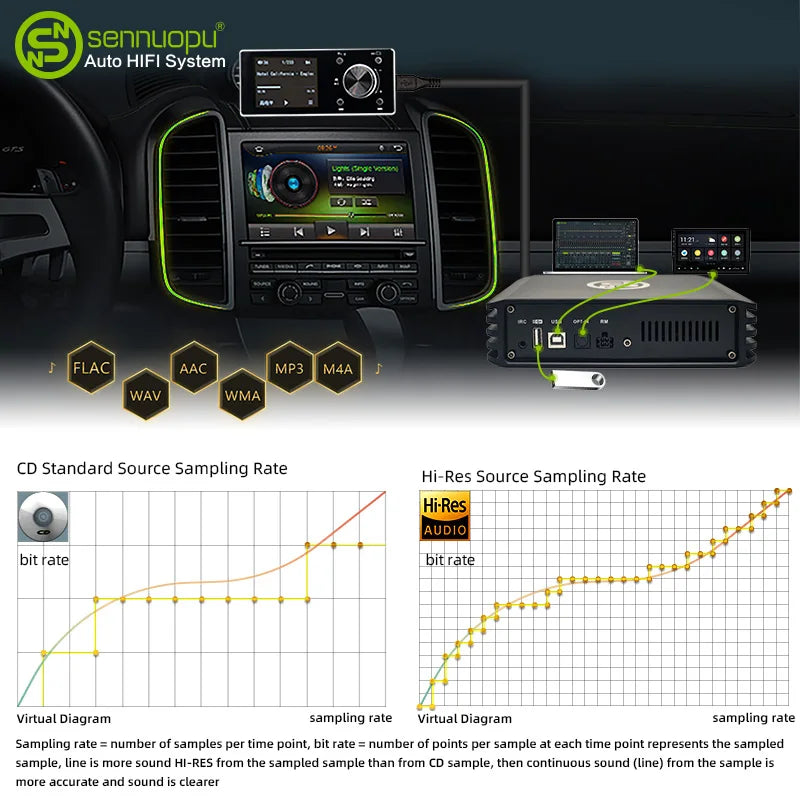

➤ Supports lossless audio playback (FLAC/APE/WAV/MP3/WMA/FIA, etc.)
➤ Supports WeChat mini-program sound tuning ➤ Supports Android APP tuning
➤ Supports PC software tuning
➤ Supports U-disk interface
➤ Supports LCD remote controller
➤ Built-in 31-band adjustable EQ
➤ Supports plug-and-play installation with dedicated car wiring harness (wiring harness sold separately)
DP-X10 — 8-Channel Digital Audio Signal Processor
Equipped with 2 dual-core high-end high-resolution audio processing chips, it delivers natural instrument sound expression and excellent sound separation.

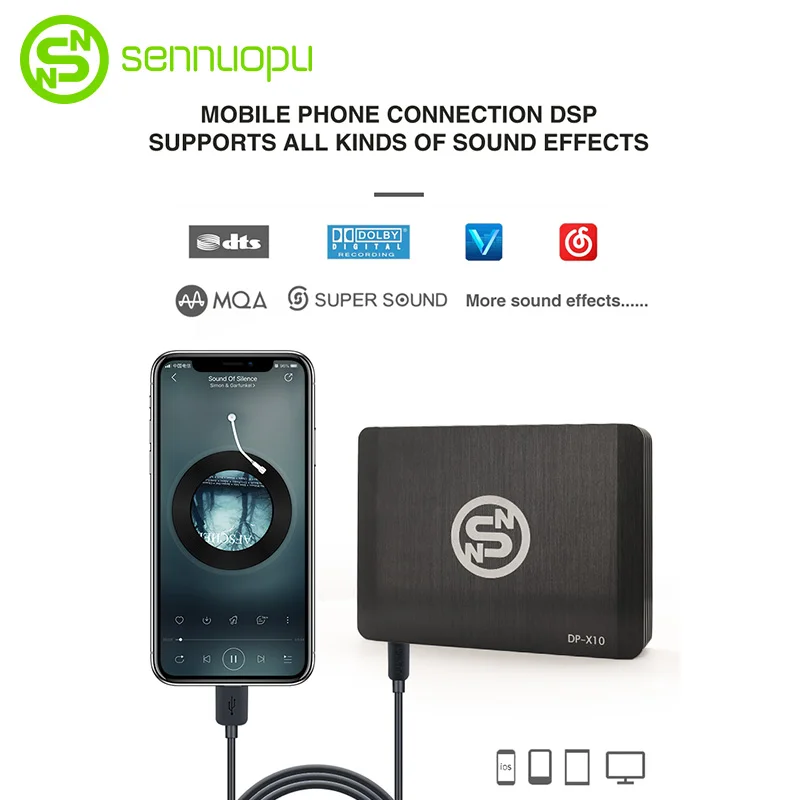

➤Tuning Methods：DSP settings and adjustments can be made via Windows PC through USB connection, or via Android mobile APP.

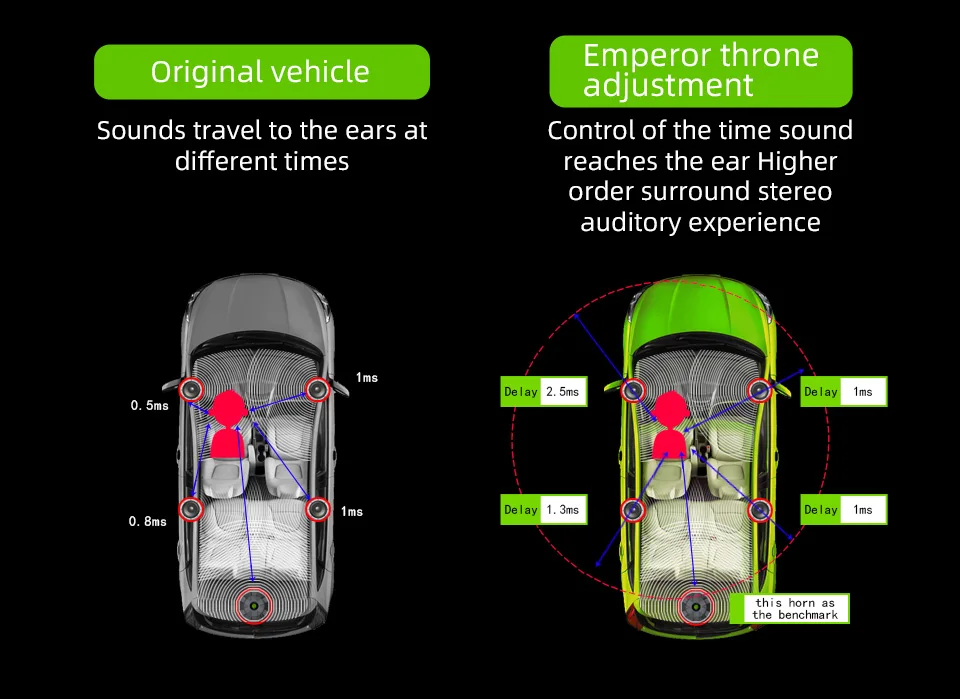

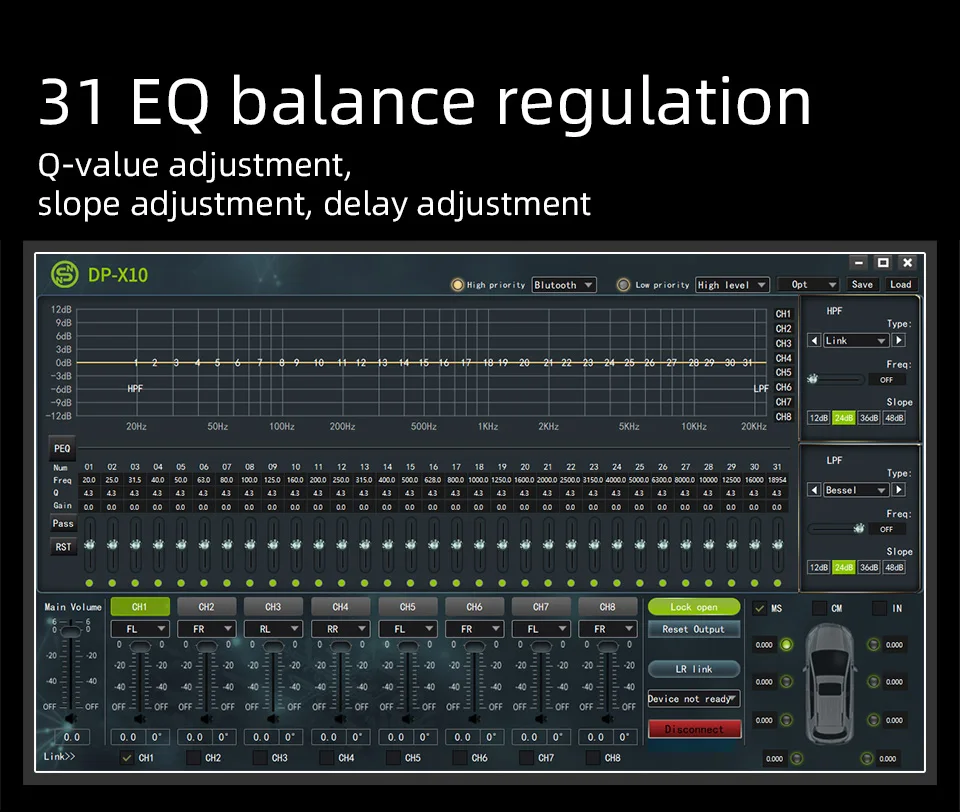

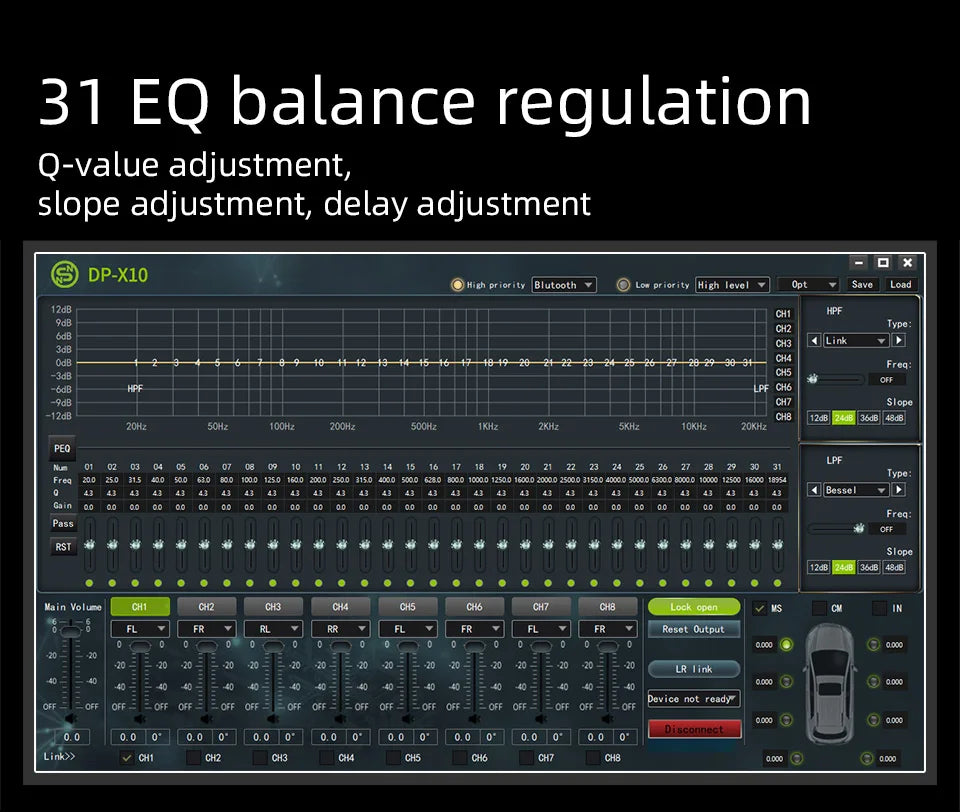

➤Tuning Details：8-channel digital audio processor, 31-band EQ for precise tuning, adjustable high-pass, low-pass and band-pass filters (20-20 KHz), selectable filter slopes (12, 24, 30, 36, 42, 48 dB/octave), selectable filter characteristics (Butterworth, Bessel, and Linkwitz-Riley), audio delay: 0-20 milliseconds (0-273"), phase adjustment: 0 or 180°.
Note: The APP only supports Android phones with system version 9.0 and above; iOS devices are not supported.
DP-X10 — 4-Channel Car Audio Power Amplifier
The 4-channel audio amplifier adopts advanced switching amplifier technology. It checks and corrects errors in the switching circuit in real time, adjusts the dynamic effect of the output filter, and performs timely audio signal correction and amplification, ensuring smooth, delicate and natural amplified sound output.

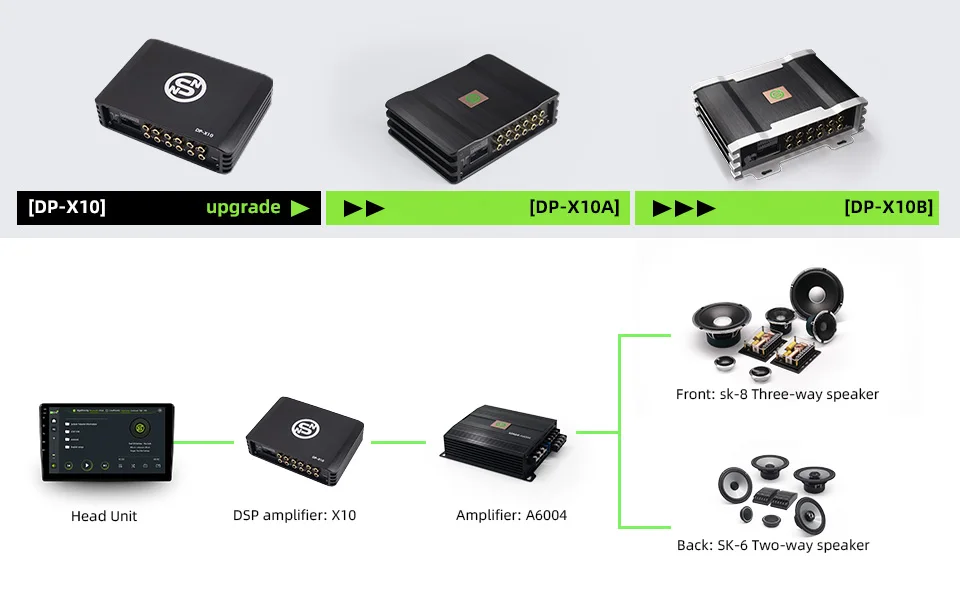

▼▼Product upgrade▼▼

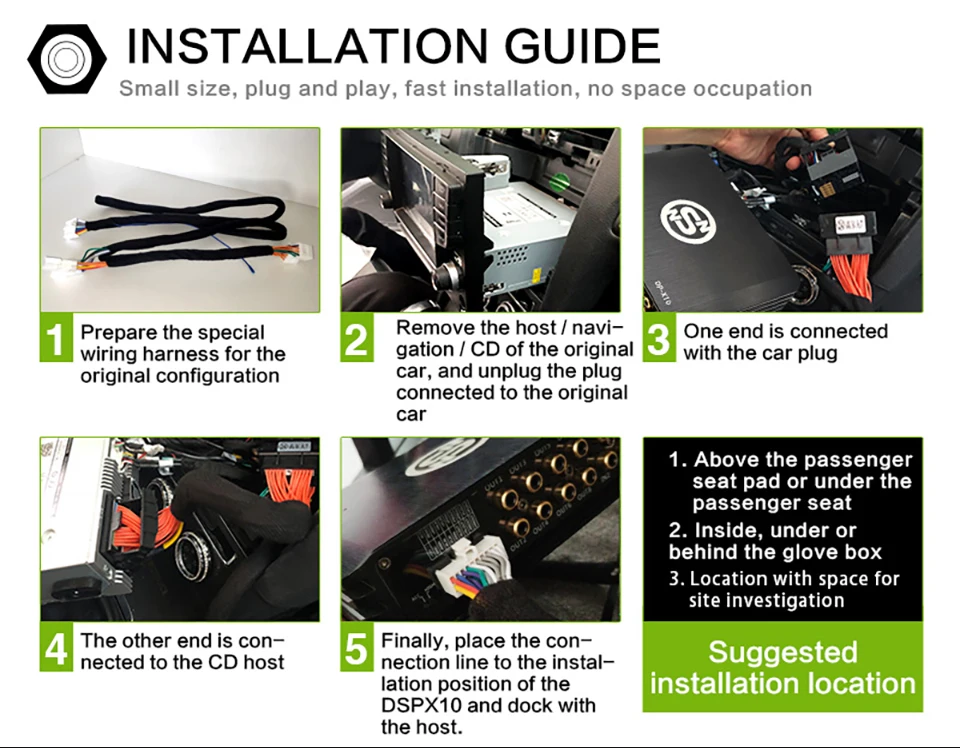

▼▼Installation Instructions▼▼

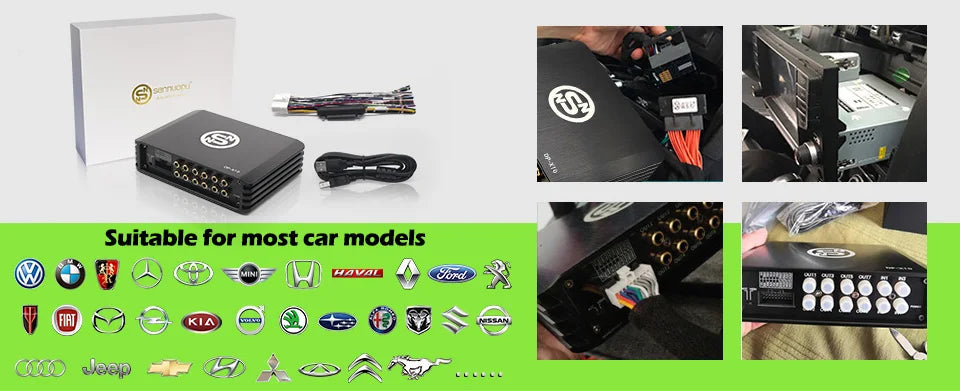

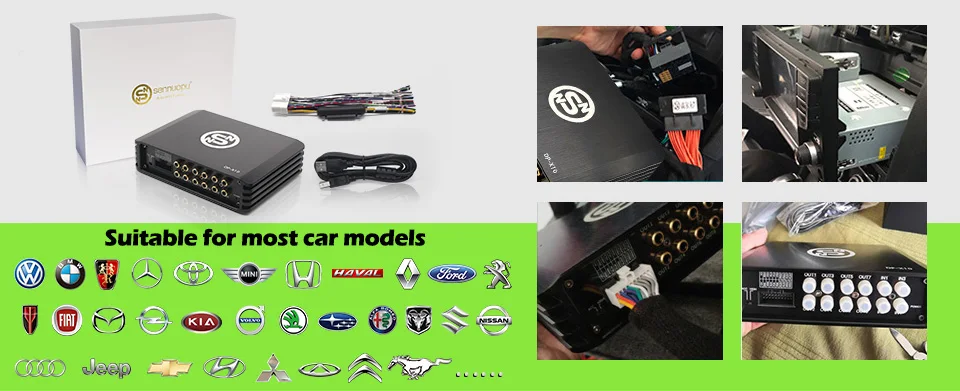

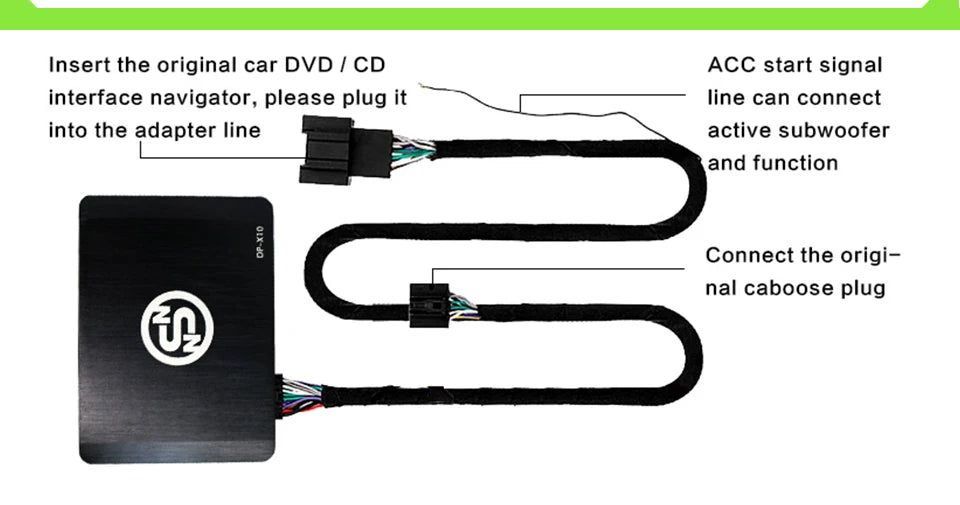

➤1.Supports plug-and-play installation of dedicated car wiring harness. The wiring harness varies by car model, please contact us to confirm compatibility for your vehicle. Note: Dedicated car wiring harness requires additional purchase.

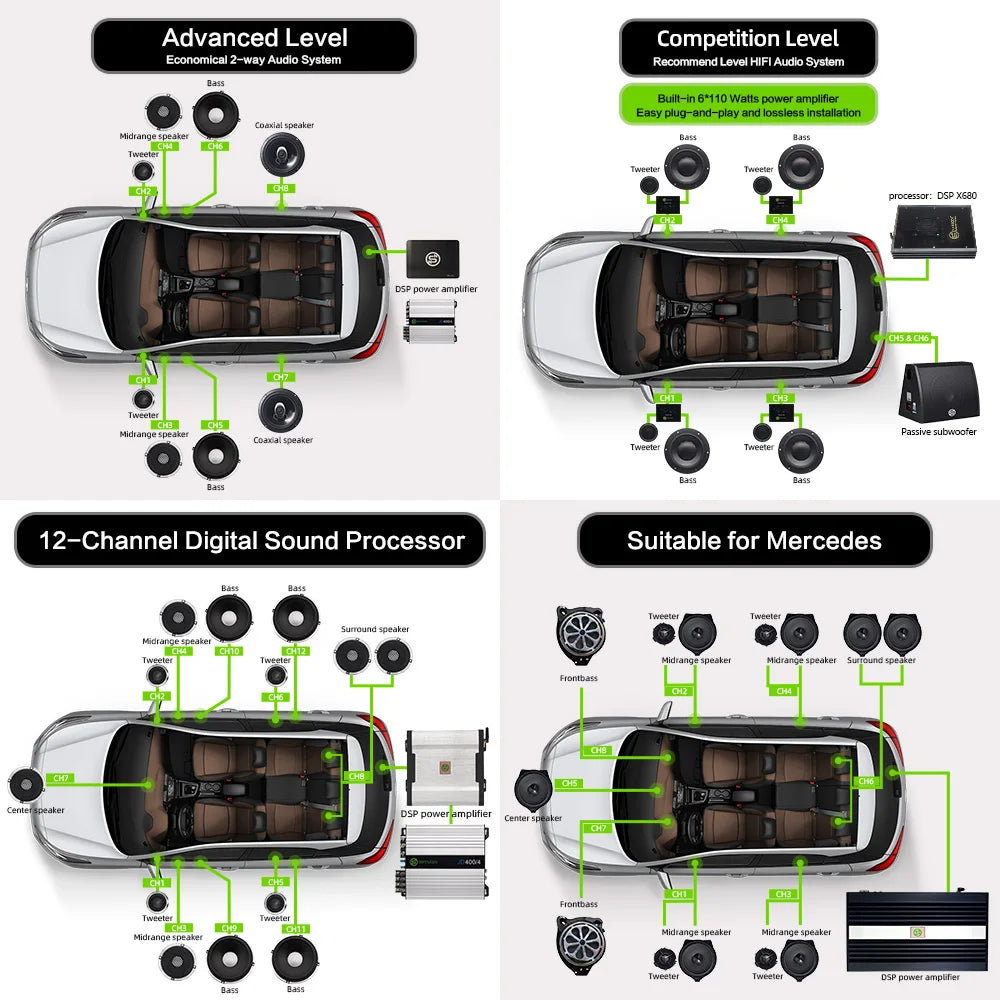

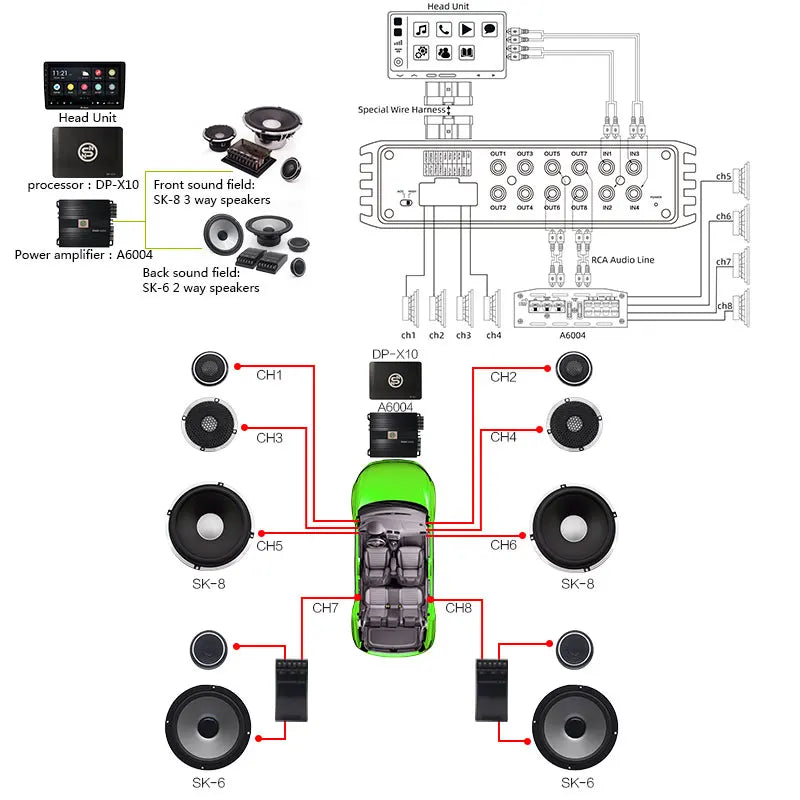

➤2.Supports multi-channel audio power amplifier expansion installation.

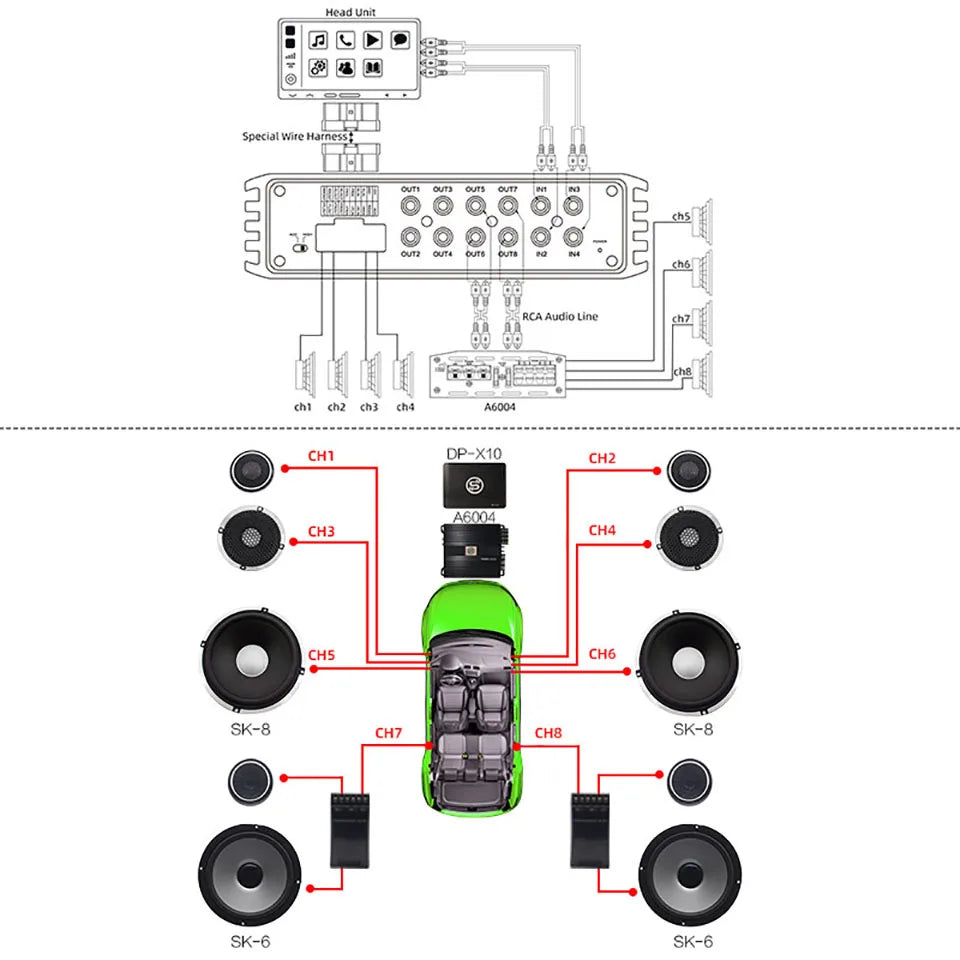

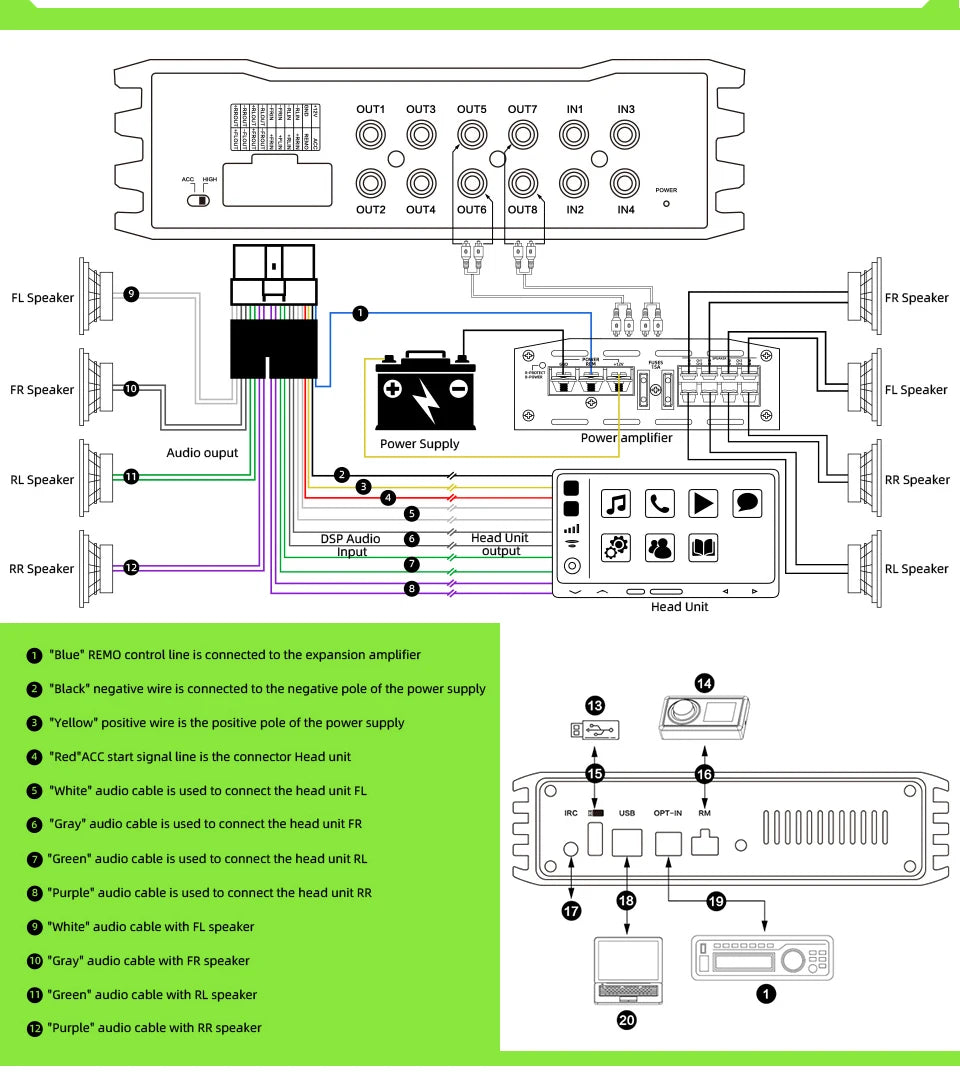

Bedrading Diagram van Universele Kabelboom
DP X10 niet-destructieve installatie
▼▼About US▼▼
SENNUOPU Official Store is the only official store authorized directly from SENNUOPU without transfer link. It is committed to selling 100% original authentic products.
Sennuopu Audio originating from NSN-Audio in Denmark, is a manufacturer with strong technical strength of Auto audio equipment. All products are designed and developed in Denmark and made in China.
Sennuopu is always looking to innovate and provide innovative goods and services to customers with a brand new automotive life.
▼▼ Onze vision▼▼
Laat Iedereen Genieten Van De Auto Concertzaal
Warranty Policy
Return & Refund, 1 Year Warranty
No reason to return goods within 15 days. This warranty don't fit damage caused by accident, misuse, or modification. Only the parcel without personal error use or damage which not affect the second-sales of the parcel.
You can send item for repairing within 1 year after receipt. Shipping cost on buyer side.
